Public Types | Public Member Functions | Protected Attributes | List of all members
Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType > Class Template Reference
Dense matrix and array manipulation » Reference » Core_Module

Generic expression where a coefficient-wise binary operator is applied to two expressions. More...

#include <CwiseBinaryOp.h>

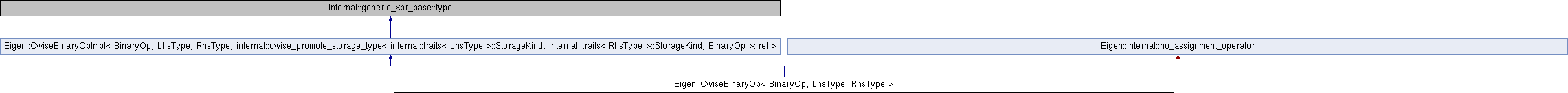

+ Inheritance diagram for Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >:

Public Types

typedef internal::remove_all_t< BinaryOp > Functor

typedef internal::remove_all_t< LhsType > Lhs

typedef internal::remove_all_t< RhsType > Rhs

typedef CwiseBinaryOpImpl< BinaryOp, LhsType, RhsType, typename internal::cwise_promote_storage_type< typename internal::traits< LhsType >::StorageKind, typename internal::traits< Rhs >::StorageKind, BinaryOp >::ret >::Base Base

typedef internal::ref_selector< LhsType >::type LhsNested

typedef internal::ref_selector< RhsType >::type RhsNested

typedef std::remove_reference_t< LhsNested > LhsNested_

typedef std::remove_reference_t< RhsNested > RhsNested_

- Public Types inherited from Eigen::CwiseBinaryOpImpl< BinaryOp, LhsType, RhsType, internal::cwise_promote_storage_type< internal::traits< LhsType >::StorageKind, internal::traits< RhsType >::StorageKind, BinaryOp >::ret >
typedef internal::generic_xpr_base< CwiseBinaryOp< BinaryOp, LhsType, RhsType > >::type Base


Public Member Functions

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE CwiseBinaryOp (const Lhs &aLhs, const Rhs &aRhs, const BinaryOp &func=BinaryOp())

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR Index rows () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR Index cols () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE const LhsNested_ & lhs () const

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE const RhsNested_ & rhs () const

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE const BinaryOp & functor () const


Protected Attributes

LhsNested m_lhs

RhsNested m_rhs

const BinaryOp m_functor


Detailed Description

template<typename BinaryOp, typename LhsType, typename RhsType>
class Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >

Generic expression where a coefficient-wise binary operator is applied to two expressions.

Template Parameters
BinaryOptemplate functor implementing the operator
LhsTypethe type of the left-hand side
RhsTypethe type of the right-hand side

This class represents an expression where a coefficient-wise binary operator is applied to two expressions. It is the return type of binary operators, by which we mean only those binary operators where both the left-hand side and the right-hand side are Eigen expressions. For example, the return type of matrix1+matrix2 is a CwiseBinaryOp.

Most of the time, this is the only way that it is used, so you typically don't have to name CwiseBinaryOp types explicitly.

See also
MatrixBase::binaryExpr(const MatrixBase<OtherDerived> &,const CustomBinaryOp &) const, class CwiseUnaryOp, class CwiseNullaryOp

Member Typedef Documentation

◆ Base

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef CwiseBinaryOpImpl< BinaryOp, LhsType, RhsType, typename internal::cwise_promote_storage_type<typename internal::traits<LhsType>::StorageKind, typename internal::traits<Rhs>::StorageKind, BinaryOp>::ret>::Base Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Base

◆ Functor

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef internal::remove_all_t<BinaryOp> Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Functor

◆ Lhs

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef internal::remove_all_t<LhsType> Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Lhs

◆ LhsNested

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef internal::ref_selector<LhsType>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::LhsNested

◆ LhsNested_

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef std::remove_reference_t<LhsNested> Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::LhsNested_

◆ Rhs

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef internal::remove_all_t<RhsType> Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Rhs

◆ RhsNested

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef internal::ref_selector<RhsType>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::RhsNested

◆ RhsNested_

template<typename BinaryOp , typename LhsType , typename RhsType >
typedef std::remove_reference_t<RhsNested> Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::RhsNested_

Constructor & Destructor Documentation

◆ CwiseBinaryOp()

template<typename BinaryOp , typename LhsType , typename RhsType >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::CwiseBinaryOp ( const Lhs &  aLhs,
const Rhs &  aRhs,
const BinaryOp &  func = BinaryOp()
)
inline
107  : m_lhs(aLhs), m_rhs(aRhs), m_functor(func) {
108  eigen_assert(aLhs.rows() == aRhs.rows() && aLhs.cols() == aRhs.cols());
109  }
eigen_assert
#define eigen_assert(x)
Definition: Macros.h:910
Eigen::CwiseBinaryOp::m_functor
const BinaryOp m_functor
Definition: CwiseBinaryOp.h:132
Eigen::CwiseBinaryOp::m_lhs
LhsNested m_lhs
Definition: CwiseBinaryOp.h:130
Eigen::CwiseBinaryOp::m_rhs
RhsNested m_rhs
Definition: CwiseBinaryOp.h:131
func
Definition: benchGeometry.cpp:21

References eigen_assert.

Member Function Documentation

◆ cols()

template<typename BinaryOp , typename LhsType , typename RhsType >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR Index Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::cols ( ) const
inline
116  {
117  // return the fixed size type if available to enable compile time optimizations
118  return internal::traits<internal::remove_all_t<LhsNested>>::ColsAtCompileTime == Dynamic ? m_rhs.cols()
119  : m_lhs.cols();
120  }
Eigen::Dynamic
const int Dynamic
Definition: Constants.h:25

References Eigen::Dynamic, Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_lhs, and Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_rhs.

Referenced by gdb.printers._MatrixEntryIterator::__next__(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), Eigen::internal::visitor_evaluator< XprType >::cols(), Eigen::Reshaped< XprType, Rows, Cols, Order >::Reshaped(), Eigen::internal::redux_impl< Func, Evaluator, DefaultTraversal, NoUnrolling >::run(), Eigen::internal::redux_impl< Func, Evaluator, SliceVectorizedTraversal, Unrolling >::run(), Eigen::internal::redux_impl< Func, Evaluator, LinearVectorizedTraversal, CompleteUnrolling >::run(), Eigen::internal::triangular_solver_selector< Lhs, Rhs, Side, Mode, NoUnrolling, 1 >::run(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

◆ functor()

template<typename BinaryOp , typename LhsType , typename RhsType >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE const BinaryOp& Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::functor ( ) const
inline
Returns
the functor representing the binary operation
127 { return m_functor; }

References Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_functor.

◆ lhs()

template<typename BinaryOp , typename LhsType , typename RhsType >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE const LhsNested_& Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::lhs ( ) const
inline
Returns
the left hand side nested expression
123 { return m_lhs; }

References Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_lhs.

Referenced by Eigen::internal::check_transpose_aliasing_run_time_selector< Scalar, DestIsTransposed, CwiseBinaryOp< BinOp, DerivedA, DerivedB > >::run(), and Eigen::internal::Assignment< DstXprType, CwiseBinaryOp< internal::scalar_product_op< ScalarBis, Scalar >, const CwiseNullaryOp< internal::scalar_constant_op< ScalarBis >, Plain >, const Product< Lhs, Rhs, DefaultProduct > >, AssignFunc, Dense2Dense >::run().

◆ rhs()

template<typename BinaryOp , typename LhsType , typename RhsType >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE const RhsNested_& Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rhs ( ) const
inline
Returns
the right hand side nested expression
125 { return m_rhs; }

References Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_rhs.

Referenced by Eigen::internal::check_transpose_aliasing_run_time_selector< Scalar, DestIsTransposed, CwiseBinaryOp< BinOp, DerivedA, DerivedB > >::run(), and Eigen::internal::Assignment< DstXprType, CwiseBinaryOp< internal::scalar_product_op< ScalarBis, Scalar >, const CwiseNullaryOp< internal::scalar_constant_op< ScalarBis >, Plain >, const Product< Lhs, Rhs, DefaultProduct > >, AssignFunc, Dense2Dense >::run().

◆ rows()

template<typename BinaryOp , typename LhsType , typename RhsType >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR Index Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rows ( ) const
inline
111  {
112  // return the fixed size type if available to enable compile time optimizations
113  return internal::traits<internal::remove_all_t<LhsNested>>::RowsAtCompileTime == Dynamic ? m_rhs.rows()
114  : m_lhs.rows();
115  }

References Eigen::Dynamic, Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_lhs, and Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_rhs.

Referenced by gdb.printers._MatrixEntryIterator::__next__(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), Eigen::Reshaped< XprType, Rows, Cols, Order >::Reshaped(), Eigen::internal::visitor_evaluator< XprType >::rows(), Eigen::internal::redux_impl< Func, Evaluator, DefaultTraversal, NoUnrolling >::run(), Eigen::internal::redux_impl< Func, Evaluator, SliceVectorizedTraversal, Unrolling >::run(), Eigen::internal::redux_impl< Func, Evaluator, LinearVectorizedTraversal, CompleteUnrolling >::run(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

Member Data Documentation

◆ m_functor

template<typename BinaryOp , typename LhsType , typename RhsType >
const BinaryOp Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_functor
protected

Referenced by Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::functor().

◆ m_lhs

template<typename BinaryOp , typename LhsType , typename RhsType >
LhsNested Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_lhs
protected

Referenced by Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::cols(), Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::lhs(), and Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rows().

◆ m_rhs

template<typename BinaryOp , typename LhsType , typename RhsType >
RhsNested Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_rhs
protected

Referenced by Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::cols(), Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rhs(), and Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rows().

The documentation for this class was generated from the following file:
