Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type > Class Template Reference

Generic expression where a coefficient-wise ternary operator is applied to two expressions. More...

#include <CwiseTernaryOp.h>

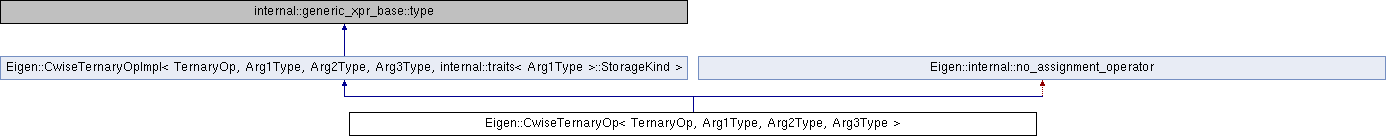

Inheritance diagram for Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >:

Public Types
typedef internal::remove_all_t< Arg1Type >	Arg1
typedef internal::remove_all_t< Arg2Type >	Arg2
typedef internal::remove_all_t< Arg3Type >	Arg3
typedef internal::ref_selector< Arg2Type >::type	Arg2Nested
typedef internal::ref_selector< Arg3Type >::type	Arg3Nested
typedef std::remove_reference_t< Arg1Nested >	Arg1Nested_
typedef std::remove_reference_t< Arg2Nested >	Arg2Nested_
typedef std::remove_reference_t< Arg3Nested >	Arg3Nested_
Public Types inherited from Eigen::CwiseTernaryOpImpl< TernaryOp, Arg1Type, Arg2Type, Arg3Type, internal::traits< Arg1Type >::StorageKind >
typedef internal::generic_xpr_base< CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type > >::type	Base

Public Member Functions
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	CwiseTernaryOp (const Arg1 &a1, const Arg2 &a2, const Arg3 &a3, const TernaryOp &func=TernaryOp())
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index	rows () const
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index	cols () const
EIGEN_DEVICE_FUNC const Arg1Nested_ &	arg1 () const
EIGEN_DEVICE_FUNC const Arg2Nested_ &	arg2 () const
EIGEN_DEVICE_FUNC const Arg3Nested_ &	arg3 () const
EIGEN_DEVICE_FUNC const TernaryOp &	functor () const

Public Attributes
EIGEN_STATIC_ASSERT((internal::is_same< typename internal::traits< Arg1Type >::StorageKind, typename internal::traits< Arg2Type >::StorageKind >::value), STORAGE_KIND_MUST_MATCH) EIGEN_STATIC_ASSERT((internal typedef internal::ref_selector< Arg1Type >::type	Arg1Nested

Protected Attributes
Arg1Nested	m_arg1
Arg2Nested	m_arg2
Arg3Nested	m_arg3
const TernaryOp	m_functor

Detailed Description

template<typename TernaryOp, typename Arg1Type, typename Arg2Type, typename Arg3Type>
class Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >

Generic expression where a coefficient-wise ternary operator is applied to two expressions.

Template Parameters

TernaryOp	template functor implementing the operator
Arg1Type	the type of the first argument
Arg2Type	the type of the second argument
Arg3Type	the type of the third argument

This class represents an expression where a coefficient-wise ternary operator is applied to three expressions. It is the return type of ternary operators, by which we mean only those ternary operators where all three arguments are Eigen expressions. For example, the return type of betainc(matrix1, matrix2, matrix3) is a CwiseTernaryOp.

Most of the time, this is the only way that it is used, so you typically don't have to name CwiseTernaryOp types explicitly.

See also

MatrixBase::ternaryExpr(const MatrixBase<Argument2> &, const MatrixBase<Argument3> &, const CustomTernaryOp &) const, class CwiseBinaryOp, class CwiseUnaryOp, class CwiseNullaryOp

Member Typedef Documentation

Arg1

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef internal::remove_all_t<Arg1Type> Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg1

Arg1Nested_

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef std::remove_reference_t<Arg1Nested> Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg1Nested_

Arg2

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef internal::remove_all_t<Arg2Type> Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg2

Arg2Nested

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef internal::ref_selector<Arg2Type>::type Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg2Nested

Arg2Nested_

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef std::remove_reference_t<Arg2Nested> Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg2Nested_

Arg3

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef internal::remove_all_t<Arg3Type> Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg3

Arg3Nested

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef internal::ref_selector<Arg3Type>::type Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg3Nested

Arg3Nested_

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

typedef std::remove_reference_t<Arg3Nested> Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg3Nested_

Constructor & Destructor Documentation

CwiseTernaryOp()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::CwiseTernaryOp ( const Arg1 &  a1, const Arg2 &  a2, const Arg3 &  a3, const TernaryOp &  func = TernaryOp()  )

inline

      : m_arg1(a1), m_arg2(a2), m_arg3(a3), m_functor(func) {
    eigen_assert(a1.rows() == a2.rows() && a1.cols() == a2.cols() && a1.rows() == a3.rows() && a1.cols() == a3.cols());
  }

References eigen_assert.

Member Function Documentation

arg1()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC const Arg1Nested_& Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::arg1 ( ) const

inline

Returns

the first argument nested expression

{ return m_arg1; }

References Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg1.

arg2()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC const Arg2Nested_& Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::arg2 ( ) const

inline

Returns

the first argument nested expression

{ return m_arg2; }

References Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg2.

arg3()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC const Arg3Nested_& Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::arg3 ( ) const

inline

Returns

the third argument nested expression

{ return m_arg3; }

References Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg3.

cols()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::cols ( ) const

inline

                                                           {
    // return the fixed size type if available to enable compile time
    // optimizations
    if (internal::traits<internal::remove_all_t<Arg1Nested>>::ColsAtCompileTime == Dynamic &&
        internal::traits<internal::remove_all_t<Arg2Nested>>::ColsAtCompileTime == Dynamic)
      return m_arg3.cols();
    else if (internal::traits<internal::remove_all_t<Arg1Nested>>::ColsAtCompileTime == Dynamic &&
             internal::traits<internal::remove_all_t<Arg3Nested>>::ColsAtCompileTime == Dynamic)
      return m_arg2.cols();
    else
      return m_arg1.cols();
  }

References Eigen::Dynamic, Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg1, Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg2, and Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg3.

Referenced by gdb.printers._MatrixEntryIterator::__next__(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

functor()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC const TernaryOp& Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::functor ( ) const

inline

Returns

the functor representing the ternary operation

{ return m_functor; }

References Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_functor.

rows()

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::rows ( ) const

inline

                                                           {
    // return the fixed size type if available to enable compile time
    // optimizations
    if (internal::traits<internal::remove_all_t<Arg1Nested>>::RowsAtCompileTime == Dynamic &&
        internal::traits<internal::remove_all_t<Arg2Nested>>::RowsAtCompileTime == Dynamic)
      return m_arg3.rows();
    else if (internal::traits<internal::remove_all_t<Arg1Nested>>::RowsAtCompileTime == Dynamic &&
             internal::traits<internal::remove_all_t<Arg3Nested>>::RowsAtCompileTime == Dynamic)
      return m_arg2.rows();
    else
      return m_arg1.rows();
  }

References Eigen::Dynamic, Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg1, Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg2, and Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg3.

Referenced by gdb.printers._MatrixEntryIterator::__next__(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

Member Data Documentation

Arg1Nested

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

EIGEN_STATIC_ASSERT ((internal::is_same<typename internal::traits<Arg1Type>::StorageKind, typename internal::traits<Arg2Type>::StorageKind>::value), STORAGE_KIND_MUST_MATCH) EIGEN_STATIC_ASSERT((internal typedef internal::ref_selector<Arg1Type>::type Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::Arg1Nested

m_arg1

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

Arg1Nested Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg1

protected

Referenced by Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::arg1(), Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::cols(), and Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::rows().

m_arg2

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

Arg2Nested Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg2

protected

Referenced by Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::arg2(), Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::cols(), and Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::rows().

m_arg3

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

Arg3Nested Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_arg3

protected

Referenced by Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::arg3(), Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::cols(), and Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::rows().

m_functor

template<typename TernaryOp , typename Arg1Type , typename Arg2Type , typename Arg3Type >

const TernaryOp Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::m_functor

protected

Referenced by Eigen::CwiseTernaryOp< TernaryOp, Arg1Type, Arg2Type, Arg3Type >::functor().

---

The documentation for this class was generated from the following file:

• CwiseTernaryOp.h
