oomph::TreeRoot Class Reference

#include <tree.h>

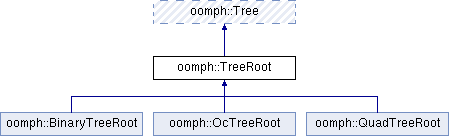

Inheritance diagram for oomph::TreeRoot:

Public Member Functions
	TreeRoot (RefineableElement *const &object_pt)
	Constructor for the (empty) root tree. More...
	TreeRoot (const TreeRoot &dummy)=delete
	Broken copy constructor. More...
void	operator= (const TreeRoot &)=delete
	Broken assignment operator. More...
TreeRoot *&	neighbour_pt (const int &direction)
bool	is_neighbour_periodic (const int &direction)
void	set_neighbour_periodic (const int &direction)
	Set the neighbour in particular direction to be periodic. More...
void	set_neighbour_nonperiodic (const int &direction)
	Set the neighbour in particular direction to be nonperiodic. More...
unsigned	nneighbour ()
	Return the number of neighbours. More...
Public Member Functions inherited from oomph::Tree
virtual	~Tree ()
	Tree (const Tree &dummy)=delete
	Broken copy constructor. More...
void	operator= (const Tree &)=delete
	Broken assignment operator. More...
RefineableElement *	object_pt () const
void	flush_object ()
	Flush the object represented by the tree. More...
Tree *	son_pt (const int &son_index) const
void	set_son_pt (const Vector< Tree * > &son_pt)
unsigned	nsons () const
	Return number of sons (zero if it's a leaf node) More...
void	flush_sons ()
	Flush the sons. More...
TreeRoot *&	root_pt ()
	Return pointer to root of the tree. More...
TreeRoot *	root_pt () const
	Return pointer to root of the tree (const version) More...
template<class ELEMENT >
void	split_if_required ()
template<class ELEMENT >
void	p_refine_if_required (Mesh *&mesh_pt)
void	merge_sons_if_required (Mesh *&mesh_pt)
void	deactivate_object ()
	Call the RefineableElement's deactivate_element() function. More...
virtual Tree *	construct_son (RefineableElement *const &object_pt, Tree *const &father_pt, const int &son_type)=0
void	traverse_all (Tree::VoidMemberFctPt member_function)
void	traverse_all (Tree::VoidMeshPtArgumentMemberFctPt member_function, Mesh *&mesh_pt)
void	traverse_all_but_leaves (Tree::VoidMemberFctPt member_function)
void	traverse_leaves (Tree::VoidMemberFctPt member_function)
void	traverse_leaves (Tree::VoidMeshPtArgumentMemberFctPt member_function, Mesh *&mesh_pt)
void	stick_leaves_into_vector (Vector< Tree * > &)
	Traverse tree and stick pointers to leaf "nodes" (only) into Vector. More...
void	stick_all_tree_nodes_into_vector (Vector< Tree * > &)
	Traverse and stick pointers to all "nodes" into Vector. More...
int	son_type () const
	Return son type. More...
bool	is_leaf ()
	Return true if the tree is a leaf node. More...
Tree *	father_pt () const
	Return pointer to father: NULL if it's a root node. More...
void	set_father_pt (Tree *const &father_pt)
	Set the father. More...
unsigned	level () const
	Return the level of the Tree (root=0) More...

Protected Attributes
std::map< int, TreeRoot * >	Neighbour_pt
std::map< int, bool >	Neighbour_periodic
Protected Attributes inherited from oomph::Tree
TreeRoot *	Root_pt
	Pointer to the root of the tree. More...
Tree *	Father_pt
	Pointer to the Father of the Tree. More...
Vector< Tree * >	Son_pt
	Vector of pointers to the sons of the Tree. More...
int	Level
	Level of the Tree (level 0 = root) More...
int	Son_type
	Son type (e.g. SW/SE/NW/NE in a quadtree) More...
RefineableElement *	Object_pt
	Pointer to the object represented by the tree. More...

Additional Inherited Members
Public Types inherited from oomph::Tree
typedef void(Tree::*	VoidMemberFctPt) ()
	Function pointer to argument-free void Tree member function. More...
typedef void(Tree::*	VoidMeshPtArgumentMemberFctPt) (Mesh *&mesh_pt)
Static Public Member Functions inherited from oomph::Tree
static double &	max_neighbour_finding_tolerance ()
Static Public Attributes inherited from oomph::Tree
static const int	OMEGA = 26
	Default value for an unassigned neighbour. More...
Protected Member Functions inherited from oomph::Tree
	Tree ()
	Default constructor (empty and broken) More...
	Tree (RefineableElement *const &object_pt)
	Tree (RefineableElement *const &object_pt, Tree *const &father_pt, const int &son_type)
Static Protected Attributes inherited from oomph::Tree
static double	Max_neighbour_finding_tolerance = 1.0e-14

Detailed Description

TreeRoot is a Tree that forms the root of a (recursive) tree. The "root node" is special as it holds additional information about its neighbours and their relative rotation (inside a TreeForest).

Constructor & Destructor Documentation

TreeRoot() [1/2]

oomph::TreeRoot::TreeRoot ( RefineableElement *const &  object_pt )

inline

Constructor for the (empty) root tree.

                                                  : Tree(object_pt)
    {
      // TreeRoot is the Root
      Root_pt = this;
    }

References oomph::Tree::Root_pt.

TreeRoot() [2/2]

oomph::TreeRoot::TreeRoot ( const TreeRoot &  dummy )

delete

Broken copy constructor.

Member Function Documentation

is_neighbour_periodic()

bool oomph::TreeRoot::is_neighbour_periodic ( const int &  direction )

inline

Return whether the neighbour in the particular direction is periodic.

    {
      return Neighbour_periodic[direction];
    }

References Neighbour_periodic.

Referenced by oomph::OcTree::doc_face_neighbours(), oomph::BinaryTree::doc_neighbours(), oomph::QuadTree::doc_neighbours(), and oomph::OcTree::doc_true_edge_neighbours().

neighbour_pt()

TreeRoot*& oomph::TreeRoot::neighbour_pt ( const int &  direction )

inline

Return the pointer to the neighbouring TreeRoots in specified direction. Returns NULL if there's no neighbour in this direction.

    {
      return Neighbour_pt[direction];
    }

References Neighbour_pt.

Referenced by UnsteadyHeatProblem< ELEMENT >::enforce_time_periodic_boundary_conditions(), oomph::BinaryTree::gteq_edge_neighbour(), oomph::QuadTree::gteq_edge_neighbour(), oomph::OcTree::gteq_face_neighbour(), and UnsteadyHeatProblem< ELEMENT >::set_neighbour_periodic_and_up_right_equivalents().

nneighbour()

unsigned oomph::TreeRoot::nneighbour ( )

inline

Return the number of neighbours.

    {
      // Loop over the neighbours and test whether they are non-null
      unsigned count = 0;
      for (std::map<int, TreeRoot*>::iterator it = Neighbour_pt.begin();
           it != Neighbour_pt.end();
           it++)
      {
        if (Neighbour_pt[it->first] != 0)
        {
          count++;
        }
      }
      // Return number counted
      return count;
    }

References Neighbour_pt.

operator=()

void oomph::TreeRoot::operator= ( const TreeRoot &  )

delete

Broken assignment operator.

set_neighbour_nonperiodic()

void oomph::TreeRoot::set_neighbour_nonperiodic ( const int &  direction )

inline

Set the neighbour in particular direction to be nonperiodic.

    {
      Neighbour_periodic[direction] = false;
    }

References Neighbour_periodic.

set_neighbour_periodic()

void oomph::TreeRoot::set_neighbour_periodic ( const int &  direction )

inline

Set the neighbour in particular direction to be periodic.

    {
      Neighbour_periodic[direction] = true;
    }

References Neighbour_periodic.

Referenced by UnsteadyHeatProblem< ELEMENT >::set_neighbour_periodic_and_up_right_equivalents().

Member Data Documentation

Neighbour_periodic

std::map<int, bool> oomph::TreeRoot::Neighbour_periodic

protected

Map of booleans used for periodic boundaries: Neighbour_periodic_direction[directon] returns true if the neighbour in that direction is actually a periodic neighbour — shared data values, but independent position. The default return of the map is false.

Referenced by is_neighbour_periodic(), set_neighbour_nonperiodic(), and set_neighbour_periodic().

Neighbour_pt

std::map<int, TreeRoot*> oomph::TreeRoot::Neighbour_pt

protected

Map of pointers to the neighbouring TreeRoots: Neighbour_pt[direction] returns the pointer to the TreeRoot's neighbour in the (enumerated) direction. Returns NULL if there's no neighbour in this direction.

Referenced by oomph::BinaryTreeRoot::direction_of_neighbour(), oomph::QuadTreeRoot::direction_of_neighbour(), oomph::OcTreeRoot::direction_of_neighbour(), neighbour_pt(), and nneighbour().

---

The documentation for this class was generated from the following file:

• tree.h
