oomph::SolidTBubbleEnrichedElement< DIM, NNODE_1D > Class Template Reference

#include <Telements.h>

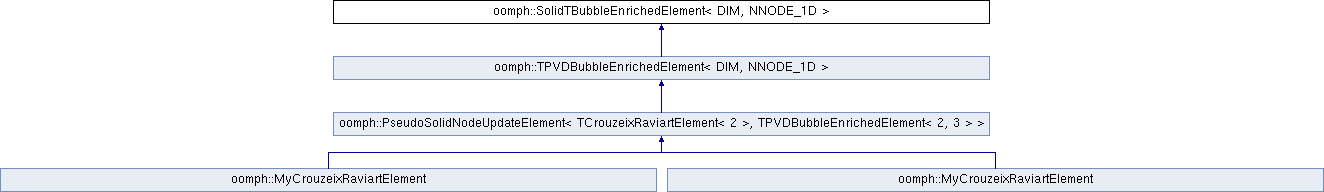

Inheritance diagram for oomph::SolidTBubbleEnrichedElement< DIM, NNODE_1D >:

Public Member Functions
void	build_face_element (const int &face_index, FaceElement *face_element_pt)
void	build_face_element (const int &face_index, FaceElement *face_element_pt)

Detailed Description

template<unsigned DIM, unsigned NNODE_1D>
class oomph::SolidTBubbleEnrichedElement< DIM, NNODE_1D >

//////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// SolidTBubbleEnrichedElement elements are the enriched version of the SolidTElements. They will simply inherit from the appropriate SolidTElement and TBubblEnrichedElement. They are the basis for solid mechanics elements.

Member Function Documentation

build_face_element() [1/2]

void oomph::SolidTBubbleEnrichedElement< 2, 3 >::build_face_element	(	const int &	face_index,
		FaceElement *	face_element_pt
	)

////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////// Final override for function to setup geometrical information for lower-dimensional FaceElements (which are of type SolidTBubbleEnrichedElement<1,3>).

  {
    // Build the standard non-solid FaceElement
    TBubbleEnrichedElement<2, 3>::build_face_element(face_index,
                                                     face_element_pt);

    // Set the Lagrangian dimension from the first node of the present element
    dynamic_cast<SolidFiniteElement*>(face_element_pt)
      ->set_lagrangian_dimension(
        static_cast<SolidNode*>(node_pt(0))->nlagrangian());
  }

References oomph::SolidNode::nlagrangian().

build_face_element() [2/2]

void oomph::SolidTBubbleEnrichedElement< 3, 3 >::build_face_element	(	const int &	face_index,
		FaceElement *	face_element_pt
	)

Final override for function to setup geometrical information for lower-dimensional FaceElements (which are of type SolidTBubbleEnrichedElement<2,3>).

  {
    // Build the standard non-solid FaceElement
    TBubbleEnrichedElement<3, 3>::build_face_element(face_index,
                                                     face_element_pt);

    // Set the Lagrangian dimension from the first node of the present element
    dynamic_cast<SolidFiniteElement*>(face_element_pt)
      ->set_lagrangian_dimension(
        static_cast<SolidNode*>(node_pt(0))->nlagrangian());
  }

References oomph::SolidNode::nlagrangian().

---

The documentation for this class was generated from the following file:

• Telements.h
