Heated circular penetrator. More...

#include <contact_elements.h>

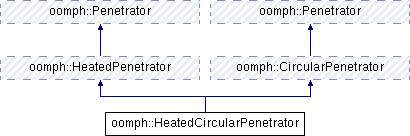

Inheritance diagram for oomph::HeatedCircularPenetrator:

Public Member Functions
	HeatedCircularPenetrator (Vector< double > *r_c_pt, const double &r)
	Constructor: Pass pointer to centre and radius. More...

virtual	~HeatedCircularPenetrator ()
	Destructor. More...

double	temperature (const Vector< double > &x) const

Public Member Functions inherited from oomph::HeatedPenetrator
	HeatedPenetrator ()
	Constructor. More...

virtual	~HeatedPenetrator ()
	Destructor. More...

Public Member Functions inherited from oomph::Penetrator
	Penetrator ()
	Constructor. More...

virtual	~Penetrator ()
	Destructor. More...

virtual Vector< std::pair< Data *, unsigned > >	equilibrium_data ()

Public Member Functions inherited from oomph::CircularPenetrator
	CircularPenetrator (Vector< double > *r_c_pt, const double &r)
	Constructor: Pass pointer to centre and radius. More...

virtual	~CircularPenetrator ()
	Destructor. More...

void	penetration (const Vector< double > &x, const Vector< double > &n, double &d, bool &intersection) const
	Get penetration for given point x. More...

void	output (std::ostream &outfile, const unsigned &nplot) const
	Output coordinates of penetrator at nplot plot points. More...

void	position_from_zeta (const Vector< double > &zeta, Vector< double > &r) const
	Get position to surface, r, in terms of surface coordinate zeta. More...

void	surface_coordinate (const Vector< double > &x, Vector< double > &zeta) const

Vector< double >	rigid_body_displacement () const
	Get rigid body displacement of reference point in penetrator. More...

void	set_original_centre (const Vector< double > &orig_centre)

Additional Inherited Members
Protected Attributes inherited from oomph::CircularPenetrator
Vector< double > *	Centre_pt

Vector< double >	Orig_centre

double	Radius
	Radius of penetrator. More...

Detailed Description

Heated circular penetrator.

///////////////////////////////////////////////////////////////////// ///////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////

Constructor & Destructor Documentation

◆ HeatedCircularPenetrator()

oomph::HeatedCircularPenetrator::HeatedCircularPenetrator	(	Vector< double > *	r_c_pt,
		const double &	r
	)

inline

Constructor: Pass pointer to centre and radius.

397 :

398 CircularPenetrator(r_c_pt,r) {}

oomph::CircularPenetrator::CircularPenetrator

CircularPenetrator(Vector< double > *r_c_pt, const double &r)

Constructor: Pass pointer to centre and radius.

Definition: contact_elements.h:254

UniformPSDSelfTest.r

r

Definition: UniformPSDSelfTest.py:20

◆ ~HeatedCircularPenetrator()

virtual oomph::HeatedCircularPenetrator::~HeatedCircularPenetrator ( )

inlinevirtual

Destructor.

401 {}

Member Function Documentation

◆ temperature()

double oomph::HeatedCircularPenetrator::temperature ( const Vector< double > & x ) const

inlinevirtual

Get temperature on penetrator at point "associated" with point x using the same logic as for the position function). Here we assume that both points shrare the same polar angle relative to the centre of (circular!) penetrator

Implements oomph::HeatedPenetrator.

    {
     double phi=atan2(x[1]-(*Centre_pt)[1],x[0]-(*Centre_pt)[0]);
     return cos(phi-0.5*MathematicalConstants::Pi);
    }

References atan2(), oomph::CircularPenetrator::Centre_pt, cos(), oomph::MathematicalConstants::Pi, and plotDoE::x.

The documentation for this class was generated from the following file:

contact_elements.h
