oomph::HyprePreconditioner Class Reference

#include <hypre_solver.h>

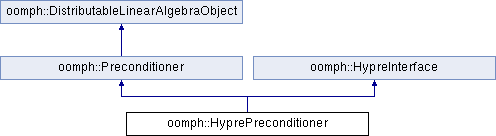

Inheritance diagram for oomph::HyprePreconditioner:

Public Member Functions
	HyprePreconditioner (const std::string &context_string="")
	~HyprePreconditioner ()
	Destructor. More...
	HyprePreconditioner (const HyprePreconditioner &)=delete
	Broken copy constructor. More...
void	operator= (const HyprePreconditioner &)=delete
	Broken assignment operator. More...
void	enable_report_my_cumulative_preconditioner_solve_time ()
	Enable reporting of cumulative solve time in destructor. More...
void	disable_report_my_cumulative_preconditioner_solve_time ()
	Disable reporting of cumulative solve time in destructor. More...
void	enable_doc_time ()
	Enable documentation of preconditioner timings. More...
void	disable_doc_time ()
	Disable documentation of preconditioner timings. More...
unsigned &	hypre_method ()
	Access function to Hypre_method flag – specified via enumeration. More...
unsigned &	internal_preconditioner ()
void	use_BoomerAMG ()
	Function to select BoomerAMG as the preconditioner. More...
void	set_amg_iterations (const unsigned &amg_iterations)
	Function to set the number of times to apply BoomerAMG. More...
unsigned &	amg_iterations ()
	Return function for Max_iter. More...
void	amg_using_simple_smoothing ()
unsigned &	amg_simple_smoother ()
	Access function to AMG_simple_smoother flag. More...
void	amg_using_complex_smoothing ()
unsigned &	amg_complex_smoother ()
	Access function to AMG_complex_smoother flag. More...
bool &	amg_using_simple_smoothing_flag ()
	Return function for the AMG_using_simple_smoothing_flag. More...
unsigned &	amg_print_level ()
	Access function to AMG_print_level. More...
unsigned &	amg_smoother_iterations ()
	Access function to AMG_smoother_iterations. More...
unsigned &	amg_coarsening ()
	Access function to AMG_coarsening flag. More...
unsigned &	amg_max_levels ()
	Access function to AMG_max_levels. More...
double &	amg_damping ()
	Access function to AMG_damping parameter. More...
double &	amg_strength ()
	Access function to AMG_strength. More...
double &	amg_max_row_sum ()
	Access function to AMG_max_row_sum. More...
double &	amg_truncation ()
	Access function to AMG_truncation. More...
void	use_ParaSails ()
	Function to select ParaSails as the preconditioner. More...
int &	parasails_symmetry ()
	Access function to ParaSails symmetry flag. More...
int &	parasails_nlevel ()
	Access function to ParaSails nlevel parameter. More...
double &	parasails_thresh ()
	Access function to ParaSails thresh parameter. More...
double &	parasails_filter ()
	Access function to ParaSails filter parameter. More...
void	use_Euclid ()
	Function to select use Euclid as the preconditioner. More...
double &	euclid_droptol ()
	Access function to Euclid drop tolerance parameter. More...
int &	euclid_level ()
	Access function to Euclid level parameter for ILU(k) factorization. More...
void	enable_euclid_rowScale ()
	Enable euclid rowScaling. More...
void	disable_euclid_rowScale ()
	Disable euclid row scaling. More...
void	enable_euclid_using_BJ ()
void	disable_euclid_using_BJ ()
void	euclid_using_ILUK ()
void	euclid_using_ILUT ()
unsigned &	euclid_print_level ()
void	enable_delete_matrix ()
void	disable_delete_matrix ()
void	setup ()
void	preconditioner_solve (const DoubleVector &r, DoubleVector &z)
	Preconditioner_solve uses a hypre solver to precondition vector r. More...
void	clean_up_memory ()
	Function deletes all solver data. More...
Public Member Functions inherited from oomph::Preconditioner
	Preconditioner ()
	Constructor. More...
	Preconditioner (const Preconditioner &)=delete
	Broken copy constructor. More...
void	operator= (const Preconditioner &)=delete
	Broken assignment operator. More...
virtual	~Preconditioner ()
	Destructor (empty) More...
virtual void	preconditioner_solve_transpose (const DoubleVector &r, DoubleVector &z)
void	setup (DoubleMatrixBase *matrix_pt)
void	setup (const Problem *problem_pt, DoubleMatrixBase *matrix_pt)
void	enable_silent_preconditioner_setup ()
	Set up the block preconditioner quietly! More...
void	disable_silent_preconditioner_setup ()
	Be verbose in the block preconditioner setup. More...
virtual DoubleMatrixBase *	matrix_pt () const
	Get function for matrix pointer. More...
virtual void	set_matrix_pt (DoubleMatrixBase *matrix_pt)
	Set the matrix pointer. More...
virtual const OomphCommunicator *	comm_pt () const
	Get function for comm pointer. More...
virtual void	set_comm_pt (const OomphCommunicator *const comm_pt)
	Set the communicator pointer. More...
double	setup_time () const
	Returns the time to setup the preconditioner. More...
virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse)
virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse, const Vector< Vector< unsigned >> &doftype_coarsen_map_coarse)
Public Member Functions inherited from oomph::DistributableLinearAlgebraObject
	DistributableLinearAlgebraObject ()
	Default constructor - create a distribution. More...
	DistributableLinearAlgebraObject (const DistributableLinearAlgebraObject &matrix)=delete
	Broken copy constructor. More...
void	operator= (const DistributableLinearAlgebraObject &)=delete
	Broken assignment operator. More...
virtual	~DistributableLinearAlgebraObject ()
	Destructor. More...
LinearAlgebraDistribution *	distribution_pt () const
	access to the LinearAlgebraDistribution More...
unsigned	nrow () const
	access function to the number of global rows. More...
unsigned	nrow_local () const
	access function for the num of local rows on this processor. More...
unsigned	nrow_local (const unsigned &p) const
	access function for the num of local rows on this processor. More...
unsigned	first_row () const
	access function for the first row on this processor More...
unsigned	first_row (const unsigned &p) const
	access function for the first row on this processor More...
bool	distributed () const
	distribution is serial or distributed More...
bool	distribution_built () const
void	build_distribution (const LinearAlgebraDistribution *const dist_pt)
void	build_distribution (const LinearAlgebraDistribution &dist)
Public Member Functions inherited from oomph::HypreInterface
	HypreInterface ()
	Constructor. More...
	~HypreInterface ()
	Destructor. More...
	HypreInterface (const HypreInterface &)=delete
	Broken copy constructor. More...
void	operator= (const HypreInterface &)=delete
	Broken assignment operator. More...
void	enable_hypre_error_messages ()
	Turn on the hypre error messages. More...
void	disable_hypre_error_messages ()
	Turn off hypre error messages. More...
unsigned	existing_solver ()
	Function to return value of which solver (if any) is currently stored. More...
unsigned	existing_preconditioner ()
	Function return value of which preconditioner (if any) is stored. More...

Static Public Member Functions
static void	report_cumulative_solve_times ()
static void	reset_cumulative_solve_times ()
	Reset cumulative solve times. More...

Static Public Attributes
static double	Cumulative_preconditioner_solve_time = 0.0
static std::map< std::string, double >	Context_based_cumulative_solve_time
static unsigned	Cumulative_npreconditioner_solve = 0
static std::map< std::string, unsigned >	Context_based_cumulative_npreconditioner_solve
static std::map< std::string, unsigned >	Context_based_nrow

Private Attributes
bool	Delete_matrix
bool	Doc_time
double	My_cumulative_preconditioner_solve_time
bool	Report_my_cumulative_preconditioner_solve_time
std::string	Context_string
	String can be used to provide context for annotation. More...

Additional Inherited Members
Public Types inherited from oomph::HypreInterface
enum	Hypre_method_types {   CG , GMRES , BiCGStab , BoomerAMG ,   Euclid , ParaSails , None }
Public Attributes inherited from oomph::HypreInterface
bool	AMGEuclidSmoother_use_block_jacobi
bool	AMGEuclidSmoother_use_row_scaling
bool	AMGEuclidSmoother_use_ilut
unsigned	AMGEuclidSmoother_level
double	AMGEuclidSmoother_drop_tol
unsigned	AMGEuclidSmoother_print_level
Protected Member Functions inherited from oomph::DistributableLinearAlgebraObject
void	clear_distribution ()
Protected Member Functions inherited from oomph::HypreInterface
void	hypre_clean_up_memory ()
	Function deletes all solver data. More...
void	hypre_matrix_setup (CRDoubleMatrix *matrix_pt)
void	hypre_solver_setup ()
void	hypre_solve (const DoubleVector &rhs, DoubleVector &solution)
Protected Attributes inherited from oomph::Preconditioner
bool	Silent_preconditioner_setup
	Boolean to indicate whether or not the build should be done silently. More...
std::ostream *	Stream_pt
	Pointer to the output stream – defaults to std::cout. More...
Protected Attributes inherited from oomph::HypreInterface
bool	Output_info
	Flag is true to output info and results of timings. More...
unsigned	Max_iter
	Maximum number of iterations used in solver. More...
double	Tolerance
	Tolerance used to terminate solver. More...
unsigned	Hypre_method
	Hypre method flag. Valid values are specified in enumeration. More...
unsigned	Internal_preconditioner
unsigned	AMG_print_level
unsigned	AMG_max_levels
	Maximum number of levels used in AMG. More...
double	AMG_max_row_sum
	Parameter to identify diagonally dominant parts of the matrix in AMG. More...
bool	AMG_using_simple_smoothing
unsigned	AMG_simple_smoother
unsigned	AMG_complex_smoother
unsigned	AMG_smoother_iterations
	The number of smoother iterations to apply. More...
double	AMG_damping
	Damping factor for BoomerAMG smoothed Jacobi or hybrid SOR. More...
double	AMG_strength
	Connection strength threshold parameter for BoomerAMG. More...
double	AMG_truncation
	Interpolation truncation factor for BoomerAMG. More...
unsigned	AMG_coarsening
int	ParaSails_symmetry
int	ParaSails_nlevel
	ParaSails nlevel parameter. More...
double	ParaSails_thresh
	ParaSails thresh parameter. More...
double	ParaSails_filter
	ParaSails filter parameter. More...
double	Euclid_droptol
	Euclid drop tolerance for ILU(k) and ILUT factorization. More...
bool	Euclid_rowScale
	Flag to switch on Euclid row scaling. More...
bool	Euclid_using_ILUT
	Flag to determine if ILUT (if true) or ILU(k) is used in Euclid. More...
bool	Euclid_using_BJ
	Flag to determine if Block Jacobi is used instead of PILU. More...
int	Euclid_level
	Euclid level parameter for ILU(k) factorization. More...
unsigned	Euclid_print_level
unsigned	Krylov_print_level
bool	Hypre_error_messages
bool	Delete_input_data

Detailed Description

///////////////////////////////////////////////////////////////////// ///////////////////////////////////////////////////////////////////// ///////////////////////////////////////////////////////////////////// An Preconditioner class using the suite of Hypre preconditioners to allow

 BoomerAMG (Algebraic Multi Grid),
 Euclid (ILU) or
 ParaSails (Approximate inverse)

to be used for Preconditioner::preconditioner_solve(...). By default BoomerAMG is used.

Constructor & Destructor Documentation

HyprePreconditioner() [1/2]

oomph::HyprePreconditioner::HyprePreconditioner ( const std::string &  context_string = "" )

inline

Constructor. Provide optional string that is used in annotation of performance

    {
      Context_string = context_string;

      // Hypre copies matrix data from oomph-lib's CRDoubleMatrix
      // or DistributedCRDoubleMatrix into its own data structures,
      // doubling the memory requirements for the matrix.
      // As far as the Hypre solvers are concerned the oomph-lib matrix
      // is no longer required and could be deleted to save memory.
      // However, this will not be the expected behaviour and therefore
      // needs to be requested explicitly by the user by changing this
      // flag from false (its default) to true.
      Delete_matrix = false;

      // Do we want to output results of timings?
      Doc_time = true;

      // General control paramaters for using HYPRE as preconditioner
      Tolerance = 0.0;
      Max_iter = 1;
      Hypre_method = BoomerAMG;
      Internal_preconditioner = None;

      // Initialise private double that accumulates the preconditioner
      // solve time of thi instantiation of this class. Is reported
      // in destructor if Report_my_cumulative_preconditioner_solve_time
      // is set to true
      My_cumulative_preconditioner_solve_time = 0.0;
      Report_my_cumulative_preconditioner_solve_time = false;
    }

References oomph::HypreInterface::BoomerAMG, Context_string, Delete_matrix, Doc_time, oomph::HypreInterface::Hypre_method, oomph::HypreInterface::Internal_preconditioner, oomph::HypreInterface::Max_iter, My_cumulative_preconditioner_solve_time, oomph::HypreInterface::None, Report_my_cumulative_preconditioner_solve_time, and oomph::HypreInterface::Tolerance.

~HyprePreconditioner()

oomph::HyprePreconditioner::~HyprePreconditioner ( )

inline

Destructor.

    {
      if (Report_my_cumulative_preconditioner_solve_time)
      {
        oomph_info << "~HyprePreconditioner() in context \" " << Context_string
                   << "\": My_cumulative_preconditioner_solve_time = "
                   << My_cumulative_preconditioner_solve_time << std::endl;
      }
    }

References Context_string, My_cumulative_preconditioner_solve_time, oomph::oomph_info, and Report_my_cumulative_preconditioner_solve_time.

HyprePreconditioner() [2/2]

oomph::HyprePreconditioner::HyprePreconditioner ( const HyprePreconditioner &  )

delete

Broken copy constructor.

Member Function Documentation

amg_coarsening()

unsigned& oomph::HyprePreconditioner::amg_coarsening ( )

inline

Access function to AMG_coarsening flag.

    {
      return AMG_coarsening;
    }

References oomph::HypreInterface::AMG_coarsening.

Referenced by oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg2v22_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_simple_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_stressdiv_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_poisson_problem(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_poisson_problem(), oomph::Hypre_default_settings::set_defaults_for_2D_poisson_problem(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), and set_pseudo_elastic_fsi_solver().

amg_complex_smoother()

unsigned& oomph::HyprePreconditioner::amg_complex_smoother ( )

inline

Access function to AMG_complex_smoother flag.

    {
      return AMG_complex_smoother;
    }

References oomph::HypreInterface::AMG_complex_smoother.

amg_damping()

double& oomph::HyprePreconditioner::amg_damping ( )

inline

Access function to AMG_damping parameter.

    {
      return AMG_damping;
    }

References oomph::HypreInterface::AMG_damping.

Referenced by oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg2v22_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_simple_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_stressdiv_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_poisson_problem(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_poisson_problem(), main(), and oomph::Hypre_default_settings::set_defaults_for_navier_stokes_momentum_block().

amg_iterations()

unsigned& oomph::HyprePreconditioner::amg_iterations ( )

inline

Return function for Max_iter.

    {
      return Max_iter;
    }

References oomph::HypreInterface::Max_iter.

Referenced by set_amg_iterations().

amg_max_levels()

unsigned& oomph::HyprePreconditioner::amg_max_levels ( )

inline

Access function to AMG_max_levels.

    {
      return AMG_max_levels;
    }

References oomph::HypreInterface::AMG_max_levels.

amg_max_row_sum()

double& oomph::HyprePreconditioner::amg_max_row_sum ( )

inline

Access function to AMG_max_row_sum.

    {
      return AMG_max_row_sum;
    }

References oomph::HypreInterface::AMG_max_row_sum.

amg_print_level()

unsigned& oomph::HyprePreconditioner::amg_print_level ( )

inline

Access function to AMG_print_level.

    {
      return AMG_print_level;
    }

References oomph::HypreInterface::AMG_print_level.

amg_simple_smoother()

unsigned& oomph::HyprePreconditioner::amg_simple_smoother ( )

inline

Access function to AMG_simple_smoother flag.

    {
      return AMG_simple_smoother;
    }

References oomph::HypreInterface::AMG_simple_smoother.

Referenced by oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg2v22_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_simple_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_stressdiv_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_poisson_problem(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_poisson_problem(), main(), oomph::Hypre_default_settings::set_defaults_for_2D_poisson_problem(), oomph::Hypre_default_settings::set_defaults_for_navier_stokes_momentum_block(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), and set_pseudo_elastic_fsi_solver().

amg_smoother_iterations()

unsigned& oomph::HyprePreconditioner::amg_smoother_iterations ( )

inline

Access function to AMG_smoother_iterations.

    {
      return AMG_smoother_iterations;
    }

References oomph::HypreInterface::AMG_smoother_iterations.

Referenced by oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg2v22_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_simple_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_stressdiv_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_poisson_problem(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_momentum(), and oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_poisson_problem().

amg_strength()

double& oomph::HyprePreconditioner::amg_strength ( )

inline

Access function to AMG_strength.

    {
      return AMG_strength;
    }

References oomph::HypreInterface::AMG_strength.

Referenced by oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg2v22_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_simple_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_stressdiv_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_poisson_problem(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_poisson_problem(), main(), oomph::Hypre_default_settings::set_defaults_for_2D_poisson_problem(), oomph::Hypre_default_settings::set_defaults_for_3D_poisson_problem(), oomph::Hypre_default_settings::set_defaults_for_navier_stokes_momentum_block(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), and set_pseudo_elastic_fsi_solver().

amg_truncation()

double& oomph::HyprePreconditioner::amg_truncation ( )

inline

Access function to AMG_truncation.

    {
      return AMG_truncation;
    }

References oomph::HypreInterface::AMG_truncation.

amg_using_complex_smoothing()

void oomph::HyprePreconditioner::amg_using_complex_smoothing ( )

inline

Function to select use of 'complex' AMG smoothers as controlled by the flag AMG_complex_smoother

    {
      AMG_using_simple_smoothing = false;
    }

References oomph::HypreInterface::AMG_using_simple_smoothing.

amg_using_simple_smoothing()

void oomph::HyprePreconditioner::amg_using_simple_smoothing ( )

inline

Function to select use of 'simple' AMG smoothers as controlled by the flag AMG_simple_smoother

    {
      AMG_using_simple_smoothing = true;
    }

References oomph::HypreInterface::AMG_using_simple_smoothing.

Referenced by main(), oomph::Hypre_default_settings::set_defaults_for_2D_poisson_problem(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), and set_pseudo_elastic_fsi_solver().

amg_using_simple_smoothing_flag()

bool& oomph::HyprePreconditioner::amg_using_simple_smoothing_flag ( )

inline

Return function for the AMG_using_simple_smoothing_flag.

    {
      return AMG_using_simple_smoothing;
    }

References oomph::HypreInterface::AMG_using_simple_smoothing.

clean_up_memory()

void oomph::HyprePreconditioner::clean_up_memory ( )

virtual

Function deletes all solver data.

clean_up_memory() deletes any existing Hypre solver and Hypre matrix

Reimplemented from oomph::Preconditioner.

  {
    hypre_clean_up_memory();
  }

References oomph::HypreInterface::hypre_clean_up_memory().

Referenced by setup().

disable_delete_matrix()

void oomph::HyprePreconditioner::disable_delete_matrix ( )

inline

Hypre copies matrix data from oomph-lib's CRDoubleMatrix or DistributedCRDoubleMatrix into its own data structures, doubling the memory requirements for the matrix. Calling this function ensures that the matrix is not deleted.

    {
      Delete_matrix = false;
    }

References Delete_matrix.

disable_doc_time()

void oomph::HyprePreconditioner::disable_doc_time ( )

inline

Disable documentation of preconditioner timings.

    {
      Doc_time = false;
    }

References Doc_time.

Referenced by FSIChannelWithLeafletProblem< ELEMENT >::FSIChannelWithLeafletProblem(), PreconditionedFSICollapsibleChannelProblem< ELEMENT >::PreconditionedFSICollapsibleChannelProblem(), FSIChannelWithLeafletProblem< ELEMENT >::set_iterative_solver(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), set_pseudo_elastic_fsi_solver(), and TurekProblem< FLUID_ELEMENT, SOLID_ELEMENT >::TurekProblem().

disable_euclid_rowScale()

void oomph::HyprePreconditioner::disable_euclid_rowScale ( )

inline

Disable euclid row scaling.

    {
      Euclid_rowScale = false;
    }

References oomph::HypreInterface::Euclid_rowScale.

disable_euclid_using_BJ()

void oomph::HyprePreconditioner::disable_euclid_using_BJ ( )

inline

Disable use of Block Jacobi, so PILU will be used

    {
      Euclid_using_BJ = false;
    }

References oomph::HypreInterface::Euclid_using_BJ.

disable_report_my_cumulative_preconditioner_solve_time()

void oomph::HyprePreconditioner::disable_report_my_cumulative_preconditioner_solve_time ( )

inline

Disable reporting of cumulative solve time in destructor.

    {
      Report_my_cumulative_preconditioner_solve_time = false;
    }

References Report_my_cumulative_preconditioner_solve_time.

enable_delete_matrix()

void oomph::HyprePreconditioner::enable_delete_matrix ( )

inline

Hypre copies matrix data from oomph-lib's CRDoubleMatrix or DistributedCRDoubleMatrix into its own data structures, doubling the memory requirements for the matrix. As far as the Hypre solvers are concerned the oomph-lib matrix is no longer required and could be deleted to save memory. However, this will not be the expected behaviour and therefore needs to be requested explicitly by the user by calling this function which changes the flag from false (its default) to true.

    {
      Delete_matrix = true;
    }

References Delete_matrix.

enable_doc_time()

void oomph::HyprePreconditioner::enable_doc_time ( )

inline

Enable documentation of preconditioner timings.

    {
      Doc_time = true;
    }

References Doc_time.

enable_euclid_rowScale()

void oomph::HyprePreconditioner::enable_euclid_rowScale ( )

inline

Enable euclid rowScaling.

    {
      Euclid_rowScale = true;
    }

References oomph::HypreInterface::Euclid_rowScale.

enable_euclid_using_BJ()

void oomph::HyprePreconditioner::enable_euclid_using_BJ ( )

inline

Enable use of Block Jacobi as opposed to PILU

    {
      Euclid_using_BJ = true;
    }

References oomph::HypreInterface::Euclid_using_BJ.

enable_report_my_cumulative_preconditioner_solve_time()

void oomph::HyprePreconditioner::enable_report_my_cumulative_preconditioner_solve_time ( )

inline

Enable reporting of cumulative solve time in destructor.

    {
      Report_my_cumulative_preconditioner_solve_time = true;
    }

References Report_my_cumulative_preconditioner_solve_time.

euclid_droptol()

double& oomph::HyprePreconditioner::euclid_droptol ( )

inline

Access function to Euclid drop tolerance parameter.

    {
      return Euclid_droptol;
    }

References oomph::HypreInterface::Euclid_droptol.

euclid_level()

int& oomph::HyprePreconditioner::euclid_level ( )

inline

Access function to Euclid level parameter for ILU(k) factorization.

    {
      return Euclid_level;
    }

References oomph::HypreInterface::Euclid_level.

euclid_print_level()

unsigned& oomph::HyprePreconditioner::euclid_print_level ( )

inline

Function to set the level of printing from Euclid when the Euclid destructor is called 0: no printing (default) 1: prints summary of runtime settings and timings 2: as 1 plus prints memory usage

    {
      return Euclid_print_level;
    }

References oomph::HypreInterface::Euclid_print_level.

euclid_using_ILUK()

void oomph::HyprePreconditioner::euclid_using_ILUK ( )

inline

Function to switch on ILU(k) factorization for Euclid (default is ILU(k) factorization)

    {
      Euclid_using_ILUT = false;
    }

References oomph::HypreInterface::Euclid_using_ILUT.

euclid_using_ILUT()

void oomph::HyprePreconditioner::euclid_using_ILUT ( )

inline

Function to switch on ILUT factorization for Euclid (default is ILU(k) factorization)

    {
      Euclid_using_ILUT = true;
    }

References oomph::HypreInterface::Euclid_using_ILUT.

hypre_method()

unsigned& oomph::HyprePreconditioner::hypre_method ( )

inline

Access function to Hypre_method flag – specified via enumeration.

    {
      return Hypre_method;
    }

References oomph::HypreInterface::Hypre_method.

Referenced by main(), oomph::Hypre_default_settings::set_defaults_for_2D_poisson_problem(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), and set_pseudo_elastic_fsi_solver().

internal_preconditioner()

unsigned& oomph::HyprePreconditioner::internal_preconditioner ( )

inline

Access function to Internal_preconditioner flag – specified via enumeration.

    {
      return Internal_preconditioner;
    }

References oomph::HypreInterface::Internal_preconditioner.

operator=()

void oomph::HyprePreconditioner::operator= ( const HyprePreconditioner &  )

delete

Broken assignment operator.

parasails_filter()

double& oomph::HyprePreconditioner::parasails_filter ( )

inline

Access function to ParaSails filter parameter.

    {
      return ParaSails_filter;
    }

References oomph::HypreInterface::ParaSails_filter.

parasails_nlevel()

int& oomph::HyprePreconditioner::parasails_nlevel ( )

inline

Access function to ParaSails nlevel parameter.

    {
      return ParaSails_nlevel;
    }

References oomph::HypreInterface::ParaSails_nlevel.

parasails_symmetry()

int& oomph::HyprePreconditioner::parasails_symmetry ( )

inline

Access function to ParaSails symmetry flag.

    {
      return ParaSails_symmetry;
    }

References oomph::HypreInterface::ParaSails_symmetry.

parasails_thresh()

double& oomph::HyprePreconditioner::parasails_thresh ( )

inline

Access function to ParaSails thresh parameter.

    {
      return ParaSails_thresh;
    }

References oomph::HypreInterface::ParaSails_thresh.

preconditioner_solve()

void oomph::HyprePreconditioner::preconditioner_solve ( const DoubleVector &  r, DoubleVector &  z  )

virtual

Preconditioner_solve uses a hypre solver to precondition vector r.

Function applies solver to vector r for preconditioning. This requires a call to setup(...) first. Note: Hypre copies matrix data from oomph-lib's CRDoubleMatrix or DistributedCRDoubleMatrix into its own data structures, doubling the memory requirements for the matrix. As far as the Hypre solvers are concerned, the oomph-lib matrix is no longer required and could be deleted to save memory. However, this will not be the expected behaviour and therefore needs to be requested explicitly by the user with the delete_matrix() function.

Implements oomph::Preconditioner.

  {
    // Store time
    double t_start = TimingHelpers::timer();

#ifdef PARANOID
    // check solver data exists
    if (existing_solver() == None)
    {
      std::ostringstream error_message;
      error_message << "preconditioner_solve(...) requires that data has "
                    << "been set up using the function setup(...)" << std::endl;
      throw OomphLibError(
        error_message.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
    }
    // check that rhs has the same distribution as the matrix (now stored
    // in Distribution_pt)
    if (*this->distribution_pt() != *r.distribution_pt())
    {
      std::ostringstream error_message;
      error_message << "The distribution of the rhs vector and the matrix "
                    << " must be the same" << std::endl;
      throw OomphLibError(
        error_message.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
    }

    // if the solution is setup make sure it has the same distribution as
    // the matrix as well
    if (z.built())
    {
      if (*this->distribution_pt() != *z.distribution_pt())
      {
        std::ostringstream error_message;
        error_message << "The distribution of the solution vector is setup "
                      << "there it must be the same as the matrix."
                      << std::endl;
        throw OomphLibError(error_message.str(),
                            OOMPH_CURRENT_FUNCTION,
                            OOMPH_EXCEPTION_LOCATION);
      }
    }
#endif

    // Switch off any timings for the solve
    Output_info = false;

    // perform hypre_solve
    hypre_solve(r, z);

    // Add to cumulative solve time
    double t_end = TimingHelpers::timer();
    Cumulative_preconditioner_solve_time += (t_end - t_start);
    Cumulative_npreconditioner_solve++;
    My_cumulative_preconditioner_solve_time += (t_end - t_start);
    if (Context_string != "")
    {
      Context_based_cumulative_solve_time[Context_string] += (t_end - t_start);
      Context_based_cumulative_npreconditioner_solve[Context_string]++;
    }
  }

References oomph::DoubleVector::built(), Context_based_cumulative_npreconditioner_solve, Context_based_cumulative_solve_time, Context_string, Cumulative_npreconditioner_solve, Cumulative_preconditioner_solve_time, oomph::DistributableLinearAlgebraObject::distribution_pt(), oomph::HypreInterface::existing_solver(), oomph::HypreInterface::hypre_solve(), My_cumulative_preconditioner_solve_time, oomph::HypreInterface::None, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, oomph::HypreInterface::Output_info, UniformPSDSelfTest::r, and oomph::TimingHelpers::timer().

report_cumulative_solve_times()

void oomph::HyprePreconditioner::report_cumulative_solve_times ( )

static

Report cumulative solve times of all instantiations of this class

  {
    oomph_info << "\n\n=====================================================\n";
    oomph_info << "Cumulative HyprePreconditioner solve time "
               << HyprePreconditioner::Cumulative_preconditioner_solve_time
               << " for " << Cumulative_npreconditioner_solve << " solves";
    if (Cumulative_npreconditioner_solve != 0)
    {
      oomph_info << " ( "
                 << HyprePreconditioner::Cumulative_preconditioner_solve_time /
                      double(Cumulative_npreconditioner_solve)
                 << " per solve )";
    }
    oomph_info << std::endl << std::endl;
    if (Context_based_cumulative_solve_time.size() > 0)
    {
      oomph_info << "Breakdown by context: " << std::endl;
      for (std::map<std::string, double>::iterator it =
             Context_based_cumulative_solve_time.begin();
           it != Context_based_cumulative_solve_time.end();
           it++)
      {
        oomph_info
          << (*it).first << " " << (*it).second << " for "
          << Context_based_cumulative_npreconditioner_solve[(*it).first]
          << " solves";
        if (Context_based_cumulative_npreconditioner_solve[(*it).first] != 0)
        {
          oomph_info
            << " ( "
            << (*it).second /
                 double(
                   Context_based_cumulative_npreconditioner_solve[(*it).first])
            << " per solve; "
            << (*it).second /
                 double(
                   Context_based_cumulative_npreconditioner_solve[(*it)
                                                                    .first]) /
                 double(Context_based_nrow[(*it).first])
            << " per solve per dof )";
        }
        oomph_info << std::endl;
      }
    }
    oomph_info << "\n=====================================================\n";
    oomph_info << std::endl;
  }

References Context_based_cumulative_npreconditioner_solve, Context_based_cumulative_solve_time, Context_based_nrow, Cumulative_npreconditioner_solve, Cumulative_preconditioner_solve_time, and oomph::oomph_info.

reset_cumulative_solve_times()

void oomph::HyprePreconditioner::reset_cumulative_solve_times ( )

static

Reset cumulative solve times.

  {
    Cumulative_preconditioner_solve_time = 0.0;
    Context_based_cumulative_solve_time.clear();
    Cumulative_npreconditioner_solve = 0;
    Context_based_cumulative_npreconditioner_solve.clear();
    Context_based_nrow.clear();
  }

References Context_based_cumulative_npreconditioner_solve, Context_based_cumulative_solve_time, Context_based_nrow, Cumulative_npreconditioner_solve, and Cumulative_preconditioner_solve_time.

set_amg_iterations()

void oomph::HyprePreconditioner::set_amg_iterations ( const unsigned &  amg_iterations )

inline

Function to set the number of times to apply BoomerAMG.

    {
      Max_iter = amg_iterations;
    }

References amg_iterations(), and oomph::HypreInterface::Max_iter.

Referenced by oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg2v22_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_simple_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_momentum_stressdiv_visc(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_2D_poisson_problem(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_momentum(), oomph::Lagrange_Enforced_Flow_Preconditioner_Subsidiary_Operator_Helper::boomer_amg_for_3D_poisson_problem(), main(), oomph::Hypre_default_settings::set_defaults_for_2D_poisson_problem(), PseudoElasticCollapsibleChannelProblem< FLUID_ELEMENT, SOLID_ELEMENT >::set_pseudo_elastic_fsi_solver(), and set_pseudo_elastic_fsi_solver().

setup()

void oomph::HyprePreconditioner::setup ( )

virtual

Function to set up a preconditioner for the linear system defined by matrix_pt. This function is required when preconditioning and must be called before using the preconditioner_solve(...) function. This interface allows HyprePreconditioner to be used as a Preconditioner object for oomph-lib's own IterativeLinearSolver class. Note: matrix_pt must point to an object of type CRDoubleMatrix or DistributedCRDoubleMatrix. Note: Hypre copies matrix data from oomph-lib's CRDoubleMatrix and DistributedCRDoubleMatrix into its own data structures, doubling the memory requirements for the matrix. As far as the Hypre solvers are concerned, the oomph-lib matrix is no longer required and could be deleted to save memory. However, this will not be the expected behaviour and therefore needs to be requested explicitly by the user by calling the enable_delete_matrix() function.

An interface to allow HypreSolver to be used as a Preconditioner for the oomph-lib IterativeLinearSolver class. Matrix has to be of type CRDoubleMatrix or DistributedCRDoubleMatrix.

Implements oomph::Preconditioner.

  {
    // Set Output_info flag for HypreInterface
    Output_info = Doc_time;

#ifdef PARANOID
    // check the matrix is square
    if (matrix_pt()->nrow() != matrix_pt()->ncol())
    {
      std::ostringstream error_message;
      error_message << "HyprePreconditioner require a square matrix. "
                    << "Matrix is " << matrix_pt()->nrow() << " by "
                    << matrix_pt()->ncol() << std::endl;
      throw OomphLibError(
        error_message.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
    }
#endif

    // clean up any previous solver data
    clean_up_memory();

    // set flag to decide if oomphlib matrix can be deleted
    // (Recall that Delete_matrix defaults to false).
    Delete_input_data = Delete_matrix;

    // Try casting to a CRDoubleMatrix
    CRDoubleMatrix* cr_matrix_pt = dynamic_cast<CRDoubleMatrix*>(matrix_pt());

    // If cast successful set things up for a serial solve
    if (cr_matrix_pt)
    {
      this->build_distribution(cr_matrix_pt->distribution_pt());
      hypre_matrix_setup(cr_matrix_pt);
    }
    else
    {
#ifdef PARANOID
      std::ostringstream error_message;
      error_message << "HyprePreconditioner only work with "
                    << "CRDoubleMatrix matrices" << std::endl;
      throw OomphLibError(
        error_message.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
#endif
    }

    if (Context_string != "")
    {
      oomph_info << "Setup of HyprePreconditioner in context \" "
                 << Context_string << "\": nrow, nrow_local, nnz "
                 << cr_matrix_pt->nrow() << " " << cr_matrix_pt->nrow_local()
                 << " " << cr_matrix_pt->nnz() << std::endl;
    }
    Context_based_nrow[Context_string] = cr_matrix_pt->nrow();

    // call hypre_solver_setup
    hypre_solver_setup();
  }

References oomph::DistributableLinearAlgebraObject::build_distribution(), clean_up_memory(), Context_based_nrow, Context_string, oomph::HypreInterface::Delete_input_data, Delete_matrix, oomph::DistributableLinearAlgebraObject::distribution_pt(), Doc_time, oomph::HypreInterface::hypre_matrix_setup(), oomph::HypreInterface::hypre_solver_setup(), oomph::Preconditioner::matrix_pt(), oomph::DoubleMatrixBase::ncol(), oomph::CRDoubleMatrix::nnz(), oomph::DistributableLinearAlgebraObject::nrow(), oomph::CRDoubleMatrix::nrow(), oomph::DoubleMatrixBase::nrow(), oomph::DistributableLinearAlgebraObject::nrow_local(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, oomph::oomph_info, and oomph::HypreInterface::Output_info.

use_BoomerAMG()

void oomph::HyprePreconditioner::use_BoomerAMG ( )

inline

Function to select BoomerAMG as the preconditioner.

    {
      Hypre_method = BoomerAMG;
    }

References oomph::HypreInterface::BoomerAMG, and oomph::HypreInterface::Hypre_method.

Referenced by main().

use_Euclid()

void oomph::HyprePreconditioner::use_Euclid ( )

inline

Function to select use Euclid as the preconditioner.

    {
      Hypre_method = Euclid;
    }

References oomph::HypreInterface::Euclid, and oomph::HypreInterface::Hypre_method.

use_ParaSails()

void oomph::HyprePreconditioner::use_ParaSails ( )

inline

Function to select ParaSails as the preconditioner.

    {
      Hypre_method = ParaSails;
    }

References oomph::HypreInterface::Hypre_method, and oomph::HypreInterface::ParaSails.

Member Data Documentation

Context_based_cumulative_npreconditioner_solve

std::map< std::string, unsigned > oomph::HyprePreconditioner::Context_based_cumulative_npreconditioner_solve

static

Static unsigned that accumulates the number of preconditioner solves of all instantiations of this class, labeled by context string. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

Referenced by preconditioner_solve(), report_cumulative_solve_times(), and reset_cumulative_solve_times().

Context_based_cumulative_solve_time

std::map< std::string, double > oomph::HyprePreconditioner::Context_based_cumulative_solve_time

static

Static double that accumulates the preconditioner solve time of all instantiations of this class, labeled by context string. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

map of static doubles that accumulates the preconditioner solve time of all instantiations of this class, labeled by context string. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

Referenced by preconditioner_solve(), report_cumulative_solve_times(), and reset_cumulative_solve_times().

Context_based_nrow

std::map< std::string, unsigned > oomph::HyprePreconditioner::Context_based_nrow

static

Static unsigned that stores nrow for the most recent instantiations of this class, labeled by context string. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

Referenced by report_cumulative_solve_times(), reset_cumulative_solve_times(), and setup().

Context_string

std::string oomph::HyprePreconditioner::Context_string

private

String can be used to provide context for annotation.

Referenced by HyprePreconditioner(), preconditioner_solve(), setup(), and ~HyprePreconditioner().

Cumulative_npreconditioner_solve

unsigned oomph::HyprePreconditioner::Cumulative_npreconditioner_solve = 0

static

Static unsigned that accumulates the number of preconditioner solves of all instantiations of this class. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

Referenced by preconditioner_solve(), report_cumulative_solve_times(), and reset_cumulative_solve_times().

Cumulative_preconditioner_solve_time

double oomph::HyprePreconditioner::Cumulative_preconditioner_solve_time = 0.0

static

Static double that accumulates the preconditioner solve time of all instantiations of this class. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

//////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// Static double that accumulates the preconditioner solve time of all instantiations of this class. Reset it manually, e.g. after every Newton solve, using reset_cumulative_solve_times().

Referenced by preconditioner_solve(), report_cumulative_solve_times(), and reset_cumulative_solve_times().

Delete_matrix

bool oomph::HyprePreconditioner::Delete_matrix

private

Hypre copies matrix data from oomph-lib's CRDoubleMatrix or DistributedCRDoubleMatrix into its own data structures, doubling the memory requirements for the matrix. As far as the Hypre solvers are concerned the oomph-lib matrix is no longer required and could be deleted to save memory. However, this will not be the expected behaviour and therefore needs to be requested explicitly by the user by changing this flag from false (its default) to true.

Referenced by disable_delete_matrix(), enable_delete_matrix(), HyprePreconditioner(), and setup().

Doc_time

bool oomph::HyprePreconditioner::Doc_time

private

Referenced by disable_doc_time(), enable_doc_time(), HyprePreconditioner(), and setup().

My_cumulative_preconditioner_solve_time

double oomph::HyprePreconditioner::My_cumulative_preconditioner_solve_time

private

Private double that accumulates the preconditioner solve time of thi instantiation of this class. Is reported in destructor if Report_my_cumulative_preconditioner_solve_time is set to true

Referenced by HyprePreconditioner(), preconditioner_solve(), and ~HyprePreconditioner().

Report_my_cumulative_preconditioner_solve_time

bool oomph::HyprePreconditioner::Report_my_cumulative_preconditioner_solve_time

private

Bool to request report of My_cumulative_preconditioner_solve_time in destructor

Referenced by disable_report_my_cumulative_preconditioner_solve_time(), enable_report_my_cumulative_preconditioner_solve_time(), HyprePreconditioner(), and ~HyprePreconditioner().

---

The documentation for this class was generated from the following files:

• hypre_solver.h
• hypre_solver.cc
