oomph::Preconditioner Class Reference

#include <preconditioner.h>

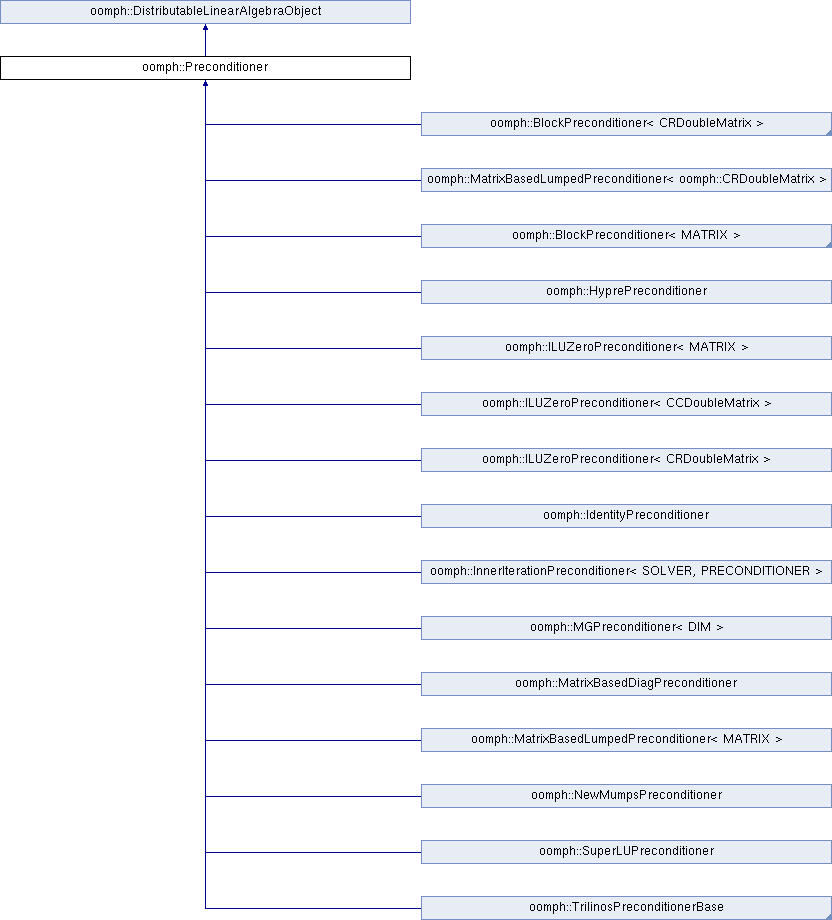

Inheritance diagram for oomph::Preconditioner:

Public Member Functions
	Preconditioner ()
	Constructor. More...
	Preconditioner (const Preconditioner &)=delete
	Broken copy constructor. More...
void	operator= (const Preconditioner &)=delete
	Broken assignment operator. More...
virtual	~Preconditioner ()
	Destructor (empty) More...
virtual void	preconditioner_solve (const DoubleVector &r, DoubleVector &z)=0
virtual void	preconditioner_solve_transpose (const DoubleVector &r, DoubleVector &z)
void	setup (DoubleMatrixBase *matrix_pt)
void	setup (const Problem *problem_pt, DoubleMatrixBase *matrix_pt)
void	enable_silent_preconditioner_setup ()
	Set up the block preconditioner quietly! More...
void	disable_silent_preconditioner_setup ()
	Be verbose in the block preconditioner setup. More...
virtual void	setup ()=0
virtual void	clean_up_memory ()
	Clean up memory (empty). Generic interface function. More...
virtual DoubleMatrixBase *	matrix_pt () const
	Get function for matrix pointer. More...
virtual void	set_matrix_pt (DoubleMatrixBase *matrix_pt)
	Set the matrix pointer. More...
virtual const OomphCommunicator *	comm_pt () const
	Get function for comm pointer. More...
virtual void	set_comm_pt (const OomphCommunicator *const comm_pt)
	Set the communicator pointer. More...
double	setup_time () const
	Returns the time to setup the preconditioner. More...
virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse)
virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse, const Vector< Vector< unsigned >> &doftype_coarsen_map_coarse)
Public Member Functions inherited from oomph::DistributableLinearAlgebraObject
	DistributableLinearAlgebraObject ()
	Default constructor - create a distribution. More...
	DistributableLinearAlgebraObject (const DistributableLinearAlgebraObject &matrix)=delete
	Broken copy constructor. More...
void	operator= (const DistributableLinearAlgebraObject &)=delete
	Broken assignment operator. More...
virtual	~DistributableLinearAlgebraObject ()
	Destructor. More...
LinearAlgebraDistribution *	distribution_pt () const
	access to the LinearAlgebraDistribution More...
unsigned	nrow () const
	access function to the number of global rows. More...
unsigned	nrow_local () const
	access function for the num of local rows on this processor. More...
unsigned	nrow_local (const unsigned &p) const
	access function for the num of local rows on this processor. More...
unsigned	first_row () const
	access function for the first row on this processor More...
unsigned	first_row (const unsigned &p) const
	access function for the first row on this processor More...
bool	distributed () const
	distribution is serial or distributed More...
bool	distribution_built () const
void	build_distribution (const LinearAlgebraDistribution *const dist_pt)
void	build_distribution (const LinearAlgebraDistribution &dist)

Protected Attributes
bool	Silent_preconditioner_setup
	Boolean to indicate whether or not the build should be done silently. More...
std::ostream *	Stream_pt
	Pointer to the output stream – defaults to std::cout. More...

Private Attributes
DoubleMatrixBase *	Matrix_pt
	Storage for a pointer to the matrix. More...
const OomphCommunicator *	Comm_pt
double	Setup_time
	The time it takes to set up this preconditioner. More...

Additional Inherited Members
Protected Member Functions inherited from oomph::DistributableLinearAlgebraObject
void	clear_distribution ()

Detailed Description

Preconditioner base class. Gives an interface to call all other preconditioners through and stores the matrix and communicator pointers. All preconditioners should be derived from this class.

Constructor & Destructor Documentation

Preconditioner() [1/2]

oomph::Preconditioner::Preconditioner ( )

inline

Constructor.

      : Silent_preconditioner_setup(false),
        Stream_pt(0),
        Matrix_pt(0),
        Comm_pt(0),
        Setup_time(0){};

Preconditioner() [2/2]

oomph::Preconditioner::Preconditioner ( const Preconditioner &  )

delete

Broken copy constructor.

~Preconditioner()

virtual oomph::Preconditioner::~Preconditioner ( )

inlinevirtual

Destructor (empty)

{}

Member Function Documentation

clean_up_memory()

virtual void oomph::Preconditioner::clean_up_memory ( )

inlinevirtual

Clean up memory (empty). Generic interface function.

Reimplemented in oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::BandedBlockTriangularPreconditioner< MATRIX >, oomph::ExactDGPBlockPreconditioner< MATRIX >, oomph::PressureBasedSolidLSCPreconditioner, oomph::HelmholtzMGPreconditioner< DIM >, oomph::HelmholtzGMRESMG< MATRIX >, oomph::NavierStokesSchurComplementPreconditioner, oomph::LagrangeEnforcedFlowPreconditioner, oomph::PseudoElasticPreconditionerSubsidiaryBlockPreconditionerOld, oomph::PseudoElasticPreconditionerSubsidiaryPreconditionerOld, oomph::PseudoElasticPreconditionerOld, oomph::PseudoElasticPreconditioner, oomph::PseudoElasticFSIPreconditioner, oomph::TrilinosPreconditionerBase, oomph::SuperLUPreconditioner, oomph::NewMumpsPreconditioner, oomph::HyprePreconditioner, oomph::MGPreconditioner< DIM >, oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::BlockTriangularPreconditioner< MATRIX >, oomph::BlockDiagonalPreconditioner< MATRIX >, oomph::GeneralPurposeBlockPreconditioner< MATRIX >, oomph::InexactSubBiharmonicPreconditioner, oomph::ExactSubBiharmonicPreconditioner, oomph::BiharmonicPreconditioner, BoussinesqPreconditioner, and SimpleLSCPreconditioner.

{}

Referenced by oomph::TrilinosAztecOOSolver::clean_up_memory(), and oomph::PseudoElasticFSIPreconditioner::clean_up_memory().

comm_pt()

virtual const OomphCommunicator* oomph::Preconditioner::comm_pt ( ) const

inlinevirtual

Get function for comm pointer.

    {
      // If we are using MPI then the comm pointer should not be null.
#ifdef OOMPH_HAS_MPI
#ifdef PARANOID
      if (Comm_pt == 0)
      {
        std::ostringstream error_msg;
        error_msg << "Tried to access a null communicator pointer. This might "
                     "mean you are\n"
                  << "trying to use it in a non-parallel case. Or it might "
                     "mean you haven't\n"
                  << "set it properly.";
        throw OomphLibError(
          error_msg.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
      }
#endif
#endif
      return Comm_pt;
    }

References Comm_pt, OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

Referenced by oomph::NavierStokesSchurComplementPreconditioner::assemble_inv_press_and_veloc_mass_matrix_diagonal(), oomph::PressureBasedSolidLSCPreconditioner::assemble_mass_matrix_diagonal(), oomph::NavierStokesSchurComplementPreconditioner::get_pressure_advection_diffusion_matrix(), oomph::BlockPreconditioner< MATRIX >::internal_dof_number(), set_comm_pt(), oomph::ILUZeroPreconditioner< CCDoubleMatrix >::setup(), oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >::setup(), oomph::IdentityPreconditioner::setup(), and oomph::PseudoElasticPreconditionerOld::setup().

disable_silent_preconditioner_setup()

void oomph::Preconditioner::disable_silent_preconditioner_setup ( )

inline

Be verbose in the block preconditioner setup.

    {
      // Set the appropriate (silencing) boolean to false
      Silent_preconditioner_setup = false;
    } // End of disable_silent_preconditioner_setup

References Silent_preconditioner_setup.

enable_silent_preconditioner_setup()

void oomph::Preconditioner::enable_silent_preconditioner_setup ( )

inline

Set up the block preconditioner quietly!

    {
      // Set the appropriate (silencing) boolean to true
      Silent_preconditioner_setup = true;
    } // End of enable_silent_preconditioner_setup

References Silent_preconditioner_setup.

Referenced by NavierStokesProblem< ELEMENT >::set_up_spacetime_solver(), and UnsteadyHeatProblem< ELEMENT >::set_up_spacetime_solver().

matrix_pt()

virtual DoubleMatrixBase* oomph::Preconditioner::matrix_pt ( ) const

inlinevirtual

Get function for matrix pointer.

Reimplemented in oomph::BlockPreconditioner< MATRIX >, and oomph::BlockPreconditioner< CRDoubleMatrix >.

    {
#ifdef PARANOID
      if (Matrix_pt == 0)
      {
        std::ostringstream error_msg;
        error_msg << "Matrix pointer is null.";
        throw OomphLibError(
          error_msg.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
      }
#endif
      return Matrix_pt;
    }

References Matrix_pt, OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

Referenced by oomph::BlockPreconditioner< MATRIX >::matrix_pt(), set_matrix_pt(), oomph::MatrixBasedDiagPreconditioner::setup(), oomph::ILUZeroPreconditioner< CCDoubleMatrix >::setup(), oomph::ILUZeroPreconditioner< CRDoubleMatrix >::setup(), oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >::setup(), oomph::HyprePreconditioner::setup(), oomph::NewMumpsPreconditioner::setup(), oomph::IdentityPreconditioner::setup(), oomph::SuperLUPreconditioner::setup(), oomph::TrilinosPreconditionerBase::setup(), and setup().

operator=()

void oomph::Preconditioner::operator= ( const Preconditioner &  )

delete

Broken assignment operator.

preconditioner_solve()

virtual void oomph::Preconditioner::preconditioner_solve ( const DoubleVector &  r, DoubleVector &  z  )

pure virtual

Apply the preconditioner. Pure virtual generic interface function. This method should apply the preconditioner operator to the vector r and return the vector z.

Implemented in oomph::MGPreconditioner< DIM >, oomph::PseudoElasticPreconditionerSubsidiaryBlockPreconditionerOld, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::BandedBlockTriangularPreconditioner< MATRIX >, oomph::ExactDGPBlockPreconditioner< MATRIX >, oomph::PressureBasedSolidLSCPreconditioner, oomph::HelmholtzMGPreconditioner< DIM >, oomph::HelmholtzGMRESMG< MATRIX >, oomph::NavierStokesSchurComplementPreconditioner, oomph::LagrangeEnforcedFlowPreconditioner, oomph::PseudoElasticPreconditionerScalingHelperOld, oomph::PseudoElasticPreconditionerSubsidiaryPreconditionerOld, oomph::PseudoElasticPreconditionerOld, oomph::PseudoElasticPreconditioner, oomph::PseudoElasticFSIPreconditioner, oomph::SimpleFSIPreconditioner< MATRIX >, oomph::FSIPreconditioner, oomph::TrilinosPreconditionerBase, oomph::SuperLUPreconditioner, oomph::IdentityPreconditioner, oomph::NewMumpsPreconditioner, oomph::HyprePreconditioner, oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >, oomph::ILUZeroPreconditioner< CRDoubleMatrix >, oomph::ILUZeroPreconditioner< CCDoubleMatrix >, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::MatrixBasedDiagPreconditioner, oomph::DummyBlockPreconditioner< MATRIX >, oomph::ExactBlockPreconditioner< MATRIX >, oomph::BlockTriangularPreconditioner< MATRIX >, oomph::BlockDiagonalPreconditioner< MATRIX >, oomph::InexactSubBiharmonicPreconditioner, oomph::ExactSubBiharmonicPreconditioner, oomph::BiharmonicPreconditioner, BoussinesqPreconditioner, SimpleFSIPreconditioner< MATRIX >, oomph::SimpleBlockDiagonalPreconditioner< MATRIX >, oomph::SimpleBlockDiagonalPreconditioner< CRDoubleMatrix >, oomph::OnePlusFourWithTwoCoarse< MATRIX >, oomph::CoarseTwoPlusTwoPlusOne< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithReplace< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithTwoLevelSubsidiary< MATRIX >, oomph::TwoPlusOneUpperTriangularPreconditioner< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithOneLevelSubsidiary< MATRIX >, oomph::TwoPlusThreeUpperTriangular< MATRIX >, oomph::TwoPlusThree< MATRIX >, oomph::UpperTriangular< MATRIX >, oomph::CoarseTwoIntoOne< MATRIX >, oomph::SimpleOneDofOnly< MATRIX >, oomph::SimpleTwoDofOnly< MATRIX >, oomph::Diagonal< MATRIX >, and SimpleLSCPreconditioner.

Referenced by oomph::AugmentedProblemGMRES::apply_schur_complement_preconditioner(), oomph::OomphLibPreconditionerEpetraOperator::ApplyInverse(), oomph::PseudoElasticPreconditioner::elastic_preconditioner_solve(), oomph::PseudoElasticPreconditionerOld::elastic_preconditioner_solve(), oomph::BiharmonicPreconditioner::preconditioner_solve(), oomph::ExactSubBiharmonicPreconditioner::preconditioner_solve(), oomph::InexactSubBiharmonicPreconditioner::preconditioner_solve(), oomph::FSIPreconditioner::preconditioner_solve(), oomph::PseudoElasticFSIPreconditioner::preconditioner_solve(), oomph::PseudoElasticPreconditionerSubsidiaryPreconditionerOld::preconditioner_solve(), oomph::LagrangeEnforcedFlowPreconditioner::preconditioner_solve(), oomph::PressureBasedSolidLSCPreconditioner::preconditioner_solve(), oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner::preconditioner_solve(), oomph::AugmentedProblemGMRES::solve_helper(), oomph::GMRES< MATRIX >::update(), and oomph::HelmholtzGMRESMG< MATRIX >::update().

preconditioner_solve_transpose()

virtual void oomph::Preconditioner::preconditioner_solve_transpose ( const DoubleVector &  r, DoubleVector &  z  )

inlinevirtual

Apply the preconditioner. Pure virtual generic interface function. This method should apply the preconditioner operator to the vector r and return the vector z. (broken virtual)

Reimplemented in oomph::SuperLUPreconditioner, and oomph::IdentityPreconditioner.

    {
      // Throw an error
      throw OomphLibError("This function hasn't been implemented yet!",
                          OOMPH_CURRENT_FUNCTION,
                          OOMPH_EXCEPTION_LOCATION);
    }

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

set_comm_pt()

virtual void oomph::Preconditioner::set_comm_pt ( const OomphCommunicator *const  comm_pt )

inlinevirtual

Set the communicator pointer.

    {
      Comm_pt = comm_pt;
    }

References comm_pt(), and Comm_pt.

Referenced by oomph::PseudoElasticPreconditionerScalingHelperOld::PseudoElasticPreconditionerScalingHelperOld(), setup(), oomph::HelmholtzGMRESMG< MATRIX >::solve(), and oomph::HelmholtzFGMRESMG< MATRIX >::solve().

set_matrix_pt()

virtual void oomph::Preconditioner::set_matrix_pt ( DoubleMatrixBase *  matrix_pt )

inlinevirtual

Set the matrix pointer.

    {
      Matrix_pt = matrix_pt;
    }

References matrix_pt(), and Matrix_pt.

Referenced by oomph::PseudoElasticPreconditionerScalingHelperOld::PseudoElasticPreconditionerScalingHelperOld(), oomph::BlockPreconditioner< MATRIX >::set_master_matrix_pt(), setup(), oomph::HelmholtzGMRESMG< MATRIX >::solve(), oomph::HelmholtzFGMRESMG< MATRIX >::solve(), and oomph::TrilinosAztecOOSolver::solver_setup().

setup() [1/3]

virtual void oomph::Preconditioner::setup ( )

pure virtual

Setup the preconditioner. Pure virtual generic interface function.

Implemented in oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::HelmholtzMGPreconditioner< DIM >, oomph::NavierStokesSchurComplementPreconditioner, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::TwoPlusThreeUpperTriangularWithTwoLevelSubsidiary< MATRIX >, oomph::TwoPlusOneUpperTriangularPreconditioner< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithOneLevelSubsidiary< MATRIX >, oomph::TwoPlusThreeUpperTriangular< MATRIX >, oomph::UpperTriangular< MATRIX >, oomph::CoarseTwoIntoOne< MATRIX >, oomph::SimpleOneDofOnly< MATRIX >, oomph::SimpleTwoDofOnly< MATRIX >, oomph::Diagonal< MATRIX >, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::HelmholtzMGPreconditioner< DIM >, oomph::NavierStokesSchurComplementPreconditioner, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::TwoPlusThreeUpperTriangularWithTwoLevelSubsidiary< MATRIX >, oomph::TwoPlusOneUpperTriangularPreconditioner< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithOneLevelSubsidiary< MATRIX >, oomph::TwoPlusThreeUpperTriangular< MATRIX >, oomph::UpperTriangular< MATRIX >, oomph::CoarseTwoIntoOne< MATRIX >, oomph::SimpleOneDofOnly< MATRIX >, oomph::SimpleTwoDofOnly< MATRIX >, oomph::Diagonal< MATRIX >, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::HelmholtzMGPreconditioner< DIM >, oomph::NavierStokesSchurComplementPreconditioner, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::TwoPlusThreeUpperTriangularWithTwoLevelSubsidiary< MATRIX >, oomph::TwoPlusOneUpperTriangularPreconditioner< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithOneLevelSubsidiary< MATRIX >, oomph::TwoPlusThreeUpperTriangular< MATRIX >, oomph::UpperTriangular< MATRIX >, oomph::CoarseTwoIntoOne< MATRIX >, oomph::SimpleOneDofOnly< MATRIX >, oomph::SimpleTwoDofOnly< MATRIX >, oomph::Diagonal< MATRIX >, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::GMRESBlockPreconditioner, oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner, oomph::BandedBlockTriangularPreconditioner< MATRIX >, oomph::ExactDGPBlockPreconditioner< MATRIX >, oomph::PressureBasedSolidExactPreconditioner< MATRIX >, oomph::PressureBasedSolidLSCPreconditioner, oomph::HelmholtzMGPreconditioner< DIM >, oomph::HelmholtzGMRESMG< MATRIX >, oomph::NavierStokesExactPreconditioner< MATRIX >, oomph::NavierStokesSchurComplementPreconditioner, oomph::LagrangeEnforcedFlowPreconditioner, oomph::PseudoElasticPreconditionerScalingHelperOld, oomph::PseudoElasticPreconditionerSubsidiaryBlockPreconditionerOld, oomph::PseudoElasticPreconditionerSubsidiaryPreconditionerOld, oomph::PseudoElasticPreconditionerOld, oomph::PseudoElasticPreconditioner, oomph::PseudoElasticFSIPreconditioner, oomph::SimpleFSIPreconditioner< MATRIX >, oomph::FSIPreconditioner, oomph::TrilinosPreconditionerBase, oomph::SuperLUPreconditioner, oomph::IdentityPreconditioner, oomph::NewMumpsPreconditioner, oomph::HyprePreconditioner, oomph::MGPreconditioner< DIM >, oomph::InnerIterationPreconditioner< SOLVER, PRECONDITIONER >, oomph::ILUZeroPreconditioner< CRDoubleMatrix >, oomph::ILUZeroPreconditioner< CCDoubleMatrix >, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::MatrixBasedDiagPreconditioner, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::MatrixBasedLumpedPreconditioner< MATRIX >, oomph::MatrixBasedLumpedPreconditioner< oomph::CRDoubleMatrix >, oomph::DummyBlockPreconditioner< MATRIX >, oomph::ExactBlockPreconditioner< MATRIX >, oomph::BlockTriangularPreconditioner< MATRIX >, oomph::BlockDiagonalPreconditioner< MATRIX >, oomph::InexactSubBiharmonicPreconditioner, oomph::ExactSubBiharmonicPreconditioner, oomph::BiharmonicPreconditioner, BoussinesqPreconditioner, SimpleFSIPreconditioner< MATRIX >, oomph::SimpleBlockDiagonalPreconditioner< MATRIX >, oomph::SimpleBlockDiagonalPreconditioner< CRDoubleMatrix >, oomph::OnePlusFourWithTwoCoarse< MATRIX >, oomph::CoarseTwoPlusTwoPlusOne< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithReplace< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithTwoLevelSubsidiary< MATRIX >, oomph::TwoPlusOneUpperTriangularPreconditioner< MATRIX >, oomph::TwoPlusThreeUpperTriangularWithOneLevelSubsidiary< MATRIX >, oomph::TwoPlusThreeUpperTriangular< MATRIX >, oomph::TwoPlusThree< MATRIX >, oomph::UpperTriangular< MATRIX >, oomph::CoarseTwoIntoOne< MATRIX >, oomph::SimpleOneDofOnly< MATRIX >, oomph::SimpleTwoDofOnly< MATRIX >, oomph::Diagonal< MATRIX >, and SimpleLSCPreconditioner.

Referenced by setup().

setup() [2/3]

void oomph::Preconditioner::setup ( const Problem *  problem_pt, DoubleMatrixBase *  matrix_pt  )

inline

Compatability layer for old preconditioners where problem pointers were needed. The problem pointer is only used to get a communicator pointer.

    {
      ObsoleteCode::obsolete();
      setup(matrix_pt);
    }

References matrix_pt(), oomph::ObsoleteCode::obsolete(), and setup().

setup() [3/3]

void oomph::Preconditioner::setup ( DoubleMatrixBase *  matrix_pt )

inline

Setup the preconditioner: store the matrix pointer and the communicator pointer then call preconditioner specific setup() function.

    {
      // Store matrix pointer
      set_matrix_pt(matrix_pt);

      // Extract and store communicator pointer
      DistributableLinearAlgebraObject* dist_obj_pt =
        dynamic_cast<DistributableLinearAlgebraObject*>(matrix_pt);
      if (dist_obj_pt != 0)
      {
        set_comm_pt(dist_obj_pt->distribution_pt()->communicator_pt());
      }
      else
      {
        set_comm_pt(0);
      }

      double setup_time_start = TimingHelpers::timer();
      setup();
      double setup_time_finish = TimingHelpers::timer();
      Setup_time = setup_time_finish - setup_time_start;
    }

References oomph::LinearAlgebraDistribution::communicator_pt(), oomph::DistributableLinearAlgebraObject::distribution_pt(), matrix_pt(), set_comm_pt(), set_matrix_pt(), setup(), Setup_time, and oomph::TimingHelpers::timer().

Referenced by oomph::BiharmonicPreconditioner::setup(), oomph::ExactSubBiharmonicPreconditioner::setup(), oomph::InexactSubBiharmonicPreconditioner::setup(), oomph::FSIPreconditioner::setup(), oomph::PseudoElasticFSIPreconditioner::setup(), oomph::PseudoElasticPreconditionerSubsidiaryPreconditionerOld::setup(), oomph::LagrangeEnforcedFlowPreconditioner::setup(), oomph::PressureBasedSolidLSCPreconditioner::setup(), oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner::setup(), oomph::AugmentedProblemGMRES::solve_helper(), and oomph::TrilinosAztecOOSolver::solver_setup().

setup_time()

double oomph::Preconditioner::setup_time ( ) const

inline

Returns the time to setup the preconditioner.

    {
      return Setup_time;
    }

References Setup_time.

Referenced by oomph::FSIPreconditioner::setup().

turn_into_subsidiary_block_preconditioner() [1/2]

virtual void oomph::Preconditioner::turn_into_subsidiary_block_preconditioner ( BlockPreconditioner< CRDoubleMatrix > *  master_block_prec_pt, const Vector< unsigned > &  doftype_in_master_preconditioner_coarse  )

inlinevirtual

Virtual interface function for making a preconditioner a subsidiary of a block preconditioner. By default nothing is needed, but if this preconditioner is also a block preconditioner then things need to happen. There's an assumption here that the block preconditioner will be in CR form but since that assumption is hard coded all over BlockPreconditioner we're safe.

    {
    }

turn_into_subsidiary_block_preconditioner() [2/2]

virtual void oomph::Preconditioner::turn_into_subsidiary_block_preconditioner ( BlockPreconditioner< CRDoubleMatrix > *  master_block_prec_pt, const Vector< unsigned > &  doftype_in_master_preconditioner_coarse, const Vector< Vector< unsigned >> &  doftype_coarsen_map_coarse  )

inlinevirtual

Virtual interface function for making a preconditioner a subsidiary of a block preconditioner. By default nothing is needed, but if this preconditioner is also a block preconditioner then things need to happen. Version for coarsening dof-types.

    {
    }

Member Data Documentation

Comm_pt

const OomphCommunicator* oomph::Preconditioner::Comm_pt

private

Storage for a pointer to the communicator. Null if the preconditioner should not be distributed.

Referenced by comm_pt(), and set_comm_pt().

Matrix_pt

DoubleMatrixBase* oomph::Preconditioner::Matrix_pt

private

Storage for a pointer to the matrix.

Referenced by matrix_pt(), and set_matrix_pt().

Setup_time

double oomph::Preconditioner::Setup_time

private

The time it takes to set up this preconditioner.

Referenced by setup(), and setup_time().

Silent_preconditioner_setup

bool oomph::Preconditioner::Silent_preconditioner_setup

protected

Boolean to indicate whether or not the build should be done silently.

Referenced by disable_silent_preconditioner_setup(), enable_silent_preconditioner_setup(), oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner::setup(), and oomph::GMRESBlockPreconditioner::setup().

Stream_pt

std::ostream* oomph::Preconditioner::Stream_pt

protected

Pointer to the output stream – defaults to std::cout.

Referenced by oomph::SpaceTimeNavierStokesSubsidiaryPreconditioner::setup(), and oomph::GMRESBlockPreconditioner::setup().

---

The documentation for this class was generated from the following file:

• preconditioner.h
