oomph::TemplateFreeUnsteadyHeatBaseFaceElement Class Reference

#include <heat_transfer_and_melt_elements.h>

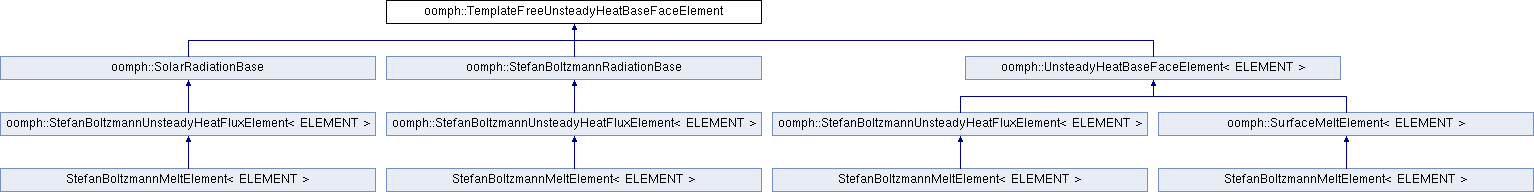

Inheritance diagram for oomph::TemplateFreeUnsteadyHeatBaseFaceElement:

Public Types
typedef void(*	UnsteadyHeatPrescribedFluxFctPt) (const double &time, const Vector< double > &x, const Vector< double > &n, const double &u, double &flux)

Public Member Functions
	TemplateFreeUnsteadyHeatBaseFaceElement ()
	Constructor. More...
virtual	~TemplateFreeUnsteadyHeatBaseFaceElement ()
	Destrutor. More...
UnsteadyHeatPrescribedFluxFctPt &	flux_fct_pt ()
	Access function for the prescribed-flux function pointer. More...

Protected Member Functions
virtual void	get_flux (const unsigned &ipt, const double &time, const Vector< double > &x, const Vector< double > &n, const double &u, double &flux)

Protected Attributes
unsigned	U_index_ust_heat
	Index at which temperature is stored. More...
unsigned	Dim
	The spatial dimension of the problem. More...
UnsteadyHeatPrescribedFluxFctPt	Flux_fct_pt
	Function pointer to the (global) prescribed-flux function. More...

Detailed Description

////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////// Template free base class for face elements that involve all kinds of heat transfer operation. Used to store spatial dim of problem and the index at which the temperature is stored in the bulk element

Member Typedef Documentation

UnsteadyHeatPrescribedFluxFctPt

typedef void(* oomph::TemplateFreeUnsteadyHeatBaseFaceElement::UnsteadyHeatPrescribedFluxFctPt) (const double &time, const Vector< double > &x, const Vector< double > &n, const double &u, double &flux)

Function pointer to the prescribed-flux function. Flux is allowed to depend on the spatial position, x, the outer unit normal, n, and the continuous time. We also allow a dependendence on actual local "temperature", u.

Constructor & Destructor Documentation

TemplateFreeUnsteadyHeatBaseFaceElement()

oomph::TemplateFreeUnsteadyHeatBaseFaceElement::TemplateFreeUnsteadyHeatBaseFaceElement ( )

inline

Constructor.

                                             : U_index_ust_heat(0),
   Dim(0), Flux_fct_pt(0)
   {}

~TemplateFreeUnsteadyHeatBaseFaceElement()

virtual oomph::TemplateFreeUnsteadyHeatBaseFaceElement::~TemplateFreeUnsteadyHeatBaseFaceElement ( )

inlinevirtual

Destrutor.

{}

Member Function Documentation

flux_fct_pt()

UnsteadyHeatPrescribedFluxFctPt& oomph::TemplateFreeUnsteadyHeatBaseFaceElement::flux_fct_pt ( )

inline

Access function for the prescribed-flux function pointer.

{return Flux_fct_pt;}

References Flux_fct_pt.

Referenced by MeltContactProblem< ELEMENT >::complete_problem_setup(), and UnsteadyHeatMeltProblem< ELEMENT >::complete_problem_setup().

get_flux()

virtual void oomph::TemplateFreeUnsteadyHeatBaseFaceElement::get_flux ( const unsigned &  ipt, const double &  time, const Vector< double > &  x, const Vector< double > &  n, const double &  u, double &  flux  )

inlineprotectedvirtual

Function to calculate the prescribed flux at a given spatial position, x, the outer unit normal, n, and the continuous time. We also allow an explicit dependendence on the integration point, ipt, and the actual local "temperature", u, in anticipation of Stefan Boltzmann radiation. Virtual so it can be overloaded. Note that the potential dependence on u makes the problem potentially nonlinear – Jacobian is currently worked out by finite differencing.

Reimplemented in oomph::StefanBoltzmannUnsteadyHeatFluxElement< ELEMENT >.

 {
  //If the function pointer is zero return zero
  if(Flux_fct_pt == 0)
   {
    flux=0.0;
   }
  //Otherwise call the function
  else
   {
    (*Flux_fct_pt)(time,x,n,u,flux);
   }
 }

References ProblemParameters::flux(), Flux_fct_pt, n, and plotDoE::x.

Referenced by oomph::UnsteadyHeatBaseFaceElement< ELEMENT >::output(), and oomph::SurfaceMeltElement< ELEMENT >::output_melt().

Member Data Documentation

Dim

unsigned oomph::TemplateFreeUnsteadyHeatBaseFaceElement::Dim

protected

The spatial dimension of the problem.

Referenced by oomph::StefanBoltzmannUnsteadyHeatFluxElement< ELEMENT >::StefanBoltzmannUnsteadyHeatFluxElement(), oomph::SurfaceMeltElement< ELEMENT >::SurfaceMeltElement(), and oomph::UnsteadyHeatBaseFaceElement< ELEMENT >::UnsteadyHeatBaseFaceElement().

Flux_fct_pt

UnsteadyHeatPrescribedFluxFctPt oomph::TemplateFreeUnsteadyHeatBaseFaceElement::Flux_fct_pt

protected

Function pointer to the (global) prescribed-flux function.

Referenced by flux_fct_pt(), get_flux(), and oomph::StefanBoltzmannUnsteadyHeatFluxElement< ELEMENT >::get_flux().

U_index_ust_heat

unsigned oomph::TemplateFreeUnsteadyHeatBaseFaceElement::U_index_ust_heat

protected

Index at which temperature is stored.

Referenced by oomph::StefanBoltzmannRadiationBase::contribution_to_stefan_boltzmann_radiation(), oomph::UnsteadyHeatBaseFaceElement< ELEMENT >::interpolated_u(), and oomph::UnsteadyHeatBaseFaceElement< ELEMENT >::UnsteadyHeatBaseFaceElement().

---

The documentation for this class was generated from the following file:

• heat_transfer_and_melt_elements.h
