Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > Class Template Reference

The matrix class, also used for vectors and row-vectors. More...

#include <Matrix.h>

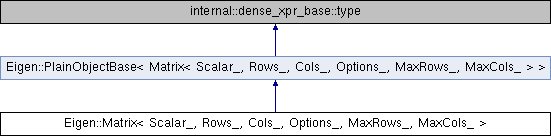

Inheritance diagram for Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >:

Public Types
enum	{ Options = Options_ }
typedef PlainObjectBase< Matrix >	Base
	Base class typedef. More...
typedef Base::PlainObject	PlainObject
Public Types inherited from Eigen::PlainObjectBase< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >
enum
enum
enum
typedef internal::dense_xpr_base< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >::type	Base
typedef internal::traits< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >::StorageKind	StorageKind
typedef internal::traits< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >::Scalar	Scalar
typedef internal::packet_traits< Scalar >::type	PacketScalar
typedef NumTraits< Scalar >::Real	RealScalar
typedef Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >	DenseType
typedef Eigen::Map< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >, Unaligned >	MapType
typedef const Eigen::Map< const Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >, Unaligned >	ConstMapType
typedef Eigen::Map< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >, AlignedMax >	AlignedMapType
typedef const Eigen::Map< const Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >, AlignedMax >	ConstAlignedMapType

Public Member Functions
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix &	operator= (const Matrix &other)
	Assigns matrices to each other. More...
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix &	operator= (const DenseBase< OtherDerived > &other)
	Copies the value of the expression other into *this with automatic resizing. More...
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix &	operator= (const EigenBase< OtherDerived > &other)
	Copies the generic expression other into *this. More...
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix &	operator= (const ReturnByValue< OtherDerived > &func)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE	Matrix ()=default
	Default constructor. More...
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE	Matrix (Matrix &&)=default
	Move constructor. More...
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix &	operator= (Matrix &&other) EIGEN_NOEXCEPT_IF(std
	Moves the matrix into the other one. More...
template<typename... ArgTypes>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const Scalar &a0, const Scalar &a1, const Scalar &a2, const Scalar &a3, const ArgTypes &... args)
constexpr EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const std::initializer_list< std::initializer_list< Scalar >> &list)
	Constructs a Matrix and initializes it from the coefficients given as initializer-lists grouped by row. \cpp11. More...
template<typename T >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const T &x)
template<typename T0 , typename T1 >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const T0 &x, const T1 &y)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const Scalar &x, const Scalar &y, const Scalar &z)
	Constructs an initialized 3D vector with given coefficients. More...
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const Scalar &x, const Scalar &y, const Scalar &z, const Scalar &w)
	Constructs an initialized 4D vector with given coefficients. More...
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE	Matrix (const Matrix &)=default
	Copy constructor. More...
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Matrix (const EigenBase< OtherDerived > &other)
	Copy constructor for generic expressions. More...
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	innerStride () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	outerStride () const EIGEN_NOEXCEPT
template<typename OtherDerived >
EIGEN_DEVICE_FUNC	Matrix (const RotationBase< OtherDerived, ColsAtCompileTime > &r)
	Constructs a Dim x Dim rotation matrix from the rotation r. More...
template<typename OtherDerived >
EIGEN_DEVICE_FUNC Matrix &	operator= (const RotationBase< OtherDerived, ColsAtCompileTime > &r)
template<typename OtherDerived >
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Storage_, MaxRows_, MaxCols_ > &	operator= (const RotationBase< OtherDerived, ColsAtCompileTime > &r)
	Set a Dim x Dim rotation matrix from the rotation r. More...
EIGEN_DEVICE_FUNC const Base &	base () const
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Scalar &	coeffRef (Index rowId, Index colId)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Scalar &	coeffRef (Index index)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar &	coeffRef (Index rowId, Index colId) const
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar &	coeffRef (Index index) const
Public Member Functions inherited from Eigen::PlainObjectBase< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >
	EIGEN_STATIC_ASSERT (internal::check_implication(MaxRowsAtCompileTime==1 &&MaxColsAtCompileTime !=1,(int(Options) &RowMajor)==RowMajor), INVALID_MATRIX_TEMPLATE_PARAMETERS) EIGEN_STATIC_ASSERT(internal
EIGEN_DEVICE_FUNC const Base &	base () const
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar &	coeff (Index rowId, Index colId) const
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar &	coeff (Index index) const
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Scalar &	coeffRef (Index rowId, Index colId)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Scalar &	coeffRef (Index index)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar &	coeffRef (Index rowId, Index colId) const
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar &	coeffRef (Index index) const
EIGEN_STRONG_INLINE PacketScalar	packet (Index rowId, Index colId) const
EIGEN_STRONG_INLINE PacketScalar	packet (Index index) const
EIGEN_STRONG_INLINE void	writePacket (Index rowId, Index colId, const PacketScalar &val)
EIGEN_STRONG_INLINE void	writePacket (Index index, const PacketScalar &val)
constexpr EIGEN_DEVICE_FUNC const Scalar *	data () const
constexpr EIGEN_DEVICE_FUNC Scalar *	data ()
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE void	resize (Index rows, Index cols)
constexpr EIGEN_DEVICE_FUNC void	resize (Index size)
constexpr EIGEN_DEVICE_FUNC void	resize (NoChange_t, Index cols)
constexpr EIGEN_DEVICE_FUNC void	resize (Index rows, NoChange_t)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	resizeLike (const EigenBase< OtherDerived > &_other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	conservativeResize (Index rows, Index cols)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	conservativeResize (Index rows, NoChange_t)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	conservativeResize (NoChange_t, Index cols)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	conservativeResize (Index size)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	conservativeResizeLike (const DenseBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	operator= (const PlainObjectBase &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	operator= (const ReturnByValue< OtherDerived > &func)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	operator= (const EigenBase< OtherDerived > &other)
	Copies the generic expression other into *this. More...
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	lazyAssign (const DenseBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setConstant (Index size, const Scalar &val)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setConstant (Index rows, Index cols, const Scalar &val)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setConstant (NoChange_t, Index cols, const Scalar &val)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setConstant (Index rows, NoChange_t, const Scalar &val)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setZero (Index size)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setZero (Index rows, Index cols)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setZero (NoChange_t, Index cols)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setZero (Index rows, NoChange_t)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setOnes (Index size)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setOnes (Index rows, Index cols)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setOnes (NoChange_t, Index cols)
EIGEN_DEVICE_FUNC Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setOnes (Index rows, NoChange_t)
Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setRandom (Index size)
Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setRandom (Index rows, Index cols)
Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setRandom (NoChange_t, Index cols)
Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	setRandom (Index rows, NoChange_t)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	swap (DenseBase< OtherDerived > &other)
	Override DenseBase::swap() since for dynamic-sized matrices of same type it is enough to swap the data pointers. More...
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	swap (DenseBase< OtherDerived > const &other)
	const version forwarded to DenseBase::swap More...

Protected Attributes
DenseStorage< Scalar, Base::MaxSizeAtCompileTime, Base::RowsAtCompileTime, Base::ColsAtCompileTime, Options >	m_storage
Protected Attributes inherited from Eigen::PlainObjectBase< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >
DenseStorage< Scalar, Base::MaxSizeAtCompileTime, Base::RowsAtCompileTime, Base::ColsAtCompileTime, Options >	m_storage

Friends
template<typename Derived , typename OtherDerived , bool IsVector>
struct	internal::conservative_resize_like_impl

Additional Inherited Members
Static Public Member Functions inherited from Eigen::PlainObjectBase< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >
static ConstMapType	Map (const Scalar *data)
static MapType	Map (Scalar *data)
static ConstMapType	Map (const Scalar *data, Index size)
static MapType	Map (Scalar *data, Index size)
static ConstMapType	Map (const Scalar *data, Index rows, Index cols)
static MapType	Map (Scalar *data, Index rows, Index cols)
static StridedConstMapType< Stride< Outer, Inner > >::type	Map (const Scalar *data, const Stride< Outer, Inner > &stride)
static StridedMapType< Stride< Outer, Inner > >::type	Map (Scalar *data, const Stride< Outer, Inner > &stride)
static StridedConstMapType< Stride< Outer, Inner > >::type	Map (const Scalar *data, Index size, const Stride< Outer, Inner > &stride)
static StridedMapType< Stride< Outer, Inner > >::type	Map (Scalar *data, Index size, const Stride< Outer, Inner > &stride)
static StridedConstMapType< Stride< Outer, Inner > >::type	Map (const Scalar *data, Index rows, Index cols, const Stride< Outer, Inner > &stride)
static StridedMapType< Stride< Outer, Inner > >::type	Map (Scalar *data, Index rows, Index cols, const Stride< Outer, Inner > &stride)
static ConstAlignedMapType	MapAligned (const Scalar *data)
static AlignedMapType	MapAligned (Scalar *data)
static ConstAlignedMapType	MapAligned (const Scalar *data, Index size)
static AlignedMapType	MapAligned (Scalar *data, Index size)
static ConstAlignedMapType	MapAligned (const Scalar *data, Index rows, Index cols)
static AlignedMapType	MapAligned (Scalar *data, Index rows, Index cols)
static StridedConstAlignedMapType< Stride< Outer, Inner > >::type	MapAligned (const Scalar *data, const Stride< Outer, Inner > &stride)
static StridedAlignedMapType< Stride< Outer, Inner > >::type	MapAligned (Scalar *data, const Stride< Outer, Inner > &stride)
static StridedConstAlignedMapType< Stride< Outer, Inner > >::type	MapAligned (const Scalar *data, Index size, const Stride< Outer, Inner > &stride)
static StridedAlignedMapType< Stride< Outer, Inner > >::type	MapAligned (Scalar *data, Index size, const Stride< Outer, Inner > &stride)
static StridedConstAlignedMapType< Stride< Outer, Inner > >::type	MapAligned (const Scalar *data, Index rows, Index cols, const Stride< Outer, Inner > &stride)
static StridedAlignedMapType< Stride< Outer, Inner > >::type	MapAligned (Scalar *data, Index rows, Index cols, const Stride< Outer, Inner > &stride)
Protected Member Functions inherited from Eigen::PlainObjectBase< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >
constexpr EIGEN_DEVICE_FUNC PlainObjectBase &	operator= (PlainObjectBase &&other) EIGEN_NOEXCEPT
	Move assignment operator. More...
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE	PlainObjectBase ()=default
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE	PlainObjectBase (PlainObjectBase &&)=default
	Move constructor. More...
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE	PlainObjectBase (const PlainObjectBase &)=default
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	PlainObjectBase (Index size, Index rows, Index cols)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	PlainObjectBase (const Scalar &a0, const Scalar &a1, const Scalar &a2, const Scalar &a3, const ArgTypes &... args)
	Construct a row of column vector with fixed size from an arbitrary number of coefficients. More...
constexpr EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	PlainObjectBase (const std::initializer_list< std::initializer_list< Scalar >> &list)
	Constructs a Matrix or Array and initializes it by elements given by an initializer list of initializer lists. More...
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	PlainObjectBase (const DenseBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	PlainObjectBase (const EigenBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	PlainObjectBase (const ReturnByValue< OtherDerived > &other)
	Copy constructor with in-place evaluation. More...
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_resize_to_match (const EigenBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	_set (const DenseBase< OtherDerived > &other)
	Copies the value of the expression other into *this with automatic resizing. More...
EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &	_set_noalias (const DenseBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init2 (Index rows, Index cols, std::enable_if_t< Base::SizeAtCompileTime !=2, T0 > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init2 (const T0 &val0, const T1 &val1, std::enable_if_t< Base::SizeAtCompileTime==2, T0 > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init2 (const Index &val0, const Index &val1, std::enable_if_t<(!internal::is_same< Index, Scalar >::value) &&(internal::is_same< T0, Index >::value) &&(internal::is_same< T1, Index >::value) &&Base::SizeAtCompileTime==2, T1 > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (Index size, std::enable_if_t<(Base::SizeAtCompileTime !=1||!internal::is_convertible< T, Scalar >::value) &&((!internal::is_same< typename internal::traits< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >::XprKind, ArrayXpr >::value||Base::SizeAtCompileTime==Dynamic)), T > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const Scalar &val0, std::enable_if_t< Base::SizeAtCompileTime==1 &&internal::is_convertible< T, Scalar >::value, T > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const Index &val0, std::enable_if_t<(!internal::is_same< Index, Scalar >::value) &&(internal::is_same< Index, T >::value) &&Base::SizeAtCompileTime==1 &&internal::is_convertible< T, Scalar >::value, T * > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const Scalar *data)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const DenseBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const EigenBase< OtherDerived > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const ReturnByValue< OtherDerived > &other)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const RotationBase< OtherDerived, ColsAtCompileTime > &r)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const Scalar &val0, std::enable_if_t< Base::SizeAtCompileTime !=Dynamic &&Base::SizeAtCompileTime !=1 &&internal::is_convertible< T, Scalar >::value &&internal::is_same< typename internal::traits< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >::XprKind, ArrayXpr >::value, T > *=0)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE void	_init1 (const Index &val0, std::enable_if_t<(!internal::is_same< Index, Scalar >::value) &&(internal::is_same< Index, T >::value) &&Base::SizeAtCompileTime !=Dynamic &&Base::SizeAtCompileTime !=1 &&internal::is_convertible< T, Scalar >::value &&internal::is_same< typename internal::traits< Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > >::XprKind, ArrayXpr >::value, T * > *=0)

Detailed Description

template<typename Scalar_, int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>
class Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >

The matrix class, also used for vectors and row-vectors.

The Matrix class is the work-horse for all dense (note) matrices and vectors within Eigen. Vectors are matrices with one column, and row-vectors are matrices with one row.

The Matrix class encompasses both fixed-size and dynamic-size objects (note).

The first three template parameters are required:

Template Parameters

Scalar_	Numeric type, e.g. float, double, int or std::complex<float>. User defined scalar types are supported as well (see here).
Rows_	Number of rows, or Dynamic
Cols_	Number of columns, or Dynamic

The remaining template parameters are optional – in most cases you don't have to worry about them.

Template Parameters

Options_	A combination of either RowMajor or ColMajor, and of either AutoAlign or DontAlign. The former controls storage order, and defaults to column-major. The latter controls alignment, which is required for vectorization. It defaults to aligning matrices except for fixed sizes that aren't a multiple of the packet size.
MaxRows_	Maximum number of rows. Defaults to Rows_ (note).
MaxCols_	Maximum number of columns. Defaults to Cols_ (note).

Eigen provides a number of typedefs covering the usual cases. Here are some examples:

• Matrix2d is a 2x2 square matrix of doubles (Matrix<double, 2, 2>)
• Vector4f is a vector of 4 floats (Matrix<float, 4, 1>)
• RowVector3i is a row-vector of 3 ints (Matrix<int, 1, 3>)

• MatrixXf is a dynamic-size matrix of floats (Matrix<float, Dynamic, Dynamic>)
• VectorXf is a dynamic-size vector of floats (Matrix<float, Dynamic, 1>)

• Matrix2Xf is a partially fixed-size (dynamic-size) matrix of floats (Matrix<float, 2, Dynamic>)
• MatrixX3d is a partially dynamic-size (fixed-size) matrix of double (Matrix<double, Dynamic, 3>)

See this page for a complete list of predefined Matrix and Vector typedefs.

You can access elements of vectors and matrices using normal subscripting:

Eigen::VectorXd v(10);
v[0] = 0.1;
v[1] = 0.2;
v(0) = 0.3;
v(1) = 0.4;

Eigen::MatrixXi m(10, 10);
m(0, 1) = 1;
m(0, 2) = 2;
m(0, 3) = 3;

This class can be extended with the help of the plugin mechanism described on the page Extending MatrixBase (and other classes) by defining the preprocessor symbol EIGEN_MATRIX_PLUGIN.

Some notes:

Dense versus sparse:

This Matrix class handles dense, not sparse matrices and vectors. For sparse matrices and vectors, see the Sparse module.

Dense matrices and vectors are plain usual arrays of coefficients. All the coefficients are stored, in an ordinary contiguous array. This is unlike Sparse matrices and vectors where the coefficients are stored as a list of nonzero coefficients.

Fixed-size versus dynamic-size:

Fixed-size means that the numbers of rows and columns are known at compile-time. In this case, Eigen allocates the array of coefficients as a fixed-size array, as a class member. This makes sense for very small matrices, typically up to 4x4, sometimes up to 16x16. Larger matrices should be declared as dynamic-size even if one happens to know their size at compile-time.

Dynamic-size means that the numbers of rows or columns are not necessarily known at compile-time. In this case they are runtime variables, and the array of coefficients is allocated dynamically on the heap.

Note that dense matrices, be they Fixed-size or Dynamic-size, do not expand dynamically in the sense of a std::map. If you want this behavior, see the Sparse module.

MaxRows_ and MaxCols_:

In most cases, one just leaves these parameters to the default values. These parameters mean the maximum size of rows and columns that the matrix may have. They are useful in cases when the exact numbers of rows and columns are not known at compile-time, but it is known at compile-time that they cannot exceed a certain value. This happens when taking dynamic-size blocks inside fixed-size matrices: in this case MaxRows_ and MaxCols_ are the dimensions of the original matrix, while Rows_ and Cols_ are Dynamic.

ABI and storage layout

The table below summarizes the ABI of some possible Matrix instances which is fixed thorough the lifetime of Eigen 3.

Matrix type	Equivalent C structure
Matrix<T,Dynamic,Dynamic>	struct { T *data; // with (size_t(data)%EIGEN_MAX_ALIGN_BYTES)==0 Eigen::Index rows, cols; };
Matrix<T,Dynamic,1> Matrix<T,1,Dynamic>	struct { T *data; // with (size_t(data)%EIGEN_MAX_ALIGN_BYTES)==0 Eigen::Index size; };
Matrix<T,Rows,Cols>	struct { T data[Rows*Cols]; // with (size_t(data)%A(Rows*Cols*sizeof(T)))==0 };
Matrix<T,Dynamic,Dynamic,0,MaxRows,MaxCols>	struct { T data[MaxRows*MaxCols]; // with (size_t(data)%A(MaxRows*MaxCols*sizeof(T)))==0 Eigen::Index rows, cols; };

Note that in this table Rows, Cols, MaxRows and MaxCols are all positive integers. A(S) is defined to the largest possible power-of-two smaller to EIGEN_MAX_STATIC_ALIGN_BYTES.

See also

MatrixBase for the majority of the API methods for matrices, The class hierarchy, TopicStorageOrders

Member Typedef Documentation

Base

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

typedef PlainObjectBase<Matrix> Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Base

Base class typedef.

See also

PlainObjectBase

PlainObject

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

typedef Base::PlainObject Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::PlainObject

Member Enumeration Documentation

anonymous enum

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

anonymous enum

Enumerator
Options

{ Options = Options_ };

Constructor & Destructor Documentation

Matrix() [1/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( )

constexprdefault

Default constructor.

For fixed-size matrices, does nothing.

For dynamic-size matrices, creates an empty matrix of size 0. Does not allocate any array. Such a matrix is called a null matrix. This constructor is the unique way to create null matrices: resizing a matrix to 0 is not supported.

See also

resize(Index,Index)

Matrix() [2/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &&  )

constexprdefault

Move constructor.

Matrix() [3/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename... ArgTypes>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const Scalar &  a0, const Scalar &  a1, const Scalar &  a2, const Scalar &  a3, const ArgTypes &...  args  )

inline

Example:

Matrix<int, 1, 6> a(1, 2, 3, 4, 5, 6);
Matrix<int, 3, 1> b{1, 2, 3};
cout << a << "\n\n" << b << endl;

Output:

See also

Matrix(const std::initializer_list<std::initializer_list<Scalar>>&)

      : Base(a0, a1, a2, a3, args...) {}

Matrix() [4/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

constexpr EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const std::initializer_list< std::initializer_list< Scalar >> &  list )

inlineexplicitconstexpr

Constructs a Matrix and initializes it from the coefficients given as initializer-lists grouped by row. \cpp11.

In the general case, the constructor takes a list of rows, each row being represented as a list of coefficients:

Example:

MatrixXd m{{1, 2, 3}, {4, 5, 6}};
cout << m << endl;

Output:

Each of the inner initializer lists must contain the exact same number of elements, otherwise an assertion is triggered.

In the case of a compile-time column vector, implicit transposition from a single row is allowed. Therefore VectorXd{{1,2,3,4,5}} is legal and the more verbose syntax RowVectorXd{{1},{2},{3},{4},{5}} can be avoided:

Example:

VectorXi v{{1, 2}};
cout << v << endl;

Output:

In the case of fixed-sized matrices, the initializer list sizes must exactly match the matrix sizes, and implicit transposition is allowed for compile-time vectors only.

See also

Matrix(const Scalar& a0, const Scalar& a1, const Scalar& a2, const Scalar& a3, const ArgTypes&... args)

      : Base(list) {}

Matrix() [5/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename T >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const T &  x )

inlineexplicit

                                                                    {
    Base::template _init1<T>(x);
  }

References plotDoE::x.

Matrix() [6/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename T0 , typename T1 >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const T0 &  x, const T1 &  y  )

inline

                                                                         {
    Base::template _init2<T0, T1>(x, y);
  }

References plotDoE::x, and y.

Matrix() [7/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const Scalar &  x, const Scalar &  y, const Scalar &  z  )

inline

Constructs an initialized 3D vector with given coefficients.

See also

Matrix(const Scalar&, const Scalar&, const Scalar&, const Scalar&, const ArgTypes&...)

                                                                                                  {
    EIGEN_STATIC_ASSERT_VECTOR_SPECIFIC_SIZE(Matrix, 3)
    m_storage.data()[0] = x;
    m_storage.data()[1] = y;
    m_storage.data()[2] = z;
  }

References Eigen::internal::DenseStorage_impl< T, Size, Rows, Cols, Options >::data(), EIGEN_STATIC_ASSERT_VECTOR_SPECIFIC_SIZE, Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::m_storage, plotDoE::x, and y.

Matrix() [8/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const Scalar &  x, const Scalar &  y, const Scalar &  z, const Scalar &  w  )

inline

Constructs an initialized 4D vector with given coefficients.

See also

Matrix(const Scalar&, const Scalar&, const Scalar&, const Scalar&, const ArgTypes&...)

                                                                                                                   {
    EIGEN_STATIC_ASSERT_VECTOR_SPECIFIC_SIZE(Matrix, 4)
    m_storage.data()[0] = x;
    m_storage.data()[1] = y;
    m_storage.data()[2] = z;
    m_storage.data()[3] = w;
  }

References Eigen::internal::DenseStorage_impl< T, Size, Rows, Cols, Options >::data(), EIGEN_STATIC_ASSERT_VECTOR_SPECIFIC_SIZE, Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::m_storage, w, plotDoE::x, and y.

Matrix() [9/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &  )

constexprdefault

Copy constructor.

Matrix() [10/11]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix ( const EigenBase< OtherDerived > &  other )

inline

Copy constructor for generic expressions.

See also

MatrixBase::operator=(const EigenBase<OtherDerived>&)

: Base(other.derived()) {}

Matrix() [11/11]

template<typename Scalar_ , int Rows_, int Cols_, int Storage_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC Eigen::Matrix< Scalar_, Rows_, Cols_, Storage_, MaxRows_, MaxCols_ >::Matrix ( const RotationBase< OtherDerived, ColsAtCompileTime > &  r )

explicit

Constructs a Dim x Dim rotation matrix from the rotation r.

\geometry_module

                                                            {
  EIGEN_STATIC_ASSERT_MATRIX_SPECIFIC_SIZE(Matrix, int(OtherDerived::Dim), int(OtherDerived::Dim))
  *this = r.toRotationMatrix();
}

References Global_Variables::Dim, EIGEN_STATIC_ASSERT_MATRIX_SPECIFIC_SIZE, and UniformPSDSelfTest::r.

Member Function Documentation

base()

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC const Base& Eigen::PlainObjectBase< Derived >::base

inline

{ return *static_cast<const Base*>(this); }

coeffRef() [1/4]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Scalar& Eigen::PlainObjectBase< Derived >::coeffRef

inlineconstexpr

This is an overloaded version of DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index) const provided to by-pass the creation of an evaluator of the expression, thus saving compilation efforts.

See DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index) const for details.

{ return m_storage.data()[index]; }

coeffRef() [2/4]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar& Eigen::PlainObjectBase< Derived >::coeffRef

inlineconstexpr

This is the const version of coeffRef(Index) which is thus synonym of coeff(Index). It is provided for convenience.

                                                                                            {
    return m_storage.data()[index];
  }

coeffRef() [3/4]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Scalar& Eigen::PlainObjectBase< Derived >::coeffRef

inlineconstexpr

This is an overloaded version of DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index,Index) const provided to by-pass the creation of an evaluator of the expression, thus saving compilation efforts.

See DenseCoeffsBase<Derived,WriteAccessors>::coeffRef(Index,Index) const for details.

                                                                                             {
    if (Flags & RowMajorBit)
      return m_storage.data()[colId + rowId * m_storage.cols()];
    else  // column-major
      return m_storage.data()[rowId + colId * m_storage.rows()];
  }

Referenced by Eigen::HessenbergDecomposition< MatrixType_ >::_compute(), Eigen::FullPivHouseholderQR< MatrixType_, PermutationIndex_ >::_solve_impl(), Eigen::FullPivHouseholderQR< MatrixType_, PermutationIndex_ >::_solve_impl_transposed(), Eigen::GeneralizedEigenSolver< MatrixType_ >::compute(), Eigen::FullPivHouseholderQR< MatrixType_, PermutationIndex_ >::computeInPlace(), Eigen::Transform< Scalar_, Dim_, Mode_, Options_ >::computeRotationScaling(), Eigen::Transform< Scalar_, Dim_, Mode_, Options_ >::computeScalingRotation(), Eigen::RealSchur< MatrixType_ >::computeShift(), Eigen::PermutationBase< Derived >::determinant(), DenseLM< Scalar >::df(), Eigen::ComplexEigenSolver< MatrixType_ >::doComputeEigenvectors(), Eigen::EigenSolver< MatrixType_ >::eigenvectors(), Eigen::internal::kernel_retval< FullPivLU< MatrixType_, PermutationIndex_ > >::evalTo(), Eigen::internal::image_retval< FullPivLU< MatrixType_, PermutationIndex_ > >::evalTo(), Eigen::internal::FullPivHouseholderQRMatrixQReturnType< MatrixType, PermutationIndex >::evalTo(), householder(), Eigen::internal::matrix_sqrt_quasi_triangular_solve_auxiliary_equation(), EulerAngles< Scalar_ >::operator=(), Eigen::ComplexSchur< MatrixType_ >::reduceToTriangularForm(), Eigen::internal::sparse_solve_triangular_selector< Lhs, Rhs, Mode, Upper, RowMajor >::run(), Eigen::internal::sparse_solve_triangular_selector< Lhs, Rhs, Mode, Lower, ColMajor >::run(), Eigen::internal::sparse_solve_triangular_selector< Lhs, Rhs, Mode, Upper, ColMajor >::run(), Eigen::internal::compute_inverse_and_det_with_check< MatrixType, ResultType, 3 >::run(), Eigen::internal::compute_inverse< MatrixType, ResultType, 3 >::run(), Eigen::internal::permutation_matrix_product< ExpressionType, Side, Transposed, DenseShape >::run(), Eigen::internal::product_triangular_matrix_matrix< Scalar, Index, Mode, true, LhsStorageOrder, ConjugateLhs, RhsStorageOrder, ConjugateRhs, ColMajor, ResInnerStride, Version >::run(), Eigen::internal::product_triangular_matrix_matrix< Scalar, Index, Mode, false, LhsStorageOrder, ConjugateLhs, RhsStorageOrder, ConjugateRhs, ColMajor, ResInnerStride, Version >::run(), Eigen::internal::svd_precondition_2x2_block_to_be_real< MatrixType, Options, true >::run(), sparse_basic(), sparse_extra(), sparse_vector(), Eigen::RealQZ< MatrixType_ >::step(), Eigen::ComplexSchur< MatrixType_ >::subdiagonalEntryIsNeglegible(), Eigen::internal::tridiagonalization_inplace(), and Eigen::internal::upperbidiagonalization_blocked_helper().

coeffRef() [4/4]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE const Scalar& Eigen::PlainObjectBase< Derived >::coeffRef

inlineconstexpr

This is the const version of coeffRef(Index,Index) which is thus synonym of coeff(Index,Index). It is provided for convenience.

                                                                                                         {
    if (Flags & RowMajorBit)
      return m_storage.data()[colId + rowId * m_storage.cols()];
    else  // column-major
      return m_storage.data()[rowId + colId * m_storage.rows()];
  }

innerStride()

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::innerStride ( ) const

inline

{ return 1; }

operator=() [1/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator= ( const DenseBase< OtherDerived > &  other )

inline

Copies the value of the expression other into *this with automatic resizing.

*this might be resized to match the dimensions of other. If *this was a null matrix (not already initialized), it will be initialized.

Note that copying a row-vector into a vector (and conversely) is allowed. The resizing, if any, is then done in the appropriate way so that row-vectors remain row-vectors and vectors remain vectors.

                                                                                                {
    return Base::_set(other);
  }

References Eigen::PlainObjectBase< Derived >::_set().

operator=() [2/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator= ( const EigenBase< OtherDerived > &  other )

inline

Copies the generic expression other into *this.

The expression must provide a (templated) evalTo(Derived& dst) const function which does the actual job. In practice, this allows any user to write its own special matrix without having to modify MatrixBase

Returns

a reference to *this.

                                                                                                {
    return Base::operator=(other);
  }

References Eigen::PlainObjectBase< Derived >::operator=().

operator=() [3/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator= ( const Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &  other )

inlineconstexpr

Assigns matrices to each other.

Note

This is a special case of the templated operator=. Its purpose is to prevent a default operator= from hiding the templated operator=.

{ return Base::_set(other); }

References Eigen::PlainObjectBase< Derived >::_set().

operator=() [4/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator= ( const ReturnByValue< OtherDerived > &  func )

inline

                                                                                                   {
    return Base::operator=(func);
  }

References Eigen::PlainObjectBase< Derived >::operator=().

operator=() [5/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC Matrix& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator=

(

const RotationBase< OtherDerived, ColsAtCompileTime > &

r

)

operator=() [6/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC Matrix<Scalar_, Rows_, Cols_, Storage_, MaxRows_, MaxCols_>& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator=

(

const RotationBase< OtherDerived, ColsAtCompileTime > &

r

)

Set a Dim x Dim rotation matrix from the rotation r.

\geometry_module

                                                            {
  EIGEN_STATIC_ASSERT_MATRIX_SPECIFIC_SIZE(Matrix, int(OtherDerived::Dim), int(OtherDerived::Dim))
  return *this = r.toRotationMatrix();
}

References Global_Variables::Dim, EIGEN_STATIC_ASSERT_MATRIX_SPECIFIC_SIZE, and UniformPSDSelfTest::r.

operator=() [7/7]

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC constexpr EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::operator= ( Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ > &&  other )

inlineconstexpr

Moves the matrix into the other one.

                                                                    {
    Base::operator=(std::move(other));
    return *this;
  }

References Eigen::PlainObjectBase< Derived >::operator=().

outerStride()

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::outerStride ( ) const

inline

{ return this->innerSize(); }

Referenced by matrix(), Eigen::internal::product_triangular_matrix_matrix< Scalar, Index, Mode, true, LhsStorageOrder, ConjugateLhs, RhsStorageOrder, ConjugateRhs, ColMajor, ResInnerStride, Version >::run(), Eigen::internal::product_triangular_matrix_matrix< Scalar, Index, Mode, false, LhsStorageOrder, ConjugateLhs, RhsStorageOrder, ConjugateRhs, ColMajor, ResInnerStride, Version >::run(), and trsolve().

Friends And Related Function Documentation

internal::conservative_resize_like_impl

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

template<typename Derived , typename OtherDerived , bool IsVector>

friend struct internal::conservative_resize_like_impl

friend

Member Data Documentation

m_storage

template<typename Scalar_ , int Rows_, int Cols_, int Options_, int MaxRows_, int MaxCols_>

DenseStorage<Scalar, Base::MaxSizeAtCompileTime, Base::RowsAtCompileTime, Base::ColsAtCompileTime, Options> Eigen::PlainObjectBase< Derived >::m_storage

protected

Referenced by Eigen::Matrix< Scalar_, Rows_, Cols_, Options_, MaxRows_, MaxCols_ >::Matrix().

---

The documentation for this class was generated from the following files:

• Eigen/Eigen/src/Core/Matrix.h
• RotationBase.h
