Eigen::EigenBase< Derived > Class Template Reference

#include <EigenBase.h>

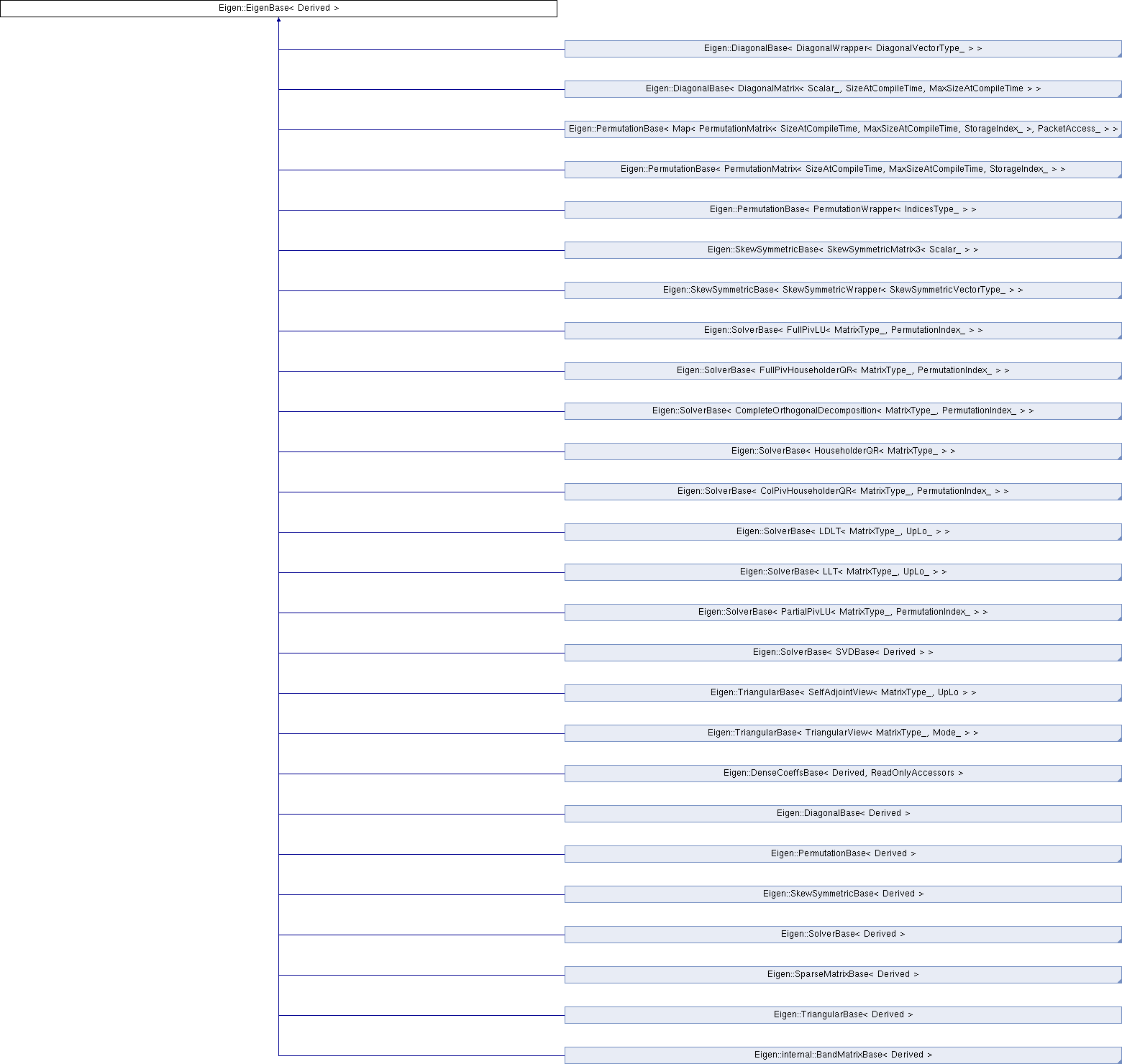

Inheritance diagram for Eigen::EigenBase< Derived >:

Public Types
typedef Eigen::Index	Index
	The interface type of indices. More...
typedef internal::traits< Derived >::StorageKind	StorageKind

Public Member Functions
constexpr EIGEN_DEVICE_FUNC Derived &	derived ()
constexpr EIGEN_DEVICE_FUNC const Derived &	derived () const
EIGEN_DEVICE_FUNC Derived &	const_cast_derived () const
EIGEN_DEVICE_FUNC const Derived &	const_derived () const
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT
template<typename Dest >
EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const
template<typename Dest >
EIGEN_DEVICE_FUNC void	addTo (Dest &dst) const
template<typename Dest >
EIGEN_DEVICE_FUNC void	subTo (Dest &dst) const
template<typename Dest >
EIGEN_DEVICE_FUNC void	applyThisOnTheRight (Dest &dst) const
template<typename Dest >
EIGEN_DEVICE_FUNC void	applyThisOnTheLeft (Dest &dst) const
template<typename Device >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< Derived, Device >	device (Device &device)
template<typename Device >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< const Derived, Device >	device (Device &device) const

Detailed Description

template<typename Derived>
class Eigen::EigenBase< Derived >

Common base class for all classes T such that MatrixBase has an operator=(T) and a constructor MatrixBase(T).

In other words, an EigenBase object is an object that can be copied into a MatrixBase.

Besides MatrixBase-derived classes, this also includes special matrix classes such as diagonal matrices, etc.

Notice that this class is trivial, it is only used to disambiguate overloaded functions.

See also

\blank The class hierarchy

Member Typedef Documentation

Index

template<typename Derived >

typedef Eigen::Index Eigen::EigenBase< Derived >::Index

The interface type of indices.

To change this, #define the preprocessor symbol EIGEN_DEFAULT_DENSE_INDEX_TYPE.

See also

StorageIndex, Preprocessor directives. DEPRECATED: Since Eigen 3.3, its usage is deprecated. Use Eigen::Index instead. Deprecation is not marked with a doxygen comment because there are too many existing usages to add the deprecation attribute.

StorageKind

template<typename Derived >

typedef internal::traits<Derived>::StorageKind Eigen::EigenBase< Derived >::StorageKind

Member Function Documentation

addTo()

template<typename Derived >

template<typename Dest >

EIGEN_DEVICE_FUNC void Eigen::EigenBase< Derived >::addTo ( Dest &  dst ) const

inline

Don't use it, but do the equivalent:

dst += *this;

                                                       {
    // This is the default implementation,
    // derived class can reimplement it in a more optimized way.
    typename Dest::PlainObject res(rows(), cols());
    evalTo(res);
    dst += res;
  }

applyThisOnTheLeft()

template<typename Derived >

template<typename Dest >

EIGEN_DEVICE_FUNC void Eigen::EigenBase< Derived >::applyThisOnTheLeft ( Dest &  dst ) const

inline

Don't use it, but do the equivalent:

dst.applyOnTheLeft(*this);

                                                                    {
    // This is the default implementation,
    // derived class can reimplement it in a more optimized way.
    dst = this->derived() * dst;
  }

References Eigen::EigenBase< Derived >::derived().

applyThisOnTheRight()

template<typename Derived >

template<typename Dest >

EIGEN_DEVICE_FUNC void Eigen::EigenBase< Derived >::applyThisOnTheRight ( Dest &  dst ) const

inline

Don't use it, but do the equivalent:

dst.applyOnTheRight(*this);

                                                                     {
    // This is the default implementation,
    // derived class can reimplement it in a more optimized way.
    dst = dst * this->derived();
  }

References Eigen::EigenBase< Derived >::derived().

cols()

template<typename Derived >

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::cols ( ) const

inline

Returns

the number of columns.

See also

rows(), ColsAtCompileTime

{ return derived().cols(); }

References Eigen::EigenBase< Derived >::derived().

Referenced by gdb.printers._MatrixEntryIterator::__next__(), Eigen::SolverBase< Derived >::_check_solve_assertion(), Eigen::PlainObjectBase< Derived >::_resize_to_match(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), Eigen::EigenBase< Derived >::size(), Eigen::EigenBase< Derived >::subTo(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

const_cast_derived()

template<typename Derived >

EIGEN_DEVICE_FUNC Derived& Eigen::EigenBase< Derived >::const_cast_derived ( ) const

inline

                                                               {
    return *static_cast<Derived*>(const_cast<EigenBase*>(this));
  }

Referenced by Eigen::copy_using_evaluator(), and Eigen::TriangularViewImpl< MatrixType_, Mode_, Dense >::swap().

const_derived()

template<typename Derived >

EIGEN_DEVICE_FUNC const Derived& Eigen::EigenBase< Derived >::const_derived ( ) const

inline

{ return *static_cast<const Derived*>(this); }

derived() [1/2]

template<typename Derived >

constexpr EIGEN_DEVICE_FUNC Derived& Eigen::EigenBase< Derived >::derived ( )

inlineconstexpr

Returns

a reference to the derived object

{ return *static_cast<Derived*>(this); }

Referenced by Eigen::EigenBase< Derived >::applyThisOnTheLeft(), Eigen::EigenBase< Derived >::applyThisOnTheRight(), Eigen::internal::blueNorm_impl(), Eigen::EigenBase< Derived >::cols(), Eigen::SelfAdjointEigenSolver< MatrixType_ >::compute(), Eigen::Translation< Scalar_, Dim_ >::operator*(), Eigen::Transform< Scalar_, Dim_, Mode_, Options_ >::operator*(), Eigen::operator*(), Eigen::DenseBase< Derived >::operator+=(), Eigen::DeviceWrapper< Derived, Device >::operator+=(), Eigen::SparseMatrixBase< Derived >::operator+=(), Eigen::DenseBase< Derived >::operator-=(), Eigen::DeviceWrapper< Derived, Device >::operator-=(), Eigen::SparseMatrixBase< Derived >::operator-=(), Eigen::MatrixBase< Derived >::operator=(), Eigen::DenseBase< Derived >::operator=(), Eigen::DeviceWrapper< Derived, Device >::operator=(), Eigen::PlainObjectBase< Derived >::operator=(), Eigen::Transform< Scalar_, Dim_, Mode_, Options_ >::operator=(), Eigen::SparseMatrix< Scalar_, Options_, StorageIndex_ >::operator=(), Eigen::SparseMatrixBase< Derived >::operator=(), Eigen::PlainObjectBase< Derived >::PlainObjectBase(), Eigen::PlainObjectBase< Derived >::resizeLike(), Eigen::EigenBase< Derived >::rows(), and Eigen::Transform< Scalar_, Dim_, Mode_, Options_ >::Transform().

derived() [2/2]

template<typename Derived >

constexpr EIGEN_DEVICE_FUNC const Derived& Eigen::EigenBase< Derived >::derived ( ) const

inlineconstexpr

Returns

a const reference to the derived object

{ return *static_cast<const Derived*>(this); }

device() [1/2]

template<typename Derived >

template<typename Device >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< Derived, Device > Eigen::EigenBase< Derived >::device

(

Device &

device

)

                                                                                                              {
  return DeviceWrapper<Derived, Device>(derived(), device);
}

device() [2/2]

template<typename Derived >

template<typename Device >

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< const Derived, Device > Eigen::EigenBase< Derived >::device

(

Device &

device

)

const

                          {
  return DeviceWrapper<const Derived, Device>(derived(), device);
}

evalTo()

template<typename Derived >

template<typename Dest >

EIGEN_DEVICE_FUNC void Eigen::EigenBase< Derived >::evalTo ( Dest &  dst ) const

inline

Don't use it, but do the equivalent:

dst = *this;

                                                        {
    derived().evalTo(dst);
  }

Referenced by Eigen::internal::FullPivHouseholderQRMatrixQReturnType< MatrixType, PermutationIndex >::evalTo(), and Eigen::EigenBase< Derived >::subTo().

rows()

template<typename Derived >

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::rows ( ) const

inline

Returns

the number of rows.

See also

cols(), RowsAtCompileTime

{ return derived().rows(); }

References Eigen::EigenBase< Derived >::derived().

Referenced by gdb.printers._MatrixEntryIterator::__next__(), Eigen::SolverBase< Derived >::_check_solve_assertion(), Eigen::PlainObjectBase< Derived >::_resize_to_match(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), Eigen::EigenBase< Derived >::size(), Eigen::EigenBase< Derived >::subTo(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

size()

template<typename Derived >

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index Eigen::EigenBase< Derived >::size ( ) const

inline

Returns

the number of coefficients, which is rows()*cols().

See also

rows(), cols(), SizeAtCompileTime.

{ return rows() * cols(); }

References Eigen::EigenBase< Derived >::cols(), and Eigen::EigenBase< Derived >::rows().

Referenced by Eigen::PlainObjectBase< Derived >::_resize_to_match(), Eigen::FullPivHouseholderQR< MatrixType_, PermutationIndex_ >::_solve_impl_transposed(), Eigen::internal::llt_inplace< Scalar, Lower >::blocked(), Eigen::LDLT< MatrixType_, UpLo_ >::compute(), Eigen::LLT< MatrixType_, UpLo_ >::compute(), Eigen::ColPivHouseholderQR< MatrixType_, PermutationIndex_ >::computeInPlace(), Eigen::FullPivHouseholderQR< MatrixType_, PermutationIndex_ >::computeInPlace(), Eigen::HouseholderQR< MatrixType_ >::computeInPlace(), Eigen::internal::FullPivHouseholderQRMatrixQReturnType< MatrixType, PermutationIndex >::evalTo(), Eigen::internal::householder_qr_inplace_unblocked(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Identity(), Eigen::MatrixBase< Homogeneous< MatrixType, Direction_ > >::isDiagonal(), Eigen::LDLT< MatrixType_, UpLo_ >::rankUpdate(), Eigen::LDLT< MatrixType_, UpLo_ >::reconstructedMatrix(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::resize(), Eigen::internal::householder_determinant< HCoeffs, Scalar, IsComplex >::run(), Eigen::internal::householder_determinant< HCoeffs, Scalar, false >::run(), Eigen::internal::householder_qr_inplace_blocked< MatrixQR, HCoeffs, MatrixQRScalar, InnerStrideIsOne >::run(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setIdentity(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setZero(), Eigen::internal::llt_inplace< Scalar, Lower >::unblocked(), Eigen::internal::ldlt_inplace< Lower >::unblocked(), and Eigen::internal::ldlt_inplace< Lower >::updateInPlace().

subTo()

template<typename Derived >

template<typename Dest >

EIGEN_DEVICE_FUNC void Eigen::EigenBase< Derived >::subTo ( Dest &  dst ) const

inline

Don't use it, but do the equivalent:

dst -= *this;

                                                       {
    // This is the default implementation,
    // derived class can reimplement it in a more optimized way.
    typename Dest::PlainObject res(rows(), cols());
    evalTo(res);
    dst -= res;
  }

References Eigen::EigenBase< Derived >::cols(), Eigen::EigenBase< Derived >::evalTo(), res, and Eigen::EigenBase< Derived >::rows().

---

The documentation for this class was generated from the following files:

• EigenBase.h
• DeviceWrapper.h
