Specific Womersley impedance tube for a rectangular cross-section. More...

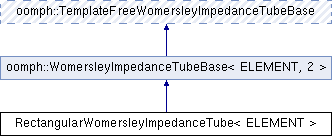

Inheritance diagram for RectangularWomersleyImpedanceTube< ELEMENT >:

Public Member Functions
	RectangularWomersleyImpedanceTube (const double &length, typename WomersleyImpedanceTubeBase< ELEMENT, 2 >::PrescribedVolumeFluxFctPt prescribed_volume_flux_fct_pt)

Mesh *	build_mesh_and_apply_boundary_conditions (TimeStepper *time_stepper_pt)

Public Member Functions inherited from oomph::WomersleyImpedanceTubeBase< ELEMENT, 2 >
	WomersleyImpedanceTubeBase (const double &length, PrescribedVolumeFluxFctPt prescribed_volume_flux_fct_pt)

	WomersleyImpedanceTubeBase (const double &length, Mesh *navier_stokes_outflow_mesh_pt)

double &	p_out ()
	Access fct to outlet pressure. More...

void	setup ()

void	setup (double re_st_pt, const double &dt, const double &q_initial, TimeStepper time_stepper_pt=0)

WomersleyProblem< ELEMENT, DIM > *	womersley_problem_pt ()
	Access to underlying Womersley problem. More...

void	shift_time_values (const double &dt)

double	total_volume_flux_into_impedance_tube ()

void	get_response (double &p_in, double &dp_in_dq)

Public Member Functions inherited from oomph::TemplateFreeWomersleyImpedanceTubeBase
	TemplateFreeWomersleyImpedanceTubeBase ()
	Empty constructor. More...

virtual	~TemplateFreeWomersleyImpedanceTubeBase ()
	Empty virtual destructor. More...

Additional Inherited Members
Public Types inherited from oomph::WomersleyImpedanceTubeBase< ELEMENT, 2 >
typedef double(*	PrescribedVolumeFluxFctPt) (const double &time)

Static Public Attributes inherited from oomph::TemplateFreeWomersleyImpedanceTubeBase
static double	Zero = 0.0
	Zero! More...

Protected Member Functions inherited from oomph::WomersleyImpedanceTubeBase< ELEMENT, 2 >
void	precompute_aux_integrals ()

Protected Attributes inherited from oomph::WomersleyImpedanceTubeBase< ELEMENT, 2 >
double	Length
	Length of the tube. More...

double	Dp_in_dq

double *	Current_volume_flux_pt

WomersleyProblem< ELEMENT, DIM > *	Womersley_problem_pt

double	P_out
	Outlet pressure. More...

PrescribedVolumeFluxFctPt	Prescribed_volume_flux_fct_pt
	Pointer to function that specifies the prescribed volume flux. More...

Mesh *	Navier_stokes_outflow_mesh_pt

std::map< unsigned, double > *	Aux_integral_pt

Detailed Description

template<class ELEMENT>
class RectangularWomersleyImpedanceTube< ELEMENT >

Specific Womersley impedance tube for a rectangular cross-section.

////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////

Constructor & Destructor Documentation

◆ RectangularWomersleyImpedanceTube()

template<class ELEMENT >

RectangularWomersleyImpedanceTube< ELEMENT >::RectangularWomersleyImpedanceTube	(	const double &	length,
		typename WomersleyImpedanceTubeBase< ELEMENT, 2 >::PrescribedVolumeFluxFctPt	prescribed_volume_flux_fct_pt
	)

inline

Constructor: Pass length and function that prescribes the volume flux to constructor of underlying base class

                                  :
   WomersleyImpedanceTubeBase<ELEMENT,2>(length, prescribed_volume_flux_fct_pt)
   {}

Member Function Documentation

◆ build_mesh_and_apply_boundary_conditions()

template<class ELEMENT >

Mesh* RectangularWomersleyImpedanceTube< ELEMENT >::build_mesh_and_apply_boundary_conditions ( TimeStepper * time_stepper_pt )

inlinevirtual

Implement pure virtual fct (defined in the base class WomersleyImpedanceTubeBase) that builds the mesh of Womersley elements (of the type specified by the template argument), using the specified timestepper. Also applies the boundary condition.

Implements oomph::WomersleyImpedanceTubeBase< ELEMENT, 2 >.

   {

    // Setup mesh

    // Number of elements in x and y directions
    unsigned nx=5;
    unsigned ny=5;

    // Lengths in x and y directions
    double lx=1.0;
    double ly=1.0;

    // Build mesh
    Mesh* my_mesh_pt =
     new RectangularQuadMesh<ELEMENT >(nx,ny,lx,ly,time_stepper_pt);


    // Set the boundary conditions for this problem:

    // All nodes are free by default -- just pin the ones that have
    // Dirichlet conditions here.
    unsigned n_bound = my_mesh_pt->nboundary();
    for(unsigned b=0;b<n_bound;b++)
     {
      unsigned n_node = my_mesh_pt->nboundary_node(b);
      for (unsigned n=0;n<n_node;n++)
       {
        my_mesh_pt->boundary_node_pt(b,n)->pin(0);
       }
     } // end of set boundary conditions

    return my_mesh_pt;

   }

References b, oomph::Mesh::boundary_node_pt(), Mesh_Parameters::lx, Mesh_Parameters::ly, n, oomph::Mesh::nboundary(), oomph::Mesh::nboundary_node(), Mesh_Parameters::nx, Mesh_Parameters::ny, and oomph::Data::pin().

The documentation for this class was generated from the following file:

two_d_womersley.cc
