Represents a diagonal matrix with its storage. More...

#include <DiagonalMatrix.h>

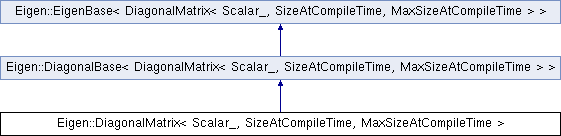

Inheritance diagram for Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >:

Public Types
typedef internal::traits< DiagonalMatrix >::DiagonalVectorType	DiagonalVectorType

typedef const DiagonalMatrix &	Nested

typedef Scalar_	Scalar

typedef internal::traits< DiagonalMatrix >::StorageKind	StorageKind

typedef internal::traits< DiagonalMatrix >::StorageIndex	StorageIndex

typedef DiagonalWrapper< const CwiseNullaryOp< internal::scalar_constant_op< Scalar >, DiagonalVectorType > >	InitializeReturnType

typedef DiagonalWrapper< const CwiseNullaryOp< internal::scalar_zero_op< Scalar >, DiagonalVectorType > >	ZeroInitializeReturnType

Public Types inherited from Eigen::DiagonalBase< DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > >
enum

typedef internal::traits< DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > >::DiagonalVectorType	DiagonalVectorType

typedef DiagonalVectorType::Scalar	Scalar

typedef DiagonalVectorType::RealScalar	RealScalar

typedef internal::traits< DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > >::StorageKind	StorageKind

typedef internal::traits< DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > >::StorageIndex	StorageIndex

typedef Matrix< Scalar, RowsAtCompileTime, ColsAtCompileTime, 0, MaxRowsAtCompileTime, MaxColsAtCompileTime >	DenseMatrixType

typedef DenseMatrixType	DenseType

typedef DiagonalMatrix< Scalar, DiagonalVectorType::SizeAtCompileTime, DiagonalVectorType::MaxSizeAtCompileTime >	PlainObject

using	DiagonalProductReturnType = DiagonalWrapper< const EIGEN_CWISE_BINARY_RETURN_TYPE(DiagonalVectorType, typename OtherDerived::DiagonalVectorType, product)>

using	DiagonalInverseReturnType = DiagonalWrapper< const CwiseUnaryOp< internal::scalar_inverse_op< Scalar >, const DiagonalVectorType > >

using	DiagonalScaleReturnType = DiagonalWrapper< const EIGEN_EXPR_BINARYOP_SCALAR_RETURN_TYPE(DiagonalVectorType, Scalar, product)>

using	ScaleDiagonalReturnType = DiagonalWrapper< const EIGEN_SCALAR_BINARYOP_EXPR_RETURN_TYPE(Scalar, DiagonalVectorType, product)>

using	DiagonalSumReturnType = DiagonalWrapper< const EIGEN_CWISE_BINARY_RETURN_TYPE(DiagonalVectorType, typename OtherDerived::DiagonalVectorType, sum)>

using	DiagonalDifferenceReturnType = DiagonalWrapper< const EIGEN_CWISE_BINARY_RETURN_TYPE(DiagonalVectorType, typename OtherDerived::DiagonalVectorType, difference)>

Public Types inherited from Eigen::EigenBase< Derived >
typedef Eigen::Index	Index
	The interface type of indices. More...

typedef internal::traits< Derived >::StorageKind	StorageKind

Public Member Functions
EIGEN_DEVICE_FUNC const DiagonalVectorType &	diagonal () const

EIGEN_DEVICE_FUNC DiagonalVectorType &	diagonal ()

EIGEN_DEVICE_FUNC	DiagonalMatrix ()

EIGEN_DEVICE_FUNC	DiagonalMatrix (Index dim)

EIGEN_DEVICE_FUNC	DiagonalMatrix (const Scalar &x, const Scalar &y)

EIGEN_DEVICE_FUNC	DiagonalMatrix (const Scalar &x, const Scalar &y, const Scalar &z)

template<typename... ArgTypes>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	DiagonalMatrix (const Scalar &a0, const Scalar &a1, const Scalar &a2, const ArgTypes &... args)
	Construct a diagonal matrix with fixed size from an arbitrary number of coefficients. More...

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	DiagonalMatrix (const std::initializer_list< std::initializer_list< Scalar >> &list)
	Constructs a DiagonalMatrix and initializes it by elements given by an initializer list of initializer lists \cpp11. More...

EIGEN_DEVICE_FUNC	DiagonalMatrix (DiagonalVectorType &&diag)
	Constructs a DiagonalMatrix from an r-value diagonal vector type. More...

template<typename OtherDerived >
EIGEN_DEVICE_FUNC	DiagonalMatrix (const DiagonalBase< OtherDerived > &other)

	DiagonalMatrix (const DiagonalMatrix &other)

template<typename OtherDerived >
EIGEN_DEVICE_FUNC	DiagonalMatrix (const MatrixBase< OtherDerived > &other)

template<typename OtherDerived >
EIGEN_DEVICE_FUNC DiagonalMatrix &	operator= (const DiagonalBase< OtherDerived > &other)

EIGEN_DEVICE_FUNC DiagonalMatrix &	operator= (const DiagonalMatrix &other)

EIGEN_DEVICE_FUNC void	resize (Index size)

EIGEN_DEVICE_FUNC void	setZero ()

EIGEN_DEVICE_FUNC void	setZero (Index size)

EIGEN_DEVICE_FUNC void	setIdentity ()

EIGEN_DEVICE_FUNC void	setIdentity (Index size)

Public Member Functions inherited from Eigen::DiagonalBase< DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > >
EIGEN_DEVICE_FUNC const DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > &	derived () const

EIGEN_DEVICE_FUNC DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > &	derived ()

EIGEN_DEVICE_FUNC DenseMatrixType	toDenseMatrix () const

EIGEN_DEVICE_FUNC const DiagonalVectorType &	diagonal () const

EIGEN_DEVICE_FUNC DiagonalVectorType &	diagonal ()

EIGEN_DEVICE_FUNC Scalar	coeff (Index row, Index col) const

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const

EIGEN_DEVICE_FUNC const Product< DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >, MatrixDerived, LazyProduct >	operator* (const MatrixBase< MatrixDerived > &matrix) const

EIGEN_DEVICE_FUNC const DiagonalProductReturnType< OtherDerived >	operator* (const DiagonalBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC const DiagonalScaleReturnType	operator* (const Scalar &scalar) const

EIGEN_DEVICE_FUNC const DiagonalInverseReturnType	inverse () const

EIGEN_DEVICE_FUNC const DiagonalSumReturnType< OtherDerived >	operator+ (const DiagonalBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC const DiagonalDifferenceReturnType< OtherDerived >	operator- (const DiagonalBase< OtherDerived > &other) const

Public Member Functions inherited from Eigen::EigenBase< Derived >
constexpr EIGEN_DEVICE_FUNC Derived &	derived ()

constexpr EIGEN_DEVICE_FUNC const Derived &	derived () const

EIGEN_DEVICE_FUNC Derived &	const_cast_derived () const

EIGEN_DEVICE_FUNC const Derived &	const_derived () const

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

template<typename Dest >
EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	addTo (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	subTo (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	applyThisOnTheRight (Dest &dst) const

template<typename Dest >
EIGEN_DEVICE_FUNC void	applyThisOnTheLeft (Dest &dst) const

template<typename Device >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< Derived, Device >	device (Device &device)

template<typename Device >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< const Derived, Device >	device (Device &device) const

Static Public Member Functions
static EIGEN_DEVICE_FUNC const ZeroInitializeReturnType	Zero ()

static EIGEN_DEVICE_FUNC const ZeroInitializeReturnType	Zero (Index size)

static EIGEN_DEVICE_FUNC const InitializeReturnType	Identity ()

static EIGEN_DEVICE_FUNC const InitializeReturnType	Identity (Index size)

Protected Attributes
DiagonalVectorType	m_diagonal

Detailed Description

template<typename Scalar_, int SizeAtCompileTime, int MaxSizeAtCompileTime>
class Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >

Represents a diagonal matrix with its storage.

Template Parameters

Scalar_	the type of coefficients
SizeAtCompileTime	the dimension of the matrix, or Dynamic
MaxSizeAtCompileTime	the dimension of the matrix, or Dynamic. This parameter is optional and defaults to SizeAtCompileTime. Most of the time, you do not need to specify it.

See also: class DiagonalBase, class DiagonalWrapper

Member Typedef Documentation

◆ DiagonalVectorType

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef internal::traits<DiagonalMatrix>::DiagonalVectorType Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalVectorType

◆ InitializeReturnType

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef DiagonalWrapper<const CwiseNullaryOp<internal::scalar_constant_op<Scalar>, DiagonalVectorType> > Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::InitializeReturnType

◆ Nested

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef const DiagonalMatrix& Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Nested

◆ Scalar

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef Scalar_ Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Scalar

◆ StorageIndex

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef internal::traits<DiagonalMatrix>::StorageIndex Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::StorageIndex

◆ StorageKind

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef internal::traits<DiagonalMatrix>::StorageKind Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::StorageKind

◆ ZeroInitializeReturnType

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

typedef DiagonalWrapper<const CwiseNullaryOp<internal::scalar_zero_op<Scalar>, DiagonalVectorType> > Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::ZeroInitializeReturnType

Constructor & Destructor Documentation

◆ DiagonalMatrix() [1/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( )

inline

Default constructor without initialization

192 {}

◆ DiagonalMatrix() [2/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( Index dim )

inlineexplicit

Constructs a diagonal matrix with given dimension

195 : m_diagonal(dim) {}

Eigen::DiagonalMatrix::m_diagonal

DiagonalVectorType m_diagonal

Definition: DiagonalMatrix.h:183

◆ DiagonalMatrix() [3/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix	(	const Scalar &	x,
		const Scalar &	y
	)

inline

2D constructor.

198 : m_diagonal(x, y) {}

y

Scalar * y

Definition: level1_cplx_impl.h:128

plotDoE.x

list x

Definition: plotDoE.py:28

◆ DiagonalMatrix() [4/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix	(	const Scalar &	x,
		const Scalar &	y,
		const Scalar &	z
	)

inline

3D constructor.

201 : m_diagonal(x, y, z) {}

◆ DiagonalMatrix() [5/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

template<typename... ArgTypes>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix	(	const Scalar &	a0,
		const Scalar &	a1,
		const Scalar &	a2,
		const ArgTypes &...	args
	)

inline

Construct a diagonal matrix with fixed size from an arbitrary number of coefficients.

Warning: To construct a diagonal matrix of fixed size, the number of values passed to this constructor must match the fixed dimension of *this.

See also: DiagonalMatrix(const Scalar&, const Scalar&); DiagonalMatrix(const Scalar&, const Scalar&, const Scalar&)

214 : m_diagonal(a0, a1, a2, args...) {}

compute_granudrum_aor.args

args

Definition: compute_granudrum_aor.py:143

◆ DiagonalMatrix() [6/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( const std::initializer_list< std::initializer_list< Scalar >> & list )

inlineexplicit

Constructs a DiagonalMatrix and initializes it by elements given by an initializer list of initializer lists \cpp11.

221 : m_diagonal(list) {}

◆ DiagonalMatrix() [7/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( DiagonalVectorType && diag )

inlineexplicit

Constructs a DiagonalMatrix from an r-value diagonal vector type.

224 : m_diagonal(std::move(diag)) {}

diag

const char const char const char * diag

Definition: level2_impl.h:86

◆ DiagonalMatrix() [8/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( const DiagonalBase< OtherDerived > & other )

inline

Copy constructor.

228 : m_diagonal(other.diagonal()) {}

◆ DiagonalMatrix() [9/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( const DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > & other )

inline

copy constructor. prevent a default copy constructor from hiding the other templated constructor

232 : m_diagonal(other.diagonal()) {}

◆ DiagonalMatrix() [10/10]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::DiagonalMatrix ( const MatrixBase< OtherDerived > & other )

inlineexplicit

generic constructor from expression of the diagonal coefficients

237 : m_diagonal(other) {}

Member Function Documentation

◆ diagonal() [1/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC DiagonalVectorType& Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::diagonal ( )

inline

Returns: a reference to the stored vector of diagonal coefficients.

189 { return m_diagonal; }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal.

◆ diagonal() [2/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC const DiagonalVectorType& Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::diagonal ( ) const

inline

const version of diagonal().

187 { return m_diagonal; }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal.

Referenced by hyperplane(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::operator=(), and parametrizedline().

◆ Identity() [1/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

static EIGEN_DEVICE_FUNC const InitializeReturnType Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Identity ( )

inlinestatic

Initializes a identity matrix of size SizeAtCompileTime

269 { return DiagonalVectorType::Ones().asDiagonal(); }

◆ Identity() [2/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

static EIGEN_DEVICE_FUNC const InitializeReturnType Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Identity ( Index size )

inlinestatic

Initializes a identity matrix of size dim

                                                                            {
     return DiagonalVectorType::Ones(size).asDiagonal();
   }

References Eigen::EigenBase< Derived >::size().

◆ operator=() [1/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

template<typename OtherDerived >

EIGEN_DEVICE_FUNC DiagonalMatrix& Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::operator= ( const DiagonalBase< OtherDerived > & other )

inline

Copy operator.

                                                                                        {
     m_diagonal = other.diagonal();
     return *this;
   }

References Eigen::DiagonalBase< Derived >::diagonal(), and Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal.

◆ operator=() [2/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC DiagonalMatrix& Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::operator= ( const DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime > & other )

inline

This is a special case of the templated operator=. Its purpose is to prevent a default operator= from hiding the templated operator=.

                                                                            {
     m_diagonal = other.diagonal();
     return *this;
   }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::diagonal(), and Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal.

◆ resize()

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC void Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::resize ( Index size )

inline

Resizes to given size.

276 { m_diagonal.resize(size); }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal, and Eigen::EigenBase< Derived >::size().

◆ setIdentity() [1/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC void Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setIdentity ( )

inline

Sets this matrix to be the identity matrix of the current size.

282 { m_diagonal.setOnes(); }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal.

◆ setIdentity() [2/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC void Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setIdentity ( Index size )

inline

Sets this matrix to be the identity matrix of the given size.

284 { m_diagonal.setOnes(size); }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal, and Eigen::EigenBase< Derived >::size().

◆ setZero() [1/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC void Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setZero ( )

inline

Sets all coefficients to zero.

278 { m_diagonal.setZero(); }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal.

◆ setZero() [2/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

EIGEN_DEVICE_FUNC void Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setZero ( Index size )

inline

Resizes and sets all coefficients to zero.

280 { m_diagonal.setZero(size); }

References Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal, and Eigen::EigenBase< Derived >::size().

◆ Zero() [1/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

static EIGEN_DEVICE_FUNC const ZeroInitializeReturnType Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Zero ( )

inlinestatic

Initializes a diagonal matrix of size SizeAtCompileTime with coefficients set to zero

263 { return DiagonalVectorType::Zero().asDiagonal(); }

oomph::PseudoSolidHelper::Zero

double Zero

Definition: pseudosolid_node_update_elements.cc:35

References oomph::PseudoSolidHelper::Zero.

◆ Zero() [2/2]

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

static EIGEN_DEVICE_FUNC const ZeroInitializeReturnType Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::Zero ( Index size )

inlinestatic

Initializes a diagonal matrix of size dim with coefficients set to zero

                                                                            {
     return DiagonalVectorType::Zero(size).asDiagonal();
   }

Member Data Documentation

◆ m_diagonal

template<typename Scalar_ , int SizeAtCompileTime, int MaxSizeAtCompileTime>

DiagonalVectorType Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::m_diagonal

protected

Referenced by Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::diagonal(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::operator=(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::resize(), Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setIdentity(), and Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >::setZero().

The documentation for this class was generated from the following file:

DiagonalMatrix.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

template<typename Scalar_, int SizeAtCompileTime, int MaxSizeAtCompileTime> class Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >

Member Typedef Documentation

◆ DiagonalVectorType

◆ InitializeReturnType

◆ Nested

◆ Scalar

◆ StorageIndex

◆ StorageKind

◆ ZeroInitializeReturnType

Constructor & Destructor Documentation

◆ DiagonalMatrix() [1/10]

◆ DiagonalMatrix() [2/10]

◆ DiagonalMatrix() [3/10]

◆ DiagonalMatrix() [4/10]

◆ DiagonalMatrix() [5/10]

◆ DiagonalMatrix() [6/10]

◆ DiagonalMatrix() [7/10]

◆ DiagonalMatrix() [8/10]

◆ DiagonalMatrix() [9/10]

◆ DiagonalMatrix() [10/10]

Member Function Documentation

◆ diagonal() [1/2]

◆ diagonal() [2/2]

◆ Identity() [1/2]

◆ Identity() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ resize()

◆ setIdentity() [1/2]

◆ setIdentity() [2/2]

◆ setZero() [1/2]

◆ setZero() [2/2]

◆ Zero() [1/2]

◆ Zero() [2/2]

Member Data Documentation

◆ m_diagonal

template<typename Scalar_, int SizeAtCompileTime, int MaxSizeAtCompileTime>
class Eigen::DiagonalMatrix< Scalar_, SizeAtCompileTime, MaxSizeAtCompileTime >
