Evaluates time-smoothed continuum fields and writes the data into a stat file. More...

#include <TimeSmoothedCG.h>

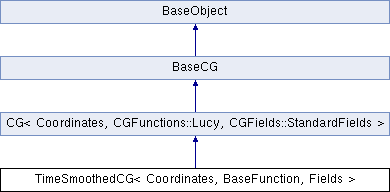

Inheritance diagram for TimeSmoothedCG< Coordinates, BaseFunction, Fields >:

Public Types
typedef BaseFunction< Coordinates >	Function

Public Types inherited from CG< Coordinates, CGFunctions::Lucy, CGFields::StandardFields >
typedef CGFunctions::Lucy< Coordinates >	Function
	Because of this typedefs, Point can be used instead of CGPoint<Function> and Function can be used instead of BaseFunction<Coordinates> in this class. This was done to avoid the overly use of template notation. More...

typedef CGPoint< Coordinates, CGFields::StandardFields >	Point

Public Member Functions
	TimeSmoothedCG ()
	Default constructor; does nothing, i.e. no points are created initially. More...

	TimeSmoothedCG (const TimeSmoothedCG &p)=default
	Copy constructor. It copies the TimeSmoothedCGFunction and all objects it contains. More...

virtual	~TimeSmoothedCG ()=default
	Destructor, it simply destructs the TimeSmoothedCGFunction and all the objects it contains. More...

TimeSmoothedCG< Coordinates, BaseFunction, Fields > *	copy () const override
	Copy operator. Required for BaseHandler::copyAndAddObject. More...

void	write (std::ostream &os) const override
	Writes class content into an output stream, usually a stat file. More...

void	writeAll (std::ostream &os, TimeSmoothedFields< Fields > &average) const

std::string	getName () const override
	A purely virtual function. More...

void	initialise () override
	Called at the beginning of the DPM simulation to initialise the cg evaluation and to open the statFile. More...

void	evaluate () override
	Called after a given number of time steps (statFile::saveCount_) to evaluate the CG fields. More...

void	finish () override
	Called at the end of the DPM simulation to finish the cg evaluation and to close the statFile. More...

void	setWidthTime (Mdouble widthTime) final

Mdouble	getWidthTime () const final

void	setTimeStep (Mdouble timeStep) final

Mdouble	getTimeStep () const final

Public Member Functions inherited from CG< Coordinates, CGFunctions::Lucy, CGFields::StandardFields >
	CG ()=default
	Default constructor; does nothing, i.e. no points are created initially. More...

	CG (Mdouble width, unsigned n)

	CG (const CG &p)=default
	Default copy Constructor; copies all member variables. More...

virtual	~CG ()=default
	Default destructor; does nothing. More...

CG< Coordinates, CGFunctions::Lucy, CGFields::StandardFields > *	copy () const override
	Copy operator; creates a new'ed CG object. More...

void	write (std::ostream &os) const override
	Writes class content, except for the points, into an output stream. More...

void	writeAll (std::ostream &os) const
	Writes class content, including the points_, into an output stream, usually a stat file. More...

std::string	getName () const override
	returns the name of the class, which is required by write. More...

void	initialise () override
	Called at the beginning of the DPM simulation to initialise the cg evaluation and to open the statFile. More...

virtual void	createMesh ()
	Creates spatial mesh of CGPoints, the points where the CG-variables are evaluated. More...

void	evaluate () override
	Called after a given number of time steps (statFile::saveCount_) to evaluate the CG fields. More...

Point	evaluateAverage ()
	Computes the spatially-averaged value for each field. More...

Point	evaluateTotal ()
	Computes the total value (integrated over space) for each field. More...

void	evaluateParticleAtPoint (CGFields::StandardFields &currentInteraction, const BaseParticle &p, Point &r)

void	evaluateParticle (const BaseParticle &p)
	Contains the basic for loop over all CGPoints, required to do particle statistics. More...

void	evaluateContact (const BaseInteraction &i)
	Contains the basic for loop over all CGPoints, required to do contact statistics. More...

IntegralType	getIntegralType (const BaseInteraction &c)

void	finish () override
	Called at the end of the DPM simulation to finish the cg evaluation and to close the statFile. More...

const Point &	getPoint (size_t i) const

const std::vector< Point > &	getPoints () const

Function &	getFunction ()

void	setStandardDeviation (Mdouble std) override

void	setRadius (Mdouble radius) override

void	setWidth (Mdouble width) override

Mdouble	getWidth () const override

Public Member Functions inherited from BaseCG
	BaseCG ()
	Simple constructor, sets default values. More...

	BaseCG (const BaseCG &p)=default
	Default copy constructor, copies all values. More...

	~BaseCG () override=default
	Default destructor, does nothing. More...

void	read (std::istream &is) override
	Currently, no read functions are implemented for the CGHandler, but the function is required for any derivative of BaseObject. More...

void	clear ()
	This class seems to have no use (?), but is required for any derivative of BaseObject. More...

void	setHandler (CGHandler *handler)
	Sets handler_, the pointer to the CGHandler. More...

CGHandler *	getHandler () const
	Returns handler_, a pointer to the CGHandler. More...

void	setNZ (std::size_t nZ)
	Sets nZ_, the number of spatial mesh points in the z-direction. More...

std::size_t	getNZ () const
	Returns nZ_, the number of spatial mesh points in the z-direction. More...

void	setNY (std::size_t nY)
	Sets nY_, the number of spatial mesh points in the y-direction. More...

std::size_t	getNY () const
	Returns nY_, the number of spatial mesh points in the y-direction. More...

void	setNX (std::size_t nX)
	Sets nX_, the number of spatial mesh points in the x-direction. More...

std::size_t	getNX () const
	Returns nX_, the number of spatial mesh points in the x-direction. More...

void	setN (std::size_t n)
	Sets nX_, nY_, nZ_, the number of spatial mesh points in each cartesian direction. More...

void	setN (std::array< std::size_t, 3 > n)
	Sets nX_, nY_, nZ_, the number of spatial mesh points in each cartesian direction. More...

void	setH (Mdouble h)
	Sets nX_, nY_, nZ_, the number of spatial mesh points in each cartesian direction. However, instead of explicitly defining n, the mesh size h=(max-min)/n is defined. More...

void	setHX (Mdouble h)
	Sets nX_ the number of spatial mesh points in the X-direction. Instead of explicitly defining nX, the mesh size hX=(max.X-min.X)/nX is defined. More...

void	setHY (Mdouble h)
	Sets nX_ the number of spatial mesh points in the X-direction. Instead of explicitly defining nX, the mesh size hX=(max.X-min.X)/nX is defined. More...

void	setHZ (Mdouble h)
	Sets nX_ the number of spatial mesh points in the X-direction. Instead of explicitly defining nX, the mesh size hX=(max.X-min.X)/nX is defined. More...

void	setTimeMin (Mdouble timeMin)
	Sets timeMin_, the lower limit of the temporal domain. More...

void	setTimeMax (Mdouble timeMax)
	Sets timeMax_, the upper limit of the temporal domain. More...

Mdouble	getTimeMin () const
	Returns timeMin_, the lower limit of the temporal domain. More...

Mdouble	getTimeMax () const
	Returns timeMax_, the upper limit of the temporal domain. More...

void	setMin (Vec3D min)
	Sets max_, the lower limit of the spatial domain. More...

void	setX (Mdouble min, Mdouble max)
	Sets min_.X, max_.X, the limits of the spatial domain in X. More...

void	setY (Mdouble min, Mdouble max)
	Sets min_.Y, max_.Y, the limits of the spatial domain in Y. More...

void	setZ (Mdouble min, Mdouble max)
	Sets min_.Z, max_.Z, the limits of the spatial domain in Z. More...

void	setXGrid (Mdouble min, Mdouble max, Mdouble h)

void	setYGrid (Mdouble min, Mdouble max, Mdouble h)

void	setZGrid (Mdouble min, Mdouble max, Mdouble h)

void	setGrid (Vec3D min, Vec3D max, Mdouble h)

void	setMax (Vec3D max)
	Sets max_, the upper limit of the spatial domain. More...

Vec3D	getMin () const
	Returns min_, the lower limit of the spatial domain. More...

Vec3D	getMax () const
	Returns max_, the upper limit of the spatial domain. More...

void	selectSpecies (unsigned speciesIndex)

void	setSelectedParticle (const std::function< const bool(const BaseInteractable *)> &selectedParticle)

void	setEps (Mdouble eps)

Mdouble	getEps () const

void	setAverageBeyondDomain (const bool val)

bool	getAverageBeyondDomain () const

void	setVerbose (const bool verbose)

bool	getVerbose () const

Public Member Functions inherited from BaseObject
	BaseObject ()=default
	Default constructor. More...

	BaseObject (const BaseObject &p)=default
	Copy constructor, copies all the objects BaseObject contains. More...

virtual	~BaseObject ()=default
	virtual destructor More...

virtual void	moveInHandler (unsigned int index)
	Except that it is virtual, it does the same thing as setIndex() does. More...

void	setIndex (unsigned int index)
	Allows one to assign an index to an object in the handler/container. More...

void	setId (unsigned long id)
	Assigns a unique identifier to each object in the handler (container) which remains constant even after the object is deleted from the container/handler. More...

unsigned int	getIndex () const
	Returns the index of the object in the handler. More...

unsigned int	getId () const
	Returns the unique identifier of any particular object. More...

void	setGroupId (unsigned groupId)

unsigned	getGroupId () const

Protected Attributes
Mdouble	widthTime_

Mdouble	cutoffTime_

Mdouble	nextTime_

Mdouble	timeStep_

std::vector< TimeSmoothedFields< Fields > >	averages_

Protected Attributes inherited from CG< Coordinates, CGFunctions::Lucy, CGFields::StandardFields >
std::vector< Point >	points_
	Contains the CGPoint's, i.e. the positions at which the StandardFields are evaluated. More...

Function	function_

Protected Attributes inherited from BaseCG
CGHandler *	handler_

std::size_t	nX_

std::size_t	nY_

std::size_t	nZ_

Mdouble	eps_

Mdouble	timeMin_

Mdouble	timeMax_

Vec3D	min_

Vec3D	max_

std::function< bool(const BaseInteractable *)>	selectedParticle_

bool	averageBeyondDomain_ = true
	Determines whether particles outside the domain are considered when computing the averaged fields. More...

bool	verbose_ = false

Additional Inherited Members
Public Attributes inherited from BaseCG
File	statFile
	File class to handle the output into a .stat file. More...

Protected Member Functions inherited from CG< Coordinates, CGFunctions::Lucy, CGFields::StandardFields >
void	resetVariables ()
	set all variables to zero More...

void	volumeAverageVariables ()
	divide each variable by the domain volume More...

void	writeVariables ()
	write variables to the stat file More...

void	evaluateCommon ()
	The part of evaluate that is used for CG, timeAveragedCG and timeSmoothedCG. More...

void	outputSumOfVariables ()
	plot total to console More...

Detailed Description

template<class Coordinates, template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>
class TimeSmoothedCG< Coordinates, BaseFunction, Fields >

Evaluates time-smoothed continuum fields and writes the data into a stat file.

Like CG, this class should be used to evaluate time-dependent fields. However, as the data is averaged over several time steps, the resulting fields are smoother and more reliable, as they use more information. For time-independent fields, see TimeAveragedCG.

The class is derived from CG, which already contains the basic functionality to obtain time-dependent statistics. This class then averages the field values F over time, with a non-uniform weight for each time step,

\[\bar F(t,w_t) = \frac{\sum_i w(t-t_i) F(t_i)}{\sum_i w(t-t_i)},\]

with the weight given by a Gaussian distribution,

\[\bar w(t-t_i) = exp(-(t-t_i)^2/2w_t^2).\]

Member Typedef Documentation

◆ Function

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

typedef BaseFunction<Coordinates> TimeSmoothedCG< Coordinates, BaseFunction, Fields >::Function

Constructor & Destructor Documentation

◆ TimeSmoothedCG() [1/2]

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

TimeSmoothedCG< Coordinates, BaseFunction, Fields >::TimeSmoothedCG ( )

Default constructor; does nothing, i.e. no points are created initially.

◆ TimeSmoothedCG() [2/2]

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

TimeSmoothedCG< Coordinates, BaseFunction, Fields >::TimeSmoothedCG ( const TimeSmoothedCG< Coordinates, BaseFunction, Fields > & p )

default

Copy constructor. It copies the TimeSmoothedCGFunction and all objects it contains.

Parameters

[in] p the TimeSmoothedCGFunction that has to be copied

◆ ~TimeSmoothedCG()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

virtual TimeSmoothedCG< Coordinates, BaseFunction, Fields >::~TimeSmoothedCG ( )

virtualdefault

Destructor, it simply destructs the TimeSmoothedCGFunction and all the objects it contains.

Member Function Documentation

◆ copy()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

TimeSmoothedCG<Coordinates, BaseFunction, Fields>* TimeSmoothedCG< Coordinates, BaseFunction, Fields >::copy ( ) const

overridevirtual

Copy operator. Required for BaseHandler::copyAndAddObject.

Implements BaseCG.

◆ evaluate()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::evaluate ( )

overridevirtual

Called after a given number of time steps (statFile::saveCount_) to evaluate the CG fields.

Implements BaseCG.

◆ finish()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::finish ( )

overridevirtual

Called at the end of the DPM simulation to finish the cg evaluation and to close the statFile.

Implements BaseCG.

◆ getName()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

std::string TimeSmoothedCG< Coordinates, BaseFunction, Fields >::getName ( ) const

overridevirtual

A purely virtual function.

Implements BaseObject.

◆ getTimeStep()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

Mdouble TimeSmoothedCG< Coordinates, BaseFunction, Fields >::getTimeStep ( ) const

finalvirtual

Reimplemented from BaseCG.

◆ getWidthTime()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

Mdouble TimeSmoothedCG< Coordinates, BaseFunction, Fields >::getWidthTime ( ) const

finalvirtual

Reimplemented from BaseCG.

◆ initialise()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::initialise ( )

overridevirtual

Called at the beginning of the DPM simulation to initialise the cg evaluation and to open the statFile.

Implements BaseCG.

◆ setTimeStep()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::setTimeStep ( Mdouble timeStep )

finalvirtual

Reimplemented from BaseCG.

Referenced by main().

◆ setWidthTime()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::setWidthTime ( Mdouble widthTime )

finalvirtual

Reimplemented from BaseCG.

Referenced by main().

◆ write()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::write ( std::ostream & os ) const

overridevirtual

Writes class content into an output stream, usually a stat file.

Parameters

[out] os output stream to which data is written

Reimplemented from BaseCG.

◆ writeAll()

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

void TimeSmoothedCG< Coordinates, BaseFunction, Fields >::writeAll	(	std::ostream &	os,
		TimeSmoothedFields< Fields > &	average
	)		const

Member Data Documentation

◆ averages_

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

std::vector<TimeSmoothedFields<Fields> > TimeSmoothedCG< Coordinates, BaseFunction, Fields >::averages_

protected

Stores the smoothed fields that are currently being evaluated. Internal variable, see TimeSmoothedFields for details.

◆ cutoffTime_

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

Mdouble TimeSmoothedCG< Coordinates, BaseFunction, Fields >::cutoffTime_

protected

Cutoff of the Gauss function used to calculate the weights for the temporal smoothing. Internal variable, set to 3.0*widthTime_.

◆ nextTime_

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

Mdouble TimeSmoothedCG< Coordinates, BaseFunction, Fields >::nextTime_

protected

Stores the next time at which smoothed fields should be evaluated, but which is not yet included in averages_. Internal variable, set DPMBase::time_ in initialize, then increased by timeStep_ every time a new object is added to averages_.

◆ timeStep_

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

Mdouble TimeSmoothedCG< Coordinates, BaseFunction, Fields >::timeStep_

protected

Interval between two successive time steps for which time-smoothed fields are evaluated. Has to be specified by the user.

◆ widthTime_

template<class Coordinates , template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>

Mdouble TimeSmoothedCG< Coordinates, BaseFunction, Fields >::widthTime_

protected

Width of the Gauss function used to calculate the weights for the temporal smoothing. Has to be specified by the user.

The documentation for this class was generated from the following file:

TimeSmoothedCG.h

Public Types

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<class Coordinates, template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields> class TimeSmoothedCG< Coordinates, BaseFunction, Fields >

Member Typedef Documentation

◆ Function

Constructor & Destructor Documentation

◆ TimeSmoothedCG() [1/2]

◆ TimeSmoothedCG() [2/2]

◆ ~TimeSmoothedCG()

Member Function Documentation

◆ copy()

◆ evaluate()

◆ finish()

◆ getName()

◆ getTimeStep()

◆ getWidthTime()

◆ initialise()

◆ setTimeStep()

◆ setWidthTime()

◆ write()

◆ writeAll()

Member Data Documentation

◆ averages_

◆ cutoffTime_

◆ nextTime_

◆ timeStep_

◆ widthTime_

template<class Coordinates, template< class > class BaseFunction = CGFunctions::Lucy, class Fields = CGFields::StandardFields>
class TimeSmoothedCG< Coordinates, BaseFunction, Fields >
