#include <BaseParticle.h>

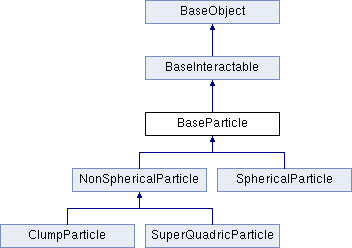

Inheritance diagram for BaseParticle:

Public Member Functions
	BaseParticle ()
	Basic Particle constructor, creates an Particle at (0,0,0) with radius, mass and inertia equal to 1. More...

	BaseParticle (const BaseParticle &p)
	Particle copy constructor, which accepts as input a reference to a Particle. It creates a copy of this Particle and all it's information. Usually it is better to use the copy() function for polymorphism. More...

	BaseParticle (const ParticleSpecies *s)

	~BaseParticle () override
	Particle destructor, needs to be implemented and checked if it removes tangential spring information. More...

virtual BaseParticle *	copy () const =0
	Particle copy method. It calls to copy constructor of this Particle, useful for polymorphism. More...

virtual Mdouble	getVolume () const
	Get Particle volume function, which required a reference to the Species vector. It returns the volume of the Particle. More...

void	fixParticle ()
	Fix Particle function. It fixes a Particle by setting its inverse mass and inertia and velocities to zero. More...

bool	isFixed () const override
	Is fixed Particle function. It returns whether a Particle is fixed or not, by checking its inverse Mass. More...

bool	isMPIParticle () const
	Indicates if this particle is a ghost in the MPI domain. More...

void	setMPIParticle (bool flag)
	Flags the mpi particle status. More...

bool	isInMPIDomain ()
	Indicates if the particle is in the communication zone of the mpi domain. More...

void	setInMPIDomain (bool flag)
	Flags the status of the particle if wether it is in the communication zone or not. More...

bool	isInPeriodicDomain () const
	Indicates if the particle is in the periodic boundary communication zone. More...

void	setInPeriodicDomain (bool flag)
	Flags the status of the particle whether it is in the periodic communication zone or not. More...

bool	isPeriodicGhostParticle () const
	Indicates if this particle is a ghost in the periodic boundary. More...

void	setPeriodicGhostParticle (bool flag)
	Flags the status of the particle to be a ghost in periodic boundary or not. More...

bool	isMaserParticle () const
	Indicates if this particle belongs to the maser boundary. More...

void	setMaserParticle (bool flag)
	Flags the status of the particle if it belongs to the maser boundary or not. More...

void	setCommunicationComplexity (unsigned complexity)
	Set the communication complexity of the particle. More...

unsigned	getCommunicationComplexity ()
	Obtains the communication complexity of the particle. More...

void	setPeriodicComplexity (std::vector< int > complexity)
	Set the periodic communication complexity of the particle. More...

void	setPeriodicComplexity (int index, int value)
	Set the periodic communication complexity of the particle. More...

const std::vector< int > &	getPeriodicComplexity ()
	Obtains the periodic communication complexity of the particle. More...

void	setPreviousPeriodicComplexity (std::vector< int > complexity)
	Set the previous periodic communication complexity of the paritcle. More...

const std::vector< int > &	getPreviousPeriodicComplexity () const
	Sets the previous periodic communication complexity of the particle. More...

int	getPeriodicComplexity (int index)
	Gets the periodic communication complexity of a certain boundary. More...

void	unfix ()
	Unfix Particle function, which required a reference to the Species vector. It unfixes a Particle by computing the Particles mass and inertia. More...

void	read (std::istream &is) override
	Particle read function, which accepts an std::istream as input. More...

virtual void	oldRead (std::istream &is)

void	write (std::ostream &os) const override
	Particle print function, which accepts an std::ostream as input. More...

std::string	getName () const override
	Returns the name of the object. More...

virtual void	setInfo (Mdouble info)
	Sets some user-defined information about this object (by default, species ID). More...

virtual Mdouble	getInfo () const
	Returns some user-defined information about this object (by default, species ID). More...

void	setTimeStamp (unsigned timeStamp)

unsigned	getTimeStamp () const

void	printHGrid (std::ostream &os) const
	Adds particle's HGrid level and cell coordinates to an ostream. More...

unsigned int	getHGridLevel () const
	Returns particle's HGrid level. More...

BaseParticle *	getHGridNextObject () const
	Returns pointer to next object in particle's HGrid level & cell. More...

BaseParticle *	getHGridPrevObject () const
	Returns pointer to previous object in particle's HGrid level & cell. More...

int	getHGridX () const
	Returns particle's HGrid cell X-coordinate. More...

int	getHGridY () const
	Returns particle's HGrid cell Y-coordinate. More...

int	getHGridZ () const
	Returns particle's HGrid cell Z-coordinate. More...

MatrixSymmetric3D	getInvInertia () const
	Returns the inverse of the particle's inertia tensor. More...

Mdouble	getInvMass () const override
	Returns the inverse of the particle's mass. More...

Mdouble	getCurvature (const Vec3D &labFixedCoordinates) const override

virtual Mdouble	getKineticEnergy () const
	Calculates the particle's translational kinetic energy. More...

virtual Mdouble	getRotationalEnergy () const
	Calculates the particle's rotational kinetic energy. More...

Mdouble	getGravitationalEnergy () const
	Calculates the particle's gravitational energy. More...

Mdouble	getMass () const
	Returns the particle's mass. More...

virtual Mdouble	getSurfaceArea () const

Vec3D	getMomentum () const

MatrixSymmetric3D	getInertia () const

Vec3D	getAngularMomentum () const

BaseParticle *	getPeriodicFromParticle () const
	Returns the 'original' particle this one's a periodic copy of. More...

Mdouble	getRadius () const
	Returns the particle's radius. More...

Mdouble	getMaxInteractionRadius () const
	Returns the particle's interaction radius, which might be different from radius_ (e.g., when dealing with wet particles) More...

Mdouble	getInteractionDistance (const BaseInteractable *i) const
	Returns the interactionDistance_ of the mixed species of this particle and the particle or wall i. More...

Mdouble	getSumOfInteractionRadii (const BaseParticle *particle) const
	returns the sum of the radii plus the interactionDistance More...

Mdouble	getWallInteractionRadius (const BaseWall *wall) const
	returns the radius plus the interactionDistance More...

const Vec3D &	getPreviousPosition () const
	Returns the particle's position in the previous time step. More...

const Vec3D	getDisplacement2 (Mdouble xmin, Mdouble xmax, Mdouble ymin, Mdouble ymax, Mdouble zmin, Mdouble zmax, Mdouble t) const

virtual void	setInertia ()

void	setInertia (MatrixSymmetric3D inertia)
	Sets the particle's inertia_ (and adjusts invInertia_ accordingly) More...

void	setInverseInertia (MatrixSymmetric3D inverseInertia)
	Sets the particle's inertia_ (and adjusts invInertia_ accordingly) More...

void	setInfiniteInertia ()
	Sets the particle's inertia_ to 'infinite' (1e20) and its invInertia_ to 0. More...

void	setPeriodicFromParticle (BaseParticle *p)
	Assigns the pointer to the 'original' particle this one's a periodic copy of (used in periodic boundary condition implementations). More...

void	setHGridX (const int x)
	Sets the particle's HGrid cell X-coordinate. More...

void	setHGridY (const int y)
	Sets the particle's HGrid cell Y-coordinate. More...

void	setHGridZ (const int z)
	Sets the particle's HGrid cell Z-coordinate. More...

void	setHGridLevel (const unsigned int level)
	Sets the particle's HGrid level. More...

void	setHGridNextObject (BaseParticle *p)
	Sets the pointer to the next object in the particle's HGrid cell & level. More...

void	setHGridPrevObject (BaseParticle *p)
	Sets the pointer to the previous object in the particle's HGrid cell & level. More...

virtual void	setRadius (Mdouble radius)
	Sets the particle's radius_ (and adjusts the mass_ accordingly, based on the particle's species) More...

virtual Vec3D	getAxes () const
	Only ustilised in case of superquadric particles. Had to create a virtual function to allow function access in writeVTK function in the particle handler. More...

virtual Mdouble	getExponentEps1 () const
	Only ustilised in case of superquadric particles. Had to create a virtual function to allow function access in writeVTK function in the particle handler. More...

virtual Mdouble	getExponentEps2 () const
	Only ustilised in case of superquadric particles. Had to create a virtual function to allow function access in writeVTK function in the particle handler. More...

virtual void	setAxes (const Vec3D &axes)
	Only ustilised in case of superquadric particles. More...

virtual void	setExponents (const Mdouble &eps1, const Mdouble &eps2)
	Only ustilised in case of superquadric particles. More...

MERCURYDPM_DEPRECATED void	setMass (Mdouble mass)
	Sets the particle's mass. More...

void	setMassForP3Statistics (Mdouble mass)
	Sets the particle's mass This function should not be used, but is necessary to extend the CG toolbox to non-spherical particles. More...

void	setPreviousPosition (const Vec3D &pos)
	Sets the particle's position in the previous time step. More...

void	movePrevious (const Vec3D &posMove)
	Adds a vector to the particle's previousPosition_. More...

void	accelerate (const Vec3D &vel)
	Increases the particle's velocity_ by the given vector. More...

void	angularAccelerate (const Vec3D &angVel)
	Increases the particle's angularVelocity_ by the given vector. More...

void	setHandler (ParticleHandler *handler)
	Sets the pointer to the particle's ParticleHandler. More...

ParticleHandler *	getHandler () const
	Returns pointer to the particle's ParticleHandler. More...

BaseInteraction *	getInteractionWith (BaseParticle P, unsigned timeStamp, InteractionHandler interactionHandler) override
	Checks if particle is in interaction with given particle P, and if so, returns vector of pointer to the associated BaseInteraction object (else returns empty vector). More...

virtual bool	isInContactWith (const BaseParticle *P) const
	Get whether or not this particle is in contact with the given particle. More...

virtual void	integrateBeforeForceComputation (double time, double timeStep)
	First step of Velocity Verlet integration. More...

virtual void	integrateAfterForceComputation (double time, double timeStep)
	Second step of Velocity Verlet integration. More...

unsigned int	getParticleDimensions () const
	Returns the particle's dimensions (either 2 or 3). More...

MERCURYDPM_DEPRECATED void	setIndSpecies (unsigned int indSpecies) override

virtual void	setSpecies (const ParticleSpecies *species)

virtual void	actionsBeforeTimeStep ()

virtual unsigned	getNumberOfFieldsVTK () const

virtual std::string	getTypeVTK (unsigned i) const

virtual std::string	getNameVTK (unsigned i) const

virtual std::vector< Mdouble >	getFieldVTK (unsigned i) const

virtual void	actionsAfterTimeStep ()

virtual bool	isSphericalParticle () const =0

const HGridCell &	getHGridCell () const

virtual void	computeMass (const ParticleSpecies &s)
	Computes the particle's (inverse) mass and inertia. More...

BaseParticle *	getClump () const

bool	isClump () const
	Checks if particle is a clump (container) More...

bool	isPebble () const
	Checks if particle is a pebble (belongs to a clump) More...

virtual Vec3D	getCenterOfMass ()

virtual void	actionsAfterAddObject ()

Public Member Functions inherited from BaseInteractable
	BaseInteractable ()
	Default BaseInteractable constructor. More...

	BaseInteractable (const BaseInteractable &p)
	Copy constructor. More...

	~BaseInteractable () override
	Destructor, it simply destructs the BaseInteractable and all the objects it contains. More...

unsigned int	getIndSpecies () const
	Returns the index of the species associated with the interactable object. More...

const ParticleSpecies *	getSpecies () const
	Returns a pointer to the species of this BaseInteractable. More...

void	setSpecies (const ParticleSpecies *species)
	Sets the species of this BaseInteractable. More...

const Vec3D &	getForce () const
	Returns the force on this BaseInteractable. More...

const Vec3D &	getTorque () const
	Returns the torque on this BaseInteractable. More...

void	setForce (const Vec3D &force)
	Sets the force on this BaseInteractable. More...

void	setTorque (const Vec3D &torque)
	Sets the torque on this BaseInteractable. More...

void	addForce (const Vec3D &addForce)
	Adds an amount to the force on this BaseInteractable. More...

void	addTorque (const Vec3D &addTorque)
	Adds an amount to the torque on this BaseInteractable. More...

virtual void	resetForceTorque (int numberOfOMPthreads)

void	sumForceTorqueOMP ()

const Vec3D &	getPosition () const
	Returns the position of this BaseInteractable. More...

const Quaternion &	getOrientation () const
	Returns the orientation of this BaseInteractable. More...

virtual void	setPosition (const Vec3D &position)
	Sets the position of this BaseInteractable. More...

void	setOrientationViaNormal (Vec3D normal)
	Sets the orientation of this BaseInteractable by defining the vector that results from the rotation of the (1,0,0) vector. More...

void	setOrientationViaEuler (Vec3D eulerAngle)
	Sets the orientation of this BaseInteractable by defining the euler angles. More...

virtual void	setOrientation (const Quaternion &orientation)
	Sets the orientation of this BaseInteractable. More...

virtual void	move (const Vec3D &move)
	Moves this BaseInteractable by adding an amount to the position. More...

virtual void	rotate (const Vec3D &angularVelocityDt)
	Rotates this BaseInteractable. More...

const std::vector< BaseInteraction * > &	getInteractions () const
	Returns a list of interactions which belong to this interactable. More...

void	addInteraction (BaseInteraction *I)
	Adds an interaction to this BaseInteractable. More...

bool	removeInteraction (BaseInteraction *I)
	Removes an interaction from this BaseInteractable. More...

void	copyInteractionsForPeriodicParticles (const BaseInteractable &p)
	Copies interactions to this BaseInteractable whenever a periodic copy made. More...

void	setVelocity (const Vec3D &velocity)
	set the velocity of the BaseInteractable. More...

void	setAngularVelocity (const Vec3D &angularVelocity)
	set the angular velocity of the BaseInteractble. More...

void	addVelocity (const Vec3D &velocity)
	adds an increment to the velocity. More...

void	addAngularVelocity (const Vec3D &angularVelocity)
	add an increment to the angular velocity. More...

virtual const Vec3D &	getVelocity () const
	Returns the velocity of this interactable. More...

virtual const Vec3D &	getAngularVelocity () const
	Returns the angular velocity of this interactable. More...

void	setPrescribedPosition (const std::function< Vec3D(double)> &prescribedPosition)
	Allows the position of an infinite mass interactable to be prescribed. More...

void	applyPrescribedPosition (double time)
	Computes the position from the user defined prescribed position function. More...

void	setPrescribedVelocity (const std::function< Vec3D(double)> &prescribedVelocity)
	Allows the velocity of an infinite mass interactable to be prescribed. More...

void	applyPrescribedVelocity (double time)
	Computes the velocity from the user defined prescribed velocity function. More...

void	setPrescribedOrientation (const std::function< Quaternion(double)> &prescribedOrientation)
	Allows the orientation of the infinite mass interactbale to be prescribed. More...

void	applyPrescribedOrientation (double time)
	Computes the orientation from the user defined prescribed orientation function. More...

void	setPrescribedAngularVelocity (const std::function< Vec3D(double)> &prescribedAngularVelocity)
	Allows the angular velocity of the infinite mass interactable to be prescribed. More...

void	applyPrescribedAngularVelocity (double time)
	Computes the angular velocity from the user defined prescribed angular velocity. More...

virtual const Vec3D	getVelocityAtContact (const Vec3D &contact) const
	Returns the velocity at the contact point, use by many force laws. More...

void	integrateBeforeForceComputation (double time, double timeStep)
	This is part of integrate routine for objects with infinite mass. More...

void	integrateAfterForceComputation (double time, double timeStep)
	This is part of the integration routine for objects with infinite mass. More...

virtual bool	isFaceContact (const Vec3D &normal) const

Public Member Functions inherited from BaseObject
	BaseObject ()=default
	Default constructor. More...

	BaseObject (const BaseObject &p)=default
	Copy constructor, copies all the objects BaseObject contains. More...

virtual	~BaseObject ()=default
	virtual destructor More...

virtual void	moveInHandler (unsigned int index)
	Except that it is virtual, it does the same thing as setIndex() does. More...

void	setIndex (unsigned int index)
	Allows one to assign an index to an object in the handler/container. More...

void	setId (unsigned long id)
	Assigns a unique identifier to each object in the handler (container) which remains constant even after the object is deleted from the container/handler. More...

unsigned int	getIndex () const
	Returns the index of the object in the handler. More...

unsigned int	getId () const
	Returns the unique identifier of any particular object. More...

void	setGroupId (unsigned groupId)

unsigned	getGroupId () const

Public Attributes
Mdouble	radius_

Mdouble	invMass_
	Particle radius_. More...

MatrixSymmetric3D	invInertia_
	Inverse Particle mass (for computation optimization) More...

BaseParticle *	clumpParticle_
	Function that updates necessary quantities of a clump particle after adding a pebble. More...

bool	isPebble_
	pointer to a clump particle (for a pebble) More...

bool	isClump_
	The particle is pebble. More...

Private Attributes
ParticleHandler *	handler_
	Inverse Particle inverse inertia (for computation optimization) More...

HGridCell	hGridCell

BaseParticle *	hGridNextObject_

BaseParticle *	hGridPrevObject_
	Pointer to the next Particle in the same HGrid cell. More...

BaseParticle *	periodicFromParticle_
	Pointer to the previous Particle in the same HGrid cell. More...

bool	isMPIParticle_
	Pointer to originating Particle. More...

bool	isInMPIDomain_
	returns true if the particle acts as an MPI particle instead of a real particle More...

unsigned	communicationComplexity_
	returns true if it flagged as being in MPI domain More...

bool	isInPeriodicDomain_

bool	isPeriodicGhostParticle_
	bool that indicates if a particle is in the periodic domain of any boundary More...

std::vector< int >	previousPeriodicComplexity_
	Indicates if the particle is a ghost particle of a periodic particle. More...

std::vector< int >	periodicComplexity_
	Indicates the periodic complexity at previous time step. More...

bool	isMaserParticle_
	Indicates the periodic complexity at current time step. Used to update periodic status. More...

Vec3D	previousPosition_
	Indicates if this particle belongs to the maser boundary or is released into the wide open world. More...

Mdouble	info_

unsigned	timeStamp_

Friends
void	ParticleSpecies::computeMass (BaseParticle *) const
	Particle's position at previous time step. More...

Detailed Description

Since r3648, BaseParticle is an abstract class. Use SphericalParticle for a 'basic' particle.

Constructor & Destructor Documentation

◆ BaseParticle() [1/3]

BaseParticle::BaseParticle ( )

Basic Particle constructor, creates an Particle at (0,0,0) with radius, mass and inertia equal to 1.

default constructor, creates an Particle at (0,0,0) with radius, mass and inertia equal to 1

         : BaseInteractable()
 {
     handler_ = nullptr;
     radius_ = 1.0;
     invMass_ = 1.0;
     invInertia_ = MatrixSymmetric3D(1, 0, 0, 1, 0, 1);

     previousPosition_=getPosition();

     periodicFromParticle_ = nullptr;
     isMPIParticle_ = false;
     isInMPIDomain_ = false;
     isInPeriodicDomain_ = false;
     isPeriodicGhostParticle_ = false;
     isMaserParticle_ = false;
     communicationComplexity_ = 0;
     periodicComplexity_ = std::vector<int>(0);
     previousPeriodicComplexity_ = std::vector<int>(0);
 #ifdef CONTACT_LIST_HGRID
     firstPossibleContact = nullptr;
 #endif
     hGridNextObject_ = nullptr;
     hGridPrevObject_ = nullptr;

     hGridCell.setHGridLevel(99999);
     hGridCell.setHGridX(99999);
     hGridCell.setHGridY(99999);
     hGridCell.setHGridZ(99999);

     info_ = std::numeric_limits<double>::quiet_NaN();
     timeStamp_ = 0;
     isClump_ = false;
     isPebble_ = false;
     logger(DEBUG, "BaseParticle::BaseParticle() finished");
 }

References communicationComplexity_, DEBUG, BaseInteractable::getPosition(), handler_, hGridCell, hGridNextObject_, hGridPrevObject_, info_, invInertia_, invMass_, isClump_, isInMPIDomain_, isInPeriodicDomain_, isMaserParticle_, isMPIParticle_, isPebble_, isPeriodicGhostParticle_, logger, periodicComplexity_, periodicFromParticle_, previousPeriodicComplexity_, previousPosition_, radius_, HGridCell::setHGridLevel(), HGridCell::setHGridX(), HGridCell::setHGridY(), HGridCell::setHGridZ(), and timeStamp_.

◆ BaseParticle() [2/3]

BaseParticle::BaseParticle ( const BaseParticle & p )

Particle copy constructor, which accepts as input a reference to a Particle. It creates a copy of this Particle and all it's information. Usually it is better to use the copy() function for polymorphism.

Constructor that copies most of the properties of the given particle. Please note that not everything is copied, for example the position in the HGrid is not determined yet by the end of this constructor. It also does not copy the interactions and the pointer to the handler that handles this particle. Use with care.

Parameters

[in,out] p Reference to the BaseParticle this one should become a copy of.

         : BaseInteractable(p)
 {
     handler_ = nullptr;
     radius_ = p.radius_;
     invMass_ = p.getInvMass();
     invInertia_ = p.getInvInertia();

     previousPosition_ = p.previousPosition_;

     hGridNextObject_ = nullptr;
     hGridPrevObject_ = nullptr;

     hGridCell.setHGridLevel(p.getHGridLevel());
     hGridCell.setHGridX(99999);
     hGridCell.setHGridY(99999);
     hGridCell.setHGridZ(99999);

     periodicFromParticle_ = p.periodicFromParticle_;
     isMPIParticle_ = p.isMPIParticle_;
     isInMPIDomain_ = p.isInMPIDomain_;
     isInPeriodicDomain_ = p.isInPeriodicDomain_;
     isMaserParticle_ = p.isMaserParticle_;
     isPeriodicGhostParticle_ = p.isPeriodicGhostParticle_;
     communicationComplexity_ = p.communicationComplexity_;
     isClump_ = p.isClump();
     isPebble_ = p.isPebble();
     //periodicComplexity_ = p.periodicComplexity_;
     //previousPeriodicComplexity_ = p.previousPeriodicComplexity_;
 #ifdef CONTACT_LIST_HGRID
     firstPossibleContact = nullptr;
 #endif

     info_ = p.info_;
     timeStamp_ = p.timeStamp_;
     logger(DEBUG, "BaseParticle::BaseParticle(BaseParticle &p) finished");
 }

References communicationComplexity_, DEBUG, handler_, hGridCell, hGridNextObject_, hGridPrevObject_, info_, invInertia_, invMass_, isClump_, isInMPIDomain_, isInPeriodicDomain_, isMaserParticle_, isMPIParticle_, isPebble_, isPeriodicGhostParticle_, logger, p, periodicFromParticle_, previousPosition_, radius_, HGridCell::setHGridLevel(), HGridCell::setHGridX(), HGridCell::setHGridY(), HGridCell::setHGridZ(), and timeStamp_.

◆ BaseParticle() [3/3]

BaseParticle::BaseParticle ( const ParticleSpecies * s )

explicit

         : BaseParticle()
 {
     setSpecies(s);
 #ifdef CONTACT_LIST_HGRID
     firstPossibleContact = nullptr;
 #endif
     logger(DEBUG, "BaseParticle::BaseParticle(BaseSpecies &s) finished");
 }

References DEBUG, logger, s, and setSpecies().

◆ ~BaseParticle()

BaseParticle::~BaseParticle ( )

override

Particle destructor, needs to be implemented and checked if it removes tangential spring information.

Destructor. It asks the ParticleHandler to check if this was the smallest or largest particle and adjust itself accordingly.

 {

     if (getHandler() != nullptr)
     {
         getHandler()->checkExtremaOnDelete(this);
         if (isFixed())
             getHandler()->removedFixedParticle();
     }
     logger(DEBUG, "BaseParticle::~BaseParticle() of particle % finished.", getId());

 }

References ParticleHandler::checkExtremaOnDelete(), DEBUG, getHandler(), BaseObject::getId(), isFixed(), logger, and ParticleHandler::removedFixedParticle().

Member Function Documentation

◆ accelerate()

void BaseParticle::accelerate ( const Vec3D & vel )

Increases the particle's velocity_ by the given vector.

increases the the particle's velocity_ (BaseInteractable member) by adding the given vector.

Parameters

[in] vel vector to be added to the velocity_

 {
     addVelocity(vel);
 }

References BaseInteractable::addVelocity().

Referenced by integrateAfterForceComputation(), ClumpParticle::integrateAfterForceComputation(), integrateBeforeForceComputation(), ClumpParticle::integrateBeforeForceComputation(), and MovingIntersectionOfWallsUnitTest_MovingReferenceFrame::setupInitialConditions().

◆ actionsAfterAddObject()

virtual void BaseParticle::actionsAfterAddObject ( )

inlinevirtual

Methods and attributes necessary for clumped particles

Reimplemented in ClumpParticle.

711 {}

◆ actionsAfterTimeStep()

virtual void BaseParticle::actionsAfterTimeStep ( )

inlinevirtual

608 {}

◆ actionsBeforeTimeStep()

virtual void BaseParticle::actionsBeforeTimeStep ( )

inlinevirtual

598 {}

◆ angularAccelerate()

void BaseParticle::angularAccelerate ( const Vec3D & angVel )

Increases the particle's angularVelocity_ by the given vector.

increases the particle's angularVelocity_ (BaseInteractable member) by adding the given vector.

Parameters

[in] angVel vector to be added to the angularVelocity_

 {
     addAngularVelocity(angVel);
 }

References BaseInteractable::addAngularVelocity().

Referenced by integrateAfterForceComputation(), and integrateBeforeForceComputation().

◆ computeMass()

void BaseParticle::computeMass ( const ParticleSpecies & s )

virtual

Computes the particle's (inverse) mass and inertia.

Reimplemented in SuperQuadricParticle, and ClumpParticle.

                                                        {
     if (isFixed()) return;
     if (getParticleDimensions()==3) {
         invMass_ = 1.0 / (4.0 / 3.0 * constants::pi * getRadius() * getRadius() * getRadius() * s.getDensity());
         invInertia_ = MatrixSymmetric3D(1, 0, 0, 1, 0, 1) / (.4 * getMass() * mathsFunc::square(getRadius()));
     } else {
         invMass_ = 1.0 / (constants::pi * getRadius() * getRadius() * s.getDensity());
         invInertia_ = MatrixSymmetric3D(1, 0, 0, 1, 0, 1) / (.5 * getMass() * mathsFunc::square(getRadius()));
     }
 };

References getMass(), getParticleDimensions(), getRadius(), invInertia_, invMass_, isFixed(), constants::pi, s, and mathsFunc::square().

Referenced by ChuteWithContraction::create_inflow_particle().

◆ copy()

virtual BaseParticle* BaseParticle::copy ( ) const

pure virtual

Particle copy method. It calls to copy constructor of this Particle, useful for polymorphism.

Implemented in NonSphericalParticle, SuperQuadricParticle, SphericalParticle, and ClumpParticle.

Referenced by ChuteWithPeriodicInflow::AddContinuingBottom(), PolydisperseInsertionBoundary::addGenerandum(), ContractionWithPeriodicInflow::ContractionWithPeriodicInflow(), CurvyChute::createBottom(), PeriodicBoundary::createGhostParticle(), TimeDependentPeriodicBoundary::createGhostParticle(), ChuteWithPeriodicInflow::ExtendInWidth(), BidisperseCubeInsertionBoundary::generateParticle(), PeriodicBoundaryHandler::processLocalGhostParticles(), DPMBase::readNextDataFile(), CurvyChute::setBasalPrototype(), PolydisperseInsertionBoundary::setGenerandum(), and InsertionBoundary::setParticleToCopy().

◆ fixParticle()

void BaseParticle::fixParticle ( )

Fix Particle function. It fixes a Particle by setting its inverse mass and inertia and velocities to zero.

Fixes a BaseParticle by setting its inverse mass and inertia and velocities to zero.

 {
 //    //
 //    Clump f;
 //    f.invInertia2_ = MatrixSymmetric3D(0, 0, 0, 0, 0, 0);
     //
     invMass_ = 0.0;
     invInertia_ = MatrixSymmetric3D(0, 0, 0, 0, 0, 0);
     setVelocity(Vec3D(0.0, 0.0, 0.0));
     setAngularVelocity(Vec3D(0.0, 0.0, 0.0));
     if (getHandler())
         getHandler()->addedFixedParticle();
 }

References ParticleHandler::addedFixedParticle(), getHandler(), invInertia_, invMass_, BaseInteractable::setAngularVelocity(), and BaseInteractable::setVelocity().

Referenced by LawinenBox::LawinenBox(), ParticleBeam::ParticleBeam(), DPMBase::setFixedParticles(), Cstatic2d::setupInitialConditions(), Cstatic3D::setupInitialConditions(), and SphericalIndenter::setupInitialConditions().

◆ getAngularMomentum()

Vec3D BaseParticle::getAngularMomentum ( ) const

 {
     return invInertia_.inverse()*getAngularVelocity() + Vec3D::cross(getPosition(),getVelocity()) / invMass_;
 }

References Vec3D::cross(), BaseInteractable::getAngularVelocity(), BaseInteractable::getPosition(), BaseInteractable::getVelocity(), MatrixSymmetric3D::inverse(), invInertia_, and invMass_.

◆ getAxes()

Vec3D BaseParticle::getAxes ( ) const

virtual

Only ustilised in case of superquadric particles. Had to create a virtual function to allow function access in writeVTK function in the particle handler.

Reimplemented in SuperQuadricParticle.

837 { return Vec3D(0, 0, 0); }

◆ getCenterOfMass()

virtual Vec3D BaseParticle::getCenterOfMass ( )

inlinevirtual

644 {return Vec3D(0,0,0);}

◆ getClump()

BaseParticle* BaseParticle::getClump ( ) const

inline

     {
         return clumpParticle_;
     }

References clumpParticle_.

Referenced by Mercury3Dclump::computeInternalForce().

◆ getCommunicationComplexity()

unsigned BaseParticle::getCommunicationComplexity ( )

Obtains the communication complexity of the particle.

 {
     return communicationComplexity_;
 }

References communicationComplexity_.

Referenced by Domain::updateParticles().

◆ getCurvature()

Mdouble BaseParticle::getCurvature ( const Vec3D & labFixedCoordinates ) const

inlineoverridevirtual

returns the inverse radius, or curvature, of the surface. This value is zero for walls and gets overridden for particles that have finite radius

Todo:: should be wall-type dependent

Reimplemented from BaseInteractable.

Reimplemented in SuperQuadricParticle.

280 { return 1.0/radius_; }

References radius_.

◆ getDisplacement2()

const Vec3D BaseParticle::getDisplacement2	(	Mdouble	xmin,
		Mdouble	xmax,
		Mdouble	ymin,
		Mdouble	ymax,
		Mdouble	zmin,
		Mdouble	zmax,
		Mdouble	t
	)		const

Todo:: see .cc file. \TWH

Todo:: Rewrite, redefine (TW). Is only used in StatisticsVector.hcc, consider moving to that class.

 {
     Vec3D disp = getPosition() - getPreviousPosition();
     if (xmax > xmin && fabs(disp.X) > .5 * (xmax - xmin))
     {
         if (disp.X > 0)
             disp.X -= xmax - xmin;
         else
             disp.X += xmax - xmin;
     }
     if (ymax > ymin && fabs(disp.Y) > .5 * (ymax - ymin))
     {
         if (disp.Y > 0)
             disp.Y -= ymax - ymin;
         else
             disp.Y += ymax - ymin;
     }
     if (zmax > zmin && fabs(disp.Z) > .5 * (zmax - zmin))
     {
         if (disp.Z > 0)
             disp.Z -= zmax - zmin;
         else
             disp.Z += zmax - zmin;
     }
     disp /= t;
     return disp;
 }

References boost::multiprecision::fabs(), BaseInteractable::getPosition(), getPreviousPosition(), plotPSD::t, Vec3D::X, Vec3D::Y, Vec3D::Z, Global_Parameters::zmax, and Global_Parameters::zmin.

◆ getExponentEps1()

double BaseParticle::getExponentEps1 ( ) const

virtual

Only ustilised in case of superquadric particles. Had to create a virtual function to allow function access in writeVTK function in the particle handler.

Reimplemented in SuperQuadricParticle.

840 { return 0; }

◆ getExponentEps2()

double BaseParticle::getExponentEps2 ( ) const

virtual

Only ustilised in case of superquadric particles. Had to create a virtual function to allow function access in writeVTK function in the particle handler.

Reimplemented in SuperQuadricParticle.

843 { return 0; }

◆ getFieldVTK()

std::vector< Mdouble > BaseParticle::getFieldVTK ( unsigned i ) const

virtual

Reimplemented in ClumpParticle.

 {
     return std::vector<Mdouble>();
 }

◆ getGravitationalEnergy()

Mdouble BaseParticle::getGravitationalEnergy ( ) const

Calculates the particle's gravitational energy.

Gravitational energy is the potential energy stored in teh particles position due to the gravity field. This is a relative term, so we need to define what zero energy means: The gravitational energy of a particle is zero when its center of mass is at the origin.

Returns: the particle's gravitational energy

◆ getHandler()

ParticleHandler * BaseParticle::getHandler ( ) const

Returns pointer to the particle's ParticleHandler.

Returns the particle's ParticleHandler

Returns: pointer to the particle's ParticleHandler; null if handler not yet specified

 {
     return handler_;
 }

References handler_.

Referenced by ClumpParticle::actionsAfterAddObject(), HeatFluidCoupledSpecies< NormalForceSpecies >::actionsAfterTimeStep(), fixParticle(), getParticleDimensions(), getPeriodicComplexity(), SuperQuadricParticle::getVolume(), integrateAfterForceComputation(), integrateBeforeForceComputation(), ClumpParticle::integrateBeforeForceComputation(), setHandler(), setPeriodicComplexity(), setRadius(), unfix(), ~BaseParticle(), and SuperQuadricParticle::~SuperQuadricParticle().

◆ getHGridCell()

const HGridCell& BaseParticle::getHGridCell ( ) const

inline

618 { return hGridCell; }

References hGridCell.

Referenced by Mercury3D::hGridFindContactsWithinTargetCell(), Mercury2D::hGridFindContactsWithinTargetCell(), Mercury3D::hGridFindContactsWithTargetCell(), Mercury2D::hGridFindContactsWithTargetCell(), and Mercury3D::hGridRemoveParticle().

◆ getHGridLevel()

unsigned int BaseParticle::getHGridLevel ( ) const

inline

Returns particle's HGrid level.

218 { return hGridCell.getHGridLevel(); }

HGridCell::getHGridLevel

unsigned int getHGridLevel() const

Definition: HGridCell.h:65

References HGridCell::getHGridLevel(), and hGridCell.

Referenced by Mercury2D::computeInternalForces(), Mercury3D::computeInternalForces(), Mercury2D::hGridGetInteractingParticleList(), Mercury3D::hGridGetInteractingParticleList(), Mercury2D::hGridRemoveParticle(), MercuryBase::hGridUpdateMove(), Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ getHGridNextObject()

BaseParticle* BaseParticle::getHGridNextObject ( ) const

inline

Returns pointer to next object in particle's HGrid level & cell.

Returns the next object in the particle's HGrid cell

Returns: pointer to the next object in the particle's HGrid cell

226 { return hGridNextObject_; }

References hGridNextObject_.

Referenced by Mercury3D::hGridFindContactsWithinTargetCell(), Mercury2D::hGridFindContactsWithinTargetCell(), Mercury2D::hGridRemoveParticle(), and Mercury3D::hGridRemoveParticle().

◆ getHGridPrevObject()

BaseParticle* BaseParticle::getHGridPrevObject ( ) const

inline

Returns pointer to previous object in particle's HGrid level & cell.

Returns the previous object in the particle's HGrid cell

Returns: pointer to the previous object in the particle's HGrid cell

234 { return hGridPrevObject_; }

References hGridPrevObject_.

Referenced by Mercury2D::hGridRemoveParticle(), and Mercury3D::hGridRemoveParticle().

◆ getHGridX()

int BaseParticle::getHGridX ( ) const

inline

Returns particle's HGrid cell X-coordinate.

Returns: the particle's HGrid cell's X-coordinate

249 { return hGridCell.getHGridX(); }

HGridCell::getHGridX

int getHGridX() const

Definition: HGridCell.h:35

References HGridCell::getHGridX(), and hGridCell.

Referenced by Mercury2D::computeInternalForces(), Mercury3D::computeInternalForces(), Mercury2D::hGridRemoveParticle(), Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ getHGridY()

int BaseParticle::getHGridY ( ) const

inline

Returns particle's HGrid cell Y-coordinate.

Returns: the particle's HGrid cell's Y-coordinate

256 { return hGridCell.getHGridY(); }

HGridCell::getHGridY

int getHGridY() const

Definition: HGridCell.h:45

References HGridCell::getHGridY(), and hGridCell.

Referenced by Mercury2D::computeInternalForces(), Mercury3D::computeInternalForces(), Mercury2D::hGridRemoveParticle(), Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ getHGridZ()

int BaseParticle::getHGridZ ( ) const

inline

Returns particle's HGrid cell Z-coordinate.

Returns: the particle's HGrid cell's Z-coordinate

263 { return hGridCell.getHGridZ(); }

HGridCell::getHGridZ

int getHGridZ() const

Definition: HGridCell.h:55

References HGridCell::getHGridZ(), and hGridCell.

Referenced by Mercury3D::computeInternalForces(), and Mercury3D::hGridUpdateParticle().

◆ getInertia()

MatrixSymmetric3D BaseParticle::getInertia ( ) const

inline

315 { return invInertia_.inverse(); }

References MatrixSymmetric3D::inverse(), and invInertia_.

Referenced by ClumpParticle::angularAccelerateClumpIterative(), getRotationalEnergy(), and ClumpParticle::getRotationalEnergy().

◆ getInfo()

Mdouble BaseParticle::getInfo ( ) const

virtual

Returns some user-defined information about this object (by default, species ID).

 {
     if (std::isnan(info_))
         return getSpecies()->getId();
     else
         return info_;
 }

References BaseObject::getId(), BaseInteractable::getSpecies(), info_, and isnan.

◆ getInteractionDistance()

Mdouble BaseParticle::getInteractionDistance ( const BaseInteractable * i ) const

inline

Returns the interactionDistance_ of the mixed species of this particle and the particle or wall i.

     {
         //const auto mixedSpecies = getSpecies()->getHandler()->getMixedObject(getSpecies(),particle->getSpecies());
         //return mixedSpecies->getInteractionDistance();
         return getSpecies()->getMixedSpecies(i->getSpecies())->getInteractionDistance();
     }

References BaseSpecies::getInteractionDistance(), ParticleSpecies::getMixedSpecies(), BaseInteractable::getSpecies(), and i.

Referenced by getSumOfInteractionRadii(), and getWallInteractionRadius().

◆ getInteractionWith()

BaseInteraction * BaseParticle::getInteractionWith	(	BaseParticle *	P,
		unsigned	timeStamp,
		InteractionHandler *	interactionHandler
	)

overridevirtual

Checks if particle is in interaction with given particle P, and if so, returns vector of pointer to the associated BaseInteraction object (else returns empty vector).

Creates/updates a BaseInteraction object, treating the interaction between this particle and a given one, in case there is an overlap between the two.

Parameters

[in]	P	particle to check the interaction with
[in]	timeStamp	time stamp to be assigned to the interaction object (i.e., the current time)
[in,out]	interactionHandler	BaseInteraction container from where the interaction is retrieved, and to which it is assigned (if it is a new interaction).

Returns: the pointer to the interaction object (if the particles overlap), or 0 (if they don't overlap).

Implements BaseInteractable.

Reimplemented in SuperQuadricParticle.

 {
     //get the normal (from P away from the contact)
     const Vec3D branchVector = P->getPosition() - getPosition();
     //Get the square of the distance between particle i and particle j
     const Mdouble distanceSquared = Vec3D::getLengthSquared(branchVector);
     //const auto species = interactionHandler->getDPMBase()->speciesHandler.getMixedObject(getSpecies(),P->getSpecies());
     const Mdouble sumOfInteractionRadii = getSumOfInteractionRadii(P);
     if (distanceSquared >= sumOfInteractionRadii * sumOfInteractionRadii) {
         return nullptr;
     }
     BaseInteraction* const C = interactionHandler->getInteraction(P, this, timeStamp);
     const Mdouble distance = std::sqrt(distanceSquared);
     C->setNormal(branchVector / distance);
     C->setOverlap(P->getRadius() + getRadius() - distance);
     C->setDistance(distance);
     C->setContactPoint(P->getPosition() - (P->getRadius() - 0.5 * C->getOverlap()) * C->getNormal());
     // The above contact point was chosen historically. It is not clear whether
     // the current implementation or the two lines below are correct or incorrect.
     // If solid arguments for the lines below are presented, it can be rediscussed.
     // If so, also BaseWall::getInteractionWith should be adapted.
     //Mdouble ratio=P->getRadius()/(getRadius()+P->getRadius());
     //C->setContactPoint(P->getPosition() - (P->getRadius() - ratio * C->getOverlap()) * C->getNormal());
     return C;
 }

References InteractionHandler::getInteraction(), Vec3D::getLengthSquared(), BaseInteractable::getPosition(), getRadius(), getSumOfInteractionRadii(), Global_Physical_Variables::P, and sqrt().

Referenced by SphericalSuperQuadricCollision::actionsAfterTimeStep(), ContactDetectionRotatedSpheresTest::actionsAfterTimeStep(), DPMBase::computeInternalForce(), PeriodicBoundaryHandler::processLocalInteractionData(), PeriodicBoundaryHandler::processReceivedInteractionData(), and Domain::processReceivedInteractionData().

◆ getInvInertia()

MatrixSymmetric3D BaseParticle::getInvInertia ( ) const

inline

Returns the inverse of the particle's inertia tensor.

Returns: the inverse of the particle's inertia tensor

270 { return invInertia_; }

References invInertia_.

Referenced by integrateAfterForceComputation(), and integrateBeforeForceComputation().

◆ getInvMass()

Mdouble BaseParticle::getInvMass ( ) const

inlineoverridevirtual

Returns the inverse of the particle's mass.

Returns: the inverse of the particle's mass

Reimplemented from BaseInteractable.

277 { return invMass_; }

References invMass_.

Referenced by integrateAfterForceComputation(), ClumpParticle::integrateAfterForceComputation(), integrateBeforeForceComputation(), and ClumpParticle::integrateBeforeForceComputation().

◆ getKineticEnergy()

Mdouble BaseParticle::getKineticEnergy ( ) const

virtual

Calculates the particle's translational kinetic energy.

Returns: the particle's translational kinetic energy

Calculates the particle's kinetic energy

Returns: the particle's kinetic energy

Reimplemented in NonSphericalParticle, and ClumpParticle.

 {
     if (isFixed())
         return 0.0;
     else
         return 0.5 * getMass() * getVelocity().getLengthSquared();
     //
 }

References Vec3D::getLengthSquared(), getMass(), BaseInteractable::getVelocity(), and isFixed().

Referenced by NonSphericalParticle::getKineticEnergy().

◆ getMass()

Mdouble BaseParticle::getMass ( ) const

inline

Returns the particle's mass.

Returns: the mass of the particle

306 { return 1.0 / invMass_; }

References invMass_.

Referenced by LawinenBox::actionsBeforeTimeStep(), DPMBase::computeExternalForces(), VolumeCoupling::computeExternalForces(), ChuteWithPeriodicInflow::computeInternalForces(), computeMass(), ScalingTestInitialConditionsRelax::continueSolve(), getKineticEnergy(), LawinenBox::printTime(), free_cooling::setupInitialConditions(), restart::setupInitialConditions(), ParticleParticleCollision::setupInitialConditions(), WallParticleCollision::setupInitialConditions(), RollingOverTriangleWalls::setupInitialConditions(), BaseCluster::setupInitialConditions(), and Slide::Slide().

◆ getMaxInteractionRadius()

Mdouble BaseParticle::getMaxInteractionRadius ( ) const

inline

Returns the particle's interaction radius, which might be different from radius_ (e.g., when dealing with wet particles)

Calculates the interaction radius of the particle (when it comes to interaction with other particles), including the effect of a possible additional 'interaction distance' besides the 'normal' radius. The interaction radius differs from the radius_, for example, when dealing with wet particles (i.e. particles with an additional liquid layer, which is dealt with in the particle's species).

Returns: the particle's interaction radius for particle-particle interaction

                                             {
         return getRadius() + getSpecies()->getMaxInteractionDistance() * 0.5;
     }

References ParticleSpecies::getMaxInteractionDistance(), getRadius(), and BaseInteractable::getSpecies().

◆ getMomentum()

Vec3D BaseParticle::getMomentum ( ) const

inline

312 { return getVelocity() / invMass_; }

References BaseInteractable::getVelocity(), and invMass_.

◆ getName()

std::string BaseParticle::getName ( ) const

overridevirtual

Returns the name of the object.

Returns the name of the object; in this case 'BaseParticle'.

Returns: The object name.

Implements BaseObject.

Reimplemented in NonSphericalParticle, SuperQuadricParticle, SphericalParticle, and ClumpParticle.

 {
     return "BaseParticle";
 }

◆ getNameVTK()

std::string BaseParticle::getNameVTK ( unsigned i ) const

virtual

Reimplemented in ClumpParticle.

 {
     return "";
 }

Referenced by ParticleVtkWriter::writeExtraFields().

◆ getNumberOfFieldsVTK()

unsigned BaseParticle::getNumberOfFieldsVTK ( ) const

virtual

Reimplemented in ClumpParticle.

 {
     return 0;
 }

◆ getParticleDimensions()

unsigned int BaseParticle::getParticleDimensions ( ) const

Returns the particle's dimensions (either 2 or 3).

Returns the amount of dimensions of the particle (2 or 3, basically)

Returns: the number of dimension of the particle

 {
     return getHandler()->getDPMBase()->getParticleDimensions();
 }

References BaseHandler< T >::getDPMBase(), getHandler(), and DPMBase::getParticleDimensions().

Referenced by computeMass(), SuperQuadricParticle::computeMass(), and getVolume().

◆ getPeriodicComplexity() [1/2]

const std::vector< int > & BaseParticle::getPeriodicComplexity ( )

Obtains the periodic communication complexity of the particle.

Todo:: resolve this hack

 {
     //hack: generally you'd add particles after declaring the boundaries
     //but no official programming guildelines rules have been setup for that
     //So incase that doesnt happen we need to resize this periodicComplexity
     if (periodicComplexity_.empty())
     {
         const unsigned numberOfPeriodicBoundaries = getHandler()->getDPMBase()->periodicBoundaryHandler.getSize();
         if (numberOfPeriodicBoundaries > 0)
         {
             periodicComplexity_.resize(numberOfPeriodicBoundaries, 0);
         }
     }
     return periodicComplexity_;
 }

References BaseHandler< T >::getDPMBase(), getHandler(), BaseHandler< T >::getSize(), DPMBase::periodicBoundaryHandler, and periodicComplexity_.

Referenced by PeriodicBoundaryHandler::findNewParticle(), SubcriticalMaserBoundaryTEST::modifyGhostAfterCreation(), PeriodicBoundaryHandler::processLocalGhostParticles(), PeriodicBoundaryHandler::shiftParticle(), PeriodicBoundaryHandler::updateMaserParticle(), PeriodicBoundaryHandler::updateParticles(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ getPeriodicComplexity() [2/2]

int BaseParticle::getPeriodicComplexity ( int index )

Gets the periodic communication complexity of a certain boundary.

Todo:: TW Marnix, this is indeed a hack; you should call a setter every time you add a value to the periodic boundary handler (this function takes 0.5% cpu time in the speedtest)

 {
     //hack: generally you'd add particles after declaring the boundaries
     //but no official programming guildelines rules have been setup for that
     //So incase that doesnt happen we need to resize this periodicComplexity
     if (periodicComplexity_.empty())
     {
         const unsigned numberOfPeriodicBoundaries = getHandler()->getDPMBase()->periodicBoundaryHandler.getSize();
         if (numberOfPeriodicBoundaries > 0)
         {
             periodicComplexity_.resize(numberOfPeriodicBoundaries, 0);
         }
     }

     return periodicComplexity_[index];
 }

References BaseHandler< T >::getDPMBase(), getHandler(), BaseHandler< T >::getSize(), DPMBase::periodicBoundaryHandler, and periodicComplexity_.

◆ getPeriodicFromParticle()

BaseParticle* BaseParticle::getPeriodicFromParticle ( ) const

inline

Returns the 'original' particle this one's a periodic copy of.

Returns a pointer to the 'original' particle if the current one is a 'periodic copy' used for a periodic boundary implementation.

Returns: pointer to original particle

325 { return periodicFromParticle_; }

References periodicFromParticle_.

Referenced by SilbertPeriodic::add_flow_particles(), ChuteWithPeriodicInflow::Check_and_Duplicate_Periodic_Particle(), DPMBase::computeForcesDueToWalls(), DPMBase::computeInternalForce(), ChuteWithPeriodicInflow::computeInternalForces(), WearableNurbsWall::computeWear(), WearableTriangleMeshWall::computeWear(), WearableTriangulatedWall::computeWear(), PeriodicBoundary::createGhostParticle(), TimeDependentPeriodicBoundary::createGhostParticle(), LeesEdwardsBoundary::createHorizontalPeriodicParticle(), ShearBoxBoundary::createHorizontalPeriodicParticle(), AngledPeriodicBoundary::createPeriodicParticle(), CircularPeriodicBoundary::createPeriodicParticle(), LeesEdwardsBoundary::createVerticalPeriodicParticle(), ShearBoxBoundary::createVerticalPeriodicParticle(), and DPMBase::removeDuplicatePeriodicParticles().

◆ getPreviousPeriodicComplexity()

const std::vector< int > & BaseParticle::getPreviousPeriodicComplexity ( ) const

Sets the previous periodic communication complexity of the particle.

 {
     return previousPeriodicComplexity_;
 }

References previousPeriodicComplexity_.

Referenced by PeriodicBoundaryHandler::updateParticles(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ getPreviousPosition()

const Vec3D& BaseParticle::getPreviousPosition ( ) const

inline

Returns the particle's position in the previous time step.

Returns: (reference to) the previous position of the particle

379 { return previousPosition_; }

References previousPosition_.

Referenced by getDisplacement2(), and PeriodicBoundaryHandler::updateParticles().

◆ getRadius()

Mdouble BaseParticle::getRadius ( ) const

inline

Returns the particle's radius.

Returns: the particle's radius

332 { return radius_; }

References radius_.

◆ getRotationalEnergy()

Mdouble BaseParticle::getRotationalEnergy ( ) const

virtual

Calculates the particle's rotational kinetic energy.

Returns: the particle's rotational kinetic energy

Reimplemented in NonSphericalParticle, and ClumpParticle.

 {
     if (isFixed())
         return 0.0;
     else
         return 0.5 * Vec3D::dot(getAngularVelocity(), getInertia() * getAngularVelocity());
 }

References Vec3D::dot(), BaseInteractable::getAngularVelocity(), getInertia(), and isFixed().

Referenced by NonSphericalParticle::getRotationalEnergy().

◆ getSumOfInteractionRadii()

Mdouble BaseParticle::getSumOfInteractionRadii ( const BaseParticle * particle ) const

inline

returns the sum of the radii plus the interactionDistance

                                                                          {
         return getRadius() + particle->getRadius() + getInteractionDistance((const BaseInteractable*)particle);
     }

References getInteractionDistance(), and getRadius().

Referenced by Domain::findNewMPIInteractions(), SuperQuadricParticle::getInitialGuessForContact(), getInteractionWith(), and isInContactWith().

◆ getSurfaceArea()

virtual Mdouble BaseParticle::getSurfaceArea ( ) const

inlinevirtual

Reimplemented in NonSphericalParticle.

309 { return 4.0*constants::pi*getRadius()*getRadius(); }

References getRadius(), and constants::pi.

◆ getTimeStamp()

unsigned BaseParticle::getTimeStamp ( ) const

 {
     return timeStamp_;
 }

References timeStamp_.

◆ getTypeVTK()

std::string BaseParticle::getTypeVTK ( unsigned i ) const

virtual

Reimplemented in ClumpParticle.

 {
     return "";
 }

Referenced by ParticleVtkWriter::writeExtraFields().

◆ getVolume()

Mdouble BaseParticle::getVolume ( ) const

virtual

Get Particle volume function, which required a reference to the Species vector. It returns the volume of the Particle.

Returns the volume of the BaseParticle, which is calculated using its number of dimensions and radius.

Returns: The actual volume of this BaseParticle.

Reimplemented in SuperQuadricParticle.

 {
     if (handler_ == nullptr)
     {
         logger(ERROR, "[BaseParticle::getVolume] no particle handler specified");
         return 0;
     }
     switch (getParticleDimensions())
     {
         case 3:
             return (4.0 / 3.0 * constants::pi * radius_ * radius_ * radius_);
         case 2:
             return (constants::pi * radius_ * radius_);
         case 1:
             return (2.0 * radius_);
         default:
             logger(ERROR, "[BaseParticle::getVolume] dimension of the particle is not set");
             return 0;
     }
 }

References ERROR, getParticleDimensions(), handler_, logger, constants::pi, and radius_.

Referenced by InsertionBoundary::checkBoundaryBeforeTimeStep(), ScaleCoupling< M, O >::computeProjectionMatrix(), and ExtremeOverlapVolumeUnitTest::setupInitialConditions().

◆ getWallInteractionRadius()

Mdouble BaseParticle::getWallInteractionRadius ( const BaseWall * wall ) const

inline

returns the radius plus the interactionDistance

                                                                  {
         return getRadius() + getInteractionDistance((const BaseInteractable*)wall);
     }

References getInteractionDistance(), and getRadius().

Referenced by TriangleMeshWall::getDistanceAndNormal().

◆ integrateAfterForceComputation()

void BaseParticle::integrateAfterForceComputation	(	double	time,
		double	timeStep
	)

virtual

Second step of Velocity Verlet integration.

Second step of Velocity Verlet integration (see also http://en.wikipedia.org/wiki/Verlet_integration#Velocity_Verlet).

Parameters

[in]	time	current time
[in]	timeStep	current time step

Reimplemented in ClumpParticle.

 {
     if (getInvMass() == 0.0)
     {
         //Updates a baseParticle with a prescribed motion
         BaseInteractable::integrateAfterForceComputation(time, timeStep);
     }
     else
     {
         accelerate(getForce() * getInvMass() * 0.5 * timeStep);
         if (getHandler()->getDPMBase()->getRotation())
         {
             angularAccelerate(
                     getOrientation().rotateInverseInertiaTensor(getInvInertia()) * getTorque() * 0.5 * timeStep);
         }
     }
 }

References accelerate(), angularAccelerate(), BaseInteractable::getForce(), getHandler(), getInvInertia(), getInvMass(), BaseInteractable::getOrientation(), BaseInteractable::getTorque(), and BaseInteractable::integrateAfterForceComputation().

◆ integrateBeforeForceComputation()

void BaseParticle::integrateBeforeForceComputation	(	double	time,
		double	timeStep
	)

virtual

First step of Velocity Verlet integration.

First step of Velocity Verlet integration (see also http://en.wikipedia.org/wiki/Verlet_integration#Velocity_Verlet).

Parameters

[in]	time	current time
[in]	timeStep	current time step

Todo:: If the position is described by the user, one should also call BaseInteractable::integrateBeforeForceComputation. To check if it works correctly, remove the p0.fixParticle() line from the DrivenParticleUnitTest

Author: irana

Reimplemented in ClumpParticle.

 {

     if (getInvMass() == 0.0)
     {
         BaseInteractable::integrateBeforeForceComputation(time, timeStep);
     }
     else
     {
         // For periodic particles in parallel the previous position is required
         // also required by FluxBoundary
         setPreviousPosition(getPosition());

         accelerate(getForce() * getInvMass() * 0.5 * timeStep);
         const Vec3D displacement = getVelocity() * timeStep;
         move(displacement);
         DPMBase* const dpm = getHandler()->getDPMBase();
         if (!dpm->getHGridUpdateEachTimeStep())
         {
             dpm->hGridUpdateMove(this, displacement.getLengthSquared());
         }

         if (dpm->getRotation())
         {
             angularAccelerate(
                     getOrientation().rotateInverseInertiaTensor(getInvInertia()) * getTorque() * 0.5 * timeStep);
             //apply to rotation quaternion q: q = normalise(q + \tilde{C}\omega*timeStep) (see Wouter's notes)
             rotate(getAngularVelocity() * timeStep);
         }
     }
 }

◆ isClump()

bool BaseParticle::isClump ( ) const

inline

Checks if particle is a clump (container)

     {
         return isClump_;
     }

References isClump_.

Referenced by ClumpParticle::actionsAfterAddObject(), Mercury3Dclump::checkClumpForInteraction(), Mercury3Dclump::checkClumpForInteractionPeriodic(), Mercury3Dclump::computeForcesDueToWalls(), Mercury3Dclump::computeInternalForce(), and ClumpParticle::computeMass().

◆ isFixed()

bool BaseParticle::isFixed ( ) const

inlineoverridevirtual

Is fixed Particle function. It returns whether a Particle is fixed or not, by checking its inverse Mass.

Checks whether a BaseParticle is fixed or not, by checking its inverse Mass.

Returns: TRUE if particle is fixed, i.e. if the inverse mass (invMass_) is 0.

Implements BaseInteractable.

73 { return (invMass_ == 0.0); }

References invMass_.

◆ isInContactWith()

bool BaseParticle::isInContactWith ( const BaseParticle * P ) const

virtual

Get whether or not this particle is in contact with the given particle.

Reimplemented in SuperQuadricParticle.

 {
     if (P->getName() != "Superquadric")
     {
         return Vec3D::getDistanceSquared(getPosition(), P->getPosition()) <
                mathsFunc::square(getSumOfInteractionRadii(P));
     }
     return P->isInContactWith(this);
 }

References Vec3D::getDistanceSquared(), BaseInteractable::getPosition(), getSumOfInteractionRadii(), Global_Physical_Variables::P, and mathsFunc::square().

Referenced by DPMBase::areInContact().

◆ isInMPIDomain()

bool BaseParticle::isInMPIDomain ( )

Indicates if the particle is in the communication zone of the mpi domain.

 {
     return isInMPIDomain_;
 }

References isInMPIDomain_.

Referenced by Domain::findNewMPIInteractions(), Domain::findNewMPIParticle(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ isInPeriodicDomain()

bool BaseParticle::isInPeriodicDomain ( ) const

Indicates if the particle is in the periodic boundary communication zone.

 {
     return isInPeriodicDomain_;
 }

References isInPeriodicDomain_.

Referenced by PeriodicBoundaryHandler::checkIfAddNewParticle().

◆ isMaserParticle()

bool BaseParticle::isMaserParticle ( ) const

Indicates if this particle belongs to the maser boundary.

 {
     return isMaserParticle_;
 }

References isMaserParticle_.

Referenced by SubcriticalMaserBoundaryTEST::modifyGhostAfterCreation(), SubcriticalMaserBoundaryTEST::modifyPeriodicComplexity(), and PeriodicBoundaryHandler::updateMaserParticle().

◆ isMPIParticle()

bool BaseParticle::isMPIParticle ( ) const

Indicates if this particle is a ghost in the MPI domain.

 {
     //make mpi-dependent so the compiler can optimise
 #ifdef MERCURYDPM_USE_MPI
     return isMPIParticle_;
 #else
     return false;
 #endif
 }

References isMPIParticle_.

Referenced by InteractionHandler::getLiquidBridgeVolume(), InteractionHandler::getNumberOfLiquidBridges(), DPMBase::outputXBallsData(), ParticleVtkWriter::particleMustBeWritten(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ isPebble()

bool BaseParticle::isPebble ( ) const

inline

Checks if particle is a pebble (belongs to a clump)

     {
         return isPebble_;
     }

References isPebble_.

Referenced by ClumpParticle::actionsAfterAddObject(), DPMBase::computeExternalForces(), Mercury3Dclump::computeInternalForce(), ClumpParticle::computeMass(), ClumpParticle::integrateAfterForceComputation(), and ClumpParticle::integrateBeforeForceComputation().

◆ isPeriodicGhostParticle()

bool BaseParticle::isPeriodicGhostParticle ( ) const

Indicates if this particle is a ghost in the periodic boundary.

 {
     return isPeriodicGhostParticle_;
 }

References isPeriodicGhostParticle_.

Referenced by PeriodicBoundaryHandler::checkIfAddNewParticle(), Domain::findNewMPIParticle(), DPMBase::outputXBallsData(), and ParticleVtkWriter::particleMustBeWritten().

◆ isSphericalParticle()

virtual bool BaseParticle::isSphericalParticle ( ) const

pure virtual

this flag is used to decide whether to compute orientation, which is not necessary for spherical particles

Todo:: This flag is used badly, and used to determine whether particles are superquadric

Implemented in SphericalParticle, NonSphericalParticle, and ClumpParticle.

◆ movePrevious()

void BaseParticle::movePrevious ( const Vec3D & posMove )

Adds a vector to the particle's previousPosition_.

Lets you add a vector to the particle's previousPosition_ vector.

Parameters

[in] posMove the vector to be added to the current previousPosition_ vector.

 {
     previousPosition_ += posMove;
 }

References previousPosition_.

◆ oldRead()

void BaseParticle::oldRead ( std::istream & is )

virtual

Should NOT BE USED by any user, only used to read old restart files! Is expected to be obsolete by Mercury 2.0. Please use BaseParticle::read() instead.

This is the previously used version of the read function. Now just kept for legacy purposes.

Deprecated:: Should be gone in Mercury 2.0. Use BaseParticle::read() instead.

Todo:: incorporate contact information

 {
     logger(DEBUG, "reading particle old-style");
     static unsigned int id = 0;
     unsigned int indSpecies = 0;
     unsigned int numberOfContacts = 0;
     Vec3D orientation;
     Vec3D position;
     Vec3D velocity;
     Vec3D angularVelocity;
     double invInertiaScalar;
     double dummy = 0;
     is >> position >> velocity >> radius_ >> orientation >> angularVelocity;
     is >> invMass_ >> invInertiaScalar >> numberOfContacts;
     for (unsigned int i = 0; i < 12 * numberOfContacts; ++i)
     {
         is >> dummy;
     }
     is >> indSpecies;
     setPosition(position);
     setVelocity(velocity);
     Quaternion q;
     q.setEuler(orientation);
     setOrientation(q);
     setAngularVelocity(angularVelocity);
     invInertia_.XX = invInertiaScalar;
     invInertia_.YY = invInertiaScalar;
     invInertia_.ZZ = invInertiaScalar;

     BaseInteractable::setIndSpecies(indSpecies);
     setId(id);
     setIndex(id);
     id++;
 }

References DEBUG, i, invInertia_, invMass_, logger, Eigen::numext::q, radius_, BaseInteractable::setAngularVelocity(), BaseObject::setId(), BaseObject::setIndex(), BaseInteractable::setIndSpecies(), BaseInteractable::setOrientation(), BaseInteractable::setPosition(), BaseInteractable::setVelocity(), Jeffery_Solution::velocity(), MatrixSymmetric3D::XX, MatrixSymmetric3D::YY, and MatrixSymmetric3D::ZZ.

◆ printHGrid()

void BaseParticle::printHGrid ( std::ostream & os ) const

Adds particle's HGrid level and cell coordinates to an ostream.

Adds the particle's HGridLevel_ and HGRid x/y/z positions to an std::ostream.

Parameters

[in,out] os the ostream which has the mentioned properties added.

 {
     os << "Particle( HGRID_Level:" << hGridCell.getHGridLevel()
        << ", HGRID_x:" << hGridCell.getHGridX()
        << ", HGRID_y:" << hGridCell.getHGridY()
        << ", HGRID_z:" << hGridCell.getHGridZ()
        << ")";
 }

References HGridCell::getHGridLevel(), HGridCell::getHGridX(), HGridCell::getHGridY(), HGridCell::getHGridZ(), and hGridCell.

◆ read()

void BaseParticle::read ( std::istream & is )

overridevirtual

Particle read function, which accepts an std::istream as input.

Particle read function. Has an std::istream as argument, from which it extracts the radius_, invMass_ and invInertia_, respectively. From these the mass and inertia are deduced. An additional set of properties is read through the call to the parent's method BaseInteractable::read().

Parameters

[in,out] is input stream with particle properties.

Reimplemented from BaseInteractable.

Reimplemented in SuperQuadricParticle, and ClumpParticle.

 {
     BaseInteractable::read(is);
     std::string dummy;
     is >> dummy >> radius_ >> dummy >> invMass_;// >> dummy >> invInertia_;
     helpers::readOptionalVariable(is, "timeStamp", timeStamp_); // Optional, for backwards compatibility.
 }

References invMass_, radius_, BaseInteractable::read(), helpers::readOptionalVariable(), oomph::Global_string_for_annotation::string(), and timeStamp_.

Referenced by ClumpParticle::read(), SuperQuadricParticle::read(), and ParticleHandler::readAndCreateObject().

◆ setAxes()

virtual void BaseParticle::setAxes ( const Vec3D & axes )

inlinevirtual

Only ustilised in case of superquadric particles.

Reimplemented in SuperQuadricParticle.

502 { }

◆ setCommunicationComplexity()

void BaseParticle::setCommunicationComplexity ( unsigned complexity )

Set the communication complexity of the particle.

 {
     communicationComplexity_ = complexity;
 }

References communicationComplexity_.

Referenced by Domain::addParticlesToLists(), and Domain::updateParticles().

◆ setExponents()

virtual void BaseParticle::setExponents	(	const Mdouble &	eps1,
		const Mdouble &	eps2
	)

inlinevirtual

Only ustilised in case of superquadric particles.

Reimplemented in SuperQuadricParticle.

507 {}

◆ setHandler()

void BaseParticle::setHandler ( ParticleHandler * handler )

Sets the pointer to the particle's ParticleHandler.

Assigns the particle to a ParticleHandler, and assigns a species to it based on the particles indSpecies_ (BaseInteractable data member).

Parameters

[in] handler pointer to the ParticleHandler

 {
     handler_ = handler;
     setSpecies(getHandler()->getDPMBase()->speciesHandler.getObject(getIndSpecies()));
 }

References getHandler(), BaseInteractable::getIndSpecies(), BaseHandler< T >::getObject(), handler_, and setSpecies().

Referenced by InsertionBoundary::checkBoundaryBeforeTimeStep(), RandomClusterInsertionBoundary::checkBoundaryBeforeTimeStep(), Chute::createBottom(), ParticleHandler::readAndCreateObject(), setSpecies(), SphericalIndenter::setupInitialConditions(), and ChuteBottom::setupInitialConditions().

◆ setHGridLevel()

void BaseParticle::setHGridLevel ( const unsigned int level )

inline

Sets the particle's HGrid level.

Parameters

[in] level the particle's HGrid level

448 { hGridCell.setHGridLevel(level); }

References hGridCell, and HGridCell::setHGridLevel().

Referenced by HGrid::insertParticleToHgrid().

◆ setHGridNextObject()

void BaseParticle::setHGridNextObject ( BaseParticle * p )

inline

Sets the pointer to the next object in the particle's HGrid cell & level.

Parameters

[in] p pointer to the next object

456 { hGridNextObject_ = p; }

References hGridNextObject_, and p.

Referenced by Mercury2D::hGridRemoveParticle(), Mercury3D::hGridRemoveParticle(), Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ setHGridPrevObject()

void BaseParticle::setHGridPrevObject ( BaseParticle * p )

inline

Sets the pointer to the previous object in the particle's HGrid cell & level.

Parameters

[in] p pointer to the previous object

464 { hGridPrevObject_ = p; }

References hGridPrevObject_, and p.

Referenced by Mercury2D::hGridRemoveParticle(), Mercury3D::hGridRemoveParticle(), Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ setHGridX()

void BaseParticle::setHGridX ( const int x )

inline

Sets the particle's HGrid cell X-coordinate.

Set the x-index of the particle's hGrid cell position

Parameters

[in] x x-index of particle's HGrid cell

425 { hGridCell.setHGridX(x); }

plotDoE.x

list x

Definition: plotDoE.py:28

References hGridCell, HGridCell::setHGridX(), and plotDoE::x.

Referenced by Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ setHGridY()

void BaseParticle::setHGridY ( const int y )

inline

Sets the particle's HGrid cell Y-coordinate.

Set the y-index of the particle's hGrid cell position

Parameters

[in] y y-index of particle's HGrid cell

433 { hGridCell.setHGridY(y); }

y

Scalar * y

Definition: level1_cplx_impl.h:128

References hGridCell, HGridCell::setHGridY(), and y.

Referenced by Mercury2D::hGridUpdateParticle(), and Mercury3D::hGridUpdateParticle().

◆ setHGridZ()

void BaseParticle::setHGridZ ( const int z )

inline

Sets the particle's HGrid cell Z-coordinate.

Set the y-index of the particle's hGrid cell position

Parameters

[in] z z-index of particle's HGrid cell

441 { hGridCell.setHGridZ(z); }

References hGridCell, and HGridCell::setHGridZ().

Referenced by Mercury3D::hGridUpdateParticle().

◆ setIndSpecies()

void BaseParticle::setIndSpecies ( unsigned int indSpecies )

overridevirtual

Deprecated:: Please use setSpecies(const ParticleSpecies*) instead.

Todo:: MX: this index is used in the MPI transmission. This should be "undeprecated"

Set the particle's species and species' index. Logs a warning if no ParticleHandler is assigned.

Parameters

[in] indSpecies The index of the species in the SpeciesHandler.

Todo:: TW do we have to update the species stored in the interactions here?

Reimplemented from BaseInteractable.

 {
     if (handler_ != nullptr)
     {
         //BaseInteractable::setIndSpecies(indSpecies);
         setSpecies(handler_->getDPMBase()->speciesHandler.getObject(indSpecies));
     }
     else
     {
         BaseInteractable::setIndSpecies(indSpecies);
         logger(ERROR, "setIndSpecies called on a particle with no particle handler.\n"
                       "Therefore I can't request the given species from the species handler.\n"
                       " PartID = %", getId());
     }
 }

References ERROR, BaseHandler< T >::getDPMBase(), BaseObject::getId(), BaseHandler< T >::getObject(), handler_, logger, BaseInteractable::setIndSpecies(), setSpecies(), and DPMBase::speciesHandler.

◆ setInertia() [1/2]

void BaseParticle::setInertia ( )

virtual

Reimplemented in SuperQuadricParticle.

 {

 }

Referenced by SuperQuadricParticle::setInertia(), and SlidingSpheresUnitTest::setupInitialConditions().

◆ setInertia() [2/2]

void BaseParticle::setInertia ( MatrixSymmetric3D inertia )

Sets the particle's inertia_ (and adjusts invInertia_ accordingly)

Sets the particle's inertia and invInertia_.

Parameters

[in] newInertia the new inertia to be set.

 {
     invInertia_ = MatrixSymmetric3D::inverse(inertia);
 }

References MatrixSymmetric3D::inverse(), and invInertia_.

◆ setInfiniteInertia()

void BaseParticle::setInfiniteInertia ( )

Sets the particle's inertia_ to 'infinite' (1e20) and its invInertia_ to 0.

Sets the inertia to 1e20 and the invInertia_ (which is actually used in the calculations) to 0.

 {
     invInertia_.setZero();

 //    Clump* f;
 //    f->invInertia2_.setZero();
 } //> i.e. no rotations

References invInertia_, and MatrixSymmetric3D::setZero().

Referenced by Slide::actionsBeforeTimeLoop().

◆ setInfo()

void BaseParticle::setInfo ( Mdouble info )

virtual

Sets some user-defined information about this object (by default, species ID).

 {
     info_ = info;
 }

References info, and info_.

◆ setInMPIDomain()

void BaseParticle::setInMPIDomain ( bool flag )

Flags the status of the particle if wether it is in the communication zone or not.

 {
     isInMPIDomain_ = flag;
 }

References isInMPIDomain_.

Referenced by PeriodicBoundaryHandler::setMPIFlags(), Domain::updateParticles(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ setInPeriodicDomain()

void BaseParticle::setInPeriodicDomain ( bool flag )

Flags the status of the particle whether it is in the periodic communication zone or not.

 {
     isInPeriodicDomain_ = flag;
 }

References isInPeriodicDomain_.

Referenced by PeriodicBoundaryHandler::processLocalGhostParticles(), PeriodicBoundaryHandler::processPeriodicParticles(), PeriodicBoundaryHandler::processReceivedGhostParticleData(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ setInverseInertia()

void BaseParticle::setInverseInertia ( MatrixSymmetric3D inverseInertia )

Sets the particle's inertia_ (and adjusts invInertia_ accordingly)

 {
     invInertia_ = inverseInertia;
 }

References invInertia_.

◆ setMaserParticle()

void BaseParticle::setMaserParticle ( bool flag )

Flags the status of the particle if it belongs to the maser boundary or not.

 {
     isMaserParticle_ = flag;
 }

References isMaserParticle_.

Referenced by SubcriticalMaserBoundaryTEST::checkBoundaryAfterParticleMoved(), and PeriodicBoundaryHandler::updateMaserParticle().

◆ setMass()

void BaseParticle::setMass ( Mdouble mass )

Sets the particle's mass.

Deprecated:: Please do not set the mass yourself, but use ParticleSpecies->computeMass instead. That makes sure

Sets the mass of the particle

Parameters

[in] mass the new particle's mass

 {
     logger(WARN, "WARNING: Do not use particle->setMass, instead use "
                  "particleSpecies->computeMass, since this function can cause "
                  "inconsistencies between the mass, density and radius of this particle!");
     logger.assert_always(mass > 0.0 && !isFixed(),
                          "Error in BaseParticle::setMass, the given mass to be set must be positive.");

     invMass_ = 1.0 / mass;
 }

References invMass_, isFixed(), logger, and WARN.

◆ setMassForP3Statistics()

void BaseParticle::setMassForP3Statistics ( Mdouble mass )

Sets the particle's mass This function should not be used, but is necessary to extend the CG toolbox to non-spherical particles.

Sets the mass of the particle

Parameters

[in] mass the new particle's mass

 {
     if (mass > 0.0 && !isFixed())
     {
         invMass_ = 1.0 / mass;
     }
     else
     {
         logger(ERROR, "Error in BaseParticle::setMass, the given mass to be set must be positive.");
     }
 }

References ERROR, invMass_, isFixed(), and logger.

◆ setMPIParticle()

void BaseParticle::setMPIParticle ( bool flag )

Flags the mpi particle status.

 {
     isMPIParticle_ = flag;
 }

References isMPIParticle_.

Referenced by PeriodicBoundaryHandler::setMPIFlags(), and Domain::updateParticles().

◆ setPeriodicComplexity() [1/2]

void BaseParticle::setPeriodicComplexity	(	int	index,
		int	value
	)

Set the periodic communication complexity of the particle.

 {
     //hack: generally you'd add particles after declaring the boundaries
     //but no official programming guildelines rules have been setup for that
     //So incase that doesnt happen we need to resize this periodicComplexity
     if (periodicComplexity_.empty())
     {
         int numberOfPeriodicBoundaries = getHandler()->getDPMBase()->periodicBoundaryHandler.getSize();
         if (numberOfPeriodicBoundaries > 0)
         {
             //First initialisation of the periodic complexity assumes the particle is completely
             //within the real domain
             periodicComplexity_ = std::vector<int>(numberOfPeriodicBoundaries, 2);
         }
     }

     periodicComplexity_[index] = value;
 }

References BaseHandler< T >::getDPMBase(), getHandler(), BaseHandler< T >::getSize(), DPMBase::periodicBoundaryHandler, periodicComplexity_, and Eigen::value.

◆ setPeriodicComplexity() [2/2]

void BaseParticle::setPeriodicComplexity ( std::vector< int > complexity )

Set the periodic communication complexity of the particle.

 {
     periodicComplexity_ = complexity;
 }

References periodicComplexity_.

Referenced by PeriodicBoundaryHandler::findNewParticle(), SubcriticalMaserBoundaryTEST::modifyGhostAfterCreation(), PeriodicBoundaryHandler::processLocalGhostParticles(), PeriodicBoundaryHandler::processReceivedGhostParticleData(), and PeriodicBoundaryHandler::updateParticles().

◆ setPeriodicFromParticle()

void BaseParticle::setPeriodicFromParticle ( BaseParticle * p )

inline

Assigns the pointer to the 'original' particle this one's a periodic copy of (used in periodic boundary condition implementations).

Parameters

[in] p pointer to the 'original' particle this one is a periodic copy of.

417 { periodicFromParticle_ = p; };

References p, and periodicFromParticle_.

Referenced by ChuteWithPeriodicInflow::Check_and_Duplicate_Periodic_Particle(), ConstantMassFlowMaserBoundary::createGhostCopy(), SubcriticalMaserBoundary::createGhostCopy(), PeriodicBoundary::createGhostParticle(), TimeDependentPeriodicBoundary::createGhostParticle(), LeesEdwardsBoundary::createHorizontalPeriodicParticle(), ShearBoxBoundary::createHorizontalPeriodicParticle(), AngledPeriodicBoundary::createPeriodicParticle(), CircularPeriodicBoundary::createPeriodicParticle(), LeesEdwardsBoundary::createVerticalPeriodicParticle(), and ShearBoxBoundary::createVerticalPeriodicParticle().

◆ setPeriodicGhostParticle()

void BaseParticle::setPeriodicGhostParticle ( bool flag )

Flags the status of the particle to be a ghost in periodic boundary or not.

 {
     isPeriodicGhostParticle_ = flag;
 }

References isPeriodicGhostParticle_.

Referenced by PeriodicBoundary::createGhostParticle(), PeriodicBoundaryHandler::processLocalGhostParticles(), PeriodicBoundaryHandler::processReceivedGhostParticleData(), and PeriodicBoundaryHandler::updateParticleStatus().

◆ setPreviousPeriodicComplexity()

void BaseParticle::setPreviousPeriodicComplexity ( std::vector< int > complexity )

Set the previous periodic communication complexity of the paritcle.

 {
     previousPeriodicComplexity_ = complexity;
 }

References previousPeriodicComplexity_.

Referenced by PeriodicBoundaryHandler::updateParticles().

◆ setPreviousPosition()

void BaseParticle::setPreviousPosition ( const Vec3D & pos )

Sets the particle's position in the previous time step.

This is used to set the particle's previous position

Parameters

[in] pos the particle's previous position vector.

 {
     previousPosition_ = pos;
 }

References previousPosition_.

Referenced by CircularPeriodicBoundary::checkBoundaryAfterParticleMoved(), integrateBeforeForceComputation(), ClumpParticle::integrateBeforeForceComputation(), Domain::processReceivedBoundaryParticleData(), and PeriodicBoundaryHandler::updateParticles().

◆ setRadius()

void BaseParticle::setRadius ( Mdouble radius )

virtual

Sets the particle's radius_ (and adjusts the mass_ accordingly, based on the particle's species)

Sets the radius of the particle, and from that computes the new mass (using its species) and checks whether it now is either the smallest or biggest particle in its ParticleHandler.

Parameters

[in] radius the new radius

Reimplemented in SuperQuadricParticle.

 {
     radius_ = radius;
     if (getHandler())
     {
         getSpecies()->computeMass(this);
         getHandler()->checkExtrema(this);
     }

 }

References ParticleHandler::checkExtrema(), ParticleSpecies::computeMass(), getHandler(), BaseInteractable::getSpecies(), UniformPSDSelfTest::radius, and radius_.

◆ setSpecies()

void BaseParticle::setSpecies ( const ParticleSpecies * species )

virtual

In addition to the functionality of BaseInteractable::setSpecies, this function sets the pointer to the particleHandler, which is needed to retrieve species information.

Todo:: TW: this function should also check if the particle is the correct particle for the species type

Sets the particle's species. If this particle does not have a handler yet, this function also assigns the ParticleHandler in the same DPMBase as the SpeciesHandler of the given species as its handler.

Parameters

[in] species pointer to the ParticleSpecies object, to be set as the particle's species.

Todo:: TW should we chaeck here if we have the right kind of species for the right kind of particle?

Todo:: maybe these if statements should throw warnings

 {
     BaseInteractable::setSpecies(species);
     //set pointer to the ParticleHandler handler_, which is needed to retrieve
     //species information
     if (handler_ == nullptr)
     {
         SpeciesHandler* sH = species->getHandler();
         DPMBase* dB = sH->getDPMBase();
         if (dB != nullptr)
         {
             setHandler(&dB->particleHandler);
         }
     }
 }

References BaseHandler< T >::getDPMBase(), BaseSpecies::getHandler(), handler_, DPMBase::particleHandler, setHandler(), and BaseInteractable::setSpecies().

◆ setTimeStamp()

void BaseParticle::setTimeStamp ( unsigned timeStamp )

 {
     timeStamp_ = timeStamp;
 }

References timeStamp_.

◆ unfix()

void BaseParticle::unfix ( )

Unfix Particle function, which required a reference to the Species vector. It unfixes a Particle by computing the Particles mass and inertia.

Unfixes the particle by computing the Particles mass and inertia, using the species and radius.

 {
     invMass_ = 1.0;
     getSpecies()->computeMass(this);
     if (getHandler())
         getHandler()->removedFixedParticle();
 }

References ParticleSpecies::computeMass(), getHandler(), BaseInteractable::getSpecies(), invMass_, and ParticleHandler::removedFixedParticle().

◆ write()

void BaseParticle::write ( std::ostream & os ) const

overridevirtual

Particle print function, which accepts an std::ostream as input.

BaseParticle print method, which accepts an os std::ostream as input. It prints human readable BaseParticle information to the std::ostream.

Parameters

[in,out] os stream to which the info is written

Reimplemented from BaseInteractable.

Reimplemented in SuperQuadricParticle, and ClumpParticle.

 {
     BaseInteractable::write(os);
     os << " radius " << radius_
        << " invMass " << invMass_
        << " timeStamp " << timeStamp_;
     //invMass_ is a computed value, but needs to be stored to see if a particle is fixed
 }

References invMass_, radius_, timeStamp_, and BaseInteractable::write().

Referenced by ClumpParticle::write(), and SuperQuadricParticle::write().

Friends And Related Function Documentation

◆ ParticleSpecies::computeMass

void ParticleSpecies::computeMass ( BaseParticle * ) const

friend

Particle's position at previous time step.

Since ParticleSpecies is allowed to set the mass of a BaseParticle, it is a friend of this class.

Member Data Documentation

◆ clumpParticle_

BaseParticle* BaseParticle::clumpParticle_

Function that updates necessary quantities of a clump particle after adding a pebble.

Referenced by ClumpParticle::ClumpParticle(), getClump(), and ClumpParticle::setClump().

◆ communicationComplexity_

unsigned BaseParticle::communicationComplexity_

private

returns true if it flagged as being in MPI domain

Referenced by BaseParticle(), getCommunicationComplexity(), and setCommunicationComplexity().

◆ handler_

ParticleHandler* BaseParticle::handler_

private

Inverse Particle inverse inertia (for computation optimization)

Pointer to the particle's ParticleHandler container

Referenced by BaseParticle(), getHandler(), getVolume(), setHandler(), setIndSpecies(), and setSpecies().

◆ hGridCell

HGridCell BaseParticle::hGridCell

private

All hGrid-information: the cell (x,y,z,level), and the previous and next particle in this cell compared to this particle

Referenced by BaseParticle(), getHGridCell(), getHGridLevel(), getHGridX(), getHGridY(), getHGridZ(), printHGrid(), setHGridLevel(), setHGridX(), setHGridY(), and setHGridZ().

◆ hGridNextObject_

BaseParticle* BaseParticle::hGridNextObject_

private

Referenced by BaseParticle(), getHGridNextObject(), and setHGridNextObject().

◆ hGridPrevObject_

BaseParticle* BaseParticle::hGridPrevObject_

private

Pointer to the next Particle in the same HGrid cell.

Referenced by BaseParticle(), getHGridPrevObject(), and setHGridPrevObject().

◆ info_

Mdouble BaseParticle::info_

private

Referenced by BaseParticle(), getInfo(), and setInfo().

◆ invInertia_

MatrixSymmetric3D BaseParticle::invInertia_

Inverse Particle mass (for computation optimization)

Referenced by ClumpParticle::angularAccelerateClumpIterative(), BaseParticle(), ClumpParticle::ClumpParticle(), computeMass(), ClumpParticle::computeMass(), SuperQuadricParticle::computeMass(), fixParticle(), getAngularMomentum(), getInertia(), getInvInertia(), oldRead(), ClumpParticle::rotateTensorOfInertia(), setInertia(), setInfiniteInertia(), ClumpParticle::setInitInertia(), and setInverseInertia().

◆ invMass_

Mdouble BaseParticle::invMass_

Particle radius_.

Referenced by BaseParticle(), computeMass(), ClumpParticle::computeMass(), SuperQuadricParticle::computeMass(), fixParticle(), getAngularMomentum(), getInvMass(), getMass(), getMomentum(), isFixed(), oldRead(), read(), ClumpParticle::setClumpMass(), setMass(), setMassForP3Statistics(), unfix(), ClumpParticle::updatePebblesVelPos(), and write().

◆ isClump_

bool BaseParticle::isClump_

The particle is pebble.

Referenced by BaseParticle(), ClumpParticle::ClumpParticle(), ClumpParticle::getKineticEnergy(), ClumpParticle::getRotationalEnergy(), isClump(), and ClumpParticle::setClump().

◆ isInMPIDomain_

bool BaseParticle::isInMPIDomain_

private

returns true if the particle acts as an MPI particle instead of a real particle

Referenced by BaseParticle(), isInMPIDomain(), and setInMPIDomain().

◆ isInPeriodicDomain_

bool BaseParticle::isInPeriodicDomain_

private

Referenced by BaseParticle(), isInPeriodicDomain(), and setInPeriodicDomain().

◆ isMaserParticle_

bool BaseParticle::isMaserParticle_

private

Indicates the periodic complexity at current time step. Used to update periodic status.

Referenced by BaseParticle(), isMaserParticle(), and setMaserParticle().

◆ isMPIParticle_

bool BaseParticle::isMPIParticle_

private

Pointer to originating Particle.

Referenced by BaseParticle(), isMPIParticle(), and setMPIParticle().

◆ isPebble_

bool BaseParticle::isPebble_

pointer to a clump particle (for a pebble)

Referenced by BaseParticle(), ClumpParticle::ClumpParticle(), isPebble(), ClumpParticle::read(), ClumpParticle::setClump(), and ClumpParticle::write().

◆ isPeriodicGhostParticle_

bool BaseParticle::isPeriodicGhostParticle_

private

bool that indicates if a particle is in the periodic domain of any boundary

Referenced by BaseParticle(), isPeriodicGhostParticle(), and setPeriodicGhostParticle().

◆ periodicComplexity_

std::vector<int> BaseParticle::periodicComplexity_

private

Indicates the periodic complexity at previous time step.

Referenced by BaseParticle(), getPeriodicComplexity(), and setPeriodicComplexity().

◆ periodicFromParticle_

BaseParticle* BaseParticle::periodicFromParticle_

private

Pointer to the previous Particle in the same HGrid cell.

Particle attributes

Referenced by BaseParticle(), getPeriodicFromParticle(), and setPeriodicFromParticle().

◆ previousPeriodicComplexity_

std::vector<int> BaseParticle::previousPeriodicComplexity_

private

Indicates if the particle is a ghost particle of a periodic particle.

Referenced by BaseParticle(), getPreviousPeriodicComplexity(), and setPreviousPeriodicComplexity().

◆ previousPosition_

Vec3D BaseParticle::previousPosition_

private

Indicates if this particle belongs to the maser boundary or is released into the wide open world.

Referenced by BaseParticle(), getPreviousPosition(), movePrevious(), and setPreviousPosition().

◆ radius_

Mdouble BaseParticle::radius_

Referenced by BaseParticle(), getCurvature(), getRadius(), getVolume(), oldRead(), read(), setRadius(), and write().

◆ timeStamp_

unsigned BaseParticle::timeStamp_

private

Stores the time stamp the particle was created.

Referenced by BaseParticle(), getTimeStamp(), read(), setTimeStamp(), and write().

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ BaseParticle() [1/3]

◆ BaseParticle() [2/3]

◆ BaseParticle() [3/3]

◆ ~BaseParticle()

Member Function Documentation

◆ accelerate()

◆ actionsAfterAddObject()

◆ actionsAfterTimeStep()

◆ actionsBeforeTimeStep()

◆ angularAccelerate()

◆ computeMass()

◆ copy()

◆ fixParticle()

◆ getAngularMomentum()

◆ getAxes()

◆ getCenterOfMass()

◆ getClump()

◆ getCommunicationComplexity()

◆ getCurvature()

◆ getDisplacement2()

◆ getExponentEps1()

◆ getExponentEps2()

◆ getFieldVTK()

◆ getGravitationalEnergy()

◆ getHandler()

◆ getHGridCell()

◆ getHGridLevel()

◆ getHGridNextObject()

◆ getHGridPrevObject()

◆ getHGridX()

◆ getHGridY()

◆ getHGridZ()

◆ getInertia()

◆ getInfo()

◆ getInteractionDistance()

◆ getInteractionWith()

◆ getInvInertia()

◆ getInvMass()

◆ getKineticEnergy()

◆ getMass()

◆ getMaxInteractionRadius()

◆ getMomentum()

◆ getName()

◆ getNameVTK()

◆ getNumberOfFieldsVTK()

◆ getParticleDimensions()

◆ getPeriodicComplexity() [1/2]

◆ getPeriodicComplexity() [2/2]

◆ getPeriodicFromParticle()

◆ getPreviousPeriodicComplexity()

◆ getPreviousPosition()

◆ getRadius()

◆ getRotationalEnergy()

◆ getSumOfInteractionRadii()

◆ getSurfaceArea()

◆ getTimeStamp()

◆ getTypeVTK()

◆ getVolume()

◆ getWallInteractionRadius()

◆ integrateAfterForceComputation()

◆ integrateBeforeForceComputation()

◆ isClump()

◆ isFixed()

◆ isInContactWith()

◆ isInMPIDomain()

◆ isInPeriodicDomain()

◆ isMaserParticle()

◆ isMPIParticle()

◆ isPebble()

◆ isPeriodicGhostParticle()

◆ isSphericalParticle()

◆ movePrevious()

◆ oldRead()

◆ printHGrid()
