#include <circle_as_generalised_element.h>

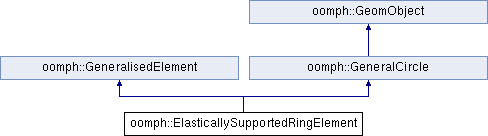

Inheritance diagram for oomph::ElasticallySupportedRingElement:

Public Member Functions
	ElasticallySupportedRingElement (const double &x_c, const double &y_c, const double &r)

virtual	~ElasticallySupportedRingElement ()
	Destructor: More...

void	set_load_pt (Data *load_pt)

double	load ()
	"Load" acting on the ring More...

double &	k_stiff ()
	Access function for the spring stiffness. More...

void	pin_yc ()
	Pin the vertical displacement. More...

void	unpin_yc ()
	Unpin the vertical displacement. More...

void	get_residuals (Vector< double > &residuals)
	Compute element residual vector (wrapper) More...

void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)
	Compute element residual Vector and element Jacobian matrix (wrapper) More...

Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...

virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...

	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...

void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...

Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...

Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...

Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...

Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...

unsigned long	eqn_number (const unsigned &ieqn_local) const

int	local_eqn_number (const unsigned long &ieqn_global) const

unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)

bool	external_data_fd (const unsigned &i) const

void	exclude_external_data_fd (const unsigned &i)

void	include_external_data_fd (const unsigned &i)

void	flush_external_data ()
	Flush all external data. More...

void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...

unsigned	ninternal_data () const
	Return the number of internal data objects. More...

unsigned	nexternal_data () const
	Return the number of external data objects. More...

unsigned	ndof () const
	Return the number of equations/dofs in the element. More...

void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...

void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...

void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)

void	describe_dofs (std::ostream &out, const std::string &current_string) const

virtual void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)

virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	complete_setup_of_dependencies ()

virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

virtual unsigned	self_test ()

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_norm (double &norm)

virtual unsigned	ndof_types () const

virtual void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Public Member Functions inherited from oomph::GeneralCircle
	GeneralCircle (const double &x_c, const double &y_c, const double &r)
	Constructor: Pass x and y-coords of centre and radius (all pinned) More...

	GeneralCircle (Data *geom_data_pt)

virtual	~GeneralCircle ()
	Destructor: Clean up if necessary. More...

void	position (const Vector< double > &zeta, Vector< double > &r) const
	Position Vector at Lagrangian coordinate zeta. More...

void	position (const unsigned &t, const Vector< double > &zeta, Vector< double > &r) const

double &	x_c ()
	Access function to x-coordinate of centre of circle. More...

double &	y_c ()
	Access function to y-coordinate of centre of circle. More...

double &	R ()
	Access function to radius of circle. More...

unsigned	ngeom_data () const
	How many items of Data does the shape of the object depend on? More...

Data *	geom_data_pt (const unsigned &j)

Public Member Functions inherited from oomph::GeomObject
	GeomObject ()
	Default constructor. More...

	GeomObject (const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim, TimeStepper *time_stepper_pt)

	GeomObject (const GeomObject &dummy)=delete
	Broken copy constructor. More...

void	operator= (const GeomObject &)=delete
	Broken assignment operator. More...

virtual	~GeomObject ()
	(Empty) destructor More...

unsigned	nlagrangian () const
	Access function to # of Lagrangian coordinates. More...

unsigned	ndim () const
	Access function to # of Eulerian coordinates. More...

void	set_nlagrangian_and_ndim (const unsigned &n_lagrangian, const unsigned &n_dim)
	Set # of Lagrangian and Eulerian coordinates. More...

TimeStepper *&	time_stepper_pt ()

TimeStepper *	time_stepper_pt () const

virtual void	position (const double &t, const Vector< double > &zeta, Vector< double > &r) const

virtual void	dposition_dt (const Vector< double > &zeta, const unsigned &j, Vector< double > &drdt)

virtual void	dposition (const Vector< double > &zeta, DenseMatrix< double > &drdzeta) const

virtual void	d2position (const Vector< double > &zeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	d2position (const Vector< double > &zeta, Vector< double > &r, DenseMatrix< double > &drdzeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	locate_zeta (const Vector< double > &zeta, GeomObject *&sub_geom_object_pt, Vector< double > &s, const bool &use_coordinate_as_initial_guess=false)

virtual void	interpolated_zeta (const Vector< double > &s, Vector< double > &zeta) const

Protected Member Functions
void	fill_in_generic_residual_contribution (Vector< double > &residuals, DenseMatrix< double > &jacobian, unsigned flag)

Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)

bool	internal_data_fd (const unsigned &i) const

void	exclude_internal_data_fd (const unsigned &i)

void	include_internal_data_fd (const unsigned &i)

void	clear_global_eqn_numbers ()

void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)

virtual void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_additional_local_eqn_numbers ()

int	internal_local_eqn (const unsigned &i, const unsigned &j) const

int	external_local_eqn (const unsigned &i, const unsigned &j)

virtual void	fill_in_contribution_to_residuals (Vector< double > &residuals)

void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

virtual void	update_before_internal_fd ()

virtual void	reset_after_internal_fd ()

virtual void	update_in_internal_fd (const unsigned &i)

virtual void	reset_in_internal_fd (const unsigned &i)

virtual void	update_before_external_fd ()

virtual void	reset_after_external_fd ()

virtual void	update_in_external_fd (const unsigned &i)

virtual void	reset_in_external_fd (const unsigned &i)

virtual void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Private Attributes
double	K_stiff
	Stiffness of the ring's "elastic" support. More...

unsigned	External_load_index

unsigned	Internal_geometric_data_index

bool	Load_data_has_been_set
	Flag to indicate that load data has been set. More...

Additional Inherited Members
Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data

static bool	Suppress_warning_about_repeated_external_data = true

static double	Default_fd_jacobian_step = 1.0e-8

Protected Attributes inherited from oomph::GeneralCircle
Vector< Data * >	Geom_data_pt
	Vector of pointers to Data items that affects the object's shape. More...

bool	Must_clean_up
	Do I need to clean up? More...

Protected Attributes inherited from oomph::GeomObject
unsigned	NLagrangian
	Number of Lagrangian (intrinsic) coordinates. More...

unsigned	Ndim
	Number of Eulerian coordinates. More...

TimeStepper *	Geom_object_time_stepper_pt

Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix

static std::deque< double * >	Dof_pt_deque

Detailed Description

/////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// GeneralCircle "upgraded" to a GeneralisedElement: Circular ring whose position is given by

\[ x = X_c + R \cos(\zeta) \]

\[ y = Y_c + R \sin(\zeta) \]

The ring's vertical position \( Y_c \) is determined by "pseudo elasticity":

\[ 0 = f_{load} - Y_c \ k_{stiff} \]

This simulates the case where the centre of the ring is mounted on an elastic spring of stiffness \( k_{stiff} \) and loaded by the force \( f_{load}. \) The "load" is specified by the Data object load_pt().

Constructor & Destructor Documentation

◆ ElasticallySupportedRingElement()

oomph::ElasticallySupportedRingElement::ElasticallySupportedRingElement	(	const double &	x_c,
		const double &	y_c,
		const double &	r
	)

inline

Constructor: Build ring from doubles that describe the geometry: x and y positions of centre and the radius. Initialise stiffness to 1.0. By default, no load is set.

                                                   :
   GeneralCircle(x_c,y_c,r), K_stiff(1.0), Load_data_has_been_set(false)
   {
    // The geometric data is internal to the element -- we copy the pointers
    // to the GeomObject's geometric data to the element's internal
    // data to ensure that any unknown values of geometric data are
    // given global equation numbers. The add_internal_data(...)
    // function returns the index by which the added Data item
    // is accessible from internal_data_pt(...).
    Internal_geometric_data_index=add_internal_data(Geom_data_pt[0]);

    // Geometric Data for the GeomObject has been set up (and pinned) in
    // constructor for geometric object. Now free the y-position
    // of the centre because we want to determine it as an unknown
    internal_data_pt(Internal_geometric_data_index)->unpin(1);

    // Change cleanup responsibilities: The GeomData will now be killed
    // by the GeneralisedElement when it wipes its internal Data
    Must_clean_up=false;
   }

References oomph::GeneralisedElement::add_internal_data(), oomph::GeneralCircle::Geom_data_pt, oomph::GeneralisedElement::internal_data_pt(), Internal_geometric_data_index, oomph::GeneralCircle::Must_clean_up, and oomph::Data::unpin().

◆ ~ElasticallySupportedRingElement()

virtual oomph::ElasticallySupportedRingElement::~ElasticallySupportedRingElement ( )

inlinevirtual

Destructor:

   {
    // The GeomObject's GeomData is mirrored in the element's
    // Internal Data and therefore gets wiped in the
    // destructor of GeneralisedElement --> No need to kill it here
   }

Member Function Documentation

◆ fill_in_generic_residual_contribution()

void oomph::ElasticallySupportedRingElement::fill_in_generic_residual_contribution	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian,
		unsigned	flag
	)

inlineprotected

Compute element residual Vector (only if flag=0) and also the element Jacobian matrix (if flag=1)

   {
    //Find out how may dofs there are in the element
    unsigned n_dof = ndof();
    //If everything is pinned return straight away
    if (n_dof==0) return;

    // Pseudo-elastic force balance to determine the position of the
    // ring's centre for a given load.

    // What's the local equation number of the force balance equation
    // [It's the equation that "determines" the value of the internal
    // dof, y_c, which is stored as the second value of the one-and-only
    // internal data object in this element]
    int local_eqn_number_for_yc =
     internal_local_eqn(Internal_geometric_data_index,1);

    // Add residual to appropriate entry in the element's residual
    // vector:
    residuals[local_eqn_number_for_yc]=load()-K_stiff*y_c();

    // Work out Jacobian:
    if (flag)
     {
      // Derivative of residual w.r.t. the internal dof, i.e. the vertical
      // position of the ring's centre: d residual[0]/d y_c
      jacobian(local_eqn_number_for_yc,local_eqn_number_for_yc) = -K_stiff;


      // Derivative with respect to external dof, i.e. the applied
      // load: d residual[0]/d load -- but only if the load is an unknown
      if (n_dof==2)
       {
        // What's the local equation number of the load parameter?
        // It's stored as the 0th value in the the element's
        // one-and-only external data item:
        int local_eqn_number_for_load =
         external_local_eqn(External_load_index,0);

 #ifdef PARANOID
        if (local_eqn_number_for_load<0)
         {
          throw OomphLibError(
           "Load is pinned and yet n_dof=2?\n This is very fishy!\n",
           OOMPH_CURRENT_FUNCTION,
           OOMPH_EXCEPTION_LOCATION);
         }
 #endif

        // Add entry into element Jacobian
        jacobian(local_eqn_number_for_yc,local_eqn_number_for_load) = 1.0;
       }
     }
   } // end of get_residuals_generic(...)

References External_load_index, oomph::GeneralisedElement::external_local_eqn(), Internal_geometric_data_index, oomph::GeneralisedElement::internal_local_eqn(), K_stiff, load(), oomph::GeneralisedElement::ndof(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, and oomph::GeneralCircle::y_c().

Referenced by get_jacobian(), and get_residuals().

◆ get_jacobian()

void oomph::ElasticallySupportedRingElement::get_jacobian	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian
	)

inlinevirtual

Compute element residual Vector and element Jacobian matrix (wrapper)

Reimplemented from oomph::GeneralisedElement.

   {
    //Initialise residuals to zero
    residuals.initialise(0.0);
    //Initialise the jacobian matrix to zero
    jacobian.initialise(0.0);
    //Call the generic routine with the flag set to 1
    fill_in_generic_residual_contribution(residuals,jacobian,1);

   } // end of get_jacobian(...)

References fill_in_generic_residual_contribution(), oomph::Vector< _Tp >::initialise(), and oomph::DenseMatrix< T >::initialise().

◆ get_residuals()

void oomph::ElasticallySupportedRingElement::get_residuals ( Vector< double > & residuals )

inlinevirtual

Compute element residual vector (wrapper)

Reimplemented from oomph::GeneralisedElement.

   {
    //Initialise residuals to zero
    residuals.initialise(0.0);
    //Create a dummy matrix
    DenseMatrix<double> dummy(1);
    //Call the generic residuals function with flag set to 0
    fill_in_generic_residual_contribution(residuals,dummy,0);
    }

References fill_in_generic_residual_contribution(), and oomph::Vector< _Tp >::initialise().

◆ k_stiff()

double& oomph::ElasticallySupportedRingElement::k_stiff ( )

inline

Access function for the spring stiffness.

144 {return K_stiff;}

References K_stiff.

Referenced by GeomObjectAsGeneralisedElementProblem::GeomObjectAsGeneralisedElementProblem().

◆ load()

double oomph::ElasticallySupportedRingElement::load ( )

inline

"Load" acting on the ring

   {
    // Return the load if it has been set
    if (Load_data_has_been_set)
     {
      return external_data_pt(External_load_index)->value(0);
     }
    // ...otherwise return zero load
    else
     {
      return 0.0;
     }
   } // end of load()

References oomph::GeneralisedElement::external_data_pt(), External_load_index, Load_data_has_been_set, and oomph::Data::value().

Referenced by fill_in_generic_residual_contribution().

◆ pin_yc()

void oomph::ElasticallySupportedRingElement::pin_yc ( )

inline

Pin the vertical displacement.

   {
    // Vertical position of centre is stored as value 1 in the
    // element's one and only internal Data object.
    internal_data_pt(Internal_geometric_data_index)->pin(1);
   }

References oomph::GeneralisedElement::internal_data_pt(), Internal_geometric_data_index, and oomph::Data::pin().

◆ set_load_pt()

void oomph::ElasticallySupportedRingElement::set_load_pt ( Data * load_pt )

inline

Set pointer to Data object that specifies the "load" on the ElasticallySupportedRingElement

   {
 #ifdef PARANOID
    if (load_pt->nvalue()!=1)
     {
      std::ostringstream error_stream;
      error_stream << "The data object that stores the load on the "
                   << "ElasticallySupportedRingElement\n"
                   << "should only contain a single data value\n"
                   << "This one contains " << load_pt->nvalue() << std::endl;

      throw OomphLibError(error_stream.str(),
                          OOMPH_CURRENT_FUNCTION,
                          OOMPH_EXCEPTION_LOCATION);
     }
 #endif

    // Add load to the element's external data and store
    // its index within that storage scheme: Following this assignment,
    // the load Data is accessible from
    // GeneralisedElement::external_data_pt(External_load_index)
    External_load_index = add_external_data(load_pt);

    // Load has now been set
    Load_data_has_been_set=true;

   } // end of set_load_pt(...)

References oomph::GeneralisedElement::add_external_data(), External_load_index, Load_data_has_been_set, oomph::Data::nvalue(), OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

Referenced by GeomObjectAsGeneralisedElementProblem::GeomObjectAsGeneralisedElementProblem().

◆ unpin_yc()

void oomph::ElasticallySupportedRingElement::unpin_yc ( )

inline

Unpin the vertical displacement.

   {
    // Vertical position of centre is stored as value 1 in the
    // element's one and only internal Data object.
    internal_data_pt(Internal_geometric_data_index)->unpin(1);

   } // end of unpin_yc()

References oomph::GeneralisedElement::internal_data_pt(), Internal_geometric_data_index, and oomph::Data::unpin().

Member Data Documentation

◆ External_load_index

unsigned oomph::ElasticallySupportedRingElement::External_load_index

private

Index of the location of the load Data in the element's array of external data

Referenced by fill_in_generic_residual_contribution(), load(), and set_load_pt().

◆ Internal_geometric_data_index

unsigned oomph::ElasticallySupportedRingElement::Internal_geometric_data_index

private

Index of the location of the geometric Data in the element's array of internal data

Referenced by ElasticallySupportedRingElement(), fill_in_generic_residual_contribution(), pin_yc(), and unpin_yc().

◆ K_stiff

double oomph::ElasticallySupportedRingElement::K_stiff

private

Stiffness of the ring's "elastic" support.

Referenced by fill_in_generic_residual_contribution(), and k_stiff().

◆ Load_data_has_been_set

bool oomph::ElasticallySupportedRingElement::Load_data_has_been_set

private

Flag to indicate that load data has been set.

Referenced by load(), and set_load_pt().

The documentation for this class was generated from the following file:

circle_as_generalised_element.h

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ElasticallySupportedRingElement()

◆ ~ElasticallySupportedRingElement()

Member Function Documentation

◆ fill_in_generic_residual_contribution()

◆ get_jacobian()

◆ get_residuals()

◆ k_stiff()

◆ load()

◆ pin_yc()

◆ set_load_pt()

◆ unpin_yc()

Member Data Documentation

◆ External_load_index

◆ Internal_geometric_data_index

◆ K_stiff

◆ Load_data_has_been_set
