#include <rectangular_quadmesh.template.h>

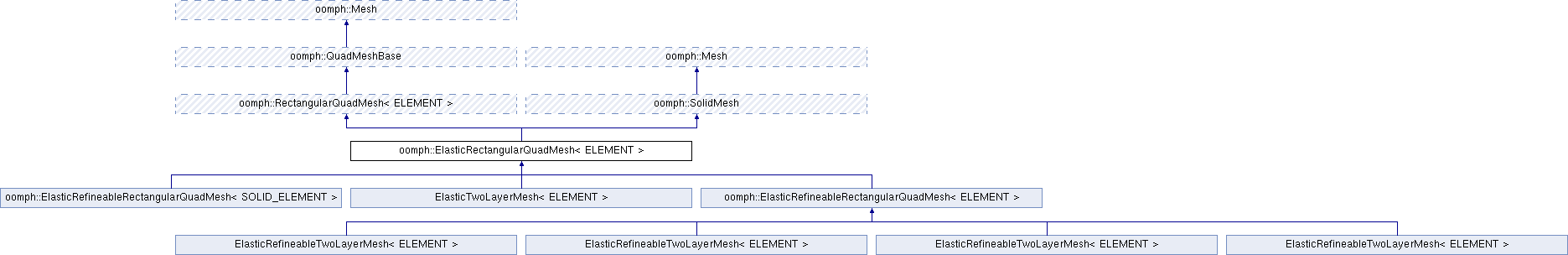

Inheritance diagram for oomph::ElasticRectangularQuadMesh< ELEMENT >:

Public Member Functions
	ElasticRectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &lx, const double &ly, const Vector< double > &origin, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

	ElasticRectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &lx, const double &ly, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

	ElasticRectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &lx, const double &ly, const bool &periodic_in_x, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

Public Member Functions inherited from oomph::RectangularQuadMesh< ELEMENT >
	RectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &lx, const double &ly, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

	RectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &xmin, const double &xmax, const double &ymin, const double &ymax, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

	RectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &lx, const double &ly, const bool &periodic_in_x, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

	RectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &xmin, const double &xmax, const double &ymin, const double &ymax, const bool &periodic_in_x, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

const unsigned &	nx () const
	Return number of elements in x direction. More...

const unsigned &	ny () const
	Return number of elements in y direction. More...

const double	x_min () const
	Return the minimum value of x coordinate. More...

const double	x_max () const
	Return the maximum value of x coordinate. More...

const double	y_min () const
	Return the minimum value of y coordinate. More...

const double	y_max () const
	Return the maximum value of y coordinate. More...

virtual void	element_reorder ()

virtual double	x_spacing_function (unsigned xelement, unsigned xnode, unsigned yelement, unsigned ynode)

virtual double	y_spacing_function (unsigned xelement, unsigned xnode, unsigned yelement, unsigned ynode)

Public Member Functions inherited from oomph::QuadMeshBase
	QuadMeshBase ()
	Constructor (empty) More...

	QuadMeshBase (const QuadMeshBase &node)=delete
	Broken copy constructor. More...

void	operator= (const QuadMeshBase &)=delete
	Broken assignment operator. More...

virtual	~QuadMeshBase ()
	Destructor (empty) More...

void	setup_boundary_element_info ()

void	setup_boundary_element_info (std::ostream &outfile)

Public Member Functions inherited from oomph::Mesh
	Mesh ()
	Default constructor. More...

	Mesh (const Vector< Mesh * > &sub_mesh_pt)

void	merge_meshes (const Vector< Mesh * > &sub_mesh_pt)

virtual void	reset_boundary_element_info (Vector< unsigned > &ntmp_boundary_elements, Vector< Vector< unsigned >> &ntmp_boundary_elements_in_region, Vector< FiniteElement * > &deleted_elements)
	Virtual function to perform the reset boundary elements info rutines. More...

template<class BULK_ELEMENT >
void	doc_boundary_coordinates (const unsigned &b, std::ofstream &the_file)

	Mesh (const Mesh &dummy)=delete
	Broken copy constructor. More...

void	operator= (const Mesh &)=delete
	Broken assignment operator. More...

virtual	~Mesh ()
	Virtual Destructor to clean up all memory. More...

void	flush_element_and_node_storage ()

void	flush_element_storage ()

void	flush_node_storage ()

Node *&	node_pt (const unsigned long &n)
	Return pointer to global node n. More...

Node *	node_pt (const unsigned long &n) const
	Return pointer to global node n (const version) More...

GeneralisedElement *&	element_pt (const unsigned long &e)
	Return pointer to element e. More...

GeneralisedElement *	element_pt (const unsigned long &e) const
	Return pointer to element e (const version) More...

const Vector< GeneralisedElement * > &	element_pt () const
	Return reference to the Vector of elements. More...

Vector< GeneralisedElement * > &	element_pt ()
	Return reference to the Vector of elements. More...

FiniteElement *	finite_element_pt (const unsigned &e) const

Node *&	boundary_node_pt (const unsigned &b, const unsigned &n)
	Return pointer to node n on boundary b. More...

Node *	boundary_node_pt (const unsigned &b, const unsigned &n) const
	Return pointer to node n on boundary b. More...

void	set_nboundary (const unsigned &nbound)
	Set the number of boundaries in the mesh. More...

void	remove_boundary_nodes ()
	Clear all pointers to boundary nodes. More...

void	remove_boundary_nodes (const unsigned &b)

void	remove_boundary_node (const unsigned &b, Node *const &node_pt)
	Remove a node from the boundary b. More...

void	add_boundary_node (const unsigned &b, Node *const &node_pt)
	Add a (pointer to) a node to the b-th boundary. More...

void	copy_boundary_node_data_from_nodes ()

bool	boundary_coordinate_exists (const unsigned &i) const
	Indicate whether the i-th boundary has an intrinsic coordinate. More...

unsigned long	nelement () const
	Return number of elements in the mesh. More...

unsigned long	nnode () const
	Return number of nodes in the mesh. More...

unsigned	ndof_types () const
	Return number of dof types in mesh. More...

unsigned	elemental_dimension () const
	Return number of elemental dimension in mesh. More...

unsigned	nodal_dimension () const
	Return number of nodal dimension in mesh. More...

void	add_node_pt (Node *const &node_pt)
	Add a (pointer to a) node to the mesh. More...

void	add_element_pt (GeneralisedElement *const &element_pt)
	Add a (pointer to) an element to the mesh. More...

virtual void	node_update (const bool &update_all_solid_nodes=false)

virtual void	reorder_nodes (const bool &use_old_ordering=true)

virtual void	get_node_reordering (Vector< Node * > &reordering, const bool &use_old_ordering=true) const

template<class BULK_ELEMENT , template< class > class FACE_ELEMENT>
void	build_face_mesh (const unsigned &b, Mesh *const &face_mesh_pt)

unsigned	self_test ()
	Self-test: Check elements and nodes. Return 0 for OK. More...

void	max_and_min_element_size (double &max_size, double &min_size)

double	total_size ()

void	check_inverted_elements (bool &mesh_has_inverted_elements, std::ofstream &inverted_element_file)

void	check_inverted_elements (bool &mesh_has_inverted_elements)

unsigned	check_for_repeated_nodes (const double &epsilon=1.0e-12)

Vector< Node * >	prune_dead_nodes ()

unsigned	nboundary () const
	Return number of boundaries. More...

unsigned long	nboundary_node (const unsigned &ibound) const
	Return number of nodes on a particular boundary. More...

FiniteElement *	boundary_element_pt (const unsigned &b, const unsigned &e) const
	Return pointer to e-th finite element on boundary b. More...

Node *	get_some_non_boundary_node () const

unsigned	nboundary_element (const unsigned &b) const
	Return number of finite elements that are adjacent to boundary b. More...

int	face_index_at_boundary (const unsigned &b, const unsigned &e) const

virtual void	dump (std::ofstream &dump_file, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...

void	dump (const std::string &dump_file_name, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...

virtual void	read (std::ifstream &restart_file)
	Read solution from restart file. More...

void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const

void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const

void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const

void	output (std::ostream &outfile)
	Output for all elements. More...

void	output (std::ostream &outfile, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...

void	output (FILE *file_pt)
	Output for all elements (C-style output) More...

void	output (FILE *file_pt, const unsigned &nplot)
	Output at f(n_plot) points in each element (C-style output) More...

void	output (const std::string &output_filename)
	Output for all elements. More...

void	output (const std::string &output_filename, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...

void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt)
	Output a given Vector function at f(n_plot) points in each element. More...

void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt)

void	output_boundaries (std::ostream &outfile)
	Output the nodes on the boundaries (into separate tecplot zones) More...

void	output_boundaries (const std::string &output_filename)

void	assign_initial_values_impulsive ()
	Assign initial values for an impulsive start. More...

void	shift_time_values ()

void	calculate_predictions ()

void	set_nodal_and_elemental_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

virtual void	set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	set_consistent_pinned_values_for_continuation (ContinuationStorageScheme *const &continuation_stepper_pt)
	Set consistent values for pinned data in continuation. More...

bool	does_pointer_correspond_to_mesh_data (double *const &parameter_pt)
	Does the double pointer correspond to any mesh data. More...

void	set_nodal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
	Set the timestepper associated with the nodal data in the mesh. More...

void	set_elemental_internal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

virtual void	compute_norm (double &norm)

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Returns the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

bool	is_mesh_distributed () const
	Boolean to indicate if Mesh has been distributed. More...

OomphCommunicator *	communicator_pt () const

void	delete_all_external_storage ()
	Wipe the storage for all externally-based elements. More...

Public Member Functions inherited from oomph::SolidMesh
	SolidMesh ()
	Default constructor. More...

	SolidMesh (const SolidMesh &dummy)=delete
	Broken copy constructor. More...

void	operator= (const SolidMesh &)=delete
	Broken assignment operator. More...

	SolidMesh (const Vector< SolidMesh * > &sub_mesh_pt)

SolidNode *	node_pt (const unsigned long &n)
	Return a pointer to the n-th global SolidNode. More...

SolidNode *	boundary_node_pt (const unsigned &b, const unsigned &n)
	Return n-th SolidNodes on b-th boundary. More...

SolidNode *	element_node_pt (const unsigned long &e, const unsigned &n)

void	set_lagrangian_nodal_coordinates ()

void	scale_mesh (const double &factor)

Private Member Functions
void	set_boundary_coordinates (const Vector< double > &origin)

Additional Inherited Members
Public Types inherited from oomph::Mesh
typedef void(FiniteElement::*	SteadyExactSolutionFctPt) (const Vector< double > &x, Vector< double > &soln)

typedef void(FiniteElement::*	UnsteadyExactSolutionFctPt) (const double &time, const Vector< double > &x, Vector< double > &soln)

Static Public Attributes inherited from oomph::Mesh
static Steady< 0 >	Default_TimeStepper
	The Steady Timestepper. More...

static bool	Suppress_warning_about_empty_mesh_level_time_stepper_function
	Static boolean flag to control warning about mesh level timesteppers. More...

Static Public Attributes inherited from oomph::SolidMesh
static SolidICProblem	Solid_IC_problem

Protected Member Functions inherited from oomph::RectangularQuadMesh< ELEMENT >
void	build_mesh (TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Generic mesh construction function: contains all the hard work. More...

	RectangularQuadMesh (const unsigned &nx, const unsigned &ny, const double &xmin, const double &xmax, const double &ymin, const double &ymax, const bool &periodic_in_x, const bool &build, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)

Protected Member Functions inherited from oomph::Mesh
unsigned long	assign_global_eqn_numbers (Vector< double * > &Dof_pt)
	Assign (global) equation numbers to the nodes. More...

void	describe_dofs (std::ostream &out, const std::string &current_string) const

void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

void	assign_local_eqn_numbers (const bool &store_local_dof_pt)
	Assign local equation numbers in all elements. More...

void	convert_to_boundary_node (Node &node_pt, const Vector< FiniteElement > &finite_element_pt)

void	convert_to_boundary_node (Node *&node_pt)

Protected Attributes inherited from oomph::RectangularQuadMesh< ELEMENT >
unsigned	Nx
	Nx: number of elements in x-direction. More...

unsigned	Ny
	Ny: number of elements in y-direction. More...

unsigned	Np
	Np: number of (linear) points in the element. More...

double	Xmin
	Minimum value of x coordinate. More...

double	Xmax
	Maximum value of x coordinate. More...

double	Ymin
	Minimum value of y coordinate. More...

double	Ymax
	Maximum value of y coordinate. More...

bool	Xperiodic

Protected Attributes inherited from oomph::Mesh
Vector< Vector< Node * > >	Boundary_node_pt

bool	Lookup_for_elements_next_boundary_is_setup

Vector< Vector< FiniteElement * > >	Boundary_element_pt

Vector< Vector< int > >	Face_index_at_boundary

Vector< Node * >	Node_pt
	Vector of pointers to nodes. More...

Vector< GeneralisedElement * >	Element_pt
	Vector of pointers to generalised elements. More...

std::vector< bool >	Boundary_coordinate_exists

Detailed Description

template<class ELEMENT>
class oomph::ElasticRectangularQuadMesh< ELEMENT >

/////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// Elastic quad mesh with functionality to attach traction elements to the specified boundaries. We "upgrade" the RectangularQuadMesh to become an SolidMesh and equate the Eulerian and Lagrangian coordinates, thus making the domain represented by the mesh the stress-free configuration.

Constructor & Destructor Documentation

◆ ElasticRectangularQuadMesh() [1/3]

template<class ELEMENT >

oomph::ElasticRectangularQuadMesh< ELEMENT >::ElasticRectangularQuadMesh	(	const unsigned &	nx,
		const unsigned &	ny,
		const double &	lx,
		const double &	ly,
		const Vector< double > &	origin,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

inline

Constructor: Build mesh and copy Eulerian coords to Lagrangian ones so that the initial configuration is the stress-free one and assign boundary coordinates. Origin specifies an additional rigid-body displacement.

Make the current configuration the undeformed one by setting the nodal Lagrangian coordinates to their current Eulerian ones

       : RectangularQuadMesh<ELEMENT>(nx, ny, lx, ly, time_stepper_pt)
     {
       // Translate the nodes
       unsigned nnod = nnode();
       for (unsigned j = 0; j < nnod; j++)
       {
         node_pt(j)->x(0) += origin[0];
         node_pt(j)->x(1) += origin[1];
       }

       set_lagrangian_nodal_coordinates();

       // Setup boundary coordinates
       set_boundary_coordinates(origin);
     }

References oomph::RefineableQuadMesh< ELEMENT >::setup_quadtree_forest().

◆ ElasticRectangularQuadMesh() [2/3]

template<class ELEMENT >

oomph::ElasticRectangularQuadMesh< ELEMENT >::ElasticRectangularQuadMesh	(	const unsigned &	nx,
		const unsigned &	ny,
		const double &	lx,
		const double &	ly,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

inline

Constructor: Build mesh and copy Eulerian coords to Lagrangian ones so that the initial configuration is the stress-free one and assign boundary coordinates

Make the current configuration the undeformed one by setting the nodal Lagrangian coordinates to their current Eulerian ones

       : RectangularQuadMesh<ELEMENT>(nx, ny, lx, ly, time_stepper_pt)
     {
       // No shift
       Vector<double> origin(2, 0.0);

       set_lagrangian_nodal_coordinates();

       // Setup boundary coordinates
       set_boundary_coordinates(origin);
     }

◆ ElasticRectangularQuadMesh() [3/3]

template<class ELEMENT >

oomph::ElasticRectangularQuadMesh< ELEMENT >::ElasticRectangularQuadMesh	(	const unsigned &	nx,
		const unsigned &	ny,
		const double &	lx,
		const double &	ly,
		const bool &	periodic_in_x,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

inline

Constructor: Build mesh and copy Eulerian coords to Lagrangian ones so that the initial configuration is the stress-free one and assign boundary coordinates. This includes a boolean flag to specify if the mesh is periodic in the x-direction

Make the current configuration the undeformed one by setting the nodal Lagrangian coordinates to their current Eulerian ones

       : RectangularQuadMesh<ELEMENT>(
           nx, ny, lx, ly, periodic_in_x, time_stepper_pt)
     {
       // No shift
       Vector<double> origin(2, 0.0);

       set_lagrangian_nodal_coordinates();

       // Setup boundary coordinates
       set_boundary_coordinates(origin);
     }

Member Function Documentation

◆ set_boundary_coordinates()

template<class ELEMENT >

void oomph::ElasticRectangularQuadMesh< ELEMENT >::set_boundary_coordinates ( const Vector< double > & origin )

inlineprivate

Setup the boundary coordinates. Vector origin specifies the coordinates of the lower left corner of the mesh.

     {
       // 1D vector fo boundary coordinate
       Vector<double> zeta(1);

       // Loop over boundaries 0 and 2 where xi_0 is the varying
       // boundary coordinate
       for (unsigned b = 0; b < 3; b += 2)
       {
         // Number of nodes on those boundaries
         unsigned n_nod = nboundary_node(b);

         // Loop over the nodes
         for (unsigned i = 0; i < n_nod; i++)
         {
           // Boundary coordinate varies between 0 and L
           zeta[0] = boundary_node_pt(b, i)->xi(0) - origin[0];
           boundary_node_pt(b, i)->set_coordinates_on_boundary(b, zeta);
         }
         Boundary_coordinate_exists[b] = true;
       }


       // Loop over boundaries 1 and 3 where xi_1 is the varying
       // boundary coordinate
       for (unsigned b = 1; b < 4; b += 2)
       {
         // Number of nodes on those boundaries
         unsigned n_nod = nboundary_node(b);

         // Loop over the nodes
         for (unsigned i = 0; i < n_nod; i++)
         {
           // Boundary coordinate varies between +/- H/2
           zeta[0] = boundary_node_pt(b, i)->xi(1) - origin[1] -
                     0.5 * (this->Ymax - this->Ymin);
           boundary_node_pt(b, i)->set_coordinates_on_boundary(b, zeta);
         }
         Boundary_coordinate_exists[b] = true;
       }
     }

The documentation for this class was generated from the following file:

rectangular_quadmesh.template.h

Public Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

template<class ELEMENT> class oomph::ElasticRectangularQuadMesh< ELEMENT >

Constructor & Destructor Documentation

◆ ElasticRectangularQuadMesh() [1/3]

◆ ElasticRectangularQuadMesh() [2/3]

◆ ElasticRectangularQuadMesh() [3/3]

Member Function Documentation

◆ set_boundary_coordinates()

template<class ELEMENT>
class oomph::ElasticRectangularQuadMesh< ELEMENT >
