Defines a SolidProblem of element type RefineableQDPVDElement<3,2>. Add functionality to write output. More...

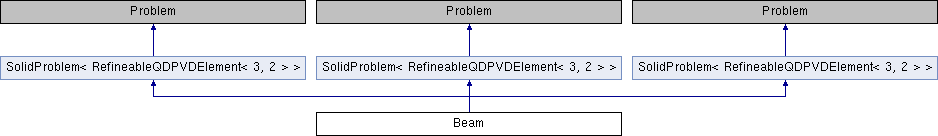

Inheritance diagram for Beam:

Public Member Functions
	Beam ()

void	checkBeamDeflection ()

Public Member Functions inherited from SolidProblem< RefineableQDPVDElement< 3, 2 > >
	SolidProblem ()
	Constructor: set default constitutive law and time stepper. More...

void	setName (const std::string &name)
	set function for name_ More...

std::string	getName () const
	get function for name_ More...

void	setElasticModulus (double elasticModulus)
	set function for elasticModulus_ More...

double	getElasticModulus () const
	get function for elasticModulus_ More...

void	addDissipation (double dissipation)

void	setupRefinementParameters (const double &min_error_target, const double &max_error_target, Z2ErrorEstimator *&error_estimator_pt)

void	addAnisotropy (double Ex, double Ey, double Ez)

void	setOomphGravity (double gravity)
	set function for elasticModulus_ More...

double	getOomphGravity () const
	get function for gravity_ More...

void	setPoissonRatio (double poissonRatio)
	set function for poissonRatio_ More...

double	getPoissonRatio () const
	get function for poissonRatio_ More...

void	setDensity (double density)
	set function for density_ More...

double	getDensity () const
	get function for density_ More...

void	setBodyForceAsGravity (double gravity=9.8)
	set function for body_force_pt More...

void	setIsPinned (std::function< bool(SolidNode *, unsigned)> isPinned)
	set function for isPinned_ More...

void	pinBoundary (unsigned b)

void	pinBoundaries (std::vector< unsigned > b)

std::enable_if< std::is_base_of< RefineableQDPVDElement< 3, 2 >, ELEMENT >::value, void >	setDissipation (double dissipation)
	Sets the dissipation coefficient for all elements. More...

void	setNewtonSolverTolerance (double Newton_solver_tolerance)
	set function for Newton_solver_tolerance More...

void	setMaxNewtonIterations (unsigned Max_newton_iterations)
	set function for Max_newton_iterations More...

void	setOomphTimeStep (double dt)
	set function for time step More...

double	getOomphTimeStep () const
	get function for time step More...

double	getOomphTime () const
	get function for current time More...

SolidMesh *&	solid_mesh_pt ()
	Get function for the solid mesh pointer. More...

SolidMesh *const &	solid_mesh_pt () const
	Get function for the solid mesh pointer. More...

SolidMesh *&	traction_mesh_pt ()
	Get function for the traction mesh pointer. More...

SolidMesh *const &	traction_mesh_pt () const
	Get function for the traction mesh pointer. More...

void	getDomainSize (std::array< double, 3 > &min, std::array< double, 3 > &max) const
	Computes the domain size (min/max of the nodal positions in x/y/z) More...

void	prepareForSolve ()

void	countPinned ()
	returns statistics about pinned nodes to the console More...

void	solveSteady (const unsigned &max_adapt=0)

void	solveUnsteady (double timeMax, double dt, unsigned saveCount=10, const unsigned &max_adapt=0)

void	solveUnsteadyForgiving (double timeMax, double timeMaxMin, double dt, unsigned saveCount=10)

void	removeOldFiles () const

void	get_x (const Vector< double > &xi, Vector< double > &x) const

double	getDeflection (Vector< double > xi, unsigned d) const

void	setSolidCubicMesh (const unsigned &nx, const unsigned &ny, const unsigned &nz, const double &xMin, const double &xMax, const double &yMin, const double &yMax, const double &zMin, const double &zMax)

void	saveSolidMesh ()

void	loadSolidMesh (std::string infileName, bool cubic=true)

void	writeToVTK ()

void	getMassMomentumEnergy (double &mass, Vector< double > &com, Vector< double > &linearMomentum, Vector< double > &angularMomentum, double &elasticEnergy, double &kineticEnergy) const
	See PVDEquationsBase<DIM>::get_energy. More...

Private Member Functions
void	actionsBeforeSolve () override
	Write header of output file. More...

void	actionsAfterSolve () override
	Write header of output file. More...

void	actionsBeforeOomphTimeStep () override
	Each time step, compute deflection, elastic, kinetic and gravitational energy, and write to output file. More...

double	getBeamDeflection () const
	Computes beam deflection. More...

void	actionsBeforeSolve () override
	Write header of output file. More...

void	actionsBeforeOomphTimeStep () override
	Each time step, compute deflection, elastic, kinetic and gravitational energy, and write to output file. More...

double	getBeamDeflection () const
	Computes beam deflection. More...

Private Attributes
double	length = 20.0

double	distance = 0.4

double	bulkDensity = 1309

double	elasticModulus = 1e8

std::function< Vec3D(double)>	velocityAtBoundary

std::ofstream	out
	output file stream More...

Additional Inherited Members
Public Types inherited from SolidProblem< RefineableQDPVDElement< 3, 2 > >
enum	Boundary

Protected Types inherited from SolidProblem< RefineableQDPVDElement< 3, 2 > >
typedef RefineableQDPVDElement< 3, 2 >	ELEMENT

Protected Attributes inherited from SolidProblem< RefineableQDPVDElement< 3, 2 > >
std::string	name_

double	elasticModulus_
	Elastic modulus (set via setSolid) More...

double	poissonRatio_
	Poisson's ratio (set via setSolid) More...

double	density_
	Density. More...

double	gravity_
	Density. More...

void(*	body_force_fct )(const double &time, const Vector< double > &xi, Vector< double > &b)
	Pointer to the body force function. More...

ConstitutiveLaw *	constitutive_law_pt
	Pointer to constitutive law (should be set in constructor) More...

SolidMesh *	Solid_mesh_pt
	Pointer to solid mesh. More...

SolidMesh *	Traction_mesh_pt
	Pointer to mesh of traction elements. More...

std::function< bool(SolidNode *, unsigned)>	isPinned_
	Function to determine which nodal positions are pinned. More...

Detailed Description

Defines a SolidProblem of element type RefineableQDPVDElement<3,2>. Add functionality to write output.

Defines a SolidProblem of element type RefineableQDPVDElement<3,2>.

Constructor & Destructor Documentation

◆ Beam()

Beam::Beam ( )

inline

            {
         setName("SolidBeam");
         removeOldFiles();
         setElasticModulus(elasticModulus);
         setDensity(bulkDensity);
         setSolidCubicMesh(length/distance, 2, 2,
                           0, length, -distance, distance, distance, 3.0*distance);
         pinBoundaries({Beam::Boundary::X_MIN});
         setNewtonSolverTolerance(1e-2);
         prepareForSolve();
         linear_solver_pt()->disable_doc_time();
         // simulate two oscillations, check energy balance
         double waveSpeed = sqrt(getElasticModulus()/getDensity());
         double propagationTime = length/waveSpeed;
         double timeMax = 1.25*propagationTime;

         solveUnsteady(timeMax, 0.01*timeMax, 1);
     }

Member Function Documentation

◆ actionsAfterSolve()

void Beam::actionsAfterSolve ( )

inlineoverrideprivatevirtual

Write header of output file.

Reimplemented from SolidProblem< RefineableQDPVDElement< 3, 2 > >.

                                       {
         out.close();
     }

References out.

◆ actionsBeforeOomphTimeStep() [1/2]

void Beam::actionsBeforeOomphTimeStep ( )

inlineoverrideprivatevirtual

Each time step, compute deflection, elastic, kinetic and gravitational energy, and write to output file.

Reimplemented from SolidProblem< RefineableQDPVDElement< 3, 2 > >.

                                                {
         double mass, elasticEnergy, kineticEnergy;
         Vector<double> com(3), linearMomentum(3), angularMomentum(3);
         getMassMomentumEnergy(mass, com, linearMomentum, angularMomentum, elasticEnergy, kineticEnergy);
         static double comZ0 = com[2];
         double gravEnergy = 9.8*mass*(com[2]-comZ0);
         out << getOomphTime() << ' ' << getBeamDeflection() << ' ' << elasticEnergy << ' ' << kineticEnergy << ' ' << gravEnergy << std::endl;
         std::cout << getOomphTime() << ' ' << getBeamDeflection() << ' ' << elasticEnergy << ' ' << kineticEnergy << ' ' << gravEnergy << '\n';

         // set new position
         static Vec3D positionAtBoundary {0,0,0};
         Vec3D velocity = velocityAtBoundary(getOomphTime());
         positionAtBoundary += velocity * getOomphTimeStep();
         for (int n = 0; n < mesh_pt()->nboundary_node(Boundary::X_MIN); ++n) {
             SolidNode* node_pt = dynamic_cast<SolidNode*>(mesh_pt()->boundary_node_pt(Boundary::X_MIN,n));
             node_pt->x(0) = positionAtBoundary.X;
         }
     }

References getBeamDeflection(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getMassMomentumEnergy(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getOomphTime(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getOomphTimeStep(), n, out, Jeffery_Solution::velocity(), velocityAtBoundary, and oomph::Node::x().

◆ actionsBeforeOomphTimeStep() [2/2]

void Beam::actionsBeforeOomphTimeStep ( )

inlineoverrideprivatevirtual

Each time step, compute deflection, elastic, kinetic and gravitational energy, and write to output file.

Reimplemented from SolidProblem< RefineableQDPVDElement< 3, 2 > >.

                                                {
         double mass, elasticEnergy, kineticEnergy;
         Vector<double> com(3), linearMomentum(3), angularMomentum(3);
         getMassMomentumEnergy(mass, com, linearMomentum, angularMomentum, elasticEnergy, kineticEnergy);
         static double comZ0 = com[2];
         double gravEnergy = 9.8*mass*(com[2]-comZ0);
         out << getOomphTime() << ' ' << getBeamDeflection() << ' ' << elasticEnergy << ' ' << kineticEnergy << ' ' << gravEnergy << std::endl;
         std::cout << getOomphTime() << ' ' << getBeamDeflection() << ' ' << elasticEnergy << ' ' << kineticEnergy << ' ' << gravEnergy << '\n';
     }

References getBeamDeflection(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getMassMomentumEnergy(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getOomphTime(), and out.

◆ actionsBeforeSolve() [1/2]

void Beam::actionsBeforeSolve ( )

inlineoverrideprivatevirtual

Write header of output file.

Reimplemented from SolidProblem< RefineableQDPVDElement< 3, 2 > >.

                                        {
         helpers::writeToFile(getName()+".gnu", "set key autotitle columnheader\n"
                                                "p 'SolidBeamUnsteady.out' u 1:3 w l, '' u 1:4 w l, '' u 1:5 w l, '' u 1:($3+$4+$5) t 'totalEnergy' w l");
         out.open(getName()+".out");
         out << "time deflection elasticEnergy kineticEnergy gravEnergy\n";
     }

References SolidProblem< RefineableQDPVDElement< 3, 2 > >::getName(), out, and helpers::writeToFile().

◆ actionsBeforeSolve() [2/2]

void Beam::actionsBeforeSolve ( )

inlineoverrideprivatevirtual

Write header of output file.

Reimplemented from SolidProblem< RefineableQDPVDElement< 3, 2 > >.

                                        {
         helpers::writeToFile(getName()+".gnu", "set key autotitle columnheader\n"
            "p 'SolidBeamUnsteady.out' u 1:3 w l, '' u 1:4 w l, '' u 1:5 w l, '' u 1:($3+$4+$5) t 'totalEnergy' w l");
         out.open(getName()+".out");
         out << "time deflection elasticEnergy kineticEnergy gravEnergy\n";
     }

References SolidProblem< RefineableQDPVDElement< 3, 2 > >::getName(), out, and helpers::writeToFile().

◆ checkBeamDeflection()

void Beam::checkBeamDeflection ( )

inline

Checks the beam deflection against an analytical solution: https://autofem.com/examples/deflection_of_a_plate_under_theg.html

     {
         std::array<double,3> min, max;
         getDomainSize(min, max);

         double length = max[0]-min[0];
         double height = max[2]-min[2];
         logger(INFO, "Deflection should be -3*rho*g*L^4/(2*E*h^2) = % (in practice: %)",
                -3. * 9.8 * density_ * pow(length, 4) / ( 2. * elasticModulus_ * pow(height, 2) ), -0.00131642);

         Vector<double> xi(3);
         xi[0] = max[0];
         xi[1] = 0.5*(max[1]+min[1]);
         xi[2] = 0.5*(max[2]+min[2]);
         double deflection = getDeflection(xi,2);
         logger(INFO, "Beam deflection at right end (% % %) is %",
                xi[0], xi[1],xi[2], deflection);

         double mass, elasticEnergy, kineticEnergy;
         Vector<double> com(3), linearMomentum(3), angularMomentum(3);
         getMassMomentumEnergy(mass, com, linearMomentum, angularMomentum, elasticEnergy, kineticEnergy);
         logger(INFO, "mass %, linearMomentum %, angularMomentum %, elasticEnergy %, kineticEnergy %",
                mass, linearMomentum, angularMomentum, elasticEnergy, kineticEnergy);

         helpers::check(deflection,-0.00131642,1e-8,"Checking deflection");
     }

References helpers::check(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::density_, e(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::elasticModulus_, SolidProblem< RefineableQDPVDElement< 3, 2 > >::getDeflection(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getDomainSize(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getMassMomentumEnergy(), Global_Physical_Variables::height(), INFO, length, logger, max, min, and Eigen::bfloat16_impl::pow().

◆ getBeamDeflection() [1/2]

double Beam::getBeamDeflection ( ) const

inlineprivate

Computes beam deflection.

                                      {
         std::array<double, 3> min, max;
         getDomainSize(min, max);

         Vector<double> xi(3);
         xi[0] = max[0];
         xi[1] = 0.5 * (max[1] + min[1]);
         xi[2] = 0.5 * (max[2] + min[2]);
         return getDeflection(xi, 2);
     }

References SolidProblem< RefineableQDPVDElement< 3, 2 > >::getDeflection(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getDomainSize(), max, and min.

Referenced by actionsBeforeOomphTimeStep().

◆ getBeamDeflection() [2/2]

double Beam::getBeamDeflection ( ) const

inlineprivate

Computes beam deflection.

                                      {
         std::array<double, 3> min, max;
         getDomainSize(min, max);

         Vector<double> xi(3);
         xi[0] = max[0];
         xi[1] = 0.5 * (max[1] + min[1]);
         xi[2] = 0.5 * (max[2] + min[2]);
         return getDeflection(xi, 2);
     }

References SolidProblem< RefineableQDPVDElement< 3, 2 > >::getDeflection(), SolidProblem< RefineableQDPVDElement< 3, 2 > >::getDomainSize(), max, and min.

Member Data Documentation

◆ bulkDensity

double Beam::bulkDensity = 1309

private

Referenced by Beam().

◆ distance

double Beam::distance = 0.4

private

Referenced by Beam().

◆ elasticModulus

double Beam::elasticModulus = 1e8

private

Referenced by Beam().

◆ length

double Beam::length = 20.0

private

Referenced by Beam(), and checkBeamDeflection().

◆ out

std::ofstream Beam::out

private

output file stream

Referenced by actionsAfterSolve(), actionsBeforeOomphTimeStep(), and actionsBeforeSolve().

◆ velocityAtBoundary

std::function<Vec3D(double)> Beam::velocityAtBoundary

private

Initial value:

=

[] (double) {return Vec3D(0.1,0,0);}

double

Referenced by actionsBeforeOomphTimeStep().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Beam()

Member Function Documentation

◆ actionsAfterSolve()

◆ actionsBeforeOomphTimeStep() [1/2]

◆ actionsBeforeOomphTimeStep() [2/2]

◆ actionsBeforeSolve() [1/2]

◆ actionsBeforeSolve() [2/2]

◆ checkBeamDeflection()

◆ getBeamDeflection() [1/2]

◆ getBeamDeflection() [2/2]

Member Data Documentation

◆ bulkDensity

◆ distance

◆ elasticModulus

◆ length

◆ out

◆ velocityAtBoundary
