Eigen::CholmodDecomposition< MatrixType_, UpLo_ > Class Template Reference

A general Cholesky factorization and solver based on Cholmod. More...

#include <CholmodSupport.h>

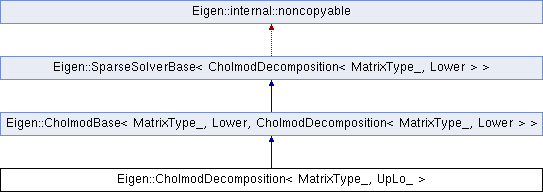

Inheritance diagram for Eigen::CholmodDecomposition< MatrixType_, UpLo_ >:

Public Types
typedef MatrixType_	MatrixType
Public Types inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodDecomposition< MatrixType_, Lower > >
enum
enum
typedef MatrixType_	MatrixType
typedef MatrixType::Scalar	Scalar
typedef MatrixType::RealScalar	RealScalar
typedef MatrixType	CholMatrixType
typedef MatrixType::StorageIndex	StorageIndex

Public Member Functions
	CholmodDecomposition ()
	CholmodDecomposition (const MatrixType &matrix)
	~CholmodDecomposition ()
void	setMode (CholmodMode mode)
Public Member Functions inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodDecomposition< MatrixType_, Lower > >
	CholmodBase ()
	CholmodBase (const MatrixType &matrix)
	~CholmodBase ()
StorageIndex	cols () const
StorageIndex	rows () const
ComputationInfo	info () const
	Reports whether previous computation was successful. More...
CholmodDecomposition< MatrixType_, Lower > &	compute (const MatrixType &matrix)
void	analyzePattern (const MatrixType &matrix)
void	factorize (const MatrixType &matrix)
cholmod_common &	cholmod ()
void	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const
void	_solve_impl (const SparseMatrixBase< RhsDerived > &b, SparseMatrixBase< DestDerived > &dest) const
CholmodDecomposition< MatrixType_, Lower > &	setShift (const RealScalar &offset)
Scalar	determinant () const
Scalar	logDeterminant () const
void	dumpMemory (Stream &)
Public Member Functions inherited from Eigen::SparseSolverBase< Derived >
	SparseSolverBase ()
	SparseSolverBase (SparseSolverBase &&other)
	~SparseSolverBase ()
Derived &	derived ()
const Derived &	derived () const
template<typename Rhs >
const Solve< Derived, Rhs >	solve (const MatrixBase< Rhs > &b) const
template<typename Rhs >
const Solve< Derived, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const
template<typename Rhs , typename Dest >
void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Protected Member Functions
void	init ()
Protected Member Functions inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodDecomposition< MatrixType_, Lower > >
CholmodDecomposition< MatrixType_, Lower > &	derived ()
const CholmodDecomposition< MatrixType_, Lower > &	derived () const

Private Types
typedef CholmodBase< MatrixType_, UpLo_, CholmodDecomposition >	Base

Private Attributes
cholmod_common	m_cholmod

Additional Inherited Members
Protected Types inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodDecomposition< MatrixType_, Lower > >
typedef SparseSolverBase< CholmodDecomposition< MatrixType_, Lower > >	Base
Protected Attributes inherited from Eigen::CholmodBase< MatrixType_, Lower, CholmodDecomposition< MatrixType_, Lower > >
cholmod_common	m_cholmod
cholmod_factor *	m_cholmodFactor
double	m_shiftOffset [2]
ComputationInfo	m_info
int	m_factorizationIsOk
int	m_analysisIsOk
bool	m_isInitialized
Protected Attributes inherited from Eigen::SparseSolverBase< Derived >
bool	m_isInitialized

Detailed Description

template<typename MatrixType_, int UpLo_ = Lower>
class Eigen::CholmodDecomposition< MatrixType_, UpLo_ >

A general Cholesky factorization and solver based on Cholmod.

This class allows to solve for A.X = B sparse linear problems via a LL^T or LDL^T Cholesky factorization using the Cholmod library. The sparse matrix A must be selfadjoint and positive definite. The vectors or matrices X and B can be either dense or sparse.

This variant permits to change the underlying Cholesky method at runtime. On the other hand, it does not provide access to the result of the factorization. The default is to let Cholmod automatically choose between a simplicial and supernodal factorization.

Template Parameters

MatrixType_	the type of the sparse matrix A, it must be a SparseMatrix<>
UpLo_	the triangular part that will be used for the computations. It can be Lower or Upper. Default is Lower.

\implsparsesolverconcept

This class supports all kind of SparseMatrix<>: row or column major; upper, lower, or both; compressed or non compressed.

Warning

Only double precision real and complex scalar types are supported by Cholmod.

See also

Sparse solver concept

Member Typedef Documentation

Base

template<typename MatrixType_ , int UpLo_ = Lower>

typedef CholmodBase<MatrixType_, UpLo_, CholmodDecomposition> Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::Base

private

MatrixType

template<typename MatrixType_ , int UpLo_ = Lower>

typedef MatrixType_ Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::MatrixType

Constructor & Destructor Documentation

CholmodDecomposition() [1/2]

template<typename MatrixType_ , int UpLo_ = Lower>

Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::CholmodDecomposition ( )

inline

: Base() { init(); }

References Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::init().

CholmodDecomposition() [2/2]

template<typename MatrixType_ , int UpLo_ = Lower>

Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::CholmodDecomposition ( const MatrixType &  matrix )

inline

                                                 : Base() {
    init();
    this->compute(matrix);
  }

References Eigen::CholmodBase< MatrixType_, Lower, CholmodDecomposition< MatrixType_, Lower > >::compute(), and Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::init().

~CholmodDecomposition()

template<typename MatrixType_ , int UpLo_ = Lower>

Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::~CholmodDecomposition ( )

inline

{}

Member Function Documentation

init()

template<typename MatrixType_ , int UpLo_ = Lower>

void Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::init ( )

inlineprotected

              {
    m_cholmod.final_asis = 1;
    m_cholmod.supernodal = CHOLMOD_AUTO;
  }

References Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::m_cholmod.

Referenced by Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::CholmodDecomposition().

setMode()

template<typename MatrixType_ , int UpLo_ = Lower>

void Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::setMode ( CholmodMode  mode )

inline

                                 {
    switch (mode) {
      case CholmodAuto:
        m_cholmod.final_asis = 1;
        m_cholmod.supernodal = CHOLMOD_AUTO;
        break;
      case CholmodSimplicialLLt:
        m_cholmod.final_asis = 0;
        m_cholmod.supernodal = CHOLMOD_SIMPLICIAL;
        m_cholmod.final_ll = 1;
        break;
      case CholmodSupernodalLLt:
        m_cholmod.final_asis = 1;
        m_cholmod.supernodal = CHOLMOD_SUPERNODAL;
        break;
      case CholmodLDLt:
        m_cholmod.final_asis = 1;
        m_cholmod.supernodal = CHOLMOD_SIMPLICIAL;
        break;
      default:
        break;
    }
  }

References Eigen::CholmodAuto, Eigen::CholmodLDLt, Eigen::CholmodSimplicialLLt, Eigen::CholmodSupernodalLLt, and Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::m_cholmod.

Referenced by test_cholmod_ST().

Member Data Documentation

m_cholmod

template<typename MatrixType_ , int UpLo_ = Lower>

cholmod_common Eigen::CholmodBase< MatrixType_, UpLo_, Derived >::m_cholmod

mutableprivate

Referenced by Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::init(), and Eigen::CholmodDecomposition< MatrixType_, UpLo_ >::setMode().

---

The documentation for this class was generated from the following file:

• CholmodSupport.h
