ParticleVtkWriter Class Reference

#include <ParticleVtkWriter.h>

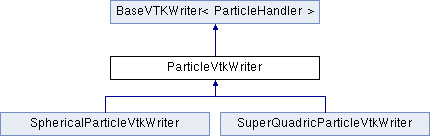

Inheritance diagram for ParticleVtkWriter:

Public Member Functions
	ParticleVtkWriter (ParticleHandler &particleHandler)
virtual	~ParticleVtkWriter ()=default
virtual std::string	getName () const =0
Public Member Functions inherited from BaseVTKWriter< ParticleHandler >
	BaseVTKWriter (ParticleHandler &handler)
	BaseVTKWriter (const BaseVTKWriter &other)
virtual void	writeVTK () const=0
unsigned	getFileCounter () const
void	setFileCounter (unsigned fileCounter)
void	setOutputDirectory (const std::string &dir)
const std::string &	getOutputDirectory () const
std::string	getFileName () const

Protected Member Functions
void	writeExtraFields (std::fstream &file) const
void	writeVTKIndSpecies (std::fstream &file) const
void	writeVTKPositions (std::fstream &file) const
bool	particleMustBeWritten (BaseParticle *particle) const
Protected Member Functions inherited from BaseVTKWriter< ParticleHandler >
std::fstream	makeVTKFileWithHeader () const
void	writeVTKFooterAndClose (std::fstream &file) const

Additional Inherited Members
Protected Attributes inherited from BaseVTKWriter< ParticleHandler >
ParticleHandler &	handler_
	particle handler from which the particles should be written More...
unsigned int	fileCounter
std::string	outputDirectory_

Constructor & Destructor Documentation

ParticleVtkWriter()

ParticleVtkWriter::ParticleVtkWriter ( ParticleHandler &  particleHandler )

inlineexplicit

                                                                 : BaseVTKWriter(particleHandler)
    {}

~ParticleVtkWriter()

virtual ParticleVtkWriter::~ParticleVtkWriter ( )

virtualdefault

Member Function Documentation

getName()

virtual std::string ParticleVtkWriter::getName ( ) const

pure virtual

Implemented in SuperQuadricParticleVtkWriter, and SphericalParticleVtkWriter.

particleMustBeWritten()

bool ParticleVtkWriter::particleMustBeWritten ( BaseParticle *  particle ) const

inlineprotected

    {
        return !(particle->isMPIParticle() || particle->isPeriodicGhostParticle());
    }

References BaseParticle::isMPIParticle(), and BaseParticle::isPeriodicGhostParticle().

Referenced by writeExtraFields(), SphericalParticleVtkWriter::writeVTKAngularVelocity(), SphericalParticleVtkWriter::writeVTKId(), writeVTKIndSpecies(), writeVTKPositions(), SphericalParticleVtkWriter::writeVTKRadius(), and SphericalParticleVtkWriter::writeVTKVelocity().

writeExtraFields()

void ParticleVtkWriter::writeExtraFields ( std::fstream &  file ) const

protected

{
    //check if this type of Interaction has extra fields
    if (handler_.getSize() != 0)
    {
        for (unsigned i = 0; i < handler_.getLastObject()->getNumberOfFieldsVTK(); i++)
        {
            file << "  <DataArray type=\"" << handler_.getLastObject()->getTypeVTK(i) << "\" Name=\""
                 << handler_.getLastObject()->getNameVTK(i) << "\" format=\"ascii\">\n";
            // Add species type
            for (const auto& p: handler_)
            {
                for (auto f : p->getFieldVTK(i)) {
#ifdef MERCURYDPM_USE_MPI
                    if (particleMustBeWritten(p))
                    {
                        file << '\t' << (float)f << '\n';
                    }
#else
                    file << '\t' << (float)f << '\n';
#endif
                }
            }
            file << "  </DataArray>\n";
        }
    }
}

References f(), BaseHandler< T >::getLastObject(), BaseParticle::getNameVTK(), BaseHandler< T >::getSize(), BaseParticle::getTypeVTK(), BaseVTKWriter< ParticleHandler >::handler_, i, p, and particleMustBeWritten().

Referenced by SphericalParticleVtkWriter::writeVTK().

writeVTKIndSpecies()

void ParticleVtkWriter::writeVTKIndSpecies ( std::fstream &  file ) const

protected

{
    file << "  <DataArray type=\"Float32\" Name=\"speciesType\" format=\"ascii\">\n";
    // Add species type
    for (const auto& p: handler_)
    {
#ifdef MERCURYDPM_USE_MPI
        if (particleMustBeWritten(p))
        {
            file << '\t' << p->getIndSpecies() << '\n';
        }
#else
        file << '\t' << p->getIndSpecies() << '\n';
#endif
    }
    file << "  </DataArray>\n";
}

References BaseVTKWriter< ParticleHandler >::handler_, p, and particleMustBeWritten().

Referenced by SphericalParticleVtkWriter::writeVTK(), and SuperQuadricParticleVtkWriter::writeVTK().

writeVTKPositions()

void ParticleVtkWriter::writeVTKPositions ( std::fstream &  file ) const

protected

{
    file << "<Points>\n";
    file << "  <DataArray type=\"Float32\" Name=\"Position\" NumberOfComponents=\"3\" format=\"ascii\">\n";
    for (const auto& p: handler_)
    {
#ifdef MERCURYDPM_USE_MPI
        if (particleMustBeWritten(p))
        {
            file << '\t' << p->getPosition() << '\n';
        }
#else
        file << '\t' << (float)p->getPosition().X << ' ' << (float)p->getPosition().Y << ' ' << (float)p->getPosition().Z << '\n';
#endif

    }
    file << "  </DataArray>\n";
    file << "</Points>\n";
}

References BaseVTKWriter< ParticleHandler >::handler_, p, and particleMustBeWritten().

Referenced by SphericalParticleVtkWriter::writeVTK(), and SuperQuadricParticleVtkWriter::writeVTK().

---

The documentation for this class was generated from the following files:

• ParticleVtkWriter.h
• ParticleVtkWriter.cc
