oomph::TemplateFreeNavierStokesFluxControlElementBase Class Reference

#include <navier_stokes_flux_control_elements.h>

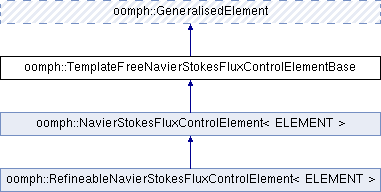

Inheritance diagram for oomph::TemplateFreeNavierStokesFluxControlElementBase:

Public Member Functions
	TemplateFreeNavierStokesFluxControlElementBase ()
	Empty constructor. More...
virtual	~TemplateFreeNavierStokesFluxControlElementBase ()
	Empty virtual destructor. More...
virtual double	get_volume_flux ()=0
	Pure virtual function to calculate integral of the volume flux. More...
void	add_pressure_data (Data *pressure_data_pt)
Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...
virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...
	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...
void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...
Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...
Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...
Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...
Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...
unsigned long	eqn_number (const unsigned &ieqn_local) const
int	local_eqn_number (const unsigned long &ieqn_global) const
unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)
bool	external_data_fd (const unsigned &i) const
void	exclude_external_data_fd (const unsigned &i)
void	include_external_data_fd (const unsigned &i)
void	flush_external_data ()
	Flush all external data. More...
void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...
unsigned	ninternal_data () const
	Return the number of internal data objects. More...
unsigned	nexternal_data () const
	Return the number of external data objects. More...
unsigned	ndof () const
	Return the number of equations/dofs in the element. More...
void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...
void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...
void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)
void	describe_dofs (std::ostream &out, const std::string &current_string) const
virtual void	describe_local_dofs (std::ostream &out, const std::string &current_string) const
void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)
virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)
virtual void	complete_setup_of_dependencies ()
virtual void	get_residuals (Vector< double > &residuals)
virtual void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)
virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)
virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)
virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)
virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)
virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)
virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)
virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)
virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)
virtual unsigned	self_test ()
virtual void	compute_norm (Vector< double > &norm)
virtual void	compute_norm (double &norm)
virtual unsigned	ndof_types () const
virtual void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Protected Member Functions
unsigned &	pressure_data_id ()
Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)
bool	internal_data_fd (const unsigned &i) const
void	exclude_internal_data_fd (const unsigned &i)
void	include_internal_data_fd (const unsigned &i)
void	clear_global_eqn_numbers ()
void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)
virtual void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)
virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)
virtual void	assign_additional_local_eqn_numbers ()
int	internal_local_eqn (const unsigned &i, const unsigned &j) const
int	external_local_eqn (const unsigned &i, const unsigned &j)
virtual void	fill_in_contribution_to_residuals (Vector< double > &residuals)
void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)
void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)
void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)
void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)
virtual void	update_before_internal_fd ()
virtual void	reset_after_internal_fd ()
virtual void	update_in_internal_fd (const unsigned &i)
virtual void	reset_in_internal_fd (const unsigned &i)
virtual void	update_before_external_fd ()
virtual void	reset_after_external_fd ()
virtual void	update_in_external_fd (const unsigned &i)
virtual void	reset_in_external_fd (const unsigned &i)
virtual void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)
virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)
virtual void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)
virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)
virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)
virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)
virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)
virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)
virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Private Attributes
unsigned	Pressure_data_id

Additional Inherited Members
Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data
static bool	Suppress_warning_about_repeated_external_data = true
static double	Default_fd_jacobian_step = 1.0e-8
Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix
static std::deque< double * >	Dof_pt_deque

Detailed Description

/////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// A template free base class for an element to imposes an applied boundary pressure to the Navier-Stokes equations in order to control a volume flux when used in conjunction with a NetFluxControlElement or NetFluxControlElementForWomersleyPressureControl).

Constructor & Destructor Documentation

TemplateFreeNavierStokesFluxControlElementBase()

oomph::TemplateFreeNavierStokesFluxControlElementBase::TemplateFreeNavierStokesFluxControlElementBase ( )

inline

Empty constructor.

{}

~TemplateFreeNavierStokesFluxControlElementBase()

virtual oomph::TemplateFreeNavierStokesFluxControlElementBase::~TemplateFreeNavierStokesFluxControlElementBase ( )

inlinevirtual

Empty virtual destructor.

{}

Member Function Documentation

add_pressure_data()

void oomph::TemplateFreeNavierStokesFluxControlElementBase::add_pressure_data ( Data *  pressure_data_pt )

inline

Function adds to the external data the Data object whose single value is the pressure applied by the element

    {
      Pressure_data_id = add_external_data(pressure_data_pt);
    }

References oomph::GeneralisedElement::add_external_data(), and Pressure_data_id.

Referenced by oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement().

get_volume_flux()

virtual double oomph::TemplateFreeNavierStokesFluxControlElementBase::get_volume_flux ( )

pure virtual

Pure virtual function to calculate integral of the volume flux.

Implemented in oomph::NavierStokesFluxControlElement< ELEMENT >.

Referenced by oomph::NetFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_flux_control().

pressure_data_id()

unsigned& oomph::TemplateFreeNavierStokesFluxControlElementBase::pressure_data_id ( )

inlineprotected

Access function gives id of external Data object whose single value is the pressure applied by the element

    {
      return Pressure_data_id;
    }

References Pressure_data_id.

Referenced by oomph::NavierStokesFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_fluid_traction(), and oomph::RefineableNavierStokesFluxControlElement< ELEMENT >::refineable_fill_in_generic_residual_contribution_fluid_traction().

Member Data Documentation

Pressure_data_id

unsigned oomph::TemplateFreeNavierStokesFluxControlElementBase::Pressure_data_id

private

Id of external Data object whose single value is the pressure applied by the elements

Referenced by add_pressure_data(), and pressure_data_id().

---

The documentation for this class was generated from the following file:

• navier_stokes_flux_control_elements.h
