#include <flux_control_elements_bk.h>

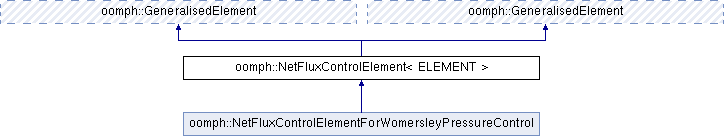

Inheritance diagram for oomph::NetFluxControlElement< ELEMENT >:

Public Member Functions
	NetFluxControlElement (Mesh flux_control_mesh_pt, double prescribed_outflow_value_pt)

	~NetFluxControlElement ()
	Empty Destructor - Data gets deleted automatically. More...

	NetFluxControlElement (const NetFluxControlElement &)
	Broken copy constructor. More...

Data *	pressure_data_pt () const

void	fill_in_contribution_to_residuals (Vector< double > &residuals)

	NetFluxControlElement (Mesh flux_control_mesh_pt, double prescribed_flux_value_pt)

	~NetFluxControlElement ()
	Empty Destructor - Data gets deleted automatically. More...

	NetFluxControlElement (const NetFluxControlElement &dummy)=delete
	Broken copy constructor. More...

unsigned	dim () const
	Broken assignment operator. More...

Data *	pressure_data_pt () const

void	fill_in_contribution_to_residuals (Vector< double > &residuals)

void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

unsigned	ndof_types () const

unsigned &	dof_number_for_unknown ()

void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...

virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...

	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...

void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...

Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...

Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...

Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...

Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...

unsigned long	eqn_number (const unsigned &ieqn_local) const

int	local_eqn_number (const unsigned long &ieqn_global) const

unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)

bool	external_data_fd (const unsigned &i) const

void	exclude_external_data_fd (const unsigned &i)

void	include_external_data_fd (const unsigned &i)

void	flush_external_data ()
	Flush all external data. More...

void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...

unsigned	ninternal_data () const
	Return the number of internal data objects. More...

unsigned	nexternal_data () const
	Return the number of external data objects. More...

unsigned	ndof () const
	Return the number of equations/dofs in the element. More...

void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...

void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...

void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)

void	describe_dofs (std::ostream &out, const std::string &current_string) const

virtual void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)

virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	complete_setup_of_dependencies ()

virtual void	get_residuals (Vector< double > &residuals)

virtual void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

virtual unsigned	self_test ()

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_norm (double &norm)

Protected Member Functions
void	fill_in_generic_residual_contribution_flux_control (Vector< double > &residuals)

Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)

bool	internal_data_fd (const unsigned &i) const

void	exclude_internal_data_fd (const unsigned &i)

void	include_internal_data_fd (const unsigned &i)

void	clear_global_eqn_numbers ()

void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)

virtual void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_additional_local_eqn_numbers ()

int	internal_local_eqn (const unsigned &i, const unsigned &j) const

int	external_local_eqn (const unsigned &i, const unsigned &j)

void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

virtual void	update_before_internal_fd ()

virtual void	reset_after_internal_fd ()

virtual void	update_in_internal_fd (const unsigned &i)

virtual void	reset_in_internal_fd (const unsigned &i)

virtual void	update_before_external_fd ()

virtual void	reset_after_external_fd ()

virtual void	update_in_external_fd (const unsigned &i)

virtual void	reset_in_external_fd (const unsigned &i)

virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Private Attributes
Data *	Pressure_data_pt

Mesh *	Flux_control_mesh_pt

double *	Prescribed_outflow_value_pt
	Pointer to the value that stores the prescribed outflow. More...

double *	Prescribed_flux_value_pt
	Pointer to the value that stores the prescribed flux. More...

unsigned	Dof_number_for_unknown

unsigned	Dim
	spatial dim of NS system More...

Additional Inherited Members
Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data

static bool	Suppress_warning_about_repeated_external_data = true

static double	Default_fd_jacobian_step = 1.0e-8

Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix

static std::deque< double * >	Dof_pt_deque

Detailed Description

template<class ELEMENT>
class oomph::NetFluxControlElement< ELEMENT >

A class for the elements that applies a net fluid flux across a boundary by the imposition of an applied traction to the Navier–Stokes equations

/////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////// A class for an element that controls the net fluid flux across a boundary by the imposition of an unknown applied pressure to the Navier-Stokes equations. This element is used with a mesh of NavierStokesFluxControlElement elements which are attached to the boundary. Note: fill_in_contribution_to_jacobian() does not calculate Jacobian contributions for this element as they are calculated by NavierStokesFluxControlElement::fill_in_contribution_to_jacobian(...)

Constructor & Destructor Documentation

◆ NetFluxControlElement() [1/4]

template<class ELEMENT >

oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement	(	Mesh *	flux_control_mesh_pt,
		double *	prescribed_outflow_value_pt
	)

inline

Constructor, which takes a mesh of the face elements which will impose the pressure to control the flux

                                                             :
   Flux_control_mesh_pt(flux_control_mesh_pt),
   Prescribed_outflow_value_pt(prescribed_outflow_value_pt)
   {
    // Construct Pressure_data_pt
    Pressure_data_pt = new Data(1);

    // Add the new Data to internal Data for this element
    add_internal_data(Pressure_data_pt);

    // pin pressure data
    // Pressure_data_pt->pin(0);

    // Loop over elements in the Flux_control_mesh to add
    // Data from the elements in the flux control
    // mesh to the external data for this element
    unsigned n_el =  Flux_control_mesh_pt->nelement();
    for (unsigned e=0; e<n_el; e++)
     {
      // Get pointer to the element
      FiniteElement * f_el_pt =
       Flux_control_mesh_pt->finite_element_pt(e);

      // Loop over the nodes
      unsigned n_node = f_el_pt->nnode();
      for(unsigned n=0;n<n_node;n++)
       {
        add_external_data(f_el_pt->node_pt(n));
       }
     }
   }

References oomph::GeneralisedElement::add_external_data(), oomph::GeneralisedElement::add_internal_data(), e(), oomph::Mesh::finite_element_pt(), oomph::NetFluxControlElement< ELEMENT >::Flux_control_mesh_pt, n, oomph::Mesh::nelement(), oomph::FiniteElement::nnode(), oomph::FiniteElement::node_pt(), and oomph::NetFluxControlElement< ELEMENT >::Pressure_data_pt.

◆ ~NetFluxControlElement() [1/2]

template<class ELEMENT >

oomph::NetFluxControlElement< ELEMENT >::~NetFluxControlElement ( )

inline

Empty Destructor - Data gets deleted automatically.

93 {}

◆ NetFluxControlElement() [2/4]

template<class ELEMENT >

oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement ( const NetFluxControlElement< ELEMENT > & )

inline

Broken copy constructor.

   {
    BrokenCopy::broken_copy("NetFluxControlElement");
   }

References oomph::BrokenCopy::broken_copy().

◆ NetFluxControlElement() [3/4]

template<class ELEMENT >

oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement	(	Mesh *	flux_control_mesh_pt,
		double *	prescribed_flux_value_pt
	)

inline

Constructor takes a mesh of TemplateFreeNavierStokesFluxControlElementBase elements that impose the pressure to control the flux, plus a pointer to the double which contains the desired flux value

       : Flux_control_mesh_pt(flux_control_mesh_pt),
         Prescribed_flux_value_pt(prescribed_flux_value_pt)
     {
       // Construct Pressure_data_pt
       Pressure_data_pt = new Data(1);

       // Add the new Data to internal Data for this element
       add_internal_data(Pressure_data_pt);

       // There's no need to add the external data for this element since
       // this elements Jacobian contributions are calculated by the
       // NavierStokesFluxControlElements

       // Loop over elements in the Flux_control_mesh to add this element's
       // Data to the external Data in the elements in the flux control mesh
       unsigned n_el = Flux_control_mesh_pt->nelement();
       for (unsigned e = 0; e < n_el; e++)
       {
         // Get pointer to the element
         GeneralisedElement* el_pt = Flux_control_mesh_pt->element_pt(e);

         // Perform cast to TemplateFreeNavierStokesFluxControlElementBase
         // pointer
         TemplateFreeNavierStokesFluxControlElementBase* flux_el_pt =
           dynamic_cast<TemplateFreeNavierStokesFluxControlElementBase*>(el_pt);

         flux_el_pt->add_pressure_data(Pressure_data_pt);
       }

       // Default value for Dof_number_for_unknown, indiating that it's
       // uninitialised
       Dof_number_for_unknown = UINT_MAX;
     }

References oomph::GeneralisedElement::add_internal_data(), oomph::TemplateFreeNavierStokesFluxControlElementBase::add_pressure_data(), oomph::NetFluxControlElement< ELEMENT >::Dof_number_for_unknown, e(), oomph::Mesh::element_pt(), oomph::NetFluxControlElement< ELEMENT >::Flux_control_mesh_pt, oomph::Mesh::nelement(), and oomph::NetFluxControlElement< ELEMENT >::Pressure_data_pt.

◆ ~NetFluxControlElement() [2/2]

template<class ELEMENT >

oomph::NetFluxControlElement< ELEMENT >::~NetFluxControlElement ( )

inline

Empty Destructor - Data gets deleted automatically.

148 {}

◆ NetFluxControlElement() [4/4]

template<class ELEMENT >

oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement ( const NetFluxControlElement< ELEMENT > & dummy )

delete

Broken copy constructor.

Member Function Documentation

◆ dim()

template<class ELEMENT >

unsigned oomph::NetFluxControlElement< ELEMENT >::dim ( ) const

inline

Broken assignment operator.

Spatial dimension of the problem

     {
       return Dim;
     }

References oomph::NetFluxControlElement< ELEMENT >::Dim.

◆ dof_number_for_unknown()

template<class ELEMENT >

unsigned& oomph::NetFluxControlElement< ELEMENT >::dof_number_for_unknown ( )

inline

Function to set / get the nodal value of the "DOF type" to which the degree of freedom in this element (the pressure that enforces the required volume flux!) is added to. This should be set to the Navier-Stokes pressure DOF type (usually the dimension of the problem, for example, in 3D, the DOF types for single-physics Navier-Stokes elements are usually labelled 0, 1, 2, 3 for u, v and w velocities and pressure respectively. It is important to note that this is dimension dependent, so should not be hard coded in!! In particularly, this should not simply be set to the dimension of the problem if there is further splitting of the velocity DOF types) if this element is added to a fluid mesh containing Navier-Stokes elements.

     {
       return Dof_number_for_unknown;
     }

References oomph::NetFluxControlElement< ELEMENT >::Dof_number_for_unknown.

Referenced by CollapsibleChannelProblem< ELEMENT >::setup_outflow_flux_control_elements().

◆ fill_in_contribution_to_jacobian()

template<class ELEMENT >

void oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_jacobian	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian
	)

inlinevirtual

This function returns the residuals, but adds nothing to the Jacobian as this element's Jacobian contributions are calculated by the NavierStokesFluxControlElements which impose the traction used to control the flux.

Reimplemented from oomph::GeneralisedElement.

     {
       // Call the generic routine
       fill_in_generic_residual_contribution_flux_control(residuals);
     }

References oomph::NetFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_flux_control().

◆ fill_in_contribution_to_residuals() [1/2]

template<class ELEMENT >

void oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_residuals ( Vector< double > & residuals )

inlinevirtual

Add the element's contribution to its residual vector: The flow constraint. [Note: Jacobian is computed automatically by finite-differencing]

Reimplemented from oomph::GeneralisedElement.

  {
   // Initialise volume flux
   double volume_flux  = 0.0;

   // Loop over elements in Flux_control_mesh_pt and calculate flux
   unsigned n_el = Flux_control_mesh_pt->nelement();
   for (unsigned e=0; e<n_el; e++)
    {
     // Get a pointer to the element
     GeneralisedElement* el_pt = Flux_control_mesh_pt->element_pt(e);

     // Cast to NavierStokesFluxControlElement
     NavierStokesFluxControlElement<ELEMENT>* flux_control_el_pt =
      dynamic_cast<NavierStokesFluxControlElement<ELEMENT>* >(el_pt);

     // Add the elemental volume flux
     volume_flux += flux_control_el_pt->get_volume_flux();
    }

   residuals[0] = volume_flux - *Prescribed_outflow_value_pt;
  }

References e(), oomph::Mesh::element_pt(), oomph::NetFluxControlElement< ELEMENT >::Flux_control_mesh_pt, oomph::NavierStokesFluxControlElement< ELEMENT >::get_volume_flux(), oomph::Mesh::nelement(), and oomph::NetFluxControlElement< ELEMENT >::Prescribed_outflow_value_pt.

◆ fill_in_contribution_to_residuals() [2/2]

template<class ELEMENT >

void oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_residuals ( Vector< double > & residuals )

inlinevirtual

Add the element's contribution to its residual vector: i.e. the flux constraint.

Reimplemented from oomph::GeneralisedElement.

     {
       // Call the generic routine
       fill_in_generic_residual_contribution_flux_control(residuals);
     }

References oomph::NetFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_flux_control().

◆ fill_in_generic_residual_contribution_flux_control()

template<class ELEMENT >

void oomph::NetFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_flux_control ( Vector< double > & residuals )

inlineprotected

This function returns the residuals for the flux control master element.

     {
       // Initialise volume flux
       double volume_flux = 0.0;

       // Loop over elements in Flux_control_mesh_pt and calculate flux
       unsigned n_el = Flux_control_mesh_pt->nelement();
       for (unsigned e = 0; e < n_el; e++)
       {
         // Get a pointer to the element
         GeneralisedElement* el_pt = Flux_control_mesh_pt->element_pt(e);

         // Cast to NavierStokesFluxControlElement
         TemplateFreeNavierStokesFluxControlElementBase* flux_control_el_pt = 0;
         flux_control_el_pt =
           dynamic_cast<TemplateFreeNavierStokesFluxControlElementBase*>(el_pt);

 #ifdef PARANOID
         if (flux_control_el_pt == 0)
         {
           throw OomphLibError("Element must be used with a mesh of "
                               "NavierStokesFluxControlElements",
                               OOMPH_CURRENT_FUNCTION,
                               OOMPH_EXCEPTION_LOCATION);
         }
 #endif

         // Add the elemental volume flux
         volume_flux += flux_control_el_pt->get_volume_flux();
       }

       residuals[0] += *Prescribed_flux_value_pt - volume_flux;
     }

References e(), oomph::Mesh::element_pt(), oomph::NetFluxControlElement< ELEMENT >::Flux_control_mesh_pt, oomph::TemplateFreeNavierStokesFluxControlElementBase::get_volume_flux(), oomph::Mesh::nelement(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, and oomph::NetFluxControlElement< ELEMENT >::Prescribed_flux_value_pt.

Referenced by oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_jacobian(), and oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_residuals().

◆ get_dof_numbers_for_unknowns()

template<class ELEMENT >

void oomph::NetFluxControlElement< ELEMENT >::get_dof_numbers_for_unknowns ( std::list< std::pair< unsigned long, unsigned >> & dof_lookup_list ) const

inlinevirtual

Create a list of pairs for all unknowns in this element, so that the first entry in each pair contains the global equation number of the unknown, while the second one contains the number of the "DOF type" that this unknown is associated with. (Function can obviously only be called if the equation numbering scheme has been set up.) The single degree of freedom is given the DOF type number of Dof_number_for_unknown since it's expected this unknown is added to the Navier-Stokes pressure DOF block (it is also assumed that the user has set the Dof_number_for_unknown variable to the velocity DOF type using the function dof_number_for_unknown()).

Reimplemented from oomph::GeneralisedElement.

Reimplemented in oomph::NetFluxControlElementForWomersleyPressureControl.

     {
 #ifdef PARANOID
       if (Dof_number_for_unknown == UINT_MAX)
       {
         std::ostringstream error_message;
         error_message << "Dof_number_for_unknown hasn't been set yet!\n"
                       << "Please do so using the dof_number_for_unknown()\n"
                       << "access function\n";
         throw OomphLibError(error_message.str(),
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }
 #endif

       // pair to store dof lookup prior to being added to list
       std::pair<unsigned, unsigned> dof_lookup;

       dof_lookup.first = this->eqn_number(0);
       dof_lookup.second = Dof_number_for_unknown;

       // add to list
       dof_lookup_list.push_front(dof_lookup);
     }

References oomph::NetFluxControlElement< ELEMENT >::Dof_number_for_unknown, oomph::GeneralisedElement::eqn_number(), OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

◆ ndof_types()

template<class ELEMENT >

unsigned oomph::NetFluxControlElement< ELEMENT >::ndof_types ( ) const

inlinevirtual

The number of "DOF types" that degrees of freedom in this element are sub-divided into - it's set to Dof_number_for_unknown+1 because it's expected this element is added to a fluid mesh containing navier stokes elements

Reimplemented from oomph::GeneralisedElement.

Reimplemented in oomph::NetFluxControlElementForWomersleyPressureControl.

     {
 #ifdef PARANOID
       if (Dof_number_for_unknown == UINT_MAX)
       {
         std::ostringstream error_message;
         error_message << "Dof_number_for_unknown hasn't been set yet!\n"
                       << "Please do so using the dof_number_for_unknown()\n"
                       << "access function\n";
         throw OomphLibError(error_message.str(),
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }
 #endif
       return Dof_number_for_unknown + 1;
     }

References oomph::NetFluxControlElement< ELEMENT >::Dof_number_for_unknown, OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

◆ pressure_data_pt() [1/2]

template<class ELEMENT >

Data* oomph::NetFluxControlElement< ELEMENT >::pressure_data_pt ( ) const

inline

Function return pointer to the Data object whose single value is the pressure applied by the elements in Flux_control_mesh_pt

104 {return Pressure_data_pt;}

References oomph::NetFluxControlElement< ELEMENT >::Pressure_data_pt.

Referenced by UnstructuredFSIProblem< FLUID_ELEMENT, SOLID_ELEMENT >::create_parallel_flow_lagrange_elements(), oomph::NetFluxControlElementForWomersleyPressureControl::NetFluxControlElementForWomersleyPressureControl(), and CollapsibleChannelProblem< ELEMENT >::setup_outflow_flux_control_elements().

◆ pressure_data_pt() [2/2]

template<class ELEMENT >

Data* oomph::NetFluxControlElement< ELEMENT >::pressure_data_pt ( ) const

inline

Function to return a pointer to the Data object whose single value is the pressure applied by the NavierStokesFluxControlElement elements

     {
       return Pressure_data_pt;
     }

References oomph::NetFluxControlElement< ELEMENT >::Pressure_data_pt.

Member Data Documentation

◆ Dim

template<class ELEMENT >

unsigned oomph::NetFluxControlElement< ELEMENT >::Dim

private

spatial dim of NS system

Referenced by oomph::NetFluxControlElement< ELEMENT >::dim().

◆ Dof_number_for_unknown

template<class ELEMENT >

unsigned oomph::NetFluxControlElement< ELEMENT >::Dof_number_for_unknown

private

The id number of the "DOF type" to which the degree of freedom in this element is added to. This should be set to the number id of the Navier-Stokes pressure DOF block (which is dimension dependent!) if this element is added to a fluid mesh containing navier stokes elements

Referenced by oomph::NetFluxControlElement< ELEMENT >::dof_number_for_unknown(), oomph::NetFluxControlElement< ELEMENT >::get_dof_numbers_for_unknowns(), oomph::NetFluxControlElement< ELEMENT >::ndof_types(), and oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement().

◆ Flux_control_mesh_pt

template<class ELEMENT >

Mesh * oomph::NetFluxControlElement< ELEMENT >::Flux_control_mesh_pt

private

Mesh of elements which impose a pressure which controls the net flux

Mesh of elements which impose the pressure which controls the net flux

Referenced by oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_residuals(), oomph::NetFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_flux_control(), and oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement().

◆ Prescribed_flux_value_pt

template<class ELEMENT >

double* oomph::NetFluxControlElement< ELEMENT >::Prescribed_flux_value_pt

private

Pointer to the value that stores the prescribed flux.

Referenced by oomph::NetFluxControlElement< ELEMENT >::fill_in_generic_residual_contribution_flux_control().

◆ Prescribed_outflow_value_pt

template<class ELEMENT >

double* oomph::NetFluxControlElement< ELEMENT >::Prescribed_outflow_value_pt

private

Pointer to the value that stores the prescribed outflow.

Referenced by oomph::NetFluxControlElement< ELEMENT >::fill_in_contribution_to_residuals().

◆ Pressure_data_pt

template<class ELEMENT >

Data * oomph::NetFluxControlElement< ELEMENT >::Pressure_data_pt

private

The number of "blocks" that degrees of freedom in this element are sub-divided into

IMPORTANT: This is not even the correct function name! Because this appears to be untested (it will break if tested!), I will comment this out. Please re-implement if required in the future. The correct function signature is: unsigned ndof_types() const Create a list of pairs for all unknowns in this element, so that the first entry in each pair contains the global equation number of the unknown, while the second one contains the number of the "block" that this unknown is associated with. (Function can obviously only be called if the equation numbering scheme has been set up.) Pressure=1 since we expect to add this unknown to the pressure block

IMPORTANT: This is not even the correct function name I have no self tests for this, because it appears to be not tested, I will comment this out, the correct function signature is: void get_dof_numbers_for_unknowns( std::list<std::pair<unsigned long, unsigned> >& block_lookup_list) const Data object whose single value is the pressure applied by the elements in the Flux_control_mesh_pt

Data object whose single value is the pressure applied by the elements in the Flux_control_mesh_pt

Referenced by oomph::NetFluxControlElement< ELEMENT >::NetFluxControlElement(), and oomph::NetFluxControlElement< ELEMENT >::pressure_data_pt().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<class ELEMENT> class oomph::NetFluxControlElement< ELEMENT >

Constructor & Destructor Documentation

◆ NetFluxControlElement() [1/4]

◆ ~NetFluxControlElement() [1/2]

◆ NetFluxControlElement() [2/4]

◆ NetFluxControlElement() [3/4]

◆ ~NetFluxControlElement() [2/2]

◆ NetFluxControlElement() [4/4]

Member Function Documentation

◆ dim()

◆ dof_number_for_unknown()

◆ fill_in_contribution_to_jacobian()

◆ fill_in_contribution_to_residuals() [1/2]

◆ fill_in_contribution_to_residuals() [2/2]

◆ fill_in_generic_residual_contribution_flux_control()

◆ get_dof_numbers_for_unknowns()

◆ ndof_types()

◆ pressure_data_pt() [1/2]

◆ pressure_data_pt() [2/2]

Member Data Documentation

◆ Dim

◆ Dof_number_for_unknown

◆ Flux_control_mesh_pt

◆ Prescribed_flux_value_pt

◆ Prescribed_outflow_value_pt

◆ Pressure_data_pt

template<class ELEMENT>
class oomph::NetFluxControlElement< ELEMENT >
