Unstructured refineable Triangle Mesh. More...

#include <triangle_mesh.template.h>

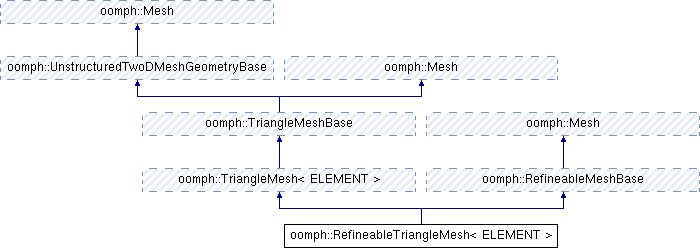

Inheritance diagram for oomph::RefineableTriangleMesh< ELEMENT >:

Public Types
typedef void(*	MeshUpdateFctPt) (Mesh *mesh_pt)

typedef void(*	InternalHolePointUpdateFctPt) (const unsigned &ihole, TriangleMeshPolygon *poly_pt)

Public Types inherited from oomph::Mesh
typedef void(FiniteElement::*	SteadyExactSolutionFctPt) (const Vector< double > &x, Vector< double > &soln)

typedef void(FiniteElement::*	UnsteadyExactSolutionFctPt) (const double &time, const Vector< double > &x, Vector< double > &soln)

Public Member Functions
	RefineableTriangleMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &poly_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &allow_automatic_creation_of_vertices_on_boundaries=true)
	Build mesh, based on the polyfiles. More...

Public Member Functions inherited from oomph::TriangleMesh< ELEMENT >
	TriangleMesh ()
	Empty constructor. More...

	TriangleMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &poly_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &allow_automatic_creation_of_vertices_on_boundaries=true)
	Constructor with the input files. More...

void	output_boundary_coordinates (const unsigned &b, std::ostream &outfile)

Public Member Functions inherited from oomph::TriangleMeshBase
	TriangleMeshBase ()
	Constructor. More...

	TriangleMeshBase (const TriangleMeshBase &node)=delete
	Broken copy constructor. More...

virtual	~TriangleMeshBase ()
	Broken assignment operator. More...

void	setup_boundary_element_info ()

void	setup_boundary_element_info (std::ostream &outfile)

virtual void	load_balance (const Vector< unsigned > &target_domain_for_local_non_halo_element)
	Virtual function to perform the load balance rutines. More...

virtual void	reset_boundary_element_info (Vector< unsigned > &ntmp_boundary_elements, Vector< Vector< unsigned >> &ntmp_boundary_elements_in_region, Vector< FiniteElement * > &deleted_elements)
	Virtual function to perform the reset boundary elements info rutines. More...

Public Member Functions inherited from oomph::UnstructuredTwoDMeshGeometryBase
	UnstructuredTwoDMeshGeometryBase ()
	Empty constructor. More...

	UnstructuredTwoDMeshGeometryBase (const UnstructuredTwoDMeshGeometryBase &dummy)=delete
	Broken copy constructor. More...

void	operator= (const UnstructuredTwoDMeshGeometryBase &)=delete
	Broken assignment operator. More...

	~UnstructuredTwoDMeshGeometryBase ()
	Empty destructor. More...

unsigned	nregion ()
	Return the number of regions specified by attributes. More...

unsigned	nregion_element (const unsigned &i)
	Return the number of elements in the i-th region. More...

FiniteElement *	region_element_pt (const unsigned &i, const unsigned &e)
	Return the e-th element in the i-th region. More...

unsigned	nregion_attribute ()
	Return the number of attributes used in the mesh. More...

double	region_attribute (const unsigned &i)
	Return the attribute associated with region i. More...

GeomObject *	boundary_geom_object_pt (const unsigned &b)

std::map< unsigned, GeomObject * > &	boundary_geom_object_pt ()
	Return direct access to the geometric object storage. More...

std::map< unsigned, Vector< double > > &	boundary_coordinate_limits ()

Vector< double > &	boundary_coordinate_limits (const unsigned &b)

unsigned	nboundary_element_in_region (const unsigned &b, const unsigned &r) const
	Return the number of elements adjacent to boundary b in region r. More...

FiniteElement *	boundary_element_in_region_pt (const unsigned &b, const unsigned &r, const unsigned &e) const
	Return pointer to the e-th element adjacent to boundary b in region r. More...

int	face_index_at_boundary_in_region (const unsigned &b, const unsigned &r, const unsigned &e) const
	Return face index of the e-th element adjacent to boundary b in region r. More...

TriangleMeshPolyLine *	boundary_polyline_pt (const unsigned &b)

std::map< unsigned, std::set< Node * > > &	nodes_on_boundary_pt ()

const bool	get_connected_vertex_number_on_destination_polyline (TriangleMeshPolyLine *dst_polyline_pt, Vector< double > &vertex_coordinates, unsigned &vertex_number)

void	check_contiguousness_on_polylines_helper (Vector< TriangleMeshPolyLine * > &polylines_pt, unsigned &index)

void	check_contiguousness_on_polylines_helper (Vector< TriangleMeshPolyLine * > &polylines_pt, unsigned &index_halo_start, unsigned &index_halo_end)

bool	is_point_inside_polygon_helper (Vector< Vector< double >> polygon_vertices, Vector< double > point)
	Helper function that checks if a given point is inside a polygon. More...

void	enable_automatic_creation_of_vertices_on_boundaries ()

void	disable_automatic_creation_of_vertices_on_boundaries ()

bool	is_automatic_creation_of_vertices_on_boundaries_allowed ()

template<class ELEMENT >
void	setup_boundary_coordinates (const unsigned &b)

template<class ELEMENT >
void	setup_boundary_coordinates (const unsigned &b, std::ofstream &outfile)

Public Member Functions inherited from oomph::Mesh
	Mesh ()
	Default constructor. More...

	Mesh (const Vector< Mesh * > &sub_mesh_pt)

void	merge_meshes (const Vector< Mesh * > &sub_mesh_pt)

template<class BULK_ELEMENT >
void	doc_boundary_coordinates (const unsigned &b, std::ofstream &the_file)

virtual void	scale_mesh (const double &factor)

	Mesh (const Mesh &dummy)=delete
	Broken copy constructor. More...

void	operator= (const Mesh &)=delete
	Broken assignment operator. More...

virtual	~Mesh ()
	Virtual Destructor to clean up all memory. More...

void	flush_element_and_node_storage ()

void	flush_element_storage ()

void	flush_node_storage ()

Node *&	node_pt (const unsigned long &n)
	Return pointer to global node n. More...

Node *	node_pt (const unsigned long &n) const
	Return pointer to global node n (const version) More...

GeneralisedElement *&	element_pt (const unsigned long &e)
	Return pointer to element e. More...

GeneralisedElement *	element_pt (const unsigned long &e) const
	Return pointer to element e (const version) More...

const Vector< GeneralisedElement * > &	element_pt () const
	Return reference to the Vector of elements. More...

Vector< GeneralisedElement * > &	element_pt ()
	Return reference to the Vector of elements. More...

FiniteElement *	finite_element_pt (const unsigned &e) const

Node *&	boundary_node_pt (const unsigned &b, const unsigned &n)
	Return pointer to node n on boundary b. More...

Node *	boundary_node_pt (const unsigned &b, const unsigned &n) const
	Return pointer to node n on boundary b. More...

void	set_nboundary (const unsigned &nbound)
	Set the number of boundaries in the mesh. More...

void	remove_boundary_nodes ()
	Clear all pointers to boundary nodes. More...

void	remove_boundary_nodes (const unsigned &b)

void	remove_boundary_node (const unsigned &b, Node *const &node_pt)
	Remove a node from the boundary b. More...

void	add_boundary_node (const unsigned &b, Node *const &node_pt)
	Add a (pointer to) a node to the b-th boundary. More...

void	copy_boundary_node_data_from_nodes ()

bool	boundary_coordinate_exists (const unsigned &i) const
	Indicate whether the i-th boundary has an intrinsic coordinate. More...

unsigned long	nelement () const
	Return number of elements in the mesh. More...

unsigned long	nnode () const
	Return number of nodes in the mesh. More...

unsigned	ndof_types () const
	Return number of dof types in mesh. More...

unsigned	elemental_dimension () const
	Return number of elemental dimension in mesh. More...

unsigned	nodal_dimension () const
	Return number of nodal dimension in mesh. More...

void	add_node_pt (Node *const &node_pt)
	Add a (pointer to a) node to the mesh. More...

void	add_element_pt (GeneralisedElement *const &element_pt)
	Add a (pointer to) an element to the mesh. More...

virtual void	node_update (const bool &update_all_solid_nodes=false)

virtual void	reorder_nodes (const bool &use_old_ordering=true)

virtual void	get_node_reordering (Vector< Node * > &reordering, const bool &use_old_ordering=true) const

template<class BULK_ELEMENT , template< class > class FACE_ELEMENT>
void	build_face_mesh (const unsigned &b, Mesh *const &face_mesh_pt)

unsigned	self_test ()
	Self-test: Check elements and nodes. Return 0 for OK. More...

void	max_and_min_element_size (double &max_size, double &min_size)

double	total_size ()

void	check_inverted_elements (bool &mesh_has_inverted_elements, std::ofstream &inverted_element_file)

void	check_inverted_elements (bool &mesh_has_inverted_elements)

unsigned	check_for_repeated_nodes (const double &epsilon=1.0e-12)

Vector< Node * >	prune_dead_nodes ()

unsigned	nboundary () const
	Return number of boundaries. More...

unsigned long	nboundary_node (const unsigned &ibound) const
	Return number of nodes on a particular boundary. More...

FiniteElement *	boundary_element_pt (const unsigned &b, const unsigned &e) const
	Return pointer to e-th finite element on boundary b. More...

Node *	get_some_non_boundary_node () const

unsigned	nboundary_element (const unsigned &b) const
	Return number of finite elements that are adjacent to boundary b. More...

int	face_index_at_boundary (const unsigned &b, const unsigned &e) const

virtual void	dump (std::ofstream &dump_file, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...

void	dump (const std::string &dump_file_name, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...

virtual void	read (std::ifstream &restart_file)
	Read solution from restart file. More...

void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const

void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const

void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const

void	output (std::ostream &outfile)
	Output for all elements. More...

void	output (std::ostream &outfile, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...

void	output (FILE *file_pt)
	Output for all elements (C-style output) More...

void	output (FILE *file_pt, const unsigned &nplot)
	Output at f(n_plot) points in each element (C-style output) More...

void	output (const std::string &output_filename)
	Output for all elements. More...

void	output (const std::string &output_filename, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...

void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt)
	Output a given Vector function at f(n_plot) points in each element. More...

void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt)

void	output_boundaries (std::ostream &outfile)
	Output the nodes on the boundaries (into separate tecplot zones) More...

void	output_boundaries (const std::string &output_filename)

void	assign_initial_values_impulsive ()
	Assign initial values for an impulsive start. More...

void	shift_time_values ()

void	calculate_predictions ()

void	set_nodal_and_elemental_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	set_consistent_pinned_values_for_continuation (ContinuationStorageScheme *const &continuation_stepper_pt)
	Set consistent values for pinned data in continuation. More...

bool	does_pointer_correspond_to_mesh_data (double *const &parameter_pt)
	Does the double pointer correspond to any mesh data. More...

void	set_nodal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
	Set the timestepper associated with the nodal data in the mesh. More...

void	set_elemental_internal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

virtual void	compute_norm (double &norm)

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Returns the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

bool	is_mesh_distributed () const
	Boolean to indicate if Mesh has been distributed. More...

OomphCommunicator *	communicator_pt () const

void	delete_all_external_storage ()
	Wipe the storage for all externally-based elements. More...

Public Member Functions inherited from oomph::RefineableMeshBase
bool	adapt_flag ()

	RefineableMeshBase ()

	RefineableMeshBase (const RefineableMeshBase &dummy)=delete
	Broken copy constructor. More...

void	operator= (const RefineableMeshBase &)=delete
	Broken assignment operator. More...

virtual	~RefineableMeshBase ()
	Empty Destructor: More...

unsigned	nrefined ()
	Access fct for number of elements that were refined. More...

unsigned	nunrefined ()
	Access fct for number of elements that were unrefined. More...

unsigned &	nrefinement_overruled ()

unsigned &	max_keep_unrefined ()

ErrorEstimator *&	spatial_error_estimator_pt ()
	Access to spatial error estimator. More...

ErrorEstimator *	spatial_error_estimator_pt () const
	Access to spatial error estimator (const version. More...

double &	min_permitted_error ()

double &	max_permitted_error ()

double &	min_error ()

double &	max_error ()

DocInfo *&	doc_info_pt ()
	Access fct for pointer to DocInfo. More...

void	enable_adaptation ()
	Enable adaptation. More...

void	disable_adaptation ()
	Disable adaptation. More...

void	enable_p_adaptation ()
	Enable adaptation. More...

void	disable_p_adaptation ()
	Disable adaptation. More...

void	enable_additional_synchronisation_of_hanging_nodes ()
	Enable additional synchronisation of hanging nodes. More...

void	disable_additional_synchronisation_of_hanging_nodes ()
	Disable additional synchronisation of hanging nodes. More...

bool	is_adaptation_enabled () const
	Return whether the mesh is to be adapted. More...

bool	is_p_adaptation_enabled () const
	Return whether the mesh is to be adapted. More...

bool	is_additional_synchronisation_of_hanging_nodes_disabled () const
	Return whether additional synchronisation is enabled. More...

DocInfo	doc_info ()
	Access fct for DocInfo. More...

virtual void	p_adapt (const Vector< double > &elemental_error)

virtual void	refine_uniformly ()
	Refine mesh uniformly. More...

virtual void	p_refine_uniformly (DocInfo &doc_info)
	p-refine mesh uniformly and doc process More...

virtual void	p_refine_uniformly ()
	p-refine mesh uniformly More...

void	p_unrefine_uniformly (DocInfo &doc_info)
	p-unrefine mesh uniformly More...

Protected Member Functions
virtual	~RefineableTriangleMesh ()
	Empty Destructor. More...

void	enable_timings_tranfering_target_areas ()

void	disable_timings_tranfering_target_areas ()

void	enable_projection ()
	Enables the solution projection step during adaptation. More...

void	disable_projection ()
	Disables the solution projection step during adaptation. More...

void	enable_timings_projection ()
	Enables info. and timings for projection. More...

void	disable_timings_projection ()
	Disables info. and timings for projection. More...

unsigned &	nbin_x_for_area_transfer ()

unsigned &	nbin_y_for_area_transfer ()

unsigned	max_sample_points_for_limited_locate_zeta_during_target_area_transfer ()

double &	max_element_size ()
	Max element size allowed during adaptation. More...

double &	min_element_size ()
	Min element size allowed during adaptation. More...

double &	min_permitted_angle ()
	Min angle before remesh gets triggered. More...

bool	use_iterative_solver_for_projection ()

void	enable_iterative_solver_for_projection ()

void	disable_iterative_solver_for_projection ()

void	enable_print_timings_adaptation (const unsigned &print_level=1)
	Enables printing of timings for adaptation. More...

void	disable_print_timings_adaptation ()
	Disables printing of timings for adaptation. More...

void	set_print_level_timings_adaptation (const unsigned &print_level)
	Sets the printing level of timings for adaptation. More...

void	enable_print_timings_load_balance (const unsigned &print_level=1)
	Enables printing of timings for load balance. More...

void	disable_print_timings_load_balance ()
	Disables printing of timings for load balance. More...

void	set_print_level_timings_load_balance (const unsigned &print_level)
	Sets the printing level of timings for load balance. More...

void	doc_adaptivity_targets (std::ostream &outfile)
	Doc the targets for mesh adaptation. More...

void	refine_uniformly (DocInfo &doc_info)
	Refine mesh uniformly and doc process. More...

unsigned	unrefine_uniformly ()

void	adapt (const Vector< double > &elem_error)
	Adapt mesh, based on elemental error provided. More...

MeshUpdateFctPt &	mesh_update_fct_pt ()

InternalHolePointUpdateFctPt &	internal_hole_point_update_fct_pt ()

void	create_polylines_from_polyfiles (const std::string &node_file_name, const std::string &poly_file_name)
	Helper function to create polylines and fill associate data. More...

void	update_polyline_representation_from_restart ()
	Method used to update the polylines representation after restart. More...

void	get_boundary_segment_nodes_helper (const unsigned &b, Vector< Vector< Node * >> &tmp_segment_nodes)

void	enable_boundary_unrefinement_constrained_by_target_areas ()

void	disable_boundary_unrefinement_constrained_by_target_areas ()

void	enable_boundary_refinement_constrained_by_target_areas ()

void	disable_boundary_refinement_constrained_by_target_areas ()

void	enable_shared_boundary_unrefinement_constrained_by_target_areas ()

void	disable_shared_boundary_unrefinement_constrained_by_target_areas ()

void	enable_shared_boundary_refinement_constrained_by_target_areas ()

void	disable_shared_boundary_refinement_constrained_by_target_areas ()

const bool	boundary_connections (const unsigned &b, const unsigned &c, std::set< Vector< double >> &vertices)

const void	synchronize_shared_boundary_connections ()
	Synchronise the vertices that are marked for non deletion. More...

void	add_vertices_for_non_deletion ()

void	add_non_delete_vertices_from_boundary_helper (Vector< Vector< Node * >> src_bound_segment_node_pt, Vector< Vector< Node * >> dst_bound_segment_node_pt, const unsigned &dst_bnd_id, const unsigned &dst_bnd_chunk)

void	create_temporary_boundary_connections (Vector< TriangleMeshPolygon * > &tmp_outer_polygons_pt, Vector< TriangleMeshOpenCurve * > &tmp_open_curves_pt)

void	restore_boundary_connections (Vector< TriangleMeshPolyLine * > &resume_initial_connection_polyline_pt, Vector< TriangleMeshPolyLine * > &resume_final_connection_polyline_pt)

void	restore_polyline_connections_helper (TriangleMeshPolyLine polyline_pt, Vector< TriangleMeshPolyLine > &resume_initial_connection_polyline_pt, Vector< TriangleMeshPolyLine * > &resume_final_connection_polyline_pt)

void	resume_boundary_connections (Vector< TriangleMeshPolyLine * > &resume_initial_connection_polyline_pt, Vector< TriangleMeshPolyLine * > &resume_final_connection_polyline_pt)

bool	get_connected_vertex_number_on_dst_boundary (Vector< double > &vertex_coordinates, const unsigned &dst_b_id, unsigned &vertex_number)

bool	unrefine_boundary (const unsigned &b, const unsigned &c, Vector< Vector< double >> &vector_bnd_vertices, double &unrefinement_tolerance, const bool &check_only=false)
	Helper function that performs the unrefinement process. More...

bool	refine_boundary (Mesh *face_mesh_pt, Vector< Vector< double >> &vector_bnd_vertices, double &refinement_tolerance, const bool &check_only=false)

bool	apply_max_length_constraint (Mesh *face_mesh_pt, Vector< Vector< double >> &vector_bnd_vertices, double &max_length_constraint)

bool	unrefine_boundary_constrained_by_target_area (const unsigned &b, const unsigned &c, Vector< Vector< double >> &vector_bnd_vertices, double &unrefinement_tolerance, Vector< double > &area_constraint)

bool	refine_boundary_constrained_by_target_area (MeshAsGeomObject *mesh_geom_obj_pt, Vector< Vector< double >> &vector_bnd_vertices, double &refinement_tolerance, Vector< double > &area_constraint)

bool	unrefine_shared_boundary_constrained_by_target_area (const unsigned &b, const unsigned &c, Vector< Vector< double >> &vector_bnd_vertices, Vector< double > &area_constraint)

bool	refine_shared_boundary_constrained_by_target_area (Vector< Vector< double >> &vector_bnd_vertices, Vector< double > &area_constraint)

void	initialise_boundary_refinement_data ()
	Set all the flags to true (the default values) More...

bool	update_polygon_using_face_mesh (TriangleMeshPolygon *polygon_pt, const bool &check_only=false)

bool	update_open_curve_using_face_mesh (TriangleMeshOpenCurve *open_polyline_pt, const bool &check_only=false)

virtual bool	surface_remesh_for_inner_hole_boundaries (Vector< Vector< double >> &internal_point_coord, const bool &check_only=false)

void	snap_nodes_onto_boundary (RefineableTriangleMesh< ELEMENT > *&new_mesh_pt, const unsigned &b)
	Snap the boundary nodes onto any curvilinear boundaries. More...

void	create_unsorted_face_mesh_representation (const unsigned &boundary_id, Mesh *face_mesh_pt)

void	create_sorted_face_mesh_representation (const unsigned &boundary_id, Mesh face_mesh_pt, std::map< FiniteElement , bool > &is_inverted, bool &inverted_face_mesh)

void	get_face_mesh_representation (TriangleMeshPolygon polygon_pt, Vector< Mesh > &face_mesh_pt)

void	get_face_mesh_representation (TriangleMeshOpenCurve open_polyline_pt, Vector< Mesh > &face_mesh_pt)

void	update_polygon_after_restart (TriangleMeshPolygon *&polygon_pt)
	Updates the polylines representation after restart. More...

void	update_open_curve_after_restart (TriangleMeshOpenCurve *&open_curve_pt)
	Updates the open curve representation after restart. More...

bool	update_polygon_using_elements_area (TriangleMeshPolygon *&polygon_pt, const Vector< double > &target_area)

bool	update_open_curve_using_elements_area (TriangleMeshOpenCurve *&open_curve_pt, const Vector< double > &target_area)

void	initialise_adaptation_data ()
	Helper function to initialise data associated with adaptation. More...

double	compute_area_target (const Vector< double > &elem_error, Vector< double > &target_area)

Protected Member Functions inherited from oomph::TriangleMesh< ELEMENT >
	TriangleMesh (const TriangleMesh &dummy)=delete
	Broken copy constructor. More...

void	operator= (const TriangleMesh &)=delete
	Broken assignment operator. More...

virtual	~TriangleMesh ()
	Destructor. More...

void	set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

Vector< unsigned >	oomph_vertex_nodes_id ()

void	build_from_scaffold (TimeStepper *time_stepper_pt, const bool &use_attributes)
	Build mesh from scaffold. More...

Protected Member Functions inherited from oomph::UnstructuredTwoDMeshGeometryBase
void	snap_nodes_onto_geometric_objects ()

void	copy_connection_information (TriangleMeshCurveSection input_curve_pt, TriangleMeshCurveSection output_curve_pt)

void	copy_connection_information_to_sub_polylines (TriangleMeshCurveSection input_curve_pt, TriangleMeshCurveSection output_curve_pt)

Protected Member Functions inherited from oomph::Mesh
unsigned long	assign_global_eqn_numbers (Vector< double * > &Dof_pt)
	Assign (global) equation numbers to the nodes. More...

void	describe_dofs (std::ostream &out, const std::string &current_string) const

void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

void	assign_local_eqn_numbers (const bool &store_local_dof_pt)
	Assign local equation numbers in all elements. More...

void	convert_to_boundary_node (Node &node_pt, const Vector< FiniteElement > &finite_element_pt)

void	convert_to_boundary_node (Node *&node_pt)

Protected Attributes
std::map< unsigned, std::set< Vector< double > > >	Boundary_connections_pt

bool	Do_boundary_unrefinement_constrained_by_target_areas
	Flag that enables or disables boundary unrefinement (true by default) More...

bool	Do_boundary_refinement_constrained_by_target_areas
	Flag that enables or disables boundary refinement (true by default) More...

bool	Do_shared_boundary_unrefinement_constrained_by_target_areas
	Flag that enables or disables boundary unrefinement (true by default) More...

bool	Do_shared_boundary_refinement_constrained_by_target_areas
	Flag that enables or disables boundary unrefinement (true by default) More...

unsigned	Nbin_x_for_area_transfer

unsigned	Nbin_y_for_area_transfer

unsigned	Max_sample_points_for_limited_locate_zeta_during_target_area_transfer

double	Max_element_size
	Max permitted element size. More...

double	Min_element_size
	Min permitted element size. More...

double	Min_permitted_angle
	Min angle before remesh gets triggered. More...

bool	Disable_projection
	Enable/disable solution projection during adaptation. More...

bool	Use_iterative_solver_for_projection

bool	Print_timings_transfering_target_areas
	Enable/disable printing timings for transfering target areas. More...

bool	Print_timings_projection
	Enable/disable printing timings for projection. More...

unsigned	Print_timings_level_adaptation
	The printing level for adaptation. More...

unsigned	Print_timings_level_load_balance
	The printing level for load balance. More...

MeshUpdateFctPt	Mesh_update_fct_pt

InternalHolePointUpdateFctPt	Internal_hole_point_update_fct_pt

Protected Attributes inherited from oomph::TriangleMesh< ELEMENT >
TimeStepper *	Time_stepper_pt
	Timestepper used to build elements. More...

bool	Use_attributes

std::map< unsigned, double >	Regions_areas

TriangleScaffoldMesh *	Tmp_mesh_pt
	Temporary scaffold mesh. More...

Vector< unsigned >	Oomph_vertex_nodes_id

Protected Attributes inherited from oomph::UnstructuredTwoDMeshGeometryBase
bool	Allow_automatic_creation_of_vertices_on_boundaries

std::map< unsigned, Vector< FiniteElement * > >	Region_element_pt

Vector< double >	Region_attribute
	Vector of attributes associated with the elements in each region. More...

std::map< unsigned, GeomObject * >	Boundary_geom_object_pt
	Storage for the geometric objects associated with any boundaries. More...

std::map< unsigned, Vector< double > >	Boundary_coordinate_limits

Vector< TriangleMeshPolygon * >	Outer_boundary_pt
	Polygon that defines outer boundaries. More...

Vector< TriangleMeshPolygon * >	Internal_polygon_pt
	Vector of polygons that define internal polygons. More...

Vector< TriangleMeshOpenCurve * >	Internal_open_curve_pt
	Vector of open polylines that define internal curves. More...

Vector< Vector< double > >	Extra_holes_coordinates
	Storage for extra coordinates for holes. More...

std::map< unsigned, Vector< double > >	Regions_coordinates

std::map< unsigned, TriangleMeshCurveSection * >	Boundary_curve_section_pt

Vector< std::map< unsigned, Vector< FiniteElement * > > >	Boundary_region_element_pt
	Storage for elements adjacent to a boundary in a particular region. More...

Vector< std::map< unsigned, Vector< int > > >	Face_index_region_at_boundary
	Storage for the face index adjacent to a boundary in a particular region. More...

std::map< unsigned, Vector< std::pair< double, double > > >	Polygonal_vertex_arclength_info

std::map< unsigned, std::set< Node * > >	Nodes_on_boundary_pt

std::set< TriangleMeshCurveSection * >	Free_curve_section_pt

std::set< TriangleMeshPolygon * >	Free_polygon_pt

std::set< TriangleMeshOpenCurve * >	Free_open_curve_pt

Protected Attributes inherited from oomph::Mesh
Vector< Vector< Node * > >	Boundary_node_pt

bool	Lookup_for_elements_next_boundary_is_setup

Vector< Vector< FiniteElement * > >	Boundary_element_pt

Vector< Vector< int > >	Face_index_at_boundary

Vector< Node * >	Node_pt
	Vector of pointers to nodes. More...

Vector< GeneralisedElement * >	Element_pt
	Vector of pointers to generalised elements. More...

std::vector< bool >	Boundary_coordinate_exists

Protected Attributes inherited from oomph::RefineableMeshBase
ErrorEstimator *	Spatial_error_estimator_pt
	Pointer to spatial error estimator. More...

double	Max_permitted_error
	Max. error (i.e. split elements if their error is larger) More...

double	Min_permitted_error
	Min. error (i.e. (try to) merge elements if their error is smaller) More...

double	Min_error
	Min.actual error. More...

double	Max_error
	Max. actual error. More...

unsigned	Nrefined
	Stats: Number of elements that were refined. More...

unsigned	Nunrefined
	Stats: Number of elements that were unrefined. More...

bool	Adapt_flag
	Flag that requests adaptation. More...

bool	P_adapt_flag
	Flag that requests p-adaptation. More...

bool	Additional_synchronisation_of_hanging_nodes_not_required
	Flag that disables additional synchronisation of hanging nodes. More...

DocInfo *	Doc_info_pt
	Pointer to DocInfo. More...

unsigned	Max_keep_unrefined

unsigned	Nrefinement_overruled

Additional Inherited Members
Static Public Attributes inherited from oomph::UnstructuredTwoDMeshGeometryBase
static bool	Suppress_warning_about_regions_and_boundaries
	Public static flag to suppress warning; defaults to false. More...

Static Public Attributes inherited from oomph::Mesh
static Steady< 0 >	Default_TimeStepper
	The Steady Timestepper. More...

static bool	Suppress_warning_about_empty_mesh_level_time_stepper_function
	Static boolean flag to control warning about mesh level timesteppers. More...

Detailed Description

template<class ELEMENT>
class oomph::RefineableTriangleMesh< ELEMENT >

Unstructured refineable Triangle Mesh.

/////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////// ///////////////////////////////////////////////////////////////////

Member Typedef Documentation

◆ InternalHolePointUpdateFctPt

template<class ELEMENT >

typedef void(* oomph::RefineableTriangleMesh< ELEMENT >::InternalHolePointUpdateFctPt) (const unsigned &ihole, TriangleMeshPolygon *poly_pt)

Function pointer to a function that can generate a point within the ihole-th hole, so that this can be overloaded by the user if they have a better way of doing it than our clunky default. The function should update the components of the Vector poly_pt->internal_point()

◆ MeshUpdateFctPt

template<class ELEMENT >

typedef void(* oomph::RefineableTriangleMesh< ELEMENT >::MeshUpdateFctPt) (Mesh *mesh_pt)

Function pointer to function that updates the mesh following the snapping of boundary nodes to the boundaries (e.g. to move boundary nodes very slightly to satisfy volume constraints)

Constructor & Destructor Documentation

◆ RefineableTriangleMesh()

template<class ELEMENT >

oomph::RefineableTriangleMesh< ELEMENT >::RefineableTriangleMesh	(	const std::string &	node_file_name,
		const std::string &	element_file_name,
		const std::string &	poly_file_name,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	allow_automatic_creation_of_vertices_on_boundaries = `true`
	)

inline

Build mesh, based on the polyfiles.

       : TriangleMesh<ELEMENT>(
           node_file_name,
           element_file_name,
           poly_file_name,
           time_stepper_pt,
           allow_automatic_creation_of_vertices_on_boundaries)
     {
       // Create and fill the data structures to give rise to polylines so that
       // the mesh can use the adapt methods
       create_polylines_from_polyfiles(node_file_name, poly_file_name);

       // Initialise the data associated with adaptation
       initialise_adaptation_data();

       // Initialise the data associated with boundary refinements
       initialise_boundary_refinement_data();
     }

◆ ~RefineableTriangleMesh()

template<class ELEMENT >

virtual oomph::RefineableTriangleMesh< ELEMENT >::~RefineableTriangleMesh ( )

inlineprotectedvirtual

Empty Destructor.

2411 {}

Member Function Documentation

◆ adapt()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::adapt ( const Vector< double > & elem_error )

protectedvirtual

Adapt mesh, based on elemental error provided.

Implements oomph::RefineableMeshBase.

◆ add_non_delete_vertices_from_boundary_helper()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::add_non_delete_vertices_from_boundary_helper	(	Vector< Vector< Node * >>	src_bound_segment_node_pt,
		Vector< Vector< Node * >>	dst_bound_segment_node_pt,
		const unsigned &	dst_bnd_id,
		const unsigned &	dst_bnd_chunk
	)

protected

Adds the vertices from the sources boundary that are repeated in the destination boundary to the list of non delete-able vertices in the destination boundary

◆ add_vertices_for_non_deletion()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::add_vertices_for_non_deletion ( )

protected

Mark the vertices that are not allowed for deletion by the unrefienment/refinement polyline methods. In charge of filling the Boundary_chunk_connections_pt structure

◆ apply_max_length_constraint()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::apply_max_length_constraint	(	Mesh *	face_mesh_pt,
		Vector< Vector< double >> &	vector_bnd_vertices,
		double &	max_length_constraint
	)

protected

◆ boundary_connections()

template<class ELEMENT >

const bool oomph::RefineableTriangleMesh< ELEMENT >::boundary_connections	(	const unsigned &	b,
		const unsigned &	c,
		std::set< Vector< double >> &	vertices
	)

inlineprotected

Verifies if the given boundary receives a connection, and if that is the case then returns the list of vertices that receive the connections

     {
       // Search for the given boundary
       std::map<unsigned, std::set<Vector<double>>>::iterator it =
         Boundary_connections_pt.find(b);
       // Was the boundary found?
       if (it != Boundary_connections_pt.end())
       {
         // Return the set of vertices that receive the connection
         vertices = (*it).second;
         return true;
       }
       else
       {
         return false;
       }
     }

References b.

◆ compute_area_target()

template<class ELEMENT >

double oomph::RefineableTriangleMesh< ELEMENT >::compute_area_target	(	const Vector< double > &	elem_error,
		Vector< double > &	target_area
	)

inlineprotected

Compute target area based on the element's error and the error target; return minimum angle (in degrees)

     {
       double min_angle = DBL_MAX;
       unsigned count_unrefined = 0;
       unsigned count_refined = 0;
       this->Nrefinement_overruled = 0;

       // Record max. area constraint set by region
       std::map<FiniteElement*, double> max_area_from_region;
       for (std::map<unsigned, double>::iterator it =
              this->Regions_areas.begin();
            it != this->Regions_areas.end();
            it++)
       {
         unsigned r = (*it).first;
         unsigned nel = this->nregion_element(r);
         for (unsigned e = 0; e < nel; e++)
         {
           max_area_from_region[this->region_element_pt(r, e)] = (*it).second;
         }
       }

       unsigned nel = this->nelement();
       for (unsigned e = 0; e < nel; e++)
       {
         // Get element
         FiniteElement* el_pt = this->finite_element_pt(e);

         // Area
         double area = el_pt->size();

         // Min angle based on vertex coordinates
         // (vertices are enumerated first)
         double ax = el_pt->node_pt(0)->x(0);
         double ay = el_pt->node_pt(0)->x(1);

         double bx = el_pt->node_pt(1)->x(0);
         double by = el_pt->node_pt(1)->x(1);

         double cx = el_pt->node_pt(2)->x(0);
         double cy = el_pt->node_pt(2)->x(1);

         // Min angle
         double angle0 =
           acos(((ax - cx) * (bx - cx) + (ay - cy) * (by - cy)) /
                (sqrt((ax - cx) * (ax - cx) + (ay - cy) * (ay - cy)) *
                 sqrt((bx - cx) * (bx - cx) + (by - cy) * (by - cy)))) *
           180.0 / MathematicalConstants::Pi;
         min_angle = std::min(min_angle, angle0);

         double angle1 =
           acos(((ax - bx) * (cx - bx) + (ay - by) * (cy - by)) /
                (sqrt((ax - bx) * (ax - bx) + (ay - by) * (ay - by)) *
                 sqrt((cx - bx) * (cx - bx) + (cy - by) * (cy - by)))) *
           180.0 / MathematicalConstants::Pi;
         min_angle = std::min(min_angle, angle1);

         double angle2 = 180.0 - angle0 - angle1;
         min_angle = std::min(min_angle, angle2);

         // Mimick refinement in tree-based procedure: Target areas
         // for elements that exceed permitted error is 1/3 of their
         // current area, corresponding to a uniform sub-division.
         double size_ratio = 3.0;
         if (elem_error[e] > max_permitted_error())
         {
           // Reduce area
           target_area[e] = std::max(area / size_ratio, Min_element_size);

           //...but also make sure we're below the max element size
           target_area[e] = std::min(target_area[e], Max_element_size);

           if (target_area[e] != Min_element_size)
           {
             count_refined++;
           }
           else
           {
             this->Nrefinement_overruled++;
           }
         }
         else if (elem_error[e] < min_permitted_error())
         {
           // Increase the area
           target_area[e] = std::min(size_ratio * area, Max_element_size);

           //...but also make sure we're above the min element size
           target_area[e] = std::max(target_area[e], Min_element_size);

           if (target_area[e] != Max_element_size)
           {
             count_unrefined++;
           }
         }
         else
         {
           // Leave it alone but enforce size limits
           double area_leave_alone = std::max(area, Min_element_size);
           target_area[e] = std::min(area_leave_alone, Max_element_size);
         }

         // Enforce max areas from regions
         std::map<FiniteElement*, double>::iterator it =
           max_area_from_region.find(el_pt);
         if (it != max_area_from_region.end())
         {
           target_area[e] = std::min(target_area[e], (*it).second);
         }
       }


       // Tell everybody
       this->Nrefined = count_refined;
       this->Nunrefined = count_unrefined;

       if (this->Nrefinement_overruled != 0)
       {
         oomph_info
           << "\nNOTE: Refinement of " << this->Nrefinement_overruled
           << " elements was "
           << "overruled \nbecause the target area would have "
           << "been below \nthe minimum permitted area of " << Min_element_size
           << ".\nYou can change the minimum permitted area with the\n"
           << "function RefineableTriangleMesh::min_element_size().\n\n";
       }
       return min_angle;
     }

References acos(), plotDoE::ax, e(), max, TestArguments::Max_element_size, min, TestArguments::Min_element_size, oomph::FiniteElement::node_pt(), oomph::oomph_info, oomph::MathematicalConstants::Pi, UniformPSDSelfTest::r, oomph::FiniteElement::size(), sqrt(), and oomph::Node::x().

◆ create_polylines_from_polyfiles()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::create_polylines_from_polyfiles	(	const std::string &	node_file_name,
		const std::string &	poly_file_name
	)

protected

Helper function to create polylines and fill associate data.

◆ create_sorted_face_mesh_representation()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::create_sorted_face_mesh_representation	(	const unsigned &	boundary_id,
		Mesh *	face_mesh_pt,
		std::map< FiniteElement *, bool > &	is_inverted,
		bool &	inverted_face_mesh
	)

protected

Helper function Creates a sorted face mesh representation of the specified PolyLine It means that the elements are sorted along the boundary It also returns a map that indicated the inverted elements

◆ create_temporary_boundary_connections()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::create_temporary_boundary_connections	(	Vector< TriangleMeshPolygon * > &	tmp_outer_polygons_pt,
		Vector< TriangleMeshOpenCurve * > &	tmp_open_curves_pt
	)

protected

After unrefinement and refinement has taken place compute the new vertices numbers of the temporary representation of the

◆ create_unsorted_face_mesh_representation()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::create_unsorted_face_mesh_representation	(	const unsigned &	boundary_id,
		Mesh *	face_mesh_pt
	)

protected

Helper function Creates an unsorted face mesh representation from the specified boundary id. It means that the elements are not sorted along the boundary

◆ disable_boundary_refinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_boundary_refinement_constrained_by_target_areas ( )

inlineprotected

     {
       Do_boundary_refinement_constrained_by_target_areas = false;
     }

◆ disable_boundary_unrefinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_boundary_unrefinement_constrained_by_target_areas ( )

inlineprotected

     {
       Do_boundary_unrefinement_constrained_by_target_areas = false;
     }

◆ disable_iterative_solver_for_projection()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_iterative_solver_for_projection ( )

inlineprotected

Enables the use of an iterative solver for the projection problem

     {
       Use_iterative_solver_for_projection = false;
     }

◆ disable_print_timings_adaptation()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_print_timings_adaptation ( )

inlineprotected

Disables printing of timings for adaptation.

     {
       Print_timings_level_adaptation = 0;
     }

◆ disable_print_timings_load_balance()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_print_timings_load_balance ( )

inlineprotected

Disables printing of timings for load balance.

     {
       Print_timings_level_load_balance = 0;
     }

◆ disable_projection()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_projection ( )

inlineprotected

Disables the solution projection step during adaptation.

     {
       Disable_projection = true;
     }

◆ disable_shared_boundary_refinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_shared_boundary_refinement_constrained_by_target_areas ( )

inlineprotected

     {
       Do_shared_boundary_refinement_constrained_by_target_areas = false;
     }

◆ disable_shared_boundary_unrefinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_shared_boundary_unrefinement_constrained_by_target_areas ( )

inlineprotected

     {
       Do_shared_boundary_unrefinement_constrained_by_target_areas = false;
     }

◆ disable_timings_projection()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_timings_projection ( )

inlineprotected

Disables info. and timings for projection.

     {
       Print_timings_projection = false;
     }

◆ disable_timings_tranfering_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::disable_timings_tranfering_target_areas ( )

inlineprotected

Disables info. and timings for tranferring of target areas

     {
       Print_timings_transfering_target_areas = false;
     }

◆ doc_adaptivity_targets()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::doc_adaptivity_targets ( std::ostream & outfile )

inlineprotectedvirtual

Doc the targets for mesh adaptation.

Reimplemented from oomph::RefineableMeshBase.

     {
       outfile << std::endl;
       outfile << "Targets for mesh adaptation: " << std::endl;
       outfile << "---------------------------- " << std::endl;
       outfile << "Target for max. error: " << Max_permitted_error << std::endl;
       outfile << "Target for min. error: " << Min_permitted_error << std::endl;
       outfile << "Target min angle: " << Min_permitted_angle << std::endl;
       outfile << "Min. allowed element size: " << Min_element_size << std::endl;
       outfile << "Max. allowed element size: " << Max_element_size << std::endl;
       outfile << "Don't unrefine if less than " << Max_keep_unrefined
               << " elements need unrefinement." << std::endl;
       outfile << std::endl;
     }

References TestArguments::Max_element_size, TestArguments::Max_permitted_error, TestArguments::Min_element_size, and TestArguments::Min_permitted_error.

◆ enable_boundary_refinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_boundary_refinement_constrained_by_target_areas ( )

inlineprotected

     {
       Do_boundary_refinement_constrained_by_target_areas = true;
     }

◆ enable_boundary_unrefinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_boundary_unrefinement_constrained_by_target_areas ( )

inlineprotected

Enable/disable unrefinement/refinement methods for original boundaries

     {
       Do_boundary_unrefinement_constrained_by_target_areas = true;
     }

◆ enable_iterative_solver_for_projection()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_iterative_solver_for_projection ( )

inlineprotected

Enables the use of an iterative solver for the projection problem

     {
       Use_iterative_solver_for_projection = true;
     }

◆ enable_print_timings_adaptation()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_print_timings_adaptation ( const unsigned & print_level = 1 )

inlineprotected

Enables printing of timings for adaptation.

     {
       set_print_level_timings_adaptation(print_level);
     }

◆ enable_print_timings_load_balance()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_print_timings_load_balance ( const unsigned & print_level = 1 )

inlineprotected

Enables printing of timings for load balance.

     {
       set_print_level_timings_load_balance(print_level);
     }

◆ enable_projection()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_projection ( )

inlineprotected

Enables the solution projection step during adaptation.

     {
       Disable_projection = false;
     }

◆ enable_shared_boundary_refinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_shared_boundary_refinement_constrained_by_target_areas ( )

inlineprotected

     {
       Do_shared_boundary_refinement_constrained_by_target_areas = true;
     }

◆ enable_shared_boundary_unrefinement_constrained_by_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_shared_boundary_unrefinement_constrained_by_target_areas ( )

inlineprotected

Enable/disable unrefinement/refinement methods for shared boundaries

     {
       Do_shared_boundary_unrefinement_constrained_by_target_areas = true;
     }

◆ enable_timings_projection()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_timings_projection ( )

inlineprotected

Enables info. and timings for projection.

     {
       Print_timings_projection = true;
     }

◆ enable_timings_tranfering_target_areas()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::enable_timings_tranfering_target_areas ( )

inlineprotected

Enables info. and timings for tranferring of target areas

     {
       Print_timings_transfering_target_areas = true;
     }

◆ get_boundary_segment_nodes_helper()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::get_boundary_segment_nodes_helper	(	const unsigned &	b,
		Vector< Vector< Node * >> &	tmp_segment_nodes
	)

protected

Get the nodes on the boundary (b), these are stored in the segment they belong (also used by the load balance method to re-set the number of segments per boundary after load balance has taken place)

◆ get_connected_vertex_number_on_dst_boundary()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::get_connected_vertex_number_on_dst_boundary	(	Vector< double > &	vertex_coordinates,
		const unsigned &	dst_b_id,
		unsigned &	vertex_number
	)

protected

Computes the associated vertex number on the destination boundary

◆ get_face_mesh_representation() [1/2]

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::get_face_mesh_representation	(	TriangleMeshOpenCurve *	open_polyline_pt,
		Vector< Mesh * > &	face_mesh_pt
	)

protected

Helper function to construct face mesh representation of open curves

◆ get_face_mesh_representation() [2/2]

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::get_face_mesh_representation	(	TriangleMeshPolygon *	polygon_pt,
		Vector< Mesh * > &	face_mesh_pt
	)

protected

Helper function to construct face mesh representation of all polylines, possibly with segments re-distributed between polylines to maintain an appxroximately even sub-division of the polygon

◆ initialise_adaptation_data()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::initialise_adaptation_data ( )

inlineprotected

Helper function to initialise data associated with adaptation.

     {
       // Number of bins in the x-direction
       // when transferring target areas by bin method. Only used if we
       // don't have CGAL!
       this->Nbin_x_for_area_transfer = 100;

       // Number of bins in the y-direction
       // when transferring target areas by bin method. Only used if we
       // don't have CGAL!
       this->Nbin_y_for_area_transfer = 100;

       // Initialise "what it says" -- used when transferring target areas
       // using cgal-based sample point container
       Max_sample_points_for_limited_locate_zeta_during_target_area_transfer = 5;

       // Set max and min targets for adaptation
       this->Max_element_size = 1.0;
       this->Min_element_size = 0.001;
       this->Min_permitted_angle = 15.0;

       // By default we want to do projection
       this->Disable_projection = false;

       // Use by default an iterative solver for the projection problem
       this->Use_iterative_solver_for_projection = true;

       // Set the defaul value for printing level adaptation (default 0)
       this->Print_timings_level_adaptation = 0;

       // Set the defaul value for printing level load balance (default 0)
       this->Print_timings_level_load_balance = 0;

       // By default we want no info. about timings for transferring of
       // target areas
       this->Print_timings_transfering_target_areas = false;

       // By default we want no info. about timings for projection
       this->Print_timings_projection = false;

       // Initialise function pointer to function that updates the
       // mesh following the snapping of boundary nodes to the
       // boundaries (e.g. to move boundary nodes very slightly
       // to satisfy volume constraints)
       Mesh_update_fct_pt = 0;

       // Initialise function point for update of internal hole
       // point to null
       Internal_hole_point_update_fct_pt = 0;
     }

References TestArguments::Max_element_size, and TestArguments::Min_element_size.

◆ initialise_boundary_refinement_data()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::initialise_boundary_refinement_data ( )

inlineprotected

Set all the flags to true (the default values)

     {
       // All boundaries refinement and unrefinement are allowed by
       // default
       Do_boundary_unrefinement_constrained_by_target_areas = true;
       Do_boundary_refinement_constrained_by_target_areas = true;
       Do_shared_boundary_unrefinement_constrained_by_target_areas = true;
       Do_shared_boundary_refinement_constrained_by_target_areas = true;
     }

◆ internal_hole_point_update_fct_pt()

template<class ELEMENT >

InternalHolePointUpdateFctPt& oomph::RefineableTriangleMesh< ELEMENT >::internal_hole_point_update_fct_pt ( )

inlineprotected

Access to function pointer to can be used to generate the internal point for the ihole-th hole.

     {
       return Internal_hole_point_update_fct_pt;
     }

◆ max_element_size()

template<class ELEMENT >

double& oomph::RefineableTriangleMesh< ELEMENT >::max_element_size ( )

inlineprotected

Max element size allowed during adaptation.

     {
       return Max_element_size;
     }

References TestArguments::Max_element_size.

◆ max_sample_points_for_limited_locate_zeta_during_target_area_transfer()

template<class ELEMENT >

unsigned oomph::RefineableTriangleMesh< ELEMENT >::max_sample_points_for_limited_locate_zeta_during_target_area_transfer ( )

inlineprotected

Read/write access to number of sample points from which we try to locate zeta by Newton method when transferring target areas using cgal-based sample point container. If Newton method doesn't converge from any of these we use the nearest sample point.

     {
       return Max_sample_points_for_limited_locate_zeta_during_target_area_transfer;
     }

◆ mesh_update_fct_pt()

template<class ELEMENT >

MeshUpdateFctPt& oomph::RefineableTriangleMesh< ELEMENT >::mesh_update_fct_pt ( )

inlineprotected

Access to function pointer to function that updates the mesh following the snapping of boundary nodes to the boundaries (e.g. to move boundary nodes very slightly to satisfy volume constraints)

     {
       return Mesh_update_fct_pt;
     }

◆ min_element_size()

template<class ELEMENT >

double& oomph::RefineableTriangleMesh< ELEMENT >::min_element_size ( )

inlineprotected

Min element size allowed during adaptation.

     {
       return Min_element_size;
     }

References TestArguments::Min_element_size.

◆ min_permitted_angle()

template<class ELEMENT >

double& oomph::RefineableTriangleMesh< ELEMENT >::min_permitted_angle ( )

inlineprotected

Min angle before remesh gets triggered.

     {
       return Min_permitted_angle;
     }

◆ nbin_x_for_area_transfer()

template<class ELEMENT >

unsigned& oomph::RefineableTriangleMesh< ELEMENT >::nbin_x_for_area_transfer ( )

inlineprotected

Read/write access to number of bins in the x-direction when transferring target areas by bin method. Only used if we don't have CGAL!

     {
       return Nbin_x_for_area_transfer;
     }

◆ nbin_y_for_area_transfer()

template<class ELEMENT >

unsigned& oomph::RefineableTriangleMesh< ELEMENT >::nbin_y_for_area_transfer ( )

inlineprotected

Read/write access to number of bins in the y-direction when transferring target areas by bin method. Only used if we don't have CGAL!

     {
       return Nbin_y_for_area_transfer;
     }

◆ refine_boundary()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::refine_boundary	(	Mesh *	face_mesh_pt,
		Vector< Vector< double >> &	vector_bnd_vertices,
		double &	refinement_tolerance,
		const bool &	check_only = `false`
	)

protected

Helper function that performs the refinement process on the specified boundary by using the provided vertices representation. Optional boolean is used to run it as test only (if true is specified as input) in which case vertex coordinates aren't actually modified. Returned boolean indicates if polyline was (or would have been – if called with check_only=false) changed.

◆ refine_boundary_constrained_by_target_area()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::refine_boundary_constrained_by_target_area	(	MeshAsGeomObject *	mesh_geom_obj_pt,
		Vector< Vector< double >> &	vector_bnd_vertices,
		double &	refinement_tolerance,
		Vector< double > &	area_constraint
	)

protected

Helper function that performs the refinement process on the specified boundary by using the provided vertices representation and the associated elements target area. Used only when the 'allow_automatic_creation_of_vertices_on_boundaries' flag is set to true.

◆ refine_shared_boundary_constrained_by_target_area()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::refine_shared_boundary_constrained_by_target_area	(	Vector< Vector< double >> &	vector_bnd_vertices,
		Vector< double > &	area_constraint
	)

protected

Helper function that performs the refinement process on the specified boundary by using the provided vertices representation and the associated elements target area. NOTE: This is the version that applies refinement to shared boundaries

◆ refine_uniformly()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::refine_uniformly ( DocInfo & doc_info )

inlineprotectedvirtual

Refine mesh uniformly and doc process.

Implements oomph::RefineableMeshBase.

     {
       // Set the element error to something big
       unsigned nelem = nelement();
       Vector<double> elem_error(nelem, DBL_MAX);

       // Limit the min element size to 1/3 of the current minimum
       double backup = Min_element_size;

       // Get current max and min element size
       double orig_max_area, orig_min_area;
       this->max_and_min_element_size(orig_max_area, orig_min_area);

       // Limit
       Min_element_size = orig_min_area / 3.0;

       // Do it...
       adapt(elem_error);

       // Reset
       Min_element_size = backup;
     }

References TestArguments::Min_element_size.

◆ restore_boundary_connections()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::restore_boundary_connections	(	Vector< TriangleMeshPolyLine * > &	resume_initial_connection_polyline_pt,
		Vector< TriangleMeshPolyLine * > &	resume_final_connection_polyline_pt
	)

protected

After unrefinement and refinement has taken place compute the new vertices numbers of the boundaries to connect (in a distributed scheme it may be possible that the destination boundary does no longer exist, therefore the connection is suspended and resumed after the adaptation processor

◆ restore_polyline_connections_helper()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::restore_polyline_connections_helper	(	TriangleMeshPolyLine *	polyline_pt,
		Vector< TriangleMeshPolyLine * > &	resume_initial_connection_polyline_pt,
		Vector< TriangleMeshPolyLine * > &	resume_final_connection_polyline_pt
	)

protected

Restore the connections of the specific polyline The vertices numbering on the destination boundaries may have change because of (un)refinement in the destination boundaries. Also deals with connection that do not longer exist because the destination boundary does no longer exist because of the distribution process

◆ resume_boundary_connections()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::resume_boundary_connections	(	Vector< TriangleMeshPolyLine * > &	resume_initial_connection_polyline_pt,
		Vector< TriangleMeshPolyLine * > &	resume_final_connection_polyline_pt
	)

protected

Resume the boundary connections that may have been suspended because the destination boundary is no part of the domain. The connections are no permanently suspended because if load balance takes place the destination boundary may be part of the new domain representation therefore the connection would exist

◆ set_print_level_timings_adaptation()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::set_print_level_timings_adaptation ( const unsigned & print_level )

inlineprotected

Sets the printing level of timings for adaptation.

     {
       const unsigned max_print_level = 3;
       // If printing level is greater than max. printing level
       if (print_level > max_print_level)
       {
         Print_timings_level_adaptation = max_print_level;
       }
       else
       {
         Print_timings_level_adaptation = print_level;
       }
     }

◆ set_print_level_timings_load_balance()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::set_print_level_timings_load_balance ( const unsigned & print_level )

inlineprotected

Sets the printing level of timings for load balance.

     {
       const unsigned max_print_level = 3;
       // If printing level is greater than max. printing level
       if (print_level > max_print_level)
       {
         Print_timings_level_load_balance = max_print_level;
       }
       else
       {
         Print_timings_level_load_balance = print_level;
       }
     }

◆ snap_nodes_onto_boundary()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::snap_nodes_onto_boundary	(	RefineableTriangleMesh< ELEMENT > *&	new_mesh_pt,
		const unsigned &	b
	)

protected

Snap the boundary nodes onto any curvilinear boundaries.

◆ surface_remesh_for_inner_hole_boundaries()

template<class ELEMENT >

virtual bool oomph::RefineableTriangleMesh< ELEMENT >::surface_remesh_for_inner_hole_boundaries	(	Vector< Vector< double >> &	internal_point_coord,
		const bool &	check_only = `false`
	)

protectedvirtual

Generate a new PSLG representation of the inner hole boundaries. Optional boolean is used to run it as test only (if true is specified as input) in which case PSLG isn't actually modified. Returned boolean indicates if PSLG was (or would have been – if called with check_only=false) changed.

◆ synchronize_shared_boundary_connections()

template<class ELEMENT >

const void oomph::RefineableTriangleMesh< ELEMENT >::synchronize_shared_boundary_connections ( )

protected

Synchronise the vertices that are marked for non deletion.

◆ unrefine_boundary()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::unrefine_boundary	(	const unsigned &	b,
		const unsigned &	c,
		Vector< Vector< double >> &	vector_bnd_vertices,
		double &	unrefinement_tolerance,
		const bool &	check_only = `false`
	)

protected

Helper function that performs the unrefinement process.

representation. Optional boolean is used to run it as test only (if true is specified as input) in which case vertex coordinates aren't actually modified. Returned boolean indicates if polyline was (or would have been – if called with check_only=false) changed.

◆ unrefine_boundary_constrained_by_target_area()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::unrefine_boundary_constrained_by_target_area	(	const unsigned &	b,
		const unsigned &	c,
		Vector< Vector< double >> &	vector_bnd_vertices,
		double &	unrefinement_tolerance,
		Vector< double > &	area_constraint
	)

protected

Helper function that performs the unrefinement process on the specified boundary by using the provided vertices representation and the associated target area. Used only when the 'allow_automatic_creation_of_vertices_on_boundaries' flag is set to true.

◆ unrefine_shared_boundary_constrained_by_target_area()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::unrefine_shared_boundary_constrained_by_target_area	(	const unsigned &	b,
		const unsigned &	c,
		Vector< Vector< double >> &	vector_bnd_vertices,
		Vector< double > &	area_constraint
	)

protected

Helper function that performs the unrefinement process on the specified boundary by using the provided vertices representation and the associated target area. NOTE: This is the version that applies unrefinement to shared boundaries

◆ unrefine_uniformly()

template<class ELEMENT >

unsigned oomph::RefineableTriangleMesh< ELEMENT >::unrefine_uniformly ( )

inlineprotectedvirtual

Unrefine mesh uniformly: Return 0 for success, 1 for failure (if unrefinement has reached the coarsest permitted level)

Implements oomph::RefineableMeshBase.

     {
       throw OomphLibError("unrefine_uniformly() not implemented yet",
                           OOMPH_CURRENT_FUNCTION,
                           OOMPH_EXCEPTION_LOCATION);
       // dummy return
       return 0;
     }

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

◆ update_open_curve_after_restart()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::update_open_curve_after_restart ( TriangleMeshOpenCurve *& open_curve_pt )

protected

Updates the open curve representation after restart.

◆ update_open_curve_using_elements_area()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::update_open_curve_using_elements_area	(	TriangleMeshOpenCurve *&	open_curve_pt,
		const Vector< double > &	target_area
	)

protected

Updates the open curve but using the elements area instead of the default refinement and unrefinement methods

◆ update_open_curve_using_face_mesh()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::update_open_curve_using_face_mesh	(	TriangleMeshOpenCurve *	open_polyline_pt,
		const bool &	check_only = `false`
	)

protected

Helper function that updates the input open curve by using end-points of elements from FaceMesh(es) that are constructed for the boundaries associated with the polylines. Optional boolean is used to run it as test only (if true is specified as input) in which case the polylines are not actually modified. Returned boolean indicates if polylines were (or would have been – if called with check_only=false) changed.

◆ update_polygon_after_restart()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::update_polygon_after_restart ( TriangleMeshPolygon *& polygon_pt )

protected

Updates the polylines representation after restart.

◆ update_polygon_using_elements_area()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::update_polygon_using_elements_area	(	TriangleMeshPolygon *&	polygon_pt,
		const Vector< double > &	target_area
	)

protected

Updates the polylines using the elements area as constraint for the number of points along the boundaries

◆ update_polygon_using_face_mesh()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::update_polygon_using_face_mesh	(	TriangleMeshPolygon *	polygon_pt,
		const bool &	check_only = `false`
	)

protected

Helper function that updates the input polygon's PSLG by using the end-points of elements from FaceMesh(es) that are constructed for the boundaries associated with the segments of the polygon. Optional boolean is used to run it as test only (if true is specified as input) in which case polygon isn't actually modified. Returned boolean indicates if polygon was (or would have been – if called with check_only=false) changed.

◆ update_polyline_representation_from_restart()

template<class ELEMENT >

void oomph::RefineableTriangleMesh< ELEMENT >::update_polyline_representation_from_restart ( )

inlineprotected

Method used to update the polylines representation after restart.

     {
 #ifdef OOMPH_HAS_MPI
       // If the mesh is distributed then also update the shared
       // boundaries
       unsigned my_rank = 0;
       if (this->is_mesh_distributed())
       {
         my_rank = this->communicator_pt()->my_rank();
       }
 #endif

       // Update the polyline representation after restart

       // First update all internal boundaries
       const unsigned ninternal = this->Internal_polygon_pt.size();
       for (unsigned i_internal = 0; i_internal < ninternal; i_internal++)
       {
         this->update_polygon_after_restart(
           this->Internal_polygon_pt[i_internal]);
       }

       // then update the external boundaries
       const unsigned nouter = this->Outer_boundary_pt.size();
       for (unsigned i_outer = 0; i_outer < nouter; i_outer++)
       {
         this->update_polygon_after_restart(this->Outer_boundary_pt[i_outer]);
       }

 #ifdef OOMPH_HAS_MPI
       // If the mesh is distributed then also update the shared
       // boundaries
       if (this->is_mesh_distributed())
       {
         const unsigned ncurves = this->nshared_boundary_curves(my_rank);
         for (unsigned nc = 0; nc < ncurves; nc++)
         {
           // Update the shared polyline
           this->update_shared_curve_after_restart(
             this->Shared_boundary_polyline_pt[my_rank][nc] // shared_curve
           );
         }

       } // if (this->is_mesh_distributed())
 #endif // #ifdef OOMPH_HAS_MPI

       const unsigned n_open_polyline = this->Internal_open_curve_pt.size();
       for (unsigned i = 0; i < n_open_polyline; i++)
       {
         this->update_open_curve_after_restart(this->Internal_open_curve_pt[i]);
       }
     }

References i.

◆ use_iterative_solver_for_projection()

template<class ELEMENT >

bool oomph::RefineableTriangleMesh< ELEMENT >::use_iterative_solver_for_projection ( )

inlineprotected

     {
       return Use_iterative_solver_for_projection;
     }

Flag to indicate whether to use or not an iterative solver (CG with diagonal preconditioned) for the projection problem

The documentation for this class was generated from the following file:

triangle_mesh.template.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<class ELEMENT> class oomph::RefineableTriangleMesh< ELEMENT >

Member Typedef Documentation

◆ InternalHolePointUpdateFctPt

◆ MeshUpdateFctPt

Constructor & Destructor Documentation

◆ RefineableTriangleMesh()

◆ ~RefineableTriangleMesh()

Member Function Documentation

◆ adapt()

◆ add_non_delete_vertices_from_boundary_helper()

◆ add_vertices_for_non_deletion()

◆ apply_max_length_constraint()

◆ boundary_connections()

◆ compute_area_target()

◆ create_polylines_from_polyfiles()

◆ create_sorted_face_mesh_representation()

◆ create_temporary_boundary_connections()

◆ create_unsorted_face_mesh_representation()

◆ disable_boundary_refinement_constrained_by_target_areas()

◆ disable_boundary_unrefinement_constrained_by_target_areas()

◆ disable_iterative_solver_for_projection()

◆ disable_print_timings_adaptation()

◆ disable_print_timings_load_balance()

◆ disable_projection()

◆ disable_shared_boundary_refinement_constrained_by_target_areas()

◆ disable_shared_boundary_unrefinement_constrained_by_target_areas()

◆ disable_timings_projection()

◆ disable_timings_tranfering_target_areas()

◆ doc_adaptivity_targets()

◆ enable_boundary_refinement_constrained_by_target_areas()

◆ enable_boundary_unrefinement_constrained_by_target_areas()

◆ enable_iterative_solver_for_projection()

◆ enable_print_timings_adaptation()

◆ enable_print_timings_load_balance()

◆ enable_projection()

◆ enable_shared_boundary_refinement_constrained_by_target_areas()

◆ enable_shared_boundary_unrefinement_constrained_by_target_areas()

◆ enable_timings_projection()

◆ enable_timings_tranfering_target_areas()

◆ get_boundary_segment_nodes_helper()

◆ get_connected_vertex_number_on_dst_boundary()

◆ get_face_mesh_representation() [1/2]

◆ get_face_mesh_representation() [2/2]

◆ initialise_adaptation_data()

◆ initialise_boundary_refinement_data()

◆ internal_hole_point_update_fct_pt()

◆ max_element_size()

◆ max_sample_points_for_limited_locate_zeta_during_target_area_transfer()

◆ mesh_update_fct_pt()

◆ min_element_size()

◆ min_permitted_angle()

◆ nbin_x_for_area_transfer()

◆ nbin_y_for_area_transfer()

◆ refine_boundary()

◆ refine_boundary_constrained_by_target_area()

◆ refine_shared_boundary_constrained_by_target_area()

◆ refine_uniformly()

◆ restore_boundary_connections()

◆ restore_polyline_connections_helper()

◆ resume_boundary_connections()

◆ set_print_level_timings_adaptation()

◆ set_print_level_timings_load_balance()

◆ snap_nodes_onto_boundary()

◆ surface_remesh_for_inner_hole_boundaries()

◆ synchronize_shared_boundary_connections()

◆ unrefine_boundary()

◆ unrefine_boundary_constrained_by_target_area()

◆ unrefine_shared_boundary_constrained_by_target_area()

◆ unrefine_uniformly()

◆ update_open_curve_after_restart()

◆ update_open_curve_using_elements_area()

◆ update_open_curve_using_face_mesh()

◆ update_polygon_after_restart()

◆ update_polygon_using_elements_area()

template<class ELEMENT>
class oomph::RefineableTriangleMesh< ELEMENT >
