A direct sparse LDLT Cholesky factorizations without square root, for symmetric non-hermitian matrices. More...

#include <SimplicialCholesky.h>

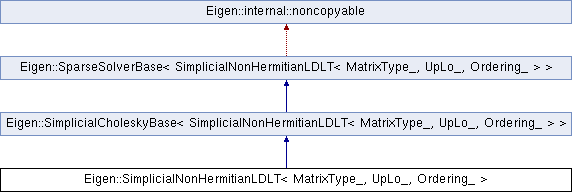

Inheritance diagram for Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >:

Public Types
enum	{ UpLo = UpLo_ }

typedef MatrixType_	MatrixType

typedef SimplicialCholeskyBase< SimplicialNonHermitianLDLT >	Base

typedef MatrixType::Scalar	Scalar

typedef MatrixType::RealScalar	RealScalar

typedef MatrixType::StorageIndex	StorageIndex

typedef SparseMatrix< Scalar, ColMajor, StorageIndex >	CholMatrixType

typedef Matrix< Scalar, Dynamic, 1 >	VectorType

typedef internal::traits< SimplicialNonHermitianLDLT >	Traits

typedef Traits::MatrixL	MatrixL

typedef Traits::MatrixU	MatrixU

Public Types inherited from Eigen::SimplicialCholeskyBase< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >
enum

enum

typedef internal::traits< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >::MatrixType	MatrixType

typedef internal::traits< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >::OrderingType	OrderingType

typedef MatrixType::Scalar	Scalar

typedef MatrixType::RealScalar	RealScalar

typedef internal::traits< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >::DiagonalScalar	DiagonalScalar

typedef MatrixType::StorageIndex	StorageIndex

typedef SparseMatrix< Scalar, ColMajor, StorageIndex >	CholMatrixType

typedef CholMatrixType const *	ConstCholMatrixPtr

typedef Matrix< Scalar, Dynamic, 1 >	VectorType

typedef Matrix< StorageIndex, Dynamic, 1 >	VectorI

Public Member Functions
	SimplicialNonHermitianLDLT ()

	SimplicialNonHermitianLDLT (const MatrixType &matrix)

const VectorType	vectorD () const

const MatrixL	matrixL () const

const MatrixU	matrixU () const

SimplicialNonHermitianLDLT &	compute (const MatrixType &matrix)

void	analyzePattern (const MatrixType &a)

void	factorize (const MatrixType &a)

Scalar	determinant () const

Public Member Functions inherited from Eigen::SimplicialCholeskyBase< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >
	SimplicialCholeskyBase ()

	SimplicialCholeskyBase (const MatrixType &matrix)

	~SimplicialCholeskyBase ()

SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	derived ()

const SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	derived () const

SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	derived ()

const SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	derived () const

Index	cols () const

Index	rows () const

ComputationInfo	info () const
	Reports whether previous computation was successful. More...

const PermutationMatrix< Dynamic, Dynamic, StorageIndex > &	permutationP () const

const PermutationMatrix< Dynamic, Dynamic, StorageIndex > &	permutationPinv () const

SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	setShift (const DiagonalScalar &offset, const DiagonalScalar &scale=1)

void	dumpMemory (Stream &s)

void	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const

void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Public Member Functions inherited from Eigen::SparseSolverBase< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >
	SparseSolverBase ()

	SparseSolverBase (SparseSolverBase &&other)

	~SparseSolverBase ()

SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	derived ()

const SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > &	derived () const

const Solve< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >, Rhs >	solve (const MatrixBase< Rhs > &b) const

const Solve< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const

void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Additional Inherited Members
Protected Member Functions inherited from Eigen::SimplicialCholeskyBase< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >
void	compute (const MatrixType &matrix)

void	factorize (const MatrixType &a)

void	factorize_preordered (const CholMatrixType &a)

void	analyzePattern (const MatrixType &a)

void	analyzePattern_preordered (const CholMatrixType &a, bool doLDLT)

void	ordering (const MatrixType &a, ConstCholMatrixPtr &pmat, CholMatrixType &ap)

DiagonalScalar	getDiag (Scalar x)

Scalar	getSymm (Scalar x)

Protected Attributes inherited from Eigen::SimplicialCholeskyBase< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >
ComputationInfo	m_info

bool	m_factorizationIsOk

bool	m_analysisIsOk

CholMatrixType	m_matrix

VectorType	m_diag

VectorI	m_parent

VectorI	m_workSpace

PermutationMatrix< Dynamic, Dynamic, StorageIndex >	m_P

PermutationMatrix< Dynamic, Dynamic, StorageIndex >	m_Pinv

DiagonalScalar	m_shiftOffset

DiagonalScalar	m_shiftScale

Protected Attributes inherited from Eigen::SparseSolverBase< SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ > >
bool	m_isInitialized

Detailed Description

template<typename MatrixType_, int UpLo_, typename Ordering_>
class Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >

A direct sparse LDLT Cholesky factorizations without square root, for symmetric non-hermitian matrices.

This class provides a LDL^T Cholesky factorizations without square root of sparse matrices that are symmetric but not hermitian. For real matrices, this is equivalent to the regular LDLT factorization. The factorization allows for solving A.X = B where X and B can be either dense or sparse.

In order to reduce the fill-in, a symmetric permutation P is applied prior to the factorization such that the factorized matrix is P A P^-1.

Template Parameters

MatrixType_	the type of the sparse matrix A, it must be a SparseMatrix<>
UpLo_	the triangular part that will be used for the computations. It can be Lower or Upper. Default is Lower.
Ordering_	The ordering method to use, either AMDOrdering<> or NaturalOrdering<>. Default is AMDOrdering<>

\implsparsesolverconcept

See also: class SimplicialNonHermitianLLT, SimplicialLDLT, class AMDOrdering, class NaturalOrdering

Member Typedef Documentation

◆ Base

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef SimplicialCholeskyBase<SimplicialNonHermitianLDLT> Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::Base

◆ CholMatrixType

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef SparseMatrix<Scalar, ColMajor, StorageIndex> Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::CholMatrixType

◆ MatrixL

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef Traits::MatrixL Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::MatrixL

◆ MatrixType

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef MatrixType_ Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::MatrixType

◆ MatrixU

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef Traits::MatrixU Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::MatrixU

◆ RealScalar

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef MatrixType::RealScalar Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::RealScalar

◆ Scalar

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef MatrixType::Scalar Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::Scalar

◆ StorageIndex

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef MatrixType::StorageIndex Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::StorageIndex

◆ Traits

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef internal::traits<SimplicialNonHermitianLDLT> Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::Traits

◆ VectorType

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

typedef Matrix<Scalar, Dynamic, 1> Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::VectorType

Member Enumeration Documentation

◆ anonymous enum

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

anonymous enum

Enumerator
UpLo

626 { UpLo = UpLo_ };

Eigen::SimplicialNonHermitianLDLT::UpLo

@ UpLo

Definition: SimplicialCholesky.h:626

Constructor & Destructor Documentation

◆ SimplicialNonHermitianLDLT() [1/2]

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::SimplicialNonHermitianLDLT ( )

inline

Default constructor

639 : Base() {}

Eigen::SimplicialNonHermitianLDLT::Base

SimplicialCholeskyBase< SimplicialNonHermitianLDLT > Base

Definition: SimplicialCholesky.h:627

◆ SimplicialNonHermitianLDLT() [2/2]

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::SimplicialNonHermitianLDLT ( const MatrixType & matrix )

inlineexplicit

Constructs and performs the LLT factorization of matrix

642 : Base(matrix) {}

matrix

Eigen::Map< Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic, Eigen::ColMajor >, 0, Eigen::OuterStride<> > matrix(T *data, int rows, int cols, int stride)

Definition: common.h:85

Member Function Documentation

◆ analyzePattern()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

void Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::analyzePattern ( const MatrixType & a )

inline

Performs a symbolic decomposition on the sparcity of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also: factorize()

673 { Base::template analyzePattern<true, true>(a); }

a

const Scalar * a

Definition: level2_cplx_impl.h:32

References a.

◆ compute()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

SimplicialNonHermitianLDLT& Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::compute ( const MatrixType & matrix )

inline

Computes the sparse Cholesky decomposition of matrix

                                                                 {
     Base::template compute<true, true>(matrix);
     return *this;
   }

References matrix().

◆ determinant()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

Scalar Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::determinant ( ) const

inline

Returns: the determinant of the underlying matrix from the current factorization

684 { return Base::m_diag.prod(); }

Eigen::SimplicialCholeskyBase::m_diag

VectorType m_diag

Definition: SimplicialCholesky.h:241

References Eigen::SimplicialCholeskyBase< Derived >::m_diag.

◆ factorize()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

void Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::factorize ( const MatrixType & a )

inline

Performs a numeric decomposition of matrix

The given matrix must has the same sparcity than the matrix on which the symbolic decomposition has been performed.

See also: analyzePattern()

681 { Base::template factorize<true, true>(a); }

References a.

◆ matrixL()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

const MatrixL Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::matrixL ( ) const

inline

Returns: an expression of the factor L

                                        {
     eigen_assert(Base::m_factorizationIsOk && "Simplicial LDLT not factorized");
     return Traits::getL(Base::m_matrix);
   }

References eigen_assert, Eigen::SimplicialCholeskyBase< Derived >::m_factorizationIsOk, and Eigen::SimplicialCholeskyBase< Derived >::m_matrix.

◆ matrixU()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

const MatrixU Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::matrixU ( ) const

inline

Returns: an expression of the factor U (= L^*)

                                        {
     eigen_assert(Base::m_factorizationIsOk && "Simplicial LDLT not factorized");
     return Traits::getU(Base::m_matrix);
   }

References eigen_assert, Eigen::SimplicialCholeskyBase< Derived >::m_factorizationIsOk, and Eigen::SimplicialCholeskyBase< Derived >::m_matrix.

◆ vectorD()

template<typename MatrixType_ , int UpLo_, typename Ordering_ >

const VectorType Eigen::SimplicialNonHermitianLDLT< MatrixType_, UpLo_, Ordering_ >::vectorD ( ) const

inline

Returns: a vector expression of the diagonal D

                                           {
     eigen_assert(Base::m_factorizationIsOk && "Simplicial LDLT not factorized");
     return Base::m_diag;
   }

References eigen_assert, Eigen::SimplicialCholeskyBase< Derived >::m_diag, and Eigen::SimplicialCholeskyBase< Derived >::m_factorizationIsOk.

The documentation for this class was generated from the following file:

SimplicialCholesky.h
