#include <pseudo_buckling_ring.h>

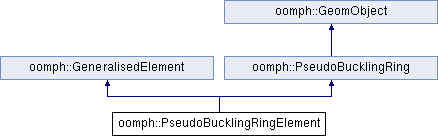

Inheritance diagram for oomph::PseudoBucklingRingElement:

Public Member Functions
	PseudoBucklingRingElement (const double &eps_buckl, const double &ampl_ratio, const unsigned n_buckl, const double &r_0, const double &T, TimeStepper *time_stepper_pt)

	PseudoBucklingRingElement (const double &eps_buckl, const double &HoR, const unsigned &n_buckl, const unsigned &imode, TimeStepper *time_stepper_pt)

	PseudoBucklingRingElement (const PseudoBucklingRingElement &dummy)=delete
	Broken copy constructor. More...

void	operator= (const PseudoBucklingRingElement &)=delete
	Broken assignment operator. More...

virtual	~PseudoBucklingRingElement ()
	Destructor: Kill internal data and set to NULL. More...

virtual void	get_residuals (Vector< double > &residuals)
	Compute element residual Vector (wrapper) More...

virtual void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)
	Compute element residual Vector and element Jacobian matrix (wrapper) More...

Data *const &	reference_pressure_pt () const
	Pointer to pressure data that is used as reference pressure. More...

double	reference_pressure () const
	Return the reference pressure. More...

void	set_reference_pressure_pt (Data *const &data_pt)
	Set the pressure data that is used as reference pressure. More...

Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...

virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...

	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...

void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...

Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...

Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...

Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...

Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...

unsigned long	eqn_number (const unsigned &ieqn_local) const

int	local_eqn_number (const unsigned long &ieqn_global) const

unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)

bool	external_data_fd (const unsigned &i) const

void	exclude_external_data_fd (const unsigned &i)

void	include_external_data_fd (const unsigned &i)

void	flush_external_data ()
	Flush all external data. More...

void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...

unsigned	ninternal_data () const
	Return the number of internal data objects. More...

unsigned	nexternal_data () const
	Return the number of external data objects. More...

unsigned	ndof () const
	Return the number of equations/dofs in the element. More...

void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...

void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...

void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)

void	describe_dofs (std::ostream &out, const std::string &current_string) const

virtual void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)

virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	complete_setup_of_dependencies ()

virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

virtual unsigned	self_test ()

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_norm (double &norm)

virtual unsigned	ndof_types () const

virtual void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Public Member Functions inherited from oomph::PseudoBucklingRing
	PseudoBucklingRing ()
	Default constructor (empty and broken) More...

	PseudoBucklingRing (const Vector< Data * > &geom_data_pt, TimeStepper *time_stepper_pt)

	PseudoBucklingRing (const double &eps_buckl, const double &ampl_ratio, const unsigned n_buckl, const double &r_0, const double &T, TimeStepper *time_stepper_pt)

	PseudoBucklingRing (const double &eps_buckl, const double &HoR, const unsigned &n_buckl, const unsigned &imode, TimeStepper *time_stepper_pt)

	PseudoBucklingRing (const PseudoBucklingRing &node)=delete
	Broken copy constructor. More...

void	operator= (const PseudoBucklingRing &)=delete
	Broken assignment operator. More...

	~PseudoBucklingRing ()
	Destructor: Clean up if necessary. More...

double	eps_buckl ()
	Access function for buckling amplitude. More...

double	ampl_ratio ()
	Access function for amplitude ratio. More...

double	r_0 ()
	Access function for undeformed radius. More...

double	T ()
	Access function for period of oscillation. More...

double	n_buckl_float ()
	Access function for buckling wavenumber (as float) More...

void	set_eps_buckl (const double &eps_buckl)
	Set buckling amplitude. More...

void	set_ampl_ratio (const double &ampl_ratio)

void	set_n_buckl (const unsigned &n_buckl)
	Set buckling wavenumber. More...

void	set_R_0 (const double &r_0)
	Set undeformed radius of ring. More...

void	set_T (const double &T)
	Set period of oscillation. More...

void	position (const Vector< double > &zeta, Vector< double > &r) const

void	veloc (const Vector< double > &zeta, Vector< double > &veloc)

void	accel (const Vector< double > &zeta, Vector< double > &accel)

void	position (const unsigned &t, const Vector< double > &zeta, Vector< double > &r) const

void	dposition_dt (const Vector< double > &zeta, const unsigned &j, Vector< double > &drdt)

unsigned	ngeom_data () const
	How many items of Data does the shape of the object depend on? More...

Data *	geom_data_pt (const unsigned &j)

Public Member Functions inherited from oomph::GeomObject
	GeomObject ()
	Default constructor. More...

	GeomObject (const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim, TimeStepper *time_stepper_pt)

	GeomObject (const GeomObject &dummy)=delete
	Broken copy constructor. More...

void	operator= (const GeomObject &)=delete
	Broken assignment operator. More...

virtual	~GeomObject ()
	(Empty) destructor More...

unsigned	nlagrangian () const
	Access function to # of Lagrangian coordinates. More...

unsigned	ndim () const
	Access function to # of Eulerian coordinates. More...

void	set_nlagrangian_and_ndim (const unsigned &n_lagrangian, const unsigned &n_dim)
	Set # of Lagrangian and Eulerian coordinates. More...

TimeStepper *&	time_stepper_pt ()

TimeStepper *	time_stepper_pt () const

virtual void	position (const double &t, const Vector< double > &zeta, Vector< double > &r) const

virtual void	dposition (const Vector< double > &zeta, DenseMatrix< double > &drdzeta) const

virtual void	d2position (const Vector< double > &zeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	d2position (const Vector< double > &zeta, Vector< double > &r, DenseMatrix< double > &drdzeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	locate_zeta (const Vector< double > &zeta, GeomObject *&sub_geom_object_pt, Vector< double > &s, const bool &use_coordinate_as_initial_guess=false)

virtual void	interpolated_zeta (const Vector< double > &s, Vector< double > &zeta) const

Protected Member Functions
virtual void	get_residuals_generic (Vector< double > &residuals, DenseMatrix< double > &jacobian, unsigned flag)

Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)

bool	internal_data_fd (const unsigned &i) const

void	exclude_internal_data_fd (const unsigned &i)

void	include_internal_data_fd (const unsigned &i)

void	clear_global_eqn_numbers ()

void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)

virtual void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_additional_local_eqn_numbers ()

int	internal_local_eqn (const unsigned &i, const unsigned &j) const

int	external_local_eqn (const unsigned &i, const unsigned &j)

virtual void	fill_in_contribution_to_residuals (Vector< double > &residuals)

void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

virtual void	update_before_internal_fd ()

virtual void	reset_after_internal_fd ()

virtual void	update_in_internal_fd (const unsigned &i)

virtual void	reset_in_internal_fd (const unsigned &i)

virtual void	update_before_external_fd ()

virtual void	reset_after_external_fd ()

virtual void	update_in_external_fd (const unsigned &i)

virtual void	reset_in_external_fd (const unsigned &i)

virtual void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Private Member Functions
int	geometric_local_eqn ()
	Return the local equation number of the internal geometric variable. More...

int	reference_pressure_local_eqn ()
	Return the local equation number of the reference pressure variable. More...

Private Attributes
unsigned	Internal_geometric_variable_index

unsigned	External_reference_pressure_index

Data *	External_reference_pressure_pt

Additional Inherited Members
Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data

static bool	Suppress_warning_about_repeated_external_data = true

static double	Default_fd_jacobian_step = 1.0e-8

Protected Attributes inherited from oomph::PseudoBucklingRing
Vector< Data * >	Geom_data_pt
	Vector of pointers to Data items that affects the object's shape. More...

bool	Must_clean_up
	Do I need to clean up? More...

Protected Attributes inherited from oomph::GeomObject
unsigned	NLagrangian
	Number of Lagrangian (intrinsic) coordinates. More...

unsigned	Ndim
	Number of Eulerian coordinates. More...

TimeStepper *	Geom_object_time_stepper_pt

Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix

static std::deque< double * >	Dof_pt_deque

Detailed Description

//////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////// Pseudo buckling ring: Circular ring deformed by the N-th buckling mode of a thin-wall elastic ring.

\[ x = R_0 \cos(\zeta) + \epsilon \left( \cos(N \zeta) \cos(\zeta) - A \sin(N \zeta) \sin(\zeta) \right) sin(2 \pi t/T) \]

\[ y = R_0 \sin(\zeta) + \epsilon \left( \cos(N \zeta) \sin(\zeta) + A \sin(N \zeta) \cos(\zeta) \right) sin(2 \pi t/T) \]

where A is the ratio of the aziumuthal to the radial buckling amplitude (A=-1/N for statically buckling rings) and epsilon is the buckling amplitude. Scale R_0 is adjusted to ensure conservation of (computational) volume/area. This is implemented by a pseudo-elasticity approach: The governing equation for \( R_0 \) is:

\[ p_{ref} = R_0 - 1.0 \]

The pointer to the reference pressure needs to be set with reference_pressure_pt().

Constructor & Destructor Documentation

◆ PseudoBucklingRingElement() [1/3]

oomph::PseudoBucklingRingElement::PseudoBucklingRingElement	(	const double &	eps_buckl,
		const double &	ampl_ratio,
		const unsigned	n_buckl,
		const double &	r_0,
		const double &	T,
		TimeStepper *	time_stepper_pt
	)

inline

Constructor: Build pseudo buckling ring from doubles that describe the geometry.

       : PseudoBucklingRing(
           eps_buckl, ampl_ratio, n_buckl, r_0, T, time_stepper_pt),
         External_reference_pressure_pt(0)
     {
       // Geom data for geom object has been setup (and pinned) in
       // constructor for geometric object. Now free the scale for the half axes
       // because we want to determine it as an unknown
       Geom_data_pt[0]->unpin(3);

       // Record that the geometric variable is value 3 in the geometric data
       Internal_geometric_variable_index = 3;

       // The geometric data is internal to the element -- this
       // ensures that any unknown pieces of geom_data get global equation
       // numbers. There should only be one piece of internal data
       unsigned n_geom_data = Geom_data_pt.size();
       for (unsigned i = 0; i < n_geom_data; i++)
       {
         add_internal_data(Geom_data_pt[i]);
       }
     }

References oomph::GeneralisedElement::add_internal_data(), oomph::PseudoBucklingRing::Geom_data_pt, i, and Internal_geometric_variable_index.

◆ PseudoBucklingRingElement() [2/3]

oomph::PseudoBucklingRingElement::PseudoBucklingRingElement	(	const double &	eps_buckl,
		const double &	HoR,
		const unsigned &	n_buckl,
		const unsigned &	imode,
		TimeStepper *	time_stepper_pt
	)

inline

Constructor: Pass buckling amplitude, h/R, buckling wavenumbe and pointer to global timestepper. Other parameters get set up to represent oscillating ring with mode imode (1 or 2). All geometric data is pinned by default.

       : PseudoBucklingRing(eps_buckl, HoR, n_buckl, imode, time_stepper_pt),
         External_reference_pressure_pt(0)
     {
       // Geom data for geom object has been setup (and pinned) in
       // constructor for geometric object. Now free the scale for the half axes
       // because we want to determine it as an unknown
       Geom_data_pt[0]->unpin(3);

       // Record that the geometric variable is value 3 in the geometric data
       Internal_geometric_variable_index = 3;

       // The geometric data is internal to the element -- this
       // ensures that any unknown pieces of geom_data get global equation
       // numbers. There should only be one piece of internal data
       unsigned n_geom_data = Geom_data_pt.size();
       for (unsigned i = 0; i < n_geom_data; i++)
       {
         add_internal_data(Geom_data_pt[i]);
       }
     }

References oomph::GeneralisedElement::add_internal_data(), oomph::PseudoBucklingRing::Geom_data_pt, i, and Internal_geometric_variable_index.

◆ PseudoBucklingRingElement() [3/3]

oomph::PseudoBucklingRingElement::PseudoBucklingRingElement ( const PseudoBucklingRingElement & dummy )

delete

Broken copy constructor.

◆ ~PseudoBucklingRingElement()

virtual oomph::PseudoBucklingRingElement::~PseudoBucklingRingElement ( )

inlinevirtual

Destructor: Kill internal data and set to NULL.

     {
       // The GeomElement's GeomData is mirrored in the element's
       // Internal Data and therefore gets wiped in the
       // destructor of GeneralisedElement --> No need to
       // kill it in PseudoBucklingRing()
       Must_clean_up = false;
     }

References oomph::PseudoBucklingRing::Must_clean_up.

Member Function Documentation

◆ geometric_local_eqn()

int oomph::PseudoBucklingRingElement::geometric_local_eqn ( )

inlineprivate

Return the local equation number of the internal geometric variable.

     {
       return internal_local_eqn(0, Internal_geometric_variable_index);
     }

References Internal_geometric_variable_index, and oomph::GeneralisedElement::internal_local_eqn().

Referenced by get_residuals_generic().

◆ get_jacobian()

virtual void oomph::PseudoBucklingRingElement::get_jacobian	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian
	)

inlinevirtual

Compute element residual Vector and element Jacobian matrix (wrapper)

Reimplemented from oomph::GeneralisedElement.

     {
       // Call the generic routine with the flag set to 1
       get_residuals_generic(residuals, jacobian, 1);
     }

References get_residuals_generic().

◆ get_residuals()

virtual void oomph::PseudoBucklingRingElement::get_residuals ( Vector< double > & residuals )

inlinevirtual

Compute element residual Vector (wrapper)

Reimplemented from oomph::GeneralisedElement.

     {
       // Create a dummy matrix
       DenseMatrix<double> dummy(1);

       // Call the generic residuals function with flag set to 0
       get_residuals_generic(residuals, dummy, 0);
     }

References get_residuals_generic().

◆ get_residuals_generic()

virtual void oomph::PseudoBucklingRingElement::get_residuals_generic	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian,
		unsigned	flag
	)

inlineprotectedvirtual

Compute element residual Vector (only if flag=0) and also element Jacobian matrix (if flag=1)

     {
       // Initialise the residuals to zero
       residuals.initialise(0.0);
       // If computing the Jacobian initialise to zero
       if (flag)
       {
         jacobian.initialise(0.0);
       }

       // There is only one equation, which is due to the internal degree
       // of freedom
       int local_eqn = geometric_local_eqn();

       // If it's not a boundary condition
       if (local_eqn >= 0)
       {
         // Pseudo force balance
         residuals[local_eqn] = reference_pressure() - (r_0() - 1.0);

         // Work out jacobian: d residual[0]/d r_0
         if (flag)
         {
           // The derivative wrt the internal unknown is
           // Derivative residual w.r.t. scale
           jacobian(local_eqn, local_eqn) = -1.0;

           int local_unknown = reference_pressure_local_eqn();
           if (local_unknown >= 0)
           {
             jacobian(local_eqn, local_unknown) = 1.0;
           }
         }
       }
     }

References geometric_local_eqn(), oomph::Vector< _Tp >::initialise(), oomph::DenseMatrix< T >::initialise(), oomph::PseudoBucklingRing::r_0(), reference_pressure(), and reference_pressure_local_eqn().

Referenced by get_jacobian(), and get_residuals().

◆ operator=()

void oomph::PseudoBucklingRingElement::operator= ( const PseudoBucklingRingElement & )

delete

Broken assignment operator.

◆ reference_pressure()

double oomph::PseudoBucklingRingElement::reference_pressure ( ) const

inline

Return the reference pressure.

     {
       // If there is no external pressure, return 0.0
       if (External_reference_pressure_pt == 0)
       {
         return 0.0;
       }
       else
       {
         return External_reference_pressure_pt->value(0);
       }
     }

References External_reference_pressure_pt, and oomph::Data::value().

Referenced by get_residuals_generic().

◆ reference_pressure_local_eqn()

int oomph::PseudoBucklingRingElement::reference_pressure_local_eqn ( )

inlineprivate

Return the local equation number of the reference pressure variable.

     {
       return external_local_eqn(External_reference_pressure_index, 0);
     }

References oomph::GeneralisedElement::external_local_eqn(), and External_reference_pressure_index.

Referenced by get_residuals_generic().

◆ reference_pressure_pt()

Data* const& oomph::PseudoBucklingRingElement::reference_pressure_pt ( ) const

inline

Pointer to pressure data that is used as reference pressure.

     {
       return external_data_pt(0);
     }

References oomph::GeneralisedElement::external_data_pt().

◆ set_reference_pressure_pt()

void oomph::PseudoBucklingRingElement::set_reference_pressure_pt ( Data *const & data_pt )

inline

Set the pressure data that is used as reference pressure.

     {
       // Clear the existing external data, if there is any
       flush_external_data(External_reference_pressure_pt);
       // Set the new External reference pointer
       External_reference_pressure_pt = data_pt;
       // Add it to the external data
       External_reference_pressure_index = add_external_data(data_pt);
     }

References oomph::GeneralisedElement::add_external_data(), External_reference_pressure_index, External_reference_pressure_pt, and oomph::GeneralisedElement::flush_external_data().

Member Data Documentation

◆ External_reference_pressure_index

unsigned oomph::PseudoBucklingRingElement::External_reference_pressure_index

private

The Data object that represents the reference pressure is stored at the location indexed by this integer in the external data storage.

Referenced by reference_pressure_local_eqn(), and set_reference_pressure_pt().

◆ External_reference_pressure_pt

Data* oomph::PseudoBucklingRingElement::External_reference_pressure_pt

private

Pointer to the data object that represents the external reference pressure

Referenced by reference_pressure(), and set_reference_pressure_pt().

◆ Internal_geometric_variable_index

unsigned oomph::PseudoBucklingRingElement::Internal_geometric_variable_index

private

Index of the value stored in the single geometric object that has become an unknown

Referenced by geometric_local_eqn(), and PseudoBucklingRingElement().

The documentation for this class was generated from the following file:

pseudo_buckling_ring.h

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PseudoBucklingRingElement() [1/3]

◆ PseudoBucklingRingElement() [2/3]

◆ PseudoBucklingRingElement() [3/3]

◆ ~PseudoBucklingRingElement()

Member Function Documentation

◆ geometric_local_eqn()

◆ get_jacobian()

◆ get_residuals()

◆ get_residuals_generic()

◆ operator=()

◆ reference_pressure()

◆ reference_pressure_local_eqn()

◆ reference_pressure_pt()

◆ set_reference_pressure_pt()

Member Data Documentation

◆ External_reference_pressure_index

◆ External_reference_pressure_pt

◆ Internal_geometric_variable_index
