OneDimMesh< ELEMENT > Class Template Reference

A simple one dimensional mesh: uniformly spaced nodes in the domain x=0,1. More...

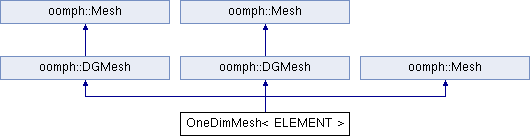

Inheritance diagram for OneDimMesh< ELEMENT >:

Public Member Functions
	OneDimMesh (const unsigned &n_element, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Mesh Constructor. The argument is the desired number of elements. More...
void	output_faces (std::ostream &outfile)
	Output the face element. More...
void	neighbour_finder (FiniteElement *const &bulk_element_pt, const int &face_index, const Vector< double > &s_bulk, FaceElement *&face_element_pt, Vector< double > &s_face)
	OneDimMesh (const unsigned &n_element, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Mesh Constructor. The argument is the desired number of elements. More...
void	output_faces (std::ostream &outfile)
	Output the face element. More...
void	neighbour_finder (FiniteElement *const &bulk_element_pt, const int &face_index, const Vector< double > &s_bulk, FaceElement *&face_element_pt, Vector< double > &s_face)
	OneDimMesh (const unsigned &n_element)
	Mesh Constructor. The argument is the desired number of elements. More...
Public Member Functions inherited from oomph::DGMesh
	DGMesh ()
virtual	~DGMesh ()
void	setup_face_neighbour_info (const bool &add_face_data_as_external=false)
void	limit_slopes (SlopeLimiter *const &slope_limiter_pt)
Public Member Functions inherited from oomph::Mesh
	Mesh ()
	Default constructor. More...
	Mesh (const Vector< Mesh * > &sub_mesh_pt)
void	merge_meshes (const Vector< Mesh * > &sub_mesh_pt)
virtual void	setup_boundary_element_info ()
virtual void	setup_boundary_element_info (std::ostream &outfile)
virtual void	reset_boundary_element_info (Vector< unsigned > &ntmp_boundary_elements, Vector< Vector< unsigned >> &ntmp_boundary_elements_in_region, Vector< FiniteElement * > &deleted_elements)
	Virtual function to perform the reset boundary elements info rutines. More...
template<class BULK_ELEMENT >
void	doc_boundary_coordinates (const unsigned &b, std::ofstream &the_file)
virtual void	scale_mesh (const double &factor)
	Mesh (const Mesh &dummy)=delete
	Broken copy constructor. More...
void	operator= (const Mesh &)=delete
	Broken assignment operator. More...
virtual	~Mesh ()
	Virtual Destructor to clean up all memory. More...
void	flush_element_and_node_storage ()
void	flush_element_storage ()
void	flush_node_storage ()
Node *&	node_pt (const unsigned long &n)
	Return pointer to global node n. More...
Node *	node_pt (const unsigned long &n) const
	Return pointer to global node n (const version) More...
GeneralisedElement *&	element_pt (const unsigned long &e)
	Return pointer to element e. More...
GeneralisedElement *	element_pt (const unsigned long &e) const
	Return pointer to element e (const version) More...
const Vector< GeneralisedElement * > &	element_pt () const
	Return reference to the Vector of elements. More...
Vector< GeneralisedElement * > &	element_pt ()
	Return reference to the Vector of elements. More...
FiniteElement *	finite_element_pt (const unsigned &e) const
Node *&	boundary_node_pt (const unsigned &b, const unsigned &n)
	Return pointer to node n on boundary b. More...
Node *	boundary_node_pt (const unsigned &b, const unsigned &n) const
	Return pointer to node n on boundary b. More...
void	set_nboundary (const unsigned &nbound)
	Set the number of boundaries in the mesh. More...
void	remove_boundary_nodes ()
	Clear all pointers to boundary nodes. More...
void	remove_boundary_nodes (const unsigned &b)
void	remove_boundary_node (const unsigned &b, Node *const &node_pt)
	Remove a node from the boundary b. More...
void	add_boundary_node (const unsigned &b, Node *const &node_pt)
	Add a (pointer to) a node to the b-th boundary. More...
void	copy_boundary_node_data_from_nodes ()
bool	boundary_coordinate_exists (const unsigned &i) const
	Indicate whether the i-th boundary has an intrinsic coordinate. More...
unsigned long	nelement () const
	Return number of elements in the mesh. More...
unsigned long	nnode () const
	Return number of nodes in the mesh. More...
unsigned	ndof_types () const
	Return number of dof types in mesh. More...
unsigned	elemental_dimension () const
	Return number of elemental dimension in mesh. More...
unsigned	nodal_dimension () const
	Return number of nodal dimension in mesh. More...
void	add_node_pt (Node *const &node_pt)
	Add a (pointer to a) node to the mesh. More...
void	add_element_pt (GeneralisedElement *const &element_pt)
	Add a (pointer to) an element to the mesh. More...
virtual void	node_update (const bool &update_all_solid_nodes=false)
virtual void	reorder_nodes (const bool &use_old_ordering=true)
virtual void	get_node_reordering (Vector< Node * > &reordering, const bool &use_old_ordering=true) const
template<class BULK_ELEMENT , template< class > class FACE_ELEMENT>
void	build_face_mesh (const unsigned &b, Mesh *const &face_mesh_pt)
unsigned	self_test ()
	Self-test: Check elements and nodes. Return 0 for OK. More...
void	max_and_min_element_size (double &max_size, double &min_size)
double	total_size ()
void	check_inverted_elements (bool &mesh_has_inverted_elements, std::ofstream &inverted_element_file)
void	check_inverted_elements (bool &mesh_has_inverted_elements)
unsigned	check_for_repeated_nodes (const double &epsilon=1.0e-12)
Vector< Node * >	prune_dead_nodes ()
unsigned	nboundary () const
	Return number of boundaries. More...
unsigned long	nboundary_node (const unsigned &ibound) const
	Return number of nodes on a particular boundary. More...
FiniteElement *	boundary_element_pt (const unsigned &b, const unsigned &e) const
	Return pointer to e-th finite element on boundary b. More...
Node *	get_some_non_boundary_node () const
unsigned	nboundary_element (const unsigned &b) const
	Return number of finite elements that are adjacent to boundary b. More...
int	face_index_at_boundary (const unsigned &b, const unsigned &e) const
virtual void	dump (std::ofstream &dump_file, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...
void	dump (const std::string &dump_file_name, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...
virtual void	read (std::ifstream &restart_file)
	Read solution from restart file. More...
void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const
void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const
void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const
void	output (std::ostream &outfile)
	Output for all elements. More...
void	output (std::ostream &outfile, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...
void	output (FILE *file_pt)
	Output for all elements (C-style output) More...
void	output (FILE *file_pt, const unsigned &nplot)
	Output at f(n_plot) points in each element (C-style output) More...
void	output (const std::string &output_filename)
	Output for all elements. More...
void	output (const std::string &output_filename, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...
void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt)
	Output a given Vector function at f(n_plot) points in each element. More...
void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt)
void	output_boundaries (std::ostream &outfile)
	Output the nodes on the boundaries (into separate tecplot zones) More...
void	output_boundaries (const std::string &output_filename)
void	assign_initial_values_impulsive ()
	Assign initial values for an impulsive start. More...
void	shift_time_values ()
void	calculate_predictions ()
void	set_nodal_and_elemental_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
virtual void	set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
void	set_consistent_pinned_values_for_continuation (ContinuationStorageScheme *const &continuation_stepper_pt)
	Set consistent values for pinned data in continuation. More...
bool	does_pointer_correspond_to_mesh_data (double *const &parameter_pt)
	Does the double pointer correspond to any mesh data. More...
void	set_nodal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
	Set the timestepper associated with the nodal data in the mesh. More...
void	set_elemental_internal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
virtual void	compute_norm (double &norm)
virtual void	compute_norm (Vector< double > &norm)
virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)
virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)
virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)
virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)
virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)
virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Returns the norm of the error and that of the exact solution. More...
virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)
bool	is_mesh_distributed () const
	Boolean to indicate if Mesh has been distributed. More...
OomphCommunicator *	communicator_pt () const
void	delete_all_external_storage ()
	Wipe the storage for all externally-based elements. More...

Additional Inherited Members
Public Types inherited from oomph::Mesh
typedef void(FiniteElement::*	SteadyExactSolutionFctPt) (const Vector< double > &x, Vector< double > &soln)
typedef void(FiniteElement::*	UnsteadyExactSolutionFctPt) (const double &time, const Vector< double > &x, Vector< double > &soln)
Static Public Attributes inherited from oomph::DGMesh
static double	FaceTolerance = 1.0e-10
Static Public Attributes inherited from oomph::Mesh
static Steady< 0 >	Default_TimeStepper
	The Steady Timestepper. More...
static bool	Suppress_warning_about_empty_mesh_level_time_stepper_function
	Static boolean flag to control warning about mesh level timesteppers. More...
Protected Member Functions inherited from oomph::Mesh
unsigned long	assign_global_eqn_numbers (Vector< double * > &Dof_pt)
	Assign (global) equation numbers to the nodes. More...
void	describe_dofs (std::ostream &out, const std::string &current_string) const
void	describe_local_dofs (std::ostream &out, const std::string &current_string) const
void	assign_local_eqn_numbers (const bool &store_local_dof_pt)
	Assign local equation numbers in all elements. More...
void	convert_to_boundary_node (Node *&node_pt, const Vector< FiniteElement * > &finite_element_pt)
void	convert_to_boundary_node (Node *&node_pt)
Protected Attributes inherited from oomph::Mesh
Vector< Vector< Node * > >	Boundary_node_pt
bool	Lookup_for_elements_next_boundary_is_setup
Vector< Vector< FiniteElement * > >	Boundary_element_pt
Vector< Vector< int > >	Face_index_at_boundary
Vector< Node * >	Node_pt
	Vector of pointers to nodes. More...
Vector< GeneralisedElement * >	Element_pt
	Vector of pointers to generalised elements. More...
std::vector< bool >	Boundary_coordinate_exists

Detailed Description

template<class ELEMENT>
class OneDimMesh< ELEMENT >

A simple one dimensional mesh: uniformly spaced nodes in the domain x=0,1.

Constructor & Destructor Documentation

OneDimMesh() [1/3]

template<class ELEMENT >

OneDimMesh< ELEMENT >::OneDimMesh ( const unsigned &  n_element, TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper  )

inline

Mesh Constructor. The argument is the desired number of elements.

 {
  double X_min = 0.0;
  double X_max = 1.0;

  //Resize the vector of pointers to elements: there are n_element elements
  Element_pt.resize(n_element);
  //Loop over and construct all elements
  for(unsigned e=0;e<n_element;e++)
   {
    Element_pt[e] = new ELEMENT;
   }

  //Construct nodes and faces for the elements
  {
   //First element
   std::vector<bool> boundary_info(finite_element_pt(0)->nnode(),false);
   boundary_info[0] = true;
   dynamic_cast<ELEMENT*>(element_pt(0))
    ->construct_boundary_nodes_and_faces(this,boundary_info,time_stepper_pt);

   //Construct normal nodes for middle elements
   for(unsigned e=1;e<n_element-1;e++)
    {
     dynamic_cast<ELEMENT*>(element_pt(e))->
      construct_nodes_and_faces(this,time_stepper_pt);
    }

   //Final element
   unsigned n_node = finite_element_pt(n_element-1)->nnode();
   boundary_info.resize(n_node,false);
   boundary_info[0] = false;
   boundary_info[n_node-1] = true;
   dynamic_cast<ELEMENT*>(element_pt(n_element-1))
    ->construct_boundary_nodes_and_faces(this,boundary_info,time_stepper_pt);
  }


  //We've now created all the nodes -- let's set their positions:
  //Elements are uniformly spaced
  double el_length = (X_max - X_min)/(double)n_element;
  //Storage for fractional position of node
  Vector<double> s_fraction;

  //Loop over the elements again
  for(unsigned e=0;e<n_element;e++)
   {
    //Locally cache the element
    FiniteElement* elem_pt = finite_element_pt(e);
    //Locally cache the pointer to the first node
    Node* nod_pt = elem_pt->node_pt(0);
    //Set it's position
    nod_pt->x(0) = e*el_length;
    //Add to the Mesh's list of nodes
    Node_pt.push_back(nod_pt);

    unsigned n_node = elem_pt->nnode();
    //Now we must loop over all other nodes
    for(unsigned n=1;n<n_node;n++)
     {
      //Get the pointer to the n-th node
      nod_pt = elem_pt->node_pt(n);

      //Find the fractional position of the node
      elem_pt->local_fraction_of_node(n,s_fraction);

      //Now set the position of the node
      nod_pt->x(0) = (e + s_fraction[0])*el_length;

      //Add to the list of nodes in the mesh
      Node_pt.push_back(nod_pt);
     }
   }


  //Find the total number of nodes created
  const unsigned n_node = this->nnode();

  //There are two boundaries
  set_nboundary(2);

  //Boundary 0 contains the first node in the mesh:
  add_boundary_node(0,Node_pt[0]);

  //Boundary 1 contains the final node in the mesh:
  add_boundary_node(1,Node_pt[n_node-1]);

  //Check
  std::cout << "Constructed mesh with " << this->nelement()
            << " Elements and " << this->nnode() << " Nodes" << std::endl;


 } // End of constructor

References e(), oomph::FiniteElement::local_fraction_of_node(), n, oomph::FiniteElement::nnode(), oomph::FiniteElement::node_pt(), oomph::Node::x(), RayParam::X_max, and RayParam::X_min.

OneDimMesh() [2/3]

template<class ELEMENT >

OneDimMesh< ELEMENT >::OneDimMesh ( const unsigned &  n_element, TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper  )

inline

Mesh Constructor. The argument is the desired number of elements.

 {
  double X_min = -1.0;
  double X_max = 1.0;

  //Resize the vector of pointers to elements: there are n_element elements
  Element_pt.resize(n_element);
  //Loop over and construct all elements
  for(unsigned e=0;e<n_element;e++)
   {
    Element_pt[e] = new ELEMENT;
   }

  //Construct nodes and faces for the elements
  {
   //First element
   std::vector<bool> boundary_info(finite_element_pt(0)->nnode(),false);
   boundary_info[0] = true;
   dynamic_cast<ELEMENT*>(element_pt(0))
    ->construct_boundary_nodes_and_faces(this,boundary_info,time_stepper_pt);

   //Construct normal nodes for middle elements
   for(unsigned e=1;e<n_element-1;e++)
    {
     dynamic_cast<ELEMENT*>(element_pt(e))->
      construct_nodes_and_faces(this,time_stepper_pt);
    }

   //Final element
   unsigned n_node = finite_element_pt(n_element-1)->nnode();
   boundary_info.resize(n_node,false);
   boundary_info[0] = false;
   boundary_info[n_node-1] = true;
   dynamic_cast<ELEMENT*>(element_pt(n_element-1))
    ->construct_boundary_nodes_and_faces(this,boundary_info,time_stepper_pt);
  }


  //We've now created all the nodes -- let's set their positions:
  //Elements are uniformly spaced
  double el_length = (X_max - X_min)/(double)n_element;
  //Storage for fractional position of node
  Vector<double> s_fraction;

  //Loop over the elements again
  for(unsigned e=0;e<n_element;e++)
   {
    //Locally cache the element
    FiniteElement* elem_pt = finite_element_pt(e);
    //Locally cache the pointer to the first node
    Node* nod_pt = elem_pt->node_pt(0);
    //Set it's position
    nod_pt->x(0) = X_min + e*el_length;
    //Add to the Mesh's list of nodes
    Node_pt.push_back(nod_pt);

    unsigned n_node = elem_pt->nnode();
    //Now we must loop over all other nodes
    for(unsigned n=1;n<n_node;n++)
     {
      //Get the pointer to the n-th node
      nod_pt = elem_pt->node_pt(n);

      //Find the fractional position of the node
      elem_pt->local_fraction_of_node(n,s_fraction);

      //Now set the position of the node
      nod_pt->x(0) = X_min + (e + s_fraction[0])*el_length;

      //Add to the list of nodes in the mesh
      Node_pt.push_back(nod_pt);
     }
   }


  //Find the total number of nodes created
  const unsigned n_node = this->nnode();

  //There are two boundaries
  set_nboundary(2);

  //Boundary 0 contains the first node in the mesh:
  add_boundary_node(0,Node_pt[0]);

  //Boundary 1 contains the final node in the mesh:
  add_boundary_node(1,Node_pt[n_node-1]);

  //Check
  std::cout << "Constructed mesh with " << this->nelement()
            << " Elements and " << this->nnode() << " Nodes" << std::endl;

  //Now set up the neighbour information
  this->setup_face_neighbour_info();

 } // End of constructor

References e(), oomph::FiniteElement::local_fraction_of_node(), n, oomph::FiniteElement::nnode(), oomph::FiniteElement::node_pt(), oomph::Node::x(), RayParam::X_max, and RayParam::X_min.

OneDimMesh() [3/3]

template<class ELEMENT >

OneDimMesh< ELEMENT >::OneDimMesh ( const unsigned &  n_element )

inline

Mesh Constructor. The argument is the desired number of elements.

 {
  //Resize the vector of pointers to elements: there are n_element elements
  Element_pt.resize(n_element);

  //Construct the first element (Note the use of the template parameter)
  Element_pt[0] = new ELEMENT;

  //Construct the first node and add it to the Mesh::Node_pt vector
  //Note: The FiniteElement::construct_boundary_node(j) function
  //builds the element's j-th local node, and provides the functionality
  //that allows it to be located on a Mesh boundary -- essentially this
  //involves allocating additional storage to the Node.
  //The function obtains the Node's
  //characteristics (e.g. its spatial dimension, the number of
  //values to be stored, etc) from various virtual FiniteElement
  //member functions, such as FiniteElement::required_nvalue().
  //FiniteElement::construct_boundary_node(...) also
  //stores a pointer to the newly created Node in the element's own
  //Node_pt vector.
  //Finally, the function returns the pointer to the
  //newly created Node, so that it can be stored in the Mesh's Node_pt
  //vector, as done here:
  Node_pt.push_back(finite_element_pt(0)->construct_boundary_node(0));

  //Find the number of nodes per element (N.B. all elements are identical
  //so we can determine this value once and for all).
  unsigned n_node = finite_element_pt(0)->nnode();

  //Loop over the remaning nodes of the first element
  for(unsigned n=1;n<n_node;n++)
   {
    //Construct the next node and add it to the Mesh::Node_pt vector
    //Note that these interior nodes need not (and should not)
    //be boundary nodes, so they are created using the construct_node
    //function, which has the same interface as
    //construct_boundary_node()
    Node_pt.push_back(finite_element_pt(0)->construct_node(n));
   }

  //Loop over the remaining elements apart from the last
  for(unsigned e=1;e<(n_element-1);e++)
   {
    //Construct the e-th element
    Element_pt[e] = new ELEMENT;

    //The first local node of the e-th element is the last local node
    //of the (e-1)-th element. We MUST NOT construct the node twice.
    //Instead, we set the pointer in the e-th element to point to the
    //previously created node in the (e-1)-th element.
    finite_element_pt(e)->node_pt(0) =
      finite_element_pt(e-1)->node_pt(n_node-1);

    //Loop over the remaining nodes of the e-th element
    for(unsigned n=1;n<n_node;n++)
     {
      //Construct the next node and add it to the Mesh::Node_pt vector
      //Note that these interior nodes need not (and should not)
      //be boundary nodes, so they are created using the construct_node
      //function, which has the same interface as
      //construct_boundary_node()
      Node_pt.push_back(finite_element_pt(e)->construct_node(n));
     }
   } //End of loop over elements


  //Construct the final element
  Element_pt[n_element-1] = new ELEMENT;

  //The first local node of the final element is the last local node
  //of the penultimate element. We MUST NOT construct the node twice.
  //Instead, we set the pointer in the final element to point to the
  //previously created node in the penultimate element.
  finite_element_pt(n_element-1)->node_pt(0) =
   finite_element_pt(n_element-2)->node_pt(n_node-1);

  //Loop over the remaining central nodes of the final element
  for(unsigned n=1;n<(n_node-1);n++)
   {
    //Construct the next node and add it to the Mesh::Node_pt vector
    //Note that these interior nodes need not (and should not)
    //be boundary nodes, so they are created using the construct_node
    //function()
    Node_pt.push_back(finite_element_pt(n_element-1)->construct_node(n));
   }

  //Construct the final node and add it to the Mesh::Node_pt vector.
  //This node will be located on a boundary, and hence we use
  //the construct_boundary_node function.
  Node_pt.push_back(finite_element_pt(n_element-1)
                    ->construct_boundary_node(n_node-1));

  //We've now created all the nodes -- let's set their positions:

  //Find the total number of nodes
  unsigned n_global_node = nnode();

  //Loop over all nodes
  for(unsigned n=0;n<n_global_node;n++)
   {
    //Set the position of the node (equally spaced through the unit interval)
    Node_pt[n]->x(0) = double(n)/double(n_global_node-1);
   }

  //Set the boundary data:

  //There are two boundaries in this mesh
  set_nboundary(2);

  //Boundary 0 contains the first node in the mesh:
  add_boundary_node(0,Node_pt[0]);

  //Boundary 1 contains the final node in the mesh:
  add_boundary_node(1,Node_pt[n_global_node-1]);

 } // End of constructor

References e(), and n.

Member Function Documentation

neighbour_finder() [1/2]

template<class ELEMENT >

void OneDimMesh< ELEMENT >::neighbour_finder ( FiniteElement *const &  bulk_element_pt, const int &  face_index, const Vector< double > &  s_bulk, FaceElement *&  face_element_pt, Vector< double > &  s_face  )

inlinevirtual

Reimplemented from oomph::DGMesh.

  {
   //The face coordinate is always a vector of size zero
   s_face.resize(0);

   //Not efficient but will work
   const unsigned n_element = this->nelement();
   for(unsigned e=0;e<n_element;e++)
    {
     if(finite_element_pt(e)==bulk_element_pt)
      {
       //Now what's up
       switch(face_index)
        {
         //left face
        case -1:
         //If not the first
         if(e!=0)
          {
           //Right face of previous element
           face_element_pt =
            dynamic_cast<ELEMENT*>(Element_pt[e-1])->face_element_pt(1);
          }
         //Otherwie make periodic
         else
          {
           face_element_pt =
            dynamic_cast<ELEMENT*>(Element_pt[n_element-1])->face_element_pt(1);
           //dynamic_cast<ELEMENT*>(Element_pt[e])->face_element_pt(0);
          }
         break;

         //Right face
        case 1:
         //If not the last
         if(e!=n_element-1)
          {
           //Left face of next element
           face_element_pt =
            dynamic_cast<ELEMENT*>(Element_pt[e+1])->face_element_pt(0);
          }
         //Otherwie make periodic
         else
          {
           face_element_pt =
            dynamic_cast<ELEMENT*>(Element_pt[0])->face_element_pt(0);
           //dynamic_cast<ELEMENT*>(Element_pt[e])->face_element_pt(1);
          }
         break;


         //Otherwise complain
        default:
         throw OomphLibError(
          "Coordinate is not on any face",
          OOMPH_CURRENT_FUNCTION,
          OOMPH_EXCEPTION_LOCATION);
        }

       //Break out of the for loop
       break;
      }
    }

  }

References e(), OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

neighbour_finder() [2/2]

template<class ELEMENT >

void OneDimMesh< ELEMENT >::neighbour_finder ( FiniteElement *const &  bulk_element_pt, const int &  face_index, const Vector< double > &  s_bulk, FaceElement *&  face_element_pt, Vector< double > &  s_face  )

inlinevirtual

Reimplemented from oomph::DGMesh.

  {
   //The face coordinate is always a vector of size zero
   s_face.resize(0);

   //Not efficient but will work
   const unsigned n_element = this->nelement();
   for(unsigned e=0;e<n_element;e++)
    {
     if(finite_element_pt(e)==bulk_element_pt)
      {
       //Now what's up
       switch(face_index)
        {
         //left face
        case -1:
         //If not the first
         if(e!=0)
          {
           //Right face of previous element
           face_element_pt =
            dynamic_cast<ELEMENT*>(Element_pt[e-1])->face_element_pt(1);
          }
         //Otherwie just set the face to be the face of the first element
         else
          {
           face_element_pt =
            //dynamic_cast<ELEMENT*>(Element_pt[n_element-1])->face_element_pt(1);
           dynamic_cast<ELEMENT*>(Element_pt[e])->face_element_pt(0);
          }
         break;

         //Right face
        case 1:
         //If not the last
         if(e!=n_element-1)
          {
           //Left face of next element
           face_element_pt =
            dynamic_cast<ELEMENT*>(Element_pt[e+1])->face_element_pt(0);
          }
         //Otherwie make periodic
         else
          {
           face_element_pt =
            //dynamic_cast<ELEMENT*>(Element_pt[0])->face_element_pt(0);
           dynamic_cast<ELEMENT*>(Element_pt[e])->face_element_pt(1);
          }
         break;


         //Otherwise complain
        default:
         throw OomphLibError(
          "Coordinate is not on any face",
          OOMPH_CURRENT_FUNCTION,
          OOMPH_EXCEPTION_LOCATION);
        }

       //Break out of the for loop
       break;
      }
    }

  }

References e(), OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

output_faces() [1/2]

template<class ELEMENT >

void OneDimMesh< ELEMENT >::output_faces ( std::ostream &  outfile )

inline

Output the face element.

  {
   //Loop over the elements
   unsigned n_element = this->nelement();
   for(unsigned e=0;e<n_element;e++)
    {
     dynamic_cast<ELEMENT*>(element_pt(e))->output_faces(outfile);
    }
  }

References e().

output_faces() [2/2]

template<class ELEMENT >

void OneDimMesh< ELEMENT >::output_faces ( std::ostream &  outfile )

inline

Output the face element.

  {
   //Loop over the elements
   unsigned n_element = this->nelement();
   for(unsigned e=0;e<n_element;e++)
    {
     dynamic_cast<ELEMENT*>(element_pt(e))->output_faces(outfile);
    }
  }

References e().

---

The documentation for this class was generated from the following files:

• one_d_advection.cc
• one_d_euler.cc
• one_d_poisson_generic_only.cc
