Elastic version of Single fluid interface problem. More...

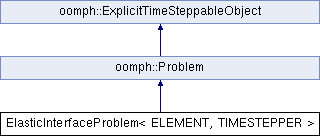

Inheritance diagram for ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >:

Public Member Functions
	ElasticInterfaceProblem (const unsigned &Nx, const unsigned &Ny, const unsigned &Nz, const double &Lx, const double &Ly, const double &h)
	Problem constructor. More...

void	unsteady_run (const unsigned &nstep)
	Run an unsteady simulation with specified number of steps. More...

void	doc_solution (DocInfo &doc_info)
	Doc the solution. More...

Public Member Functions inherited from oomph::Problem
virtual void	debug_hook_fct (const unsigned &i)

void	set_analytic_dparameter (double *const &parameter_pt)

void	unset_analytic_dparameter (double *const &parameter_pt)

bool	is_dparameter_calculated_analytically (double *const &parameter_pt)

void	set_analytic_hessian_products ()

void	unset_analytic_hessian_products ()

bool	are_hessian_products_calculated_analytically ()

void	set_pinned_values_to_zero ()

bool	distributed () const

virtual void	actions_before_adapt ()

virtual void	actions_after_adapt ()
	Actions that are to be performed after a mesh adaptation. More...

OomphCommunicator *	communicator_pt ()
	access function to the oomph-lib communicator More...

const OomphCommunicator *	communicator_pt () const
	access function to the oomph-lib communicator, const version More...

	Problem ()

	Problem (const Problem &dummy)=delete
	Broken copy constructor. More...

void	operator= (const Problem &)=delete
	Broken assignment operator. More...

virtual	~Problem ()
	Virtual destructor to clean up memory. More...

Mesh *&	mesh_pt ()
	Return a pointer to the global mesh. More...

Mesh *const &	mesh_pt () const
	Return a pointer to the global mesh (const version) More...

Mesh *&	mesh_pt (const unsigned &imesh)

Mesh *const &	mesh_pt (const unsigned &imesh) const
	Return a pointer to the i-th submesh (const version) More...

unsigned	nsub_mesh () const
	Return number of submeshes. More...

unsigned	add_sub_mesh (Mesh *const &mesh_pt)

void	flush_sub_meshes ()

void	build_global_mesh ()

void	rebuild_global_mesh ()

LinearSolver *&	linear_solver_pt ()
	Return a pointer to the linear solver object. More...

LinearSolver *const &	linear_solver_pt () const
	Return a pointer to the linear solver object (const version) More...

LinearSolver *&	mass_matrix_solver_for_explicit_timestepper_pt ()

LinearSolver *	mass_matrix_solver_for_explicit_timestepper_pt () const

EigenSolver *&	eigen_solver_pt ()
	Return a pointer to the eigen solver object. More...

EigenSolver *const &	eigen_solver_pt () const
	Return a pointer to the eigen solver object (const version) More...

Time *&	time_pt ()
	Return a pointer to the global time object. More...

Time *	time_pt () const
	Return a pointer to the global time object (const version). More...

double &	time ()
	Return the current value of continuous time. More...

double	time () const
	Return the current value of continuous time (const version) More...

TimeStepper *&	time_stepper_pt ()

const TimeStepper *	time_stepper_pt () const

TimeStepper *&	time_stepper_pt (const unsigned &i)
	Return a pointer to the i-th timestepper. More...

ExplicitTimeStepper *&	explicit_time_stepper_pt ()
	Return a pointer to the explicit timestepper. More...

unsigned long	set_timestepper_for_all_data (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data=false)

virtual void	shift_time_values ()
	Shift all values along to prepare for next timestep. More...

AssemblyHandler *&	assembly_handler_pt ()
	Return a pointer to the assembly handler object. More...

AssemblyHandler *const &	assembly_handler_pt () const
	Return a pointer to the assembly handler object (const version) More...

double &	minimum_dt ()
	Access function to min timestep in adaptive timestepping. More...

double &	maximum_dt ()
	Access function to max timestep in adaptive timestepping. More...

unsigned &	max_newton_iterations ()
	Access function to max Newton iterations before giving up. More...

void	problem_is_nonlinear (const bool &prob_lin)
	Access function to Problem_is_nonlinear. More...

double &	max_residuals ()

bool &	time_adaptive_newton_crash_on_solve_fail ()
	Access function for Time_adaptive_newton_crash_on_solve_fail. More...

double &	newton_solver_tolerance ()

void	add_time_stepper_pt (TimeStepper *const &time_stepper_pt)

void	set_explicit_time_stepper_pt (ExplicitTimeStepper *const &explicit_time_stepper_pt)

void	initialise_dt (const double &dt)

void	initialise_dt (const Vector< double > &dt)

Data *&	global_data_pt (const unsigned &i)
	Return a pointer to the the i-th global data object. More...

void	add_global_data (Data *const &global_data_pt)

void	flush_global_data ()

LinearAlgebraDistribution *const &	dof_distribution_pt () const
	Return the pointer to the dof distribution (read-only) More...

unsigned long	ndof () const
	Return the number of dofs. More...

unsigned	ntime_stepper () const
	Return the number of time steppers. More...

unsigned	nglobal_data () const
	Return the number of global data values. More...

unsigned	self_test ()
	Self-test: Check meshes and global data. Return 0 for OK. More...

void	enable_store_local_dof_pt_in_elements ()

void	disable_store_local_dof_pt_in_elements ()

unsigned long	assign_eqn_numbers (const bool &assign_local_eqn_numbers=true)

void	describe_dofs (std::ostream &out= *(oomph_info.stream_pt())) const

void	enable_discontinuous_formulation ()

void	disable_discontinuous_formulation ()

void	get_dofs (DoubleVector &dofs) const

void	get_dofs (const unsigned &t, DoubleVector &dofs) const
	Return vector of the t'th history value of all dofs. More...

void	set_dofs (const DoubleVector &dofs)
	Set the values of the dofs. More...

void	set_dofs (const unsigned &t, DoubleVector &dofs)
	Set the history values of the dofs. More...

void	set_dofs (const unsigned &t, Vector< double * > &dof_pt)

void	add_to_dofs (const double &lambda, const DoubleVector &increment_dofs)
	Add lambda x incremenet_dofs[l] to the l-th dof. More...

double *	global_dof_pt (const unsigned &i)

double &	dof (const unsigned &i)
	i-th dof in the problem More...

double	dof (const unsigned &i) const
	i-th dof in the problem (const version) More...

double *&	dof_pt (const unsigned &i)
	Pointer to i-th dof in the problem. More...

double *	dof_pt (const unsigned &i) const
	Pointer to i-th dof in the problem (const version) More...

virtual void	get_inverse_mass_matrix_times_residuals (DoubleVector &Mres)

virtual void	get_dvaluesdt (DoubleVector &f)

virtual void	get_residuals (DoubleVector &residuals)
	Get the total residuals Vector for the problem. More...

virtual void	get_jacobian (DoubleVector &residuals, DenseDoubleMatrix &jacobian)

virtual void	get_jacobian (DoubleVector &residuals, CRDoubleMatrix &jacobian)

virtual void	get_jacobian (DoubleVector &residuals, CCDoubleMatrix &jacobian)

virtual void	get_jacobian (DoubleVector &residuals, SumOfMatrices &jacobian)

void	get_fd_jacobian (DoubleVector &residuals, DenseMatrix< double > &jacobian)
	Get the full Jacobian by finite differencing. More...

void	get_derivative_wrt_global_parameter (double *const &parameter_pt, DoubleVector &result)

void	get_hessian_vector_products (DoubleVectorWithHaloEntries const &Y, Vector< DoubleVectorWithHaloEntries > const &C, Vector< DoubleVectorWithHaloEntries > &product)

void	solve_eigenproblem (const unsigned &n_eval, Vector< std::complex< double >> &eigenvalue, Vector< DoubleVector > &eigenvector, const bool &steady=true)
	Solve the eigenproblem. More...

void	solve_eigenproblem (const unsigned &n_eval, Vector< std::complex< double >> &eigenvalue, const bool &steady=true)

virtual void	get_eigenproblem_matrices (CRDoubleMatrix &mass_matrix, CRDoubleMatrix &main_matrix, const double &shift=0.0)

void	assign_eigenvector_to_dofs (DoubleVector &eigenvector)
	Assign the eigenvector passed to the function to the dofs. More...

void	add_eigenvector_to_dofs (const double &epsilon, const DoubleVector &eigenvector)

void	store_current_dof_values ()
	Store the current values of the degrees of freedom. More...

void	restore_dof_values ()
	Restore the stored values of the degrees of freedom. More...

void	enable_jacobian_reuse ()

void	disable_jacobian_reuse ()
	Disable recycling of Jacobian in Newton iteration. More...

bool	jacobian_reuse_is_enabled ()
	Is recycling of Jacobian in Newton iteration enabled? More...

bool &	use_predictor_values_as_initial_guess ()

void	newton_solve ()
	Use Newton method to solve the problem. More...

void	enable_globally_convergent_newton_method ()
	enable globally convergent Newton method More...

void	disable_globally_convergent_newton_method ()
	disable globally convergent Newton method More...

void	newton_solve (unsigned const &max_adapt)

void	steady_newton_solve (unsigned const &max_adapt=0)

void	copy (Problem *orig_problem_pt)

virtual Problem *	make_copy ()

virtual void	read (std::ifstream &restart_file, bool &unsteady_restart)

virtual void	read (std::ifstream &restart_file)

virtual void	dump (std::ofstream &dump_file) const

void	dump (const std::string &dump_file_name) const

void	delete_all_external_storage ()

virtual void	symmetrise_eigenfunction_for_adaptive_pitchfork_tracking ()

double *	bifurcation_parameter_pt () const

void	get_bifurcation_eigenfunction (Vector< DoubleVector > &eigenfunction)

void	activate_fold_tracking (double *const &parameter_pt, const bool &block_solve=true)

void	activate_bifurcation_tracking (double *const &parameter_pt, const DoubleVector &eigenvector, const bool &block_solve=true)

void	activate_bifurcation_tracking (double *const &parameter_pt, const DoubleVector &eigenvector, const DoubleVector &normalisation, const bool &block_solve=true)

void	activate_pitchfork_tracking (double *const &parameter_pt, const DoubleVector &symmetry_vector, const bool &block_solve=true)

void	activate_hopf_tracking (double *const &parameter_pt, const bool &block_solve=true)

void	activate_hopf_tracking (double *const &parameter_pt, const double &omega, const DoubleVector &null_real, const DoubleVector &null_imag, const bool &block_solve=true)

void	deactivate_bifurcation_tracking ()

void	reset_assembly_handler_to_default ()
	Reset the system to the standard non-augemented state. More...

double	arc_length_step_solve (double *const &parameter_pt, const double &ds, const unsigned &max_adapt=0)

double	arc_length_step_solve (Data *const &data_pt, const unsigned &data_index, const double &ds, const unsigned &max_adapt=0)

void	reset_arc_length_parameters ()

int &	sign_of_jacobian ()

void	explicit_timestep (const double &dt, const bool &shift_values=true)
	Take an explicit timestep of size dt. More...

void	unsteady_newton_solve (const double &dt)

void	unsteady_newton_solve (const double &dt, const bool &shift_values)

void	unsteady_newton_solve (const double &dt, const unsigned &max_adapt, const bool &first, const bool &shift=true)

double	doubly_adaptive_unsteady_newton_solve (const double &dt, const double &epsilon, const unsigned &max_adapt, const bool &first, const bool &shift=true)

double	doubly_adaptive_unsteady_newton_solve (const double &dt, const double &epsilon, const unsigned &max_adapt, const unsigned &suppress_resolve_after_spatial_adapt_flag, const bool &first, const bool &shift=true)

double	adaptive_unsteady_newton_solve (const double &dt_desired, const double &epsilon)

double	adaptive_unsteady_newton_solve (const double &dt_desired, const double &epsilon, const bool &shift_values)

void	assign_initial_values_impulsive ()

void	assign_initial_values_impulsive (const double &dt)

void	calculate_predictions ()
	Calculate predictions. More...

void	enable_mass_matrix_reuse ()

void	disable_mass_matrix_reuse ()

bool	mass_matrix_reuse_is_enabled ()
	Return whether the mass matrix is being reused. More...

void	refine_uniformly (const Vector< unsigned > &nrefine_for_mesh)

void	refine_uniformly (const Vector< unsigned > &nrefine_for_mesh, DocInfo &doc_info)

void	refine_uniformly_and_prune (const Vector< unsigned > &nrefine_for_mesh)

void	refine_uniformly_and_prune (const Vector< unsigned > &nrefine_for_mesh, DocInfo &doc_info)

void	refine_uniformly (DocInfo &doc_info)

void	refine_uniformly_and_prune (DocInfo &doc_info)

void	refine_uniformly ()

void	refine_uniformly (const unsigned &i_mesh, DocInfo &doc_info)
	Do uniform refinement for submesh i_mesh with documentation. More...

void	refine_uniformly (const unsigned &i_mesh)
	Do uniform refinement for submesh i_mesh without documentation. More...

void	p_refine_uniformly (const Vector< unsigned > &nrefine_for_mesh)

void	p_refine_uniformly (const Vector< unsigned > &nrefine_for_mesh, DocInfo &doc_info)

void	p_refine_uniformly_and_prune (const Vector< unsigned > &nrefine_for_mesh)

void	p_refine_uniformly_and_prune (const Vector< unsigned > &nrefine_for_mesh, DocInfo &doc_info)

void	p_refine_uniformly (DocInfo &doc_info)

void	p_refine_uniformly_and_prune (DocInfo &doc_info)

void	p_refine_uniformly ()

void	p_refine_uniformly (const unsigned &i_mesh, DocInfo &doc_info)
	Do uniform p-refinement for submesh i_mesh with documentation. More...

void	p_refine_uniformly (const unsigned &i_mesh)
	Do uniform p-refinement for submesh i_mesh without documentation. More...

void	refine_selected_elements (const Vector< unsigned > &elements_to_be_refined)

void	refine_selected_elements (const Vector< RefineableElement * > &elements_to_be_refined_pt)

void	refine_selected_elements (const unsigned &i_mesh, const Vector< unsigned > &elements_to_be_refined)

void	refine_selected_elements (const unsigned &i_mesh, const Vector< RefineableElement * > &elements_to_be_refined_pt)

void	refine_selected_elements (const Vector< Vector< unsigned >> &elements_to_be_refined)

void	refine_selected_elements (const Vector< Vector< RefineableElement * >> &elements_to_be_refined_pt)

void	p_refine_selected_elements (const Vector< unsigned > &elements_to_be_refined)

void	p_refine_selected_elements (const Vector< PRefineableElement * > &elements_to_be_refined_pt)

void	p_refine_selected_elements (const unsigned &i_mesh, const Vector< unsigned > &elements_to_be_refined)

void	p_refine_selected_elements (const unsigned &i_mesh, const Vector< PRefineableElement * > &elements_to_be_refined_pt)

void	p_refine_selected_elements (const Vector< Vector< unsigned >> &elements_to_be_refined)

void	p_refine_selected_elements (const Vector< Vector< PRefineableElement * >> &elements_to_be_refined_pt)

unsigned	unrefine_uniformly ()

unsigned	unrefine_uniformly (const unsigned &i_mesh)

void	p_unrefine_uniformly (DocInfo &doc_info)

void	p_unrefine_uniformly (const unsigned &i_mesh, DocInfo &doc_info)
	Do uniform p-unrefinement for submesh i_mesh without documentation. More...

void	adapt (unsigned &n_refined, unsigned &n_unrefined)

void	adapt ()

void	p_adapt (unsigned &n_refined, unsigned &n_unrefined)

void	p_adapt ()

void	adapt_based_on_error_estimates (unsigned &n_refined, unsigned &n_unrefined, Vector< Vector< double >> &elemental_error)

void	adapt_based_on_error_estimates (Vector< Vector< double >> &elemental_error)

void	get_all_error_estimates (Vector< Vector< double >> &elemental_error)

void	doc_errors (DocInfo &doc_info)
	Get max and min error for all elements in submeshes. More...

void	doc_errors ()
	Get max and min error for all elements in submeshes. More...

void	enable_info_in_newton_solve ()

void	disable_info_in_newton_solve ()
	Disable the output of information when in the newton solver. More...

Public Member Functions inherited from oomph::ExplicitTimeSteppableObject
	ExplicitTimeSteppableObject ()
	Empty constructor. More...

	ExplicitTimeSteppableObject (const ExplicitTimeSteppableObject &)=delete
	Broken copy constructor. More...

void	operator= (const ExplicitTimeSteppableObject &)=delete
	Broken assignment operator. More...

virtual	~ExplicitTimeSteppableObject ()
	Empty destructor. More...

virtual void	actions_before_explicit_stage ()

virtual void	actions_after_explicit_stage ()

Private Attributes
ofstream	Trace_file
	Trace file. More...

double	Lx
	Axial lengths of domain. More...

double	Ly

ElasticSimpleCubicMesh< ELEMENT > *	Bulk_mesh_pt
	Pointer to bulk mesh. More...

Mesh *	Surface_mesh_pt
	Pointer to the surface mes. More...

Node *	Document_node_pt
	Pointer to a node for documentation purposes. More...

Additional Inherited Members
Public Types inherited from oomph::Problem
typedef void(*	SpatialErrorEstimatorFctPt) (Mesh *&mesh_pt, Vector< double > &elemental_error)
	Function pointer for spatial error estimator. More...

typedef void(*	SpatialErrorEstimatorWithDocFctPt) (Mesh *&mesh_pt, Vector< double > &elemental_error, DocInfo &doc_info)
	Function pointer for spatial error estimator with doc. More...

Public Attributes inherited from oomph::Problem
bool	Shut_up_in_newton_solve

Static Public Attributes inherited from oomph::Problem
static bool	Suppress_warning_about_actions_before_read_unstructured_meshes

Protected Types inherited from oomph::Problem
enum	Assembly_method { Perform_assembly_using_vectors_of_pairs , Perform_assembly_using_two_vectors , Perform_assembly_using_maps , Perform_assembly_using_lists , Perform_assembly_using_two_arrays }
	Enumerated flags to determine which sparse assembly method is used. More...

Protected Member Functions inherited from oomph::Problem
unsigned	setup_element_count_per_dof ()

virtual void	sparse_assemble_row_or_column_compressed (Vector< int * > &column_or_row_index, Vector< int * > &row_or_column_start, Vector< double * > &value, Vector< unsigned > &nnz, Vector< double * > &residual, bool compressed_row_flag)

virtual void	actions_before_newton_solve ()

virtual void	actions_after_newton_solve ()

virtual void	actions_before_newton_convergence_check ()

virtual void	actions_before_newton_step ()

virtual void	actions_after_newton_step ()

virtual void	actions_before_implicit_timestep ()

virtual void	actions_after_implicit_timestep ()

virtual void	actions_after_implicit_timestep_and_error_estimation ()

virtual void	actions_before_explicit_timestep ()
	Actions that should be performed before each explicit time step. More...

virtual void	actions_after_explicit_timestep ()
	Actions that should be performed after each explicit time step. More...

virtual void	actions_before_read_unstructured_meshes ()

virtual void	actions_after_read_unstructured_meshes ()

virtual void	actions_after_change_in_global_parameter (double *const &parameter_pt)

virtual void	actions_after_change_in_bifurcation_parameter ()

virtual void	actions_after_parameter_increase (double *const &parameter_pt)

double &	dof_derivative (const unsigned &i)

double &	dof_current (const unsigned &i)

virtual void	set_initial_condition ()

virtual double	global_temporal_error_norm ()

unsigned	newton_solve_continuation (double *const &parameter_pt)

unsigned	newton_solve_continuation (double *const &parameter_pt, DoubleVector &z)

void	calculate_continuation_derivatives (double *const &parameter_pt)

void	calculate_continuation_derivatives (const DoubleVector &z)

void	calculate_continuation_derivatives_fd (double *const &parameter_pt)

bool	does_pointer_correspond_to_problem_data (double *const &parameter_pt)

void	set_consistent_pinned_values_for_continuation ()

Protected Attributes inherited from oomph::Problem
Vector< Problem * >	Copy_of_problem_pt

std::map< double *, bool >	Calculate_dparameter_analytic

bool	Calculate_hessian_products_analytic

LinearAlgebraDistribution *	Dof_distribution_pt

Vector< double * >	Dof_pt
	Vector of pointers to dofs. More...

DoubleVectorWithHaloEntries	Element_count_per_dof

double	Relaxation_factor

double	Newton_solver_tolerance

unsigned	Max_newton_iterations
	Maximum number of Newton iterations. More...

unsigned	Nnewton_iter_taken

Vector< double >	Max_res
	Maximum residuals at start and after each newton iteration. More...

double	Max_residuals

bool	Time_adaptive_newton_crash_on_solve_fail

bool	Jacobian_reuse_is_enabled
	Is re-use of Jacobian in Newton iteration enabled? Default: false. More...

bool	Jacobian_has_been_computed

bool	Problem_is_nonlinear

bool	Pause_at_end_of_sparse_assembly

bool	Doc_time_in_distribute

unsigned	Sparse_assembly_method

unsigned	Sparse_assemble_with_arrays_initial_allocation

unsigned	Sparse_assemble_with_arrays_allocation_increment

Vector< Vector< unsigned > >	Sparse_assemble_with_arrays_previous_allocation

double	Numerical_zero_for_sparse_assembly

double	FD_step_used_in_get_hessian_vector_products

bool	Mass_matrix_reuse_is_enabled

bool	Mass_matrix_has_been_computed

bool	Discontinuous_element_formulation

double	Minimum_dt
	Minimum desired dt: if dt falls below this value, exit. More...

double	Maximum_dt
	Maximum desired dt. More...

double	DTSF_max_increase

double	DTSF_min_decrease

double	Minimum_dt_but_still_proceed

bool	Scale_arc_length
	Boolean to control whether arc-length should be scaled. More...

double	Desired_proportion_of_arc_length
	Proportion of the arc-length to taken by the parameter. More...

double	Theta_squared

int	Sign_of_jacobian
	Storage for the sign of the global Jacobian. More...

double	Continuation_direction

double	Parameter_derivative
	Storage for the derivative of the global parameter wrt arc-length. More...

double	Parameter_current
	Storage for the present value of the global parameter. More...

bool	Use_continuation_timestepper
	Boolean to control original or new storage of dof stuff. More...

unsigned	Dof_derivative_offset

unsigned	Dof_current_offset

Vector< double >	Dof_derivative
	Storage for the derivative of the problem variables wrt arc-length. More...

Vector< double >	Dof_current
	Storage for the present values of the variables. More...

double	Ds_current
	Storage for the current step value. More...

unsigned	Desired_newton_iterations_ds

double	Minimum_ds
	Minimum desired value of arc-length. More...

bool	Bifurcation_detection
	Boolean to control bifurcation detection via determinant of Jacobian. More...

bool	Bisect_to_find_bifurcation
	Boolean to control wheter bisection is used to located bifurcation. More...

bool	First_jacobian_sign_change
	Boolean to indicate whether a sign change has occured in the Jacobian. More...

bool	Arc_length_step_taken
	Boolean to indicate whether an arc-length step has been taken. More...

bool	Use_finite_differences_for_continuation_derivatives

OomphCommunicator *	Communicator_pt
	The communicator for this problem. More...

bool	Always_take_one_newton_step

double	Timestep_reduction_factor_after_nonconvergence

bool	Keep_temporal_error_below_tolerance

Static Protected Attributes inherited from oomph::Problem
static ContinuationStorageScheme	Continuation_time_stepper
	Storage for the single static continuation timestorage object. More...

Detailed Description

template<class ELEMENT, class TIMESTEPPER>
class ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >

Elastic version of Single fluid interface problem.

Constructor & Destructor Documentation

◆ ElasticInterfaceProblem()

template<class ELEMENT , class TIMESTEPPER >

ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >::ElasticInterfaceProblem	(	const unsigned &	Nx,
		const unsigned &	Ny,
		const unsigned &	Nz,
		const double &	Lx,
		const double &	Ly,
		const double &	h
	)

Problem constructor.

Constructor: Pass number of elements in x and y directions. Also lengths of the domain in x- and y-directions and the height of the layer

  : Lx(lx), Ly(ly)
 {
  //Allocate the timestepper
  add_time_stepper_pt(new TIMESTEPPER);

  //Now create the bulk mesh
  Bulk_mesh_pt = new ElasticSimpleCubicMesh<ELEMENT>
   (nx,ny,nz,lx,ly,h,time_stepper_pt());

  //Set the documented node
  {
  //Find the number of nodes per row
   unsigned n_node_row =
    1 + nx*(Bulk_mesh_pt->finite_element_pt(0)->nnode_1d()-1);
   //Find the near central node
   unsigned central_node = (n_node_row + 1)*n_node_row/2;
   Document_node_pt = Bulk_mesh_pt->boundary_node_pt(5,central_node);
  }

  //Create the surface mesh that will contain the interface elements
  //First create storage, but with no elements or nodes
  Surface_mesh_pt = new Mesh;

  // Loop over those elements adjacent to the free surface,
  // which we shall choose to be the upper surface
  for(unsigned e1=0;e1<ny;e1++)
   {
    for(unsigned e2=0;e2<nx;e2++)
     {
      // Set a pointer to the bulk element we wish to our interface
      // element to
      FiniteElement* bulk_element_pt =
       Bulk_mesh_pt->finite_element_pt(nx*ny*(nz-1) + e2 + e1*nx);

      // Create the interface element (on face 3 of the bulk element)
      FiniteElement* interface_element_pt =
       new ElasticSurfaceFluidInterfaceElement<ELEMENT>(bulk_element_pt,3);

      // Add the interface element to the surface mesh
      this->Surface_mesh_pt->add_element_pt(interface_element_pt);
     }
   }

  // Add the two sub-meshes to the problem
  add_sub_mesh(Bulk_mesh_pt);
  add_sub_mesh(Surface_mesh_pt);

  // Combine all sub-meshes into a single mesh
  build_global_mesh();

  //Pin all nodes on the bottom
  unsigned long n_boundary_node = Bulk_mesh_pt->nboundary_node(0);
  for(unsigned long n=0;n<n_boundary_node;n++)
   {
    SolidNode* nod_pt =
     static_cast<SolidNode*>(Bulk_mesh_pt->boundary_node_pt(0,n));
    for(unsigned i=0;i<3;i++)
     {
      nod_pt->pin(i);
      nod_pt->pin_position(i);
     }
   }

  //On the front and back (y=const) pin in y-direction
  for(unsigned b=1;b<4;b+=2)
   {
    n_boundary_node = Bulk_mesh_pt->nboundary_node(b);
    for(unsigned long n=0;n<n_boundary_node;n++)
     {
      SolidNode* nod_pt =
       static_cast<SolidNode*>(Bulk_mesh_pt->boundary_node_pt(b,n));
      nod_pt->pin(1);
      nod_pt->pin_position(1);
     }
   }

  //On sides pin in x-direction
  for(unsigned b=2;b<5;b+=2)
   {
    n_boundary_node = Bulk_mesh_pt->nboundary_node(b);
    for(unsigned long n=0;n<n_boundary_node;n++)
     {
      SolidNode* nod_pt =
       static_cast<SolidNode*>(Bulk_mesh_pt->boundary_node_pt(b,n));
      nod_pt->pin(0);
      nod_pt->pin_position(0);
     }
   }


  //Only allow the nodes to move in the vertical direction
  unsigned n_node = Bulk_mesh_pt->nnode();
  for(unsigned n=0;n<n_node;n++)
   {
    SolidNode* nod_pt = static_cast<SolidNode*>(Bulk_mesh_pt->node_pt(n));
    nod_pt->pin_position(0);
    nod_pt->pin_position(1);
   }

  //Create a Data object whose single value stores the
  //external pressure
  Data* external_pressure_data_pt = new Data(1);

  // Set and pin the external pressure to some random value
  external_pressure_data_pt->set_value(0,1.31);
  external_pressure_data_pt->pin(0);

  //Complete the problem setup to make the elements fully functional

  //Loop over the elements in the layer
  unsigned n_bulk=Bulk_mesh_pt->nelement();
  for(unsigned e=0;e<n_bulk;e++)
   {
    //Cast to a fluid element
    ELEMENT *el_pt = dynamic_cast<ELEMENT*>(Bulk_mesh_pt->element_pt(e));

    //Set the Reynolds number, etc
    el_pt->re_pt() = &Global_Physical_Variables::Re;
    el_pt->re_st_pt() = &Global_Physical_Variables::ReSt;
    el_pt->re_invfr_pt() = &Global_Physical_Variables::ReInvFr;
    el_pt->g_pt() = &Global_Physical_Variables::G;

    el_pt->constitutive_law_pt() =
     Global_Physical_Variables::Constitutive_law_pt;
   }

  //Loop over 2D interface elements and set capillary number and
  //the external pressure
  unsigned long interface_element_pt_range =
   Surface_mesh_pt->nelement();
  for(unsigned e=0;e<interface_element_pt_range;e++)
   {
    //Cast to a interface element
    ElasticSurfaceFluidInterfaceElement<ELEMENT>* el_pt =
     dynamic_cast<ElasticSurfaceFluidInterfaceElement<ELEMENT>*>
     (Surface_mesh_pt->element_pt(e));

    //Set the Capillary number
    el_pt->ca_pt() = &Global_Physical_Variables::Ca;

    //Pass the Data item that contains the single external pressure value
    el_pt->set_external_pressure_data(external_pressure_data_pt);
   }

  //Do equation numbering
  cout << assign_eqn_numbers() << std::endl;

 }

References oomph::Mesh::add_element_pt(), oomph::Problem::add_sub_mesh(), oomph::Problem::add_time_stepper_pt(), oomph::Problem::assign_eqn_numbers(), b, oomph::Problem::build_global_mesh(), ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >::Bulk_mesh_pt, Global_Physical_Variables::Ca, oomph::FluidInterfaceElement::ca_pt(), Global_Physical_Variables::Constitutive_law_pt, ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >::Document_node_pt, e(), oomph::Mesh::element_pt(), Global_Physical_Variables::G, i, Mesh_Parameters::lx, Mesh_Parameters::ly, n, oomph::Mesh::nelement(), Mesh_Parameters::nx, Mesh_Parameters::ny, Mesh_Parameters::nz, oomph::Data::pin(), oomph::SolidNode::pin_position(), Global_Physical_Variables::Re, Global_Physical_Variables::ReInvFr, Global_Physical_Variables::ReSt, oomph::FluidInterfaceElement::set_external_pressure_data(), oomph::Data::set_value(), ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >::Surface_mesh_pt, and oomph::Problem::time_stepper_pt().

Member Function Documentation

◆ doc_solution()

template<class ELEMENT , class TIMESTEPPER >

void ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >::doc_solution ( DocInfo & doc_info )

Doc the solution.

 {

  ofstream some_file;
  char filename[100];

  // Number of plot points
  unsigned npts=5;

  //Output the time
  cout << "Time is now " << time_pt()->time() << std::endl;

  //Estimate the node in the middle of the domain

  // Doc
  Trace_file << time_pt()->time();
  Trace_file << " "  << Document_node_pt->x(2);
  Trace_file << std::endl;


  // Output solution, bulk elements followed by surface elements
  sprintf(filename,"%s/soln%i.dat",doc_info.directory().c_str(),
          doc_info.number());
  some_file.open(filename);
  Bulk_mesh_pt->output(some_file,npts);
  Surface_mesh_pt->output(some_file,npts);
  some_file.close();

 }

References oomph::DocInfo::directory(), MergeRestartFiles::filename, oomph::DocInfo::number(), and oomph::Problem_Parameter::Trace_file.

◆ unsteady_run()

template<class ELEMENT , class TIMESTEPPER >

void ElasticInterfaceProblem< ELEMENT, TIMESTEPPER >::unsteady_run ( const unsigned & nstep )

Run an unsteady simulation with specified number of steps.

Unsteady run with specified number of steps.

 {

  // Increase maximum residual
  Problem::Max_residuals=100.0;

  //Distort the mesh
  double epsilon=0.1;
  unsigned Nperiods = 1;

  //Loop over all nodes
  unsigned n_node = Bulk_mesh_pt->nnode();
  for(unsigned n=0;n<n_node;n++)
   {
    Node* nod_pt = Bulk_mesh_pt->node_pt(n);
    //Get the x y and z values
    double x_value = nod_pt->x(0);
    double y_value = nod_pt->x(1);
    double z_value = nod_pt->x(2);

    //Calculate the new scaled z- position
    double scaled_z = z_value*
     (1.0 - epsilon*(cos(2.0*Nperiods*MathematicalConstants::Pi*x_value/Lx)
                     + cos(2.0*Nperiods*MathematicalConstants::Pi*y_value/Ly)));

    //Set the new position
    nod_pt->x(2) = scaled_z;
   }

  //Reset the lagrangian positions
  Bulk_mesh_pt->set_lagrangian_nodal_coordinates();

  // Doc info object
  DocInfo doc_info;

  // Set output directory
  doc_info.set_directory("RESLT_elastic");
  doc_info.number()=0;

  // Open trace file
  char filename[100];
  sprintf(filename,"%s/trace.dat",doc_info.directory().c_str());
  Trace_file.open(filename);

  Trace_file << "VARIABLES=\"time\",";
  Trace_file << "\"h<sub>left</sub>\",\"h<sub>right</sub>\"";

  //Set value of dt
  double  dt = 0.01;

  //Initialise all time values
  assign_initial_values_impulsive(dt);

  //Doc initial solution
  doc_solution(doc_info);

 //Loop over the timesteps
  for(unsigned t=1;t<=nstep;t++)
   {
    cout << "TIMESTEP " << t << std::endl;

    //Take one fixed timestep
    unsteady_newton_solve(dt);

    // Doc solution
    doc_info.number()++;
    doc_solution(doc_info);
    }

 }
