#include <refineable_line_element.h>

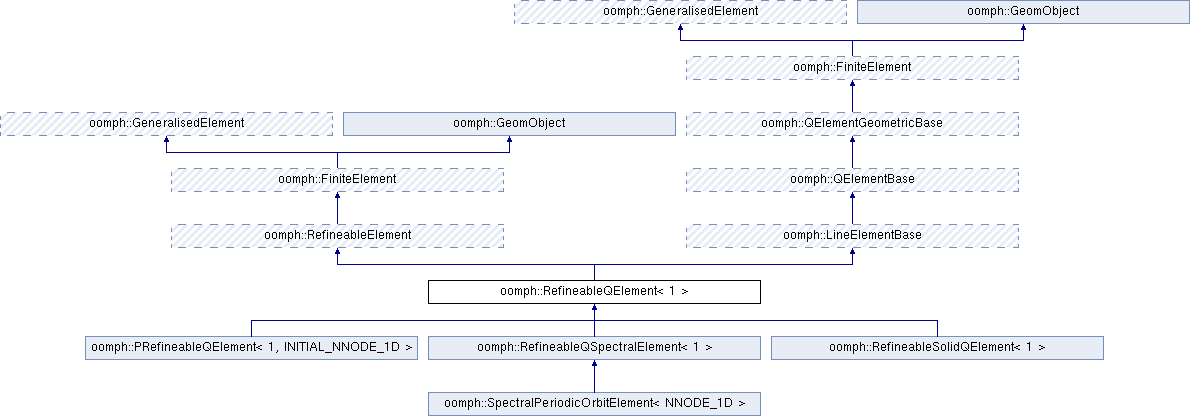

Inheritance diagram for oomph::RefineableQElement< 1 >:

Public Types
typedef void(RefineableQElement< 1 >::*	VoidMemberFctPt) ()

Public Types inherited from oomph::FiniteElement
typedef void(*	SteadyExactSolutionFctPt) (const Vector< double > &, Vector< double > &)

typedef void(*	UnsteadyExactSolutionFctPt) (const double &, const Vector< double > &, Vector< double > &)

Public Member Functions
	RefineableQElement ()
	Constructor: Pass refinement level (default 0 = root) More...

	RefineableQElement (const RefineableQElement< 1 > &dummy)=delete
	Broken copy constructor. More...

virtual	~RefineableQElement ()
	Broken assignment operator. More...

unsigned	required_nsons () const
	A refineable line element has two sons. More...

Node *	node_created_by_neighbour (const Vector< double > &s_fraction, bool &is_periodic)

Node *	node_created_by_son_of_neighbour (const Vector< double > &s_fraction, bool &is_periodic)

virtual void	build (Mesh &mesh_pt, Vector< Node > &new_node_pt, bool &was_already_built, std::ofstream &new_nodes_file)

void	check_integrity (double &max_error)

void	output_corners (std::ostream &outfile, const std::string &colour) const
	Print corner nodes, using colour. More...

BinaryTree *	binary_tree_pt ()
	Pointer to binary tree representation of this element. More...

BinaryTree *	binary_tree_pt () const
	Pointer to binary tree representation of this element (const version) More...

void	setup_hanging_nodes (Vector< std::ofstream * > &output_stream)
	Line elements have no hanging nodes so this is deliberately left empty. More...

Public Member Functions inherited from oomph::RefineableElement
	RefineableElement ()

virtual	~RefineableElement ()
	Destructor, delete the allocated storage for the hanging equations. More...

	RefineableElement (const RefineableElement &)=delete
	Broken copy constructor. More...

void	operator= (const RefineableElement &)=delete
	Broken assignment operator. More...

Tree *	tree_pt ()
	Access function: Pointer to quadtree representation of this element. More...

void	set_tree_pt (Tree *my_tree_pt)
	Set pointer to quadtree representation of this element. More...

bool	refinement_is_enabled ()
	Flag to indicate suppression of any refinement. More...

void	disable_refinement ()
	Suppress of any refinement for this element. More...

void	enable_refinement ()
	Emnable refinement for this element. More...

template<class ELEMENT >
void	split (Vector< ELEMENT * > &son_pt) const

int	local_hang_eqn (Node *const &node_pt, const unsigned &i)

void	set_refinement_level (const int &refine_level)
	Set the refinement level. More...

unsigned	refinement_level () const
	Return the Refinement level. More...

void	select_for_refinement ()
	Select the element for refinement. More...

void	deselect_for_refinement ()
	Deselect the element for refinement. More...

void	select_sons_for_unrefinement ()
	Unrefinement will be performed by merging the four sons of this element. More...

void	deselect_sons_for_unrefinement ()

bool	to_be_refined ()
	Has the element been selected for refinement? More...

bool	sons_to_be_unrefined ()
	Has the element been selected for unrefinement? More...

virtual void	rebuild_from_sons (Mesh *&mesh_pt)=0

virtual void	unbuild ()

virtual void	deactivate_element ()

virtual bool	nodes_built ()
	Return true if all the nodes have been built, false if not. More...

long	number () const
	Element number (for debugging/plotting) More...

void	set_number (const long &mynumber)
	Set element number (for debugging/plotting) More...

virtual unsigned	ncont_interpolated_values () const =0

virtual void	get_interpolated_values (const Vector< double > &s, Vector< double > &values)

virtual void	get_interpolated_values (const unsigned &t, const Vector< double > &s, Vector< double > &values)=0

virtual Node *	interpolating_node_pt (const unsigned &n, const int &value_id)

virtual double	local_one_d_fraction_of_interpolating_node (const unsigned &n1d, const unsigned &i, const int &value_id)

virtual Node *	get_interpolating_node_at_local_coordinate (const Vector< double > &s, const int &value_id)

virtual unsigned	ninterpolating_node (const int &value_id)

virtual unsigned	ninterpolating_node_1d (const int &value_id)

virtual void	interpolating_basis (const Vector< double > &s, Shape &psi, const int &value_id) const

void	identify_field_data_for_interactions (std::set< std::pair< Data *, unsigned >> &paired_field_data)

void	assign_nodal_local_eqn_numbers (const bool &store_local_dof_pt)

virtual RefineableElement *	root_element_pt ()

virtual RefineableElement *	father_element_pt () const
	Return a pointer to the father element. More...

void	get_father_at_refinement_level (unsigned &refinement_level, RefineableElement *&father_at_reflevel_pt)

virtual void	initial_setup (Tree *const &adopted_father_pt=0, const unsigned &initial_p_order=0)

virtual void	pre_build (Mesh &mesh_pt, Vector< Node > &new_node_pt)
	Pre-build the element. More...

virtual void	further_build ()
	Further build: e.g. deal with interpolation of internal values. More...

virtual void	further_setup_hanging_nodes ()

void	get_dresidual_dnodal_coordinates (RankThreeTensor< double > &dresidual_dnodal_coordinates)

unsigned	nshape_controlling_nodes ()

std::map< Node *, unsigned >	shape_controlling_node_lookup ()

Public Member Functions inherited from oomph::FiniteElement
void	set_dimension (const unsigned &dim)

void	set_nodal_dimension (const unsigned &nodal_dim)

void	set_nnodal_position_type (const unsigned &nposition_type)
	Set the number of types required to interpolate the coordinate. More...

void	set_n_node (const unsigned &n)

int	nodal_local_eqn (const unsigned &n, const unsigned &i) const

double	dJ_eulerian_at_knot (const unsigned &ipt, Shape &psi, DenseMatrix< double > &djacobian_dX) const

	FiniteElement ()
	Constructor. More...

virtual	~FiniteElement ()

	FiniteElement (const FiniteElement &)=delete
	Broken copy constructor. More...

void	get_centre_of_gravity_and_max_radius_in_terms_of_zeta (Vector< double > &cog, double &max_radius) const

virtual void	local_coordinate_of_node (const unsigned &j, Vector< double > &s) const

virtual void	local_fraction_of_node (const unsigned &j, Vector< double > &s_fraction)

virtual double	local_one_d_fraction_of_node (const unsigned &n1d, const unsigned &i)

MacroElement *	macro_elem_pt ()
	Access function to pointer to macro element. More...

void	get_x (const Vector< double > &s, Vector< double > &x) const

void	get_x (const unsigned &t, const Vector< double > &s, Vector< double > &x)

virtual void	set_integration_scheme (Integral *const &integral_pt)
	Set the spatial integration scheme. More...

Integral *const &	integral_pt () const
	Return the pointer to the integration scheme (const version) More...

virtual void	shape (const Vector< double > &s, Shape &psi) const =0

virtual void	shape_at_knot (const unsigned &ipt, Shape &psi) const

virtual void	dshape_local (const Vector< double > &s, Shape &psi, DShape &dpsids) const

virtual void	dshape_local_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsids) const

virtual void	d2shape_local (const Vector< double > &s, Shape &psi, DShape &dpsids, DShape &d2psids) const

virtual void	d2shape_local_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsids, DShape &d2psids) const

virtual double	J_eulerian (const Vector< double > &s) const

virtual double	J_eulerian_at_knot (const unsigned &ipt) const

void	check_J_eulerian_at_knots (bool &passed) const

void	check_jacobian (const double &jacobian) const

double	dshape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx) const

virtual double	dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx) const

virtual double	dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsi, DenseMatrix< double > &djacobian_dX, RankFourTensor< double > &d_dpsidx_dX) const

double	d2shape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx, DShape &d2psidx) const

virtual double	d2shape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx, DShape &d2psidx) const

virtual void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

virtual void	describe_nodal_local_dofs (std::ostream &out, const std::string &current_string) const

virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)

Node *&	node_pt (const unsigned &n)
	Return a pointer to the local node n. More...

Node *const &	node_pt (const unsigned &n) const
	Return a pointer to the local node n (const version) More...

unsigned	nnode () const
	Return the number of nodes. More...

virtual unsigned	nnode_1d () const

double	raw_nodal_position (const unsigned &n, const unsigned &i) const

double	raw_nodal_position (const unsigned &t, const unsigned &n, const unsigned &i) const

double	raw_dnodal_position_dt (const unsigned &n, const unsigned &i) const

double	raw_dnodal_position_dt (const unsigned &n, const unsigned &j, const unsigned &i) const

double	raw_nodal_position_gen (const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_nodal_position_gen (const unsigned &t, const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_dnodal_position_gen_dt (const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_dnodal_position_gen_dt (const unsigned &j, const unsigned &n, const unsigned &k, const unsigned &i) const

double	nodal_position (const unsigned &n, const unsigned &i) const

double	nodal_position (const unsigned &t, const unsigned &n, const unsigned &i) const

double	dnodal_position_dt (const unsigned &n, const unsigned &i) const
	Return the i-th component of nodal velocity: dx/dt at local node n. More...

double	dnodal_position_dt (const unsigned &n, const unsigned &j, const unsigned &i) const

double	nodal_position_gen (const unsigned &n, const unsigned &k, const unsigned &i) const

double	nodal_position_gen (const unsigned &t, const unsigned &n, const unsigned &k, const unsigned &i) const

double	dnodal_position_gen_dt (const unsigned &n, const unsigned &k, const unsigned &i) const

double	dnodal_position_gen_dt (const unsigned &j, const unsigned &n, const unsigned &k, const unsigned &i) const

virtual void	disable_ALE ()

virtual void	enable_ALE ()

virtual unsigned	required_nvalue (const unsigned &n) const

unsigned	nnodal_position_type () const

bool	has_hanging_nodes () const

unsigned	nodal_dimension () const
	Return the required Eulerian dimension of the nodes in this element. More...

virtual Node *	construct_node (const unsigned &n)

virtual Node *	construct_node (const unsigned &n, TimeStepper *const &time_stepper_pt)

virtual Node *	construct_boundary_node (const unsigned &n)

virtual Node *	construct_boundary_node (const unsigned &n, TimeStepper *const &time_stepper_pt)

int	get_node_number (Node *const &node_pt) const

virtual Node *	get_node_at_local_coordinate (const Vector< double > &s) const

double	raw_nodal_value (const unsigned &n, const unsigned &i) const

double	raw_nodal_value (const unsigned &t, const unsigned &n, const unsigned &i) const

double	nodal_value (const unsigned &n, const unsigned &i) const

double	nodal_value (const unsigned &t, const unsigned &n, const unsigned &i) const

unsigned	dim () const

virtual double	interpolated_x (const Vector< double > &s, const unsigned &i) const
	Return FE interpolated coordinate x[i] at local coordinate s. More...

virtual double	interpolated_x (const unsigned &t, const Vector< double > &s, const unsigned &i) const

virtual void	interpolated_x (const Vector< double > &s, Vector< double > &x) const
	Return FE interpolated position x[] at local coordinate s as Vector. More...

virtual void	interpolated_x (const unsigned &t, const Vector< double > &s, Vector< double > &x) const

virtual double	interpolated_dxdt (const Vector< double > &s, const unsigned &i, const unsigned &t)

virtual void	interpolated_dxdt (const Vector< double > &s, const unsigned &t, Vector< double > &dxdt)

unsigned	ngeom_data () const

Data *	geom_data_pt (const unsigned &j)

void	position (const Vector< double > &zeta, Vector< double > &r) const

void	position (const unsigned &t, const Vector< double > &zeta, Vector< double > &r) const

void	dposition_dt (const Vector< double > &zeta, const unsigned &t, Vector< double > &drdt)

virtual double	zeta_nodal (const unsigned &n, const unsigned &k, const unsigned &i) const

void	interpolated_zeta (const Vector< double > &s, Vector< double > &zeta) const

void	locate_zeta (const Vector< double > &zeta, GeomObject *&geom_object_pt, Vector< double > &s, const bool &use_coordinate_as_initial_guess=false)

virtual void	node_update ()

virtual void	identify_geometric_data (std::set< Data * > &geometric_data_pt)

virtual double	s_min () const
	Min value of local coordinate. More...

virtual double	s_max () const
	Max. value of local coordinate. More...

double	size () const

virtual double	compute_physical_size () const

virtual void	point_output_data (const Vector< double > &s, Vector< double > &data)

void	point_output (std::ostream &outfile, const Vector< double > &s)

virtual unsigned	nplot_points_paraview (const unsigned &nplot) const

virtual unsigned	nsub_elements_paraview (const unsigned &nplot) const

void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const

virtual void	write_paraview_output_offset_information (std::ofstream &file_out, const unsigned &nplot, unsigned &counter) const

virtual void	write_paraview_type (std::ofstream &file_out, const unsigned &nplot) const

virtual void	write_paraview_offsets (std::ofstream &file_out, const unsigned &nplot, unsigned &offset_sum) const

virtual unsigned	nscalar_paraview () const

virtual void	scalar_value_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot) const

virtual void	scalar_value_fct_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const

virtual void	scalar_value_fct_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const

virtual std::string	scalar_name_paraview (const unsigned &i) const

virtual void	output (std::ostream &outfile)

virtual void	output (std::ostream &outfile, const unsigned &n_plot)

virtual void	output (const unsigned &t, std::ostream &outfile, const unsigned &n_plot) const

virtual void	output (FILE *file_pt)

virtual void	output (FILE *file_pt, const unsigned &n_plot)

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt)
	Output an exact solution over the element. More...

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt)
	Output a time-dependent exact solution over the element. More...

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, const SolutionFunctorBase &exact_soln) const
	Output a time-dependent exact solution over the element. More...

virtual void	get_s_plot (const unsigned &i, const unsigned &nplot, Vector< double > &s, const bool &shifted_to_interior=false) const

virtual std::string	tecplot_zone_string (const unsigned &nplot) const

virtual void	write_tecplot_zone_footer (std::ostream &outfile, const unsigned &nplot) const

virtual void	write_tecplot_zone_footer (FILE *file_pt, const unsigned &nplot) const

virtual unsigned	nplot_points (const unsigned &nplot) const

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)
	Calculate the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Calculate the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_abs_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error)

void	integrate_fct (FiniteElement::SteadyExactSolutionFctPt integrand_fct_pt, Vector< double > &integral)
	Integrate Vector-valued function over element. More...

void	integrate_fct (FiniteElement::UnsteadyExactSolutionFctPt integrand_fct_pt, const double &time, Vector< double > &integral)
	Integrate Vector-valued time-dep function over element. More...

virtual void	build_face_element (const int &face_index, FaceElement *face_element_pt)

virtual unsigned	self_test ()

virtual unsigned	get_bulk_node_number (const int &face_index, const unsigned &i) const

virtual int	face_outer_unit_normal_sign (const int &face_index) const
	Get the sign of the outer unit normal on the face given by face_index. More...

void	face_node_number_error_check (const unsigned &i) const
	Range check for face node numbers. More...

virtual CoordinateMappingFctPt	face_to_bulk_coordinate_fct_pt (const int &face_index) const

virtual BulkCoordinateDerivativesFctPt	bulk_coordinate_derivatives_fct_pt (const int &face_index) const

Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...

virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...

	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...

void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...

Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...

Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...

Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...

Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...

unsigned long	eqn_number (const unsigned &ieqn_local) const

int	local_eqn_number (const unsigned long &ieqn_global) const

unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)

bool	external_data_fd (const unsigned &i) const

void	exclude_external_data_fd (const unsigned &i)

void	include_external_data_fd (const unsigned &i)

void	flush_external_data ()
	Flush all external data. More...

void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...

unsigned	ninternal_data () const
	Return the number of internal data objects. More...

unsigned	nexternal_data () const
	Return the number of external data objects. More...

unsigned	ndof () const
	Return the number of equations/dofs in the element. More...

void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...

void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...

void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)

void	describe_dofs (std::ostream &out, const std::string &current_string) const

void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)

virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	complete_setup_of_dependencies ()

virtual void	get_residuals (Vector< double > &residuals)

virtual void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_norm (double &norm)

virtual unsigned	ndof_types () const

virtual void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Public Member Functions inherited from oomph::GeomObject
	GeomObject ()
	Default constructor. More...

	GeomObject (const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim, TimeStepper *time_stepper_pt)

	GeomObject (const GeomObject &dummy)=delete
	Broken copy constructor. More...

void	operator= (const GeomObject &)=delete
	Broken assignment operator. More...

virtual	~GeomObject ()
	(Empty) destructor More...

unsigned	nlagrangian () const
	Access function to # of Lagrangian coordinates. More...

unsigned	ndim () const
	Access function to # of Eulerian coordinates. More...

void	set_nlagrangian_and_ndim (const unsigned &n_lagrangian, const unsigned &n_dim)
	Set # of Lagrangian and Eulerian coordinates. More...

TimeStepper *&	time_stepper_pt ()

TimeStepper *	time_stepper_pt () const

virtual void	position (const double &t, const Vector< double > &zeta, Vector< double > &r) const

virtual void	dposition (const Vector< double > &zeta, DenseMatrix< double > &drdzeta) const

virtual void	d2position (const Vector< double > &zeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	d2position (const Vector< double > &zeta, Vector< double > &r, DenseMatrix< double > &drdzeta, RankThreeTensor< double > &ddrdzeta) const

Public Member Functions inherited from oomph::LineElementBase
	LineElementBase ()
	Constructor. Empty. More...

virtual unsigned	nvertex_node () const =0
	Number of vertex nodes in the element. More...

virtual Node *	vertex_node_pt (const unsigned &j) const =0
	Pointer to the j-th vertex node in the element. More...

Public Member Functions inherited from oomph::QElementBase
	QElementBase ()
	Constructor: Initialise pointers to macro element reference coords. More...

	QElementBase (const QElementBase &)=delete
	Broken copy constructor. More...

virtual	~QElementBase ()
	Broken assignment operator. More...

bool	local_coord_is_valid (const Vector< double > &s)
	Check whether the local coordinate are valid or not. More...

void	move_local_coord_back_into_element (Vector< double > &s) const

virtual void	set_macro_elem_pt (MacroElement *macro_elem_pt)

double &	s_macro_ll (const unsigned &i)

double &	s_macro_ur (const unsigned &i)

double	s_macro_ll (const unsigned &i) const

double	s_macro_ur (const unsigned &i) const

void	get_x_from_macro_element (const Vector< double > &s, Vector< double > &x) const

void	get_x_from_macro_element (const unsigned &t, const Vector< double > &s, Vector< double > &x)

unsigned	nnode_on_face () const

ElementGeometry::ElementGeometry	element_geometry () const
	It's a Q element! More...

Public Member Functions inherited from oomph::QElementGeometricBase
	QElementGeometricBase ()
	Empty default constructor. More...

	QElementGeometricBase (const QElementGeometricBase &)=delete
	Broken copy constructor. More...

Protected Member Functions
void	setup_father_bounds ()

void	setup_hang_for_value (const int &value_id)
	Line elements have no hanging nodes so this is deliberately left empty. More...

void	binary_hang_helper (const int &value_id, const int &my_edge, std::ofstream &output_hangfile)
	Line elements have no hanging nodes so this is deliberately left empty. More...

Protected Member Functions inherited from oomph::RefineableElement
void	assemble_local_to_eulerian_jacobian (const DShape &dpsids, DenseMatrix< double > &jacobian) const

void	assemble_local_to_eulerian_jacobian2 (const DShape &d2psids, DenseMatrix< double > &jacobian2) const

void	assemble_eulerian_base_vectors (const DShape &dpsids, DenseMatrix< double > &interpolated_G) const

double	local_to_eulerian_mapping_diagonal (const DShape &dpsids, DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

void	assign_hanging_local_eqn_numbers (const bool &store_local_dof_pt)
	Assign the local equation numbers for hanging node variables. More...

virtual void	fill_in_jacobian_from_nodal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian)

Protected Member Functions inherited from oomph::FiniteElement
template<unsigned DIM>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual double	invert_jacobian_mapping (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual double	local_to_eulerian_mapping (const DShape &dpsids, DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

double	local_to_eulerian_mapping (const DShape &dpsids, DenseMatrix< double > &inverse_jacobian) const

virtual void	dJ_eulerian_dnodal_coordinates (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<unsigned DIM>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

virtual void	d_dshape_eulerian_dnodal_coordinates (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<unsigned DIM>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

virtual void	transform_derivatives (const DenseMatrix< double > &inverse_jacobian, DShape &dbasis) const

void	transform_derivatives_diagonal (const DenseMatrix< double > &inverse_jacobian, DShape &dbasis) const

virtual void	transform_second_derivatives (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<unsigned DIM>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<unsigned DIM>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

void	fill_in_jacobian_from_nodal_by_fd (DenseMatrix< double > &jacobian)

virtual void	update_before_nodal_fd ()

virtual void	reset_after_nodal_fd ()

virtual void	update_in_nodal_fd (const unsigned &i)

virtual void	reset_in_nodal_fd (const unsigned &i)

void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	Zero-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	One-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	Two-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)

bool	internal_data_fd (const unsigned &i) const

void	exclude_internal_data_fd (const unsigned &i)

void	include_internal_data_fd (const unsigned &i)

void	clear_global_eqn_numbers ()

void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)

virtual void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_additional_local_eqn_numbers ()

int	internal_local_eqn (const unsigned &i, const unsigned &j) const

int	external_local_eqn (const unsigned &i, const unsigned &j)

virtual void	fill_in_contribution_to_residuals (Vector< double > &residuals)

void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

virtual void	update_before_internal_fd ()

virtual void	reset_after_internal_fd ()

virtual void	update_in_internal_fd (const unsigned &i)

virtual void	reset_in_internal_fd (const unsigned &i)

virtual void	update_before_external_fd ()

virtual void	reset_after_external_fd ()

virtual void	update_in_external_fd (const unsigned &i)

virtual void	reset_in_external_fd (const unsigned &i)

virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Static Protected Attributes
static std::map< unsigned, DenseMatrix< int > >	Father_bound

Static Protected Attributes inherited from oomph::RefineableElement
static double	Max_integrity_tolerance = 1.0e-8
	Max. allowed discrepancy in element integrity check. More...

Static Protected Attributes inherited from oomph::FiniteElement
static const unsigned	Default_Initial_Nvalue = 0
	Default value for the number of values at a node. More...

static const double	Node_location_tolerance = 1.0e-14

static const unsigned	N2deriv [] = {0, 1, 3, 6}

Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix

static std::deque< double * >	Dof_pt_deque

Additional Inherited Members
Static Public Member Functions inherited from oomph::RefineableElement
static double &	max_integrity_tolerance ()
	Max. allowed discrepancy in element integrity check. More...

Static Public Attributes inherited from oomph::FiniteElement
static double	Tolerance_for_singular_jacobian = 1.0e-16
	Tolerance below which the jacobian is considered singular. More...

static bool	Accept_negative_jacobian = false

static bool	Suppress_output_while_checking_for_inverted_elements

Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data

static bool	Suppress_warning_about_repeated_external_data = true

static double	Default_fd_jacobian_step = 1.0e-8

Static Protected Member Functions inherited from oomph::RefineableElement
static void	check_value_id (const int &n_continuously_interpolated_values, const int &value_id)

Protected Attributes inherited from oomph::RefineableElement
Tree *	Tree_pt
	A pointer to a general tree object. More...

unsigned	Refine_level
	Refinement level. More...

bool	To_be_refined
	Flag for refinement. More...

bool	Refinement_is_enabled
	Flag to indicate suppression of any refinement. More...

bool	Sons_to_be_unrefined
	Flag for unrefinement. More...

long	Number
	Global element number – for plotting/validation purposes. More...

Protected Attributes inherited from oomph::FiniteElement
MacroElement *	Macro_elem_pt
	Pointer to the element's macro element (NULL by default) More...

Protected Attributes inherited from oomph::GeomObject
unsigned	NLagrangian
	Number of Lagrangian (intrinsic) coordinates. More...

unsigned	Ndim
	Number of Eulerian coordinates. More...

TimeStepper *	Geom_object_time_stepper_pt

Detailed Description

Refineable version of QElement<1,NNODE_1D>.

Refinement is performed by binary tree procedures. When the element is subdivided, the geometry of its sons is established by calls to their father's get_x(...) function which refers to:

the father element's geometric FE mapping (this is the default) or
a MacroElement's MacroElement::macro_map (if the pointer to the macro element is non-NULL)

The class provides a generic RefineableQElement<1>::build() function which deals with generic isoparametric QElements in which all values are associated with nodes. The RefineableQElement<1>::further_build() function provides an interface for any element-specific non-generic build operations.

Member Typedef Documentation

◆ VoidMemberFctPt

typedef void(RefineableQElement<1>::* oomph::RefineableQElement< 1 >::VoidMemberFctPt) ()

Shorthand for pointer to an argument-free void member function of the refineable element

Constructor & Destructor Documentation

◆ RefineableQElement() [1/2]

oomph::RefineableQElement< 1 >::RefineableQElement ( )

inline

Constructor: Pass refinement level (default 0 = root)

                          : RefineableElement()
     {
 #ifdef LEAK_CHECK
       LeakCheckNames::RefineableQElement<1> _build += 1;
 #endif
     }

◆ RefineableQElement() [2/2]

oomph::RefineableQElement< 1 >::RefineableQElement ( const RefineableQElement< 1 > & dummy )

delete

Broken copy constructor.

◆ ~RefineableQElement()

virtual oomph::RefineableQElement< 1 >::~RefineableQElement ( )

inlinevirtual

Broken assignment operator.

Destructor

     {
 #ifdef LEAK_CHECK
       LeakCheckNames::RefineableQElement<1> _build -= 1;
 #endif
     }

Member Function Documentation

◆ binary_hang_helper()

void oomph::RefineableQElement< 1 >::binary_hang_helper	(	const int &	value_id,
		const int &	my_edge,
		std::ofstream &	output_hangfile
	)

inlineprotected

Line elements have no hanging nodes so this is deliberately left empty.

174 {

175 }

◆ binary_tree_pt() [1/2]

BinaryTree* oomph::RefineableQElement< 1 >::binary_tree_pt ( )

inline

Pointer to binary tree representation of this element.

     {
       return dynamic_cast<BinaryTree*>(Tree_pt);
     }

◆ binary_tree_pt() [2/2]

BinaryTree* oomph::RefineableQElement< 1 >::binary_tree_pt ( ) const

inline

Pointer to binary tree representation of this element (const version)

     {
       return dynamic_cast<BinaryTree*>(Tree_pt);
     }

◆ build()

void oomph::RefineableQElement< 1 >::build	(	Mesh *&	mesh_pt,
		Vector< Node * > &	new_node_pt,
		bool &	was_already_built,
		std::ofstream &	new_nodes_file
	)

virtual

Build the element, i.e. give it nodal positions, apply BCs, etc. Pointers to any new nodes will be returned in new_node_pt. If it is open, the positions of the new nodes will be written to the file stream new_nodes_file.

Build the element by doing the following:

Give it nodal positions (by establishing the pointers to its nodes). In the process create new nodes where required (i.e. if they don't already exist in the father element and have not already been created whilst building new neighbouring elements). Node building involves the following steps:
- Get the nodal position from the father element.
- Establish the time-history of the newly created nodal point (its coordinates and previous values) consistent with the father's history.
- Add the new node to the mesh itself.
- Doc newly created nodes in "new_nodes.dat" stored in the directory of the DocInfo object (only if it's open!).
- NOTE: Unlike in higher-dimensional elements, in 1D it is impossible for newly-created nodes to be on a mesh boundary, since any boundary nodes must exist in the initial (coarse) mesh. Therefore it is not necessary to add any nodes to the mesh's boundary node storage schemes, and we always create normal "bulk" nodes.
Once the element has a full complement of nodes, excute the element- specific further_build() (empty by default – must be overloaded for specific elements). This deals with any build operations that are not included in the generic process outlined above. For instance, in Crouzeix Raviart elements we need to initialise the internal pressure pressure values in a manner consistent with the pressure distribution in the father element.

Implements oomph::RefineableElement.

Reimplemented in oomph::RefineableSolidQElement< 1 >.

   {
     using namespace BinaryTreeNames;

     // Find the number of nodes along a 1D edge (which is the number of nodes
     // in the element for a 1D element!)
     const unsigned n_node = nnode_1d();

     // Check whether static father_bound needs to be created
     if (Father_bound[n_node].nrow() == 0)
     {
       setup_father_bounds();
     }

     // Pointer to the current element's father (in binary tree impersonation)
     BinaryTree* father_pt =
       dynamic_cast<BinaryTree*>(binary_tree_pt()->father_pt());

     // What type of son is the current element?
     // Ask its binary tree representation...
     const int son_type = Tree_pt->son_type();

     // Has somebody built the current element already?
     // Check this by determining whether or not the first node has been built

     // If this element has not already been built...
     if (!nodes_built())
     {
 #ifdef PARANOID
       if (father_pt == 0)
       {
         std::string error_message =
           "Something fishy here: I have no father and yet \n";
         error_message += "I have no nodes. Who has created me then?!\n";

         throw OomphLibError(
           error_message, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
       }
 #endif

       // Indicate status
       was_already_built = false;

       // Return pointer to father element
       RefineableQElement<1>* father_el_pt =
         dynamic_cast<RefineableQElement<1>*>(father_pt->object_pt());

       // Timestepper should be the same for all nodes in father element.
       // Use it create timesteppers for new nodes.
       TimeStepper* time_stepper_pt =
         father_el_pt->node_pt(0)->time_stepper_pt();

       // Determine number of history values (including present)
       const unsigned ntstorage = time_stepper_pt->ntstorage();

       // Currently we can't handle the case of generalised coordinates
       // since we haven't established how they should be interpolated.
       // Buffer this case:
       if (father_el_pt->node_pt(0)->nposition_type() != 1)
       {
         throw OomphLibError("Can't handle generalised nodal positions (yet).",
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }

       // Set up vertex coordinates in the father element:
       // ------------------------------------------------

       // Allocate storage for the vertex coordinates s_left and s_right of
       // the current element as viewed by this element's father (i.e. s_left[0]
       // stores the local coordinate within the father element at which the
       // node on the current element's left-hand edge is located. Likewise,
       // s_right[0] stores the local coordinate within the father element at
       // which the node on the current element's right-hand edge is located).
       Vector<double> s_left(1);
       Vector<double> s_right(1);

       // In order to set up the vertex coordinates we need to know which
       // type of son the current element is
       switch (son_type)
       {
         case L:
           s_left[0] = -1.0;
           s_right[0] = 0.0;
           break;

         case R:
           s_left[0] = 0.0;
           s_right[0] = 1.0;
           break;
       }

       // Pass macro element pointer on to sons and set coordinates in
       // macro element
       // hierher why can I see this?
       if (father_el_pt->Macro_elem_pt != 0)
       {
         set_macro_elem_pt(father_el_pt->Macro_elem_pt);

         s_macro_ll(0) =
           father_el_pt->s_macro_ll(0) +
           0.5 * (s_left[0] + 1.0) *
             (father_el_pt->s_macro_ur(0) - father_el_pt->s_macro_ll(0));
         s_macro_ur(0) =
           father_el_pt->s_macro_ll(0) +
           0.5 * (s_right[0] + 1.0) *
             (father_el_pt->s_macro_ur(0) - father_el_pt->s_macro_ll(0));
       }

       // If the father element hasn't been generated yet, we're stuck...
       if (father_el_pt->node_pt(0) == 0)
       {
         throw OomphLibError(
           "Trouble: father_el_pt->node_pt(0)==0\n Can't build son element!\n",
           OOMPH_CURRENT_FUNCTION,
           OOMPH_EXCEPTION_LOCATION);
       }
       // Otherwise, carry on
       else
       {
         // Allocate storage for the location of a node in terms of the local
         // coordinate of the father element
         Vector<double> s_in_father(1);

         // Allocate storage for the fractional position (in the current
         // element) of the node in the direction of s[0]
         Vector<double> s_fraction(1);

         // Loop over all nodes in the element
         for (unsigned n = 0; n < n_node; n++)
         {
           // Get the fractional position (in the current element) of the node
           // in the direction of s[0]
           s_fraction[0] = local_one_d_fraction_of_node(n, 0);

           // Evaluate the local coordinate of the node in the father element
           s_in_father[0] = s_left[0] + (s_right[0] - s_left[0]) * s_fraction[0];

           // Initialise flag: So far, this node hasn't been built or copied yet
           bool node_done = false;

           // Get the pointer to the node in the father (returns NULL if there
           // is no node at this position)
           Node* created_node_pt =
             father_el_pt->get_node_at_local_coordinate(s_in_father);

           // Does this node already exist in father element?
           // -----------------------------------------------

           // If it does...
           if (created_node_pt != 0)
           {
             // ...copy node across
             node_pt(n) = created_node_pt;

             // Make sure that we update the values at the node so that they
             // are consistent with the present representation. This is only
             // needed for mixed interpolation where the value at the father
             // could now become active.

             // Loop over all history values
             for (unsigned t = 0; t < ntstorage; t++)
             {
               // Get values from father element
               // Note: get_interpolated_values() sets Vector size itself
               Vector<double> prev_values;
               father_el_pt->get_interpolated_values(
                 t, s_in_father, prev_values);

               // Find the minimum number of values (either those stored at the
               // node, or those returned by the function)
               unsigned n_val_at_node = created_node_pt->nvalue();
               unsigned n_val_from_function = prev_values.size();

               // Use the ternary conditional operator here
               unsigned n_var = n_val_at_node < n_val_from_function ?
                                  n_val_at_node :
                                  n_val_from_function;

               // Assign the values that we can
               for (unsigned k = 0; k < n_var; k++)
               {
                 created_node_pt->set_value(t, k, prev_values[k]);
               }
             }

             // Indicate that node has been created by copy
             node_done = true;
           }

           // Node does not exist in father element but might already
           // -------------------------------------------------------
           // have been created by neighbouring elements
           // ------------------------------------------

           else
           {
             // Was the node created by one of its neighbours? Whether or not
             // the node lies on an edge can be calculated from the fractional
             // position.
             bool is_periodic = false;
             created_node_pt =
               node_created_by_neighbour(s_fraction, is_periodic);

             // If the node was so created...
             if (created_node_pt != 0)
             {
               // ...assign the pointer
               node_pt(n) = created_node_pt;

               // Indicate that node has been created by copy
               node_done = true;

               // In a 1D mesh there is no way that a periodic node (which must
               // be on a boundary) can exist without being part of the initial
               // (coarse) mesh. Therefore issue an error message if
               // node_created_by_neighbour(...) returns `is_periodic==true'.
 #ifdef PARANOID
               if (is_periodic)
               {
                 std::string error_message =
                   "node_created_by_neighbour returns a node which claims\n";
                 error_message += "to be periodic. In a 1D mesh any periodic "
                                  "nodes must exist\n";
                 error_message += "in the initial (coarse) mesh.";

                 throw OomphLibError(error_message,
                                     OOMPH_CURRENT_FUNCTION,
                                     OOMPH_EXCEPTION_LOCATION);
               }
 #endif
             }
           }

           // Node does not exist in father element or neighbouring element
           // -------------------------------------------------------------

           // If the node has not been built anywhere ---> build it here
           if (!node_done)
           {
             // In a 1D mesh any node which lies on the boundary must exist in
             // the initial (coarse) mesh, so any newly-built nodes cannot be
             // boundary nodes. Therefore we always create a normal "bulk" node.

             // Create node and set the pointer to it from the element
             created_node_pt = construct_node(n, time_stepper_pt);

             // Add to vector of new nodes
             new_node_pt.push_back(created_node_pt);

             // Now we set the position and values at the newly created node.
             // In the first instance use macro element or FE representation
             // to create past and present nodal positions.
             // (THIS STEP SHOULD NOT BE SKIPPED FOR ALGEBRAIC ELEMENTS AS NOT
             // ALL OF THEM NECESSARILY IMPLEMENT NONTRIVIAL NODE UPDATE
             // FUNCTIONS. CALLING THE NODE UPDATE FOR SUCH ELEMENTS/NODES WILL
             // LEAVE THEIR NODAL POSITIONS WHERE THEY WERE (THIS IS APPROPRIATE
             // ONCE THEY HAVE BEEN GIVEN POSITIONS) BUT WILL NOT ASSIGN SENSIBLE
             // INITIAL POSITIONS!)

             // Loop over history values
             for (unsigned t = 0; t < ntstorage; t++)
             {
               // Allocate storage for the previous position of the node
               Vector<double> x_prev(1);

               // Get position from father element -- this uses the macro
               // element representation if appropriate.
               father_el_pt->get_x(t, s_in_father, x_prev);

               // Set the previous position of the new node
               created_node_pt->x(t, 0) = x_prev[0];

               // Allocate storage for the previous values at the node
               // NOTE: the size of this vector is equal to the number of values
               // (e.g. 3 velocity components and 1 pressure, say)
               // associated with each node and NOT the number of history values
               // which the node stores!
               Vector<double> prev_values;

               // Get values from father element
               // Note: get_interpolated_values() sets Vector size itself.
               father_el_pt->get_interpolated_values(
                 t, s_in_father, prev_values);

               // Determine the number of values at the new node
               const unsigned n_value = created_node_pt->nvalue();

               // Loop over all values and set the previous values
               for (unsigned v = 0; v < n_value; v++)
               {
                 created_node_pt->set_value(t, v, prev_values[v]);
               }
             } // End of loop over history values

             // Add new node to mesh
             mesh_pt->add_node_pt(created_node_pt);

           } // End of case where we build the node ourselves

           // Check if the element is an algebraic element
           AlgebraicElementBase* alg_el_pt =
             dynamic_cast<AlgebraicElementBase*>(this);

           // If it is, set up node position (past and present) from algebraic
           // node position (past and present) from algebraic node update
           // node update function. This over-writes previous assingments that
           // were made based on the macro-element/FE representation.
           // NOTE: YES, THIS NEEDS TO BE CALLED REPEATEDLY IF THE NODE IS A
           // MEMBER OF MULTIPLE ELEMENTS: THEY ALL ASSIGN THE SAME NODAL
           // POSITIONS BUT WE NEED TO ADD THE REMESH INFO FOR *ALL* ROOT
           // ELEMENTS!
           if (alg_el_pt != 0)
           {
             // Build algebraic node update info for new node. This sets up
             // the node update data for all node update functions that are
             // shared by all nodes in the father element.
             alg_el_pt->setup_algebraic_node_update(
               node_pt(n), s_in_father, father_el_pt);
           }

           // If we have built the node and we are documenting our progress,
           // write the (hopefully consistent position) to the outputfile
           if ((!node_done) && (new_nodes_file.is_open()))
           {
             new_nodes_file << node_pt(n)->x(0) << std::endl;
           }
         } // End of loop over all nodes in element


         // If the element is a MacroElementNodeUpdateElement, set the update
         // parameters for the current element's nodes -- all this needs is
         // the vector of (pointers to the) geometric objects that affect the
         // MacroElement-based node update. This is the same as that in the
         // father element
         MacroElementNodeUpdateElementBase* father_m_el_pt =
           dynamic_cast<MacroElementNodeUpdateElementBase*>(father_el_pt);
         if (father_m_el_pt != 0)
         {
           // Get Vector of geometric objects from father (construct Vector
           // via copy operation)
           Vector<GeomObject*> geom_object_pt(father_m_el_pt->geom_object_pt());

           // Cast current element to MacroElementNodeUpdateElement:
           MacroElementNodeUpdateElementBase* m_el_pt =
             dynamic_cast<MacroElementNodeUpdateElementBase*>(this);

 #ifdef PARANOID
           if (m_el_pt == 0)
           {
             std::string error_message =
               "Failed to cast to MacroElementNodeUpdateElementBase*\n";
             error_message +=
               "Strange -- if the father is a MacroElementNodeUpdateElement\n";
             error_message += "the son should be too....\n";

             throw OomphLibError(
               error_message, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
           }
 #endif
           // Build update info by passing Vector of geometric objects:
           // This sets the current element to be the update element for all
           // of the element's nodes. This is reversed if the element is
           // ever un-refined in the father element's rebuild_from_sons()
           // function which overwrites this assignment to avoid nasty
           // segmentation faults that occur when a node tries to update
           // itself via an element that no longer exists...
           m_el_pt->set_node_update_info(geom_object_pt);
         }

 #ifdef OOMPH_HAS_MPI
         // Pass on non-halo proc ID
         Non_halo_proc_ID =
           tree_pt()->father_pt()->object_pt()->non_halo_proc_ID();
 #endif

         // Is the new element an ElementWithMovingNodes?
         ElementWithMovingNodes* aux_el_pt =
           dynamic_cast<ElementWithMovingNodes*>(this);

         // Pass down the information re the method for the evaluation
         // of the shape derivatives
         if (aux_el_pt != 0)
         {
           ElementWithMovingNodes* aux_father_el_pt =
             dynamic_cast<ElementWithMovingNodes*>(father_el_pt);

 #ifdef PARANOID
           if (aux_father_el_pt == 0)
           {
             std::string error_message =
               "Failed to cast to ElementWithMovingNodes*\n";
             error_message +=
               "Strange -- if the son is a ElementWithMovingNodes\n";
             error_message += "the father should be too....\n";

             throw OomphLibError(
               error_message, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
           }
 #endif

           // If evaluating the residuals by finite differences in the father
           // continue to do so in the child
           if (aux_father_el_pt
                 ->are_dresidual_dnodal_coordinates_always_evaluated_by_fd())
           {
             aux_el_pt
               ->enable_always_evaluate_dresidual_dnodal_coordinates_by_fd();
           }

           aux_el_pt->method_for_shape_derivs() =
             aux_father_el_pt->method_for_shape_derivs();

           // If bypassing the evaluation of fill_in_jacobian_from_geometric_data
           // continue to do so
           if (aux_father_el_pt
                 ->is_fill_in_jacobian_from_geometric_data_bypassed())
           {
             aux_el_pt->enable_bypass_fill_in_jacobian_from_geometric_data();
           }
         }


         // Now do further build (if any)
         further_build();

       } // Sanity check: Father element has been generated

     } // End of if element has not already been built

     // If element has already been built, say so
     else
     {
       was_already_built = true;
     }
   }

References oomph::Mesh::add_node_pt(), oomph::ElementWithMovingNodes::enable_always_evaluate_dresidual_dnodal_coordinates_by_fd(), oomph::ElementWithMovingNodes::enable_bypass_fill_in_jacobian_from_geometric_data(), oomph::MacroElementNodeUpdateElementBase::geom_object_pt(), oomph::RefineableElement::get_interpolated_values(), oomph::FiniteElement::get_node_at_local_coordinate(), oomph::FiniteElement::get_x(), k, L, oomph::FiniteElement::Macro_elem_pt, oomph::ElementWithMovingNodes::method_for_shape_derivs(), n, oomph::FiniteElement::node_pt(), oomph::Node::nposition_type(), oomph::Data::nvalue(), oomph::Tree::object_pt(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, R, oomph::QElementBase::s_macro_ll(), oomph::QElementBase::s_macro_ur(), oomph::MacroElementNodeUpdateElementBase::set_node_update_info(), oomph::Data::set_value(), oomph::AlgebraicElementBase::setup_algebraic_node_update(), oomph::Tree::son_type(), oomph::Global_string_for_annotation::string(), plotPSD::t, oomph::Data::time_stepper_pt(), v, and oomph::Node::x().

◆ check_integrity()

void oomph::RefineableQElement< 1 >::check_integrity ( double & max_error )

virtual

Check the integrity of the element: ensure that the position and values are continuous across the element edges.

Check inter-element continuity of

nodal positions
(nodally) interpolated function values

Implements oomph::RefineableElement.

   {
     using namespace BinaryTreeNames;

     // Calculate number of nodes
     const unsigned n_node = nnode_1d();

     // Number of timesteps (including present) for which continuity is
     // to be checked
     const unsigned n_time = 1;

     // Initialise errors
     max_error = 0.0;
     Vector<double> max_error_x(1, 0.0);
     double max_error_val = 0.0;

     // Initialise vector of element edges in the current element
     Vector<int> edge_in_current(2);
     edge_in_current[0] = L;
     edge_in_current[1] = R;

     // Loop over both edges
     for (unsigned edge_counter = 0; edge_counter < 2; edge_counter++)
     {
       // Allocate storage for the fractional position (in the current
       // element) of the node in the direction of s[0]
       Vector<double> s_fraction(1);

       // Allocate storage for the location of a node in terms of the local
       // coordinate of the current element
       Vector<double> s_in_current(1);

       // Allocate storage for the location of a node in terms of the local
       // coordinate of the neighbouring element
       Vector<double> s_in_neighbour(1);

       // Allocate storage for edge in neighbouring element
       int edge_in_neighbour;

       // Allocate storage for difference in size between current and
       // neighbouring element
       int diff_level;

       // Allocate storage for flag indicating if the node is not in the same
       // binary tree
       bool in_neighbouring_tree;

       // Calculate the local coordinate and the local coordinate as viewed
       // from the neighbour

       // Allocate storage for the pointer to the neighbouring element
       // (using its binary tree representation)
       BinaryTree* neighbour_pt;

       // Find pointer to neighbouring element along the edge in question and
       // calculate the local coordinate of the node within that element,
       // s_in_neighbour
       neighbour_pt =
         binary_tree_pt()->gteq_edge_neighbour(edge_in_current[edge_counter],
                                               s_in_neighbour,
                                               edge_in_neighbour,
                                               diff_level,
                                               in_neighbouring_tree);

       // If neighbour exists and has existing nodes
       if ((neighbour_pt != 0) && (neighbour_pt->object_pt()->nodes_built()))
       {
         // Need to exclude periodic nodes from this check.
         // There are only periodic nodes if we are in a neighbouring tree...
         bool is_periodic = false;
         if (in_neighbouring_tree)
         {
           // Is it periodic?
           is_periodic = tree_pt()->root_pt()->is_neighbour_periodic(
             edge_in_current[edge_counter]);
         }

         // Allocate storage for pointer to the local node
         Node* local_node_pt = 0;

         switch (edge_counter)
         {
           case 0:
             // Local fraction of node
             s_fraction[0] = 0.0;
             // Get pointer to local node
             local_node_pt = node_pt(0);
             break;

           case 1:
             // Local fraction of node
             s_fraction[0] = 1.0;
             // Get pointer to local node
             local_node_pt = node_pt(n_node - 1);
             break;
         }

         // Evaluate the local coordinate of the node in the current element
         s_in_current[0] = -1.0 + 2.0 * s_fraction[0];

         // NOTE: We have already calculated the local coordinate of the node
         // in the neighbouring element above when calling gteq_edge_neighbour()

         // Loop over timesteps
         for (unsigned t = 0; t < n_time; t++)
         {
           // Allocate storage for the nodal position in the neighbouring element
           Vector<double> x_in_neighbour(1);

           // Get the nodal position from the neighbouring element
           neighbour_pt->object_pt()->interpolated_x(
             t, s_in_neighbour, x_in_neighbour);

           // Check error only if the node is NOT periodic
           if (is_periodic == false)
           {
             // Find the spatial error
             double err = std::fabs(local_node_pt->x(t, 0) - x_in_neighbour[0]);

             // If it's bigger than our tolerance, say so
             if (err > 1e-9)
             {
               oomph_info << "errx " << err << " " << t << " "
                          << local_node_pt->x(t, 0) << " " << x_in_neighbour[0]
                          << std::endl;

               oomph_info << "at " << local_node_pt->x(0) << std::endl;
             }

             // If it's bigger than the previous max error, it is the
             // new max error!
             if (err > max_error_x[0])
             {
               max_error_x[0] = err;
             }
           }
           // Allocate storage for the nodal values in the neighbouring element
           Vector<double> values_in_neighbour;

           // Get the values from neighbouring element. NOTE: Number of values
           // gets set by routine (because in general we don't know how many
           // interpolated values a certain element has.
           neighbour_pt->object_pt()->get_interpolated_values(
             t, s_in_neighbour, values_in_neighbour);

           // Allocate storage for the nodal values in the current element
           Vector<double> values_in_current;

           // Get the values in current element
           get_interpolated_values(t, s_in_current, values_in_current);

           // Now figure out how many continuously interpolated values there are
           const unsigned num_val =
             neighbour_pt->object_pt()->ncont_interpolated_values();

           // Check error
           for (unsigned ival = 0; ival < num_val; ival++)
           {
             // Find the spatial error
             double err =
               std::fabs(values_in_current[ival] - values_in_neighbour[ival]);

             // If it's bigger than our tolerance, say so
             if (err > 1.0e-10)
             {
               oomph_info << local_node_pt->x(0) << "\n# "
                          << "erru " << err << " " << ival << " "
                          << get_node_number(local_node_pt) << " "
                          << values_in_current[ival] << " "
                          << values_in_neighbour[ival] << std::endl;
             }

             // If it's bigger than the previous max error, it is the
             // new max error!
             if (err > max_error_val)
             {
               max_error_val = err;
             }
           }
         } // End of loop over timesteps
       } // End of if neighbour exists and has existing nodes
     } // End of loop over edges

     // Update max_error if necessary
     max_error = max_error_x[0];
     if (max_error_val > max_error)
     {
       max_error = max_error_val;
     }

     // Output max_error information
     if (max_error > 1e-9)
     {
       oomph_info << "\n#------------------------------------ \n#Max error ";
       oomph_info << max_error_x[0] << " " << max_error_val << std::endl;
       oomph_info << "#------------------------------------ \n " << std::endl;
     }
   }

References e(), boost::multiprecision::fabs(), oomph::RefineableElement::get_interpolated_values(), oomph::BinaryTree::gteq_edge_neighbour(), oomph::FiniteElement::interpolated_x(), L, MeshRefinement::max_error, oomph::RefineableElement::ncont_interpolated_values(), oomph::RefineableElement::nodes_built(), oomph::Tree::object_pt(), oomph::oomph_info, R, plotPSD::t, and oomph::Node::x().

◆ node_created_by_neighbour()

Node * oomph::RefineableQElement< 1 >::node_created_by_neighbour	(	const Vector< double > &	s_fraction,
		bool &	is_periodic
	)

If a neighbouring element has already created a node at a position corresponding to the local fractional position within the present element, s_fraction, return a pointer to that node. If not, return NULL (0). If the node is on a periodic boundary the flag is_periodic is true, otherwise it will be false.

If a neighbouring element has already created a node at a position corresponding to the local fractional position within the present element, s_fraction, return a pointer to that node. If not, return NULL (0). If the node is periodic the flag is_periodic will be true.

   {
     using namespace BinaryTreeNames;

     // Initialise edge of current element on which node lies
     int edge_in_current = OMEGA;

     // Determine the edge of the current element on which the node lies
     if (s_fraction[0] == 0.0)
     {
       edge_in_current = L;
     }
     if (s_fraction[0] == 1.0)
     {
       edge_in_current = R;
     }

     // If the node does not lie on an edge then there is no neighbour:
     // return NULL
     if (edge_in_current == OMEGA)
     {
       return 0;
     }

     // Allocate storage for edge in neighbouring element
     int edge_in_neighbour;

     // Allocate storage for difference in size between current and
     // neighbouring element
     int diff_level;

     // Allocate storage for local coordinate of node in neighbouring tree
     Vector<double> s_in_neighbour(1);

     // Allocate storage for flag indicating if the node is not in the same
     // binary tree
     bool in_neighbouring_tree;

     // Allocate storage for the pointer to the neighbouring element
     // (using its binary tree representation)
     BinaryTree* neighbour_pt;

     // Find pointer to neighbouring element along the edge in question and
     // calculate the local coordinate of the node within that element
     // s_in_neighbour
     neighbour_pt = binary_tree_pt()->gteq_edge_neighbour(edge_in_current,
                                                          s_in_neighbour,
                                                          edge_in_neighbour,
                                                          diff_level,
                                                          in_neighbouring_tree);

     // If a neighbour exists...
     if (neighbour_pt != 0)
     {
       // ...check whether its nodes have been created yet
       if (neighbour_pt->object_pt()->nodes_built())
       {
         // If they have, find the node in question in the neighbour
         Node* neighbour_node_pt =
           neighbour_pt->object_pt()->get_node_at_local_coordinate(
             s_in_neighbour);

         // If there is no node at this position, there is a problem, since in
         // a 1D element (whose nodes have already been built) there should
         // ALWAYS be a node at each edge of the element.
         if (neighbour_node_pt == 0)
         {
           std::string error_message =
             "Problem: an element claims to have had its nodes built, yet\n";
           error_message += "it is missing (a least) a node at its edge.\n";
           throw OomphLibError(
             error_message, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
         }
         // Otherwise, carry on
         else
         {
           // Now work out whether it's a periodic boundary (this is only
           // (possible if we have moved into a neighbouring tree)
           if (in_neighbouring_tree)
           {
             // Return whether the neighbour is periodic
             is_periodic = binary_tree_pt()->root_pt()->is_neighbour_periodic(
               edge_in_current);
           }
           // Return the pointer to the neighbouring node
           return neighbour_node_pt;
         }
       }
     }
     // Node not found, return null
     return 0;
   }

References oomph::FiniteElement::get_node_at_local_coordinate(), oomph::BinaryTree::gteq_edge_neighbour(), L, oomph::RefineableElement::nodes_built(), oomph::Tree::object_pt(), oomph::BinaryTreeNames::OMEGA, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, R, and oomph::Global_string_for_annotation::string().

◆ node_created_by_son_of_neighbour()

Node* oomph::RefineableQElement< 1 >::node_created_by_son_of_neighbour	(	const Vector< double > &	s_fraction,
		bool &	is_periodic
	)

inline

If a neighbouring element has already created a node at a position corresponding to the local fractional position within the present element, s_fraction, return a pointer to that node. If not, return NULL (0). If the node is on a periodic boundary the flag is_periodic is true, otherwise it will be false.

     {
       // It is impossible for this situation to arise in meshes
       // containing elements of uniform p-order. This is here so
       // that it can be overloaded for p-refineable elements.
       return 0;
     }

◆ output_corners()

void oomph::RefineableQElement< 1 >::output_corners	(	std::ostream &	outfile,
		const std::string &	colour
	)		const

Print corner nodes, using colour.

Print corner nodes, use colour (default "BLACK")

   {
     // Allocate storage for local coordinate s
     Vector<double> s(1);

     // Allocate storage for global coordinate of element vertex
     Vector<double> vertex(1);

     outfile << "ZONE I=2,J=2, C=" << colour << std::endl;

     // Left-hand vertex
     s[0] = -1.0;
     get_x(s, vertex);
     outfile << vertex[0] << " " << Number << std::endl;

     // Right-hand vertex
     s[0] = 1.0;
     get_x(s, vertex);
     outfile << vertex[0] << " " << Number << std::endl;

     outfile << "TEXT  CS = GRID, X = " << vertex[0]
             << ", HU = GRID, H = 0.01, AN = MIDCENTER, T =\"" << Number << "\""
             << std::endl;
   }

References oomph::TecplotNames::colour, oomph::Global_unsigned::Number, and s.

◆ required_nsons()

unsigned oomph::RefineableQElement< 1 >::required_nsons ( ) const

inlinevirtual

A refineable line element has two sons.

Reimplemented from oomph::RefineableElement.

     {
       return 2;
     }

◆ setup_father_bounds()

void oomph::RefineableQElement< 1 >::setup_father_bounds ( )

protected

Setup static matrix for coincidence between son nodal points and father boundaries

Setup static matrix for coincidence between son nodal points and father boundaries:

Father_bound[nnode_1d](nnode_son,son_type) = {L/R/OMEGA}

so that node nnode_son in element of type son_type lies on boundary/ vertex Father_bound[nnode_1d](nnode_son,son_type) in its father element. If the node doesn't lie on a boundary the value is OMEGA.

   {
     using namespace BinaryTreeNames;

     // Find the number of nodes along a 1D edge (which is the number of nodes
     // in the element for a 1D element!)
     const unsigned n_node = nnode_1d();

     // Allocate space for the boundary information
     Father_bound[n_node].resize(n_node, 2);

     // Initialise: By default points are not on the boundary
     for (unsigned n = 0; n < n_node; n++)
     {
       for (unsigned ison = 0; ison < 2; ison++)
       {
         Father_bound[n_node](n, ison) = Tree::OMEGA;
       }
     }

     // Left-hand son:
     // --------------

     // L node (0) is the L node of the parent
     Father_bound[n_node](0, L) = L;

     // Other boundary is in the interior

     // Right-hand son:
     // ---------------

     // R node (n_node-1) is the R node of the parent
     Father_bound[n_node](n_node - 1, R) = R;

     // Other boundary is in the interior
   }

References L, n, oomph::Tree::OMEGA, and R.

◆ setup_hang_for_value()

void oomph::RefineableQElement< 1 >::setup_hang_for_value ( const int & value_id )

inlineprotected

Line elements have no hanging nodes so this is deliberately left empty.

168 {}

◆ setup_hanging_nodes()

void oomph::RefineableQElement< 1 >::setup_hanging_nodes ( Vector< std::ofstream * > & output_stream )

inlinevirtual

Line elements have no hanging nodes so this is deliberately left empty.

Reimplemented from oomph::RefineableElement.

156 {}

Member Data Documentation

◆ Father_bound

std::map< unsigned, DenseMatrix< int > > oomph::RefineableQElement< 1 >::Father_bound

staticprotected

Coincidence between son nodal points and father boundaries: Father_bound[node_1d](jnod_son,son_type) = {L/R/OMEGA}

Static matrix for coincidence between son nodal points and father boundaries

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ VoidMemberFctPt

Constructor & Destructor Documentation

◆ RefineableQElement() [1/2]

◆ RefineableQElement() [2/2]

◆ ~RefineableQElement()

Member Function Documentation

◆ binary_hang_helper()

◆ binary_tree_pt() [1/2]

◆ binary_tree_pt() [2/2]

◆ build()

◆ check_integrity()

◆ node_created_by_neighbour()

◆ node_created_by_son_of_neighbour()

◆ output_corners()

◆ required_nsons()

◆ setup_father_bounds()

◆ setup_hang_for_value()

◆ setup_hanging_nodes()

Member Data Documentation

◆ Father_bound
