Matrix-based lumped preconditioner. More...

#include <general_purpose_preconditioners.h>

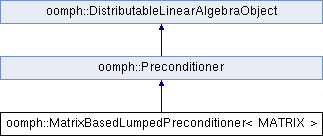

Inheritance diagram for oomph::MatrixBasedLumpedPreconditioner< MATRIX >:

Public Member Functions
	MatrixBasedLumpedPreconditioner ()
	Constructor. More...

	~MatrixBasedLumpedPreconditioner ()
	Destructor. More...

	MatrixBasedLumpedPreconditioner (const MatrixBasedDiagPreconditioner &)=delete
	Broken copy constructor. More...

void	operator= (const MatrixBasedLumpedPreconditioner &)=delete
	Broken assignment operator. More...

void	preconditioner_solve (const DoubleVector &r, DoubleVector &z)
	Apply preconditioner to z, i.e. z=D^-1. More...

void	setup ()

bool	positive_matrix () const

double *	inverse_lumped_vector_pt ()

unsigned &	nrow ()
	Access function to number of rows for this preconditioner. More...

void	clean_up_memory ()
	clean up memory - just delete the inverse lumped vector More...

void	setup ()
	Setup the lumped preconditioner. Specialisation for CCDoubleMatrix. More...

void	setup ()
	Setup the lumped preconditioner. Specialisation for CRDoubleMatrix. More...

void	setup (DoubleMatrixBase *matrix_pt)

void	setup (const Problem problem_pt, DoubleMatrixBase matrix_pt)

virtual void	setup ()=0

Public Member Functions inherited from oomph::Preconditioner
	Preconditioner ()
	Constructor. More...

	Preconditioner (const Preconditioner &)=delete
	Broken copy constructor. More...

void	operator= (const Preconditioner &)=delete
	Broken assignment operator. More...

virtual	~Preconditioner ()
	Destructor (empty) More...

virtual void	preconditioner_solve_transpose (const DoubleVector &r, DoubleVector &z)

void	setup (DoubleMatrixBase *matrix_pt)

void	setup (const Problem problem_pt, DoubleMatrixBase matrix_pt)

void	enable_silent_preconditioner_setup ()
	Set up the block preconditioner quietly! More...

void	disable_silent_preconditioner_setup ()
	Be verbose in the block preconditioner setup. More...

virtual DoubleMatrixBase *	matrix_pt () const
	Get function for matrix pointer. More...

virtual void	set_matrix_pt (DoubleMatrixBase *matrix_pt)
	Set the matrix pointer. More...

virtual const OomphCommunicator *	comm_pt () const
	Get function for comm pointer. More...

virtual void	set_comm_pt (const OomphCommunicator *const comm_pt)
	Set the communicator pointer. More...

double	setup_time () const
	Returns the time to setup the preconditioner. More...

virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse)

virtual void	turn_into_subsidiary_block_preconditioner (BlockPreconditioner< CRDoubleMatrix > *master_block_prec_pt, const Vector< unsigned > &doftype_in_master_preconditioner_coarse, const Vector< Vector< unsigned >> &doftype_coarsen_map_coarse)

Public Member Functions inherited from oomph::DistributableLinearAlgebraObject
	DistributableLinearAlgebraObject ()
	Default constructor - create a distribution. More...

	DistributableLinearAlgebraObject (const DistributableLinearAlgebraObject &matrix)=delete
	Broken copy constructor. More...

void	operator= (const DistributableLinearAlgebraObject &)=delete
	Broken assignment operator. More...

virtual	~DistributableLinearAlgebraObject ()
	Destructor. More...

LinearAlgebraDistribution *	distribution_pt () const
	access to the LinearAlgebraDistribution More...

unsigned	nrow () const
	access function to the number of global rows. More...

unsigned	nrow_local () const
	access function for the num of local rows on this processor. More...

unsigned	nrow_local (const unsigned &p) const
	access function for the num of local rows on this processor. More...

unsigned	first_row () const
	access function for the first row on this processor More...

unsigned	first_row (const unsigned &p) const
	access function for the first row on this processor More...

bool	distributed () const
	distribution is serial or distributed More...

bool	distribution_built () const

void	build_distribution (const LinearAlgebraDistribution *const dist_pt)

void	build_distribution (const LinearAlgebraDistribution &dist)

Private Attributes
double *	Inv_lumped_diag_pt
	Vector of inverse diagonal entries. More...

bool	Positive_matrix

unsigned	Nrow

Additional Inherited Members
Protected Member Functions inherited from oomph::DistributableLinearAlgebraObject
void	clear_distribution ()

Protected Attributes inherited from oomph::Preconditioner
bool	Silent_preconditioner_setup
	Boolean to indicate whether or not the build should be done silently. More...

std::ostream *	Stream_pt
	Pointer to the output stream – defaults to std::cout. More...

Detailed Description

template<typename MATRIX>
class oomph::MatrixBasedLumpedPreconditioner< MATRIX >

Matrix-based lumped preconditioner.

Constructor & Destructor Documentation

◆ MatrixBasedLumpedPreconditioner() [1/2]

template<typename MATRIX >

oomph::MatrixBasedLumpedPreconditioner< MATRIX >::MatrixBasedLumpedPreconditioner ( )

inline

Constructor.

     {
       // default the positive matrix boolean to false
       Positive_matrix = false;

       // set the pointers to the lumped vector to 0
       Inv_lumped_diag_pt = 0;
     };

References oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Inv_lumped_diag_pt, and oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Positive_matrix.

◆ ~MatrixBasedLumpedPreconditioner()

template<typename MATRIX >

oomph::MatrixBasedLumpedPreconditioner< MATRIX >::~MatrixBasedLumpedPreconditioner ( )

inline

Destructor.

     {
       this->clean_up_memory();
     }

References oomph::MatrixBasedLumpedPreconditioner< MATRIX >::clean_up_memory().

◆ MatrixBasedLumpedPreconditioner() [2/2]

template<typename MATRIX >

oomph::MatrixBasedLumpedPreconditioner< MATRIX >::MatrixBasedLumpedPreconditioner ( const MatrixBasedDiagPreconditioner & )

delete

Broken copy constructor.

Member Function Documentation

◆ clean_up_memory()

template<typename MATRIX >

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::clean_up_memory ( )

inlinevirtual

clean up memory - just delete the inverse lumped vector

Reimplemented from oomph::Preconditioner.

     {
       delete[] Inv_lumped_diag_pt;
     }

References oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Inv_lumped_diag_pt.

Referenced by oomph::MatrixBasedLumpedPreconditioner< MATRIX >::~MatrixBasedLumpedPreconditioner().

◆ inverse_lumped_vector_pt()

template<typename MATRIX >

double* oomph::MatrixBasedLumpedPreconditioner< MATRIX >::inverse_lumped_vector_pt ( )

inline

Access function to the inverse of the lumped vector assembled in the preconditioner setup routine

paranoid check that vector has been created

     {
 #ifdef PARANOID
       if (Inv_lumped_diag_pt == 0)
       {
         throw OomphLibError("The inverse lumped vector has not been created. "
                             "Created in setup(...)",
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }
 #endif
       return Inv_lumped_diag_pt;
     }

References oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Inv_lumped_diag_pt, OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

◆ nrow()

template<typename MATRIX >

unsigned& oomph::MatrixBasedLumpedPreconditioner< MATRIX >::nrow ( )

inline

Access function to number of rows for this preconditioner.

     {
       return Nrow;
     }

References oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Nrow.

◆ operator=()

template<typename MATRIX >

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::operator= ( const MatrixBasedLumpedPreconditioner< MATRIX > & )

delete

Broken assignment operator.

◆ positive_matrix()

template<typename MATRIX >

bool oomph::MatrixBasedLumpedPreconditioner< MATRIX >::positive_matrix ( ) const

inline

Access function to the Positive_matrix which indicates whether lumped matrix was positive

paranoid check that preconditioner has been setup

     {
 #ifdef PARANOID
       if (Inv_lumped_diag_pt == 0)
       {
         throw OomphLibError("The preconditioner has not been setup.",
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }
 #endif
       return Positive_matrix;
     }

References oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Inv_lumped_diag_pt, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, and oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Positive_matrix.

◆ preconditioner_solve()

template<typename MATRIX >

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::preconditioner_solve	(	const DoubleVector &	r,
		DoubleVector &	z
	)

virtual

Apply preconditioner to z, i.e. z=D^-1.

Apply preconditioner: Multiply r by the inverse of the lumped matrix.

Implements oomph::Preconditioner.

   {
 #ifdef PARANOID
     if (*r.distribution_pt() != *this->distribution_pt())
     {
       std::ostringstream error_message_stream;
       error_message_stream
         << "The r vector must have teh same distribution as the "
            "preconditioner. "
         << "(this is the same as the matrix passed to setup())";
       throw OomphLibError(error_message_stream.str(),
                           OOMPH_CURRENT_FUNCTION,
                           OOMPH_EXCEPTION_LOCATION);
     }
     if (z.built())
     {
       if (*z.distribution_pt() != *this->distribution_pt())
       {
         std::ostringstream error_message_stream;
         error_message_stream
           << "The z vector distribution has been setup; it must have the "
           << "same distribution as the r vector (and preconditioner).";
         throw OomphLibError(error_message_stream.str(),
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }
     }
 #endif

     z.build(r.distribution_pt(), 0.0);
     for (unsigned i = 0; i < Nrow; i++)
     {
       z[i] = Inv_lumped_diag_pt[i] * r[i];
     }
   }

References oomph::DoubleVector::build(), oomph::DoubleVector::built(), oomph::DistributableLinearAlgebraObject::distribution_pt(), i, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, and UniformPSDSelfTest::r.

◆ setup() [1/6]

void oomph::MatrixBasedLumpedPreconditioner< CCDoubleMatrix >::setup ( )

virtual

Setup the lumped preconditioner. Specialisation for CCDoubleMatrix.

Implements oomph::Preconditioner.

   {
     // # of rows in the matrix
     Nrow = matrix_pt()->nrow();

     // Create the vector for the inverse lumped
     if (Inv_lumped_diag_pt != 0)
     {
       delete[] this->Inv_lumped_diag_pt;
     }
     Inv_lumped_diag_pt = new double[this->Nrow];

     // zero the vector
     for (unsigned i = 0; i < Nrow; i++)
     {
       Inv_lumped_diag_pt[i] = 0.0;
     }

     // cast the Double Base Matrix to Compressed Column Double Matrix
     CCDoubleMatrix* cc_matrix_pt = dynamic_cast<CCDoubleMatrix*>(matrix_pt());

     // get the matrix
     int* m_row_index = cc_matrix_pt->row_index();
     double* m_value = cc_matrix_pt->value();
     unsigned m_nnz = cc_matrix_pt->nnz();

     // intially set positive matrix to true
     Positive_matrix = true;

     // lump the matrix
     for (unsigned i = 0; i < m_nnz; i++)
     {
       // if the matrix contains negative coefficient the matrix not positive
       if (m_value[i] < 0.0)
       {
         Positive_matrix = false;
       }

       // computed lumped matrix - temporarily stored in Inv_lumped_diag_pt
       Inv_lumped_diag_pt[m_row_index[i]] += m_value[i];
     }

     // invert the lumped matrix
     for (unsigned i = 0; i < Nrow; i++)
     {
       Inv_lumped_diag_pt[i] = 1.0 / Inv_lumped_diag_pt[i];
     }

     // create the distribution
     LinearAlgebraDistribution dist(comm_pt(), Nrow, false);
     this->build_distribution(dist);
   }

References i, oomph::SparseMatrix< T, MATRIX_TYPE >::nnz(), oomph::CCMatrix< T >::row_index(), and oomph::SparseMatrix< T, MATRIX_TYPE >::value().

◆ setup() [2/6]

void oomph::MatrixBasedLumpedPreconditioner< CRDoubleMatrix >::setup ( )

virtual

Setup the lumped preconditioner. Specialisation for CRDoubleMatrix.

Implements oomph::Preconditioner.

   {
     // first attempt to cast to CRDoubleMatrix
     CRDoubleMatrix* cr_matrix_pt = dynamic_cast<CRDoubleMatrix*>(matrix_pt());

     // # of rows in the matrix
     Nrow = cr_matrix_pt->nrow_local();

     // Create the vector for the inverse lumped
     if (Inv_lumped_diag_pt != 0)
     {
       delete[] this->Inv_lumped_diag_pt;
     }
     Inv_lumped_diag_pt = new double[this->Nrow];

     // zero the vector
     for (unsigned i = 0; i < Nrow; i++)
     {
       Inv_lumped_diag_pt[i] = 0.0;
     }

     // get the matrix
     int* m_row_start = cr_matrix_pt->row_start();
     double* m_value = cr_matrix_pt->value();

     // intially set positive matrix to true
     Positive_matrix = true;

     // lump and invert matrix
     for (unsigned i = 0; i < Nrow; i++)
     {
       Inv_lumped_diag_pt[i] = 0.0;
       for (int j = m_row_start[i]; j < m_row_start[i + 1]; j++)
       {
         // if the matrix contains negative coefficient the matrix not positive
         if (m_value[j] < 0.0)
         {
           Positive_matrix = false;
         }

         // computed lumped coef (i,i)- temporarily stored in Inv_lumped_diag_pt
         Inv_lumped_diag_pt[i] += m_value[j];
       }
       // invert coef (i,i)
       Inv_lumped_diag_pt[i] = 1.0 / Inv_lumped_diag_pt[i];
     }

     // store the distribution
     this->build_distribution(cr_matrix_pt->distribution_pt());
   }

References oomph::DistributableLinearAlgebraObject::distribution_pt(), i, j, oomph::DistributableLinearAlgebraObject::nrow_local(), oomph::CRDoubleMatrix::row_start(), and oomph::CRDoubleMatrix::value().

◆ setup() [3/6]

template<typename MATRIX >

void oomph::MatrixBasedLumpedPreconditioner< MATRIX >::setup ( )

virtual

Setup the preconditioner (store diagonal) from the fully assembled matrix. Problem pointer is ignored.

Implements oomph::Preconditioner.

◆ setup() [4/6]

template<typename MATRIX >

virtual void oomph::Preconditioner::setup

virtual

For some reason we need to remind the compiler that there is also a function named setup in the base class.

Implements oomph::Preconditioner.

◆ setup() [5/6]

template<typename MATRIX >

void oomph::Preconditioner::setup

inlinevirtual

For some reason we need to remind the compiler that there is also a function named setup in the base class.

Implements oomph::Preconditioner.

     {
       ObsoleteCode::obsolete();
       setup(matrix_pt);
     }

◆ setup() [6/6]

template<typename MATRIX >

void oomph::Preconditioner::setup

inlinevirtual

For some reason we need to remind the compiler that there is also a function named setup in the base class.

Implements oomph::Preconditioner.

     {
       // Store matrix pointer
       set_matrix_pt(matrix_pt);

       // Extract and store communicator pointer
       DistributableLinearAlgebraObject* dist_obj_pt =
         dynamic_cast<DistributableLinearAlgebraObject*>(matrix_pt);
       if (dist_obj_pt != 0)
       {
         set_comm_pt(dist_obj_pt->distribution_pt()->communicator_pt());
       }
       else
       {
         set_comm_pt(0);
       }

       double setup_time_start = TimingHelpers::timer();
       setup();
       double setup_time_finish = TimingHelpers::timer();
       Setup_time = setup_time_finish - setup_time_start;
     }

Member Data Documentation

◆ Inv_lumped_diag_pt

template<typename MATRIX >

double* oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Inv_lumped_diag_pt

private

Vector of inverse diagonal entries.

Referenced by oomph::MatrixBasedLumpedPreconditioner< MATRIX >::clean_up_memory(), oomph::MatrixBasedLumpedPreconditioner< MATRIX >::inverse_lumped_vector_pt(), oomph::MatrixBasedLumpedPreconditioner< MATRIX >::MatrixBasedLumpedPreconditioner(), and oomph::MatrixBasedLumpedPreconditioner< MATRIX >::positive_matrix().

◆ Nrow

template<typename MATRIX >

unsigned oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Nrow

private

Referenced by oomph::MatrixBasedLumpedPreconditioner< MATRIX >::nrow().

◆ Positive_matrix

template<typename MATRIX >

bool oomph::MatrixBasedLumpedPreconditioner< MATRIX >::Positive_matrix

private

Referenced by oomph::MatrixBasedLumpedPreconditioner< MATRIX >::MatrixBasedLumpedPreconditioner(), and oomph::MatrixBasedLumpedPreconditioner< MATRIX >::positive_matrix().

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<typename MATRIX> class oomph::MatrixBasedLumpedPreconditioner< MATRIX >

Constructor & Destructor Documentation

◆ MatrixBasedLumpedPreconditioner() [1/2]

◆ ~MatrixBasedLumpedPreconditioner()

◆ MatrixBasedLumpedPreconditioner() [2/2]

Member Function Documentation

◆ clean_up_memory()

◆ inverse_lumped_vector_pt()

◆ nrow()

◆ operator=()

◆ positive_matrix()

◆ preconditioner_solve()

◆ setup() [1/6]

◆ setup() [2/6]

◆ setup() [3/6]

◆ setup() [4/6]

◆ setup() [5/6]

◆ setup() [6/6]

Member Data Documentation

◆ Inv_lumped_diag_pt

◆ Nrow

◆ Positive_matrix

template<typename MATRIX>
class oomph::MatrixBasedLumpedPreconditioner< MATRIX >
