Eigen::BiCGSTABL< MatrixType_, Preconditioner_ > Class Template Reference

#include <BiCGSTABL.h>

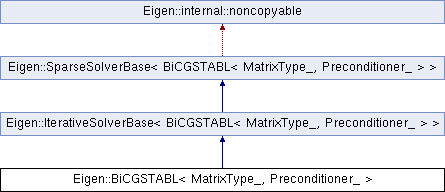

+ Inheritance diagram for Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >:

Public Types

typedef MatrixType_ MatrixType

typedef MatrixType::Scalar Scalar

typedef MatrixType::RealScalar RealScalar

typedef Preconditioner_ Preconditioner

- Public Types inherited from Eigen::IterativeSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > >
enum

typedef internal::traits< BiCGSTABL< MatrixType_, Preconditioner_ > >::MatrixType MatrixType

typedef internal::traits< BiCGSTABL< MatrixType_, Preconditioner_ > >::Preconditioner Preconditioner

typedef MatrixType::Scalar Scalar

typedef MatrixType::StorageIndex StorageIndex

typedef MatrixType::RealScalar RealScalar


Public Member Functions

 BiCGSTABL ()

template<typename MatrixDerived >
 BiCGSTABL (const EigenBase< MatrixDerived > &A)

template<typename Rhs , typename Dest >
void _solve_vector_with_guess_impl (const Rhs &b, Dest &x) const

void setL (Index L)

- Public Member Functions inherited from Eigen::IterativeSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > >
 IterativeSolverBase ()

 IterativeSolverBase (const EigenBase< MatrixDerived > &A)

 IterativeSolverBase (IterativeSolverBase &&)=default

 ~IterativeSolverBase ()

BiCGSTABL< MatrixType_, Preconditioner_ > & analyzePattern (const EigenBase< MatrixDerived > &A)

BiCGSTABL< MatrixType_, Preconditioner_ > & factorize (const EigenBase< MatrixDerived > &A)

BiCGSTABL< MatrixType_, Preconditioner_ > & compute (const EigenBase< MatrixDerived > &A)

EIGEN_CONSTEXPR Index rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index cols () const EIGEN_NOEXCEPT

RealScalar tolerance () const

BiCGSTABL< MatrixType_, Preconditioner_ > & setTolerance (const RealScalar &tolerance)

Preconditioner & preconditioner ()

const Preconditioner & preconditioner () const

Index maxIterations () const

BiCGSTABL< MatrixType_, Preconditioner_ > & setMaxIterations (Index maxIters)

Index iterations () const

RealScalar error () const

const SolveWithGuess< BiCGSTABL< MatrixType_, Preconditioner_ >, Rhs, Guess > solveWithGuess (const MatrixBase< Rhs > &b, const Guess &x0) const

ComputationInfo info () const

void _solve_with_guess_impl (const Rhs &b, SparseMatrixBase< DestDerived > &aDest) const

std::enable_if_t< Rhs::ColsAtCompileTime !=1 &&DestDerived::ColsAtCompileTime !=1 > _solve_with_guess_impl (const Rhs &b, MatrixBase< DestDerived > &aDest) const

std::enable_if_t< Rhs::ColsAtCompileTime==1||DestDerived::ColsAtCompileTime==1 > _solve_with_guess_impl (const Rhs &b, MatrixBase< DestDerived > &dest) const

void _solve_impl (const Rhs &b, Dest &x) const

BiCGSTABL< MatrixType_, Preconditioner_ > & derived ()

const BiCGSTABL< MatrixType_, Preconditioner_ > & derived () const

- Public Member Functions inherited from Eigen::SparseSolverBase< Derived >
 SparseSolverBase ()

 SparseSolverBase (SparseSolverBase &&other)

 ~SparseSolverBase ()

Derived & derived ()

const Derived & derived () const

template<typename Rhs >
const Solve< Derived, Rhs > solve (const MatrixBase< Rhs > &b) const

template<typename Rhs >
const Solve< Derived, Rhs > solve (const SparseMatrixBase< Rhs > &b) const

template<typename Rhs , typename Dest >
void _solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const


Private Types

typedef IterativeSolverBase< BiCGSTABL > Base


Private Member Functions

const ActualMatrixType & matrix () const


Private Attributes

Index m_L

RealScalar m_error

ComputationInfo m_info

bool m_isInitialized

Index m_iterations


Additional Inherited Members

- Protected Types inherited from Eigen::IterativeSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > >
typedef SparseSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > > Base

typedef internal::generic_matrix_wrapper< MatrixType > MatrixWrapper

typedef MatrixWrapper::ActualMatrixType ActualMatrixType

- Protected Member Functions inherited from Eigen::IterativeSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > >
void init ()

const ActualMatrixType & matrix () const

void grab (const InputType &A)

- Protected Attributes inherited from Eigen::IterativeSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > >
MatrixWrapper m_matrixWrapper

Preconditioner m_preconditioner

Index m_maxIterations

RealScalar m_tolerance

RealScalar m_error

Index m_iterations

ComputationInfo m_info

bool m_analysisIsOk

bool m_factorizationIsOk

bool m_isInitialized

- Protected Attributes inherited from Eigen::SparseSolverBase< Derived >
bool m_isInitialized


Member Typedef Documentation

◆ Base

template<typename MatrixType_ , typename Preconditioner_ >
typedef IterativeSolverBase<BiCGSTABL> Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::Base
private

◆ MatrixType

template<typename MatrixType_ , typename Preconditioner_ >
typedef MatrixType_ Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::MatrixType

◆ Preconditioner

template<typename MatrixType_ , typename Preconditioner_ >
typedef Preconditioner_ Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::Preconditioner

◆ RealScalar

template<typename MatrixType_ , typename Preconditioner_ >
typedef MatrixType::RealScalar Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::RealScalar

◆ Scalar

template<typename MatrixType_ , typename Preconditioner_ >
typedef MatrixType::Scalar Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::Scalar

Constructor & Destructor Documentation

◆ BiCGSTABL() [1/2]

template<typename MatrixType_ , typename Preconditioner_ >
Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::BiCGSTABL ( )
inline

Default constructor.

298 : m_L(2) {}
Eigen::BiCGSTABL::m_L
Index m_L
Definition: BiCGSTABL.h:289

◆ BiCGSTABL() [2/2]

template<typename MatrixType_ , typename Preconditioner_ >
template<typename MatrixDerived >
Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::BiCGSTABL ( const EigenBase< MatrixDerived > &  A)
inlineexplicit

Initialize the solver with matrix A for further Ax=b solving.

This constructor is a shortcut for the default constructor followed by a call to compute().

Warning
this class stores a reference to the matrix A as well as some precomputed values that depend on it. Therefore, if A is changed this class becomes invalid. Call compute() to update it with the new matrix A, or modify a copy of A.
312 : Base(A.derived()), m_L(2) {}
A
Matrix< SCALARA, Dynamic, Dynamic, opt_A > A
Definition: bench_gemm.cpp:47
Eigen::BiCGSTABL::Base
IterativeSolverBase< BiCGSTABL > Base
Definition: BiCGSTABL.h:283

Member Function Documentation

◆ _solve_vector_with_guess_impl()

template<typename MatrixType_ , typename Preconditioner_ >
template<typename Rhs , typename Dest >
void Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::_solve_vector_with_guess_impl ( const Rhs &  b,
Dest &  x
) const
inline

Loops over the number of columns of b and does the following:

  1. sets the tolerance and maxIterations
  2. Calls the function that has the core solver routine
320  {
321  m_iterations = Base::maxIterations();
322
323  m_error = Base::m_tolerance;
324
325  bool ret = internal::bicgstabl(matrix(), b, x, Base::m_preconditioner, m_iterations, m_error, m_L);
326  m_info = (!ret) ? NumericalIssue : m_error <= Base::m_tolerance ? Success : NoConvergence;
327  }
b
Scalar * b
Definition: benchVecAdd.cpp:17
Eigen::BiCGSTABL::m_info
ComputationInfo m_info
Definition: IterativeSolverBase.h:389
Eigen::BiCGSTABL::m_error
RealScalar m_error
Definition: IterativeSolverBase.h:387
Eigen::BiCGSTABL::m_iterations
Index m_iterations
Definition: IterativeSolverBase.h:388
Eigen::BiCGSTABL::matrix
const ActualMatrixType & matrix() const
Definition: IterativeSolverBase.h:374
Eigen::IterativeSolverBase::maxIterations
Index maxIterations() const
Definition: IterativeSolverBase.h:251
Eigen::IterativeSolverBase::m_preconditioner
Preconditioner m_preconditioner
Definition: IterativeSolverBase.h:382
Eigen::IterativeSolverBase::m_tolerance
RealScalar m_tolerance
Definition: IterativeSolverBase.h:385
Eigen::NumericalIssue
@ NumericalIssue
Definition: Constants.h:442
Eigen::Success
@ Success
Definition: Constants.h:440
Eigen::NoConvergence
@ NoConvergence
Definition: Constants.h:444
ret
Eigen::DenseIndex ret
Definition: level1_cplx_impl.h:43
Eigen::internal::bicgstabl
bool bicgstabl(const MatrixType &mat, const Rhs &rhs, Dest &x, const Preconditioner &precond, Index &iters, typename Dest::RealScalar &tol_error, Index L)
Definition: BiCGSTABL.h:47
plotDoE.x
list x
Definition: plotDoE.py:28

References b, Eigen::internal::bicgstabl(), Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::m_error, Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::m_info, Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::m_iterations, Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::m_L, Eigen::IterativeSolverBase< Derived >::m_preconditioner, Eigen::IterativeSolverBase< Derived >::m_tolerance, Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::matrix(), Eigen::IterativeSolverBase< Derived >::maxIterations(), Eigen::NoConvergence, Eigen::NumericalIssue, ret, Eigen::Success, and plotDoE::x.

◆ matrix()

template<typename MatrixType_ , typename Preconditioner_ >
const ActualMatrixType& Eigen::IterativeSolverBase< Derived >::matrix
inlineprivate
374 { return m_matrixWrapper.matrix(); }
Eigen::IterativeSolverBase< BiCGSTABL< MatrixType_, Preconditioner_ > >::m_matrixWrapper
MatrixWrapper m_matrixWrapper
Definition: IterativeSolverBase.h:381

Referenced by Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::_solve_vector_with_guess_impl().

◆ setL()

template<typename MatrixType_ , typename Preconditioner_ >
void Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::setL ( Index  L)
inline

Sets the parameter L, indicating how many minimize residual steps are used. Default: 2

331  {
332  eigen_assert(L >= 1 && "L needs to be positive");
333  m_L = L;
334  }
L
MatrixXd L
Definition: LLT_example.cpp:6
eigen_assert
#define eigen_assert(x)
Definition: Macros.h:910

References eigen_assert, L, and Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::m_L.

Member Data Documentation

◆ m_error

template<typename MatrixType_ , typename Preconditioner_ >
RealScalar Eigen::IterativeSolverBase< Derived >::m_error
mutableprivate

Referenced by Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::_solve_vector_with_guess_impl().

◆ m_info

template<typename MatrixType_ , typename Preconditioner_ >
ComputationInfo Eigen::IterativeSolverBase< Derived >::m_info
mutableprivate

Referenced by Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::_solve_vector_with_guess_impl().

◆ m_isInitialized

template<typename MatrixType_ , typename Preconditioner_ >
bool Eigen::SparseSolverBase< Derived >::m_isInitialized
mutableprivate

◆ m_iterations

template<typename MatrixType_ , typename Preconditioner_ >
Index Eigen::IterativeSolverBase< Derived >::m_iterations
mutableprivate

Referenced by Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::_solve_vector_with_guess_impl().

◆ m_L

template<typename MatrixType_ , typename Preconditioner_ >
Index Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::m_L
private

Referenced by Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::_solve_vector_with_guess_impl(), and Eigen::BiCGSTABL< MatrixType_, Preconditioner_ >::setL().
