ElasticInclinedPlaneProblem< ELEMENT, TIMESTEPPER > Class Template Reference

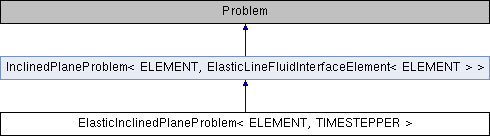

Inheritance diagram for ElasticInclinedPlaneProblem< ELEMENT, TIMESTEPPER >:

Public Member Functions
	ElasticInclinedPlaneProblem (const unsigned &nx, const unsigned &ny, const double &length)
void	actions_after_implicit_timestep ()
Public Member Functions inherited from InclinedPlaneProblem< ELEMENT, ElasticLineFluidInterfaceElement< ELEMENT > >
	InclinedPlaneProblem (const unsigned &nx, const unsigned &ny, const double &length)
	Generic Constructor (empty) More...
void	solve_steady ()
	Solve the steady problem. More...
void	timestep (const double &dt, const unsigned &n_tsteps)
	Take n_tsteps timesteps of size dt. More...
void	actions_before_implicit_timestep ()
void	make_traction_elements ()
void	make_free_surface_elements ()
void	complete_build ()
	~InclinedPlaneProblem ()
	Generic desructor to clean up the memory allocated in the problem. More...

Additional Inherited Members
Protected Attributes inherited from InclinedPlaneProblem< ELEMENT, ElasticLineFluidInterfaceElement< ELEMENT > >
Mesh *	Bulk_mesh_pt
	Bulk fluid mesh. More...
Mesh *	Traction_mesh_pt
	Mesh for the traction elements that are added at inlet and outlet. More...
Mesh *	Surface_mesh_pt
	Mesh for the free surface elements. More...
Mesh *	Point_mesh_pt
	Mesh for the point elements at each end of the free surface. More...
std::string	Output_prefix
	Prefix for output files. More...

Constructor & Destructor Documentation

ElasticInclinedPlaneProblem()

template<class ELEMENT , class TIMESTEPPER >

ElasticInclinedPlaneProblem< ELEMENT, TIMESTEPPER >::ElasticInclinedPlaneProblem ( const unsigned &  nx, const unsigned &  ny, const double &  length  )

inline

                                            :
  InclinedPlaneProblem<ELEMENT,ElasticLineFluidInterfaceElement<ELEMENT> >
  (nx,ny,length)
  {
   //Set the name
   this->Output_prefix = "elastic";

   //Create our one and only timestepper, with adaptive timestepping
   this->add_time_stepper_pt(new TIMESTEPPER);

   //Create the bulk mesh
   this->Bulk_mesh_pt = new  ElasticInclinedPlaneMesh<ELEMENT>(
    nx,ny,length,1.0,this->time_stepper_pt());

   //Set the consititutive law for the elements
   unsigned n_element = this->Bulk_mesh_pt->nelement();
   //Loop over all the fluid elements
   for(unsigned e=0;e<n_element;e++)
    {
     //Cast to a fluid element
     ELEMENT *temp_pt = dynamic_cast<ELEMENT*>(
      this->Bulk_mesh_pt->element_pt(e));
     //Set the constitutive law
     temp_pt->constitutive_law_pt() =
      Global_Physical_Variables::Constitutive_law_pt;
    }

   //Create the traction elements
   this->make_traction_elements();
   //Create the free surface element
   this->make_free_surface_elements();

   //Add all sub meshes to the problem
   this->add_sub_mesh(this->Bulk_mesh_pt);
   this->add_sub_mesh(this->Traction_mesh_pt);
   this->add_sub_mesh(this->Surface_mesh_pt);
   this->add_sub_mesh(this->Point_mesh_pt);
   //Create the global mesh
   this->build_global_mesh();

   //Complete the rest of the build
   this->complete_build();
  } //end of constructor

References Global_Physical_Variables::Constitutive_law_pt, e(), Mesh_Parameters::nx, and Mesh_Parameters::ny.

Member Function Documentation

actions_after_implicit_timestep()

template<class ELEMENT , class TIMESTEPPER >

void ElasticInclinedPlaneProblem< ELEMENT, TIMESTEPPER >::actions_after_implicit_timestep ( )

inline

Update Lagrangian positions after each timestep (updated-lagrangian approach)

  {
   //Now loop over all the nodes and reset their Lagrangian coordinates
   unsigned n_node = this->Bulk_mesh_pt->nnode();
   for(unsigned n=0;n<n_node;n++)
    {
     //Cast node to an elastic node
     SolidNode* temp_pt =
      static_cast<SolidNode*>(this->Bulk_mesh_pt->node_pt(n));
     for(unsigned j=0;j<2;j++) {temp_pt->xi(j) = temp_pt->x(j);}
    }
  } //end of actions_after_implicit_timestep

References j, n, oomph::Node::x(), and oomph::SolidNode::xi().

---

The documentation for this class was generated from the following file:

• inclined_plane.cc
