Represents a rectangular matrix with a banded storage. More...

#include <BandMatrix.h>

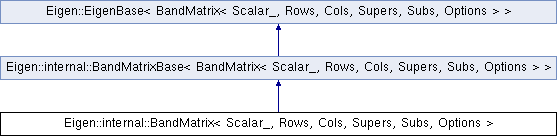

Inheritance diagram for Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >:

Public Types
typedef internal::traits< BandMatrix >::Scalar	Scalar

typedef internal::traits< BandMatrix >::StorageIndex	StorageIndex

typedef internal::traits< BandMatrix >::CoefficientsType	CoefficientsType

Public Types inherited from Eigen::internal::BandMatrixBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >
enum

typedef internal::traits< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >::Scalar	Scalar

typedef Matrix< Scalar, RowsAtCompileTime, ColsAtCompileTime >	DenseMatrixType

typedef DenseMatrixType::StorageIndex	StorageIndex

typedef internal::traits< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >::CoefficientsType	CoefficientsType

typedef EigenBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >	Base

Public Types inherited from Eigen::EigenBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >
typedef Eigen::Index	Index
	The interface type of indices. More...

typedef internal::traits< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >::StorageKind	StorageKind

Public Member Functions
	BandMatrix (Index rows=Rows, Index cols=Cols, Index supers=Supers, Index subs=Subs)

EIGEN_CONSTEXPR Index	rows () const

EIGEN_CONSTEXPR Index	cols () const

EIGEN_CONSTEXPR Index	supers () const

EIGEN_CONSTEXPR Index	subs () const

const CoefficientsType &	coeffs () const

CoefficientsType &	coeffs ()

Public Member Functions inherited from Eigen::internal::BandMatrixBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >
Index	supers () const

Index	subs () const

const CoefficientsType &	coeffs () const

CoefficientsType &	coeffs ()

Block< CoefficientsType, Dynamic, 1 >	col (Index i)

Block< CoefficientsType, 1, SizeAtCompileTime >	diagonal ()

const Block< const CoefficientsType, 1, SizeAtCompileTime >	diagonal () const

DiagonalIntReturnType< N >::Type	diagonal ()

const DiagonalIntReturnType< N >::Type	diagonal () const

Block< CoefficientsType, 1, Dynamic >	diagonal (Index i)

const Block< const CoefficientsType, 1, Dynamic >	diagonal (Index i) const

void	evalTo (Dest &dst) const

DenseMatrixType	toDenseMatrix () const

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

constexpr EIGEN_DEVICE_FUNC BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > &	derived ()

constexpr EIGEN_DEVICE_FUNC const BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > &	derived () const

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

Public Member Functions inherited from Eigen::EigenBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >
constexpr EIGEN_DEVICE_FUNC BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > &	derived ()

constexpr EIGEN_DEVICE_FUNC const BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > &	derived () const

EIGEN_DEVICE_FUNC BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > &	const_cast_derived () const

EIGEN_DEVICE_FUNC const BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > &	const_derived () const

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const

EIGEN_DEVICE_FUNC void	addTo (Dest &dst) const

EIGEN_DEVICE_FUNC void	subTo (Dest &dst) const

EIGEN_DEVICE_FUNC void	applyThisOnTheRight (Dest &dst) const

EIGEN_DEVICE_FUNC void	applyThisOnTheLeft (Dest &dst) const

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >, Device >	device (Device &device)

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE DeviceWrapper< const BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >, Device >	device (Device &device) const

Protected Attributes
CoefficientsType	m_coeffs

internal::variable_if_dynamic< Index, Rows >	m_rows

internal::variable_if_dynamic< Index, Supers >	m_supers

internal::variable_if_dynamic< Index, Subs >	m_subs

Additional Inherited Members
Protected Types inherited from Eigen::internal::BandMatrixBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >
enum

Protected Member Functions inherited from Eigen::internal::BandMatrixBase< BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options > >
Index	diagonalLength (Index i) const

Detailed Description

template<typename Scalar_, int Rows, int Cols, int Supers, int Subs, int Options>
class Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >

Represents a rectangular matrix with a banded storage.

Template Parameters

Scalar_	Numeric type, i.e. float, double, int
Rows_	Number of rows, or Dynamic
Cols_	Number of columns, or Dynamic
Supers_	Number of super diagonal
Subs_	Number of sub diagonal
Options_	A combination of either RowMajor or ColMajor, and of SelfAdjoint The former controls storage order, and defaults to column-major. The latter controls whether the matrix represents a selfadjoint matrix in which case either Supers of Subs have to be null.

See also: class TridiagonalMatrix

Member Typedef Documentation

◆ CoefficientsType

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

typedef internal::traits<BandMatrix>::CoefficientsType Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::CoefficientsType

◆ Scalar

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

typedef internal::traits<BandMatrix>::Scalar Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::Scalar

◆ StorageIndex

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

typedef internal::traits<BandMatrix>::StorageIndex Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::StorageIndex

Constructor & Destructor Documentation

◆ BandMatrix()

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::BandMatrix	(	Index	rows = `Rows`,
		Index	cols = `Cols`,
		Index	supers = `Supers`,
		Index	subs = `Subs`
	)

inlineexplicit

200 : m_coeffs(1 + supers + subs, cols), m_rows(rows), m_supers(supers), m_subs(subs) {}

Eigen::internal::BandMatrix::subs

EIGEN_CONSTEXPR Index subs() const

Definition: BandMatrix.h:212

Eigen::internal::BandMatrix::m_supers

internal::variable_if_dynamic< Index, Supers > m_supers

Definition: BandMatrix.h:220

Eigen::internal::BandMatrix::m_rows

internal::variable_if_dynamic< Index, Rows > m_rows

Definition: BandMatrix.h:219

Eigen::internal::BandMatrix::m_coeffs

CoefficientsType m_coeffs

Definition: BandMatrix.h:218

Eigen::internal::BandMatrix::supers

EIGEN_CONSTEXPR Index supers() const

Definition: BandMatrix.h:209

Eigen::internal::BandMatrix::cols

EIGEN_CONSTEXPR Index cols() const

Definition: BandMatrix.h:206

Eigen::internal::BandMatrix::m_subs

internal::variable_if_dynamic< Index, Subs > m_subs

Definition: BandMatrix.h:221

Eigen::internal::BandMatrix::rows

EIGEN_CONSTEXPR Index rows() const

Definition: BandMatrix.h:203

Member Function Documentation

◆ coeffs() [1/2]

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

CoefficientsType& Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::coeffs ( )

inline

215 { return m_coeffs; }

◆ coeffs() [2/2]

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

const CoefficientsType& Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::coeffs ( ) const

inline

214 { return m_coeffs; }

◆ cols()

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

EIGEN_CONSTEXPR Index Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::cols ( ) const

inline

Returns: the number of rows

206 { return m_coeffs.cols(); }

Referenced by gdb.printers._MatrixEntryIterator::__next__(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

◆ rows()

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

EIGEN_CONSTEXPR Index Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::rows ( ) const

inline

Returns: the number of columns

203 { return m_rows.value(); }

Eigen::internal::variable_if_dynamic::value

static EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE EIGEN_CONSTEXPR T value()

Definition: XprHelper.h:161

Referenced by gdb.printers._MatrixEntryIterator::__next__(), gdb.printers.EigenMatrixPrinter::children(), gdb.printers.EigenSparseMatrixPrinter::children(), gdb.printers.EigenMatrixPrinter::to_string(), and gdb.printers.EigenSparseMatrixPrinter::to_string().

◆ subs()

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

EIGEN_CONSTEXPR Index Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::subs ( ) const

inline

Returns: the number of sub diagonals

212 { return m_subs.value(); }

◆ supers()

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

EIGEN_CONSTEXPR Index Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::supers ( ) const

inline

Returns: the number of super diagonals

209 { return m_supers.value(); }

Member Data Documentation

◆ m_coeffs

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

CoefficientsType Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::m_coeffs

protected

◆ m_rows

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

internal::variable_if_dynamic<Index, Rows> Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::m_rows

protected

◆ m_subs

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

internal::variable_if_dynamic<Index, Subs> Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::m_subs

protected

◆ m_supers

template<typename Scalar_ , int Rows, int Cols, int Supers, int Subs, int Options>

internal::variable_if_dynamic<Index, Supers> Eigen::internal::BandMatrix< Scalar_, Rows, Cols, Supers, Subs, Options >::m_supers

protected

The documentation for this class was generated from the following file:

BandMatrix.h
