#include <quarter_tube_mesh.template.h>

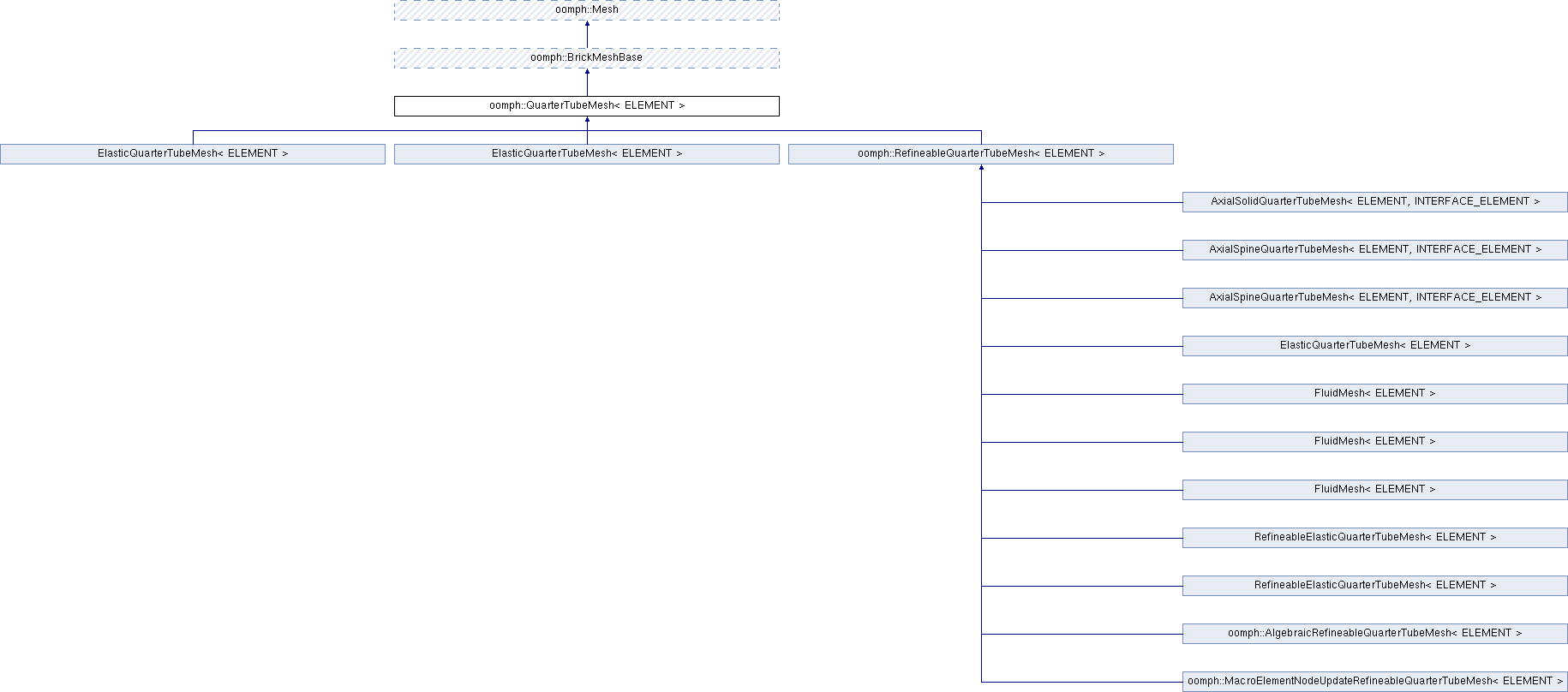

Inheritance diagram for oomph::QuarterTubeMesh< ELEMENT >:

Public Member Functions
	QuarterTubeMesh (GeomObject wall_pt, const Vector< double > &xi_lo, const double &fract_mid, const Vector< double > &xi_hi, const unsigned &nlayer, TimeStepper time_stepper_pt=&Mesh::Default_TimeStepper)

virtual	~QuarterTubeMesh ()
	Destructor: empty. More...

GeomObject *&	wall_pt ()
	Access function to GeomObject representing wall. More...

QuarterTubeDomain *	domain_pt ()
	Access function to domain. More...

QuarterTubeDomain::BLSquashFctPt &	bl_squash_fct_pt ()

virtual QuarterTubeDomain::AxialSpacingFctPt &	axial_spacing_fct_pt ()
	Function pointer for function for axial spacing. More...

QuarterTubeDomain *	domain_pt () const
	Access function to underlying domain. More...

Public Member Functions inherited from oomph::BrickMeshBase
	BrickMeshBase ()
	Constructor (empty) More...

	BrickMeshBase (const BrickMeshBase &)=delete
	Broken copy constructor. More...

virtual	~BrickMeshBase ()
	Broken assignment operator. More...

void	setup_boundary_element_info ()

void	setup_boundary_element_info (std::ostream &outfile)

Public Member Functions inherited from oomph::Mesh
	Mesh ()
	Default constructor. More...

	Mesh (const Vector< Mesh * > &sub_mesh_pt)

void	merge_meshes (const Vector< Mesh * > &sub_mesh_pt)

virtual void	reset_boundary_element_info (Vector< unsigned > &ntmp_boundary_elements, Vector< Vector< unsigned >> &ntmp_boundary_elements_in_region, Vector< FiniteElement * > &deleted_elements)
	Virtual function to perform the reset boundary elements info rutines. More...

template<class BULK_ELEMENT >
void	doc_boundary_coordinates (const unsigned &b, std::ofstream &the_file)

virtual void	scale_mesh (const double &factor)

	Mesh (const Mesh &dummy)=delete
	Broken copy constructor. More...

void	operator= (const Mesh &)=delete
	Broken assignment operator. More...

virtual	~Mesh ()
	Virtual Destructor to clean up all memory. More...

void	flush_element_and_node_storage ()

void	flush_element_storage ()

void	flush_node_storage ()

Node *&	node_pt (const unsigned long &n)
	Return pointer to global node n. More...

Node *	node_pt (const unsigned long &n) const
	Return pointer to global node n (const version) More...

GeneralisedElement *&	element_pt (const unsigned long &e)
	Return pointer to element e. More...

GeneralisedElement *	element_pt (const unsigned long &e) const
	Return pointer to element e (const version) More...

const Vector< GeneralisedElement * > &	element_pt () const
	Return reference to the Vector of elements. More...

Vector< GeneralisedElement * > &	element_pt ()
	Return reference to the Vector of elements. More...

FiniteElement *	finite_element_pt (const unsigned &e) const

Node *&	boundary_node_pt (const unsigned &b, const unsigned &n)
	Return pointer to node n on boundary b. More...

Node *	boundary_node_pt (const unsigned &b, const unsigned &n) const
	Return pointer to node n on boundary b. More...

void	set_nboundary (const unsigned &nbound)
	Set the number of boundaries in the mesh. More...

void	remove_boundary_nodes ()
	Clear all pointers to boundary nodes. More...

void	remove_boundary_nodes (const unsigned &b)

void	remove_boundary_node (const unsigned &b, Node *const &node_pt)
	Remove a node from the boundary b. More...

void	add_boundary_node (const unsigned &b, Node *const &node_pt)
	Add a (pointer to) a node to the b-th boundary. More...

void	copy_boundary_node_data_from_nodes ()

bool	boundary_coordinate_exists (const unsigned &i) const
	Indicate whether the i-th boundary has an intrinsic coordinate. More...

unsigned long	nelement () const
	Return number of elements in the mesh. More...

unsigned long	nnode () const
	Return number of nodes in the mesh. More...

unsigned	ndof_types () const
	Return number of dof types in mesh. More...

unsigned	elemental_dimension () const
	Return number of elemental dimension in mesh. More...

unsigned	nodal_dimension () const
	Return number of nodal dimension in mesh. More...

void	add_node_pt (Node *const &node_pt)
	Add a (pointer to a) node to the mesh. More...

void	add_element_pt (GeneralisedElement *const &element_pt)
	Add a (pointer to) an element to the mesh. More...

virtual void	node_update (const bool &update_all_solid_nodes=false)

virtual void	reorder_nodes (const bool &use_old_ordering=true)

virtual void	get_node_reordering (Vector< Node * > &reordering, const bool &use_old_ordering=true) const

template<class BULK_ELEMENT , template< class > class FACE_ELEMENT>
void	build_face_mesh (const unsigned &b, Mesh *const &face_mesh_pt)

unsigned	self_test ()
	Self-test: Check elements and nodes. Return 0 for OK. More...

void	max_and_min_element_size (double &max_size, double &min_size)

double	total_size ()

void	check_inverted_elements (bool &mesh_has_inverted_elements, std::ofstream &inverted_element_file)

void	check_inverted_elements (bool &mesh_has_inverted_elements)

unsigned	check_for_repeated_nodes (const double &epsilon=1.0e-12)

Vector< Node * >	prune_dead_nodes ()

unsigned	nboundary () const
	Return number of boundaries. More...

unsigned long	nboundary_node (const unsigned &ibound) const
	Return number of nodes on a particular boundary. More...

FiniteElement *	boundary_element_pt (const unsigned &b, const unsigned &e) const
	Return pointer to e-th finite element on boundary b. More...

Node *	get_some_non_boundary_node () const

unsigned	nboundary_element (const unsigned &b) const
	Return number of finite elements that are adjacent to boundary b. More...

int	face_index_at_boundary (const unsigned &b, const unsigned &e) const

virtual void	dump (std::ofstream &dump_file, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...

void	dump (const std::string &dump_file_name, const bool &use_old_ordering=true) const
	Dump the data in the mesh into a file for restart. More...

virtual void	read (std::ifstream &restart_file)
	Read solution from restart file. More...

void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const

void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const

void	output_fct_paraview (std::ofstream &file_out, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const

void	output (std::ostream &outfile)
	Output for all elements. More...

void	output (std::ostream &outfile, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...

void	output (FILE *file_pt)
	Output for all elements (C-style output) More...

void	output (FILE *file_pt, const unsigned &nplot)
	Output at f(n_plot) points in each element (C-style output) More...

void	output (const std::string &output_filename)
	Output for all elements. More...

void	output (const std::string &output_filename, const unsigned &n_plot)
	Output at f(n_plot) points in each element. More...

void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt)
	Output a given Vector function at f(n_plot) points in each element. More...

void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt)

void	output_boundaries (std::ostream &outfile)
	Output the nodes on the boundaries (into separate tecplot zones) More...

void	output_boundaries (const std::string &output_filename)

void	assign_initial_values_impulsive ()
	Assign initial values for an impulsive start. More...

void	shift_time_values ()

void	calculate_predictions ()

void	set_nodal_and_elemental_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

virtual void	set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	set_consistent_pinned_values_for_continuation (ContinuationStorageScheme *const &continuation_stepper_pt)
	Set consistent values for pinned data in continuation. More...

bool	does_pointer_correspond_to_mesh_data (double *const &parameter_pt)
	Does the double pointer correspond to any mesh data. More...

void	set_nodal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
	Set the timestepper associated with the nodal data in the mesh. More...

void	set_elemental_internal_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

virtual void	compute_norm (double &norm)

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Returns the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

bool	is_mesh_distributed () const
	Boolean to indicate if Mesh has been distributed. More...

OomphCommunicator *	communicator_pt () const

void	delete_all_external_storage ()
	Wipe the storage for all externally-based elements. More...

Protected Attributes
QuarterTubeDomain *	Domain_pt
	Pointer to domain. More...

GeomObject *	Wall_pt
	Pointer to the geometric object that represents the curved wall. More...

Vector< double >	Xi_lo
	Lower limits for the coordinates along the wall. More...

double	Fract_mid
	Fraction along wall where outer ring is to be divided. More...

Vector< double >	Xi_hi
	Upper limits for the coordinates along the wall. More...

Protected Attributes inherited from oomph::Mesh
Vector< Vector< Node * > >	Boundary_node_pt

bool	Lookup_for_elements_next_boundary_is_setup

Vector< Vector< FiniteElement * > >	Boundary_element_pt

Vector< Vector< int > >	Face_index_at_boundary

Vector< Node * >	Node_pt
	Vector of pointers to nodes. More...

Vector< GeneralisedElement * >	Element_pt
	Vector of pointers to generalised elements. More...

std::vector< bool >	Boundary_coordinate_exists

Additional Inherited Members
Public Types inherited from oomph::Mesh
typedef void(FiniteElement::*	SteadyExactSolutionFctPt) (const Vector< double > &x, Vector< double > &soln)

typedef void(FiniteElement::*	UnsteadyExactSolutionFctPt) (const double &time, const Vector< double > &x, Vector< double > &soln)

Static Public Attributes inherited from oomph::Mesh
static Steady< 0 >	Default_TimeStepper
	The Steady Timestepper. More...

static bool	Suppress_warning_about_empty_mesh_level_time_stepper_function
	Static boolean flag to control warning about mesh level timesteppers. More...

Protected Member Functions inherited from oomph::Mesh
unsigned long	assign_global_eqn_numbers (Vector< double * > &Dof_pt)
	Assign (global) equation numbers to the nodes. More...

void	describe_dofs (std::ostream &out, const std::string &current_string) const

void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

void	assign_local_eqn_numbers (const bool &store_local_dof_pt)
	Assign local equation numbers in all elements. More...

void	convert_to_boundary_node (Node &node_pt, const Vector< FiniteElement > &finite_element_pt)

void	convert_to_boundary_node (Node *&node_pt)

Detailed Description

template<class ELEMENT>
class oomph::QuarterTubeMesh< ELEMENT >

3D quarter tube mesh class. The domain is specified by the GeomObject that identifies boundary 3. Non-refineable base version!

The mesh boundaries are numbered as follows:

Boundary 0: "Inflow" cross section; located along the line parametrised by \( \xi_0 = \xi_0^{lo} \) on the geometric object that specifies the wall.
Boundary 1: Plane x=0
Boundary 2: Plane y=0
Boundary 3: The curved wall
Boundary 4: "Outflow" cross section; located along the line parametrised by \( \xi_0 = \xi_0^{hi} \) on the geometric object that specifies the wall.

IMPORTANT NOTE: The interface looks more general than it should. The toplogy must remain that of a quarter tube, or the mesh generation will break.

Constructor & Destructor Documentation

◆ QuarterTubeMesh()

template<class ELEMENT >

oomph::QuarterTubeMesh< ELEMENT >::QuarterTubeMesh	(	GeomObject *	wall_pt,
		const Vector< double > &	xi_lo,
		const double &	fract_mid,
		const Vector< double > &	xi_hi,
		const unsigned &	nlayer,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`
	)

Constructor: Pass pointer to geometric object that specifies the wall, start and end coordinates on the geometric object, and the fraction along which the dividing line is to be placed, and the timestepper. Timestepper defaults to Steady dummy timestepper.

Constructor for deformable quarter tube mesh class. The domain is specified by the GeomObject that identifies boundary 3. Pass pointer to geometric object that specifies the wall, start and end coordinates on the geometric object, and the fraction along which the dividing line is to be placed, and the timestepper. Timestepper defaults to Static dummy timestepper.

     : Wall_pt(wall_pt), Xi_lo(xi_lo), Fract_mid(fract_mid), Xi_hi(xi_hi)
   {
     // Mesh can only be built with 3D Qelements.
     MeshChecker::assert_geometric_element<QElementGeometricBase, ELEMENT>(3);

     // Build macro element-based domain
     Domain_pt = new QuarterTubeDomain(wall_pt, xi_lo, fract_mid, xi_hi, nlayer);

     // Set the number of boundaries
     set_nboundary(5);

     // We have only bothered to parametrise boundary 3
     Boundary_coordinate_exists[3] = true;

     // Allocate the store for the elements
     unsigned nelem = 3 * nlayer;
     Element_pt.resize(nelem);

     // Create  dummy element so we can determine the number of nodes
     ELEMENT* dummy_el_pt = new ELEMENT;

     // Read out the number of linear points in the element
     unsigned n_p = dummy_el_pt->nnode_1d();

     // Kill the element
     delete dummy_el_pt;

     // Can now allocate the store for the nodes
     unsigned nnodes_total =
       (n_p * n_p + (n_p - 1) * n_p + (n_p - 1) * (n_p - 1)) *
       (1 + nlayer * (n_p - 1));
     Node_pt.resize(nnodes_total);


     Vector<double> s(3);
     Vector<double> r(3);

     // Storage for the intrinsic boundary coordinate
     Vector<double> zeta(2);

     // Loop over elements and create all nodes
     for (unsigned ielem = 0; ielem < nelem; ielem++)
     {
       // Create element
       Element_pt[ielem] = new ELEMENT;

       // Loop over rows in z/s_2-direction
       for (unsigned i2 = 0; i2 < n_p; i2++)
       {
         // Loop over rows in y/s_1-direction
         for (unsigned i1 = 0; i1 < n_p; i1++)
         {
           // Loop over rows in x/s_0-direction
           for (unsigned i0 = 0; i0 < n_p; i0++)
           {
             // Local node number
             unsigned jnod_local = i0 + i1 * n_p + i2 * n_p * n_p;

             // Create the node
             Node* node_pt = finite_element_pt(ielem)->construct_node(
               jnod_local, time_stepper_pt);

             // Set the position of the node from macro element mapping
             s[0] = -1.0 + 2.0 * double(i0) / double(n_p - 1);
             s[1] = -1.0 + 2.0 * double(i1) / double(n_p - 1);
             s[2] = -1.0 + 2.0 * double(i2) / double(n_p - 1);
             Domain_pt->macro_element_pt(ielem)->macro_map(s, r);

             node_pt->x(0) = r[0];
             node_pt->x(1) = r[1];
             node_pt->x(2) = r[2];
           }
         }
       }
     }

     // Initialise number of global nodes
     unsigned node_count = 0;

     // Tolerance for node killing:
     double node_kill_tol = 1.0e-12;

     // Check for error in node killing
     bool stopit = false;

     // Loop over elements
     for (unsigned ielem = 0; ielem < nelem; ielem++)
     {
       // Which layer?
       unsigned ilayer = unsigned(ielem / 3);

       // Which macro element?
       switch (ielem % 3)
       {
           // Macro element 0: Central box
           //-----------------------------
         case 0:


           // Loop over rows in z/s_2-direction
           for (unsigned i2 = 0; i2 < n_p; i2++)
           {
             // Loop over rows in y/s_1-direction
             for (unsigned i1 = 0; i1 < n_p; i1++)
             {
               // Loop over rows in x/s_0-direction
               for (unsigned i0 = 0; i0 < n_p; i0++)
               {
                 // Local node number
                 unsigned jnod_local = i0 + i1 * n_p + i2 * n_p * n_p;

                 // Has the node been killed?
                 bool killed = false;

                 // First layer of all nodes in s_2 direction gets killed
                 // and re-directed to nodes in previous element layer
                 if ((i2 == 0) && (ilayer > 0))
                 {
                   // Neighbour element
                   unsigned ielem_neigh = ielem - 3;

                   // Node in neighbour element
                   unsigned i0_neigh = i0;
                   unsigned i1_neigh = i1;
                   unsigned i2_neigh = n_p - 1;
                   unsigned jnod_local_neigh =
                     i0_neigh + i1_neigh * n_p + i2_neigh * n_p * n_p;

                   // Check:
                   for (unsigned i = 0; i < 3; i++)
                   {
                     double error = std::fabs(
                       finite_element_pt(ielem)->node_pt(jnod_local)->x(i) -
                       finite_element_pt(ielem_neigh)
                         ->node_pt(jnod_local_neigh)
                         ->x(i));
                     if (error > node_kill_tol)
                     {
                       oomph_info << "Error in node killing for i " << i << " "
                                  << error << std::endl;
                       stopit = true;
                     }
                   }

                   // Kill node
                   delete finite_element_pt(ielem)->node_pt(jnod_local);
                   killed = true;

                   // Set pointer to neighbour:
                   finite_element_pt(ielem)->node_pt(jnod_local) =
                     finite_element_pt(ielem_neigh)->node_pt(jnod_local_neigh);
                 }

                 // No duplicate node: Copy across to mesh
                 if (!killed)
                 {
                   Node_pt[node_count] =
                     finite_element_pt(ielem)->node_pt(jnod_local);

                   // Set boundaries:

                   // Back: Boundary 0
                   if ((i2 == 0) && (ilayer == 0))
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(0, Node_pt[node_count]);
                   }

                   // Front: Boundary 4
                   if ((i2 == n_p - 1) && (ilayer == nlayer - 1))
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(4, Node_pt[node_count]);
                   }

                   // Left symmetry plane: Boundary 1
                   if (i0 == 0)
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(1, Node_pt[node_count]);
                   }

                   // Bottom symmetry plane: Boundary 2
                   if (i1 == 0)
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(2, Node_pt[node_count]);
                   }

                   // Increment node counter
                   node_count++;
                 }
               }
             }
           }


           break;

           // Macro element 1: Lower right box
           //---------------------------------
         case 1:


           // Loop over rows in z/s_2-direction
           for (unsigned i2 = 0; i2 < n_p; i2++)
           {
             // Loop over rows in y/s_1-direction
             for (unsigned i1 = 0; i1 < n_p; i1++)
             {
               // Loop over rows in x/s_0-direction
               for (unsigned i0 = 0; i0 < n_p; i0++)
               {
                 // Local node number
                 unsigned jnod_local = i0 + i1 * n_p + i2 * n_p * n_p;

                 // Has the node been killed?
                 bool killed = false;

                 // First layer of all nodes in s_2 direction gets killed
                 // and re-directed to nodes in previous element layer
                 if ((i2 == 0) && (ilayer > 0))
                 {
                   // Neighbour element
                   unsigned ielem_neigh = ielem - 3;

                   // Node in neighbour element
                   unsigned i0_neigh = i0;
                   unsigned i1_neigh = i1;
                   unsigned i2_neigh = n_p - 1;
                   unsigned jnod_local_neigh =
                     i0_neigh + i1_neigh * n_p + i2_neigh * n_p * n_p;


                   // Check:
                   for (unsigned i = 0; i < 3; i++)
                   {
                     double error = std::fabs(
                       finite_element_pt(ielem)->node_pt(jnod_local)->x(i) -
                       finite_element_pt(ielem_neigh)
                         ->node_pt(jnod_local_neigh)
                         ->x(i));
                     if (error > node_kill_tol)
                     {
                       oomph_info << "Error in node killing for i " << i << " "
                                  << error << std::endl;
                       stopit = true;
                     }
                   }

                   // Kill node
                   delete finite_element_pt(ielem)->node_pt(jnod_local);
                   killed = true;

                   // Set pointer to neighbour:
                   finite_element_pt(ielem)->node_pt(jnod_local) =
                     finite_element_pt(ielem_neigh)->node_pt(jnod_local_neigh);
                 }
                 // Not in first layer:
                 else
                 {
                   // Duplicate node: kill and set pointer to central element
                   if (i0 == 0)
                   {
                     // Neighbour element
                     unsigned ielem_neigh = ielem - 1;

                     // Node in neighbour element
                     unsigned i0_neigh = n_p - 1;
                     unsigned i1_neigh = i1;
                     unsigned i2_neigh = i2;
                     unsigned jnod_local_neigh =
                       i0_neigh + i1_neigh * n_p + i2_neigh * n_p * n_p;


                     // Check:
                     for (unsigned i = 0; i < 3; i++)
                     {
                       double error = std::fabs(
                         finite_element_pt(ielem)->node_pt(jnod_local)->x(i) -
                         finite_element_pt(ielem_neigh)
                           ->node_pt(jnod_local_neigh)
                           ->x(i));
                       if (error > node_kill_tol)
                       {
                         oomph_info << "Error in node killing for i " << i << " "
                                    << error << std::endl;
                         stopit = true;
                       }
                     }

                     // Kill node
                     delete finite_element_pt(ielem)->node_pt(jnod_local);
                     killed = true;

                     // Set pointer to neighbour:
                     finite_element_pt(ielem)->node_pt(jnod_local) =
                       finite_element_pt(ielem_neigh)->node_pt(jnod_local_neigh);
                   }
                 }

                 // No duplicate node: Copy across to mesh
                 if (!killed)
                 {
                   Node_pt[node_count] =
                     finite_element_pt(ielem)->node_pt(jnod_local);

                   // Set boundaries:

                   // Back: Boundary 0
                   if ((i2 == 0) && (ilayer == 0))
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(0, Node_pt[node_count]);
                   }

                   // Front: Boundary 4
                   if ((i2 == n_p - 1) && (ilayer == nlayer - 1))
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(4, Node_pt[node_count]);
                   }

                   // Bottom symmetry plane: Boundary 2
                   if (i1 == 0)
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(2, Node_pt[node_count]);
                   }

                   // Tube wall: Boundary 3
                   if (i0 == n_p - 1)
                   {
                     this->convert_to_boundary_node(Node_pt[node_count]);
                     add_boundary_node(3, Node_pt[node_count]);


                     // Get axial boundary coordinate
                     zeta[0] = Xi_lo[0] +
                               (double(ilayer) + double(i2) / double(n_p - 1)) *
                                 (Xi_hi[0] - Xi_lo[0]) / double(nlayer);

                     // Get azimuthal boundary coordinate
                     zeta[1] = Xi_lo[1] + double(i1) / double(n_p - 1) * 0.5 *
                                            (Xi_hi[1] - Xi_lo[1]);

                     Node_pt[node_count]->set_coordinates_on_boundary(3, zeta);
                   }

                   // Increment node counter
                   node_count++;
                 }
               }
             }
           }

           break;


           // Macro element 2: Top left box
           //--------------------------------
         case 2:

           // Loop over rows in z/s_2-direction
           for (unsigned i2 = 0; i2 < n_p; i2++)
           {
             // Loop over rows in y/s_1-direction
             for (unsigned i1 = 0; i1 < n_p; i1++)
             {
               // Loop over rows in x/s_0-direction
               for (unsigned i0 = 0; i0 < n_p; i0++)
               {
                 // Local node number
                 unsigned jnod_local = i0 + i1 * n_p + i2 * n_p * n_p;

                 // Has the node been killed?
                 bool killed = false;

                 // First layer of all nodes in s_2 direction gets killed
                 // and re-directed to nodes in previous element layer
                 if ((i2 == 0) && (ilayer > 0))
                 {
                   // Neighbour element
                   unsigned ielem_neigh = ielem - 3;

                   // Node in neighbour element
                   unsigned i0_neigh = i0;
                   unsigned i1_neigh = i1;
                   unsigned i2_neigh = n_p - 1;
                   unsigned jnod_local_neigh =
                     i0_neigh + i1_neigh * n_p + i2_neigh * n_p * n_p;

                   // Check:
                   for (unsigned i = 0; i < 3; i++)
                   {
                     double error = std::fabs(
                       finite_element_pt(ielem)->node_pt(jnod_local)->x(i) -
                       finite_element_pt(ielem_neigh)
                         ->node_pt(jnod_local_neigh)
                         ->x(i));
                     if (error > node_kill_tol)
                     {
                       oomph_info << "Error in node killing for i " << i << " "
                                  << error << std::endl;
                       stopit = true;
                     }
                   }

                   // Kill node
                   delete finite_element_pt(ielem)->node_pt(jnod_local);
                   killed = true;

                   // Set pointer to neighbour:
                   finite_element_pt(ielem)->node_pt(jnod_local) =
                     finite_element_pt(ielem_neigh)->node_pt(jnod_local_neigh);
                 }
                 // Not in first layer:
                 else
                 {
                   // Duplicate node: kill and set pointer to node in bottom
                   // right element
                   if (i0 == n_p - 1)
                   {
                     // Neighbour element
                     unsigned ielem_neigh = ielem - 1;

                     // Node in neighbour element
                     unsigned i0_neigh = i1;
                     unsigned i1_neigh = n_p - 1;
                     unsigned i2_neigh = i2;
                     unsigned jnod_local_neigh =
                       i0_neigh + i1_neigh * n_p + i2_neigh * n_p * n_p;

                     // Check:
                     for (unsigned i = 0; i < 3; i++)
                     {
                       double error = std::fabs(
                         finite_element_pt(ielem)->node_pt(jnod_local)->x(i) -
                         finite_element_pt(ielem_neigh)
                           ->node_pt(jnod_local_neigh)
                           ->x(i));
                       if (error > node_kill_tol)
                       {
                         oomph_info << "Error in node killing for i " << i << " "
                                    << error << std::endl;
                         stopit = true;
                       }
                     }

                     // Kill node
                     delete finite_element_pt(ielem)->node_pt(jnod_local);
                     killed = true;

                     // Set pointer to neighbour:
                     finite_element_pt(ielem)->node_pt(jnod_local) =
                       finite_element_pt(ielem_neigh)->node_pt(jnod_local_neigh);
                   }


                   // Duplicate node: kill and set pointer to central element
                   if ((i1 == 0) && (i0 != n_p - 1))
                   {
                     // Neighbour element
                     unsigned ielem_neigh = ielem - 2;

                     // Node in neighbour element
                     unsigned i0_neigh = i0;
                     unsigned i1_neigh = n_p - 1;
                     unsigned i2_neigh = i2;
                     unsigned jnod_local_neigh =
                       i0_neigh + i1_neigh * n_p + i2_neigh * n_p * n_p;

                     // Check:
                     for (unsigned i = 0; i < 3; i++)
                     {
                       double error = std::fabs(
                         finite_element_pt(ielem)->node_pt(jnod_local)->x(i) -
                         finite_element_pt(ielem_neigh)
                           ->node_pt(jnod_local_neigh)
                           ->x(i));
                       if (error > node_kill_tol)
                       {
                         oomph_info << "Error in node killing for i " << i << " "
                                    << error << std::endl;
                         stopit = true;
                       }
                     }

                     // Kill node
                     delete finite_element_pt(ielem)->node_pt(jnod_local);
                     killed = true;

                     // Set pointer to neighbour:
                     finite_element_pt(ielem)->node_pt(jnod_local) =
                       finite_element_pt(ielem_neigh)->node_pt(jnod_local_neigh);
                   }

                   // No duplicate node: Copy across to mesh
                   if (!killed)
                   {
                     Node_pt[node_count] =
                       finite_element_pt(ielem)->node_pt(jnod_local);

                     // Set boundaries:

                     // Back: Boundary 0
                     if ((i2 == 0) && (ilayer == 0))
                     {
                       this->convert_to_boundary_node(Node_pt[node_count]);
                       add_boundary_node(0, Node_pt[node_count]);
                     }

                     // Front: Boundary 4
                     if ((i2 == n_p - 1) && (ilayer == nlayer - 1))
                     {
                       this->convert_to_boundary_node(Node_pt[node_count]);
                       add_boundary_node(4, Node_pt[node_count]);
                     }

                     // Left symmetry plane: Boundary 1
                     if (i0 == 0)
                     {
                       this->convert_to_boundary_node(Node_pt[node_count]);
                       add_boundary_node(1, Node_pt[node_count]);
                     }


                     // Tube wall: Boundary 3
                     if (i1 == n_p - 1)
                     {
                       this->convert_to_boundary_node(Node_pt[node_count]);
                       add_boundary_node(3, Node_pt[node_count]);


                       // Get axial boundary coordinate
                       zeta[0] =
                         Xi_lo[0] +
                         (double(ilayer) + double(i2) / double(n_p - 1)) *
                           (Xi_hi[0] - Xi_lo[0]) / double(nlayer);

                       // Get azimuthal boundary coordinate
                       zeta[1] = Xi_hi[1] - double(i0) / double(n_p - 1) * 0.5 *
                                              (Xi_hi[1] - Xi_lo[1]);

                       Node_pt[node_count]->set_coordinates_on_boundary(3, zeta);
                     }

                     // Increment node counter
                     node_count++;
                   }
                 }
               }
             }
           }

           break;
       }
     }

     // Terminate if there's been an error
     if (stopit)
     {
       std::ostringstream error_stream;
       error_stream << "Error in killing nodes\n"
                    << "The most probable cause is that the domain is not\n"
                    << "compatible with the mesh.\n"
                    << "For the QuarterTubeMesh, the domain must be\n"
                    << "topologically consistent with a quarter tube with a\n"
                    << "non-curved centreline.\n";
       throw OomphLibError(
         error_stream.str(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION);
     }

     // Setup boundary element lookup schemes
     setup_boundary_element_info();
   }

References oomph::Mesh::add_boundary_node(), oomph::Mesh::Boundary_coordinate_exists, oomph::FiniteElement::construct_node(), oomph::Mesh::convert_to_boundary_node(), oomph::QuarterTubeMesh< ELEMENT >::Domain_pt, oomph::Mesh::Element_pt, calibrate::error, boost::multiprecision::fabs(), oomph::Mesh::finite_element_pt(), i, oomph::Domain::macro_element_pt(), oomph::MacroElement::macro_map(), oomph::FiniteElement::node_pt(), oomph::Mesh::Node_pt, oomph::Mesh::node_pt(), OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, oomph::oomph_info, UniformPSDSelfTest::r, s, oomph::Mesh::set_nboundary(), oomph::BrickMeshBase::setup_boundary_element_info(), oomph::QuarterTubeMesh< ELEMENT >::wall_pt(), plotDoE::x, oomph::Node::x(), oomph::QuarterTubeMesh< ELEMENT >::Xi_hi, oomph::QuarterTubeMesh< ELEMENT >::Xi_lo, and Eigen::zeta().

◆ ~QuarterTubeMesh()

template<class ELEMENT >

virtual oomph::QuarterTubeMesh< ELEMENT >::~QuarterTubeMesh ( )

inlinevirtual

Destructor: empty.

     {
       delete Domain_pt;
     }

References oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

Member Function Documentation

◆ axial_spacing_fct_pt()

template<class ELEMENT >

virtual QuarterTubeDomain::AxialSpacingFctPt& oomph::QuarterTubeMesh< ELEMENT >::axial_spacing_fct_pt ( )

inlinevirtual

Function pointer for function for axial spacing.

Reimplemented in oomph::AlgebraicRefineableQuarterTubeMesh< ELEMENT >.

     {
       return Domain_pt->axial_spacing_fct_pt();
     }

References oomph::QuarterTubeDomain::axial_spacing_fct_pt(), and oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

◆ bl_squash_fct_pt()

template<class ELEMENT >

QuarterTubeDomain::BLSquashFctPt& oomph::QuarterTubeMesh< ELEMENT >::bl_squash_fct_pt ( )

inline

Function pointer for function that squashes the outer macro elements towards the wall by mapping the input value of the "radial" macro element coordinate to the return value (defined in the underlying Domain object)

     {
       return Domain_pt->bl_squash_fct_pt();
     }

References oomph::QuarterTubeDomain::bl_squash_fct_pt(), and oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

◆ domain_pt() [1/2]

template<class ELEMENT >

QuarterTubeDomain* oomph::QuarterTubeMesh< ELEMENT >::domain_pt ( )

inline

Access function to domain.

     {
       return Domain_pt;
     }

References oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

Referenced by oomph::MacroElementNodeUpdateRefineableQuarterTubeMesh< ELEMENT >::setup_macro_element_node_update().

◆ domain_pt() [2/2]

template<class ELEMENT >

QuarterTubeDomain* oomph::QuarterTubeMesh< ELEMENT >::domain_pt ( ) const

inline

Access function to underlying domain.

     {
       return Domain_pt;
     }

References oomph::QuarterTubeMesh< ELEMENT >::Domain_pt.

◆ wall_pt()

template<class ELEMENT >

GeomObject*& oomph::QuarterTubeMesh< ELEMENT >::wall_pt ( )

inline

Access function to GeomObject representing wall.

     {
       return Wall_pt;
     }

Lower limits for the coordinates along the wall.

Referenced by oomph::QuarterTubeMesh< ELEMENT >::QuarterTubeMesh().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<class ELEMENT> class oomph::QuarterTubeMesh< ELEMENT >

Constructor & Destructor Documentation

◆ QuarterTubeMesh()

◆ ~QuarterTubeMesh()

Member Function Documentation

◆ axial_spacing_fct_pt()

◆ bl_squash_fct_pt()

◆ domain_pt() [1/2]

◆ domain_pt() [2/2]

◆ wall_pt()

Member Data Documentation

◆ Domain_pt

◆ Fract_mid

◆ Wall_pt

◆ Xi_hi

◆ Xi_lo

template<class ELEMENT>
class oomph::QuarterTubeMesh< ELEMENT >
