oomph::Domain Class Reference

#include <domain.h>

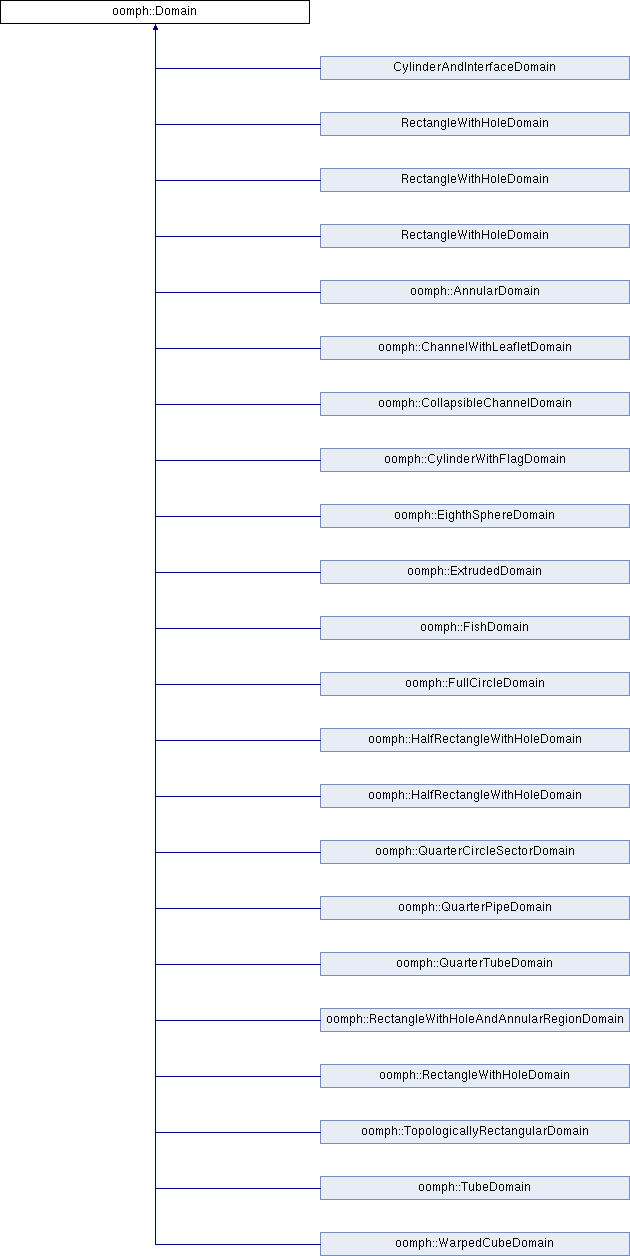

Inheritance diagram for oomph::Domain:

Public Member Functions
	Domain ()
	Constructor. More...
	Domain (const Domain &)=delete
	Broken copy constructor. More...
void	operator= (const Domain &)=delete
	Broken assignment operator. More...
virtual	~Domain ()
MacroElement *	macro_element_pt (const unsigned &i)
	Access to i-th macro element. More...
unsigned	nmacro_element ()
	Number of macro elements in domain. More...
void	output (const std::string &filename, const unsigned &nplot)
	Output macro elements. More...
void	output (std::ostream &outfile, const unsigned &nplot)
	Output macro elements. More...
virtual void	macro_element_boundary (const unsigned &t, const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)=0
virtual void	macro_element_boundary (const double &t, const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
void	macro_element_boundary (const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
void	output_macro_element_boundaries (const std::string &filename, const unsigned &nplot)
	Output all macro element boundaries as tecplot zones. More...
void	output_macro_element_boundaries (std::ostream &outfile, const unsigned &nplot)
	Output all macro element boundaries as tecplot zones. More...
virtual void	dmacro_element_boundary (const unsigned &t, const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
virtual void	dmacro_element_boundary (const double &t, const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
void	dmacro_element_boundary (const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
virtual void	d2macro_element_boundary (const unsigned &t, const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
virtual void	d2macro_element_boundary (const double &t, const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)
void	d2macro_element_boundary (const unsigned &i_macro, const unsigned &i_direct, const Vector< double > &s, Vector< double > &f)

Protected Attributes
Vector< MacroElement * >	Macro_element_pt
	Vector of pointers to macro elements. More...

Detailed Description

Base class for Domains with curvilinear and/or time-dependent boundaries. Domain boundaries are typically represented by GeomObject s and the Domain itself is decomposed into a number of MacroElement s as shown in this 2D example:

Any instantiation of a specific Domain needs to implement the pure virtual member function

Domain::macro_element_boundary(...)

which returns a Vector representation of each of the MacroElement s' boundaries, parametrised by the coordinate(s) along this boundary. For instance, in the above example, the eastern boundary of MacroElement 1 is given by the appropriate fraction of the curvilinear boundary; its northern boundary (which coincides with the southern boundary of MacroElement 2) is given by the straight line emanating from the curvilinear boundary, etc. The MacroElement s obtain their boundary positions via member function pointers to Domain::macro_element_boundary(...).

Constructor & Destructor Documentation

Domain() [1/2]

oomph::Domain::Domain ( )

inline

Constructor.

    {
      // Make sure all containers are empty (a bit paranoid, I know...)
      Macro_element_pt.resize(0);
    }

References Macro_element_pt.

Domain() [2/2]

oomph::Domain::Domain ( const Domain &  )

delete

Broken copy constructor.

~Domain()

virtual oomph::Domain::~Domain ( )

inlinevirtual

Destructor: Strictly speaking, whoever creates an object dynamically should be responsible for the cleanup of said object but it makes sense here for the Domain to generically kill any MacroElements left over in the MacroElement container (if it hasn't already been done in the derived class) to avoid memory leaks.

    {
      // How many macro elements are there?
      unsigned n_macro_element = Macro_element_pt.size();

      // Loop over the macro elements
      for (unsigned i = 0; i < n_macro_element; i++)
      {
        // They might have already deleted (some or all of) the macro elements
        // so skip them if they've already been made null pointers
        if (Macro_element_pt[i] != 0)
        {
          // Delete the i-th macro element
          delete Macro_element_pt[i];

          // Make it a null pointer
          Macro_element_pt[i] = 0;
        }
      } // for (unsigned i=0;i<n_macro_element;i++)

      // Now clear the storage. NOTE: We can't just call this function
      // as this would only delete the pointers to the macro elements,
      // not the macro elements themselves!
      Macro_element_pt.clear();

    } // End of ~Domain

References i, and Macro_element_pt.

Member Function Documentation

d2macro_element_boundary() [1/3]

virtual void oomph::Domain::d2macro_element_boundary ( const double &  t, const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inlinevirtual

Vector representation of the i_macro-th macro element boundary seocond derivatives i_direct (e.g. N/S/W/E in 2D) at continuous time level t. Broken virtual.

    {
      throw OomphLibError(
        "Domain::d2macro_element_boundary() is broken virtual.",
        OOMPH_CURRENT_FUNCTION,
        OOMPH_EXCEPTION_LOCATION);
    }

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

d2macro_element_boundary() [2/3]

void oomph::Domain::d2macro_element_boundary ( const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inline

Vector representation of the i_macro-th macro element boundary second derivatives i_direct (e.g. N/S/W/E in 2D) at current time: f(s).

    {
      // Call unsteady version for current time
      unsigned t = 0;
      d2macro_element_boundary(t, i_macro, i_direct, s, f);
    }

References d2macro_element_boundary(), f(), s, and plotPSD::t.

d2macro_element_boundary() [3/3]

virtual void oomph::Domain::d2macro_element_boundary ( const unsigned &  t, const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inlinevirtual

Vector representation of the i_macro-th macro element boundary second derivatives i_direct (e.g. N/S/W/E in 2D) at time level t (t=0: present; t>0: previous): f(s). Broken virtual.

Reimplemented in oomph::TopologicallyRectangularDomain.

    {
      throw OomphLibError(
        "Domain::d2macro_element_boundary() is broken virtual.",
        OOMPH_CURRENT_FUNCTION,
        OOMPH_EXCEPTION_LOCATION);
    }

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

Referenced by oomph::QMacroElement< 2 >::assemble_macro_to_eulerian_jacobian2(), and d2macro_element_boundary().

dmacro_element_boundary() [1/3]

virtual void oomph::Domain::dmacro_element_boundary ( const double &  t, const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inlinevirtual

Vector representation of the i_macro-th macro element boundary derivatives i_direct (e.g. N/S/W/E in 2D) at continuous time level t. Broken virtual.

    {
      throw OomphLibError(
        "Domain::dmacro_element_boundary() is broken virtual.",
        OOMPH_CURRENT_FUNCTION,
        OOMPH_EXCEPTION_LOCATION);
    }

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

dmacro_element_boundary() [2/3]

void oomph::Domain::dmacro_element_boundary ( const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inline

Vector representation of the i_macro-th macro element boundary derivatives i_direct (e.g. N/S/W/E in 2D) at current time: f(s).

    {
      // Call unsteady version for current time
      unsigned t = 0;
      dmacro_element_boundary(t, i_macro, i_direct, s, f);
    }

References dmacro_element_boundary(), f(), s, and plotPSD::t.

dmacro_element_boundary() [3/3]

virtual void oomph::Domain::dmacro_element_boundary ( const unsigned &  t, const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inlinevirtual

Vector representation of the i_macro-th macro element boundary derivatives i_direct (e.g. N/S/W/E in 2D) at time level t (t=0: present; t>0: previous): f(s). Broken virtual.

Reimplemented in oomph::TopologicallyRectangularDomain.

    {
      throw OomphLibError(
        "Domain::dmacro_element_boundary() is broken virtual.",
        OOMPH_CURRENT_FUNCTION,
        OOMPH_EXCEPTION_LOCATION);
    }

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

Referenced by oomph::QMacroElement< 2 >::assemble_macro_to_eulerian_jacobian(), oomph::QMacroElement< 2 >::assemble_macro_to_eulerian_jacobian2(), and dmacro_element_boundary().

macro_element_boundary() [1/3]

virtual void oomph::Domain::macro_element_boundary ( const double &  t, const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inlinevirtual

Vector representation of the i_macro-th macro element boundary i_direct (e.g. N/S/W/E in 2D) at continuous time, t

Reimplemented in oomph::RectangleWithHoleAndAnnularRegionDomain.

    {
      // Throw an error
      throw OomphLibError("Domain::macro_element_boundary() is broken virtual.",
                          OOMPH_CURRENT_FUNCTION,
                          OOMPH_EXCEPTION_LOCATION);
    } // End of macro_element_boundary

References OOMPH_CURRENT_FUNCTION, and OOMPH_EXCEPTION_LOCATION.

macro_element_boundary() [2/3]

void oomph::Domain::macro_element_boundary ( const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

inline

Vector representation of the i_macro-th macro element boundary i_direct (e.g. N/S/W/E in 2D) at current time: f(s).

    {
      // Call unsteady version for current time
      unsigned t = 0;
      macro_element_boundary(t, i_macro, i_direct, s, f);
    }

References f(), macro_element_boundary(), s, and plotPSD::t.

macro_element_boundary() [3/3]

virtual void oomph::Domain::macro_element_boundary ( const unsigned &  t, const unsigned &  i_macro, const unsigned &  i_direct, const Vector< double > &  s, Vector< double > &  f  )

pure virtual

Vector representation of the i_macro-th macro element boundary i_direct (e.g. N/S/W/E in 2D) at time level t (t=0: present; t>0: previous): f(s)

Implemented in oomph::RectangleWithHoleAndAnnularRegionDomain, oomph::RectangleWithHoleDomain, oomph::CylinderWithFlagDomain, RectangleWithHoleDomain, CylinderAndInterfaceDomain, oomph::HalfRectangleWithHoleDomain, oomph::HalfRectangleWithHoleDomain, RectangleWithHoleDomain, RectangleWithHoleDomain, oomph::ExtrudedDomain, oomph::CollapsibleChannelDomain, oomph::ChannelWithLeafletDomain, oomph::EighthSphereDomain, oomph::FishDomain, oomph::TubeDomain, oomph::TopologicallyRectangularDomain, oomph::QuarterTubeDomain, oomph::QuarterPipeDomain, oomph::QuarterCircleSectorDomain, oomph::FullCircleDomain, oomph::AnnularDomain, and oomph::WarpedCubeDomain.

Referenced by oomph::QMacroElement< 2 >::assemble_macro_to_eulerian_jacobian(), oomph::QMacroElement< 2 >::assemble_macro_to_eulerian_jacobian2(), macro_element_boundary(), oomph::ExtrudedDomain::macro_element_boundary(), oomph::QMacroElement< 2 >::macro_map(), oomph::QMacroElement< 3 >::macro_map(), oomph::QMacroElement< 2 >::output_macro_element_boundaries(), and oomph::QMacroElement< 3 >::output_macro_element_boundaries().

macro_element_pt()

MacroElement* oomph::Domain::macro_element_pt ( const unsigned &  i )

inline

Access to i-th macro element.

    {
      return Macro_element_pt[i];
    }

References i, and Macro_element_pt.

Referenced by oomph::ChannelWithLeafletMesh< ELEMENT >::ChannelWithLeafletMesh(), oomph::CollapsibleChannelMesh< ELEMENT >::CollapsibleChannelMesh(), CylinderAndInterfaceMesh< ELEMENT >::CylinderAndInterfaceMesh(), oomph::EighthSphereMesh< ELEMENT >::EighthSphereMesh(), oomph::ElasticRefineableQuarterPipeMesh< ELEMENT >::ElasticRefineableQuarterPipeMesh(), oomph::FullCircleMesh< ELEMENT >::FullCircleMesh(), oomph::ExtrudedDomain::macro_element_boundary(), output_macro_element_boundaries(), oomph::QuarterCircleSectorMesh< ELEMENT >::QuarterCircleSectorMesh(), oomph::QuarterPipeMesh< ELEMENT >::QuarterPipeMesh(), oomph::QuarterTubeMesh< ELEMENT >::QuarterTubeMesh(), oomph::RectangleWithHoleMesh< ELEMENT >::RectangleWithHoleMesh(), oomph::RefineableEighthSphereMesh< ELEMENT >::RefineableEighthSphereMesh(), oomph::RefineableFullCircleMesh< ELEMENT >::RefineableFullCircleMesh(), oomph::RefineableQuarterTubeMesh< ELEMENT >::RefineableQuarterTubeMesh(), oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT >::RefineableRectangleWithHoleAndAnnularRegionMesh(), oomph::RefineableRectangleWithHoleMesh< ELEMENT >::RefineableRectangleWithHoleMesh(), oomph::RefineableTubeMesh< ELEMENT >::RefineableTubeMesh(), oomph::RefineableTwoDAnnularMesh< ELEMENT >::RefineableTwoDAnnularMesh(), and oomph::TubeMesh< ELEMENT >::TubeMesh().

nmacro_element()

unsigned oomph::Domain::nmacro_element ( )

inline

Number of macro elements in domain.

    {
      return Macro_element_pt.size();
    }

References Macro_element_pt.

Referenced by oomph::ExtrudedCubeMeshFromQuadMesh< ELEMENT >::build_mesh(), CylinderAndInterfaceMesh< ELEMENT >::CylinderAndInterfaceMesh(), oomph::ExtrudedDomain::ExtrudedDomain(), oomph::ExtrudedDomain::macro_element_boundary(), output_macro_element_boundaries(), oomph::RectangleWithHoleAndAnnularRegionMesh< ELEMENT >::RectangleWithHoleAndAnnularRegionMesh(), oomph::RectangleWithHoleMesh< ELEMENT >::RectangleWithHoleMesh(), and oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT >::RefineableRectangleWithHoleAndAnnularRegionMesh().

operator=()

void oomph::Domain::operator= ( const Domain &  )

delete

Broken assignment operator.

output() [1/2]

void oomph::Domain::output ( const std::string &  filename, const unsigned &  nplot  )

inline

Output macro elements.

    {
      std::ofstream outfile;
      outfile.open(filename.c_str());
      output(outfile, nplot);
      outfile.close();
    }

References MergeRestartFiles::filename.

Referenced by main().

output() [2/2]

void oomph::Domain::output ( std::ostream &  outfile, const unsigned &  nplot  )

inline

Output macro elements.

    {
      unsigned nmacro = Macro_element_pt.size();
      for (unsigned i_macro = 0; i_macro < nmacro; i_macro++)
      {
        Macro_element_pt[i_macro]->output(outfile, nplot);
      }
    }

References Macro_element_pt.

output_macro_element_boundaries() [1/2]

void oomph::Domain::output_macro_element_boundaries ( const std::string &  filename, const unsigned &  nplot  )

inline

Output all macro element boundaries as tecplot zones.

    {
      std::ofstream outfile;
      outfile.open(filename.c_str());
      output_macro_element_boundaries(outfile, nplot);
      outfile.close();
    }

References MergeRestartFiles::filename.

Referenced by main().

output_macro_element_boundaries() [2/2]

void oomph::Domain::output_macro_element_boundaries ( std::ostream &  outfile, const unsigned &  nplot  )

inline

Output all macro element boundaries as tecplot zones.

    {
      // Loop over macro elements
      unsigned nmacro = nmacro_element();
      for (unsigned i = 0; i < nmacro; i++)
      {
        macro_element_pt(i)->output_macro_element_boundaries(outfile, nplot);
      }
    }

References i, macro_element_pt(), nmacro_element(), and oomph::MacroElement::output_macro_element_boundaries().

Member Data Documentation

Macro_element_pt

Vector<MacroElement*> oomph::Domain::Macro_element_pt

protected

Vector of pointers to macro elements.

Referenced by oomph::AnnularDomain::AnnularDomain(), oomph::ChannelWithLeafletDomain::ChannelWithLeafletDomain(), oomph::CollapsibleChannelDomain::CollapsibleChannelDomain(), oomph::CylinderWithFlagDomain::CylinderWithFlagDomain(), Domain(), oomph::EighthSphereDomain::EighthSphereDomain(), oomph::ExtrudedDomain::ExtrudedDomain(), oomph::FishDomain::FishDomain(), oomph::FullCircleDomain::FullCircleDomain(), macro_element_pt(), oomph::ExtrudedDomain::macro_element_pt(), nmacro_element(), oomph::ExtrudedDomain::nmacro_element(), output(), oomph::QuarterCircleSectorDomain::QuarterCircleSectorDomain(), oomph::QuarterPipeDomain::QuarterPipeDomain(), oomph::QuarterTubeDomain::QuarterTubeDomain(), oomph::RectangleWithHoleAndAnnularRegionDomain::RectangleWithHoleAndAnnularRegionDomain(), oomph::RectangleWithHoleDomain::RectangleWithHoleDomain(), oomph::TopologicallyRectangularDomain::TopologicallyRectangularDomain(), oomph::TubeDomain::TubeDomain(), oomph::WarpedCubeDomain::WarpedCubeDomain(), and ~Domain().

---

The documentation for this class was generated from the following file:

• domain.h
