Species for the HeatFluidCoupledParticle. More...

#include <HeatFluidCoupledSpecies.h>

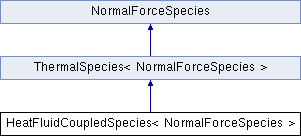

Inheritance diagram for HeatFluidCoupledSpecies< NormalForceSpecies >:

Public Types
typedef HeatFluidCoupledInteraction< typename NormalForceSpecies::InteractionType >	InteractionType

Public Types inherited from ThermalSpecies< NormalForceSpecies >
typedef ThermalInteraction< typename NormalForceSpecies::InteractionType >	InteractionType
	The correct Interaction type for this FrictionForceSpecies. More...

Public Member Functions
	HeatFluidCoupledSpecies ()
	The default constructor. More...

	HeatFluidCoupledSpecies (const HeatFluidCoupledSpecies &s)
	The default copy constructor. More...

virtual	~HeatFluidCoupledSpecies ()
	The default destructor. More...

void	write (std::ostream &os) const
	Writes the species properties to an output stream. More...

void	read (std::istream &is)
	Reads the species properties from an input stream. More...

std::string	getBaseName () const
	Used in Species::getName to obtain a unique name for each Species. More...

Mdouble	getMassTransferCoefficient () const
	Allows massTransferCoefficient_ to be accessed. More...

void	setMassTransferCoefficient (Mdouble massTransferCoefficient)
	Allows massTransferCoefficient_ to be changed. More...

Mdouble	getLatentHeatVaporization () const
	Allows latentHeatVaporization_ to be accessed. More...

void	setLatentHeatVaporization (Mdouble latentHeatVaporization)
	Allows latentHeatVaporization_ to be changed. More...

Mdouble	getLiquidDensity () const
	Allows liquidDensity_ to be accessed. More...

void	setLiquidDensity (Mdouble liquidDensity)
	Allows liquidDensity_ to be changed. More...

Mdouble	getEvaporationCoefficientA () const
	Allows evaporationCoefficientA_ to be accessed. More...

void	setEvaporationCoefficientA (Mdouble evaporationCoefficientA)
	Allows evaporationCoefficientA_ to be changed. More...

Mdouble	getEvaporationCoefficientB () const
	Allows evaporationCoefficientB_ to be accessed. More...

void	setEvaporationCoefficientB (Mdouble evaporationCoefficientB)
	Allows evaporationCoefficientB_ to be changed. More...

Mdouble	getAmbientHumidity () const
	Allows ambientHumidity_ to be accessed. More...

void	setAmbientHumidity (Mdouble ambientHumidity)
	Allows ambientHumidity_ to be changed. More...

Mdouble	getAmbientEquilibriumMoistureContent () const
	Allows ambientEquilibriumMoistureContent_ to be accessed. More...

void	setAmbientEquilibriumMoistureContent (Mdouble ambientEquilibriumMoistureContent)
	Allows ambientEquilibriumMoistureContent_ to be changed. More...

Mdouble	getAmbientVapourConcentration () const
	Allows ambientVapourConcentration_ to be accessed. More...

void	setAmbientVapourConcentration (Mdouble ambientVapourConcentration)
	Allows ambientVapourConcentration_ to be changed. More...

void	actionsAfterTimeStep (BaseParticle *particle) const override

std::array< double, 2 >	f (double liquidVolume, double temperature, double mass, double surfaceArea) const
	f1 is used in Runge–Kutta method. More...

Public Member Functions inherited from ThermalSpecies< NormalForceSpecies >
	ThermalSpecies ()
	The default constructor. More...

	ThermalSpecies (const ThermalSpecies &s)
	The default copy constructor. More...

virtual	~ThermalSpecies ()
	The default destructor. More...

void	write (std::ostream &os) const
	Writes the species properties to an output stream. More...

void	read (std::istream &is)
	Reads the species properties from an input stream. More...

std::string	getBaseName () const
	Used in Species::getName to obtain a unique name for each Species. More...

void	actionsAfterTimeStep (BaseParticle *particle) const override
	Computes the heat transfer rate (. More...

Mdouble	getHeatCapacity () const
	Allows heatCapacity_ to be accessed. More...

void	setHeatCapacity (Mdouble heatCapacity)
	Allows heatCapacity_ to be changed. More...

Mdouble	getThermalConductivity () const
	Allows heatCapacity_ to be accessed. More...

void	setThermalConductivity (Mdouble thermalConductivity)
	Allows heatCapacity_ to be changed. More...

Mdouble	getAmbientTemperature () const

void	setAmbientTemperature (Mdouble ambientTemperature)

Vec3D	getAmbientVelocity () const
	Allows ambientVelocity_ to be accessed. More...

void	setAmbientVelocity (Vec3D ambientVelocity)
	Allows ambientVelocity_ to be changed. More...

Mdouble	getAmbientThermalConductivity () const
	Allows ambientThermalConductivity_ to be accessed. More...

void	setAmbientThermalConductivity (Mdouble ambientThermalConductivity)
	Allows ambientThermalConductivity_ to be changed. More...

Mdouble	getAmbientDynamicViscosity () const
	Allows ambientDynamicViscosity_ to be accessed. More...

void	setAmbientDynamicViscosity (Mdouble ambientDynamicViscosity)
	Allows ambientDynamicViscosity_ to be changed. More...

Mdouble	getAmbientHeatCapacity () const
	Allows ambientHeatCapacity_ to be accessed. More...

void	setAmbientHeatCapacity (Mdouble ambientHeatCapacity)
	Allows ambientHeatCapacity_ to be changed. More...

Mdouble	getAmbientDensity () const
	Allows ambientDensity_ to be accessed. More...

void	setAmbientDensity (Mdouble ambientDensity)
	Allows ambientDensity_ to be changed. More...

Private Attributes
Mdouble	massTransferCoefficient_
	The mass transfer rate (m/s) More...

Mdouble	latentHeatVaporization_
	The latent heat of vaporization (J/kg) More...

Mdouble	liquidDensity_
	The liquid density (kg/m^3) More...

Mdouble	evaporationCoefficientA_
	The evaporation coefficient a (dimensionless) More...

Mdouble	evaporationCoefficientB_
	The evaporation coefficient b (dimensionless) More...

Mdouble	ambientHumidity_
	The ambient humidity (dimensionless, between 0 and 1, but cannot be 0) More...

Mdouble	ambientEquilibriumMoistureContent_
	The ambient equilibrium moisture content (dimensionless, between 0 and 1). More...

Mdouble	ambientVapourConcentration_
	The ambient vapour concentration (kg/m^3). More...

Detailed Description

template<class NormalForceSpecies>
class HeatFluidCoupledSpecies< NormalForceSpecies >

Species for the HeatFluidCoupledParticle.

Member Typedef Documentation

◆ InteractionType

template<class NormalForceSpecies >

typedef HeatFluidCoupledInteraction<typename NormalForceSpecies::InteractionType> HeatFluidCoupledSpecies< NormalForceSpecies >::InteractionType

Constructor & Destructor Documentation

◆ HeatFluidCoupledSpecies() [1/2]

template<class NormalForceSpecies >

HeatFluidCoupledSpecies< NormalForceSpecies >::HeatFluidCoupledSpecies

The default constructor.

         : ThermalSpecies<NormalForceSpecies>()
 {
     massTransferCoefficient_=0.0;
     latentHeatVaporization_=0.0;
     liquidDensity_=1.0;
     evaporationCoefficientA_=0.0;
     evaporationCoefficientB_=0.0;
     // note, this default value is unrealistically high; 0.3 is realistic.
     ambientHumidity_=1.0;
     ambientEquilibriumMoistureContent_=0.0;
     ambientVapourConcentration_=0.0;
 }

◆ HeatFluidCoupledSpecies() [2/2]

template<class NormalForceSpecies >

HeatFluidCoupledSpecies< NormalForceSpecies >::HeatFluidCoupledSpecies ( const HeatFluidCoupledSpecies< NormalForceSpecies > & s )

The default copy constructor.

         : ThermalSpecies<NormalForceSpecies>(s)
 {
     massTransferCoefficient_= s.massTransferCoefficient_;
     latentHeatVaporization_= s.latentHeatVaporization_;
     liquidDensity_=s.liquidDensity_;
     evaporationCoefficientA_=s.evaporationCoefficientA_;
     evaporationCoefficientB_=s.evaporationCoefficientB_;
     ambientHumidity_=s.ambientHumidity_;
     ambientEquilibriumMoistureContent_=s.ambientEquilibriumMoistureContent_;
     ambientVapourConcentration_=s.ambientVapourConcentration_;
 }

◆ ~HeatFluidCoupledSpecies()

template<class NormalForceSpecies >

HeatFluidCoupledSpecies< NormalForceSpecies >::~HeatFluidCoupledSpecies

virtual

The default destructor.

165 {}

Member Function Documentation

◆ actionsAfterTimeStep()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::actionsAfterTimeStep ( BaseParticle * particle ) const

override

 {
     double dt = baseParticle->getHandler()->getDPMBase()->getTimeStep();
     auto p = dynamic_cast<HeatFluidCoupledParticle*>(baseParticle);
     double mass = p->getMass();
     double surfaceArea = p->getSurfaceArea();

     // Runge–Kutta method.
     std::array<double,2> k1 = f(p->getLiquidVolume()               , p->getTemperature()               , mass, surfaceArea);
     std::array<double,2> k2 = f(p->getLiquidVolume() + 0.5*dt*k1[0], p->getTemperature() + 0.5*dt*k1[1], mass, surfaceArea);
     std::array<double,2> k3 = f(p->getLiquidVolume() + 0.5*dt*k2[0], p->getTemperature() + 0.5*dt*k2[1], mass, surfaceArea);
     std::array<double,2> k4 = f(p->getLiquidVolume() +     dt*k3[0], p->getTemperature() +     dt*k3[1], mass, surfaceArea);
     double dLiquidVolume = dt * (k1[0] + 2*k2[0] + 2*k3[0] + k4[0]) / 6.0;
     double dTemperature  = dt * (k1[1] + 2*k2[1] + 2*k3[1] + k4[1]) / 6.0;
     // Change sign, so we can think in terms of subtracting a positive number, instead of adding a negative number.
     // Keep in mind, it is still possible that we are adding liquid/temperature (so now subtracting a negative number),
     // however, since there is only a lower limit of 0 but no upper limit, this is easier to think about.
     dLiquidVolume = -dLiquidVolume;
     dTemperature = -dTemperature;

     // Subtract as much as possible from the liquid film. Any remainder is subtracted from the liquid bridges.
     double dLiquidFilm = std::min(dLiquidVolume, p->getLiquidVolume());
     double remainder = dLiquidVolume - dLiquidFilm;

     if (remainder > 0.0)
     {
         // Get the total liquid bridge volume. Note, don't use p->getLiquidBridgeVolume() as it halves the bridges with
         // other particles. The order of handling the particles matters for how much liquid bridge is still available
         // to them. It might seem more correct to use half the bridge instead of the full bridge, however that would
         // only add an error, because the second particle halving the bridge would include the evaporated volume of the
         // first particle. So instead of using L/2 it would use (L-evap)/2, which completely undoes the "correction" of
         // halving the bridges in the first place.
         double liquidBridgeVolume = 0.0;
         for (auto i : p->getInteractions())
         {
             auto j = dynamic_cast<LiquidMigrationWilletInteraction*>(i);
             liquidBridgeVolume += j->getLiquidBridgeVolume();
         }
         double dLiquidBridge = std::min(remainder, liquidBridgeVolume);
         remainder -= dLiquidBridge;

         double factor = liquidBridgeVolume == 0.0 ? 0.0 : dLiquidBridge / liquidBridgeVolume;
         for (auto i : p->getInteractions())
         {
             auto j = dynamic_cast<LiquidMigrationWilletInteraction*>(i);
             j->addLiquidBridgeVolumeByEvaporation(-factor * j->getLiquidBridgeVolume());
         }
     }

     p->addLiquidVolume(-dLiquidFilm);
     p->addTotalEvaporatedLiquidVolume(dLiquidVolume - remainder);
     // If not all liquid could be removed, correct the temperature to be removed.
     double dLiquidVolumeFactor = dLiquidVolume == 0.0 ? 0.0 : (dLiquidVolume - remainder) / dLiquidVolume;
     p->setTemperature(std::max(0.0, p->getTemperature() - dTemperature * dLiquidVolumeFactor));
 }

References f(), BaseHandler< T >::getDPMBase(), BaseParticle::getHandler(), DPMBase::getTimeStep(), i, j, max, min, and p.

◆ f()

template<class NormalForceSpecies >

std::array< double, 2 > HeatFluidCoupledSpecies< NormalForceSpecies >::f	(	double	liquidVolume,
		double	temperature,
		double	mass,
		double	surfaceArea
	)		const

f1 is used in Runge–Kutta method.

Computes the drying and cooling rate of a particle; based on equations in (Azmir et al., 2018), which are summarised in EvaporationModel.pdf

Parameters

liquidVolume_	Liquid film volume
temperature_	Temperature of particle
mass	Mass of particle
surfaceArea	Surface area of particle

Returns

 {
     // Saturated vapour concentration  (kg/m^3), eq(7)
     // Dependency on temperature is valid between 1 and 200 degree Celsius
     // (it is unphysically decreasing between 0 and 1 degree),
     // extrapolated as linear functions
     double dT = temperature - 273;
     double saturatedVapourConcentration = dT < 1 ? 8.319815774e-3 * temperature / 274 :
             (((4.844e-9*dT - 1.4807e-7)*dT + 2.6572e-5)*dT - 4.8613e-5)*dT + 8.342e-3;

     // Relative activation energy of evaporation, eq(6)
     double equilibriumActivationEnergy = -constants::R * this->getAmbientTemperature() * log(getAmbientHumidity());
     // \todo what is the difference between the variable X and Y in Azmir?
     double moistureContent = liquidVolume * getLiquidDensity() / mass;
     double activationEnergy = equilibriumActivationEnergy * (moistureContent - getAmbientEquilibriumMoistureContent());

     // Vapour concentrations at the particle-medium interface (kg/m^3), eq(5)
     // Implemented such that the code does not necessarily fail if temperature is 0
     double interfaceVapourConcentration = temperature == 0 ? 0.0 :
             exp(-activationEnergy / (constants::R * temperature)) * saturatedVapourConcentration;

     // Drying rate of liquid film mass (kg/s), eq (4)
     double dLiquidMass = -getMassTransferCoefficient() * surfaceArea * (interfaceVapourConcentration - getAmbientVapourConcentration());

     // Drying rate of liquid film volume (kg/s), eq (3)
     double dLiquidVolume = dLiquidMass / getLiquidDensity();

     // Heat of evaporation (J/s), eq (2)
     double heatOfEvaporation = getLatentHeatVaporization() * (1.0 + getEvaporationCoefficientA() *
             exp((getEvaporationCoefficientB() * getLiquidDensity() / mass) * liquidVolume)) * dLiquidMass;

     // Cooling rate of particle (K/s), eq (1)
     double dTemperature = heatOfEvaporation / (mass * this->getHeatCapacity());

     return { dLiquidVolume, dTemperature };
 }

References Eigen::bfloat16_impl::exp(), Eigen::bfloat16_impl::log(), and constants::R.

◆ getAmbientEquilibriumMoistureContent()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getAmbientEquilibriumMoistureContent

Allows ambientEquilibriumMoistureContent_ to be accessed.

 {
     return ambientEquilibriumMoistureContent_;
 }

◆ getAmbientHumidity()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getAmbientHumidity

Allows ambientHumidity_ to be accessed.

 {
     return ambientHumidity_;
 }

◆ getAmbientVapourConcentration()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getAmbientVapourConcentration

Allows ambientVapourConcentration_ to be accessed.

 {
     return ambientVapourConcentration_;
 }

◆ getBaseName()

template<class NormalForceSpecies >

std::string HeatFluidCoupledSpecies< NormalForceSpecies >::getBaseName

Used in Species::getName to obtain a unique name for each Species.

 {
     return "HeatFluidCoupled" + NormalForceSpecies::getBaseName();
 }

◆ getEvaporationCoefficientA()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getEvaporationCoefficientA

Allows evaporationCoefficientA_ to be accessed.

 {
     return evaporationCoefficientA_;
 }

◆ getEvaporationCoefficientB()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getEvaporationCoefficientB

Allows evaporationCoefficientB_ to be accessed.

 {
     return evaporationCoefficientB_;
 }

◆ getLatentHeatVaporization()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getLatentHeatVaporization

Allows latentHeatVaporization_ to be accessed.

 {
     return latentHeatVaporization_;
 }

◆ getLiquidDensity()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getLiquidDensity

Allows liquidDensity_ to be accessed.

 {
     return liquidDensity_;
 }

◆ getMassTransferCoefficient()

template<class NormalForceSpecies >

Mdouble HeatFluidCoupledSpecies< NormalForceSpecies >::getMassTransferCoefficient

Allows massTransferCoefficient_ to be accessed.

 {
     return massTransferCoefficient_;
 }

◆ read()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::read ( std::istream & is )

Reads the species properties from an input stream.

 {
     std::string dummy;
     ThermalSpecies<NormalForceSpecies>::read(is);
     is >> dummy >> massTransferCoefficient_;
     is >> dummy >> latentHeatVaporization_;
     is >> dummy >> liquidDensity_;
     is >> dummy >> evaporationCoefficientA_;
     is >> dummy >> evaporationCoefficientB_;
     is >> dummy >> ambientHumidity_;
     is >> dummy >> ambientEquilibriumMoistureContent_;
     is >> dummy >> ambientVapourConcentration_;
     double ambientTemperature;
     if (helpers::readOptionalVariable<Mdouble>(is, "ambientTemperature", ambientTemperature)) {
         ThermalSpecies<NormalForceSpecies>::setAmbientTemperature(ambientTemperature);
     }
 }

References ThermalSpecies< NormalForceSpecies >::read(), ThermalSpecies< NormalForceSpecies >::setAmbientTemperature(), and oomph::Global_string_for_annotation::string().

◆ setAmbientEquilibriumMoistureContent()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setAmbientEquilibriumMoistureContent ( Mdouble ambientEquilibriumMoistureContent )

Allows ambientEquilibriumMoistureContent_ to be changed.

 {
     logger.assert_always(ambientEquilibriumMoistureContent >= 0,
                          "[HeatFluidCoupledSpecies<>::setAmbientEquilibriumMoistureContent(%)] value has to be positive",
                          ambientEquilibriumMoistureContent);
     ambientEquilibriumMoistureContent_ = ambientEquilibriumMoistureContent;
 }

References logger.

◆ setAmbientHumidity()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setAmbientHumidity ( Mdouble ambientHumidity )

Allows ambientHumidity_ to be changed.

 {
     //note, this is not allowed to be zero!
     logger.assert_always(ambientHumidity > 0,
                          "[HeatFluidCoupledSpecies<>::setAmbientHumidity(%)] value has to be positive",
                          ambientHumidity);
     ambientHumidity_ = ambientHumidity;
 }

References logger.

◆ setAmbientVapourConcentration()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setAmbientVapourConcentration ( Mdouble ambientVapourConcentration )

Allows ambientVapourConcentration_ to be changed.

 {
     logger.assert_always(ambientVapourConcentration >= 0,
                          "[HeatFluidCoupledSpecies<>::setAmbientVapourConcentration(%)] value has to be positive",
                          ambientVapourConcentration);
     ambientVapourConcentration_ = ambientVapourConcentration;
 }

References logger.

◆ setEvaporationCoefficientA()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setEvaporationCoefficientA ( Mdouble evaporationCoefficientA )

Allows evaporationCoefficientA_ to be changed.

 {
     logger.assert_always(evaporationCoefficientA >= 0,
                          "[HeatFluidCoupledSpecies<>::setEvaporationCoefficientA(%)] value has to be positive",
                          evaporationCoefficientA);
     evaporationCoefficientA_ = evaporationCoefficientA;
 }

References logger.

◆ setEvaporationCoefficientB()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setEvaporationCoefficientB ( Mdouble evaporationCoefficientB )

Allows evaporationCoefficientB_ to be changed.

 {
     logger.assert_always(evaporationCoefficientB <= 0,
                          "[HeatFluidCoupledSpecies<>::setEvaporationCoefficientB(%)] value has to be negative",
                          evaporationCoefficientB);
     evaporationCoefficientB_ = evaporationCoefficientB;
 }

References logger.

◆ setLatentHeatVaporization()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setLatentHeatVaporization ( Mdouble latentHeatVaporization )

Allows latentHeatVaporization_ to be changed.

 {
     logger.assert_always(latentHeatVaporization > 0,
                          "[HeatFluidCoupledSpecies<>::setLatentHeatVaporization(%)] value has to be positive",
                          latentHeatVaporization);
     latentHeatVaporization_ = latentHeatVaporization;
 }

References logger.

◆ setLiquidDensity()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setLiquidDensity ( Mdouble liquidDensity )

Allows liquidDensity_ to be changed.

 {
     logger.assert_always(liquidDensity > 0,
                          "[HeatFluidCoupledSpecies<>::setLiquidDensity(%)] value has to be positive",
                          liquidDensity);
     liquidDensity_ = liquidDensity;
 }

References logger.

◆ setMassTransferCoefficient()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::setMassTransferCoefficient ( Mdouble massTransferCoefficient )

Allows massTransferCoefficient_ to be changed.

 {
     logger.assert_always(massTransferCoefficient > 0,
                          "[HeatFluidCoupledSpecies<>::setMassTransferCoefficient(%)] value has to be positive",
                          massTransferCoefficient);
     massTransferCoefficient_ = massTransferCoefficient;
 }

References logger.

◆ write()

template<class NormalForceSpecies >

void HeatFluidCoupledSpecies< NormalForceSpecies >::write ( std::ostream & os ) const

Writes the species properties to an output stream.

 {
     ThermalSpecies<NormalForceSpecies>::write(os);
     os << " massTransferCoefficient " << massTransferCoefficient_;
     os << " latentHeatVaporization " << latentHeatVaporization_;
     os << " liquidDensity " << liquidDensity_;
     os << " evaporationCoefficientA " << evaporationCoefficientA_;
     os << " evaporationCoefficientA " << evaporationCoefficientB_;
     os << " ambientHumidity " << ambientHumidity_;
     os << " ambientEquilibriumMoistureContent " << ambientEquilibriumMoistureContent_;
     os << " ambientVapourConcentration " << ambientVapourConcentration_;
 }
