LiquidMigrationWilletInteraction Class Reference

Defines the liquid bridge willet interaction between two particles or walls. More...

#include <LiquidMigrationWilletInteraction.h>

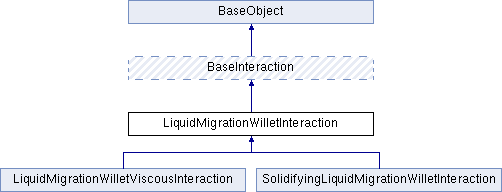

Inheritance diagram for LiquidMigrationWilletInteraction:

Public Types
typedef LiquidMigrationWilletSpecies	SpeciesType
	An alias name for LiquidMigrationWilletSpecies data type. More...

Public Member Functions
	LiquidMigrationWilletInteraction (BaseInteractable *P, BaseInteractable *I, unsigned timeStamp)
	Constructor. More...
	LiquidMigrationWilletInteraction ()
	LiquidMigrationWilletInteraction (const LiquidMigrationWilletInteraction &p)
	Copy constructor. More...
	~LiquidMigrationWilletInteraction () override
	Destructor. More...
void	actionsOnErase () override
	If an interaction needs to do something before it gets erased, add it here. E.g. Liquid bridges rupture at the end of their lifetime, and the liquid bridge volume has to be redistributed. The reason this action is not done in the destructor is that this action should not be taken when erasing ghost interactions. More...
void	actionsAfterTimeStep () override
	test if particle needs to be ruptured More...
void	computeAdhesionForce ()
	Computes the adhesive forces for liquid bridge Willet type of interaction. More...
void	read (std::istream &is) override
	Interaction read function, which accepts an std::istream as input. More...
void	write (std::ostream &os) const override
	Interaction print function, which accepts an std::ostream as input. More...
Mdouble	getElasticEnergy () const override
	Returns the amount of Elastic energy involved in an interaction. Basically used in case you want to write the elastic energy into an output file. More...
const LiquidMigrationWilletSpecies *	getSpecies () const
	Returns a pointer to the adhesive force species LiquidMigrationWilletSpecies. More...
std::string	getBaseName () const
	Returns the name of the interaction, see Interaction.h. More...
Mdouble	getLiquidBridgeVolume () const
void	setLiquidBridgeVolumeByEvaporation (Mdouble liquidBridgeVolume)
void	addLiquidBridgeVolumeByEvaporation (Mdouble liquidBridgeVolume)
virtual void	setLiquidBridgeVolume (Mdouble liquidBridgeVolume)
virtual void	addLiquidBridgeVolume (Mdouble liquidBridgeVolume)
bool	getWasInContact () const
void	setWasInContact (bool wasInContact)
virtual void	rupture ()
void	form ()
Mdouble	getRuptureDistance ()
unsigned	getNumberOfFieldsVTK () const override
std::string	getTypeVTK (unsigned i) const override
std::string	getNameVTK (unsigned i) const override
std::vector< Mdouble >	getFieldVTK (unsigned i) const override
Public Member Functions inherited from BaseInteraction
	BaseInteraction (BaseInteractable *P, BaseInteractable *I, unsigned timeStamp)
	A constructor takes the BaseInteractable objects which are interacting (come into contact) and time the interaction starts. More...
	BaseInteraction ()
	BaseInteraction (const BaseInteraction &p)
	Copy constructor. More...
	~BaseInteraction () override
	The destructor. It removes this interactions from the objects that were interacting, and writes the time to a file when needed. More...
virtual void	computeForce ()
	Virtual function that contains the force law between the two objects interacting. More...
void	read (std::istream &is) override
	Interaction read function, which accepts an std::istream as input. More...
void	write (std::ostream &os) const override
	Interaction print function, which accepts an std::ostream as input. More...
void	writeToFStat (std::ostream &os, Mdouble time) const
	Writes forces data to the FStat file. More...
std::string	getName () const override
	Virtual function which allows interactions to be named. More...
void	setDistance (Mdouble distance)
	Sets the interaction distance between the two interacting objects. More...
void	setNormal (Vec3D normal)
	Sets the normal vector between the two interacting objects. More...
void	setOverlap (Mdouble overlap)
	Set the overlap between the two interacting object. More...
void	setContactPoint (Vec3D contactPoint)
	Set the location of the contact point between the two interacting objects. More...
void	setTimeStamp (unsigned timeStamp)
	Updates the time step of the interacting. Note, time steps used to find completed interactions. More...
void	setSpecies (const BaseSpecies *species)
	Set the Species of the interaction; note this can either be a Species or MixedSpecies. More...
void	setP (BaseInteractable *P)
	Sets the first object involved in the interaction (normally a particle). More...
void	setI (BaseInteractable *I)
	Sets the second object involved in the interaction (often particle or wall). More...
void	importP (BaseInteractable *P)
	Sets the first object involved in the interaction (normally a particle). More...
void	importI (BaseInteractable *I)
	Sets the second object involved in the interaction (often particle or wall). More...
Vec3D	getIP () const
Vec3D	getIC () const
Vec3D	getCP () const
void	setLagrangeMultiplier (Mdouble multiplier)
Mdouble	getLagrangeMultiplier ()
void	setHandler (InteractionHandler *handler)
	Sets the pointer to the interaction hander which is storing this interaction. More...
InteractionHandler *	getHandler () const
	Gets a point to the interaction handlers to which this interaction belongs. More...
const Vec3D &	getForce () const
	Gets the current force (vector) between the two interacting objects. More...
const Vec3D &	getTorque () const
	Gets the current torque (vector) between the two interacting objects. More...
const Vec3D &	getNormal () const
	Gets the normal vector between the two interacting objects. More...
const Vec3D &	getContactPoint () const
	Gets constant reference to contact point (vector). More...
Mdouble	getOverlap () const
	Returns a Mdouble with the current overlap between the two interacting objects. More...
Mdouble	getOverlapVolume () const
	Returns the overlap volume between two interacting objects. More...
Mdouble	getContactRadius () const
	Returns a Mdouble with the current contact between the two interacting objects. More...
void	removeFromHandler ()
	Removes this interaction from its interaction hander. More...
void	copySwitchPointer (const BaseInteractable *original, BaseInteractable *ghost) const
	This copies the interactions of the original particle and replaces the original with the ghost copy. More...
void	gatherContactStatistics ()
BaseInteractable *	getP ()
	Returns a pointer to first object involved in the interaction (normally a particle). More...
BaseInteractable *	getI ()
	Returns a pointer to the second object involved in the interaction (often a wall or a particle). More...
const BaseInteractable *	getP () const
	Returns a constant pointer to the first object involved in the interaction. More...
const BaseInteractable *	getI () const
	Returns a constant pointer to the second object involved in the interaction. More...
Mdouble	getTimeStamp () const
	Returns an Mdouble which is the time stamp of the interaction. More...
virtual void	integrate (Mdouble timeStep)
	integrates variables of the interaction which need to be integrate e.g. the tangential overlap. More...
virtual Mdouble	getTangentialOverlap () const
	get the length of the current tangential overlap More...
Mdouble	getDistance () const
	Returns an Mdouble which is the norm (length) of distance vector. More...
const Vec3D &	getRelativeVelocity () const
	Returns a constant reference to a vector of relative velocity. More...
Mdouble	getNormalRelativeVelocity () const
	Returns a double which is the norm (length) of the relative velocity vector. More...
Mdouble	getAbsoluteNormalForce () const
	Returns the absolute value of the norm (length) of the Normal force vector. More...
virtual BaseInteraction *	copy () const =0
	Makes a copy of the interaction and returns a pointer to the copy. More...
void	setFStatData (std::fstream &fstat, BaseParticle *P, BaseWall *I)
void	setFStatData (std::fstream &fstat, BaseParticle *P, BaseParticle *I)
unsigned int	getMultiContactIdentifier () const
void	setMultiContactIdentifier (unsigned int multiContactIdentifier_)
virtual void	rotateHistory (Matrix3D &rotationMatrix)
	When periodic particles are used, some interactions need certain history properties rotated (e.g. tangential springs). This is the function for that. More...
void	addForce (Vec3D force)
	add an force increment to the total force. More...
void	addTorque (Vec3D torque)
	add a torque increment to the total torque. More...
void	setForce (Vec3D force)
	set total force (this is used by the normal force, tangential forces are added use addForce) More...
void	setTorque (Vec3D torque)
	set the total force (this is used by the normal force, tangential torques are added use addTorque) More...
const BaseSpecies *	getBaseSpecies () const
	Return a constant point to BaseSpecies of the interaction. More...
virtual void	createMPIType ()
virtual void *	createMPIInteractionDataArray (unsigned int numberOfInteractions) const
virtual void	deleteMPIInteractionDataArray (void *dataArray)
virtual void	getMPIInteraction (void *historyDataArray, unsigned int index) const
	copies the history interactions into the data array More...
virtual void	getInteractionDetails (void *interactionDataArray, unsigned int index, unsigned int &identificationP, unsigned int &identificationI, bool &isWallInteraction, unsigned &timeStamp)
virtual void	setMPIInteraction (void *interactionDataArray, unsigned int index, bool resetPointers)
void	setBasicMPIInteractionValues (int P, int I, unsigned timeStamp, Vec3D force, Vec3D torque, bool isWallInteraction, bool resetPointers)
void	setIdentificationP (unsigned int identification)
void	setIdentificationI (int identification)
void	setWallInteraction (bool flag)
unsigned int	getIdentificationP ()
int	getIdentificationI ()
bool	isWallInteraction ()
virtual bool	isBonded () const
Public Member Functions inherited from BaseObject
	BaseObject ()=default
	Default constructor. More...
	BaseObject (const BaseObject &p)=default
	Copy constructor, copies all the objects BaseObject contains. More...
virtual	~BaseObject ()=default
	virtual destructor More...
virtual void	moveInHandler (unsigned int index)
	Except that it is virtual, it does the same thing as setIndex() does. More...
void	setIndex (unsigned int index)
	Allows one to assign an index to an object in the handler/container. More...
void	setId (unsigned long id)
	Assigns a unique identifier to each object in the handler (container) which remains constant even after the object is deleted from the container/handler. More...
unsigned int	getIndex () const
	Returns the index of the object in the handler. More...
unsigned int	getId () const
	Returns the unique identifier of any particular object. More...
void	setGroupId (unsigned groupId)
unsigned	getGroupId () const

Static Public Member Functions
static Mdouble	getTotalLiquidFilmVolume (ParticleHandler &)
static Mdouble	getTotalLiquidBridgeVolume (InteractionHandler &)

Private Member Functions
void	distributeToOtherBridges (LiquidFilmParticle *particle, Mdouble distributableVolume)

Private Attributes
bool	wasInContact_
	A history parameter to store if the particles were in contact or not. Useful to compute adhesive forces. More...
Mdouble	liquidBridgeVolume_

Additional Inherited Members
Protected Member Functions inherited from BaseInteraction
virtual const Vec3D	getTangentialForce () const
Mdouble	getEffectiveRadius () const
	Returns a Mdouble to the effective radius of the interaction. (Not corrected for the overlap) More...
Mdouble	getEffectiveMass () const
	Returns a Mdouble to the effective radius of the interaction. (Not corrected for the overlap) More...
void	setRelativeVelocity (Vec3D relativeVelocity)
	set the relative velocity of the current of the interactions. More...
void	setNormalRelativeVelocity (Mdouble normalRelativeVelocit)
	set the normal component of the relative velocity. More...
void	setAbsoluteNormalForce (Mdouble absoluteNormalForce)
	the absolute values of the norm (length) of the normal force More...
virtual Mdouble	getElasticEnergyAtEquilibrium (Mdouble adhesiveForce) const
virtual void	reverseHistory ()
	When periodic particles some interaction need certain history properties reversing. This is the function for that. More...
void	writeInteraction (std::ostream &os, bool created) const
	Writes information about a interaction to the interaction file. More...

Detailed Description

Defines the liquid bridge willet interaction between two particles or walls.

Member Typedef Documentation

SpeciesType

typedef LiquidMigrationWilletSpecies LiquidMigrationWilletInteraction::SpeciesType

An alias name for LiquidMigrationWilletSpecies data type.

Constructor & Destructor Documentation

LiquidMigrationWilletInteraction() [1/3]

LiquidMigrationWilletInteraction::LiquidMigrationWilletInteraction	(	BaseInteractable *	P,
		BaseInteractable *	I,
		unsigned	timeStamp
	)

Constructor.

Parameters

[in]	P
[in]	I
[in]	timeStamp

        : BaseInteraction(P, I, timeStamp)
{
    liquidBridgeVolume_ = 0.0;
    wasInContact_ = false;
#ifdef DEBUG_CONSTRUCTOR
    std::cout << "LiquidMigrationWilletInteraction::LiquidMigrationWilletInteraction() finished" << std::endl;
#endif
}

References liquidBridgeVolume_, and wasInContact_.

LiquidMigrationWilletInteraction() [2/3]

LiquidMigrationWilletInteraction::LiquidMigrationWilletInteraction

(

)

        : BaseInteraction()
{
    liquidBridgeVolume_ = 0.0;
    wasInContact_ = false;
#ifdef DEBUG_CONSTRUCTOR
    std::cout << "LiquidMigrationWilletInteraction::LiquidMigrationWilletInteraction() finished" << std::endl;
#endif
}

References liquidBridgeVolume_, and wasInContact_.

LiquidMigrationWilletInteraction() [3/3]

LiquidMigrationWilletInteraction::LiquidMigrationWilletInteraction

(

const LiquidMigrationWilletInteraction &

p

)

Copy constructor.

Parameters

[in]

p

        : BaseInteraction(p)
{
    liquidBridgeVolume_ = p.liquidBridgeVolume_;
    wasInContact_ = p.wasInContact_;
#ifdef DEBUG_CONSTRUCTOR
    std::cout << "LiquidMigrationWilletInteraction::LiquidMigrationWilletInteraction(const LiquidMigrationWilletInteraction &p finished" << std::endl;
#endif
}

References liquidBridgeVolume_, p, and wasInContact_.

~LiquidMigrationWilletInteraction()

LiquidMigrationWilletInteraction::~LiquidMigrationWilletInteraction ( )

override

Destructor.

{
#ifdef DEBUG_DESTRUCTOR
    std::cout << "LiquidMigrationWilletInteraction::~LiquidMigrationWilletInteraction() finished" << std::endl;
#endif
}

Member Function Documentation

actionsAfterTimeStep()

void LiquidMigrationWilletInteraction::actionsAfterTimeStep ( )

overridevirtual

test if particle needs to be ruptured

Reimplemented from BaseInteraction.

{
    if (wasInContact_)
    {
        if (-getOverlap() >= getRuptureDistance())
        {
            rupture();
        }
    }
    else
    {
        if (getOverlap() >= 0)
        {
            form();
        }
    }
}

References form(), BaseInteraction::getOverlap(), getRuptureDistance(), rupture(), and wasInContact_.

actionsOnErase()

void LiquidMigrationWilletInteraction::actionsOnErase ( )

overridevirtual

If an interaction needs to do something before it gets erased, add it here. E.g. Liquid bridges rupture at the end of their lifetime, and the liquid bridge volume has to be redistributed. The reason this action is not done in the destructor is that this action should not be taken when erasing ghost interactions.

Reimplemented from BaseInteraction.

{
    rupture();
};

References rupture().

addLiquidBridgeVolume()

void LiquidMigrationWilletInteraction::addLiquidBridgeVolume ( Mdouble  liquidBridgeVolume )

virtual

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    liquidBridgeVolume_ += liquidBridgeVolume;
}

References liquidBridgeVolume_.

Referenced by SolidifyingLiquidMigrationWilletInteraction::addLiquidBridgeVolume().

addLiquidBridgeVolumeByEvaporation()

void LiquidMigrationWilletInteraction::addLiquidBridgeVolumeByEvaporation

(

Mdouble

liquidBridgeVolume

)

{
    liquidBridgeVolume_ += liquidBridgeVolume;
}

References liquidBridgeVolume_.

computeAdhesionForce()

void LiquidMigrationWilletInteraction::computeAdhesionForce

(

)

Computes the adhesive forces for liquid bridge Willet type of interaction.

{
    // Adding no capillary force for liquid bridge volume = 0
    if (getLiquidBridgeVolume() == 0) return;

    if (getOverlap() >= 0)
    {
        // if particles are in contact
        const LiquidMigrationWilletSpecies* species = getSpecies();
        const Mdouble effectiveRadius = 2.0 * getEffectiveRadius();
        const Mdouble fdotn = -2.0 * constants::pi * effectiveRadius * species->getSurfaceTension()
                              * std::cos(species->getContactAngle());
        addForce(getNormal() * fdotn);
    }
    else if (wasInContact_)
    {
        // if particles are not in contact, but within their interaction distance
        const LiquidMigrationWilletSpecies* species = getSpecies();
        const Mdouble effectiveRadius = 2.0 * getEffectiveRadius();
        const Mdouble s_c = -getOverlap() * std::sqrt(effectiveRadius / getLiquidBridgeVolume());
        const Mdouble fdotn = -2.0 * constants::pi * effectiveRadius * species->getSurfaceTension()
                              * std::cos(species->getContactAngle()) / (1 + (1.05 + 2.5 * s_c) * s_c);
        addForce(getNormal() * fdotn);
    }
}

References BaseInteraction::addForce(), cos(), LiquidMigrationWilletSpecies::getContactAngle(), BaseInteraction::getEffectiveRadius(), getLiquidBridgeVolume(), BaseInteraction::getNormal(), BaseInteraction::getOverlap(), getSpecies(), LiquidMigrationWilletSpecies::getSurfaceTension(), constants::pi, sqrt(), and wasInContact_.

Referenced by LiquidMigrationWilletViscousInteraction::computeAdhesionForce().

distributeToOtherBridges()

void LiquidMigrationWilletInteraction::distributeToOtherBridges ( LiquidFilmParticle *  particle, Mdouble  distributableVolume  )

private

{
    // Get the other valid liquid bridges that the particle has.
    std::vector<LiquidMigrationWilletInteraction*> bridges;
    for (auto i : particle->getInteractions())
    {
        auto j = dynamic_cast<LiquidMigrationWilletInteraction*>(i);
        if (j != this && j != nullptr && j->getLiquidBridgeVolume() != 0.0)
            bridges.push_back(j);
    }

    // When there are no other bridges, the particle should get all the liquid.
    if (bridges.empty())
        particle->addLiquidVolume(distributableVolume);
    else
    {
        // Calculate the particle and bridge volumes from to the distribution coefficient and the number of bridges.
        particle->addLiquidVolume(distributableVolume * (1.0 - getSpecies()->getDistributionCoefficient()));
        Mdouble bridgeVolume = distributableVolume * getSpecies()->getDistributionCoefficient() / bridges.size();

        for (auto i : bridges)
        {
            // Add liquid to the bridge, but keep within maximum. Any excess liquid is added to the particle.
            Mdouble excess = std::max(i->getLiquidBridgeVolume() + bridgeVolume - getSpecies()->getLiquidBridgeVolumeMax(), 0.0);
            i->addLiquidBridgeVolume(bridgeVolume - excess);
            particle->addLiquidVolume(excess);
        }
    }
}

References LiquidFilm< Particle >::addLiquidVolume(), LiquidMigrationWilletSpecies::getDistributionCoefficient(), getSpecies(), i, j, and max.

Referenced by rupture().

form()

void LiquidMigrationWilletInteraction::form

(

)

{
    //form a bridge
    //todo: extend to neighbours

    wasInContact_ = true;
    auto species = getSpecies();
    auto P = dynamic_cast<LiquidFilmParticle*>(getP());
    auto I = dynamic_cast<LiquidFilmParticle*>(getI());
    if (P == nullptr) //if P is a wall
    {
        logger(ERROR,"In LiquidMigrationWilletInteraction::form, P should be a particle");
    }
    else if (I == nullptr) //if I is a wall
    {
        // Don't form a bridge when the volume is below the minimum bridge volume.
        if (P->getLiquidVolume() < species->getLiquidBridgeVolumeMin())
            return;

        // Don't exceed the maximum bridge volume. Remaining liquid will be kept in the particle.
        Mdouble liquidBridgeVolume = std::min(species->getLiquidBridgeVolumeMax(), P->getLiquidVolume());
        setLiquidBridgeVolume(liquidBridgeVolume);
        P->addLiquidVolume(-liquidBridgeVolume);
    }
    else //if P and I are particles
    {
        Mdouble distributableLiquidVolume = P->getLiquidVolume() + I->getLiquidVolume();
        // Don't form a bridge when the volume is below the minimum bridge volume.
        if (distributableLiquidVolume <= species->getLiquidBridgeVolumeMin())
            return;

        // Don't exceed the maximum bridge volume. Remaining liquid will be kept in the particles.
        Mdouble pFraction = P->getLiquidVolume() / distributableLiquidVolume;
        Mdouble liquidBridgeVolume = std::min(species->getLiquidBridgeVolumeMax(), distributableLiquidVolume);
        setLiquidBridgeVolume(liquidBridgeVolume);
        P->addLiquidVolume(-pFraction * liquidBridgeVolume);
        I->addLiquidVolume(-(1.0 - pFraction) * liquidBridgeVolume);
    }
}

References ERROR, BaseInteraction::getI(), BaseInteraction::getP(), getSpecies(), I, logger, min, Global_Physical_Variables::P, setLiquidBridgeVolume(), and wasInContact_.

Referenced by actionsAfterTimeStep().

getBaseName()

std::string LiquidMigrationWilletInteraction::getBaseName

(

)

const

Returns the name of the interaction, see Interaction.h.

Returns

std::string

{
    return "LiquidMigrationWillet";
}

Referenced by SolidifyingLiquidMigrationWilletInteraction::getBaseName().

getElasticEnergy()

Mdouble LiquidMigrationWilletInteraction::getElasticEnergy ( ) const

overridevirtual

Returns the amount of Elastic energy involved in an interaction. Basically used in case you want to write the elastic energy into an output file.

Returns

Mdouble

Todo:

TW

Reimplemented from BaseInteraction.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    return 0.0;
}

getFieldVTK()

std::vector< Mdouble > LiquidMigrationWilletInteraction::getFieldVTK ( unsigned  i ) const

overridevirtual

Reimplemented from BaseInteraction.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    return std::vector<Mdouble>(1, cbrt(getLiquidBridgeVolume()));
}

References Eigen::numext::cbrt(), and getLiquidBridgeVolume().

getLiquidBridgeVolume()

Mdouble LiquidMigrationWilletInteraction::getLiquidBridgeVolume

(

)

const

{
    return liquidBridgeVolume_;
}

References liquidBridgeVolume_.

Referenced by computeAdhesionForce(), SolidifyingLiquidMigrationWilletInteraction::computeAdhesionForce(), getFieldVTK(), SolidifyingLiquidMigrationWilletInteraction::getFieldVTK(), LiquidMigrationPeriodicBoundaryInteraction::getLiquidBridgeVolume(), getRuptureDistance(), LiquidMigrationSelfTest::printTime(), and rupture().

getNameVTK()

std::string LiquidMigrationWilletInteraction::getNameVTK ( unsigned  i ) const

overridevirtual

Reimplemented from BaseInteraction.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    return "liquidBridgeRadius";

}

getNumberOfFieldsVTK()

unsigned LiquidMigrationWilletInteraction::getNumberOfFieldsVTK ( ) const

overridevirtual

writes extra information to the VTK output

Reimplemented from BaseInteraction.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    return 1;
}

getRuptureDistance()

Mdouble LiquidMigrationWilletInteraction::getRuptureDistance

(

)

{
    const LiquidMigrationWilletSpecies* species = getSpecies();
    return (1.0 + 0.5 * species->getContactAngle()) * cbrt(getLiquidBridgeVolume());
}

References Eigen::numext::cbrt(), LiquidMigrationWilletSpecies::getContactAngle(), getLiquidBridgeVolume(), and getSpecies().

Referenced by actionsAfterTimeStep().

getSpecies()

const LiquidMigrationWilletSpecies * LiquidMigrationWilletInteraction::getSpecies

(

)

const

Returns a pointer to the adhesive force species LiquidMigrationWilletSpecies.

Returns

const LiquidMigrationWilletSpecies*

{
    return static_cast<const LiquidMigrationWilletSpecies*>(getBaseSpecies()->getAdhesiveForce());
}

References BaseSpecies::getAdhesiveForce(), and BaseInteraction::getBaseSpecies().

Referenced by computeAdhesionForce(), distributeToOtherBridges(), form(), and getRuptureDistance().

getTotalLiquidBridgeVolume()

Mdouble LiquidMigrationWilletInteraction::getTotalLiquidBridgeVolume ( InteractionHandler &  h )

static

{
    Mdouble volume = 0;
    for (auto i : h)
    {
        auto l = dynamic_cast<LiquidMigrationWilletInteraction*>(i);
        if (l)
        {
            volume += l->getLiquidBridgeVolume();
        }
    }
    return volume;
}

References i.

getTotalLiquidFilmVolume()

Mdouble LiquidMigrationWilletInteraction::getTotalLiquidFilmVolume ( ParticleHandler &  h )

static

{
    Mdouble volume = 0;
    for (auto p : h)
    {
        auto l = dynamic_cast<LiquidFilmParticle*>(p);
        if (l)
        {
            volume += l->getLiquidVolume();
        }
    }
    return volume;
}

References p.

getTypeVTK()

std::string LiquidMigrationWilletInteraction::getTypeVTK ( unsigned  i ) const

overridevirtual

Reimplemented from BaseInteraction.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    return "Float32";
}

getWasInContact()

bool LiquidMigrationWilletInteraction::getWasInContact

(

)

const

{
    return wasInContact_;
}

References wasInContact_.

Referenced by LiquidMigrationWilletViscousInteraction::computeAdhesionForce().

read()

void LiquidMigrationWilletInteraction::read ( std::istream &  is )

overridevirtual

Interaction read function, which accepts an std::istream as input.

Parameters

[in,out]

is

Implements BaseObject.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    std::string dummy;
    is >> dummy >> wasInContact_;
    is >> dummy >> liquidBridgeVolume_;
}

References liquidBridgeVolume_, oomph::Global_string_for_annotation::string(), and wasInContact_.

Referenced by SolidifyingLiquidMigrationWilletInteraction::read().

rupture()

void LiquidMigrationWilletInteraction::rupture ( )

virtual

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    // remove the contact history
    wasInContact_ = false;

    //if the bridge is already empty, do nothing
    if (getLiquidBridgeVolume() == 0.0)
        return;

    //else rupture a bridge
    auto P = dynamic_cast<LiquidFilmParticle*>(getP());
    auto I = dynamic_cast<LiquidFilmParticle*>(getI());
    if (P == nullptr) //if P is a wall
    {
        logger(ERROR,"In LiquidMigrationWilletInteraction::rupture, P should be a particle");
    }
    else if (I == nullptr) //if I is a wall
    {
        distributeToOtherBridges(P, getLiquidBridgeVolume());
        setLiquidBridgeVolume(0.0);
    }
    else //if P and I are particles
    {
        distributeToOtherBridges(P, 0.5 * getLiquidBridgeVolume());
        distributeToOtherBridges(I, 0.5 * getLiquidBridgeVolume());
        setLiquidBridgeVolume(0.0);
    }
}

References distributeToOtherBridges(), ERROR, BaseInteraction::getI(), getLiquidBridgeVolume(), BaseInteraction::getP(), I, logger, Global_Physical_Variables::P, setLiquidBridgeVolume(), and wasInContact_.

Referenced by actionsAfterTimeStep(), actionsOnErase(), and SolidifyingLiquidMigrationWilletInteraction::rupture().

setLiquidBridgeVolume()

void LiquidMigrationWilletInteraction::setLiquidBridgeVolume ( Mdouble  liquidBridgeVolume )

virtual

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    liquidBridgeVolume_ = liquidBridgeVolume;
}

References liquidBridgeVolume_.

Referenced by form(), rupture(), and SolidifyingLiquidMigrationWilletInteraction::setLiquidBridgeVolume().

setLiquidBridgeVolumeByEvaporation()

void LiquidMigrationWilletInteraction::setLiquidBridgeVolumeByEvaporation

(

Mdouble

liquidBridgeVolume

)

{
    liquidBridgeVolume_ = liquidBridgeVolume;
}

References liquidBridgeVolume_.

setWasInContact()

void LiquidMigrationWilletInteraction::setWasInContact

(

bool

wasInContact

)

{
    wasInContact_ = wasInContact;
}

References wasInContact_.

write()

void LiquidMigrationWilletInteraction::write ( std::ostream &  os ) const

overridevirtual

Interaction print function, which accepts an std::ostream as input.

Parameters

[in,out]

os

Implements BaseObject.

Reimplemented in SolidifyingLiquidMigrationWilletInteraction.

{
    os
            << " wasInContact " << wasInContact_
            << " liquidBridgeVolume " << liquidBridgeVolume_;
}

References liquidBridgeVolume_, and wasInContact_.

Referenced by SolidifyingLiquidMigrationWilletInteraction::write().

Member Data Documentation

liquidBridgeVolume_

Mdouble LiquidMigrationWilletInteraction::liquidBridgeVolume_

private

Referenced by addLiquidBridgeVolume(), addLiquidBridgeVolumeByEvaporation(), getLiquidBridgeVolume(), LiquidMigrationWilletInteraction(), read(), setLiquidBridgeVolume(), setLiquidBridgeVolumeByEvaporation(), and write().

wasInContact_

bool LiquidMigrationWilletInteraction::wasInContact_

private

A history parameter to store if the particles were in contact or not. Useful to compute adhesive forces.

Referenced by actionsAfterTimeStep(), computeAdhesionForce(), form(), getWasInContact(), LiquidMigrationWilletInteraction(), read(), rupture(), setWasInContact(), and write().

---

The documentation for this class was generated from the following files:

• LiquidMigrationWilletInteraction.h
• LiquidMigrationWilletInteraction.cc
