Eigen::PastixLU< MatrixType_, IsStrSym > Class Template Reference

Interface to the PaStix solver. More...

#include <PaStiXSupport.h>

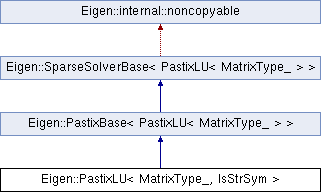

Inheritance diagram for Eigen::PastixLU< MatrixType_, IsStrSym >:

Public Types
typedef MatrixType_	MatrixType
typedef PastixBase< PastixLU< MatrixType > >	Base
typedef Base::ColSpMatrix	ColSpMatrix
typedef MatrixType::StorageIndex	StorageIndex
Public Types inherited from Eigen::PastixBase< PastixLU< MatrixType_ > >
enum
typedef internal::pastix_traits< PastixLU< MatrixType_ > >::MatrixType	MatrixType_
typedef MatrixType_	MatrixType
typedef MatrixType::Scalar	Scalar
typedef MatrixType::RealScalar	RealScalar
typedef MatrixType::StorageIndex	StorageIndex
typedef Matrix< Scalar, Dynamic, 1 >	Vector
typedef SparseMatrix< Scalar, ColMajor >	ColSpMatrix

Public Member Functions
	PastixLU ()
	PastixLU (const MatrixType &matrix)
void	compute (const MatrixType &matrix)
void	analyzePattern (const MatrixType &matrix)
void	factorize (const MatrixType &matrix)
Public Member Functions inherited from Eigen::PastixBase< PastixLU< MatrixType_ > >
	PastixBase ()
	~PastixBase ()
bool	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &x) const
void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const
Array< StorageIndex, IPARM_SIZE, 1 > &	iparm ()
int &	iparm (int idxparam)
Array< double, DPARM_SIZE, 1 > &	dparm ()
double &	dparm (int idxparam)
Index	cols () const
Index	rows () const
ComputationInfo	info () const
	Reports whether previous computation was successful. More...
Public Member Functions inherited from Eigen::SparseSolverBase< Derived >
	SparseSolverBase ()
	SparseSolverBase (SparseSolverBase &&other)
	~SparseSolverBase ()
Derived &	derived ()
const Derived &	derived () const
template<typename Rhs >
const Solve< Derived, Rhs >	solve (const MatrixBase< Rhs > &b) const
template<typename Rhs >
const Solve< Derived, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const
template<typename Rhs , typename Dest >
void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Protected Member Functions
void	init ()
void	grabMatrix (const MatrixType &matrix, ColSpMatrix &out)
Protected Member Functions inherited from Eigen::PastixBase< PastixLU< MatrixType_ > >
void	init ()
void	analyzePattern (ColSpMatrix &mat)
void	factorize (ColSpMatrix &mat)
void	clean ()
void	compute (ColSpMatrix &mat)
PastixLU< MatrixType_ > &	derived ()
const PastixLU< MatrixType_ > &	derived () const

Protected Attributes
ColSpMatrix	m_transposedStructure
bool	m_structureIsUptodate
Array< double, DPARM_SIZE, 1 >	m_dparm
Array< int, IPARM_SIZE, 1 >	m_iparm
Protected Attributes inherited from Eigen::PastixBase< PastixLU< MatrixType_ > >
int	m_initisOk
int	m_analysisIsOk
int	m_factorizationIsOk
ComputationInfo	m_info
pastix_data_t *	m_pastixdata
int	m_comm
Array< int, IPARM_SIZE, 1 >	m_iparm
Array< double, DPARM_SIZE, 1 >	m_dparm
Matrix< StorageIndex, Dynamic, 1 >	m_perm
Matrix< StorageIndex, Dynamic, 1 >	m_invp
int	m_size
bool	m_isInitialized
Protected Attributes inherited from Eigen::SparseSolverBase< Derived >
bool	m_isInitialized

Additional Inherited Members
Protected Types inherited from Eigen::PastixBase< PastixLU< MatrixType_ > >
typedef SparseSolverBase< PastixLU< MatrixType_ > >	Base

Detailed Description

template<typename MatrixType_, bool IsStrSym>
class Eigen::PastixLU< MatrixType_, IsStrSym >

Interface to the PaStix solver.

Sparse direct LU solver based on PaStiX library.

This class is used to solve the linear systems A.X = B via the PaStix library. The matrix can be either real or complex, symmetric or not.

See also

TutorialSparseDirectSolvers

This class is used to solve the linear systems A.X = B with a supernodal LU factorization in the PaStiX library. The matrix A should be squared and nonsingular PaStiX requires that the matrix A has a symmetric structural pattern. This interface can symmetrize the input matrix otherwise. The vectors or matrices X and B can be either dense or sparse.

Template Parameters

MatrixType_	the type of the sparse matrix A, it must be a SparseMatrix<>
IsStrSym	Indicates if the input matrix has a symmetric pattern, default is false NOTE : Note that if the analysis and factorization phase are called separately, the input matrix will be symmetrized at each call, hence it is advised to symmetrize the matrix in a end-user program and set IsStrSym to true

\implsparsesolverconcept

See also

Sparse solver concept, class SparseLU

Member Typedef Documentation

Base

template<typename MatrixType_ , bool IsStrSym>

typedef PastixBase<PastixLU<MatrixType> > Eigen::PastixLU< MatrixType_, IsStrSym >::Base

ColSpMatrix

template<typename MatrixType_ , bool IsStrSym>

typedef Base::ColSpMatrix Eigen::PastixLU< MatrixType_, IsStrSym >::ColSpMatrix

MatrixType

template<typename MatrixType_ , bool IsStrSym>

typedef MatrixType_ Eigen::PastixLU< MatrixType_, IsStrSym >::MatrixType

StorageIndex

template<typename MatrixType_ , bool IsStrSym>

typedef MatrixType::StorageIndex Eigen::PastixLU< MatrixType_, IsStrSym >::StorageIndex

Constructor & Destructor Documentation

PastixLU() [1/2]

template<typename MatrixType_ , bool IsStrSym>

Eigen::PastixLU< MatrixType_, IsStrSym >::PastixLU ( )

inline

: Base() { init(); }

References Eigen::PastixLU< MatrixType_, IsStrSym >::init().

PastixLU() [2/2]

template<typename MatrixType_ , bool IsStrSym>

Eigen::PastixLU< MatrixType_, IsStrSym >::PastixLU ( const MatrixType &  matrix )

inlineexplicit

                                              : Base() {
    init();
    compute(matrix);
  }

References Eigen::PastixLU< MatrixType_, IsStrSym >::compute(), Eigen::PastixLU< MatrixType_, IsStrSym >::init(), and matrix().

Member Function Documentation

analyzePattern()

template<typename MatrixType_ , bool IsStrSym>

void Eigen::PastixLU< MatrixType_, IsStrSym >::analyzePattern ( const MatrixType &  matrix )

inline

Compute the LU symbolic factorization of matrix using its sparsity pattern. Several ordering methods can be used at this step. See the PaStiX user's manual. The result of this operation can be used with successive matrices having the same pattern as matrix

See also

factorize()

                                                {
    m_structureIsUptodate = false;
    ColSpMatrix temp;
    grabMatrix(matrix, temp);
    Base::analyzePattern(temp);
  }

References Eigen::PastixBase< Derived >::analyzePattern(), Eigen::PastixLU< MatrixType_, IsStrSym >::grabMatrix(), Eigen::PastixLU< MatrixType_, IsStrSym >::m_structureIsUptodate, and matrix().

compute()

template<typename MatrixType_ , bool IsStrSym>

void Eigen::PastixLU< MatrixType_, IsStrSym >::compute ( const MatrixType &  matrix )

inline

Compute the LU supernodal factorization of matrix. iparm and dparm can be used to tune the PaStiX parameters. see the PaStiX user's manual

See also

analyzePattern() factorize()

                                         {
    m_structureIsUptodate = false;
    ColSpMatrix temp;
    grabMatrix(matrix, temp);
    Base::compute(temp);
  }

References Eigen::PastixBase< Derived >::compute(), Eigen::PastixLU< MatrixType_, IsStrSym >::grabMatrix(), Eigen::PastixLU< MatrixType_, IsStrSym >::m_structureIsUptodate, and matrix().

Referenced by Eigen::PastixLU< MatrixType_, IsStrSym >::PastixLU().

factorize()

template<typename MatrixType_ , bool IsStrSym>

void Eigen::PastixLU< MatrixType_, IsStrSym >::factorize ( const MatrixType &  matrix )

inline

Compute the LU supernodal factorization of matrix WARNING The matrix matrix should have the same structural pattern as the same used in the analysis phase.

See also

analyzePattern()

                                           {
    ColSpMatrix temp;
    grabMatrix(matrix, temp);
    Base::factorize(temp);
  }

References Eigen::PastixBase< Derived >::factorize(), Eigen::PastixLU< MatrixType_, IsStrSym >::grabMatrix(), and matrix().

grabMatrix()

template<typename MatrixType_ , bool IsStrSym>

void Eigen::PastixLU< MatrixType_, IsStrSym >::grabMatrix ( const MatrixType &  matrix, ColSpMatrix &  out  )

inlineprotected

                                                              {
    if (IsStrSym)
      out = matrix;
    else {
      if (!m_structureIsUptodate) {
        // update the transposed structure
        m_transposedStructure = matrix.transpose();

        // Set the elements of the matrix to zero
        for (Index j = 0; j < m_transposedStructure.outerSize(); ++j)
          for (typename ColSpMatrix::InnerIterator it(m_transposedStructure, j); it; ++it) it.valueRef() = 0.0;

        m_structureIsUptodate = true;
      }

      out = m_transposedStructure + matrix;
    }
    internal::c_to_fortran_numbering(out);
  }

References Eigen::internal::c_to_fortran_numbering(), j, Eigen::PastixLU< MatrixType_, IsStrSym >::m_structureIsUptodate, Eigen::PastixLU< MatrixType_, IsStrSym >::m_transposedStructure, matrix(), out(), and Eigen::SparseMatrix< Scalar_, Options_, StorageIndex_ >::outerSize().

Referenced by Eigen::PastixLU< MatrixType_, IsStrSym >::analyzePattern(), Eigen::PastixLU< MatrixType_, IsStrSym >::compute(), and Eigen::PastixLU< MatrixType_, IsStrSym >::factorize().

init()

template<typename MatrixType_ , bool IsStrSym>

void Eigen::PastixLU< MatrixType_, IsStrSym >::init ( )

inlineprotected

              {
    m_structureIsUptodate = false;
    m_iparm(IPARM_SYM) = API_SYM_NO;
    m_iparm(IPARM_FACTORIZATION) = API_FACT_LU;
  }

References Eigen::PastixLU< MatrixType_, IsStrSym >::m_iparm, and Eigen::PastixLU< MatrixType_, IsStrSym >::m_structureIsUptodate.

Referenced by Eigen::PastixLU< MatrixType_, IsStrSym >::PastixLU().

Member Data Documentation

m_dparm

template<typename MatrixType_ , bool IsStrSym>

Array<double, DPARM_SIZE, 1> Eigen::PastixBase< Derived >::m_dparm

mutableprotected

m_iparm

template<typename MatrixType_ , bool IsStrSym>

Array<int, IPARM_SIZE, 1> Eigen::PastixBase< Derived >::m_iparm

mutableprotected

Referenced by Eigen::PastixLU< MatrixType_, IsStrSym >::init().

m_structureIsUptodate

template<typename MatrixType_ , bool IsStrSym>

bool Eigen::PastixLU< MatrixType_, IsStrSym >::m_structureIsUptodate

protected

Referenced by Eigen::PastixLU< MatrixType_, IsStrSym >::analyzePattern(), Eigen::PastixLU< MatrixType_, IsStrSym >::compute(), Eigen::PastixLU< MatrixType_, IsStrSym >::grabMatrix(), and Eigen::PastixLU< MatrixType_, IsStrSym >::init().

m_transposedStructure

template<typename MatrixType_ , bool IsStrSym>

ColSpMatrix Eigen::PastixLU< MatrixType_, IsStrSym >::m_transposedStructure

protected

Referenced by Eigen::PastixLU< MatrixType_, IsStrSym >::grabMatrix().

---

The documentation for this class was generated from the following file:

• PaStiXSupport.h
