#include <refineable_quad_spectral_element.h>

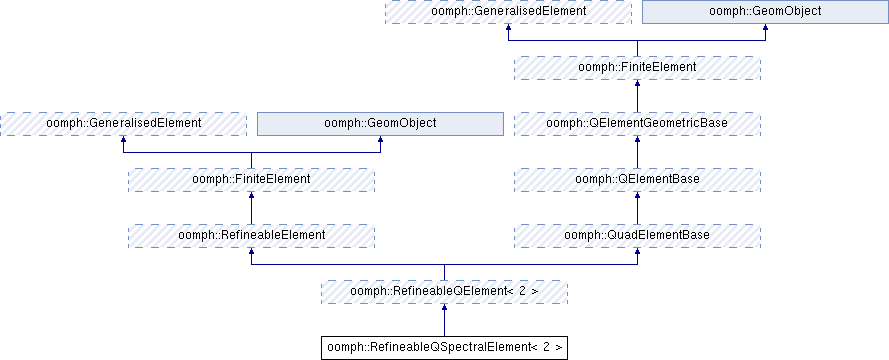

Inheritance diagram for oomph::RefineableQSpectralElement< 2 >:

Public Member Functions
	RefineableQSpectralElement ()
	Constructor. More...

	RefineableQSpectralElement (const RefineableQSpectralElement< 2 > &dummy)=delete
	Broken copy constructor. More...

virtual	~RefineableQSpectralElement ()
	Broken assignment operator. More...

void	rebuild_from_sons (Mesh *&mesh_pt)
	The only thing to add is rebuild from sons. More...

virtual bool	nodes_built ()
	Overload the nodes built function. More...

Public Member Functions inherited from oomph::RefineableQElement< 2 >
	RefineableQElement ()
	Constructor: Pass refinement level (default 0 = root) More...

	RefineableQElement (const RefineableQElement< 2 > &dummy)=delete
	Broken copy constructor. More...

virtual	~RefineableQElement ()
	Broken assignment operator. More...

unsigned	required_nsons () const
	A refineable quad element has four sons. More...

virtual Node *	node_created_by_neighbour (const Vector< double > &s_fraction, bool &is_periodic)

virtual Node *	node_created_by_son_of_neighbour (const Vector< double > &s_fraction, bool &is_periodic)

virtual void	build (Mesh &mesh_pt, Vector< Node > &new_node_pt, bool &was_already_built, std::ofstream &new_nodes_file)

void	check_integrity (double &max_error)

void	output_corners (std::ostream &outfile, const std::string &colour) const
	Print corner nodes, use colour. More...

QuadTree *	quadtree_pt ()
	Pointer to quadtree representation of this element. More...

QuadTree *	quadtree_pt () const
	Pointer to quadtree representation of this element. More...

void	setup_hanging_nodes (Vector< std::ofstream * > &output_stream)

virtual void	further_setup_hanging_nodes ()=0

void	get_boundaries (const int &edge, std::set< unsigned > &boundaries) const

void	get_bcs (int bound, Vector< int > &bound_cons) const

void	interpolated_zeta_on_edge (const unsigned &boundary, const int &edge, const Vector< double > &s, Vector< double > &zeta)

Public Member Functions inherited from oomph::RefineableElement
	RefineableElement ()

virtual	~RefineableElement ()
	Destructor, delete the allocated storage for the hanging equations. More...

	RefineableElement (const RefineableElement &)=delete
	Broken copy constructor. More...

void	operator= (const RefineableElement &)=delete
	Broken assignment operator. More...

Tree *	tree_pt ()
	Access function: Pointer to quadtree representation of this element. More...

void	set_tree_pt (Tree *my_tree_pt)
	Set pointer to quadtree representation of this element. More...

bool	refinement_is_enabled ()
	Flag to indicate suppression of any refinement. More...

void	disable_refinement ()
	Suppress of any refinement for this element. More...

void	enable_refinement ()
	Emnable refinement for this element. More...

template<class ELEMENT >
void	split (Vector< ELEMENT * > &son_pt) const

int	local_hang_eqn (Node *const &node_pt, const unsigned &i)

void	set_refinement_level (const int &refine_level)
	Set the refinement level. More...

unsigned	refinement_level () const
	Return the Refinement level. More...

void	select_for_refinement ()
	Select the element for refinement. More...

void	deselect_for_refinement ()
	Deselect the element for refinement. More...

void	select_sons_for_unrefinement ()
	Unrefinement will be performed by merging the four sons of this element. More...

void	deselect_sons_for_unrefinement ()

bool	to_be_refined ()
	Has the element been selected for refinement? More...

bool	sons_to_be_unrefined ()
	Has the element been selected for unrefinement? More...

virtual void	unbuild ()

virtual void	deactivate_element ()

long	number () const
	Element number (for debugging/plotting) More...

void	set_number (const long &mynumber)
	Set element number (for debugging/plotting) More...

virtual unsigned	ncont_interpolated_values () const =0

virtual void	get_interpolated_values (const Vector< double > &s, Vector< double > &values)

virtual void	get_interpolated_values (const unsigned &t, const Vector< double > &s, Vector< double > &values)=0

virtual Node *	interpolating_node_pt (const unsigned &n, const int &value_id)

virtual double	local_one_d_fraction_of_interpolating_node (const unsigned &n1d, const unsigned &i, const int &value_id)

virtual Node *	get_interpolating_node_at_local_coordinate (const Vector< double > &s, const int &value_id)

virtual unsigned	ninterpolating_node (const int &value_id)

virtual unsigned	ninterpolating_node_1d (const int &value_id)

virtual void	interpolating_basis (const Vector< double > &s, Shape &psi, const int &value_id) const

void	identify_field_data_for_interactions (std::set< std::pair< Data *, unsigned >> &paired_field_data)

void	assign_nodal_local_eqn_numbers (const bool &store_local_dof_pt)

virtual RefineableElement *	root_element_pt ()

virtual RefineableElement *	father_element_pt () const
	Return a pointer to the father element. More...

void	get_father_at_refinement_level (unsigned &refinement_level, RefineableElement *&father_at_reflevel_pt)

virtual void	initial_setup (Tree *const &adopted_father_pt=0, const unsigned &initial_p_order=0)

virtual void	pre_build (Mesh &mesh_pt, Vector< Node > &new_node_pt)
	Pre-build the element. More...

virtual void	further_build ()
	Further build: e.g. deal with interpolation of internal values. More...

void	get_dresidual_dnodal_coordinates (RankThreeTensor< double > &dresidual_dnodal_coordinates)

unsigned	nshape_controlling_nodes ()

std::map< Node *, unsigned >	shape_controlling_node_lookup ()

Public Member Functions inherited from oomph::FiniteElement
void	set_dimension (const unsigned &dim)

void	set_nodal_dimension (const unsigned &nodal_dim)

void	set_nnodal_position_type (const unsigned &nposition_type)
	Set the number of types required to interpolate the coordinate. More...

void	set_n_node (const unsigned &n)

int	nodal_local_eqn (const unsigned &n, const unsigned &i) const

double	dJ_eulerian_at_knot (const unsigned &ipt, Shape &psi, DenseMatrix< double > &djacobian_dX) const

	FiniteElement ()
	Constructor. More...

virtual	~FiniteElement ()

	FiniteElement (const FiniteElement &)=delete
	Broken copy constructor. More...

void	get_centre_of_gravity_and_max_radius_in_terms_of_zeta (Vector< double > &cog, double &max_radius) const

virtual void	local_coordinate_of_node (const unsigned &j, Vector< double > &s) const

virtual void	local_fraction_of_node (const unsigned &j, Vector< double > &s_fraction)

virtual double	local_one_d_fraction_of_node (const unsigned &n1d, const unsigned &i)

MacroElement *	macro_elem_pt ()
	Access function to pointer to macro element. More...

void	get_x (const Vector< double > &s, Vector< double > &x) const

void	get_x (const unsigned &t, const Vector< double > &s, Vector< double > &x)

virtual void	set_integration_scheme (Integral *const &integral_pt)
	Set the spatial integration scheme. More...

Integral *const &	integral_pt () const
	Return the pointer to the integration scheme (const version) More...

virtual void	shape (const Vector< double > &s, Shape &psi) const =0

virtual void	shape_at_knot (const unsigned &ipt, Shape &psi) const

virtual void	dshape_local (const Vector< double > &s, Shape &psi, DShape &dpsids) const

virtual void	dshape_local_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsids) const

virtual void	d2shape_local (const Vector< double > &s, Shape &psi, DShape &dpsids, DShape &d2psids) const

virtual void	d2shape_local_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsids, DShape &d2psids) const

virtual double	J_eulerian (const Vector< double > &s) const

virtual double	J_eulerian_at_knot (const unsigned &ipt) const

void	check_J_eulerian_at_knots (bool &passed) const

void	check_jacobian (const double &jacobian) const

double	dshape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx) const

virtual double	dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx) const

virtual double	dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsi, DenseMatrix< double > &djacobian_dX, RankFourTensor< double > &d_dpsidx_dX) const

double	d2shape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx, DShape &d2psidx) const

virtual double	d2shape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx, DShape &d2psidx) const

virtual void	describe_local_dofs (std::ostream &out, const std::string &current_string) const

virtual void	describe_nodal_local_dofs (std::ostream &out, const std::string &current_string) const

virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)

Node *&	node_pt (const unsigned &n)
	Return a pointer to the local node n. More...

Node *const &	node_pt (const unsigned &n) const
	Return a pointer to the local node n (const version) More...

unsigned	nnode () const
	Return the number of nodes. More...

virtual unsigned	nnode_1d () const

double	raw_nodal_position (const unsigned &n, const unsigned &i) const

double	raw_nodal_position (const unsigned &t, const unsigned &n, const unsigned &i) const

double	raw_dnodal_position_dt (const unsigned &n, const unsigned &i) const

double	raw_dnodal_position_dt (const unsigned &n, const unsigned &j, const unsigned &i) const

double	raw_nodal_position_gen (const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_nodal_position_gen (const unsigned &t, const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_dnodal_position_gen_dt (const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_dnodal_position_gen_dt (const unsigned &j, const unsigned &n, const unsigned &k, const unsigned &i) const

double	nodal_position (const unsigned &n, const unsigned &i) const

double	nodal_position (const unsigned &t, const unsigned &n, const unsigned &i) const

double	dnodal_position_dt (const unsigned &n, const unsigned &i) const
	Return the i-th component of nodal velocity: dx/dt at local node n. More...

double	dnodal_position_dt (const unsigned &n, const unsigned &j, const unsigned &i) const

double	nodal_position_gen (const unsigned &n, const unsigned &k, const unsigned &i) const

double	nodal_position_gen (const unsigned &t, const unsigned &n, const unsigned &k, const unsigned &i) const

double	dnodal_position_gen_dt (const unsigned &n, const unsigned &k, const unsigned &i) const

double	dnodal_position_gen_dt (const unsigned &j, const unsigned &n, const unsigned &k, const unsigned &i) const

virtual void	disable_ALE ()

virtual void	enable_ALE ()

virtual unsigned	required_nvalue (const unsigned &n) const

unsigned	nnodal_position_type () const

bool	has_hanging_nodes () const

unsigned	nodal_dimension () const
	Return the required Eulerian dimension of the nodes in this element. More...

virtual Node *	construct_node (const unsigned &n)

virtual Node *	construct_node (const unsigned &n, TimeStepper *const &time_stepper_pt)

virtual Node *	construct_boundary_node (const unsigned &n)

virtual Node *	construct_boundary_node (const unsigned &n, TimeStepper *const &time_stepper_pt)

int	get_node_number (Node *const &node_pt) const

virtual Node *	get_node_at_local_coordinate (const Vector< double > &s) const

double	raw_nodal_value (const unsigned &n, const unsigned &i) const

double	raw_nodal_value (const unsigned &t, const unsigned &n, const unsigned &i) const

double	nodal_value (const unsigned &n, const unsigned &i) const

double	nodal_value (const unsigned &t, const unsigned &n, const unsigned &i) const

unsigned	dim () const

virtual double	interpolated_x (const Vector< double > &s, const unsigned &i) const
	Return FE interpolated coordinate x[i] at local coordinate s. More...

virtual double	interpolated_x (const unsigned &t, const Vector< double > &s, const unsigned &i) const

virtual void	interpolated_x (const Vector< double > &s, Vector< double > &x) const
	Return FE interpolated position x[] at local coordinate s as Vector. More...

virtual void	interpolated_x (const unsigned &t, const Vector< double > &s, Vector< double > &x) const

virtual double	interpolated_dxdt (const Vector< double > &s, const unsigned &i, const unsigned &t)

virtual void	interpolated_dxdt (const Vector< double > &s, const unsigned &t, Vector< double > &dxdt)

unsigned	ngeom_data () const

Data *	geom_data_pt (const unsigned &j)

void	position (const Vector< double > &zeta, Vector< double > &r) const

void	position (const unsigned &t, const Vector< double > &zeta, Vector< double > &r) const

void	dposition_dt (const Vector< double > &zeta, const unsigned &t, Vector< double > &drdt)

virtual double	zeta_nodal (const unsigned &n, const unsigned &k, const unsigned &i) const

void	interpolated_zeta (const Vector< double > &s, Vector< double > &zeta) const

void	locate_zeta (const Vector< double > &zeta, GeomObject *&geom_object_pt, Vector< double > &s, const bool &use_coordinate_as_initial_guess=false)

virtual void	node_update ()

virtual void	identify_geometric_data (std::set< Data * > &geometric_data_pt)

virtual double	s_min () const
	Min value of local coordinate. More...

virtual double	s_max () const
	Max. value of local coordinate. More...

double	size () const

virtual double	compute_physical_size () const

virtual void	point_output_data (const Vector< double > &s, Vector< double > &data)

void	point_output (std::ostream &outfile, const Vector< double > &s)

virtual unsigned	nplot_points_paraview (const unsigned &nplot) const

virtual unsigned	nsub_elements_paraview (const unsigned &nplot) const

void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const

virtual void	write_paraview_output_offset_information (std::ofstream &file_out, const unsigned &nplot, unsigned &counter) const

virtual void	write_paraview_type (std::ofstream &file_out, const unsigned &nplot) const

virtual void	write_paraview_offsets (std::ofstream &file_out, const unsigned &nplot, unsigned &offset_sum) const

virtual unsigned	nscalar_paraview () const

virtual void	scalar_value_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot) const

virtual void	scalar_value_fct_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const

virtual void	scalar_value_fct_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const

virtual std::string	scalar_name_paraview (const unsigned &i) const

virtual void	output (std::ostream &outfile)

virtual void	output (std::ostream &outfile, const unsigned &n_plot)

virtual void	output (const unsigned &t, std::ostream &outfile, const unsigned &n_plot) const

virtual void	output (FILE *file_pt)

virtual void	output (FILE *file_pt, const unsigned &n_plot)

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt)
	Output an exact solution over the element. More...

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt)
	Output a time-dependent exact solution over the element. More...

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, const SolutionFunctorBase &exact_soln) const
	Output a time-dependent exact solution over the element. More...

virtual void	get_s_plot (const unsigned &i, const unsigned &nplot, Vector< double > &s, const bool &shifted_to_interior=false) const

virtual std::string	tecplot_zone_string (const unsigned &nplot) const

virtual void	write_tecplot_zone_footer (std::ostream &outfile, const unsigned &nplot) const

virtual void	write_tecplot_zone_footer (FILE *file_pt, const unsigned &nplot) const

virtual unsigned	nplot_points (const unsigned &nplot) const

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)
	Calculate the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Calculate the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_abs_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error)

void	integrate_fct (FiniteElement::SteadyExactSolutionFctPt integrand_fct_pt, Vector< double > &integral)
	Integrate Vector-valued function over element. More...

void	integrate_fct (FiniteElement::UnsteadyExactSolutionFctPt integrand_fct_pt, const double &time, Vector< double > &integral)
	Integrate Vector-valued time-dep function over element. More...

virtual void	build_face_element (const int &face_index, FaceElement *face_element_pt)

virtual unsigned	self_test ()

virtual unsigned	get_bulk_node_number (const int &face_index, const unsigned &i) const

virtual int	face_outer_unit_normal_sign (const int &face_index) const
	Get the sign of the outer unit normal on the face given by face_index. More...

void	face_node_number_error_check (const unsigned &i) const
	Range check for face node numbers. More...

virtual CoordinateMappingFctPt	face_to_bulk_coordinate_fct_pt (const int &face_index) const

virtual BulkCoordinateDerivativesFctPt	bulk_coordinate_derivatives_fct_pt (const int &face_index) const

Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...

virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...

	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...

void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...

Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...

Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...

Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...

Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...

unsigned long	eqn_number (const unsigned &ieqn_local) const

int	local_eqn_number (const unsigned long &ieqn_global) const

unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)

bool	external_data_fd (const unsigned &i) const

void	exclude_external_data_fd (const unsigned &i)

void	include_external_data_fd (const unsigned &i)

void	flush_external_data ()
	Flush all external data. More...

void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...

unsigned	ninternal_data () const
	Return the number of internal data objects. More...

unsigned	nexternal_data () const
	Return the number of external data objects. More...

unsigned	ndof () const
	Return the number of equations/dofs in the element. More...

void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...

void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...

void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)

void	describe_dofs (std::ostream &out, const std::string &current_string) const

void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)

virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	complete_setup_of_dependencies ()

virtual void	get_residuals (Vector< double > &residuals)

virtual void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_norm (double &norm)

virtual unsigned	ndof_types () const

virtual void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Public Member Functions inherited from oomph::GeomObject
	GeomObject ()
	Default constructor. More...

	GeomObject (const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim, TimeStepper *time_stepper_pt)

	GeomObject (const GeomObject &dummy)=delete
	Broken copy constructor. More...

void	operator= (const GeomObject &)=delete
	Broken assignment operator. More...

virtual	~GeomObject ()
	(Empty) destructor More...

unsigned	nlagrangian () const
	Access function to # of Lagrangian coordinates. More...

unsigned	ndim () const
	Access function to # of Eulerian coordinates. More...

void	set_nlagrangian_and_ndim (const unsigned &n_lagrangian, const unsigned &n_dim)
	Set # of Lagrangian and Eulerian coordinates. More...

TimeStepper *&	time_stepper_pt ()

TimeStepper *	time_stepper_pt () const

virtual void	position (const double &t, const Vector< double > &zeta, Vector< double > &r) const

virtual void	dposition (const Vector< double > &zeta, DenseMatrix< double > &drdzeta) const

virtual void	d2position (const Vector< double > &zeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	d2position (const Vector< double > &zeta, Vector< double > &r, DenseMatrix< double > &drdzeta, RankThreeTensor< double > &ddrdzeta) const

Public Member Functions inherited from oomph::QuadElementBase
	QuadElementBase ()
	Constructor. Empty. More...

virtual unsigned	nvertex_node () const =0
	Number of vertex nodes in the element. More...

virtual Node *	vertex_node_pt (const unsigned &j) const =0
	Pointer to the j-th vertex node in the element. More...

Public Member Functions inherited from oomph::QElementBase
	QElementBase ()
	Constructor: Initialise pointers to macro element reference coords. More...

	QElementBase (const QElementBase &)=delete
	Broken copy constructor. More...

virtual	~QElementBase ()
	Broken assignment operator. More...

bool	local_coord_is_valid (const Vector< double > &s)
	Check whether the local coordinate are valid or not. More...

void	move_local_coord_back_into_element (Vector< double > &s) const

virtual void	set_macro_elem_pt (MacroElement *macro_elem_pt)

double &	s_macro_ll (const unsigned &i)

double &	s_macro_ur (const unsigned &i)

double	s_macro_ll (const unsigned &i) const

double	s_macro_ur (const unsigned &i) const

void	get_x_from_macro_element (const Vector< double > &s, Vector< double > &x) const

void	get_x_from_macro_element (const unsigned &t, const Vector< double > &s, Vector< double > &x)

unsigned	nnode_on_face () const

ElementGeometry::ElementGeometry	element_geometry () const
	It's a Q element! More...

Public Member Functions inherited from oomph::QElementGeometricBase
	QElementGeometricBase ()
	Empty default constructor. More...

	QElementGeometricBase (const QElementGeometricBase &)=delete
	Broken copy constructor. More...

Additional Inherited Members
Public Types inherited from oomph::RefineableQElement< 2 >
typedef void(RefineableQElement< 2 >::*	VoidMemberFctPt) ()

Public Types inherited from oomph::FiniteElement
typedef void(*	SteadyExactSolutionFctPt) (const Vector< double > &, Vector< double > &)

typedef void(*	UnsteadyExactSolutionFctPt) (const double &, const Vector< double > &, Vector< double > &)

Static Public Member Functions inherited from oomph::RefineableElement
static double &	max_integrity_tolerance ()
	Max. allowed discrepancy in element integrity check. More...

Static Public Attributes inherited from oomph::FiniteElement
static double	Tolerance_for_singular_jacobian = 1.0e-16
	Tolerance below which the jacobian is considered singular. More...

static bool	Accept_negative_jacobian = false

static bool	Suppress_output_while_checking_for_inverted_elements

Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data

static bool	Suppress_warning_about_repeated_external_data = true

static double	Default_fd_jacobian_step = 1.0e-8

Protected Member Functions inherited from oomph::RefineableQElement< 2 >
void	setup_father_bounds ()

void	get_edge_bcs (const int &edge, Vector< int > &bound_cons) const
	Determine Vector of boundary conditions along edge (N/S/W/E) More...

void	setup_hang_for_value (const int &value_id)

virtual void	quad_hang_helper (const int &value_id, const int &my_edge, std::ofstream &output_hangfile)

Protected Member Functions inherited from oomph::RefineableElement
void	assemble_local_to_eulerian_jacobian (const DShape &dpsids, DenseMatrix< double > &jacobian) const

void	assemble_local_to_eulerian_jacobian2 (const DShape &d2psids, DenseMatrix< double > &jacobian2) const

void	assemble_eulerian_base_vectors (const DShape &dpsids, DenseMatrix< double > &interpolated_G) const

double	local_to_eulerian_mapping_diagonal (const DShape &dpsids, DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

void	assign_hanging_local_eqn_numbers (const bool &store_local_dof_pt)
	Assign the local equation numbers for hanging node variables. More...

virtual void	fill_in_jacobian_from_nodal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian)

Protected Member Functions inherited from oomph::FiniteElement
template<unsigned DIM>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual double	invert_jacobian_mapping (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual double	local_to_eulerian_mapping (const DShape &dpsids, DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

double	local_to_eulerian_mapping (const DShape &dpsids, DenseMatrix< double > &inverse_jacobian) const

virtual void	dJ_eulerian_dnodal_coordinates (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<unsigned DIM>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

virtual void	d_dshape_eulerian_dnodal_coordinates (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<unsigned DIM>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

virtual void	transform_derivatives (const DenseMatrix< double > &inverse_jacobian, DShape &dbasis) const

void	transform_derivatives_diagonal (const DenseMatrix< double > &inverse_jacobian, DShape &dbasis) const

virtual void	transform_second_derivatives (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<unsigned DIM>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<unsigned DIM>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

void	fill_in_jacobian_from_nodal_by_fd (DenseMatrix< double > &jacobian)

virtual void	update_before_nodal_fd ()

virtual void	reset_after_nodal_fd ()

virtual void	update_in_nodal_fd (const unsigned &i)

virtual void	reset_in_nodal_fd (const unsigned &i)

void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	Zero-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	One-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	Two-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)

bool	internal_data_fd (const unsigned &i) const

void	exclude_internal_data_fd (const unsigned &i)

void	include_internal_data_fd (const unsigned &i)

void	clear_global_eqn_numbers ()

void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)

virtual void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	assign_additional_local_eqn_numbers ()

int	internal_local_eqn (const unsigned &i, const unsigned &j) const

int	external_local_eqn (const unsigned &i, const unsigned &j)

virtual void	fill_in_contribution_to_residuals (Vector< double > &residuals)

void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

virtual void	update_before_internal_fd ()

virtual void	reset_after_internal_fd ()

virtual void	update_in_internal_fd (const unsigned &i)

virtual void	reset_in_internal_fd (const unsigned &i)

virtual void	update_before_external_fd ()

virtual void	reset_after_external_fd ()

virtual void	update_in_external_fd (const unsigned &i)

virtual void	reset_in_external_fd (const unsigned &i)

virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Static Protected Member Functions inherited from oomph::RefineableElement
static void	check_value_id (const int &n_continuously_interpolated_values, const int &value_id)

Protected Attributes inherited from oomph::RefineableElement
Tree *	Tree_pt
	A pointer to a general tree object. More...

unsigned	Refine_level
	Refinement level. More...

bool	To_be_refined
	Flag for refinement. More...

bool	Refinement_is_enabled
	Flag to indicate suppression of any refinement. More...

bool	Sons_to_be_unrefined
	Flag for unrefinement. More...

long	Number
	Global element number – for plotting/validation purposes. More...

Protected Attributes inherited from oomph::FiniteElement
MacroElement *	Macro_elem_pt
	Pointer to the element's macro element (NULL by default) More...

Protected Attributes inherited from oomph::GeomObject
unsigned	NLagrangian
	Number of Lagrangian (intrinsic) coordinates. More...

unsigned	Ndim
	Number of Eulerian coordinates. More...

TimeStepper *	Geom_object_time_stepper_pt

Static Protected Attributes inherited from oomph::RefineableQElement< 2 >
static std::map< unsigned, DenseMatrix< int > >	Father_bound

Static Protected Attributes inherited from oomph::RefineableElement
static double	Max_integrity_tolerance = 1.0e-8
	Max. allowed discrepancy in element integrity check. More...

Static Protected Attributes inherited from oomph::FiniteElement
static const unsigned	Default_Initial_Nvalue = 0
	Default value for the number of values at a node. More...

static const double	Node_location_tolerance = 1.0e-14

static const unsigned	N2deriv [] = {0, 1, 3, 6}

Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix

static std::deque< double * >	Dof_pt_deque

Detailed Description

Refineable version of QuadElements that add functionality for spectral Elements.

Constructor & Destructor Documentation

◆ RefineableQSpectralElement() [1/2]

oomph::RefineableQSpectralElement< 2 >::RefineableQSpectralElement ( )

inline

Constructor.

                                  : RefineableElement()
     {
 #ifdef LEAK_CHECK
       LeakCheckNames::RefineableQSpectralElement<2> _build += 1;
 #endif
     }

◆ RefineableQSpectralElement() [2/2]

oomph::RefineableQSpectralElement< 2 >::RefineableQSpectralElement ( const RefineableQSpectralElement< 2 > & dummy )

delete

Broken copy constructor.

◆ ~RefineableQSpectralElement()

virtual oomph::RefineableQSpectralElement< 2 >::~RefineableQSpectralElement ( )

inlinevirtual

Broken assignment operator.

Destructor

     {
 #ifdef LEAK_CHECK
       LeakCheckNames::RefineableQSpectralElement<2> _build -= 1;
 #endif
     }

Member Function Documentation

◆ nodes_built()

virtual bool oomph::RefineableQSpectralElement< 2 >::nodes_built ( )

inlinevirtual

Overload the nodes built function.

Reimplemented from oomph::RefineableElement.

     {
       unsigned n_node = this->nnode();
       for (unsigned n = 0; n < n_node; n++)
       {
         if (node_pt(n) == 0)
         {
           return false;
         }
       }
       // If we get to here, OK
       return true;
     }

References n.

◆ rebuild_from_sons()

void oomph::RefineableQSpectralElement< 2 >::rebuild_from_sons ( Mesh *& mesh_pt )

inlinevirtual

The only thing to add is rebuild from sons.

Implements oomph::RefineableElement.

     {
       // The timestepper should be the same for all nodes and node 0 should
       // never be deleted.
       if (this->node_pt(0) == 0)
       {
         throw OomphLibError("The Corner node (0) does not exist",
                             OOMPH_CURRENT_FUNCTION,
                             OOMPH_EXCEPTION_LOCATION);
       }

       TimeStepper* time_stepper_pt = this->node_pt(0)->time_stepper_pt();
       unsigned ntstorage = time_stepper_pt->ntstorage();

       unsigned jnod = 0;
       Vector<double> s_fraction(2), s(2);
       // Loop over the nodes in the element
       unsigned n_p = this->nnode_1d();
       for (unsigned i0 = 0; i0 < n_p; i0++)
       {
         // Get the fractional position of the node
         s_fraction[0] = this->local_one_d_fraction_of_node(i0, 0);
         // Local coordinate
         s[0] = -1.0 + 2.0 * s_fraction[0];

         for (unsigned i1 = 0; i1 < n_p; i1++)
         {
           // Get the fractional position of the node in the direction of s[1]
           s_fraction[1] = this->local_one_d_fraction_of_node(i1, 1);
           // Local coordinate in father element
           s[1] = -1.0 + 2.0 * s_fraction[1];

           // Set the local node number
           jnod = i0 + n_p * i1;

           // If the node has not been built
           if (this->node_pt(jnod) == 0)
           {
             // Has the node been created by one of its neighbours
             bool is_periodic = false;
             Node* created_node_pt =
               this->node_created_by_neighbour(s_fraction, is_periodic);

             // If it has set the pointer
             if (created_node_pt != 0)
             {
               // If the node is periodic
               if (is_periodic)
               {
                 throw OomphLibError("Cannot handle periodic nodes in "
                                     "refineable spectral elements yet",
                                     OOMPH_CURRENT_FUNCTION,
                                     OOMPH_EXCEPTION_LOCATION);
               }
               // Non-periodic case, just set the pointer
               else
               {
                 this->node_pt(jnod) = created_node_pt;
               }
             }
             // Otherwise, we need to build it
             else
             {
               // First, find the son element in which the node should live

               // Find coordinates in the sons
               Vector<double> s_in_son(2);
               using namespace QuadTreeNames;
               int son = -10;
               // If negative on the west side
               if (s_fraction[0] < 0.5)
               {
                 // On the south side
                 if (s_fraction[1] < 0.5)
                 {
                   // It's the southwest son
                   son = SW;
                   s_in_son[0] = -1.0 + 4.0 * s_fraction[0];
                   s_in_son[1] = -1.0 + 4.0 * s_fraction[1];
                 }
                 // On the north side
                 else
                 {
                   // It's the northwest son
                   son = NW;
                   s_in_son[0] = -1.0 + 4.0 * s_fraction[0];
                   s_in_son[1] = -1.0 + 4.0 * (s_fraction[1] - 0.5);
                 }
               }
               else
               {
                 // On the south side
                 if (s_fraction[1] < 0.5)
                 {
                   // It's the southeast son
                   son = SE;
                   s_in_son[0] = -1.0 + 4.0 * (s_fraction[0] - 0.5);
                   s_in_son[1] = -1.0 + 4.0 * s_fraction[1];
                 }
                 // On the north side
                 else
                 {
                   // It's the northeast son
                   son = NE;
                   s_in_son[0] = -1.0 + 4.0 * (s_fraction[0] - 0.5);
                   s_in_son[1] = -1.0 + 4.0 * (s_fraction[1] - 0.5);
                 }
               }

               // Get the pointer to the son element in which the new node
               // would live
               RefineableQSpectralElement<2>* son_el_pt =
                 dynamic_cast<RefineableQSpectralElement<2>*>(
                   this->tree_pt()->son_pt(son)->object_pt());

               // If we are rebuilding, then worry about the boundary conditions
               // Find the boundary of the node
               // Initially none
               int boundary = Tree::OMEGA;
               // If we are on the western boundary
               if (i0 == 0)
               {
                 boundary = W;
               }
               // If we are on the eastern boundary
               else if (i0 == n_p - 1)
               {
                 boundary = E;
               }

               // If we are on the southern boundary
               if (i1 == 0)
               {
                 // If we already have already set the boundary, we're on a
                 // corner
                 switch (boundary)
                 {
                   case W:
                     boundary = SW;
                     break;
                   case E:
                     boundary = SE;
                     break;
                     // Boundary not set
                   default:
                     boundary = S;
                     break;
                 }
               }
               // If we are the northern bounadry
               else if (i1 == n_p - 1)
               {
                 // If we already have a boundary
                 switch (boundary)
                 {
                   case W:
                     boundary = NW;
                     break;
                   case E:
                     boundary = NE;
                     break;
                   default:
                     boundary = N;
                     break;
                 }
               }

               // set of boundaries that this edge in the son lives on
               std::set<unsigned> boundaries;

               // Now get the boundary conditions from the son
               // The boundaries will be common to the son because there can be
               // no rotations here
               if (boundary != Tree::OMEGA)
               {
                 son_el_pt->get_boundaries(boundary, boundaries);
               }

               // If the node lives on a boundary:
               // Construct a boundary node,
               // Get boundary conditions and
               // update all lookup schemes
               if (boundaries.size() > 0)
               {
                 // Construct the new node
                 this->node_pt(jnod) =
                   this->construct_boundary_node(jnod, time_stepper_pt);

                 // Get the boundary conditions from the son
                 Vector<int> bound_cons(ncont_interpolated_values());
                 son_el_pt->get_bcs(boundary, bound_cons);

                 // Loop over the values and pin if necessary
                 unsigned nval = this->node_pt(jnod)->nvalue();
                 for (unsigned k = 0; k < nval; k++)
                 {
                   if (bound_cons[k])
                   {
                     this->node_pt(jnod)->pin(k);
                   }
                 }

                 // Solid node? If so, deal with the positional boundary
                 // conditions:
                 SolidNode* solid_node_pt =
                   dynamic_cast<SolidNode*>(this->node_pt(jnod));
                 if (solid_node_pt != 0)
                 {
                   // Get the positional boundary conditions from the father:
                   unsigned n_dim = this->node_pt(jnod)->ndim();
                   Vector<int> solid_bound_cons(n_dim);
                   RefineableSolidQElement<2>* son_solid_el_pt =
                     dynamic_cast<RefineableSolidQElement<2>*>(son_el_pt);
 #ifdef PARANOID
                   if (son_solid_el_pt == 0)
                   {
                     std::string error_message =
                       "We have a SolidNode outside a refineable SolidElement\n";
                     error_message +=
                       "during mesh refinement -- this doesn't make sense\n";

                     throw OomphLibError(error_message,
                                         OOMPH_CURRENT_FUNCTION,
                                         OOMPH_EXCEPTION_LOCATION);
                   }
 #endif
                   son_solid_el_pt->get_solid_bcs(boundary, solid_bound_cons);

                   // Loop over the positions and pin, if necessary
                   for (unsigned k = 0; k < n_dim; k++)
                   {
                     if (solid_bound_cons[k])
                     {
                       solid_node_pt->pin_position(k);
                     }
                   }
                 }

                 // Next we update the boundary look-up schemes
                 // Loop over the boundaries stored in the set
                 for (std::set<unsigned>::iterator it = boundaries.begin();
                      it != boundaries.end();
                      ++it)
                 {
                   // Add the node to the boundary
                   mesh_pt->add_boundary_node(*it, this->node_pt(jnod));

                   // If we have set an intrinsic coordinate on this
                   // mesh boundary then it must also be interpolated on
                   // the new node
                   // Now interpolate the intrinsic boundary coordinate
                   if (mesh_pt->boundary_coordinate_exists(*it) == true)
                   {
                     Vector<double> zeta(1);
                     son_el_pt->interpolated_zeta_on_edge(
                       *it, boundary, s_in_son, zeta);

                     this->node_pt(jnod)->set_coordinates_on_boundary(*it, zeta);
                   }
                 }
               }
               // Otherwise the node is not on a Mesh boundary
               // and we create a normal "bulk" node
               else
               {
                 // Construct the new node
                 this->node_pt(jnod) =
                   this->construct_node(jnod, time_stepper_pt);
               }

               // Now we set the position and values at the newly created node

               // In the first instance use macro element or FE representation
               // to create past and present nodal positions.
               // (THIS STEP SHOULD NOT BE SKIPPED FOR ALGEBRAIC
               // ELEMENTS AS NOT ALL OF THEM NECESSARILY IMPLEMENT
               // NONTRIVIAL NODE UPDATE FUNCTIONS. CALLING
               // THE NODE UPDATE FOR SUCH ELEMENTS/NODES WILL LEAVE
               // THEIR NODAL POSITIONS WHERE THEY WERE (THIS IS APPROPRIATE
               // ONCE THEY HAVE BEEN GIVEN POSITIONS) BUT WILL
               // NOT ASSIGN SENSIBLE INITIAL POSITONS!

               // Loop over # of history values
               // Loop over # of history values
               for (unsigned t = 0; t < ntstorage; t++)
               {
                 using namespace QuadTreeNames;
                 // Get the position from the son
                 Vector<double> x_prev(2);

                 // Now let's fill in the value
                 son_el_pt->get_x(t, s_in_son, x_prev);
                 for (unsigned i = 0; i < 2; i++)
                 {
                   this->node_pt(jnod)->x(t, i) = x_prev[i];
                 }
               }

               // Now set up the values
               // Loop over all history values
               for (unsigned t = 0; t < ntstorage; t++)
               {
                 // Get values from father element
                 // Note: get_interpolated_values() sets Vector size itself.
                 Vector<double> prev_values;
                 son_el_pt->get_interpolated_values(t, s_in_son, prev_values);

                 // Initialise the values at the new node
                 for (unsigned k = 0; k < this->node_pt(jnod)->nvalue(); k++)
                 {
                   this->node_pt(jnod)->set_value(t, k, prev_values[k]);
                 }
               }

               // Add the node to the mesh
               mesh_pt->add_node_pt(this->node_pt(jnod));

             } // End of the case when we build the node ourselvesx

             // Algebraic stuff here
             // Check whether the element is an algebraic element
             AlgebraicElementBase* alg_el_pt =
               dynamic_cast<AlgebraicElementBase*>(this);

             // If we do have an algebraic element
             if (alg_el_pt != 0)
             {
               std::string error_message =
                 "Have not implemented rebuilding from sons for";
               error_message += "Algebraic Spectral elements yet\n";

               throw OomphLibError(
                 error_message,
                 "RefineableQSpectralElement::rebuild_from_sons()",
                 OOMPH_EXCEPTION_LOCATION);
             }
           }
         }
       }
     }

References oomph::Mesh::add_boundary_node(), oomph::Mesh::add_node_pt(), oomph::Mesh::boundary_coordinate_exists(), Global_Physical_Variables::E, oomph::RefineableQElement< 2 >::get_bcs(), oomph::RefineableQElement< 2 >::get_boundaries(), oomph::RefineableElement::get_interpolated_values(), oomph::RefineableSolidQElement< 2 >::get_solid_bcs(), oomph::FiniteElement::get_x(), i, oomph::RefineableQElement< 2 >::interpolated_zeta_on_edge(), k, N, oomph::Node::ndim(), oomph::QuadTreeNames::NE, oomph::TimeStepper::ntstorage(), oomph::QuadTreeNames::NW, oomph::Tree::OMEGA, OOMPH_CURRENT_FUNCTION, OOMPH_EXCEPTION_LOCATION, oomph::SolidNode::pin_position(), s, oomph::QuadTreeNames::S, oomph::QuadTreeNames::SE, oomph::Global_string_for_annotation::string(), oomph::QuadTreeNames::SW, plotPSD::t, oomph::QuadTreeNames::W, and Eigen::zeta().

The documentation for this class was generated from the following file:

refineable_quad_spectral_element.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ RefineableQSpectralElement() [1/2]

◆ RefineableQSpectralElement() [2/2]

◆ ~RefineableQSpectralElement()

Member Function Documentation

◆ nodes_built()

◆ rebuild_from_sons()
