#include <multi_domain_boussinesq_elements.h>

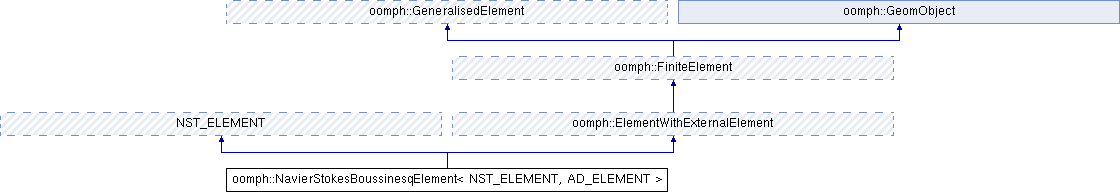

Inheritance diagram for oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >:

Public Member Functions
	NavierStokesBoussinesqElement ()

const double &	ra () const
	Access function for the Rayleigh number (const version) More...

double *&	ra_pt ()
	Access function for the pointer to the Rayleigh number. More...

void	get_body_force_nst (const double &time, const unsigned &ipt, const Vector< double > &s, const Vector< double > &x, Vector< double > &result)

void	get_dbody_force_nst_dexternal_element_data (const unsigned &ipt, DenseMatrix< double > &result, Vector< unsigned > &global_eqn_number)

void	fill_in_contribution_to_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

void	fill_in_contribution_to_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

void	fill_in_off_diagonal_block_analytic (Vector< double > &residuals, DenseMatrix< double > &jacobian)

Public Member Functions inherited from oomph::ElementWithExternalElement
	ElementWithExternalElement ()

virtual	~ElementWithExternalElement ()
	The destructor, clean up any allocated memory. More...

	ElementWithExternalElement (const ElementWithExternalElement &)=delete
	Broken copy constructor. More...

void	operator= (const ElementWithExternalElement &)=delete
	Broken assignment operator. More...

bool	storage_has_been_allocated () const
	Helper function to check if storage has actually been allocated. More...

FiniteElement *&	external_element_pt (const unsigned &interaction_index, const unsigned &ipt)

FiniteElement *const &	external_element_pt (const unsigned &interaction_index, const unsigned &ipt) const
	Access function to source element, const version. More...

Vector< double > &	external_element_local_coord (const unsigned &interaction_index, const unsigned &ipt)

Vector< double > const &	external_element_local_coord (const unsigned &interaction_index, const unsigned &ipt) const
	Access function to get source element's coords, const version. More...

void	output_external_elements (std::ostream &outfile, const unsigned &interaction_index)

void	initialise_external_element_storage ()

void	flush_all_external_element_storage ()
	Flush the storage for external elements. More...

void	set_ninteraction (const unsigned &n_interaction)

unsigned	ninteraction () const
	Return the number of interactions in the element. More...

virtual void	identify_all_field_data_for_external_interaction (Vector< std::set< FiniteElement * >> const &external_elements_pt, std::set< std::pair< Data *, unsigned >> &paired_interaction_data)

virtual void	identify_all_geometric_data_for_external_interaction (Vector< std::set< FiniteElement * >> const &external_elements_pt, std::set< Data * > &external_geometric_data_pt)

unsigned	nexternal_interaction_field_data () const

Vector< Data * >	external_interaction_field_data_pt () const

unsigned	nexternal_interaction_geometric_data () const

bool	add_external_geometric_data ()
	Are we including external geometric data in the element's Jacobian. More...

bool	add_external_interaction_data ()
	Are we including external data in the element's Jacobian. More...

Vector< Data * >	external_interaction_geometric_data_pt () const

void	ignore_external_geometric_data ()

void	ignore_external_interaction_data ()

void	include_external_geometric_data ()

void	include_external_interaction_data ()

bool	external_geometric_data_is_included () const

void	describe_local_dofs (std::ostream &out, const std::string &curr_string) const

Public Member Functions inherited from oomph::FiniteElement
void	set_dimension (const unsigned &dim)

void	set_nodal_dimension (const unsigned &nodal_dim)

void	set_nnodal_position_type (const unsigned &nposition_type)
	Set the number of types required to interpolate the coordinate. More...

void	set_n_node (const unsigned &n)

int	nodal_local_eqn (const unsigned &n, const unsigned &i) const

double	dJ_eulerian_at_knot (const unsigned &ipt, Shape &psi, DenseMatrix< double > &djacobian_dX) const

	FiniteElement ()
	Constructor. More...

virtual	~FiniteElement ()

	FiniteElement (const FiniteElement &)=delete
	Broken copy constructor. More...

virtual bool	local_coord_is_valid (const Vector< double > &s)
	Broken assignment operator. More...

virtual void	move_local_coord_back_into_element (Vector< double > &s) const

void	get_centre_of_gravity_and_max_radius_in_terms_of_zeta (Vector< double > &cog, double &max_radius) const

virtual void	local_coordinate_of_node (const unsigned &j, Vector< double > &s) const

virtual void	local_fraction_of_node (const unsigned &j, Vector< double > &s_fraction)

virtual double	local_one_d_fraction_of_node (const unsigned &n1d, const unsigned &i)

virtual void	set_macro_elem_pt (MacroElement *macro_elem_pt)

MacroElement *	macro_elem_pt ()
	Access function to pointer to macro element. More...

void	get_x (const Vector< double > &s, Vector< double > &x) const

void	get_x (const unsigned &t, const Vector< double > &s, Vector< double > &x)

virtual void	get_x_from_macro_element (const Vector< double > &s, Vector< double > &x) const

virtual void	get_x_from_macro_element (const unsigned &t, const Vector< double > &s, Vector< double > &x)

virtual void	set_integration_scheme (Integral *const &integral_pt)
	Set the spatial integration scheme. More...

Integral *const &	integral_pt () const
	Return the pointer to the integration scheme (const version) More...

virtual void	shape (const Vector< double > &s, Shape &psi) const =0

virtual void	shape_at_knot (const unsigned &ipt, Shape &psi) const

virtual void	dshape_local (const Vector< double > &s, Shape &psi, DShape &dpsids) const

virtual void	dshape_local_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsids) const

virtual void	d2shape_local (const Vector< double > &s, Shape &psi, DShape &dpsids, DShape &d2psids) const

virtual void	d2shape_local_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsids, DShape &d2psids) const

virtual double	J_eulerian (const Vector< double > &s) const

virtual double	J_eulerian_at_knot (const unsigned &ipt) const

void	check_J_eulerian_at_knots (bool &passed) const

void	check_jacobian (const double &jacobian) const

double	dshape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx) const

virtual double	dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx) const

virtual double	dshape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsi, DenseMatrix< double > &djacobian_dX, RankFourTensor< double > &d_dpsidx_dX) const

double	d2shape_eulerian (const Vector< double > &s, Shape &psi, DShape &dpsidx, DShape &d2psidx) const

virtual double	d2shape_eulerian_at_knot (const unsigned &ipt, Shape &psi, DShape &dpsidx, DShape &d2psidx) const

virtual void	assign_nodal_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	describe_nodal_local_dofs (std::ostream &out, const std::string &current_string) const

virtual void	assign_all_generic_local_eqn_numbers (const bool &store_local_dof_pt)

Node *&	node_pt (const unsigned &n)
	Return a pointer to the local node n. More...

Node *const &	node_pt (const unsigned &n) const
	Return a pointer to the local node n (const version) More...

unsigned	nnode () const
	Return the number of nodes. More...

virtual unsigned	nnode_1d () const

double	raw_nodal_position (const unsigned &n, const unsigned &i) const

double	raw_nodal_position (const unsigned &t, const unsigned &n, const unsigned &i) const

double	raw_dnodal_position_dt (const unsigned &n, const unsigned &i) const

double	raw_dnodal_position_dt (const unsigned &n, const unsigned &j, const unsigned &i) const

double	raw_nodal_position_gen (const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_nodal_position_gen (const unsigned &t, const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_dnodal_position_gen_dt (const unsigned &n, const unsigned &k, const unsigned &i) const

double	raw_dnodal_position_gen_dt (const unsigned &j, const unsigned &n, const unsigned &k, const unsigned &i) const

double	nodal_position (const unsigned &n, const unsigned &i) const

double	nodal_position (const unsigned &t, const unsigned &n, const unsigned &i) const

double	dnodal_position_dt (const unsigned &n, const unsigned &i) const
	Return the i-th component of nodal velocity: dx/dt at local node n. More...

double	dnodal_position_dt (const unsigned &n, const unsigned &j, const unsigned &i) const

double	nodal_position_gen (const unsigned &n, const unsigned &k, const unsigned &i) const

double	nodal_position_gen (const unsigned &t, const unsigned &n, const unsigned &k, const unsigned &i) const

double	dnodal_position_gen_dt (const unsigned &n, const unsigned &k, const unsigned &i) const

double	dnodal_position_gen_dt (const unsigned &j, const unsigned &n, const unsigned &k, const unsigned &i) const

virtual void	get_dresidual_dnodal_coordinates (RankThreeTensor< double > &dresidual_dnodal_coordinates)

virtual void	disable_ALE ()

virtual void	enable_ALE ()

virtual unsigned	required_nvalue (const unsigned &n) const

unsigned	nnodal_position_type () const

bool	has_hanging_nodes () const

unsigned	nodal_dimension () const
	Return the required Eulerian dimension of the nodes in this element. More...

virtual unsigned	nvertex_node () const

virtual Node *	vertex_node_pt (const unsigned &j) const

virtual Node *	construct_node (const unsigned &n)

virtual Node *	construct_node (const unsigned &n, TimeStepper *const &time_stepper_pt)

virtual Node *	construct_boundary_node (const unsigned &n)

virtual Node *	construct_boundary_node (const unsigned &n, TimeStepper *const &time_stepper_pt)

int	get_node_number (Node *const &node_pt) const

virtual Node *	get_node_at_local_coordinate (const Vector< double > &s) const

double	raw_nodal_value (const unsigned &n, const unsigned &i) const

double	raw_nodal_value (const unsigned &t, const unsigned &n, const unsigned &i) const

double	nodal_value (const unsigned &n, const unsigned &i) const

double	nodal_value (const unsigned &t, const unsigned &n, const unsigned &i) const

unsigned	dim () const

virtual ElementGeometry::ElementGeometry	element_geometry () const
	Return the geometry type of the element (either Q or T usually). More...

virtual double	interpolated_x (const Vector< double > &s, const unsigned &i) const
	Return FE interpolated coordinate x[i] at local coordinate s. More...

virtual double	interpolated_x (const unsigned &t, const Vector< double > &s, const unsigned &i) const

virtual void	interpolated_x (const Vector< double > &s, Vector< double > &x) const
	Return FE interpolated position x[] at local coordinate s as Vector. More...

virtual void	interpolated_x (const unsigned &t, const Vector< double > &s, Vector< double > &x) const

virtual double	interpolated_dxdt (const Vector< double > &s, const unsigned &i, const unsigned &t)

virtual void	interpolated_dxdt (const Vector< double > &s, const unsigned &t, Vector< double > &dxdt)

unsigned	ngeom_data () const

Data *	geom_data_pt (const unsigned &j)

void	position (const Vector< double > &zeta, Vector< double > &r) const

void	position (const unsigned &t, const Vector< double > &zeta, Vector< double > &r) const

void	dposition_dt (const Vector< double > &zeta, const unsigned &t, Vector< double > &drdt)

virtual double	zeta_nodal (const unsigned &n, const unsigned &k, const unsigned &i) const

void	interpolated_zeta (const Vector< double > &s, Vector< double > &zeta) const

void	locate_zeta (const Vector< double > &zeta, GeomObject *&geom_object_pt, Vector< double > &s, const bool &use_coordinate_as_initial_guess=false)

virtual void	node_update ()

virtual void	identify_field_data_for_interactions (std::set< std::pair< Data *, unsigned >> &paired_field_data)

virtual void	identify_geometric_data (std::set< Data * > &geometric_data_pt)

virtual double	s_min () const
	Min value of local coordinate. More...

virtual double	s_max () const
	Max. value of local coordinate. More...

double	size () const

virtual double	compute_physical_size () const

virtual void	point_output_data (const Vector< double > &s, Vector< double > &data)

void	point_output (std::ostream &outfile, const Vector< double > &s)

virtual unsigned	nplot_points_paraview (const unsigned &nplot) const

virtual unsigned	nsub_elements_paraview (const unsigned &nplot) const

void	output_paraview (std::ofstream &file_out, const unsigned &nplot) const

virtual void	write_paraview_output_offset_information (std::ofstream &file_out, const unsigned &nplot, unsigned &counter) const

virtual void	write_paraview_type (std::ofstream &file_out, const unsigned &nplot) const

virtual void	write_paraview_offsets (std::ofstream &file_out, const unsigned &nplot, unsigned &offset_sum) const

virtual unsigned	nscalar_paraview () const

virtual void	scalar_value_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot) const

virtual void	scalar_value_fct_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt) const

virtual void	scalar_value_fct_paraview (std::ofstream &file_out, const unsigned &i, const unsigned &nplot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt) const

virtual std::string	scalar_name_paraview (const unsigned &i) const

virtual void	output (std::ostream &outfile)

virtual void	output (std::ostream &outfile, const unsigned &n_plot)

virtual void	output (const unsigned &t, std::ostream &outfile, const unsigned &n_plot) const

virtual void	output (FILE *file_pt)

virtual void	output (FILE *file_pt, const unsigned &n_plot)

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt)
	Output an exact solution over the element. More...

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt)
	Output a time-dependent exact solution over the element. More...

virtual void	output_fct (std::ostream &outfile, const unsigned &n_plot, const double &time, const SolutionFunctorBase &exact_soln) const
	Output a time-dependent exact solution over the element. More...

virtual void	get_s_plot (const unsigned &i, const unsigned &nplot, Vector< double > &s, const bool &shifted_to_interior=false) const

virtual std::string	tecplot_zone_string (const unsigned &nplot) const

virtual void	write_tecplot_zone_footer (std::ostream &outfile, const unsigned &nplot) const

virtual void	write_tecplot_zone_footer (FILE *file_pt, const unsigned &nplot) const

virtual unsigned	nplot_points (const unsigned &nplot) const

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)
	Calculate the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)
	Calculate the norm of the error and that of the exact solution. More...

virtual void	compute_error (FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, double &error, double &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, Vector< double > &error, Vector< double > &norm)

virtual void	compute_error (std::ostream &outfile, FiniteElement::UnsteadyExactSolutionFctPt exact_soln_pt, const double &time, Vector< double > &error, Vector< double > &norm)

virtual void	compute_abs_error (std::ostream &outfile, FiniteElement::SteadyExactSolutionFctPt exact_soln_pt, double &error)

void	integrate_fct (FiniteElement::SteadyExactSolutionFctPt integrand_fct_pt, Vector< double > &integral)
	Integrate Vector-valued function over element. More...

void	integrate_fct (FiniteElement::UnsteadyExactSolutionFctPt integrand_fct_pt, const double &time, Vector< double > &integral)
	Integrate Vector-valued time-dep function over element. More...

virtual void	build_face_element (const int &face_index, FaceElement *face_element_pt)

virtual unsigned	self_test ()

virtual unsigned	get_bulk_node_number (const int &face_index, const unsigned &i) const

virtual int	face_outer_unit_normal_sign (const int &face_index) const
	Get the sign of the outer unit normal on the face given by face_index. More...

virtual unsigned	nnode_on_face () const

void	face_node_number_error_check (const unsigned &i) const
	Range check for face node numbers. More...

virtual CoordinateMappingFctPt	face_to_bulk_coordinate_fct_pt (const int &face_index) const

virtual BulkCoordinateDerivativesFctPt	bulk_coordinate_derivatives_fct_pt (const int &face_index) const

Public Member Functions inherited from oomph::GeneralisedElement
	GeneralisedElement ()
	Constructor: Initialise all pointers and all values to zero. More...

virtual	~GeneralisedElement ()
	Virtual destructor to clean up any memory allocated by the object. More...

	GeneralisedElement (const GeneralisedElement &)=delete
	Broken copy constructor. More...

void	operator= (const GeneralisedElement &)=delete
	Broken assignment operator. More...

Data *&	internal_data_pt (const unsigned &i)
	Return a pointer to i-th internal data object. More...

Data *const &	internal_data_pt (const unsigned &i) const
	Return a pointer to i-th internal data object (const version) More...

Data *&	external_data_pt (const unsigned &i)
	Return a pointer to i-th external data object. More...

Data *const &	external_data_pt (const unsigned &i) const
	Return a pointer to i-th external data object (const version) More...

unsigned long	eqn_number (const unsigned &ieqn_local) const

int	local_eqn_number (const unsigned long &ieqn_global) const

unsigned	add_external_data (Data *const &data_pt, const bool &fd=true)

bool	external_data_fd (const unsigned &i) const

void	exclude_external_data_fd (const unsigned &i)

void	include_external_data_fd (const unsigned &i)

void	flush_external_data ()
	Flush all external data. More...

void	flush_external_data (Data *const &data_pt)
	Flush the object addressed by data_pt from the external data array. More...

unsigned	ninternal_data () const
	Return the number of internal data objects. More...

unsigned	nexternal_data () const
	Return the number of external data objects. More...

unsigned	ndof () const
	Return the number of equations/dofs in the element. More...

void	dof_vector (const unsigned &t, Vector< double > &dof)
	Return the vector of dof values at time level t. More...

void	dof_pt_vector (Vector< double * > &dof_pt)
	Return the vector of pointers to dof values. More...

void	set_internal_data_time_stepper (const unsigned &i, TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)

void	assign_internal_eqn_numbers (unsigned long &global_number, Vector< double * > &Dof_pt)

void	describe_dofs (std::ostream &out, const std::string &current_string) const

void	add_internal_value_pt_to_map (std::map< unsigned, double * > &map_of_value_pt)

virtual void	assign_local_eqn_numbers (const bool &store_local_dof_pt)

virtual void	complete_setup_of_dependencies ()

virtual void	get_residuals (Vector< double > &residuals)

virtual void	get_jacobian (Vector< double > &residuals, DenseMatrix< double > &jacobian)

virtual void	get_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	get_jacobian_and_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &jacobian, DenseMatrix< double > &mass_matrix)

virtual void	get_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	get_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	get_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	get_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	get_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	get_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

virtual void	compute_norm (Vector< double > &norm)

virtual void	compute_norm (double &norm)

virtual unsigned	ndof_types () const

virtual void	get_dof_numbers_for_unknowns (std::list< std::pair< unsigned long, unsigned >> &dof_lookup_list) const

Public Member Functions inherited from oomph::GeomObject
	GeomObject ()
	Default constructor. More...

	GeomObject (const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim)

	GeomObject (const unsigned &nlagrangian, const unsigned &ndim, TimeStepper *time_stepper_pt)

	GeomObject (const GeomObject &dummy)=delete
	Broken copy constructor. More...

void	operator= (const GeomObject &)=delete
	Broken assignment operator. More...

virtual	~GeomObject ()
	(Empty) destructor More...

unsigned	nlagrangian () const
	Access function to # of Lagrangian coordinates. More...

unsigned	ndim () const
	Access function to # of Eulerian coordinates. More...

void	set_nlagrangian_and_ndim (const unsigned &n_lagrangian, const unsigned &n_dim)
	Set # of Lagrangian and Eulerian coordinates. More...

TimeStepper *&	time_stepper_pt ()

TimeStepper *	time_stepper_pt () const

virtual void	position (const double &t, const Vector< double > &zeta, Vector< double > &r) const

virtual void	dposition (const Vector< double > &zeta, DenseMatrix< double > &drdzeta) const

virtual void	d2position (const Vector< double > &zeta, RankThreeTensor< double > &ddrdzeta) const

virtual void	d2position (const Vector< double > &zeta, Vector< double > &r, DenseMatrix< double > &drdzeta, RankThreeTensor< double > &ddrdzeta) const

Private Attributes
double *	Ra_pt
	Pointer to a private data member, the Rayleigh number. More...

Additional Inherited Members
Public Types inherited from oomph::FiniteElement
typedef void(*	SteadyExactSolutionFctPt) (const Vector< double > &, Vector< double > &)

typedef void(*	UnsteadyExactSolutionFctPt) (const double &, const Vector< double > &, Vector< double > &)

Static Public Attributes inherited from oomph::FiniteElement
static double	Tolerance_for_singular_jacobian = 1.0e-16
	Tolerance below which the jacobian is considered singular. More...

static bool	Accept_negative_jacobian = false

static bool	Suppress_output_while_checking_for_inverted_elements

Static Public Attributes inherited from oomph::GeneralisedElement
static bool	Suppress_warning_about_repeated_internal_data

static bool	Suppress_warning_about_repeated_external_data = true

static double	Default_fd_jacobian_step = 1.0e-8

Protected Member Functions inherited from oomph::ElementWithExternalElement
void	assign_internal_and_external_local_eqn_numbers (const bool &store_local_dof_pt)

void	assign_external_interaction_data_local_eqn_numbers (const bool &store_local_dof_pt)

void	fill_in_jacobian_from_external_interaction_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian)

void	fill_in_jacobian_from_external_interaction_by_fd (DenseMatrix< double > &jacobian)

void	fill_in_jacobian_from_external_interaction_field_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian)

void	fill_in_jacobian_from_external_interaction_field_by_fd (DenseMatrix< double > &jacobian)

void	fill_in_jacobian_from_external_interaction_geometric_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian)

void	fill_in_jacobian_from_external_interaction_geometric_by_fd (DenseMatrix< double > &jacobian)

virtual void	update_before_external_interaction_field_fd ()

virtual void	reset_after_external_interaction_field_fd ()

virtual void	update_in_external_interaction_field_fd (const unsigned &i)

virtual void	reset_in_external_interaction_field_fd (const unsigned &i)

virtual void	update_before_external_interaction_geometric_fd ()

virtual void	reset_after_external_interaction_geometric_fd ()

virtual void	update_in_external_interaction_geometric_fd (const unsigned &i)

virtual void	reset_in_external_interaction_geometric_fd (const unsigned &i)

Protected Member Functions inherited from oomph::FiniteElement
virtual void	assemble_local_to_eulerian_jacobian (const DShape &dpsids, DenseMatrix< double > &jacobian) const

virtual void	assemble_local_to_eulerian_jacobian2 (const DShape &d2psids, DenseMatrix< double > &jacobian2) const

virtual void	assemble_eulerian_base_vectors (const DShape &dpsids, DenseMatrix< double > &interpolated_G) const

template<unsigned DIM>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual double	invert_jacobian_mapping (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual double	local_to_eulerian_mapping (const DShape &dpsids, DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

double	local_to_eulerian_mapping (const DShape &dpsids, DenseMatrix< double > &inverse_jacobian) const

virtual double	local_to_eulerian_mapping_diagonal (const DShape &dpsids, DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

virtual void	dJ_eulerian_dnodal_coordinates (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<unsigned DIM>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

virtual void	d_dshape_eulerian_dnodal_coordinates (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<unsigned DIM>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

virtual void	transform_derivatives (const DenseMatrix< double > &inverse_jacobian, DShape &dbasis) const

void	transform_derivatives_diagonal (const DenseMatrix< double > &inverse_jacobian, DShape &dbasis) const

virtual void	transform_second_derivatives (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<unsigned DIM>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<unsigned DIM>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

virtual void	fill_in_jacobian_from_nodal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian)

void	fill_in_jacobian_from_nodal_by_fd (DenseMatrix< double > &jacobian)

virtual void	update_before_nodal_fd ()

virtual void	reset_after_nodal_fd ()

virtual void	update_in_nodal_fd (const unsigned &i)

virtual void	reset_in_nodal_fd (const unsigned &i)

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	Zero-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	One-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const
	Two-d specialisation of function to calculate inverse of jacobian mapping. More...

template<>
double	invert_jacobian (const DenseMatrix< double > &jacobian, DenseMatrix< double > &inverse_jacobian) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	dJ_eulerian_dnodal_coordinates_templated_helper (const DenseMatrix< double > &jacobian, const DShape &dpsids, DenseMatrix< double > &djacobian_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	d_dshape_eulerian_dnodal_coordinates_templated_helper (const double &det_jacobian, const DenseMatrix< double > &jacobian, const DenseMatrix< double > &djacobian_dX, const DenseMatrix< double > &inverse_jacobian, const DShape &dpsids, RankFourTensor< double > &d_dpsidx_dX) const

template<>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_template (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

template<>
void	transform_second_derivatives_diagonal (const DenseMatrix< double > &jacobian, const DenseMatrix< double > &inverse_jacobian, const DenseMatrix< double > &jacobian2, DShape &dbasis, DShape &d2basis) const

Protected Member Functions inherited from oomph::GeneralisedElement
unsigned	add_internal_data (Data *const &data_pt, const bool &fd=true)

bool	internal_data_fd (const unsigned &i) const

void	exclude_internal_data_fd (const unsigned &i)

void	include_internal_data_fd (const unsigned &i)

void	clear_global_eqn_numbers ()

void	add_global_eqn_numbers (std::deque< unsigned long > const &global_eqn_numbers, std::deque< double * > const &global_dof_pt)

virtual void	assign_additional_local_eqn_numbers ()

int	internal_local_eqn (const unsigned &i, const unsigned &j) const

int	external_local_eqn (const unsigned &i, const unsigned &j)

virtual void	fill_in_contribution_to_residuals (Vector< double > &residuals)

void	fill_in_jacobian_from_internal_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_internal_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (Vector< double > &residuals, DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

void	fill_in_jacobian_from_external_by_fd (DenseMatrix< double > &jacobian, const bool &fd_all_data=false)

virtual void	update_before_internal_fd ()

virtual void	reset_after_internal_fd ()

virtual void	update_in_internal_fd (const unsigned &i)

virtual void	reset_in_internal_fd (const unsigned &i)

virtual void	update_before_external_fd ()

virtual void	reset_after_external_fd ()

virtual void	update_in_external_fd (const unsigned &i)

virtual void	reset_in_external_fd (const unsigned &i)

virtual void	fill_in_contribution_to_mass_matrix (Vector< double > &residuals, DenseMatrix< double > &mass_matrix)

virtual void	fill_in_contribution_to_dresiduals_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam)

virtual void	fill_in_contribution_to_djacobian_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam)

virtual void	fill_in_contribution_to_djacobian_and_dmass_matrix_dparameter (double *const &parameter_pt, Vector< double > &dres_dparam, DenseMatrix< double > &djac_dparam, DenseMatrix< double > &dmass_matrix_dparam)

virtual void	fill_in_contribution_to_hessian_vector_products (Vector< double > const &Y, DenseMatrix< double > const &C, DenseMatrix< double > &product)

virtual void	fill_in_contribution_to_inner_products (Vector< std::pair< unsigned, unsigned >> const &history_index, Vector< double > &inner_product)

virtual void	fill_in_contribution_to_inner_product_vectors (Vector< unsigned > const &history_index, Vector< Vector< double >> &inner_product_vector)

Protected Attributes inherited from oomph::ElementWithExternalElement
bool	Add_external_interaction_data
	Boolean flag to indicate whether to include the external data. More...

bool	Add_external_geometric_data
	Boolean flag to indicate whether to include the external geometric data. More...

Data **	External_interaction_field_data_pt

Data **	External_interaction_geometric_data_pt

Protected Attributes inherited from oomph::FiniteElement
MacroElement *	Macro_elem_pt
	Pointer to the element's macro element (NULL by default) More...

Protected Attributes inherited from oomph::GeomObject
unsigned	NLagrangian
	Number of Lagrangian (intrinsic) coordinates. More...

unsigned	Ndim
	Number of Eulerian coordinates. More...

TimeStepper *	Geom_object_time_stepper_pt

Static Protected Attributes inherited from oomph::FiniteElement
static const unsigned	Default_Initial_Nvalue = 0
	Default value for the number of values at a node. More...

static const double	Node_location_tolerance = 1.0e-14

static const unsigned	N2deriv [] = {0, 1, 3, 6}

Static Protected Attributes inherited from oomph::GeneralisedElement
static DenseMatrix< double >	Dummy_matrix

static std::deque< double * >	Dof_pt_deque

Detailed Description

template<class NST_ELEMENT, class AD_ELEMENT>
class oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >

////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////// Build NavierStokesBoussinesqElement that inherits from ElementWithExternalElement so that it can "communicate" with AdvectionDiffusionElementWithExternalElement

Constructor & Destructor Documentation

◆ NavierStokesBoussinesqElement()

template<class NST_ELEMENT , class AD_ELEMENT >

oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::NavierStokesBoussinesqElement ( )

inline

Constructor: call the underlying constructors and initialise the pointer to the Rayleigh number to point to the default value of 0.0.

       : NST_ELEMENT(), ElementWithExternalElement()
     {
       Ra_pt = &MultiDomainBoussinesqHelper::Default_Physical_Constant_Value;

       // There is only one interaction
       this->set_ninteraction(1);
     }

References oomph::MultiDomainBoussinesqHelper::Default_Physical_Constant_Value, oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::Ra_pt, and oomph::ElementWithExternalElement::set_ninteraction().

Member Function Documentation

◆ fill_in_contribution_to_jacobian()

template<class NST_ELEMENT , class AD_ELEMENT >

void oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::fill_in_contribution_to_jacobian	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian
	)

inlinevirtual

Compute the element's residual vector and the Jacobian matrix. Jacobian is computed by finite-differencing or analytically

Reimplemented from oomph::ElementWithExternalElement.

     {
 #ifdef USE_FD_JACOBIAN_NST_IN_MULTI_DOMAIN_BOUSSINESQ

       // This function computes the Jacobian by finite-differencing
       ElementWithExternalElement::fill_in_contribution_to_jacobian(residuals,
                                                                    jacobian);

 #else

       // Get the contribution from the basic Navier--Stokes element
       NST_ELEMENT::fill_in_contribution_to_jacobian(residuals, jacobian);

       // Get the off-diagonal terms analytically
       this->fill_in_off_diagonal_block_analytic(residuals, jacobian);

 #endif
     }

References oomph::fill_in_contribution_to_jacobian(), oomph::ElementWithExternalElement::fill_in_contribution_to_jacobian(), and oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::fill_in_off_diagonal_block_analytic().

◆ fill_in_contribution_to_jacobian_and_mass_matrix()

template<class NST_ELEMENT , class AD_ELEMENT >

void oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::fill_in_contribution_to_jacobian_and_mass_matrix	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian,
		DenseMatrix< double > &	mass_matrix
	)

inlinevirtual

Add the element's contribution to its residuals vector, jacobian matrix and mass matrix

Reimplemented from oomph::GeneralisedElement.

     {
       // Call the standard (Broken) function
       // which will prevent these elements from being used
       // in eigenproblems until replaced.
       FiniteElement::fill_in_contribution_to_jacobian_and_mass_matrix(
         residuals, jacobian, mass_matrix);
     }

References oomph::GeneralisedElement::fill_in_contribution_to_jacobian_and_mass_matrix().

◆ fill_in_off_diagonal_block_analytic()

template<class NST_ELEMENT , class AD_ELEMENT >

void oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::fill_in_off_diagonal_block_analytic	(	Vector< double > &	residuals,
		DenseMatrix< double > &	jacobian
	)

inline

Compute the contribution of the external degrees of freedom (temperatures) on the Navier-Stokes equations

     {
       // Local storage for the index in the nodes at which the
       // Navier-Stokes velocities are stored (we know that this should be 0,1,2)
       const unsigned n_dim = this->dim();
       Vector<unsigned> u_nodal_nst(n_dim);
       for (unsigned i = 0; i < n_dim; i++)
       {
         u_nodal_nst[i] = this->u_index_nst(i);
       }

       // Find out how many nodes there are
       const unsigned n_node = this->nnode();

       // Set up memory for the shape and test functions and their derivatives
       Shape psif(n_node), testf(n_node);
       DShape dpsifdx(n_node, n_dim), dtestfdx(n_node, n_dim);

       // Number of integration points
       const unsigned n_intpt = this->integral_pt()->nweight();

       // Integers to store the local equations and unknowns
       int local_eqn = 0, local_unknown = 0;

       // Loop over the integration points
       for (unsigned ipt = 0; ipt < n_intpt; ipt++)
       {
         // Get the integral weight
         double w = this->integral_pt()->weight(ipt);

         // Call the derivatives of the shape and test functions
         double J = this->dshape_and_dtest_eulerian_at_knot_nst(
           ipt, psif, dpsifdx, testf, dtestfdx);

         // Premultiply the weights and the Jacobian
         double W = w * J;

         // Assemble the jacobian terms

         // Get the derivatives of the body force wrt the unknowns
         // of the external element
         DenseMatrix<double> dbody_dexternal_element_data;

         // Vector of global equation number corresponding to the external
         // element's data
         Vector<unsigned> global_eqn_number_of_external_element_data;

         // Get the appropriate derivatives
         this->get_dbody_force_nst_dexternal_element_data(
           ipt,
           dbody_dexternal_element_data,
           global_eqn_number_of_external_element_data);

         // Find out how many external data there are
         const unsigned n_external_element_data =
           global_eqn_number_of_external_element_data.size();

         // Loop over the test functions
         for (unsigned l = 0; l < n_node; l++)
         {
           // Assemble the contributions of the temperature to
           // the Navier--Stokes equations (which arise through the buoyancy
           // body-force term)

           // Loop over the velocity components in the Navier--Stokes equtions
           for (unsigned i = 0; i < n_dim; i++)
           {
             // If it's not a boundary condition
             local_eqn = this->nodal_local_eqn(l, u_nodal_nst[i]);
             if (local_eqn >= 0)
             {
               // Loop over the external data
               for (unsigned l2 = 0; l2 < n_external_element_data; l2++)
               {
                 // Find the local equation number corresponding to the global
                 // unknown
                 local_unknown = this->local_eqn_number(
                   global_eqn_number_of_external_element_data[l2]);
                 if (local_unknown >= 0)
                 {
                   // Add contribution to jacobian matrix
                   jacobian(local_eqn, local_unknown) +=
                     dbody_dexternal_element_data(i, l2) * testf(l) * W;
                 }
               }
             }
           }
         }
       }
     }

References oomph::FiniteElement::dim(), oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::get_dbody_force_nst_dexternal_element_data(), i, oomph::FiniteElement::integral_pt(), J, oomph::GeneralisedElement::local_eqn_number(), oomph::FiniteElement::nnode(), oomph::FiniteElement::nodal_local_eqn(), oomph::Integral::nweight(), w, oomph::QuadTreeNames::W, and oomph::Integral::weight().

Referenced by oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::fill_in_contribution_to_jacobian().

◆ get_body_force_nst()

template<class NST_ELEMENT , class AD_ELEMENT >

void oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::get_body_force_nst	(	const double &	time,
		const unsigned &	ipt,
		const Vector< double > &	s,
		const Vector< double > &	x,
		Vector< double > &	result
	)

Overload get_body_force_nst to get the temperature "body force" from the "source" AdvectionDiffusion element via current integration point

   {
     // The interaction index is 0 in this case
     unsigned interaction = 0;

     // Get the temperature interpolated from the external element
     const double interpolated_t =
       dynamic_cast<AD_ELEMENT*>(external_element_pt(interaction, ipt))
         ->interpolated_u_adv_diff(
           external_element_local_coord(interaction, ipt));

     // Get vector that indicates the direction of gravity from
     // the Navier-Stokes equations
     Vector<double> gravity(NST_ELEMENT::g());

     // Temperature-dependent body force:
     const unsigned n_dim = this->dim();
     for (unsigned i = 0; i < n_dim; i++)
     {
       result[i] = -gravity[i] * interpolated_t * ra();
     }
   }

References Gravity::gravity(), and i.

◆ get_dbody_force_nst_dexternal_element_data()

template<class NST_ELEMENT , class AD_ELEMENT >

void oomph::NavierStokesBoussinesqElement< NST_ELEMENT, AD_ELEMENT >::get_dbody_force_nst_dexternal_element_data	(	const unsigned &	ipt,
		DenseMatrix< double > &	result,
		Vector< unsigned > &	global_eqn_number
	)

Fill in the derivatives of the body force with respect to the external unknowns

/////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////// Fill in the derivatives of the body force with respect to the external unknowns in the Navier–Stokes equations

   {
     // Get vector that indicates the direction of gravity from
     // the Navier-Stokes equations
     Vector<double> gravity(NST_ELEMENT::g());

     // The interaction index is 0 in this case
     unsigned interaction = 0;

     // Get the external element's derivatives
     Vector<double> du_adv_diff_ddata;

     // Dynamic cast "other" element to correct type
     AD_ELEMENT* source_el_pt =
       dynamic_cast<AD_ELEMENT*>(external_element_pt(interaction, ipt));
 #ifdef PARANOID
     if (source_el_pt == 0)
     {
       throw OomphLibError("External element could not be cast to AD_ELEMENT\n",
                           OOMPH_CURRENT_FUNCTION,
                           OOMPH_EXCEPTION_LOCATION);
     }
 #endif

     // Get derivatives
     source_el_pt->dinterpolated_u_adv_diff_ddata(
       external_element_local_coord(interaction, ipt),
       du_adv_diff_ddata,
       global_eqn_number);

     // Find the number of external data
     unsigned n_external_element_data = du_adv_diff_ddata.size();

     // Set the size of the matrix to be returned
     const unsigned n_dim = this->dim();
     result.resize(n_dim, n_external_element_data);

     // Temperature-dependent body force:
     for (unsigned i = 0; i < n_dim; i++)
     {
       // Loop over the external data
       for (unsigned n = 0; n < n_external_element_data; n++)
       {
         result(i, n) = -gravity[i] * du_adv_diff_ddata[n] * ra();
       }
     }
   }
