ChuteWithHopper has a hopper as inflow. More...
#include <ChuteWithHopper.h>
Inheritance diagram for ChuteWithHopper:Public Member Functions | |
| ChuteWithHopper (const Chute &other) | |
| This is a copy constructor for Chute problems. More... | |
| ChuteWithHopper (const Mercury3D &other) | |
| Copy constructor, converts an existing Mercury3D object into a ChuteWithHopper object. More... | |
| ChuteWithHopper (const MercuryBase &other) | |
| Copy constructor, converts an existing MercuryBase object into a ChuteWithHopper object. More... | |
| ChuteWithHopper (const DPMBase &other) | |
| Copy constructor, converts an existing DPMBase object into a ChuteWithHopper object. More... | |
| ChuteWithHopper () | |
| This is the default constructor. More... | |
| void | setHopperFillingPercentage (Mdouble hopperFillingPercentage) |
| Sets the hopper filling percentage. More... | |
| void | setHopperLowestPoint (Mdouble hopperLowestPoint) |
| Sets the vertical distance of the lowest hopper point relative to the start of the chute. More... | |
| Mdouble | getHopperLowestPoint () const |
| Returns the vertical distance of the lowest hopper point relative to the start of the chute. More... | |
| Mdouble | getChuteLength () const |
| Allows chute length to be accessed. More... | |
| void | setChuteLength (Mdouble chuteLength) override |
| sets xMax to chuteLength+hopperlength_, and thus specifies the length off the runoff chute More... | |
| void | setIsHopperCentred (bool isHopperCentred) |
| Sets an extra shift in X-direction of the whole system. More... | |
| void | setHopperLowerFillingHeight (Mdouble hopperLowerFillingHeight) |
| Sets the height above which the hopper is filled with new particles. More... | |
| void | setHopperShift (Mdouble hopperShift) |
| Sets the shift in X-direction of the whole setup after rotation. More... | |
| void | setHopperLift (Mdouble hopperLift) |
| This lifts the hopper above the plane of the chute (after rotation) More... | |
| Mdouble | getHopperLift () const |
| Returns the hopper's lift above the chute bottom plane. More... | |
| Mdouble | getHopperShift () const |
| Returns the shift in X-direction of the whole setup after rotation. More... | |
| void | setHopperDimension (unsigned int hopperDimension) |
| Sets whether the hopper should have vertical (1) or inclined (2) walls in Y-direction. More... | |
| void | setIsHopperAlignedWithBottom (bool isHopperAlignedWithBottom) |
| Sets the alignment of hopper with chute bottom. More... | |
| Mdouble | getHopperAngle () const |
| Returns the angle of the hopper entrance relative to the vertical. More... | |
| Mdouble | getHopperLength () const |
| Returns the width of the hopper entrance. More... | |
| Mdouble | getHopperExitLength () const |
| Returns the width of the hopper exit. More... | |
| Mdouble | getHopperHeight () const |
| Returns the height of the hopper relative to the chute start. More... | |
| Mdouble | getHopperExitHeight () const |
| Returns the height of the lowest hopper point above the chute. More... | |
| bool | getIsHopperCentred () const |
| Returns whether the setup is shifted another 40 units in X-direction. More... | |
| Mdouble | getHopperFillingPercentage () const |
| Returns the vertical percentage of the hopper insertion boundary which is filled. More... | |
| unsigned int | getHopperDimension () const |
| Returns whether the hopper has vertical (1) or inclined (2) walls in Y-direction. More... | |
| void | setupInitialConditions () override |
| Sets up the initial conditions for the problem. More... | |

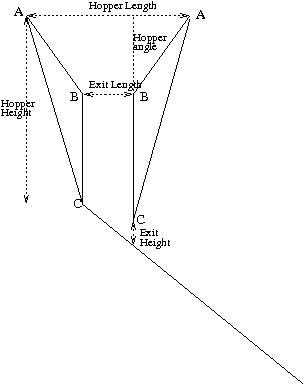

| void | setHopper (Mdouble exitLength, Mdouble exitHeight, Mdouble angle, Mdouble length, Mdouble height) |
| Sets the hopper's geometrical properties. More... | |
| Mdouble | getMaximumVelocityInducedByGravity () const |
| Returns the theoretical maximum particle velocity due to gravity. More... | |
| Mdouble | getTimeStepRatio () const |
| Returns smallest particle radius over maximum gravitational velocity. More... | |
| void | read (std::istream &is, ReadOptions opt=ReadOptions::ReadAll) override |
| Reads setup properties from an istream. More... | |
| void | write (std::ostream &os, bool writeAllParticles=true) const override |
| Writes setup properties to an ostream. More... | |
| bool | readNextArgument (int &i, int argc, char *argv[]) override |
| Reads setup properties from a string. More... | |
| Public Member Functions inherited from Chute | |
| Chute () | |
| This is the default constructor. All it does is set sensible defaults. More... | |
| Chute (const DPMBase &other) | |
| Copy constructor, converts an existing DPMBase problem into a Chute problem. More... | |
| Chute (const MercuryBase &other) | |
| Copy constructor, converts an existing MercuryBase problem into a Chute problem. More... | |
| Chute (const Mercury3D &other) | |
| Copy constructor, converts an existing Mercury3D problem into a Chute problem. More... | |
| Chute (const Chute &other) | |
| Default copy constructor. More... | |
| void | constructor () |
| This is the actual constructor METHOD; it is called by all constructors above (except the default copy constructor). More... | |
| void | setupSideWalls () |
| Creates chute side walls (either solid or periodic) More... | |
| void | makeChutePeriodic () |
| This makes the chute periodic in Y. More... | |
| bool | getIsPeriodic () const |
| Returns whether the chute is periodic in Y. More... | |
| void | setFixedParticleRadius (Mdouble fixedParticleRadius) |
| Sets the particle radius of the fixed particles which constitute the (rough) chute bottom. More... | |
| Mdouble | getFixedParticleRadius () const |
| Returns the particle radius of the fixed particles which constitute the (rough) chute bottom. More... | |
| void | setFixedParticleSpacing (Mdouble fixedParticleSpacing) |
| Sets the spacing of the fixed particles which constitute the (rough) chute bottom; used in triangular packing only. More... | |
| Mdouble | getFixedParticleSpacing () const |
| Returns the particle radius of the fixed particles which constitute the (rough) chute bottom; used in triangular packing only. More... | |
| void | setRoughBottomType (RoughBottomType roughBottomType) |
| Sets the type of rough bottom of the chute. More... | |
| void | setRoughBottomType (std::string roughBottomTypeString) |
| Sets the type of rough bottom of the chute, using a string with the EXACT enum type as input. More... | |
| RoughBottomType | getRoughBottomType () const |
| Returns the type of (rough) bottom of the chute. More... | |
| void | setChuteAngle (Mdouble chuteAngle) |
| Sets gravity vector according to chute angle (in degrees) More... | |
| void | setChuteAngleAndMagnitudeOfGravity (Mdouble chuteAngle, Mdouble gravity) |
| Sets gravity vector according to chute angle (in degrees) More... | |
| Mdouble | getChuteAngle () const |
| Returns the chute angle (in radians) More... | |
| Mdouble | getChuteAngleDegrees () const |
| Returns the chute angle (in degrees) More... | |
| void | setMaxFailed (unsigned int maxFailed) |
| Sets the number of times a particle will be tried to be added to the insertion boundary. More... | |
| unsigned int | getMaxFailed () const |
| Returns the number of times a particle will be tried to be added to the insertion boundary. More... | |
| void | setInflowParticleRadius (Mdouble inflowParticleRadius) |
| Sets the radius of the inflow particles to a single one (i.e. ensures a monodisperse inflow). More... | |
| void | setInflowParticleRadius (Mdouble minInflowParticleRadius, Mdouble maxInflowParticleRadius) |
| Sets the minimum and maximum radius of the inflow particles. More... | |
| void | setMinInflowParticleRadius (Mdouble minInflowParticleRadius) |
| sets the minimum radius of inflow particles More... | |
| void | setMaxInflowParticleRadius (Mdouble maxInflowParticleRadius) |
| Sets the maximum radius of inflow particles. More... | |
| Mdouble | getInflowParticleRadius () const |
| Returns the average radius of inflow particles. More... | |
| Mdouble | getMinInflowParticleRadius () const |
| returns the minimum radius of inflow particles More... | |
| Mdouble | getMaxInflowParticleRadius () const |
| Returns the maximum radius of inflow particles. More... | |
| void | setInflowHeight (Mdouble inflowHeight) |
| Sets maximum inflow height (Z-direction) More... | |
| Mdouble | getInflowHeight () const |
| Returns the maximum inflow height (Z-direction) More... | |
| void | setInflowVelocity (Mdouble inflowVelocity) |
| Sets the average inflow velocity. More... | |
| Mdouble | getInflowVelocity () const |
| Returns the average inflow velocity. More... | |
| void | setInflowVelocityVariance (Mdouble inflowVelocityVariance) |
| Sets the inflow velocity variance. More... | |
| Mdouble | getInflowVelocityVariance () const |
| Returns the inflow velocity variance. More... | |
| void | setChuteWidth (Mdouble chuteWidth) |
| Sets the chute width (Y-direction) More... | |
| Mdouble | getChuteWidth () const |
| Returns the chute width (Y-direction) More... | |
| Mdouble | getChuteLength () const |
| Returns the chute length (X-direction) More... | |
| void | setInsertionBoundary (InsertionBoundary *insertionBoundary) |
| Sets the chute insertion boundary. More... | |
| Public Member Functions inherited from Mercury3D | |
| Mercury3D () | |
| This is the default constructor. All it does is set sensible defaults. More... | |
| Mercury3D (const DPMBase &other) | |
| Copy-constructor for creates an Mercury3D problem from an existing MD problem. More... | |
| Mercury3D (const Mercury3D &other) | |
| Copy-constructor. More... | |
| void | constructor () |
| Function that sets the SystemDimension and ParticleDimension to 3. More... | |
| std::vector< BaseParticle * > | hGridFindParticleContacts (const BaseParticle *obj) override |
| Returns all particles that have a contact with a given particle. More... | |
| Public Member Functions inherited from MercuryBase | |
| MercuryBase () | |
| This is the default constructor. It sets sensible defaults. More... | |
| ~MercuryBase () override | |
| This is the default destructor. More... | |
| MercuryBase (const MercuryBase &mercuryBase) | |
| Copy-constructor. More... | |
| void | constructor () |
| This is the actual constructor, it is called do both constructors above. More... | |
| void | hGridActionsBeforeTimeLoop () override |
| This sets up the broad phase information, has to be done at this stage because it requires the particle size. More... | |
| void | hGridActionsBeforeTimeStep () override |
| Performs all necessary actions before a time-step, like updating the particles and resetting all the bucket information, etc. More... | |
| void | read (std::istream &is, ReadOptions opt=ReadOptions::ReadAll) override |
| Reads the MercuryBase from an input stream, for example a restart file. More... | |
| void | write (std::ostream &os, bool writeAllParticles=true) const override |
| Writes all data into a restart file. More... | |
| Mdouble | getHGridCurrentMaxRelativeDisplacement () const |
| Returns hGridCurrentMaxRelativeDisplacement_. More... | |
| Mdouble | getHGridTotalCurrentMaxRelativeDisplacement () const |
| Returns hGridTotalCurrentMaxRelativeDisplacement_. More... | |
| void | setHGridUpdateEachTimeStep (bool updateEachTimeStep) |
| Sets whether or not the HGrid must be updated every time step. More... | |
| bool | getHGridUpdateEachTimeStep () const final |
| Gets whether or not the HGrid is updated every time step. More... | |
| void | setHGridMaxLevels (unsigned int HGridMaxLevels) |
| Sets the maximum number of levels of the HGrid in this MercuryBase. More... | |
| unsigned int | getHGridMaxLevels () const |
| Gets the maximum number of levels of the HGrid in this MercuryBase. More... | |
| HGridMethod | getHGridMethod () const |
| Gets whether the HGrid in this MercuryBase is BOTTOMUP or TOPDOWN. More... | |
| void | setHGridMethod (HGridMethod hGridMethod) |
| Sets the HGridMethod to either BOTTOMUP or TOPDOWN. More... | |
| HGridDistribution | getHGridDistribution () const |
| Gets how the sizes of the cells of different levels are distributed. More... | |
| void | setHGridDistribution (HGridDistribution hGridDistribution) |
| Sets how the sizes of the cells of different levels are distributed. More... | |
| Mdouble | getHGridCellOverSizeRatio () const |
| Gets the ratio of the smallest cell over the smallest particle. More... | |
| void | setHGridCellOverSizeRatio (Mdouble cellOverSizeRatio) |
| Sets the ratio of the smallest cell over the smallest particle. More... | |
| bool | hGridNeedsRebuilding () |
| Gets if the HGrid needs rebuilding before anything else happens. More... | |
| virtual unsigned int | getHGridTargetNumberOfBuckets () const |
| Gets the desired number of buckets, which is the maximum of the number of particles and 10. More... | |
| virtual Mdouble | getHGridTargetMinInteractionRadius () const |
| Gets the desired size of the smallest cells of the HGrid. More... | |
| virtual Mdouble | getHGridTargetMaxInteractionRadius () const |
| Gets the desired size of the largest cells of the HGrid. More... | |
| bool | checkParticleForInteraction (const BaseParticle &P) final |
| Checks if given BaseParticle has an interaction with a BaseWall or other BaseParticle. More... | |
| bool | checkParticleForInteractionLocal (const BaseParticle &P) final |
| Checks if the given BaseParticle has an interaction with a BaseWall or other BaseParticles in a local domain. More... | |
| virtual Mdouble | userHGridCellSize (unsigned int level) |
| Virtual function that enables inheriting classes to implement a function to let the user set the cell size of the HGrid. More... | |
| void | hGridInfo (std::ostream &os=std::cout) const |
| Writes the info of the HGrid to the screen in a nice format. More... | |
| Public Member Functions inherited from DPMBase | |
| void | constructor () |
| A function which initialises the member variables to default values, so that the problem can be solved off the shelf; sets up a basic two dimensional problem which can be solved off the shelf. It is called in the constructor DPMBase(). More... | |
| DPMBase () | |
| Constructor that calls the "void constructor()". More... | |
| DPMBase (const DPMBase &other) | |
| Copy constructor type-2. More... | |
| virtual | ~DPMBase () |
| virtual destructor More... | |
| void | autoNumber () |
| The autoNumber() function calls three functions: setRunNumber(), readRunNumberFromFile() and incrementRunNumberInFile(). More... | |
| std::vector< int > | get1DParametersFromRunNumber (int size_x) const |
| This turns a counter into 1 index, which is a useful feature for performing 1D parameter study. The index run from 1:size_x, while the study number starts at 0 (initially the counter=1 in COUNTER_DONOTDEL) More... | |
| std::vector< int > | get2DParametersFromRunNumber (int size_x, int size_y) const |
| This turns a counter into 2 indices which is a very useful feature for performing a 2D study. The indices run from 1:size_x and 1:size_y, while the study number starts at 0 ( initially the counter=1 in COUNTER_DONOTDEL) More... | |
| std::vector< int > | get3DParametersFromRunNumber (int size_x, int size_y, int size_z) const |
| This turns a counter into 3 indices, which is a useful feature for performing a 3D parameter study. The indices run from 1:size_x, 1:size_y and 1:size_z, while the study number starts at 0 ( initially the counter=1 in COUNTER_DONOTDEL) More... | |
| int | launchNewRun (const char *name, bool quick=false) |
| This launches a code from within this code. Please pass the name of the code to run. More... | |
| void | setRunNumber (int runNumber) |
| This sets the counter/Run number, overriding the defaults. More... | |
| int | getRunNumber () const |
| This returns the current value of the counter (runNumber_) More... | |
| virtual void | decompose () |
| Sends particles from processorId to the root processor. More... | |
| void | solve () |
| The work horse of the code. More... | |
| void | initialiseSolve () |
| Beginning of the solve routine, before time stepping. More... | |
| void | finaliseSolve () |
| End of the solve routine, after time stepping. More... | |
| virtual void | computeOneTimeStep () |
| Performs everything needed for one time step, used in the time-loop of solve(). More... | |
| void | checkSettings () |
| Checks if the essentials are set properly to go ahead with solving the problem. More... | |
| void | forceWriteOutputFiles () |
| Writes output files immediately, even if the current time step was not meant to be written. Also resets the last saved time step. More... | |
| virtual void | writeOutputFiles () |
| Writes simulation data to all the main Mercury files: .data, .ene, .fstat, .xballs and .restart (see the Mercury website for more details regarding these files). More... | |
| void | solve (int argc, char *argv[]) |
| The work horse of the code. Can handle flags from the command line. More... | |
| virtual void | writeXBallsScript () const |
| This writes a script which can be used to load the xballs problem to display the data just generated. More... | |
| virtual Mdouble | getInfo (const BaseParticle &P) const |
| A virtual function that returns some user-specified information about a particle. More... | |
| ParticleVtkWriter * | getVtkWriter () const |
| virtual void | writeRestartFile () |
| Stores all the particle data for current save time step to a "restart" file, which is a file simply intended to store all the information necessary to "restart" a simulation from a given time step (see also MercuryDPM.org for more information on restart files). More... | |
| void | writeDataFile () |
| void | writeEneFile () |
| void | writeFStatFile () |
| void | fillDomainWithParticles (unsigned N=50) |
| bool | readRestartFile (ReadOptions opt=ReadOptions::ReadAll) |
| Reads all the particle data corresponding to a given, existing . restart file (for more details regarding restart files, refer to the training materials on the MercuryDPM website).Returns true if it is successful, false otherwise. More... | |
| int | readRestartFile (std::string fileName, ReadOptions opt=ReadOptions::ReadAll) |
| The same as readRestartFile(bool), but also reads all the particle data corresponding to the current saved time step. More... | |
| virtual BaseWall * | readUserDefinedWall (const std::string &type) const |
| Allows you to read in a wall defined in a Driver directory; see USER/Luca/ScrewFiller. More... | |
| virtual void | readOld (std::istream &is) |
| Reads all data from a restart file, e.g. domain data and particle data; old version. More... | |
| bool | readDataFile (std::string fileName="", unsigned int format=0) |
| This allows particle data to be reloaded from data files. More... | |
| bool | readParAndIniFiles (std::string fileName) |
| Allows the user to read par.ini files (useful to read files produced by the MDCLR simulation code - external to MercuryDPM) More... | |
| bool | readNextDataFile (unsigned int format=0) |
| Reads the next data file with default format=0. However, one can modify the format based on whether the particle data corresponds to 3D or 2D data- see Visualising data in xballs. More... | |
| void | readNextFStatFile () |
| Reads the next fstat file. More... | |
| bool | findNextExistingDataFile (Mdouble tMin, bool verbose=true) |
| Finds and opens the next data file, if such a file exists. More... | |
| bool | readArguments (int argc, char *argv[]) |
| Can interpret main function input arguments that are passed by the driver codes. More... | |
| bool | checkParticleForInteractionLocalPeriodic (const BaseParticle &P) |
| void | readSpeciesFromDataFile (bool read=true) |
| void | importParticlesAs (ParticleHandler &particleHandler, InteractionHandler &interactionHandler, const ParticleSpecies *species) |
| Copies particles, interactions assigning species from a local simulation to a global one. Useful for the creation of a cluster. More... | |
| MERCURYDPM_DEPRECATED File & | getDataFile () |
| The non const version. Allows one to edit the File::dataFile. More... | |
| MERCURYDPM_DEPRECATED File & | getEneFile () |
| The non const version. Allows to edit the File::eneFile. More... | |
| MERCURYDPM_DEPRECATED File & | getFStatFile () |
| The non const version. Allows to edit the File::fStatFile. More... | |
| MERCURYDPM_DEPRECATED File & | getRestartFile () |
| The non const version. Allows to edit the File::restartFile. More... | |
| MERCURYDPM_DEPRECATED File & | getStatFile () |
| The non const version. Allows to edit the File::statFile. More... | |
| File & | getInteractionFile () |
| Return a reference to the file InteractionsFile. More... | |
| MERCURYDPM_DEPRECATED const File & | getDataFile () const |
| The const version. Does not allow for any editing of the File::dataFile. More... | |
| MERCURYDPM_DEPRECATED const File & | getEneFile () const |
| The const version. Does not allow for any editing of the File::eneFile. More... | |
| MERCURYDPM_DEPRECATED const File & | getFStatFile () const |
| The const version. Does not allow for any editing of the File::fStatFile. More... | |
| MERCURYDPM_DEPRECATED const File & | getRestartFile () const |
| The const version. Does not allow for any editing of the File::restartFile. More... | |
| MERCURYDPM_DEPRECATED const File & | getStatFile () const |
| The const version. Does not allow for any editing of the File::statFile. More... | |
| const File & | getInteractionFile () const |
| Returns a constant reference to an Interactions file. More... | |
| const std::string & | getName () const |
| Returns the name of the file. Does not allow to change it though. More... | |
| void | setName (const std::string &name) |
| Allows to set the name of all the files (ene, data, fstat, restart, stat) More... | |
| void | setName (const char *name) |
| Calls setName(std::string) More... | |
| void | setSaveCount (unsigned int saveCount) |
| Sets File::saveCount_ for all files (ene, data, fstat, restart, stat) More... | |
| void | setFileType (FileType fileType) |
| Sets File::fileType_ for all files (ene, data, fstat, restart, stat) More... | |
| void | setOpenMode (std::fstream::openmode openMode) |
| Sets File::openMode_ for all files (ene, data, fstat, restart, stat) More... | |
| void | resetFileCounter () |
| Resets the file counter for each file i.e. for ene, data, fstat, restart, stat) More... | |
| void | closeFiles () |
| Closes all files (ene, data, fstat, restart, stat) that were opened to read or write. More... | |
| void | setVTKOutputDirectory (const std::string &dir) |
| Sets the output directory of the VTK files. More... | |
| void | setLastSavedTimeStep (unsigned int nextSavedTimeStep) |
| Sets the next time step for all the files (ene, data, fstat, restart, stat) at which the data is to be written or saved. More... | |
| Mdouble | getTime () const |
| Returns the current simulation time. More... | |
| Mdouble | getNextTime () const |
| Returns the current simulation time. More... | |
| unsigned int | getNumberOfTimeSteps () const |
| Returns the current counter of time-steps, i.e. the number of time-steps that the simulation has undergone so far. More... | |
| void | setTime (Mdouble time) |
| Sets a new value for the current simulation time. More... | |
| void | setTimeMax (Mdouble newTMax) |
| Sets a new value for the maximum simulation duration. More... | |
| Mdouble | getTimeMax () const |
| Returns the maximum simulation duration. More... | |
| void | setLogarithmicSaveCount (Mdouble logarithmicSaveCountBase) |
| Sets File::logarithmicSaveCount_ for all files (ene, data, fstat, restart, stat) More... | |
| void | setNToWrite (int nToWrite) |
| set the number of elements to write to the screen More... | |
| int | getNToWrite () const |
| get the number of elements to write to the More... | |
| void | setRotation (bool rotation) |
| Sets whether particle rotation is enabled or disabled. More... | |
| bool | getRotation () const |
| Indicates whether particle rotation is enabled or disabled. More... | |
| MERCURYDPM_DEPRECATED void | setWallsWriteVTK (FileType writeWallsVTK) |
| Sets whether walls are written into a VTK file. More... | |
| MERCURYDPM_DEPRECATED void | setWallsWriteVTK (bool) |
| Sets whether walls are written into a VTK file. More... | |
| MERCURYDPM_DEPRECATED void | setInteractionsWriteVTK (bool) |
| Sets whether interactions are written into a VTK file. More... | |
| void | setParticlesWriteVTK (bool writeParticlesVTK) |
| Sets whether particles are written in a VTK file. More... | |
| void | setSuperquadricParticlesWriteVTK (bool writeSuperquadricParticlesVTK) |
| MERCURYDPM_DEPRECATED FileType | getWallsWriteVTK () const |
| Returns whether walls are written in a VTK file. More... | |
| bool | getParticlesWriteVTK () const |
| Returns whether particles are written in a VTK file. More... | |
| bool | getSuperquadricParticlesWriteVTK () const |
| Mdouble | getXMin () const |
| If the length of the problem domain in x-direction is XMax - XMin, then getXMin() returns XMin. More... | |
| Mdouble | getXMax () const |
| If the length of the problem domain in x-direction is XMax - XMin, then getXMax() returns XMax. More... | |
| Mdouble | getYMin () const |
| If the length of the problem domain in y-direction is YMax - YMin, then getYMin() returns YMin. More... | |
| Mdouble | getYMax () const |
| If the length of the problem domain in y-direction is YMax - YMin, then getYMax() returns XMax. More... | |
| Mdouble | getZMin () const |
| If the length of the problem domain in z-direction is ZMax - ZMin, then getZMin() returns ZMin. More... | |
| Mdouble | getZMax () const |
| If the length of the problem domain in z-direction is ZMax - ZMin, then getZMax() returns ZMax. More... | |
| Mdouble | getXCenter () const |
| Mdouble | getYCenter () const |
| Mdouble | getZCenter () const |
| Vec3D | getCenter () const |
| get center of domain More... | |
| Vec3D | getMin () const |
| Returns the minimum coordinates of the problem domain. More... | |
| Vec3D | getMax () const |
| Returns the maximum coordinates of the problem domain. More... | |
| void | setXMin (Mdouble newXMin) |
| Sets the value of XMin, the lower bound of the problem domain in the x-direction. More... | |
| void | setYMin (Mdouble newYMin) |
| Sets the value of YMin, the lower bound of the problem domain in the y-direction. More... | |
| void | setZMin (Mdouble newZMin) |
| Sets the value of ZMin, the lower bound of the problem domain in the z-direction. More... | |
| void | setXMax (Mdouble newXMax) |
| Sets the value of XMax, the upper bound of the problem domain in the x-direction. More... | |
| void | setYMax (Mdouble newYMax) |
| Sets the value of YMax, the upper bound of the problem domain in the y-direction. More... | |
| void | setZMax (Mdouble newZMax) |
| Sets the value of ZMax, the upper bound of the problem domain in the z-direction. More... | |
| void | setMax (const Vec3D &max) |
| Sets the maximum coordinates of the problem domain. More... | |
| void | setMax (Mdouble, Mdouble, Mdouble) |
| Sets the maximum coordinates of the problem domain. More... | |
| void | setDomain (const Vec3D &min, const Vec3D &max) |
| Sets the minimum coordinates of the problem domain. More... | |
| void | setMin (const Vec3D &min) |
| Sets the minimum coordinates of the problem domain. More... | |
| void | setMin (Mdouble, Mdouble, Mdouble) |
| Sets the minimum coordinates of the problem domain. More... | |
| void | setTimeStep (Mdouble newDt) |
| Sets a new value for the simulation time step. More... | |
| Mdouble | getTimeStep () const |
| Returns the simulation time step. More... | |
| void | setNumberOfOMPThreads (int numberOfOMPThreads) |
| Sets the number of omp threads. More... | |
| int | getNumberOfOMPThreads () const |
| Returns the number of omp threads. More... | |
| void | setXBallsColourMode (int newCMode) |
| Set the xballs output mode. More... | |
| int | getXBallsColourMode () const |
| Get the xballs colour mode (CMode). More... | |
| void | setXBallsVectorScale (double newVScale) |
| Set the scale of vectors in xballs. More... | |
| double | getXBallsVectorScale () const |
| Returns the scale of vectors used in xballs. More... | |
| void | setXBallsAdditionalArguments (std::string newXBArgs) |
| Set the additional arguments for xballs. More... | |
| std::string | getXBallsAdditionalArguments () const |
| Returns the additional arguments for xballs. More... | |
| void | setXBallsScale (Mdouble newScale) |
| Sets the scale of the view (either normal, zoom in or zoom out) to display in xballs. The default is fit to screen. More... | |
| double | getXBallsScale () const |
| Returns the scale of the view in xballs. More... | |
| void | setGravity (Vec3D newGravity) |
| Sets a new value for the gravitational acceleration. More... | |
| Vec3D | getGravity () const |
| Returns the gravitational acceleration. More... | |
| void | setBackgroundDrag (Mdouble backgroundDrag) |
| Simple access function to turn on a background drag. The force of particleVelocity*drag is applied (note, it allowed to be negative i.e. create energy) More... | |
| const Mdouble | getBackgroundDrag () const |
| Return the background drag. More... | |
| void | setDimension (unsigned int newDim) |
| Sets both the system dimensions and the particle dimensionality. More... | |
| void | setSystemDimensions (unsigned int newDim) |
| Sets the system dimensionality. More... | |
| unsigned int | getSystemDimensions () const |
| Returns the system dimensionality. More... | |
| void | setParticleDimensions (unsigned int particleDimensions) |
| Sets the particle dimensionality. More... | |
| unsigned int | getParticleDimensions () const |
| Returns the particle dimensionality. More... | |
| std::string | getRestartVersion () const |
| This is to take into account for different Mercury versions. Returns the version of the restart file. More... | |
| void | setRestartVersion (std::string newRV) |
| Sets restart_version. More... | |
| bool | getRestarted () const |
| Returns the flag denoting if the simulation was restarted or not. More... | |
| void | setRestarted (bool newRestartedFlag) |
| Allows to set the flag stating if the simulation is to be restarted or not. More... | |
| bool | getAppend () const |
| Returns whether the "append" option is on or off. More... | |
| void | setAppend (bool newAppendFlag) |
| Sets whether the "append" option is on or off. More... | |
| Mdouble | getElasticEnergy () const |
| Returns the global elastic energy within the system. More... | |
| Mdouble | getKineticEnergy () const |
| Returns the global kinetic energy stored in the system. More... | |
| Mdouble | getGravitationalEnergy (Vec3D origin={0, 0, 0}) const |
| Returns the global gravitational potential energy stored relative to a user-defined origin in the system. Note, if no origin is specified the real origin i.e. (0,0,0) is taken. More... | |
| Mdouble | getRotationalEnergy () const |
| Returns the global rotational energy stored in the system. More... | |
| Mdouble | getTotalEnergy () const |
| Mdouble | getTotalMass () const |
| JMFT: Return the total mass of the system, excluding fixed particles. More... | |
| Vec3D | getCentreOfMass () const |
| JMFT: Return the centre of mass of the system, excluding fixed particles. More... | |
| Vec3D | getTotalMomentum () const |
| JMFT: Return the total momentum of the system, excluding fixed particles. More... | |
| double | getCPUTime () |
| double | getWallTime () |
| virtual void | hGridInsertParticle (BaseParticle *obj UNUSED) |
| virtual void | hGridUpdateParticle (BaseParticle *obj UNUSED) |
| virtual void | hGridRemoveParticle (BaseParticle *obj UNUSED) |
| bool | mpiIsInCommunicationZone (BaseParticle *particle) |
| Checks if the position of the particle is in an mpi communication zone or not. More... | |
| bool | mpiInsertParticleCheck (BaseParticle *P) |
| Function that checks if the mpi particle should really be inserted by the current domain. More... | |
| void | insertGhostParticle (BaseParticle *P) |
| This function inserts a particle in the mpi communication boundaries. More... | |
| void | updateGhostGrid (BaseParticle *P) |
| Checks if the Domain/periodic interaction distance needs to be updated and updates it accordingly. More... | |
| virtual void | gatherContactStatistics (unsigned int index1, int index2, Vec3D Contact, Mdouble delta, Mdouble ctheta, Mdouble fdotn, Mdouble fdott, Vec3D P1_P2_normal_, Vec3D P1_P2_tangential) |
| //Not unsigned index because of possible wall collisions. More... | |
| void | setNumberOfDomains (std::vector< unsigned > direction) |
| Sets the number of domains in x-,y- and z-direction. Required for parallel computations. More... | |
| void | splitDomain (DomainSplit domainSplit) |
| std::vector< unsigned > | getNumberOfDomains () |
| returns the number of domains More... | |
| Domain * | getCurrentDomain () |
| Function that returns a pointer to the domain corresponding to the processor. More... | |
| void | removeOldFiles () const |
| void | setMeanVelocity (Vec3D V_mean_goal) |
| This function will help you set a fixed kinetic energy and mean velocity in your system. More... | |
| void | setMeanVelocityAndKineticEnergy (Vec3D V_mean_goal, Mdouble Ek_goal) |
| This function will help you set a fixed kinetic energy and mean velocity in your system. More... | |
| Mdouble | getTotalVolume () const |
| Get the total volume of the cuboid system. More... | |
| Matrix3D | getKineticStress () const |
| Calculate the kinetic stress tensor in the system averaged over the whole volume. More... | |
| Matrix3D | getStaticStress () const |
| Calculate the static stress tensor in the system averaged over the whole volume. More... | |
| Matrix3D | getTotalStress () const |
| Calculate the total stress tensor in the system averaged over the whole volume. More... | |
| virtual void | handleParticleRemoval (unsigned int id) |
| Handles the removal of particles from the particleHandler. More... | |
| virtual void | handleParticleAddition (unsigned int id, BaseParticle *p) |
| Handles the addition of particles to the particleHandler. More... | |
| void | writePythonFileForVTKVisualisation () const |
| writes .py file for ParaView More... | |
| void | setWritePythonFileForVTKVisualisation (bool forceWritePythonFileForVTKVisualisation) |
| bool | getWritePythonFileForVTKVisualisation () const |
| WallVTKWriter & | getWallVTKWriter () |
Protected Member Functions | |
| void | addHopper () |
| This creates the hopper on top of the chute, see diagram in class description for details of the points. More... | |
| Protected Member Functions inherited from Chute | |
| void | actionsBeforeTimeStep () override |
| Calls Chute::cleanChute(). More... | |
| void | cleanChute () |
| Deletes all outflow particles once every 100 time steps. More... | |
| virtual void | createBottom () |
| Creates the chute bottom, which can be either flat or one of three flavours of rough. More... | |
| virtual void | addFlowParticlesCompactly () |
| Add initial flow particles in a dense packing. More... | |
| virtual SphericalParticle | createFlowParticle () |
| void | printTime () const override |
| prints time, max time and number of particles More... | |
| Protected Member Functions inherited from Mercury3D | |
| void | hGridFindContactsWithinTargetCell (int x, int y, int z, unsigned int l) |
| Finds contacts between particles in the target cell. More... | |
| void | hGridFindContactsWithTargetCell (int x, int y, int z, unsigned int l, BaseParticle *obj) |
| Finds contacts between the BaseParticle and the target cell. More... | |
| void | computeWallForces (BaseWall *w) override |
| Compute contacts with a wall. More... | |
| void | hGridFindParticlesWithTargetCell (int x, int y, int z, unsigned int l, BaseParticle *obj, std::vector< BaseParticle * > &list) |
| Finds particles within target cell and stores them in a list. More... | |
| void | hGridGetInteractingParticleList (BaseParticle *obj, std::vector< BaseParticle * > &list) override |
| Obtains all neighbour particles of a given object, obtained from the hgrid. More... | |
| void | computeInternalForces (BaseParticle *obj) override |
| Finds contacts with the BaseParticle; avoids multiple checks. More... | |
| bool | hGridHasContactsInTargetCell (int x, int y, int z, unsigned int l, const BaseParticle *obj) const |
| Tests if the BaseParticle has contacts with other Particles in the target cell. More... | |
| bool | hGridHasParticleContacts (const BaseParticle *obj) override |
| Tests if a BaseParticle has any contacts in the HGrid. More... | |
| void | hGridRemoveParticle (BaseParticle *obj) override |
| Removes a BaseParticle from the HGrid. More... | |
| void | hGridUpdateParticle (BaseParticle *obj) override |
| Updates the cell (not the level) of a BaseParticle. More... | |
| Protected Member Functions inherited from MercuryBase | |
| void | hGridRebuild () |
| This sets up the parameters required for the contact model. More... | |
| void | hGridInsertParticle (BaseParticle *obj) final |
| Inserts a single Particle to current grid. More... | |
| void | hGridUpdateMove (BaseParticle *iP, Mdouble move) final |
| Computes the relative displacement of the given BaseParticle and updates the currentMaxRelativeDisplacement_ accordingly. More... | |
| void | hGridActionsBeforeIntegration () override |
| Resets the currentMaxRelativeDisplacement_ to 0. More... | |
| void | hGridActionsAfterIntegration () override |
| This function has to be called before integrateBeforeForceComputation. More... | |
| HGrid * | getHGrid () |
| Gets the HGrid used by this problem. More... | |
| const HGrid * | getHGrid () const |
| Gets the HGrid used by this problem, const version. More... | |
| bool | readNextArgument (int &i, int argc, char *argv[]) override |
| Reads the next command line argument. More... | |
| Protected Member Functions inherited from DPMBase | |
| virtual void | computeAllForces () |
| Computes all the forces acting on the particles using the BaseInteractable::setForce() and BaseInteractable::setTorque() More... | |
| virtual void | computeInternalForce (BaseParticle *, BaseParticle *) |
| Computes the forces between two particles (internal in the sense that the sum over all these forces is zero i.e. fully modelled forces) More... | |
| virtual void | computeExternalForces (BaseParticle *) |
| Computes the external forces, such as gravity, acting on particles. More... | |
| virtual void | computeForcesDueToWalls (BaseParticle *, BaseWall *) |
| Computes the forces on the particles due to the walls (normals are outward normals) More... | |
| virtual void | actionsOnRestart () |
| A virtual function where the users can add extra code which is executed only when the code is restarted. More... | |
| virtual void | actionsBeforeTimeLoop () |
| A virtual function. Allows one to carry out any operations before the start of the time loop. More... | |
| virtual void | computeAdditionalForces () |
| A virtual function which allows to define operations to be executed prior to the OMP force collect. More... | |
| virtual void | actionsAfterSolve () |
| A virtual function which allows to define operations to be executed after the solve(). More... | |
| virtual void | actionsAfterTimeStep () |
| A virtual function which allows to define operations to be executed after time step. More... | |
| void | writeVTKFiles () const |
| virtual void | outputXBallsData (std::ostream &os) const |
| This function writes the location of the walls and particles in a format the XBalls program can read. For more information on the XBalls program, see Visualising data in xballs. More... | |
| virtual void | outputXBallsDataParticle (unsigned int i, unsigned int format, std::ostream &os) const |
| This function writes out the particle locations into an output stream in a format the XBalls program can read. For more information on the XBalls program, see Visualising data in xballs. More... | |
| virtual void | writeEneHeader (std::ostream &os) const |
| Writes a header with a certain format for ENE file. More... | |
| virtual void | writeFstatHeader (std::ostream &os) const |
| Writes a header with a certain format for FStat file. More... | |
| virtual void | writeEneTimeStep (std::ostream &os) const |
| Write the global kinetic, potential energy, etc. in the system. More... | |
| virtual void | initialiseStatistics () |
| virtual void | outputStatistics () |
| void | gatherContactStatistics () |
| virtual void | processStatistics (bool) |
| virtual void | finishStatistics () |
| virtual void | integrateBeforeForceComputation () |
| Update particles' and walls' positions and velocities before force computation. More... | |
| virtual void | integrateAfterForceComputation () |
| Update particles' and walls' positions and velocities after force computation. More... | |
| virtual void | checkInteractionWithBoundaries () |
| There are a range of boundaries one could implement depending on ones' problem. This methods checks for interactions between particles and such range of boundaries. See BaseBoundary.h and all the boundaries in the Boundaries folder. More... | |
| void | setFixedParticles (unsigned int n) |
Sets a number, n, of particles in the particleHandler as "fixed particles". More... | |
| virtual bool | continueSolve () const |
| A virtual function for deciding whether to continue the simulation, based on a user-specified criterion. More... | |
| void | outputInteractionDetails () const |
| Displays the interaction details corresponding to the pointer objects in the interaction handler. More... | |
| bool | isTimeEqualTo (Mdouble time) const |
| Checks whether the input variable "time" is the current time in the simulation. More... | |
| void | removeDuplicatePeriodicParticles () |
| Removes periodic duplicate Particles. More... | |
| void | checkAndDuplicatePeriodicParticles () |
| For simulations using periodic boundaries, checks and adds particles when necessary into the particle handler. See DPMBase.cc and PeriodicBoundary.cc for more details. More... | |
| void | performGhostParticleUpdate () |
| When the Verlet scheme updates the positions and velocities of particles, ghost particles will need an update as wel. Their status will also be updated accordingly. More... | |
| void | deleteGhostParticles (std::set< BaseParticle * > &particlesToBeDeleted) |
| void | synchroniseParticle (BaseParticle *, unsigned fromProcessor=0) |
| void | performGhostVelocityUpdate () |
| updates the final time-step velocity of the ghost particles More... | |
| void | disableSoftStop () |
| This prevents the initialisation of the soft stop feature. More... | |
| void | discontinueSolve () |
| This discontinues the solve loop after the current time step is finished. More... | |
Private Member Functions | |
| void | constructor () |
| This is the actually constructor, get called by all constructors above. More... | |
Private Attributes | |
| Mdouble | hopperLength_ |
| Dimension of the hopper in vertical direction. More... | |
| Mdouble | hopperHeight_ |
| Dimension of the hopper in horizontal direction. More... | |
| Mdouble | hopperAngle_ |
| Angle between the two pieces of the hopper walls. More... | |
| Mdouble | hopperExitLength_ |
| Dimension of the hopper exit in vertical direction. More... | |
| Mdouble | hopperExitHeight_ |
| Dimension of the hopper exit in vertical direction. More... | |
| Mdouble | hopperShift_ |
| The x position where the Chute starts (defined as the beginning of the hopper) More... | |
| Mdouble | hopperLowerFillingHeight_ |
| Relative height (in [0,1)) above which the hopper is replenished with new particles. More... | |
| bool | isHopperCentred_ |
| If this flag is set, the hopper will be constructed in the xy-center of the domain, and not next to the xmin-domain boundary; by default off. More... | |
| Mdouble | hopperLift_ |
| This is the vertical distance the chute is lifted above the plane. More... | |
| unsigned int | hopperDimension_ |
| This is the dimension of the hopper, my default it is one dimensional and hence does not have side wall. More... | |
| bool | isHopperAlignedWithBottom_ |
| This is the flag, which sets if the chute bottom is aligned with the hopper, by default it is. More... | |
| Mdouble | hopperFillingPercentage_ |
| This is which percentage of the hopper is used for creating new partices;. More... | |
| Mdouble | hopperLowestPoint_ |
| The NEGATIVE z coordinate of the right C point (when the left C point is in the origin) More... | |
Additional Inherited Members | |
| Public Types inherited from DPMBase | |
| enum class | ReadOptions : int { ReadAll , ReadNoInteractions , ReadNoParticlesAndInteractions } |
| enum class | DomainSplit { X , Y , Z , XY , XZ , YZ , XYZ } |
| Static Public Member Functions inherited from DPMBase | |
| static void | incrementRunNumberInFile () |
| Increment the run Number (counter value) stored in the file_counter (COUNTER_DONOTDEL) by 1 and store the new value in the counter file. More... | |
| static int | readRunNumberFromFile () |
| Read the run number or the counter from the counter file (COUNTER_DONOTDEL) More... | |
| static bool | areInContact (const BaseParticle *pI, const BaseParticle *pJ) |
| Checks if two particle are in contact or is there any positive overlap. More... | |
| Public Attributes inherited from DPMBase | |
| SpeciesHandler | speciesHandler |
| A handler to that stores the species type i.e. LinearViscoelasticSpecies, etc. More... | |
| RNG | random |
| This is a random generator, often used for setting up the initial conditions etc... More... | |
| ParticleHandler | particleHandler |
| An object of the class ParticleHandler, contains the pointers to all the particles created. More... | |
| ParticleHandler | paoloParticleHandler |
| Fake particleHandler created by Paolo needed temporary by just Paolo. More... | |
| WallHandler | wallHandler |
| An object of the class WallHandler. Contains pointers to all the walls created. More... | |
| BoundaryHandler | boundaryHandler |
| An object of the class BoundaryHandler which concerns insertion and deletion of particles into or from regions. More... | |
| PeriodicBoundaryHandler | periodicBoundaryHandler |
| Internal handler that deals with periodic boundaries, especially in a parallel build. More... | |
| DomainHandler | domainHandler |
| An object of the class DomainHandler which deals with parallel code. More... | |
| InteractionHandler | interactionHandler |
| An object of the class InteractionHandler. More... | |
| CGHandler | cgHandler |
| Object of the class cgHandler. More... | |
| File | dataFile |
| An instance of class File to handle in- and output into a .data file. More... | |
| File | fStatFile |
| An instance of class File to handle in- and output into a .fstat file. More... | |
| File | eneFile |
| An instance of class File to handle in- and output into a .ene file. More... | |
| File | restartFile |
| An instance of class File to handle in- and output into a .restart file. More... | |
| File | statFile |
| An instance of class File to handle in- and output into a .stat file. More... | |
| File | interactionFile |
| File class to handle in- and output into .interactions file. This file hold information about interactions. More... | |
| Time | clock_ |
| record when the simulation started More... | |
ChuteWithHopper has a hopper as inflow.
The hopper has two parts as follows to create the finite hopper walls, we take vector between two wall points in xz-plane, then rotate clockwise and make unit length.
A,B,C denote three points on the left and right hopper walls which are used to construct the hopper. Shift denotes the space by which the chute has to be shifted to the right such that the hopper is in the domain. Note: the wall direction has to be set separately either period of walls.
|
explicit |
This is a copy constructor for Chute problems.
Copy constructor with a Chute object as an argument. This constructor basically 'upgrades' the Chute object to one of the ChuteWithHopper class. NB: The copy constructor of DPMBase has to be called because the link from DPMBase to MercuryBase is virtual.
| [in] | other | object of Chute class |
References constructor().
|
explicit |
Copy constructor, converts an existing Mercury3D object into a ChuteWithHopper object.
Copy constructor with a Mercury3D object as an argument. This constructor basically 'upgrades' the Mercury3D object to one of the ChuteWithHopper class. NB: The copy constructor of DPMBase has to be called because the link from DPMBase to MercuryBase is virtual.
| [in] | other | object of Mercury3D class |
References constructor().
|
explicit |
Copy constructor, converts an existing MercuryBase object into a ChuteWithHopper object.
Copy constructor with a MercuryBase object as an argument. This constructor basically 'upgrades' the MercuryBase object to one of the ChuteWithHopper class. NB: The copy constructor of DPMBase has to be called because the link from DPMBase to MercuryBase is virtual.
| [in] | other | object of MercuryBase class |
References constructor().
|
explicit |
Copy constructor, converts an existing DPMBase object into a ChuteWithHopper object.
Copy constructor with a DPMBase object as an argument. This constructor basically 'upgrades' the DPMBase object to one of the ChuteWithHopper class. NB: The copy constructor of DPMBase has to be called because the link from DPMBase to MercuryBase is virtual.
| [in] | other | object of DPMBase class |
References constructor().
| ChuteWithHopper::ChuteWithHopper | ( | ) |
This is the default constructor.
Default constructor. Calls the constructor() method.
References constructor().
|
protected |
This creates the hopper on top of the chute, see diagram in class description for details of the points.
Creates the actual hopper and rotates it so as to fit in a geometry in which the chute is parallel to the X-axis.
References IntersectionOfWalls::addObject(), calibrate::c, BaseHandler< T >::copyAndAddObject(), mathsFunc::cos(), Vec3D::cross(), Chute::getChuteAngle(), Vec3D::getLengthSquared(), BaseHandler< T >::getObject(), DPMBase::getYMax(), DPMBase::getYMin(), hopperDimension_, hopperExitHeight_, hopperExitLength_, hopperHeight_, hopperLength_, hopperLift_, hopperLowestPoint_, hopperShift_, isHopperCentred_, WallFunction::normal(), DPMBase::particleHandler, s, setHopperShift(), IntersectionOfWalls::setSpecies(), DPMBase::setZMax(), mathsFunc::sin(), DPMBase::speciesHandler, sqrt(), mathsFunc::tan(), DPMBase::wallHandler, Vec3D::X, and Vec3D::Z.
Referenced by setupInitialConditions().
|
private |
This is the actually constructor, get called by all constructors above.
constructor METHOD, which sets all ChuteWithHopper properties to something sensible.
References hopperDimension_, hopperFillingPercentage_, hopperLift_, hopperLowerFillingHeight_, hopperShift_, isHopperAlignedWithBottom_, isHopperCentred_, and setHopper().
Referenced by ChuteWithHopper().
| Mdouble ChuteWithHopper::getChuteLength | ( | ) | const |
Allows chute length to be accessed.
Returns the length of the chute. The start of the view, at x = 0, is hopperShift_ to the left of the start of the chute.
References DPMBase::getXMax(), and hopperShift_.
Referenced by AngleOfRepose::actionsBeforeTimeStep(), AngleOfRepose::create_inflow_particle(), and AngleOfRepose::setupInitialConditions().
| Mdouble ChuteWithHopper::getHopperAngle | ( | ) | const |
Returns the angle of the hopper entrance relative to the vertical.
Returns the hopper angle (relative to the vertical) in RADIANS
References hopperAngle_.
Referenced by SegregationWithHopper::create_inflow_particle().
Returns whether the hopper has vertical (1) or inclined (2) walls in Y-direction.
Returns the hopperDimension_ property, which determines whether the hopper entrance walls in the Y-direction are inclined (2) or vertical (1).
References hopperDimension_.
| Mdouble ChuteWithHopper::getHopperExitHeight | ( | ) | const |
Returns the height of the lowest hopper point above the chute.
Returns the (vertical) height of the lowest point of the hopper (hopperLowestPoint_) above the (inclined) chute bottom
References hopperExitHeight_.
| Mdouble ChuteWithHopper::getHopperExitLength | ( | ) | const |
Returns the width of the hopper exit.
Returns the width of the (rectangular) hopper exit
References hopperExitLength_.
Referenced by SegregationWithHopper::create_inflow_particle().
| Mdouble ChuteWithHopper::getHopperFillingPercentage | ( | ) | const |
Returns the vertical percentage of the hopper insertion boundary which is filled.
Returns the percentage of the height of the hopper insertion boundary up to which it should be filled. The part to be filled reaches from the top of the hopper down to {fillPercent * (top - 'position A')}. See also the documentation of the HopperInsertionBoundary class.
References hopperFillingPercentage_.
| Mdouble ChuteWithHopper::getHopperHeight | ( | ) | const |
Returns the height of the hopper relative to the chute start.
Returns the (vertical) height of the hopper relative to the start of the chute
References hopperHeight_.
Referenced by SegregationWithHopper::create_inflow_particle().
| Mdouble ChuteWithHopper::getHopperLength | ( | ) | const |
Returns the width of the hopper entrance.
Returns the horizontal width of the hopper input (at the top of the hopper)
References hopperLength_.
Referenced by SegregationWithHopper::create_inflow_particle().
| Mdouble ChuteWithHopper::getHopperLift | ( | ) | const |
Returns the hopper's lift above the chute bottom plane.
Returns the amount the hopper is lifted above the X-axis (in Z-direction, i.e. AFTER rotation of the system to have the chute parallel to the X-axis)
References hopperLift_.
| Mdouble ChuteWithHopper::getHopperLowestPoint | ( | ) | const |
Returns the vertical distance of the lowest hopper point relative to the start of the chute.
References hopperLowestPoint_.
Referenced by setHopper().
| Mdouble ChuteWithHopper::getHopperShift | ( | ) | const |
Returns the shift in X-direction of the whole setup after rotation.
Returns the distance the whole setup is shifted in the X-direction relative from the position at which the start of the CHUTE is at X = 0.
References hopperShift_.
| bool ChuteWithHopper::getIsHopperCentred | ( | ) | const |
Returns whether the setup is shifted another 40 units in X-direction.
Returns the isHopperCentered_ property, which determines whether the whole setup is shifted another 40 units of length in the X-direction. See also ChuteWithHopper::addHopper().
References isHopperCentred_.
| Mdouble ChuteWithHopper::getMaximumVelocityInducedByGravity | ( | ) | const |
Returns the theoretical maximum particle velocity due to gravity.
Returns the maximum velocity a particle could theoretically reach by gravity, would it fall from the top of the hopper straight to the bottom of the system.
References Chute::getChuteAngle(), DPMBase::getGravity(), DPMBase::getXMax(), Global_Physical_Variables::height(), hopperHeight_, hopperShift_, mathsFunc::sin(), and sqrt().
Referenced by getTimeStepRatio().
| Mdouble ChuteWithHopper::getTimeStepRatio | ( | ) | const |
Returns smallest particle radius over maximum gravitational velocity.
Returns the ratio of minimum particle radius over maximum distance travelled per time step due to gravitational acceleration, and returns a warning when this is smaller then a certain threshold.
References getMaximumVelocityInducedByGravity(), Chute::getMinInflowParticleRadius(), DPMBase::getTimeStep(), logger, Global_Parameters::rmin, and WARN.
Referenced by setupInitialConditions().
|
overridevirtual |
Reads setup properties from an istream.
Reads the setup properties from an istream
| [in,out] | is | the istream |
Reimplemented from Chute.
References hopperAngle_, hopperExitHeight_, hopperExitLength_, hopperHeight_, hopperLength_, hopperShift_, and Chute::read().
Reads setup properties from a string.
this reads parameters from a string.
| [in] | i | the index of the input parameter to be read |
| [in] | argc | number of input parameters |
| [in] | argv[] | pointer to the (first character of the) actual string |
Reimplemented from Chute.
References hopperAngle_, hopperExitHeight_, hopperExitLength_, hopperHeight_, hopperLength_, hopperLift_, hopperLowerFillingHeight_, hopperShift_, i, isHopperAlignedWithBottom_, isHopperCentred_, and Chute::readNextArgument().
|
overridevirtual |
sets xMax to chuteLength+hopperlength_, and thus specifies the length off the runoff chute
Sets xMax_ such that the total chute length matches the argument.
| [in] | chuteLength | The chute length according to which xMax is to be adapted |
Reimplemented from Chute.
References hopperShift_, logger, DPMBase::setXMax(), DPMBase::setXMin(), and WARN.
Referenced by AngleOfRepose::AngleOfRepose().
| void ChuteWithHopper::setHopper | ( | Mdouble | exitLength, |
| Mdouble | exitHeight, | ||
| Mdouble | angle, | ||
| Mdouble | length, | ||
| Mdouble | height | ||
| ) |
Sets the hopper's geometrical properties.
Sets all the geometrical properties of the hopper at once
| [in] | exitLength | Horizontal width of the (rectangular) hopper exit |
| [in] | exitHeight | The vertical position of the lowest point of the right side of the hopper relative to the chute bottom |
| [in] | angle | The angle of the hopper inlet, relative to the vertical (in DEGREES) |
| [in] | length | Horizontal width of the hopper entrance (i.e., at the top of the hopper) |
| [in] | height | The (vertical) height of the hopper relative to the start of the chute |
References Jeffery_Solution::angle(), e(), ERROR, Chute::getChuteAngle(), getHopperLowestPoint(), Global_Physical_Variables::height(), hopperAngle_, hopperExitHeight_, hopperExitLength_, hopperHeight_, hopperLength_, logger, constants::pi, setHopperLowestPoint(), mathsFunc::tan(), and VERBOSE.
Referenced by constructor().
Sets whether the hopper should have vertical (1) or inclined (2) walls in Y-direction.
Sets the hopperDimension_ property, which determines whether the hopper entrance walls in the Y-direction are inclined (2) or vertical (1).
References hopperDimension_.
| void ChuteWithHopper::setHopperFillingPercentage | ( | Mdouble | hopperFillingPercentage | ) |
Sets the hopper filling percentage.
Sets the hopper filling percentage. See also the documentation of the HopperInsertionBoundary class.
| [in] | hopperFillingPercentage | Percentage of the height of the hopper insertion boundary up to which it should be filled. The part to be filled reaches from the top of the hopper down to {hopperFillingPercentage * (top - 'position A')}. |
References hopperFillingPercentage_.
| void ChuteWithHopper::setHopperLift | ( | Mdouble | hopperLift | ) |
This lifts the hopper above the plane of the chute (after rotation)
Sets the amount the hopper is lifted above the X-axis (in Z-direction, i.e. AFTER rotation of the system to have the chute parallel to the X-axis)
References hopperLift_.
| void ChuteWithHopper::setHopperLowerFillingHeight | ( | Mdouble | hopperLowerFillingHeight | ) |
Sets the height above which the hopper is filled with new particles.
Sets the relative height (in [0,1)) above which the hopper is replenished with new particles
References hopperLowerFillingHeight_.
| void ChuteWithHopper::setHopperLowestPoint | ( | Mdouble | hopperLowestPoint | ) |
Sets the vertical distance of the lowest hopper point relative to the start of the chute.
Sets the height difference between left hopper bottom (where the chute starts) and right hopper bottom (which 'hovers' above the chute).
| [in] | hopperLowestPoint | the lowest point of the right side of the hopper |
References hopperLowestPoint_.
Referenced by setHopper().
| void ChuteWithHopper::setHopperShift | ( | Mdouble | hopperShift | ) |
Sets the shift in X-direction of the whole setup after rotation.
Sets the distance the whole setup is shifted in the X-direction relative from the position at which the start of the CHUTE is at X = 0.
| [in] | hopperShift | The hopper shift to be set |
References DPMBase::getXMax(), hopperShift_, logger, DPMBase::setXMax(), and WARN.
Referenced by addHopper().
| void ChuteWithHopper::setIsHopperAlignedWithBottom | ( | bool | isHopperAlignedWithBottom | ) |
Sets the alignment of hopper with chute bottom.
This sets the flag, which determines if the chute bottom is aligned with the hopper
References isHopperAlignedWithBottom_.
| void ChuteWithHopper::setIsHopperCentred | ( | bool | isHopperCentred | ) |
Sets an extra shift in X-direction of the whole system.
Sets the isHopperCentered_ property, which determines whether the whole setup is shifted another 40 units of length in the X-direction. See also ChuteWithHopper::addHopper().
| [in] | isHopperCentred | if TRUE, the whole setup is shifted 40 units of length towards the positive X-direction. |
References isHopperCentred_.
|
overridevirtual |
Sets up the initial conditions for the problem.
Sets up the problem initial conditions:
Reimplemented from Chute.
References addHopper(), DPMBase::boundaryHandler, BaseHandler< T >::copyAndAddObject(), Chute::createBottom(), Chute::getChuteAngle(), Chute::getFixedParticleRadius(), Chute::getMaxFailed(), Chute::getMaxInflowParticleRadius(), Chute::getMinInflowParticleRadius(), BaseHandler< T >::getObject(), getTimeStepRatio(), DPMBase::getYMax(), DPMBase::getYMin(), hopperAngle_, hopperDimension_, hopperExitLength_, hopperFillingPercentage_, hopperHeight_, hopperLength_, hopperLift_, isHopperCentred_, p1, HopperInsertionBoundary::set(), PSD::setDistributionUniform(), Chute::setInsertionBoundary(), InsertionBoundary::setPSD(), Chute::setupSideWalls(), and DPMBase::speciesHandler.
Referenced by Vreman::setupInitialConditions(), and AirySavageHutter::setupInitialConditions().
|
overridevirtual |
Writes setup properties to an ostream.
Writes object's properties to an ostream
| [in] | os | the ostream |
| [in] | writeAllParticles | If TRUE, the properties of ALL particles in the particleHandler are written to the ostream. If FALSE, only the properties of the first two particles in the handler are written to the ostream (see DPMBase::write(std::ostream& os, bool writeAllParticles)). |
Reimplemented from Chute.
References hopperAngle_, hopperExitHeight_, hopperExitLength_, hopperHeight_, hopperLength_, hopperShift_, and Chute::write().
Referenced by AirySavageHutter::actionsOnRestart(), and AngleOfRepose::setupInitialConditions().
|
private |
Angle between the two pieces of the hopper walls.
Referenced by getHopperAngle(), read(), readNextArgument(), setHopper(), setupInitialConditions(), and write().
This is the dimension of the hopper, my default it is one dimensional and hence does not have side wall.
Referenced by addHopper(), constructor(), getHopperDimension(), setHopperDimension(), and setupInitialConditions().
|
private |
Dimension of the hopper exit in vertical direction.
Referenced by addHopper(), getHopperExitHeight(), read(), readNextArgument(), setHopper(), and write().
|
private |
Dimension of the hopper exit in vertical direction.
Referenced by addHopper(), getHopperExitLength(), read(), readNextArgument(), setHopper(), setupInitialConditions(), and write().
|
private |
This is which percentage of the hopper is used for creating new partices;.
Referenced by constructor(), getHopperFillingPercentage(), setHopperFillingPercentage(), and setupInitialConditions().
|
private |
Dimension of the hopper in horizontal direction.
Referenced by addHopper(), getHopperHeight(), getMaximumVelocityInducedByGravity(), read(), readNextArgument(), setHopper(), setupInitialConditions(), and write().
|
private |
Dimension of the hopper in vertical direction.
Referenced by addHopper(), getHopperLength(), read(), readNextArgument(), setHopper(), setupInitialConditions(), and write().
|
private |
This is the vertical distance the chute is lifted above the plane.
Referenced by addHopper(), constructor(), getHopperLift(), readNextArgument(), setHopperLift(), and setupInitialConditions().
|
private |
Relative height (in [0,1)) above which the hopper is replenished with new particles.
Referenced by constructor(), readNextArgument(), and setHopperLowerFillingHeight().
|
private |
The NEGATIVE z coordinate of the right C point (when the left C point is in the origin)
Referenced by addHopper(), getHopperLowestPoint(), and setHopperLowestPoint().
|
private |
The x position where the Chute starts (defined as the beginning of the hopper)
Referenced by addHopper(), constructor(), getChuteLength(), getHopperShift(), getMaximumVelocityInducedByGravity(), read(), readNextArgument(), setChuteLength(), setHopperShift(), and write().
|
private |
This is the flag, which sets if the chute bottom is aligned with the hopper, by default it is.
Referenced by constructor(), readNextArgument(), and setIsHopperAlignedWithBottom().
|
private |
If this flag is set, the hopper will be constructed in the xy-center of the domain, and not next to the xmin-domain boundary; by default off.
Referenced by addHopper(), constructor(), getIsHopperCentred(), readNextArgument(), setIsHopperCentred(), and setupInitialConditions().
1.9.1
